Superbat Car Roof Top Shark Fin Vehicle GPS Navigation System DAB+ Receiver Digital Radio USB Stick Stereo FM/AM Radio Combined
5.0 (1 votes) | 5 orders
Price:
US $236.82
Discount Price:
US $
209.46
-12%

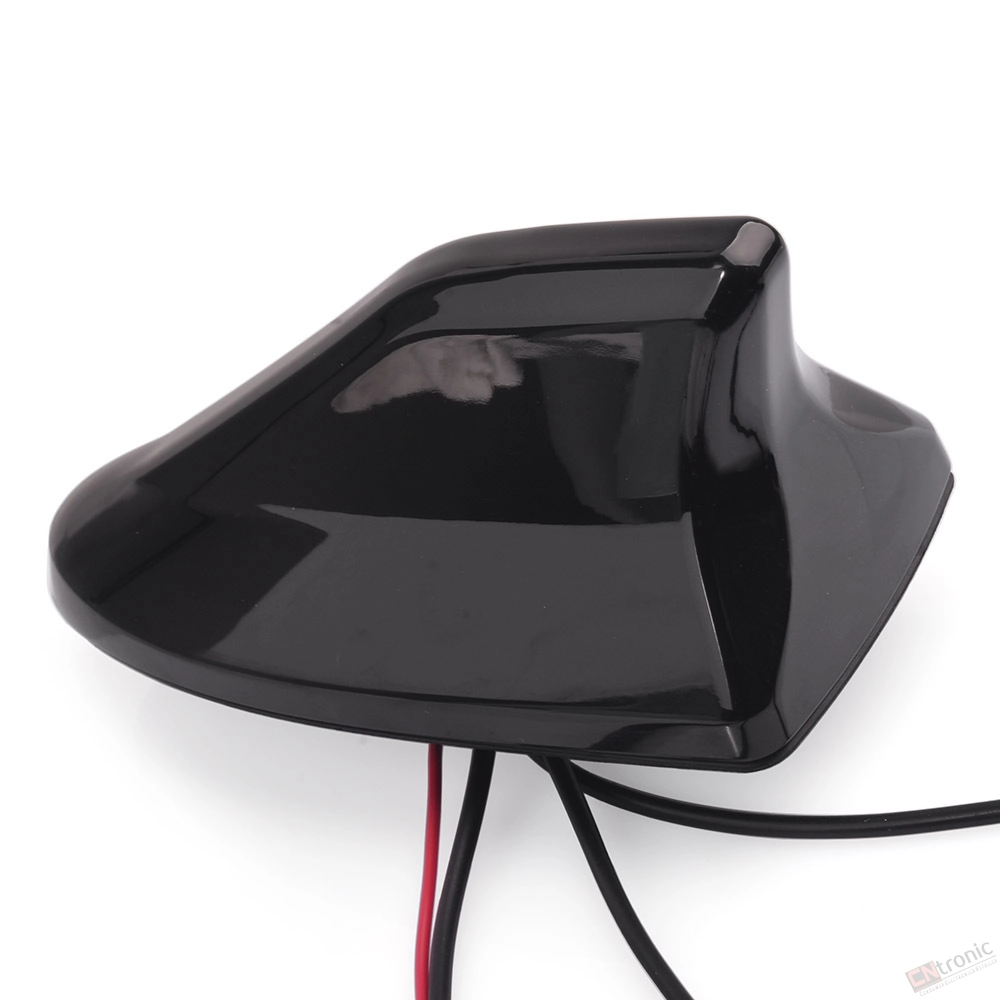

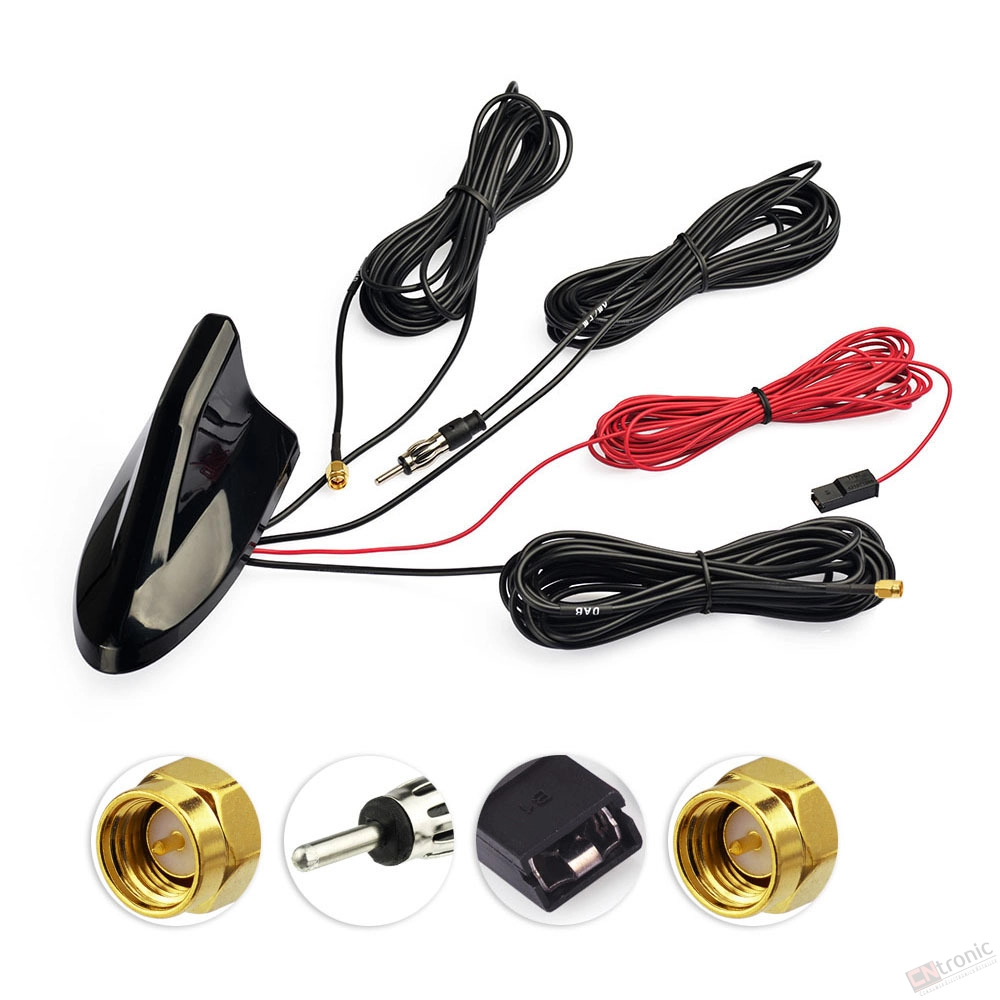

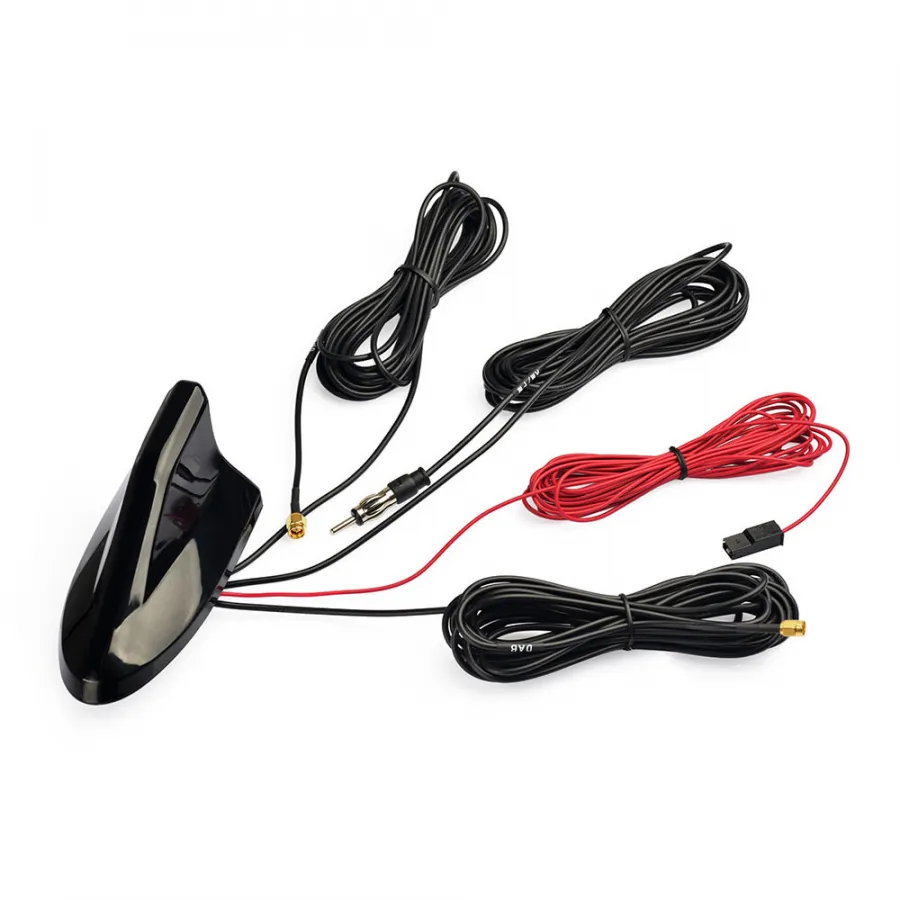

Superbat Car Roof Top Shark Fin Antenna Vehicle GPS Navigation System DAB+ Receiver Digital Radio USB Stick Car Stereo FM/AM Radio Combined Amplified Antenna
Description:
Type：Roof Mount Aerials
Feature:
1)Combine GPS, DAB and FM/AM Antenna Application.
2)Car Top Roof Thru Hole Mount.
3)5 Meters of Antenna Adapter Cable and Signal Amplifier Power Supply Cable.
4)Apply to Normal Aftermarket Car Navigation Head Unit and DAB+ Receiver and DAB+ USB Stick Tuner
FM/AM/DAB Radio Antenna Specification:
Working Voltage: DC 9V-16V
Working Current: ≤ 60mA
DAB Frequency: 170MHz～240MHz (Band III), 1452MHz～1492MHz (L-Band)
FM/AM Frequency: 522～1710KHz(AM), 87.5～108MHz(FM)
Output Gain: 18dB±3dB (Band III), 8dB ±3dB (L-Band) , 13±3dB(AM), 16±3dB(FM)
Output Impedance: 50Ω
V.S.W.R: ≤2.5:1 (FM/DAB)
Noise: ≤3dB(FM/DAB)
Cable Length: 5 meters

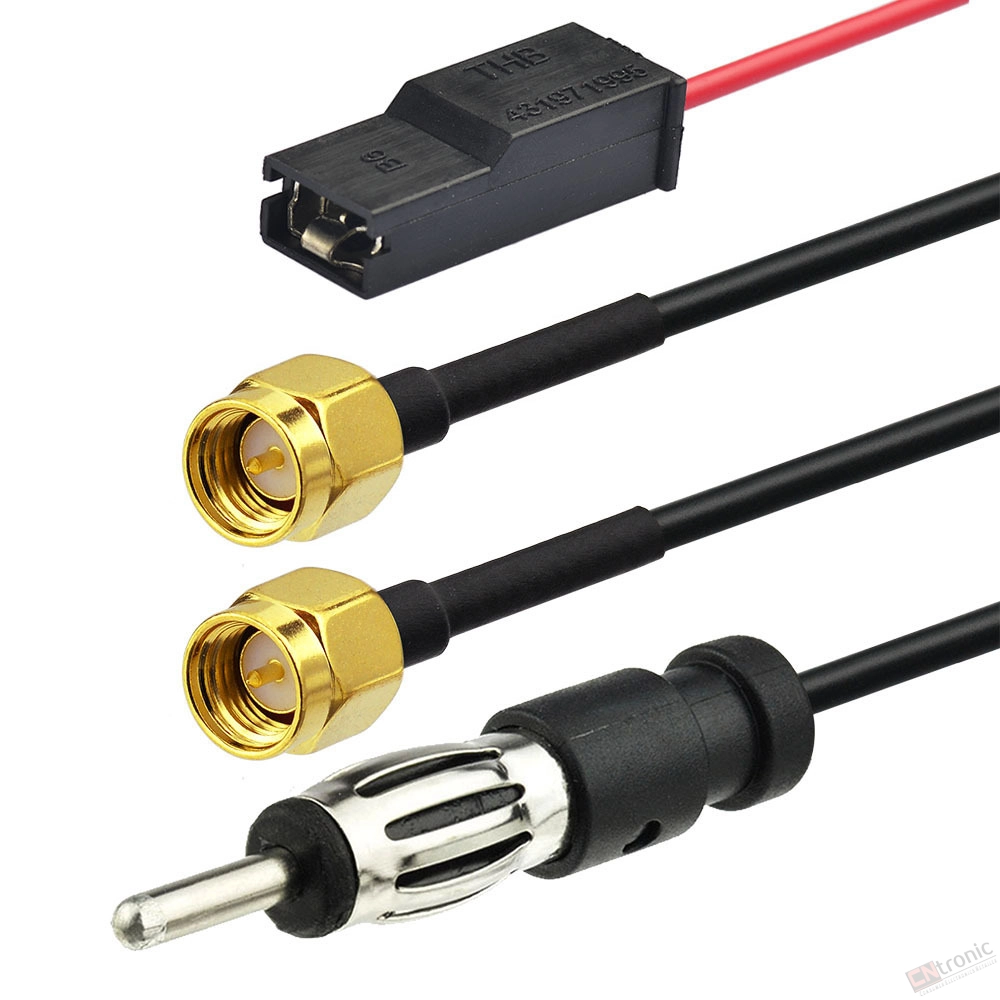

Cable Connector: Din Plug(FM/AM Radio)
SMA Male(DAB+ Receiver)
GPS Navigation Antenna Specification:
Working Voltage: DC 3V-5V
Working Current: 10mA≤I≤30mA
Frequency：1575.42 ±1.023MHz
Output Gain: 28dB±3dB
Output Impedance: 50Ω
V.S.W.R: ≤2.0:1
Noise: ≤1.5dB
Cable Length: 5 meters
Cable Connector: SMA Male/Plug(GPS)

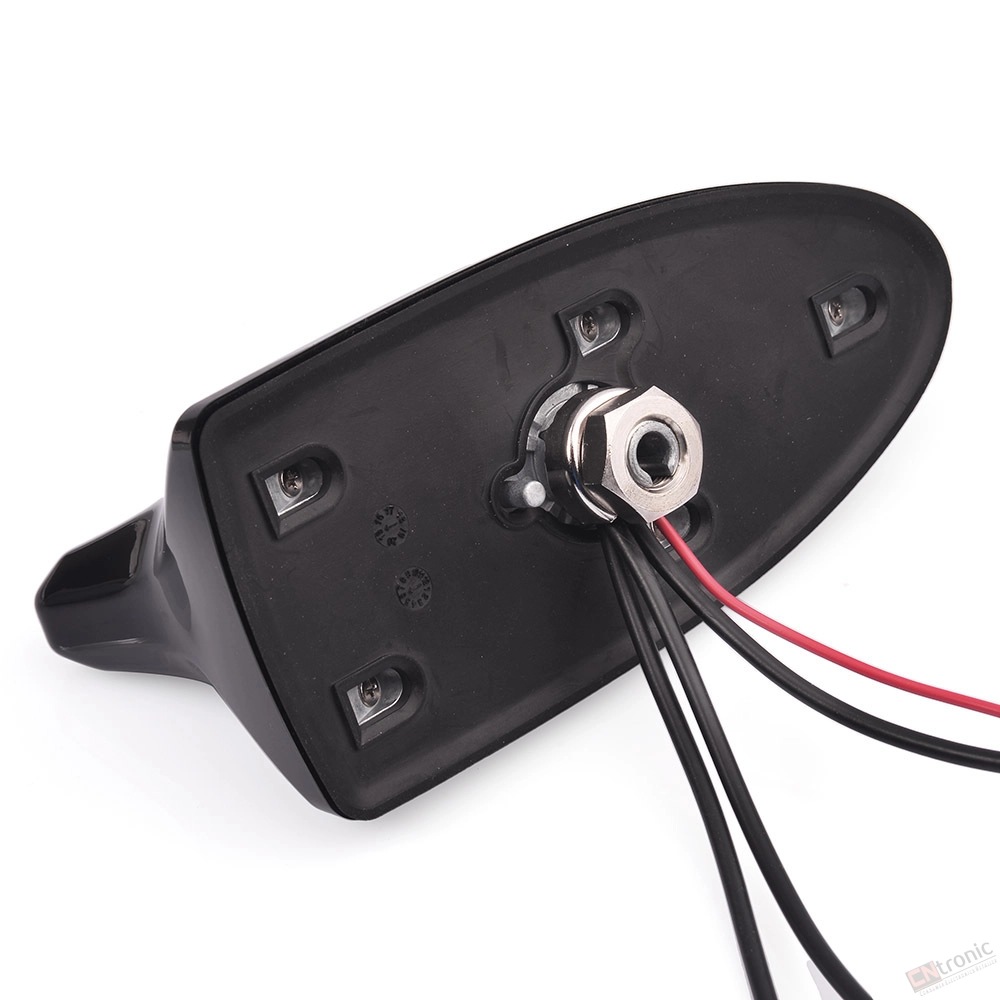

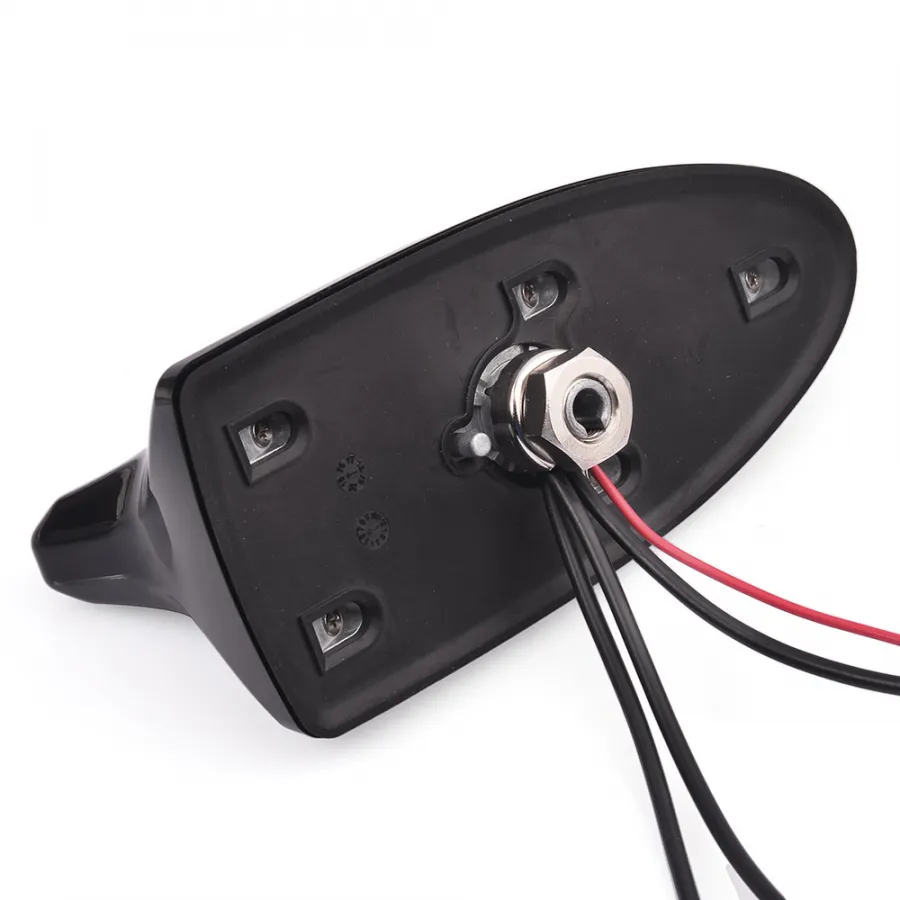

Roof Mounting: Drilling Hole Diameter 10.5mm
Dimensions (Length*Width*Height) :138.4mm * 65mm * 63mm
Net Weight: 505g
Packaging List:
1 x Antenna (Including Mounting Nut)
Packaging Details
- Unit Type:
- Package Weight: 0.050
- Package Size: 18x10x25
- Brand Name: Superbat
- Hign-concerned Chemical: None
- Origin: Mainland China
- Model Number: DB1-4609-S01SP-F04SP-S01SP-500
- Type: Coaxial Cables
- Length: 5m
- Certification: CE
- Certification: RoHS
- DAB Frequency: 170MHz-240MHz (Band III), 1452MHz-1492MHz (L-Band)
- FM/AM Frequency: 522-1710KHz(AM), 87.5-108MHz(FM)
- Output Gain: 18dB+-3dB (Band III), 8dB+-3dB (L-Band) , 13+-3dB(AM), 16+-3dB(FM)
- Output Impedance: 50 ohm
- V.S.W.R: 2.5:1 (FM/DAB)
- Noise: 3db(FM/DAB)
- Cable Length: 5M
- Cable Connector: Din Male Plug(FM/AM Radio) SMA Male(DAB+ Receiver)
- Working Voltage: DC 9V-16V
