Super Mini HXJ8002 Audio Power Amplifier Board Mono Channel Voice low noise Amplifiers Module 2.0-5.5V Replace PAM8403
5.0 (2 votes) | 16 orders
Price:
US $11.44
/ piece
Discount Price:
US $
9.95
/ piece
-13%
This module is ideally suited to adding a bit of amplification to your audio outputs. Connecting your audio inputs and a separate power 2 - 5.5V supply allows you to amplify an audio line in preparation to be connected up to a speaker. This module is ideal for situations where a device is unable to drive with sufficient volume or in instances where an audio signal has been split across multiple outputs, such as using a splitter.

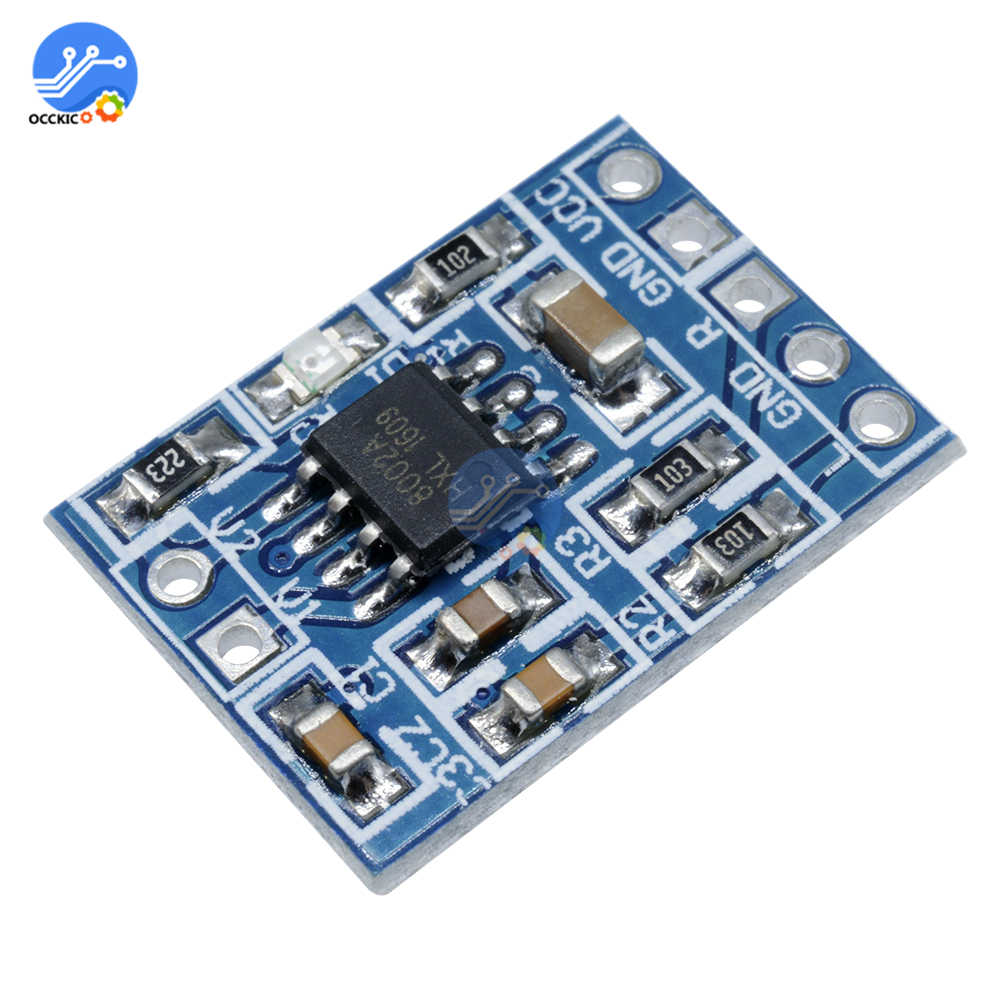

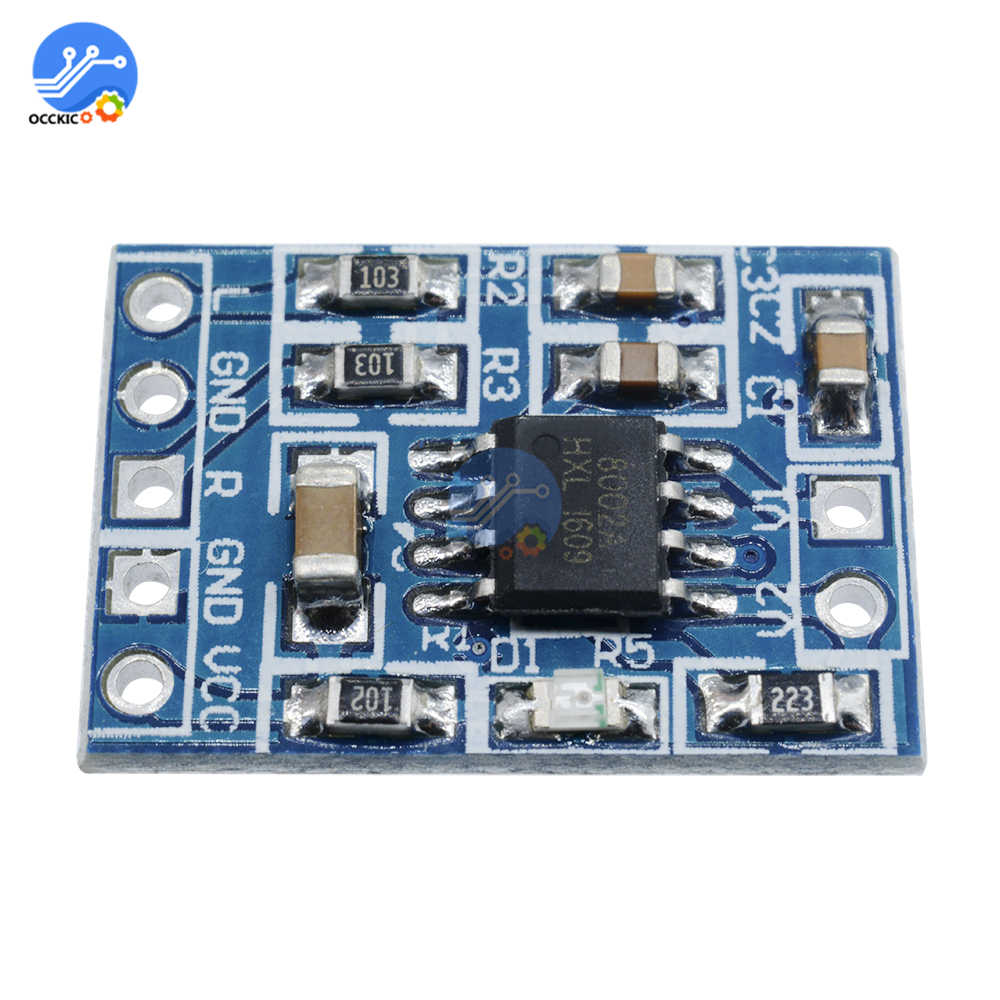

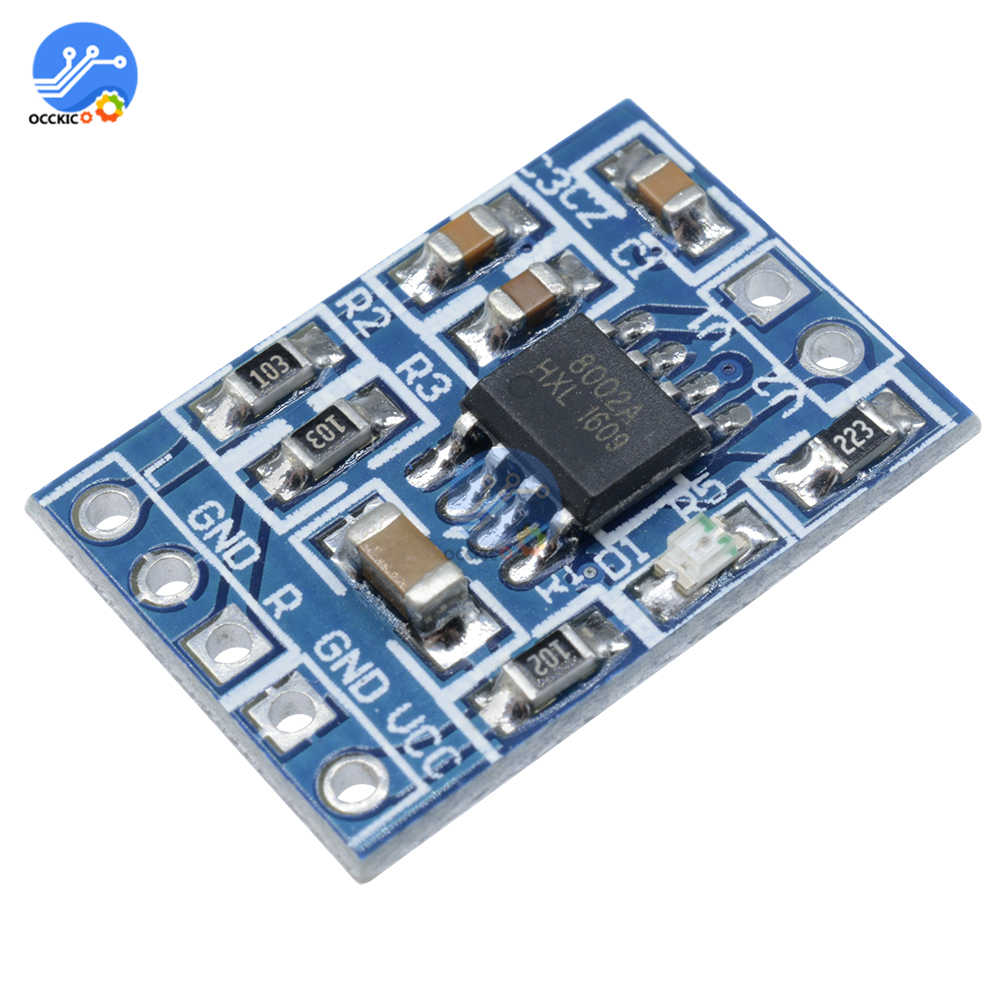

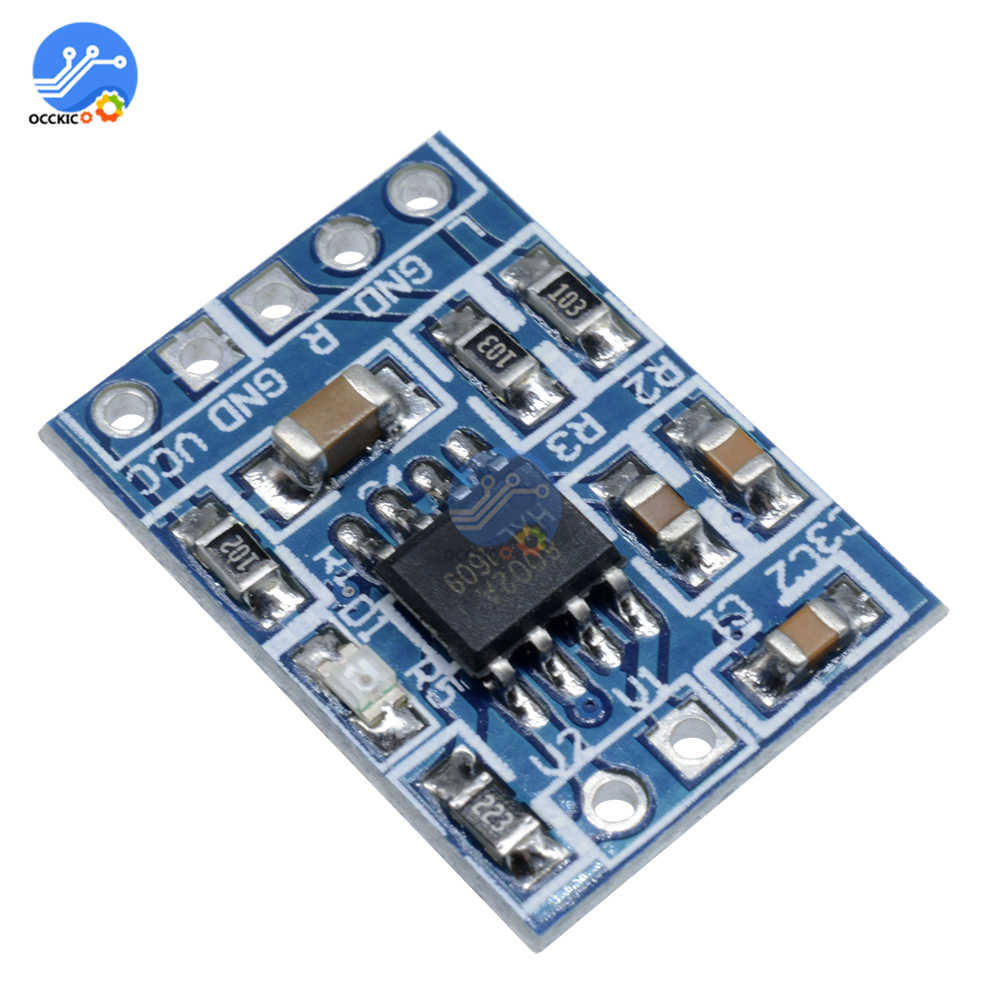

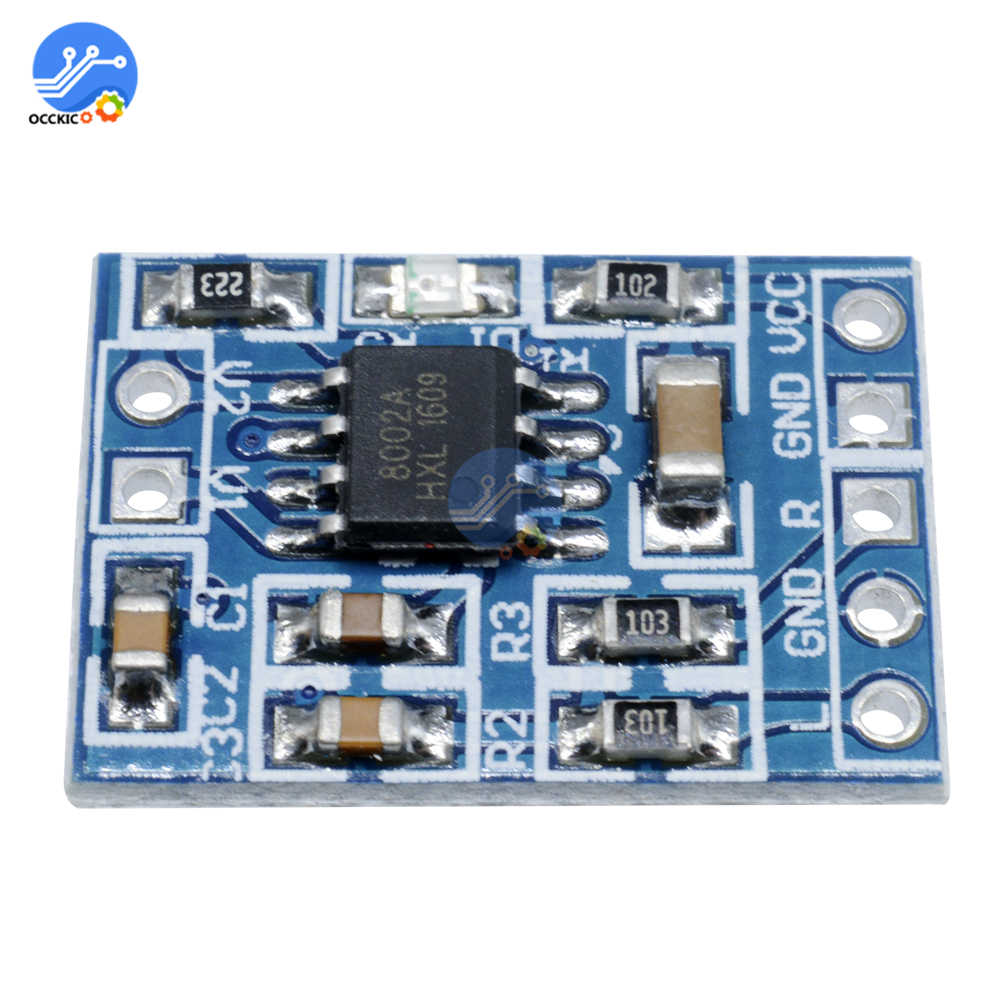

Onboard HXJ8002 single channel 3W, BTL bridge connected audio power amplifier chip.
Operating voltage: 2.0-5.5V.
Standby Current: 0.6uA (typ).
The input signal frequency is 1kHz, 8Ohm load, the average output power under 1W maximum distortion is 0.5%.
In THD + D Less than 10%, input 1KHZ frequency, different load conditions of output power (typical value): 3W (load 3Ohm); 2.5W (load 4Ohm); 1.5W (load 8Ohm).
Model: HXJ8002.
Size: 20*14*3mm(L*W*H).
Weight: 1.1g.
colour: Photo Color
Material: metal
Package Contents:
1pc * Audio amplifier module
| Pin |
Description |
| VCC |
2 - 5.5V |
| GND |
0V |
| L |
Left channel input |
| GND |
0V Input |
| R |
Right channel input |
| V1 |
Speaker connection |
| V2 |
Speaker connection |
- Package: No
- Bundle: Bundle 1
- Dimensions (WxHxD)): 20*14*3mm
- Weight: 12g
- Model Number: HXJ8002 Audio Amplifier Module
- Compatible Audio & Video Equipment Style: Amplifier
- Brand Name: occkic
- Origin: Mainland China
- Item Name: Power amplifier module board
- Operating voltage: 2.0-5.5V
- Type1: Single Channel power digital amplifiers
- Type2: Operational Amplificador
