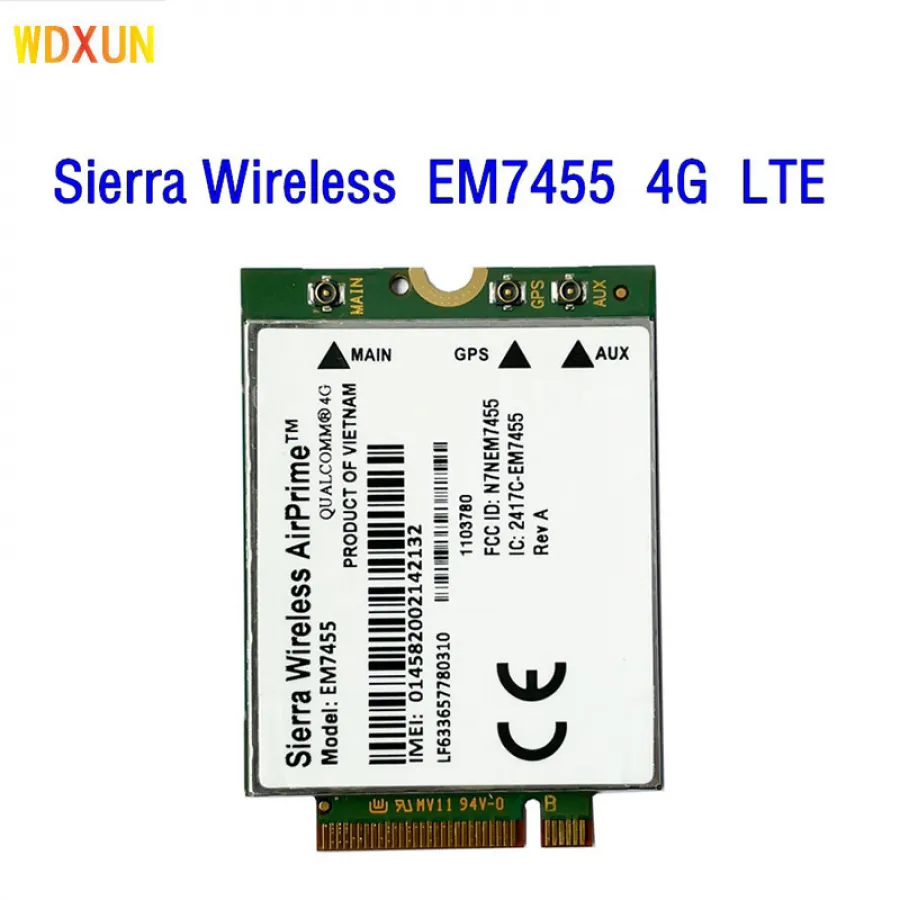

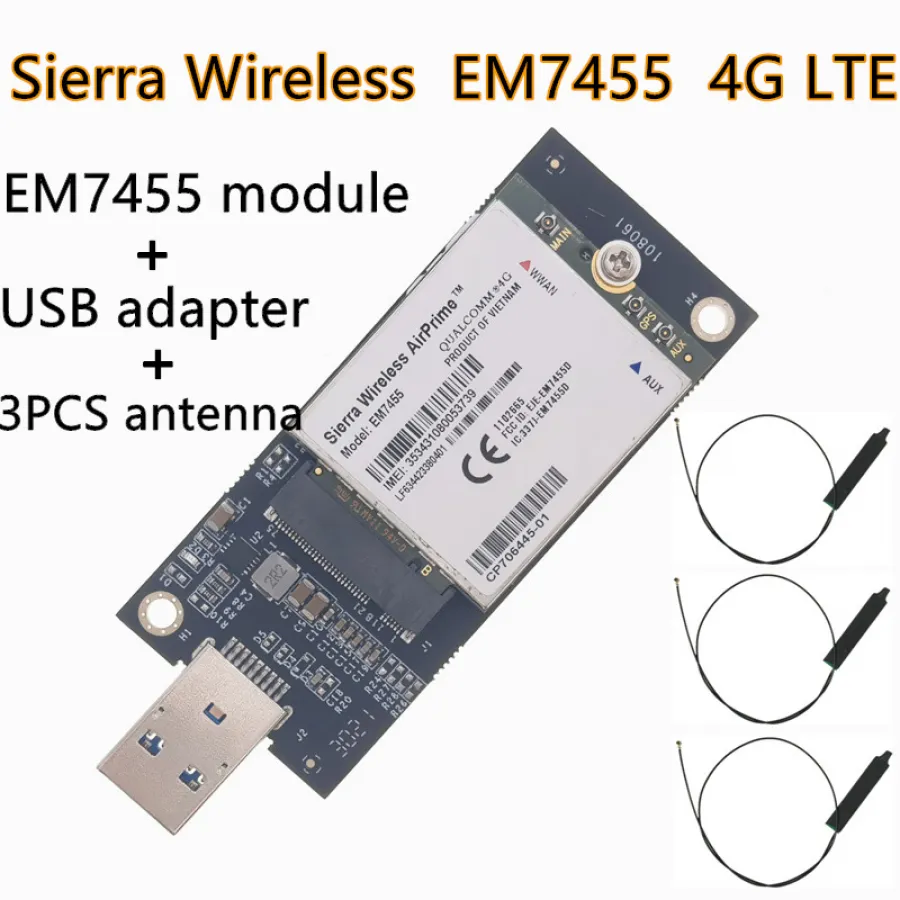

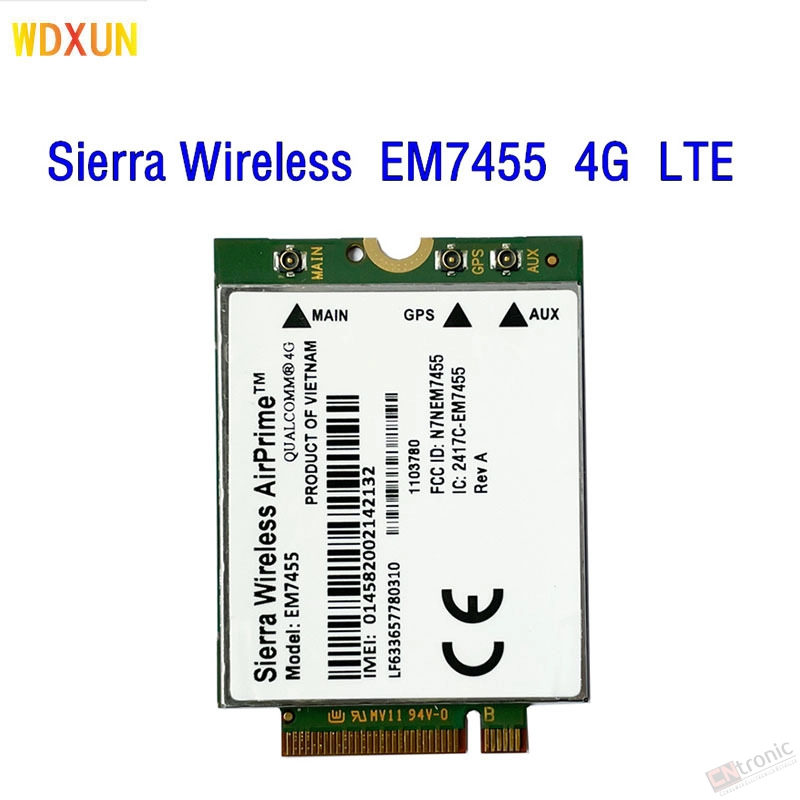

Sierra Wireless EM7455 1103582 FDD/TDD LTE Cat6 NGFF M.2 4G MODULE 4G CARD 300Mbps For Laptop and 4G router USB modular

0.0 ( votes) | 14 orders
Price: US $49.59
Discount Price:
US $ 40.66
-18%
Color
Quantity

Description :

Note: Standard Public version
Not support lenovo laptop and hp laptop

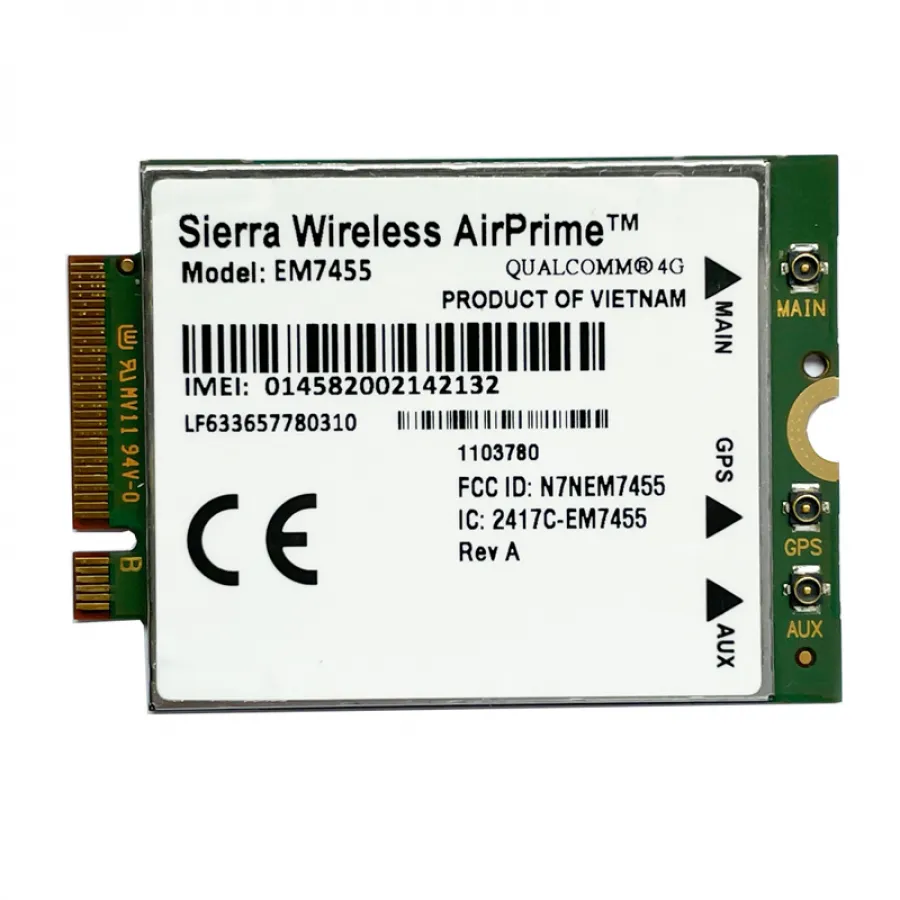

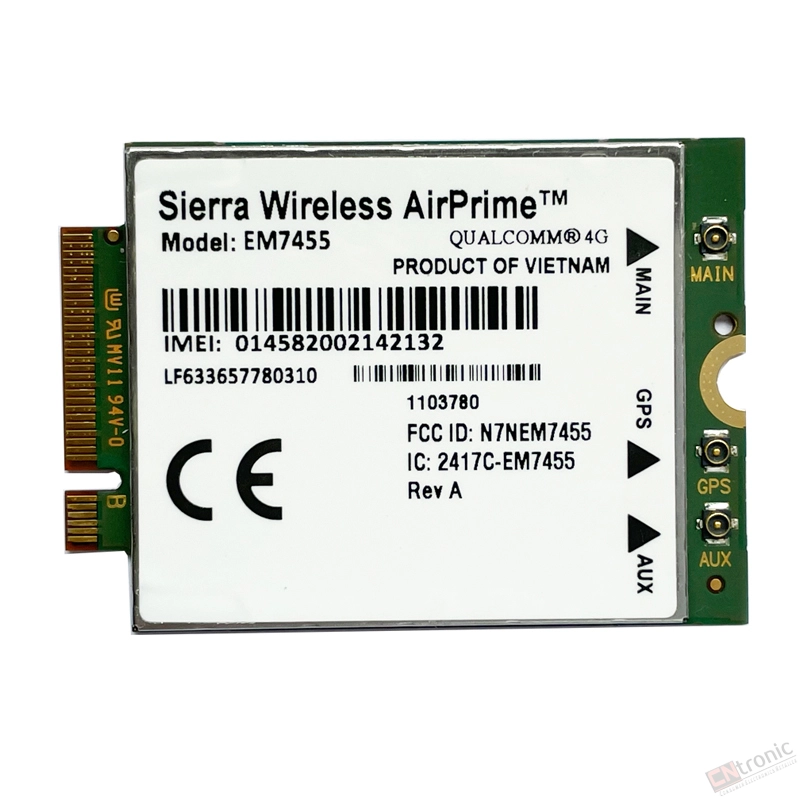

EM7455 is a 4G-LTE cat 6 module (FDD & TDD), with a down link data rate of up to 300 Mbps, primarily for Europe, North and South America. Support for Carrier Aggregation (CA) and MIMO. Fall back to 3G-HSPA+DC with Rx diversity. A GNSS receiver is integrated. Supported frequency bands: 4G B1-B5, B7, B8, B12, B13, B20, B25, B26, B29, B30, B41 ; 3G B1-B5, B8. Form factor is M.2, 42 x 30 mm. Designed for high speed industrial M2M and mobile computing solutions, the AirPrime® EM74 series embedded modules deliver high speed connectivity on LTE and HSPA+ networks. Based on the M.2 standard with a USB host interface, the EM series modules offer an easy upgrade path to new network technologies and global access to high speed networks. The M.2 formfactor is also known as NGFF (New Generation Form Factor).

Features
Region: Primarily for Europe, North America, South America

Air interface: 4G-LTE cat 6 (FDD & TDD) with CA (Carrier Aggregation) and MIMO, 3G-HSPA+DC with Rx Diversity, GNSS
4G bands: B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B20 (800), B25 (1900), B26 (850), B29 (700), B30 (2300), B41 (2500/TDD)
3G bands: B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B8 (900)
Peak Data rate: DL 300 Mbps, UL 50 Mbps
GNSS (GPS, Glonass, Beidou, Galileo*): Qualcomm

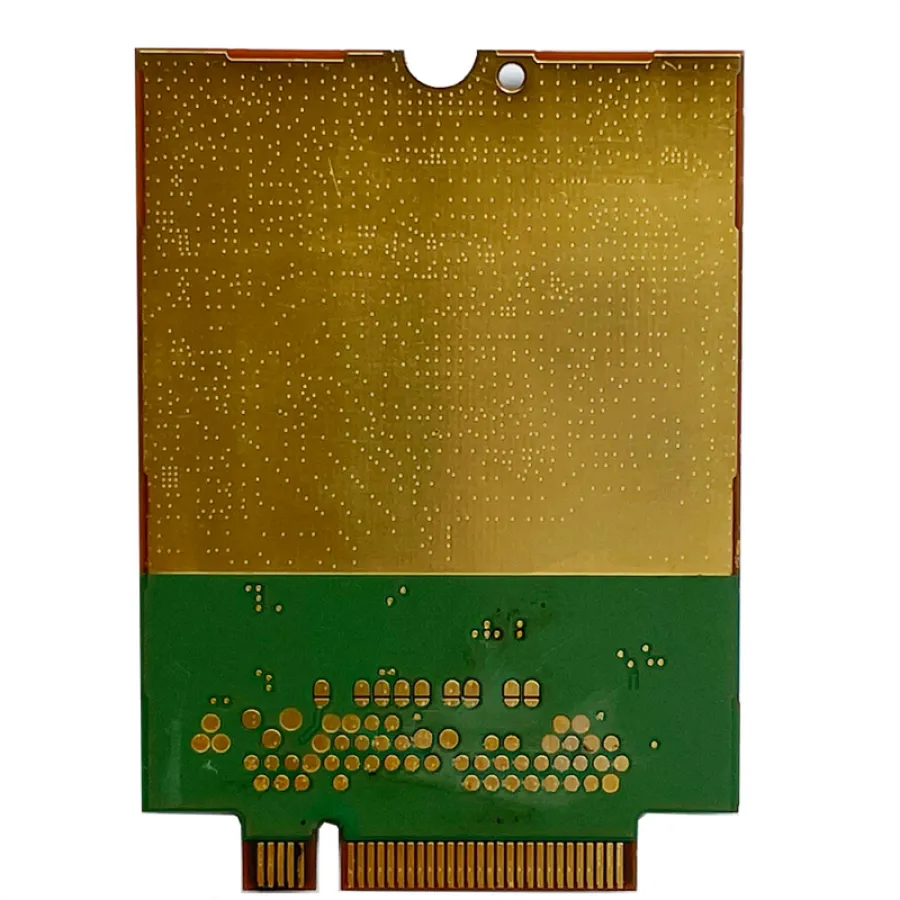

Form factor: M.2 module, 42 x 30 x 2.3 mm
Supply Voltage: 3.3 V nominal
Operating Temperature: -40°C to +85°C
Control, Software and Features

Control options: AT Commands, QMI SDK, MBIM
For optimum control the QMI SDK is recommended
Drivers: Android, Linux, Windows
Switch networks anytime with up to three different certified firmware variants on board.
Connectors

System connector: 75/67 position M.2

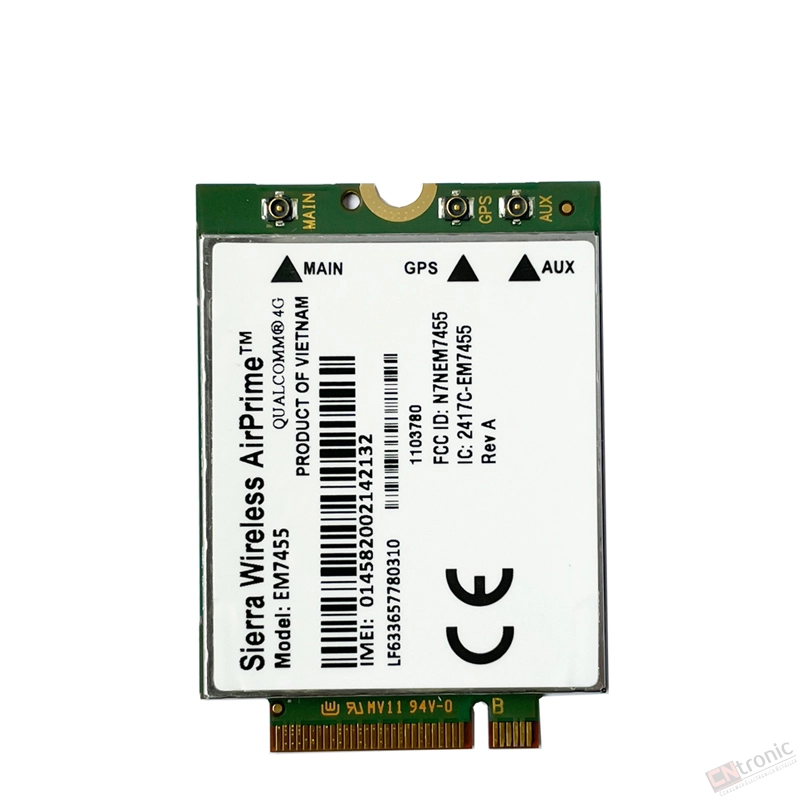

Antenna RF connector: 3x IPEX MHF4 (Main RF, Aux RF, GPS with DC bias)
Interfaces

1x USB 3.0 and USB 2.0 High Speed
1x Wake host
1x Wireless disable (main RF)
1x Wireless disable (GNSS)
1x System RESET
1x Power ON/OFF
4x Antenna Control(muxed with GPIO 1-3)
3x Wireless COEX
1x Dynamic Power Control, DPR
3x Config
1x LED driver output
2x SIM interface: 1.8/3V
1x Digital Audio
Audio

Optional

Digital audio: PCM/I2S
4G: VoLTE
3G: Circuit Switched Fall Back (CSFB voice)


Packaging Details

  • Unit Type:
  • Package Weight: 0.010
  • Package Size: 5x5x5

  • Brand Name: WDXUN
  • Hign-concerned Chemical: None
  • Type: Wireless
  • Style: Internal
  • Origin: Mainland China
  • Products Status: STOCK
  • Model Number: EM7455
  • wirless Modem Type: LTE
  • Certification: CE
