Reverse POE switch 8 RJ45 2 SC fiber Gigabit Ethernet switch media converter Fiber Optical UTP Port 10/100/1000M PCBA
SALE
ID: 50655

Reverse POE switch 8 RJ45 2 SC fiber Gigabit Ethernet switch media converter Fiber Optical UTP Port 10/100/1000M PCBA

4.5 (18 votes) | 70 orders
Price: US $55.88 - 76.00 / piece
Discount Price:
US $ 40.22 - 54.72 / piece
-28%
Color
Quantity

Please note:

1、Default with 1pcs 1310nm A side Fiber module and 1pcs 1550nmB side, 2pcs 1550nm B Side or 2pcs 1310nm A side can be provided as request.


2、1 PCS 2 SC fiber 8 ports 10/100/1000M RJ45 Reverse POE


3、without Power adapter

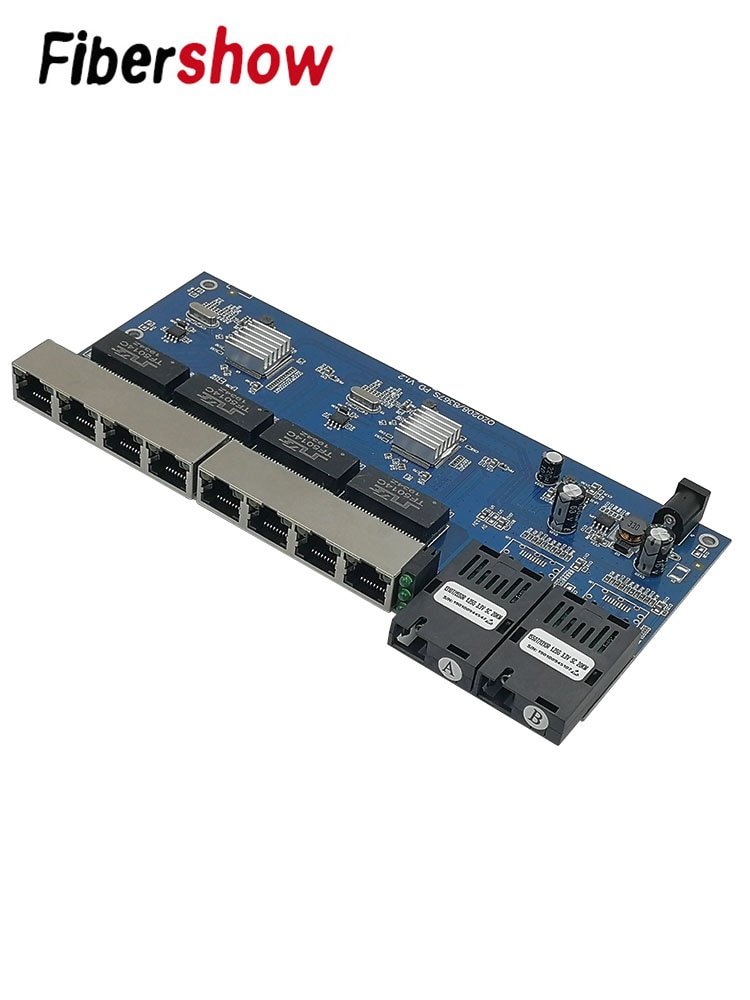

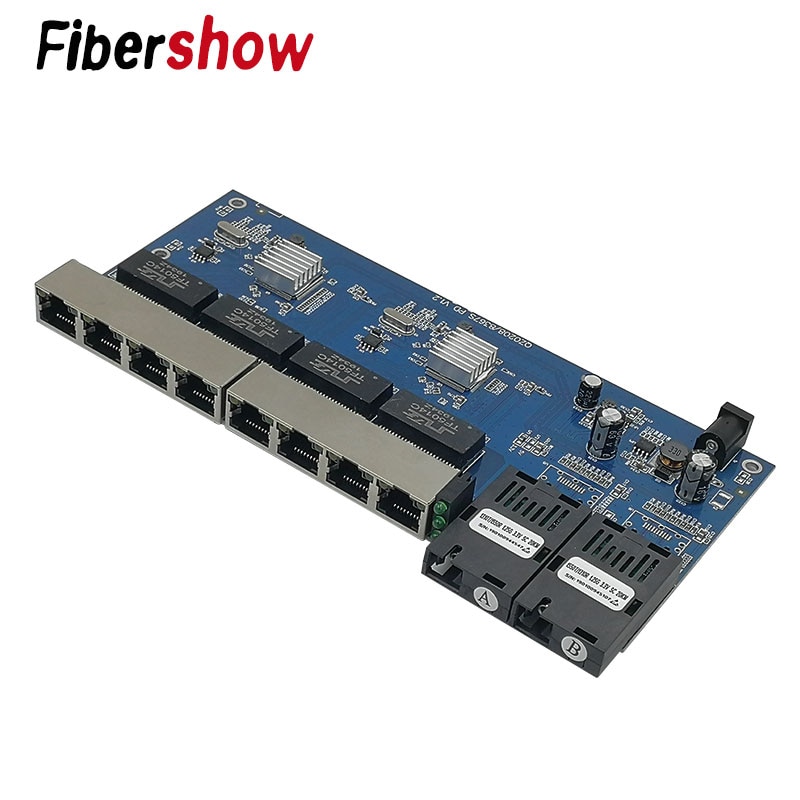

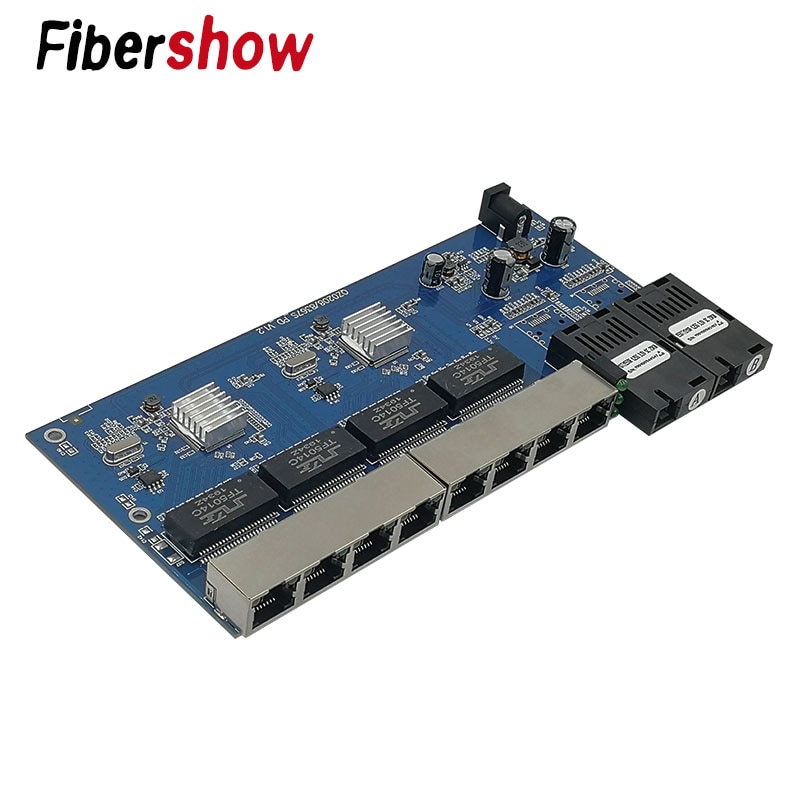

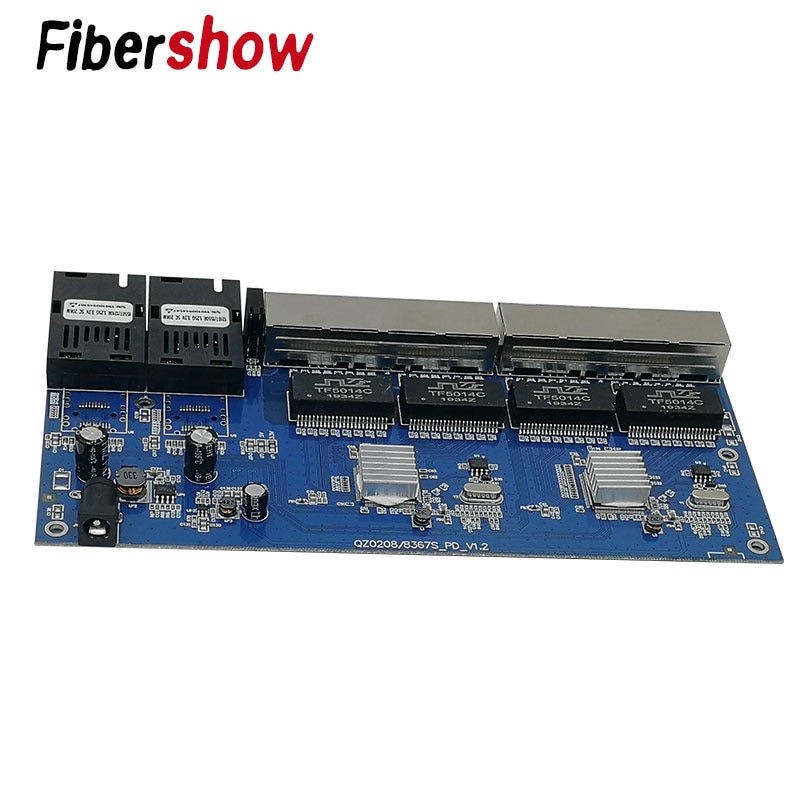

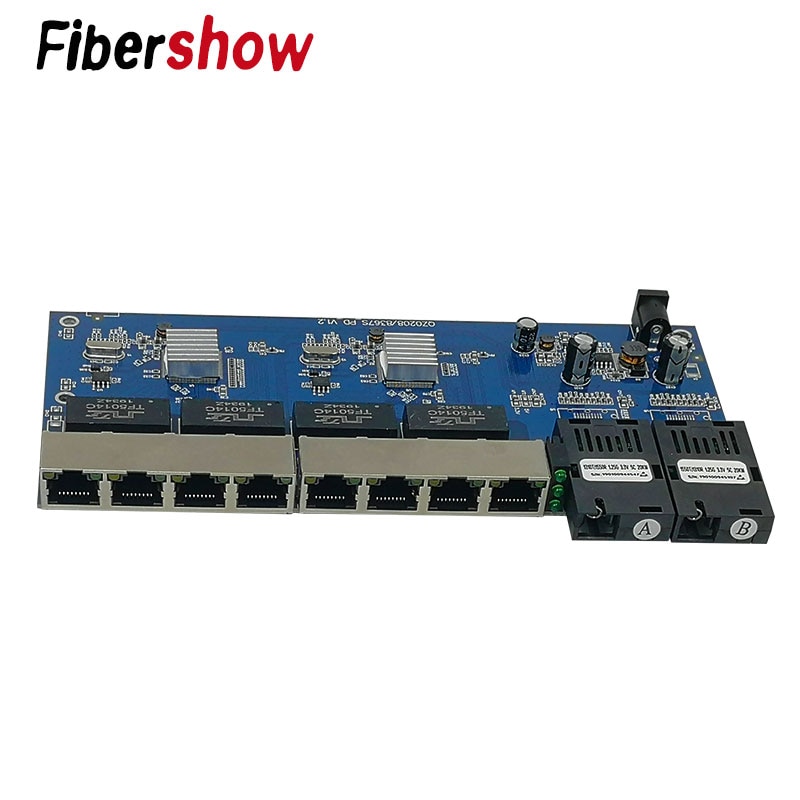

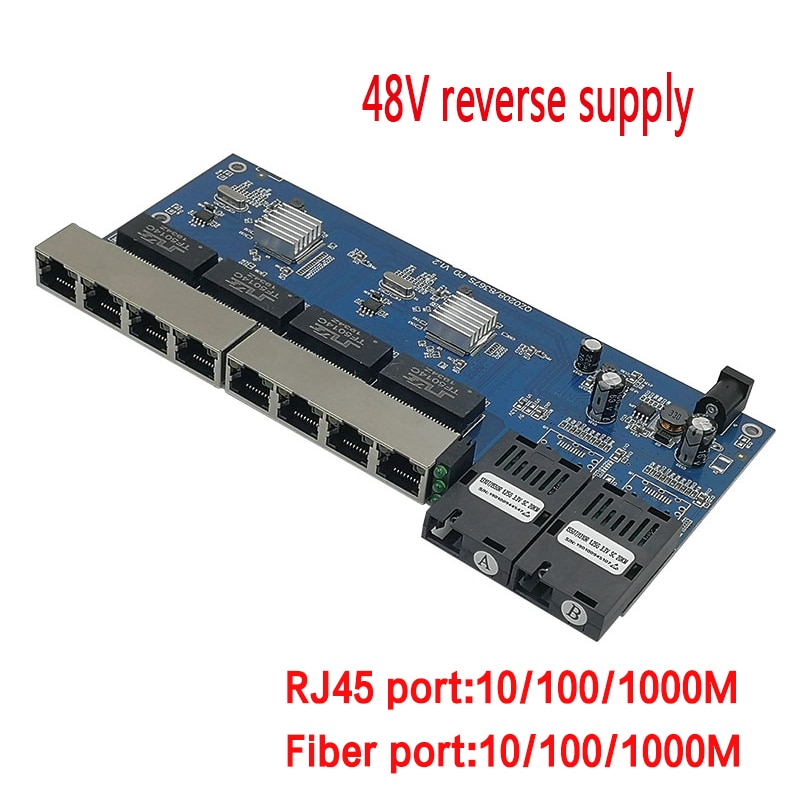

POE Reverse switch board fiber media converter with 2SC + 8 10/100/1000Mbps RJ45 Ethernet ports POE
reverse fiber optical switch
Fast power supply for your ending equipment!
2G8E  Fiber  Switch

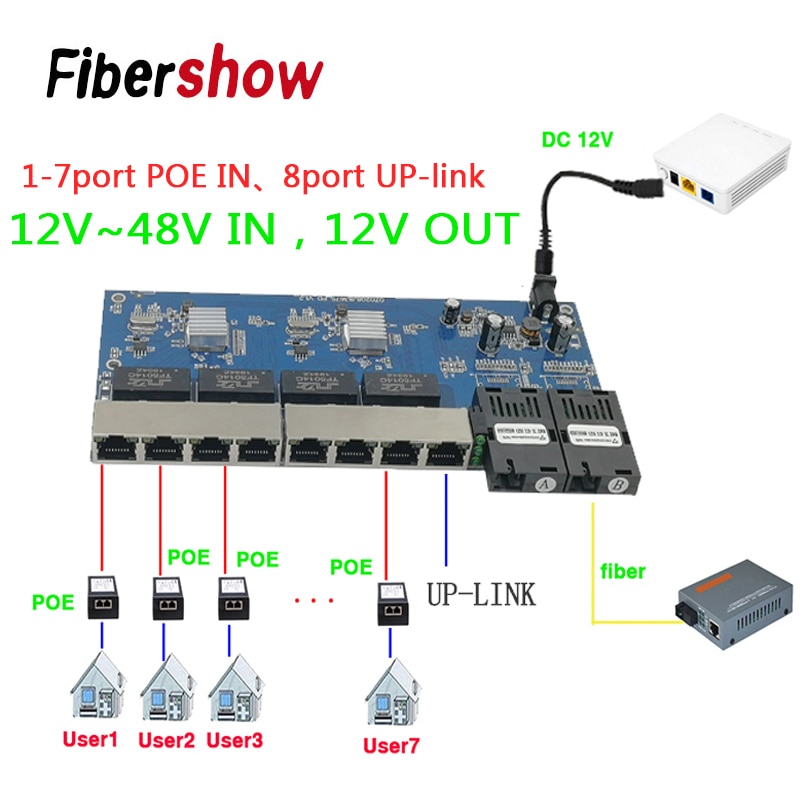

JYD-2G8ER series fiber switch is a reverse power supply Ethernet switch, power can be offered with  the special POE power supply module through network cable. At the same time it can also provide  12VDC power supply to other ending equipments. It effectively solves the problem of power supply of equipments far away from the power source. What’s more, the power can be shut down when the equipment is not needed, which is energy-saving and environmental. There are 2 SC ports and 8 10/100/1000Mbps Ethernert RJ45 ports. Transmission distance can be prolonged from 100M with twisted pair to 120KM.
Main Features:
Ø  Support the switch between 10/100/1000Base-T and 1000Base-SX/LX
Ø  2*1.25Gbps full-duplex fiber ports and 8*1000M Ethernet ports with auto-negotiation function
Ø  Support 1000M speed rate,MDI/MDIX and half/full-duplex with auto-negotiation function
Ø  Each port has the complete LED Indicator light
Ø  There are 3 mode available. They are single mode single fiber, single mode dual fiber and multi mode dual fiber.
Ø  Support IEEE802.1d Spanning Tree
Ø  Support high performance QoS function on each port,support broadcasting storm control
Ø  Support 15-48V voltage input through network cables from ending equipment.
Ø   4/5+,7/8- are for power supply.
Ø  12V DC voltage output.
Ø  Internal 4K MAC Address Entities
Ø  Support 9216 bytes Jumbo packet
Ø  Support IEEE 802.3x flow control and back pressure control
Ø  Require no configuration and will instantly operate as soon as you power it up
Ø  Low power consumption chip with heat sink built in to ensure longtime efficient operation.
Specifications
Standards
IEEE802.3 10Base-T
IEEE802.3u 100Base-TX/FX
IEEE802.3z 1000Base-SX/LX
IEEE802.3x Flow control
IEEE802.1p QoS
IEEE802.1d Spanning Tree
IEEE802.3q VLAN
Ethernet Port
Connector: RJ45
Data Rate: 10/100/1000M
Distance: 100m
UTP Type: UTP-5E or higher level
Fiber Port
Connector: SC
Data Rate: 1.25Gbps
Optical Wavelength: 1310nm/1550nm
Distance: 550m~120km
Performance
Processing Type: Store and Forward
MAC Table Size: 4K
Buffer Space: 1Mbit
Maximum Packet Length: 9216 bytes
Back bandwidth: 20G
Time Delay:<20μs
Power
Power type: POE network power supply
Cable core:  4/5+,7/8-
Input Voltage: DC15V~48V
Output Voltage: 12V
Power Consumption: 2.2W~4.5W
Certifications
CCC, CE, FCC, RoHS
MTBF         100, 000 hours
Warranty         1 year
Environment
Storage Temperature: -40~70℃
Operating Temperature: -10~55℃
Relative Humidity: 5-90% ( no condensation)
Mechanical Structures
Dimension: 215×107×26mm
Weight: 0.20kg
OEM&ODM





  • Brand Name: tapirapeco
  • Origin: CN(Origin)
  • Fiber Type: Single Mode
  • Connector Type: SC/APC
  • Certification: CE
  • Certification: FCC
  • Size: 20*5*3
  • Model Number: ANT_RPOE_02
  • Product Name: Reverse POE Switch
  • Switch Type: Gigabit POE Swtich
  • Ethernet Port: 8 10/100/1000M Ethernet port
  • Fiber Port: 2 port 1.25G fiber
  • Wavelength: 1310/1550nm
  • MAC Table: 2K
  • Switch Capacity: 1.6G
  • communication Mode: Full-Duplex&Half-Duplex
  • Power Supply: DC52V 1.25A AC100V-240V(50-60HZ)
  • POE PIN: 4/5+ 7/8-
