Raspberry Pi OV5647 5MP 1080P Camera Module Optional Night Vision Fisheye Wide Angle IR-CUT Camera
Introduction
The 5MP 1080P camera for Raspberry Pi, use OV5467 sensor, option night vision camera, fisheye wide angle camera or IR_CUT camera according to you need.
A1 A2 Camera (130°/Night Vision)
Specification:
1. Sensor : OV5647
2. Pixel : 5 megapixel
3. CMOS size: 1 / 4inch
4. Aperture (F): 2.35
5. Focal Length: 1.85mm adjustable
6. Diagonal angle: 130 degree
7. Sensor best resolution: 1080p
8. Power supply: Support 3.3V external power
supply
9. 4 screw holes : Used for fixing position, fix
LED light and provides 3.3V power output
10. Dimension: 25mm x 24mm x 17mm
11. Resolution: 2592x1944
12. Night vision: Support night vision, need to
use with IR light.
B1 B2 Camera (160°/Night Vision)
Specification:
1. Sensor : OV5647
2. Pixel : 5 megapixel
3. CMOS size: 1 / 4inch
4. Aperture (F): 2.35
5. Focal Length: 3.15mm adjustable
6. Diagonal angle: 160 degree
7. Sensor best resolution: 1080p
8. Power supply: Support 3.3V external power
supply
9. 4 screw holes : Used for fixing position, fix
LED light and provides 3.3V power output
10. Dimension: 25mm x 24mm x 17mm
11. Resolution: 2592x1944
12. Night vision: Support night vision, need to
use with IR light.
C1 C2 Camera (75°/Night Vision)
Specification:
1. Sensor : OV5647
2. Pixel : 5 megapixel
3. CMOS size: 1 / 4inch
4. Aperture (F): 1.8
5. Focal Length: 3.6mm adjustable
6. Diagonal angle: 75 degree
7. Sensor best resolution: 1080p
8. Power supply: Support 3.3V external power
supply
9. 4 screw holes : Used for fixing position, fix
LED light and provides 3.3V power output
10. Dimension: 25mm x 24mm x 23.8mm
11. Resolution: 2592x1944
12. Night vision: Support night vision, need to
use with IR light.

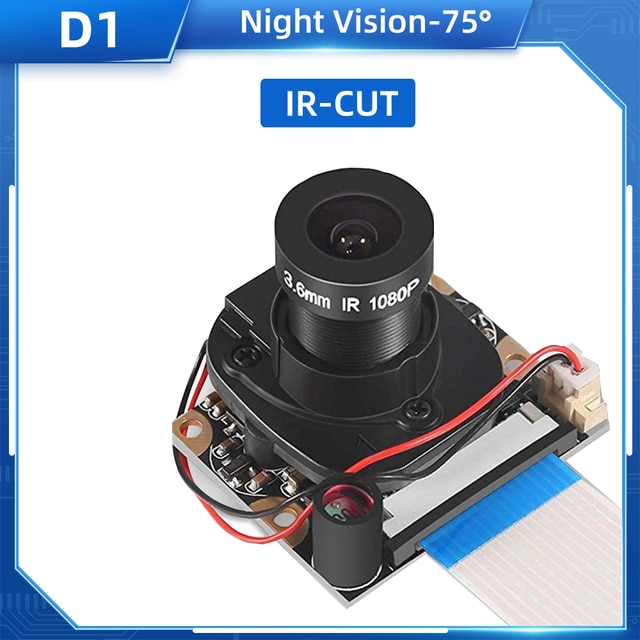

D1 D2 Camera (75°/Night Vision/IR-CUT)
IR-CUT dual filter refers to a set of filters built into the camera lens group. When the infrared sensing point outside the lens detects the intensity change of the light, the built-in IR-CUT automatically switches the filter to be able to change the filter automatically according to the external light. The intensity of the image is automatically switched to make the image achieve the best effect
Specification:
1. Sensor : OV5647
2. Pixel : 5 megapixel
3. CMOS size: 1 / 4inch
4. Aperture (F): 1.2
5. Focal Length: 3.6mm adjustable
6. Diagonal angle: 75 degree
7. Sensor best resolution: 1080p
8. Power supply: Support 3.3V external power
supply
9. 4 screw holes : Used for fixing position, fix
LED light and provides 3.3V power output
10. Dimension: 26.5mm x 32mm
11. Resolution: 2592x1944
12. Night vision: Support night vision, need to
use with IR light.
13. IRCUT: Auto switch (Automatically switch
according to the light intensity of day and
night)

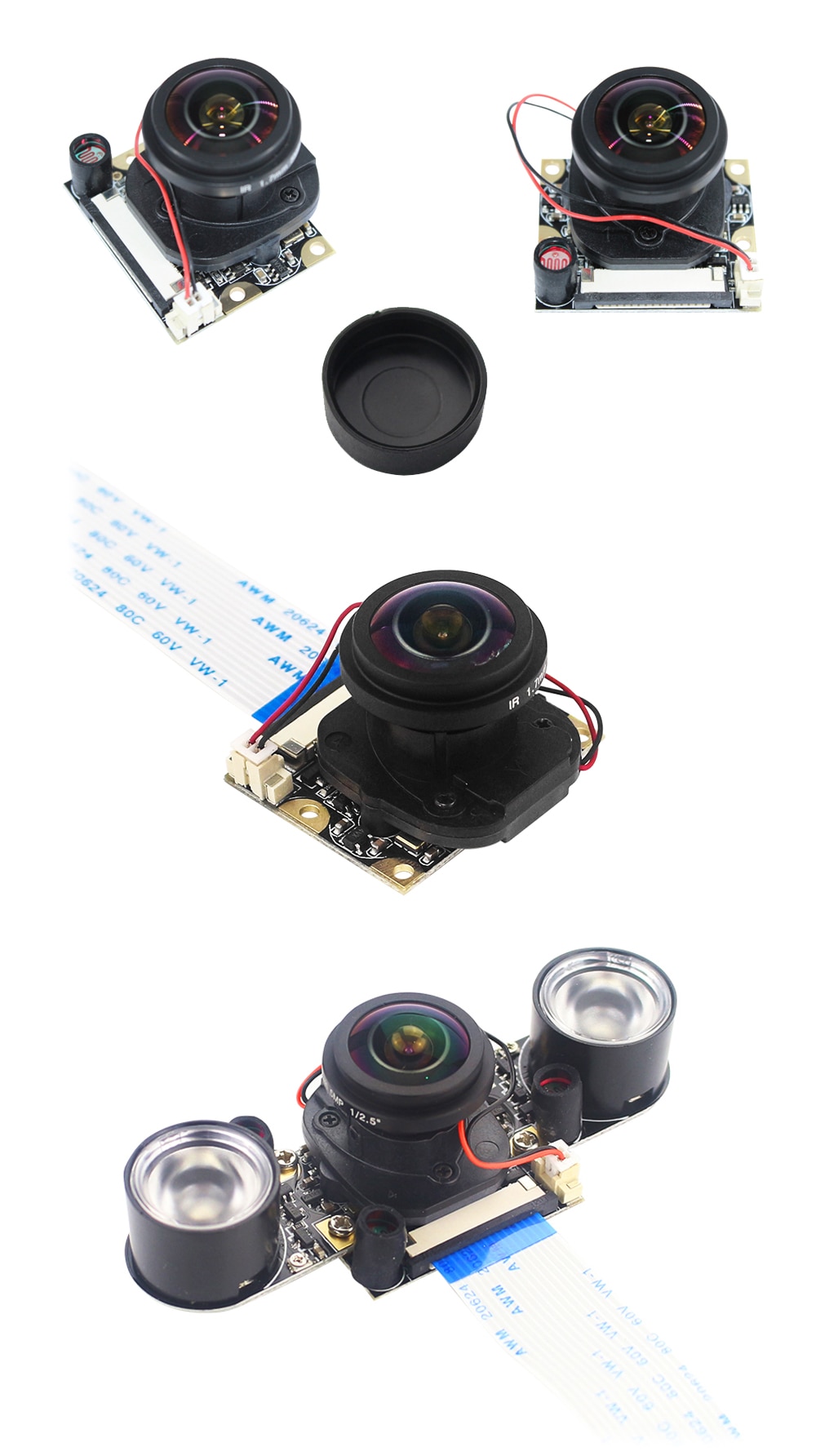

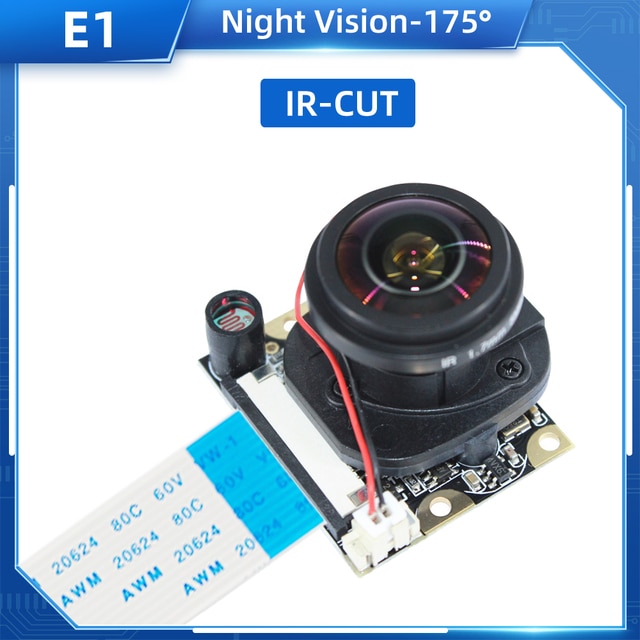

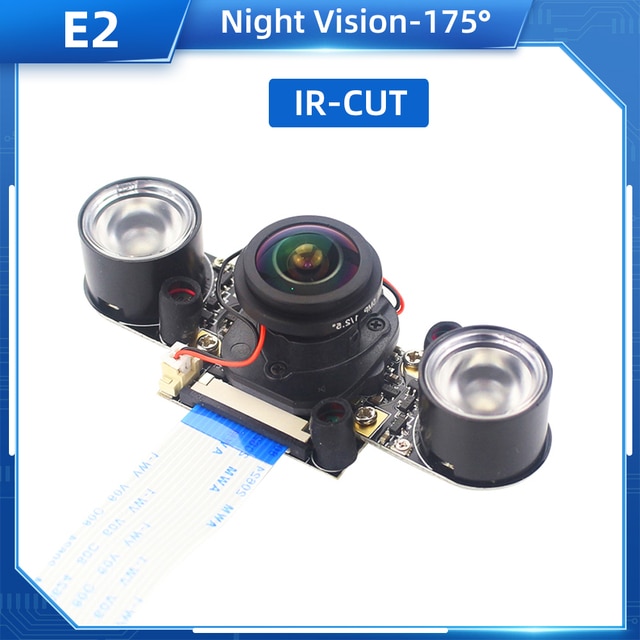

E1 E2 Camera (175°/Night Vision/IR-CUT)
Specification:
1. Sensor : OV5647
2. Pixel : 5 megapixel
3. CMOS size: 1 / 4inch
4. Aperture (F): 2.35
5. Focal Length: 1.2mm adjustable
6. Diagonal angle: 75 degree
7. Sensor best resolution: 1080p
8. Power supply: Support 3.3V external power
supply
9. 4 screw holes : Used for fixing position, fix
LED light and provides 3.3V power output
10. Dimension: 26.5mm x 24mm
11. Resolution: 2592x1944
12. Night vision: Support night vision, need to
use with IR light.
13. IRCUT: Auto switch (Automatically switch
according to the light intensity of day and
night)

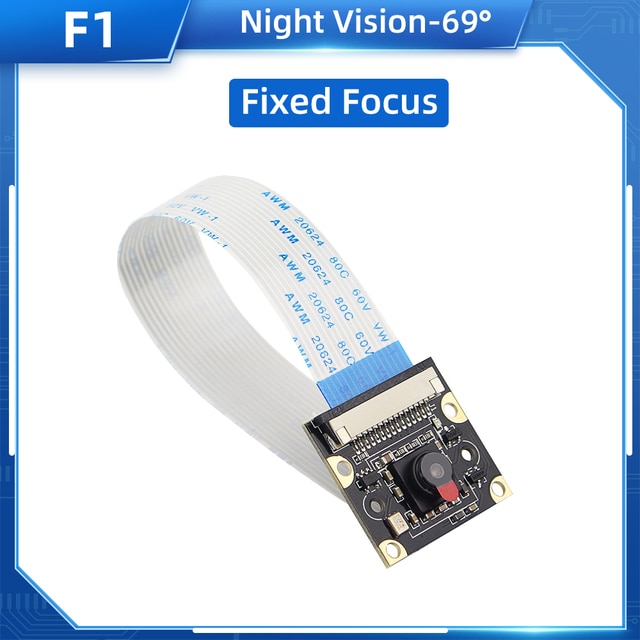

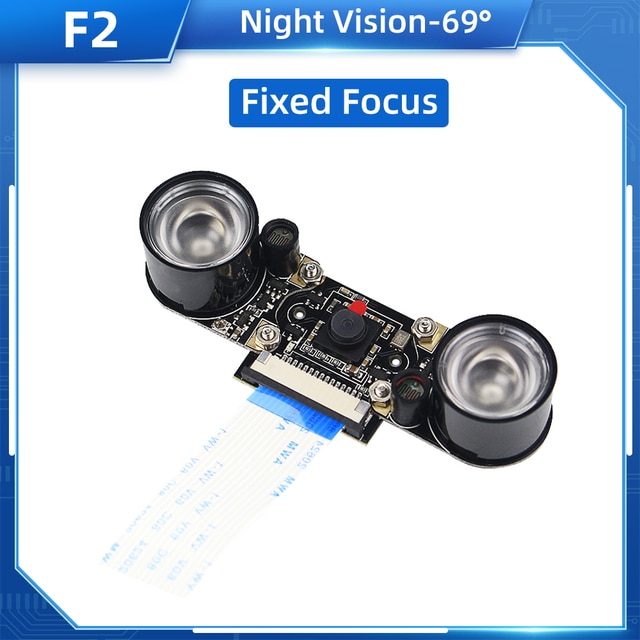

F1 F2 Camera (69°/ Non Night Vision/Fixed Focus)
Specification:
1. Sensor : OV5647
2. Pixel : 5 megapixel
3. CMOS size: 1 / 4inch
4. Aperture (F): 2.8
5. Focal Length: 3.51mm
6. Diagonal angle: 69 degree
7. Sensor best resolution: 1080p
8. Power supply: Support 3.3V external power
supply
9. 4 screw holes : Used for fixing position, fix
LED light and provides 3.3V power output
10. Dimension: 26.5mm x 23.8mm
11. Resolution: 2592x1944
12. Night vision: Support night vision, need to
use with IR light.

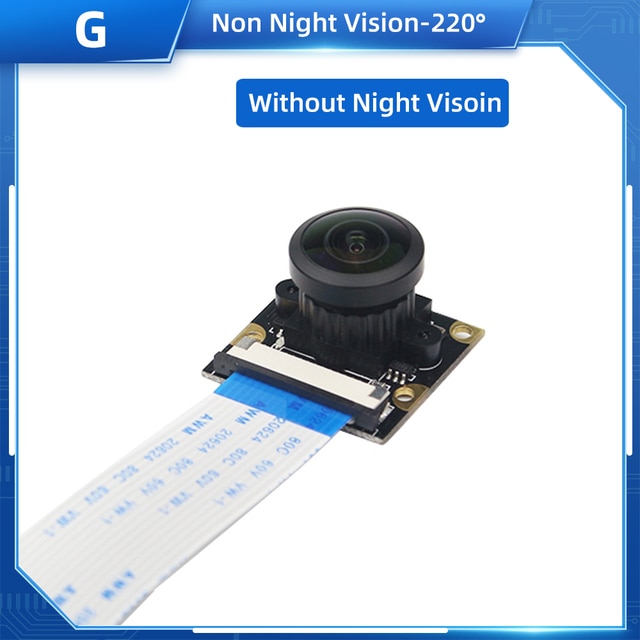

G Camera (220°/ Non Night Vision)
Specification:
1. Sensor : OV5647
2. Pixel : 5 megapixel
3. CMOS size: 1 / 4inch
4. Aperture (F): 2.35
5. Focal Length: 0.76 mm adjustable
6. Diagonal angle: 220 degree
7. Sensor best resolution: 1080p
8. Power supply: Support 3.3V external power
supply
9. 4 screw holes : Used for fixing position, fix
LED light and provides 3.3V power output
10. Dimension: 26.5mm x 16mm
11. Resolution: 2592x1944
12. Do not support night vision
H Camera (75°/ Non Night Vision)
Specification:
1. Sensor : OV5647
2. Pixel : 5 megapixel
3. CMOS size: 1 / 4inch
4. Aperture (F): 1.8
5. Focal Length: 3.6mm adjustable
6. Diagonal angle: 75 degree
7. Sensor best resolution: 1080p
8. Power supply: Support 3.3V external power
supply
9. 4 screw holes : Used for fixing position, fix
LED light and provides 3.3V power output
10. Dimension: 25mm x 24mm x 23.8mm
11. Resolution: 2592x1944
12. Do not support night vision
I Camera (130°/ Non Night Vision)
Specification:
1. Sensor : OV5647
2. Pixel : 5 megapixel
3. CMOS size: 1 / 4inch
4. Aperture (F): 2.35
5. Focal Length: 1.85mm adjustable
6. Diagonal angle: 130 degree
7. Sensor best resolution: 1080p
8. Power supply: Support 3.3V external power
supply
9. 4 screw holes : Used for fixing position, fix
LED light and provides 3.3V power output
10. Dimension: 25mm x 24mm x 17mm
11. Resolution: 2592x1944
12. Do not support night vision
- Compatible With: Raspberry Pi 4B/3B+/3B/Zero
- Accessory Type: Camera Module
- Brand Name: SHCHV
- Origin: Mainland China
- Pixel: 5 Million
- Night Vision: Optional
- 1080P: Support
- Sensor: OV5647
