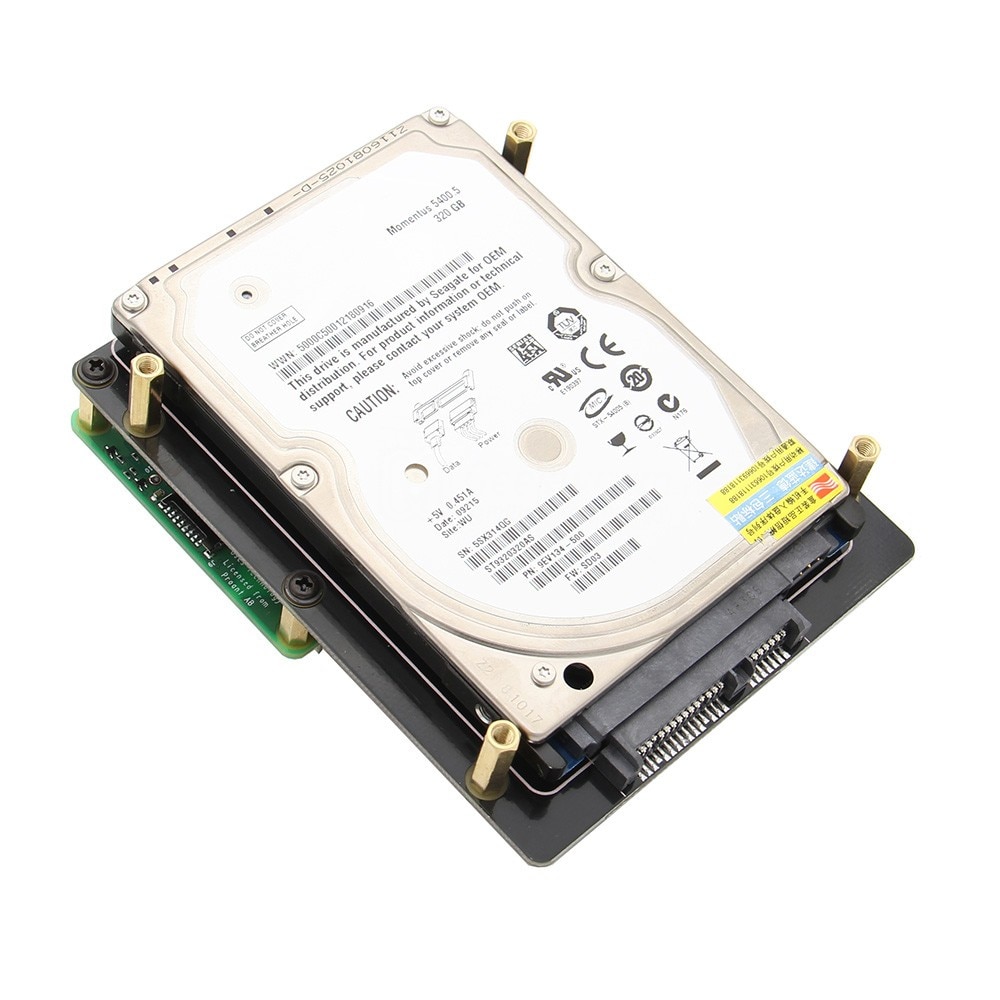

Raspberry Pi 2.5" SATA HDD/SSD Storage Expansion Board, X820 V3.0 USB 3.0 Mobile Hard Disk Module for Raspberry Pi 3 Model B+/3B
5.0 (2 votes) | 56 orders
Price:
US $
45.58 -
51.28
/ piece
- Bundle
-
-
[Important Note]
This board is for raspbrry pi 3B+/3B, NOT suitable for raspberry pi 4. If you need the 2.5 incha sata ssd shield for raspberry pi 4, please refer to:
Please use high quality DC 5V 4A power suply, if you get low quality power supply to use, the X820 SATA Board may not be recogized or that probable will damage your 2.5 inch HDD/SSD.
can help X820 to achieve more function.

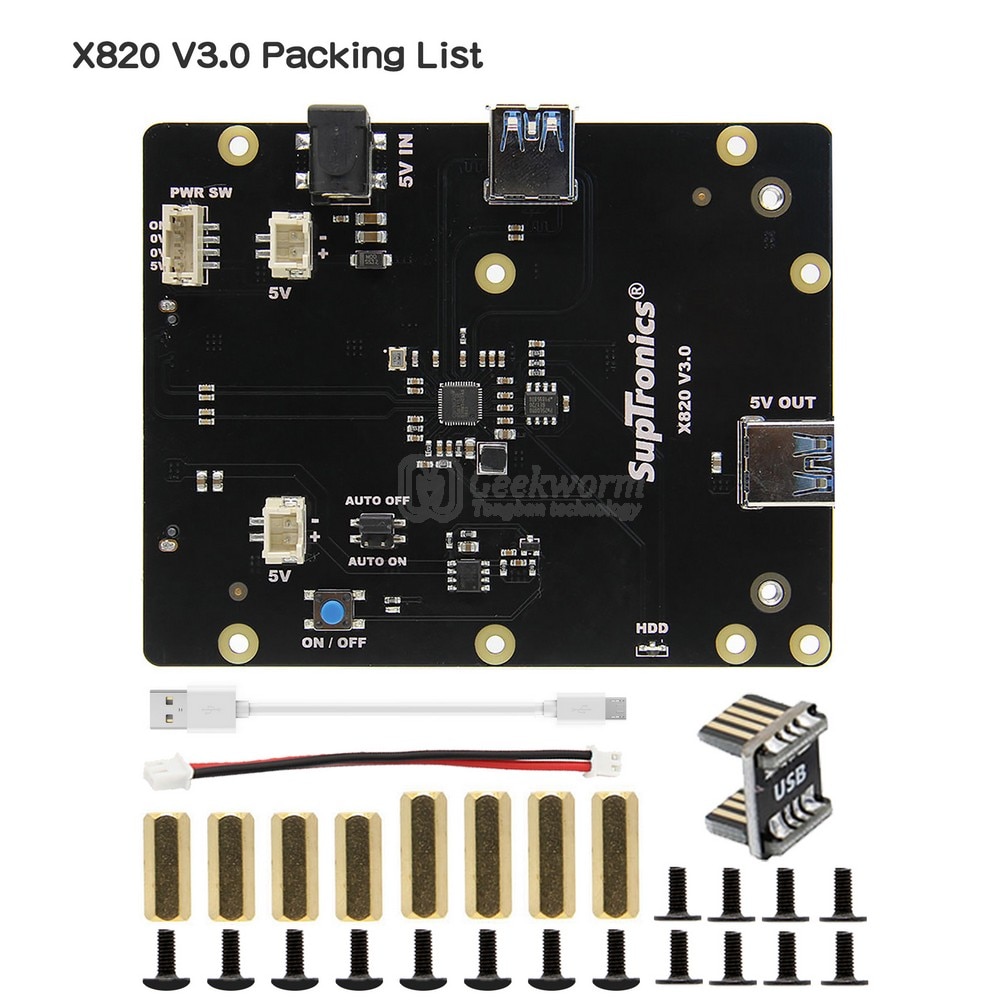

[Packing List]

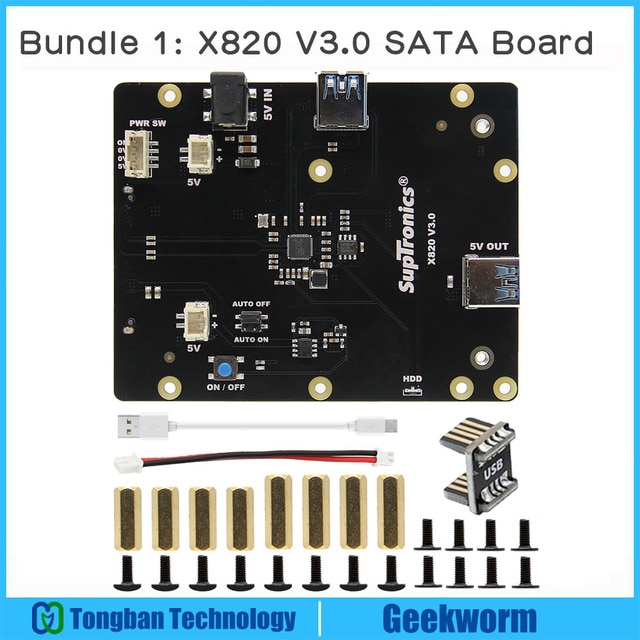

Bundle 1:
1 x X820 V3.0 Expansion Board
1 x USB to Micro USB Power Cable(Length:14.5cm/5.71inch)
1 x USB Connector
1 x 2 Pin Power Connection Wire(Cable: 10cm/3.93inch)
1 x Install Screws Pack
Notice:
1/ The raspberry pi and the 2.5" SATA are both not included.
[Read Me]
What do you need to get Raspberry Pi X820 V3.0 2.5 inch SATA Storage Board working?
(1) A Raspberry Pi board(,, 2B, B+)
(2) A DC 5V 4A Power Supply(optional)
(3) A 2.5 inch SATA hard disk drives (HDD) or solid-state drive (SSD)
(4) A X820 V3.0 board matching metal case kit(optional)
Note:
- when using our case, the Max. compatible thickness of the 2.5" SATA SSD/HDD is 10.4mm/0.41inch. (The stander 2.5" SATA SSD/HDD is 9.2mm/0.36inch)
- Please choose the Bundle items as you need
[Overviews]
The X820 V3.0 SATA HDD/SSD expansion board (Updated Version of X820 V1.3) provides an complete storage solution for Raspberry Pi, it supports up to 4TB 2.5-inch SATA hard disk drives (HDD) / solid-state drive (SSD). Furthermore, this X820 V3.0 Board has other powerful function: such as USB booting from your HDD/SSD('reboot' command is supported), USB 3.0 Mobile Hard Disk function with high-speed USB 3.0 connectivity from a PC or a Mac, Powers the Raspberry Pi with On-board XH2.54 connector and USB power socket to power other devices and so on.
[For Use With]
Raspberry Pi 1 Model B+/ Raspberry Pi 2 Model B / Raspberry Pi 3 Model B / Raspberry Pi 3 Model B+(Plus)
Rock64(same dimesion as the raspberry pi)
PC / Mac
Thinker Board
[Operating System]
All Raspberry Pi operating systems
[Features]
Supports 2.5-inch SATA hard disk drives (HDD) / solid-state drive (SSD)
Supports USB booting from your HDD/SSD

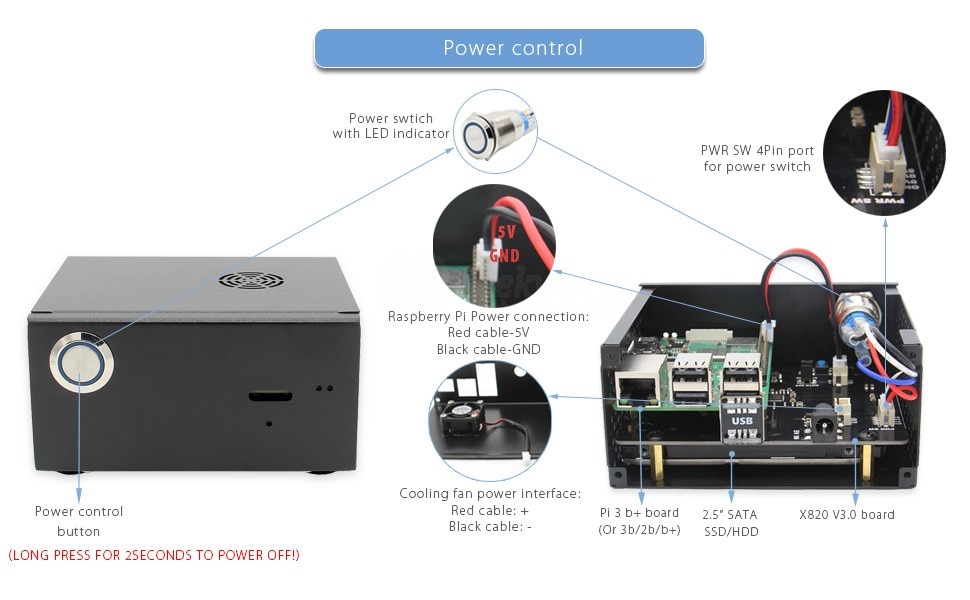

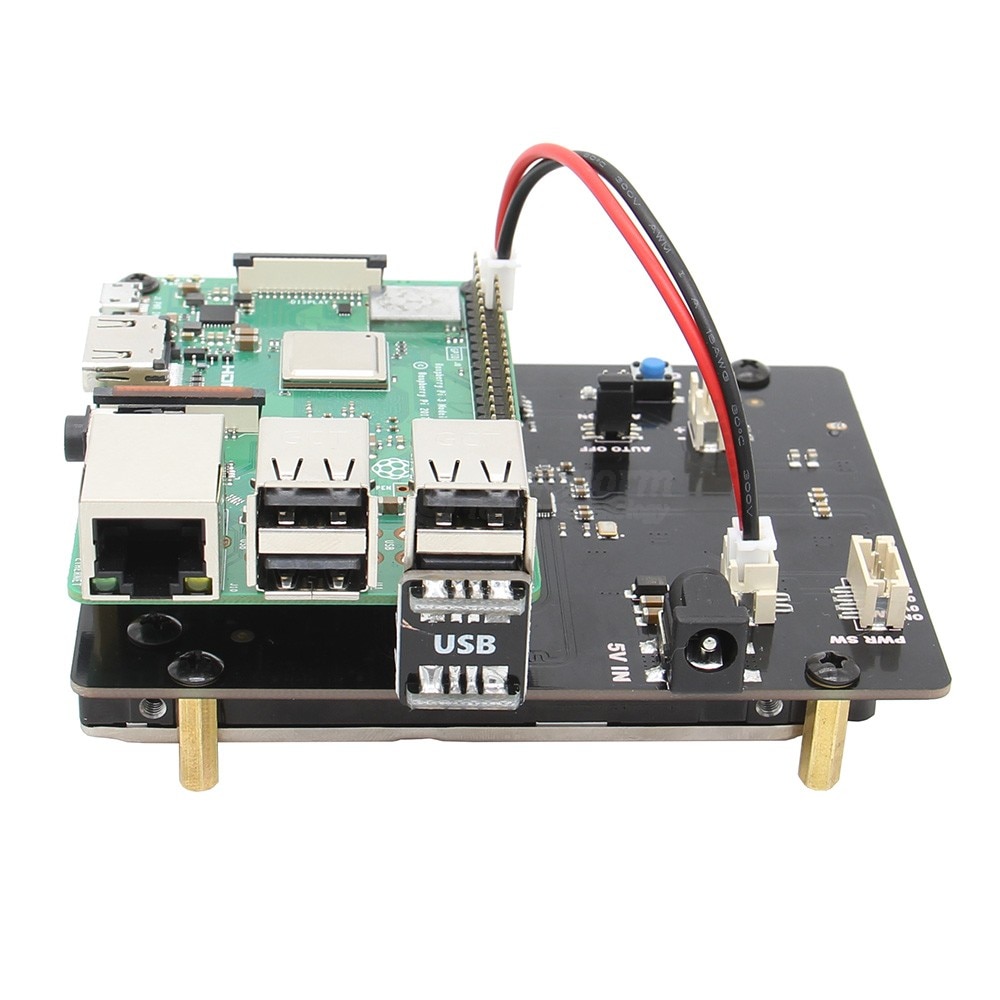

On-board push button to control power on /off (Press-ON, Hold the button pressed at least 2s -OFF)
Powers the Raspberry Pi via Pi's 40-pin header or Micro USB socket
On-board XH2.54 connector and USB power socket to power other devices
USB 3.1 Gen1 to SATA 6Gb/s bridge controller
USB 2.0 connectivity offers plug-and-play functionality on your Raspberry Pi
Quick file transfer with high-speed USB 3.0 connectivity from a PC or a Mac
External Self-Powered or USB bus-powered
LED red indicator indicates powered status and blue indicator indicates drive status
[Specificaiton]
- Power supply: 5Vdc +/-5% , 4A
- Ports & Connectors:
DC jack - 5.5x2.5mm, USB socket - USB 3.0 type A
Power output connector - XH2.54 2-pin
Power switch connector -PH2.0 4-pin
- PCB Size 107.5mm x 85mm
Note:
Please use X820 V3.0 board with a good quality power supply. The power adapter powers not only the Raspberry Pi , but also the SSD/HDD. If the power is low, the SSD/HDD may not be identified

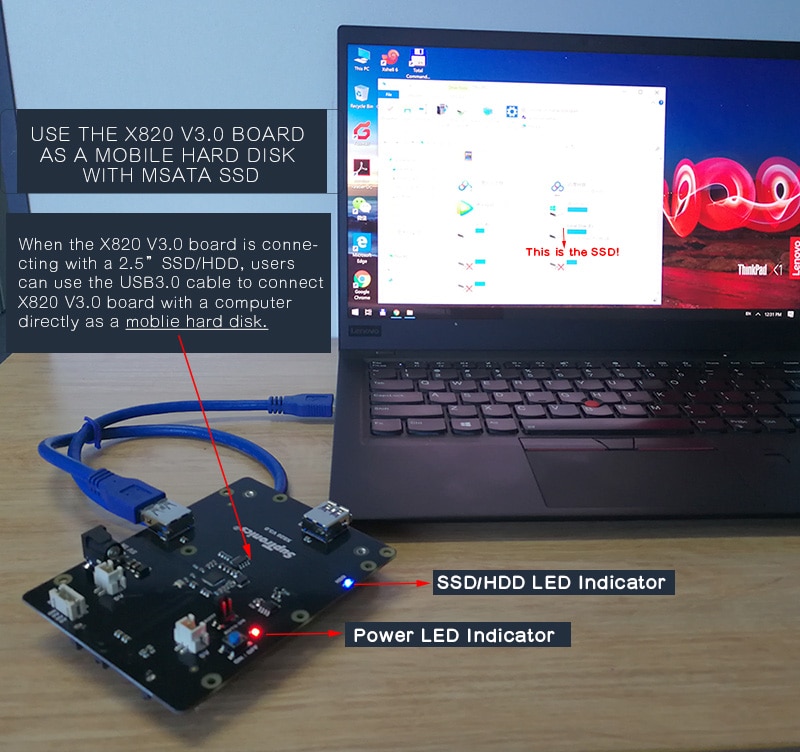

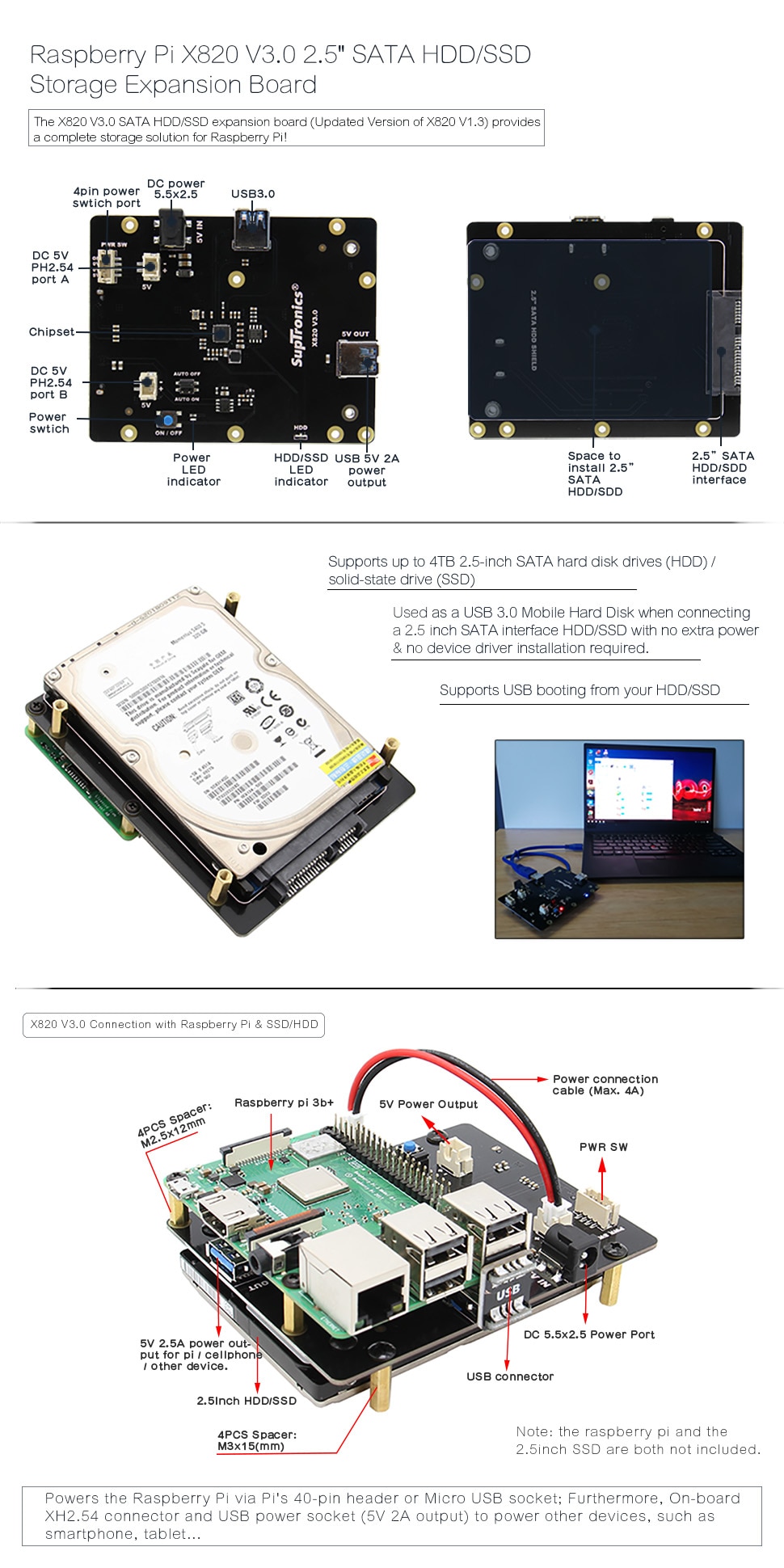

[Mobile Hard Disk Fucntion]

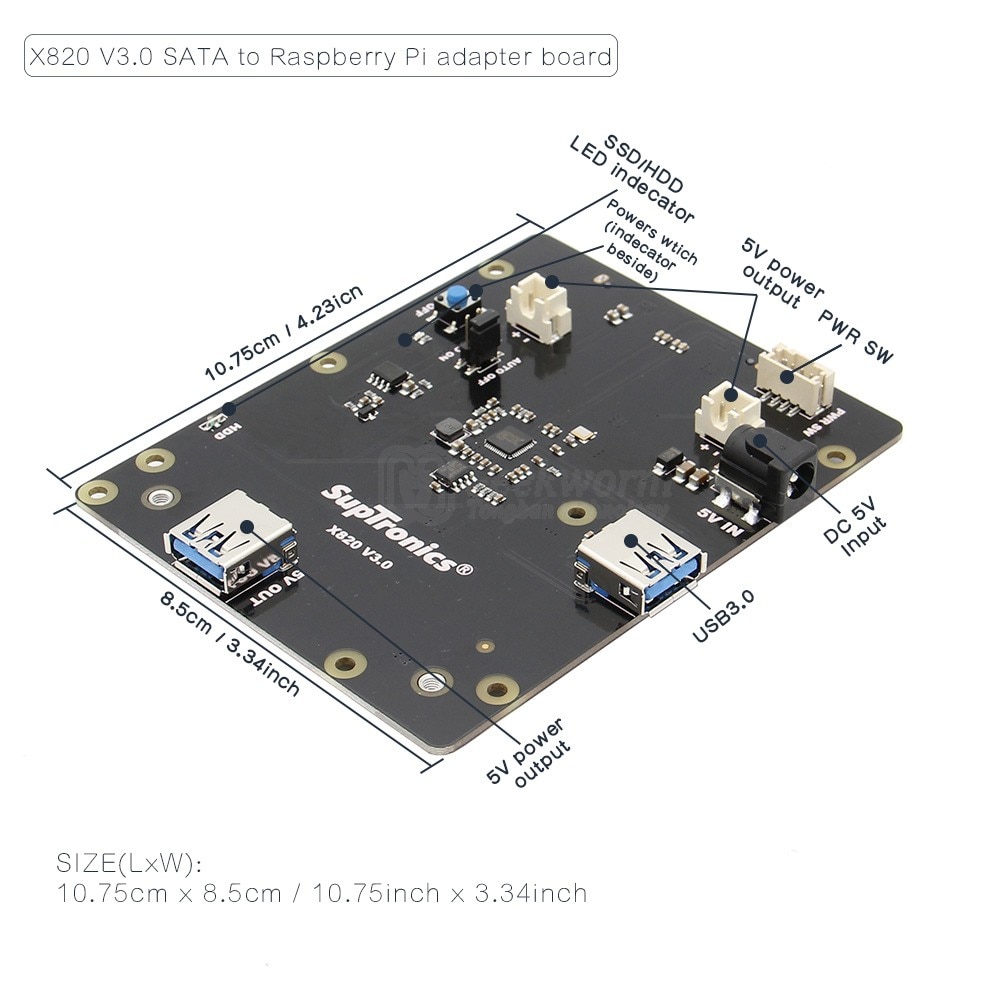

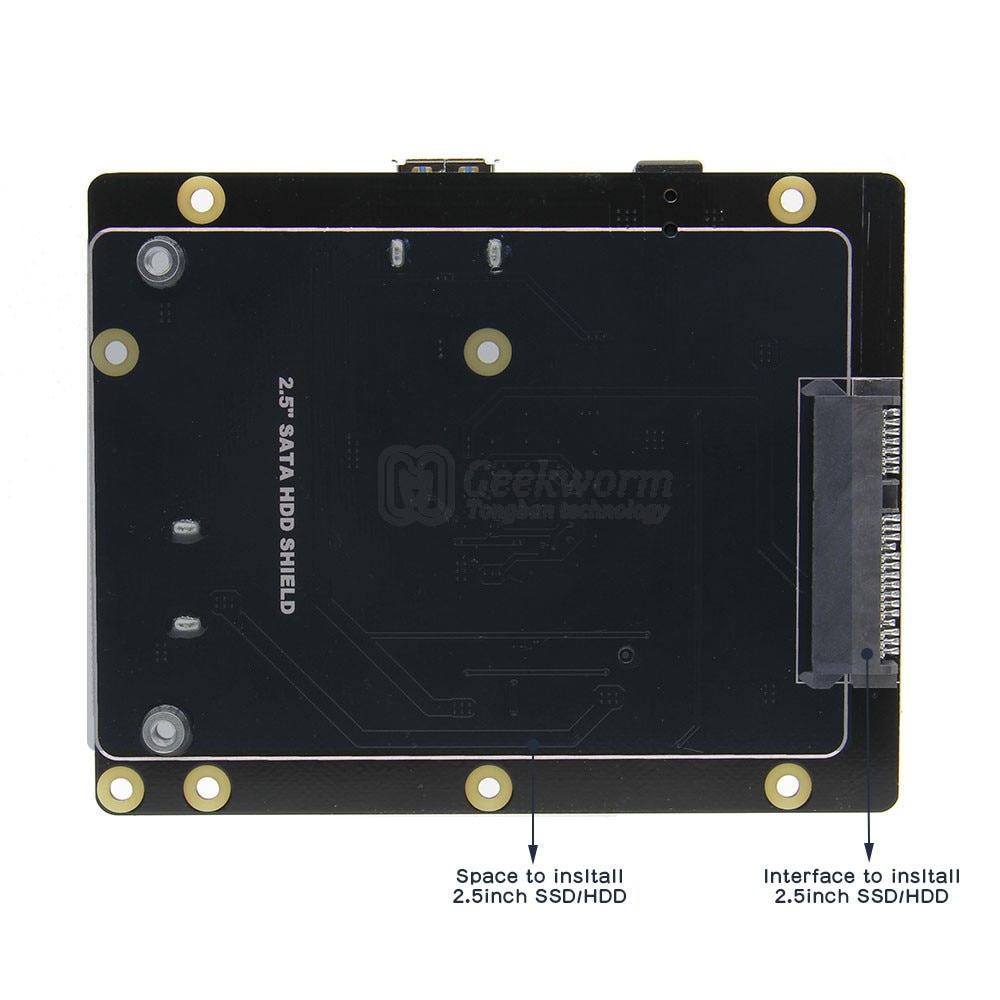

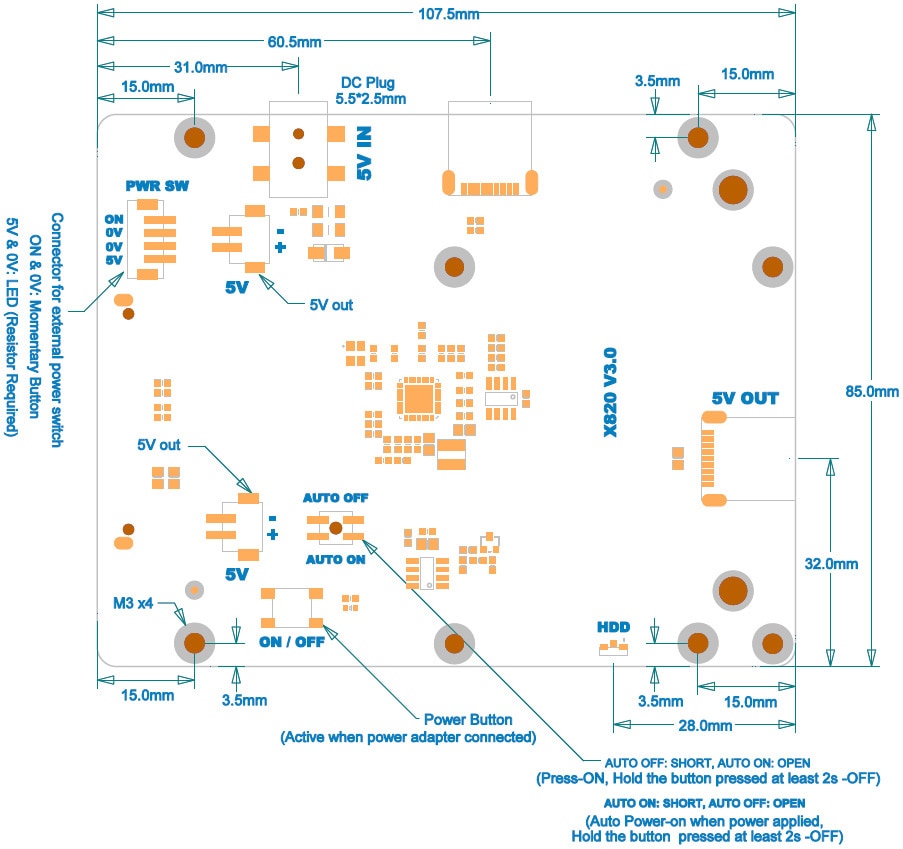

[PCB Layout]
[Package for shipping]

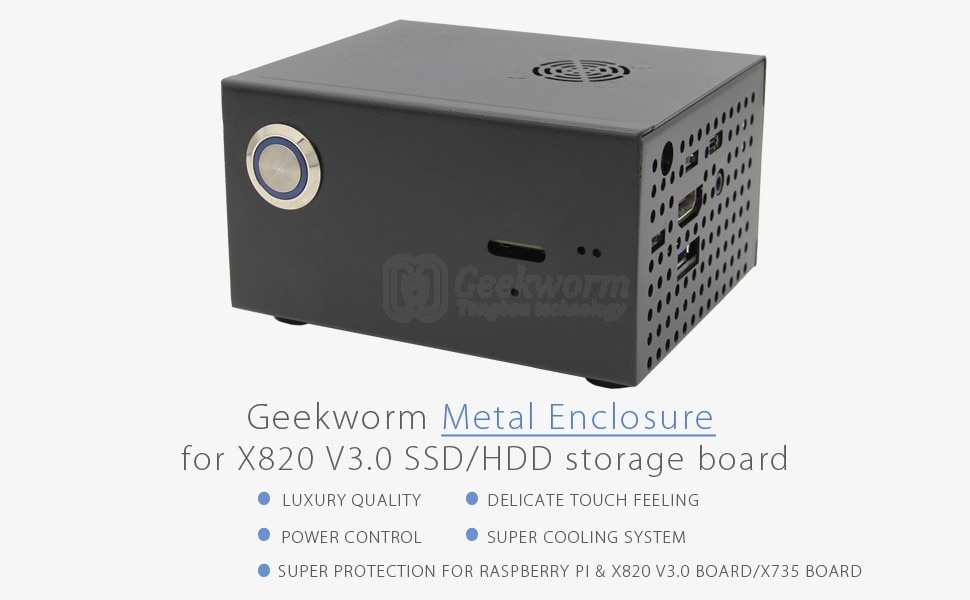

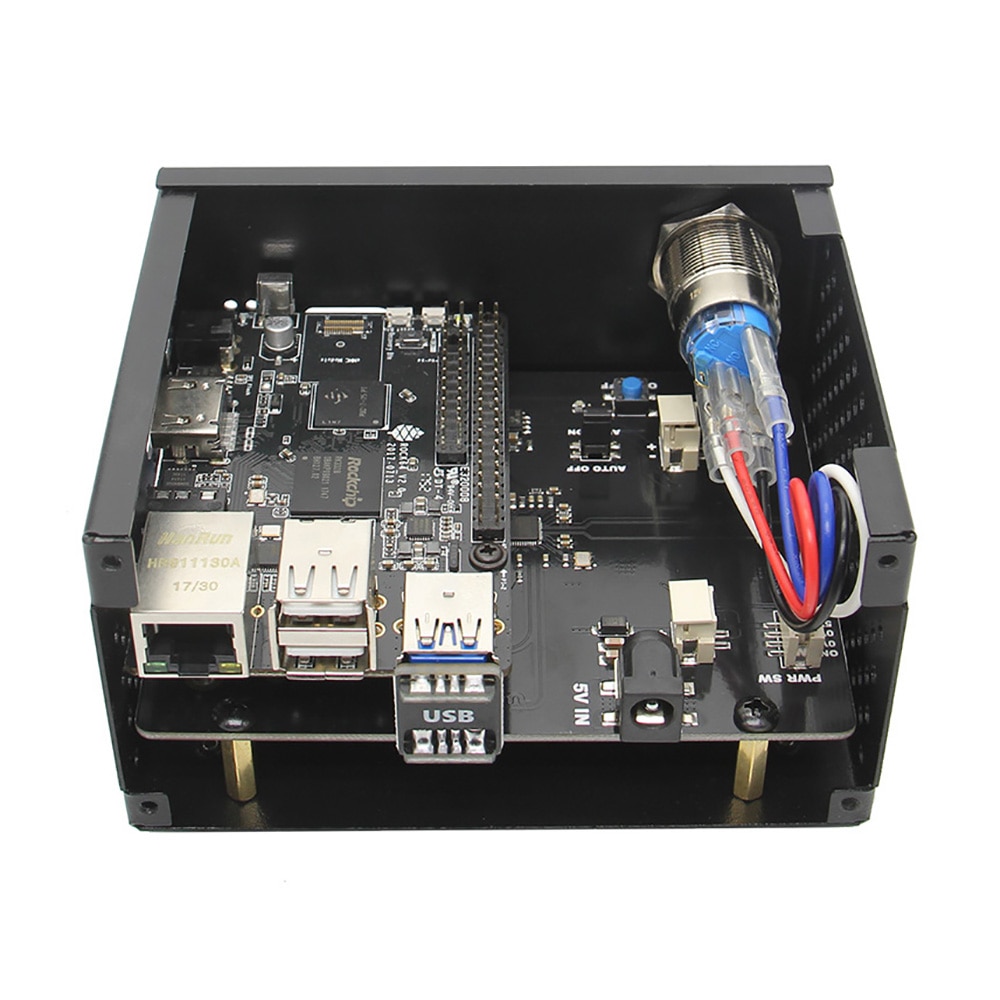

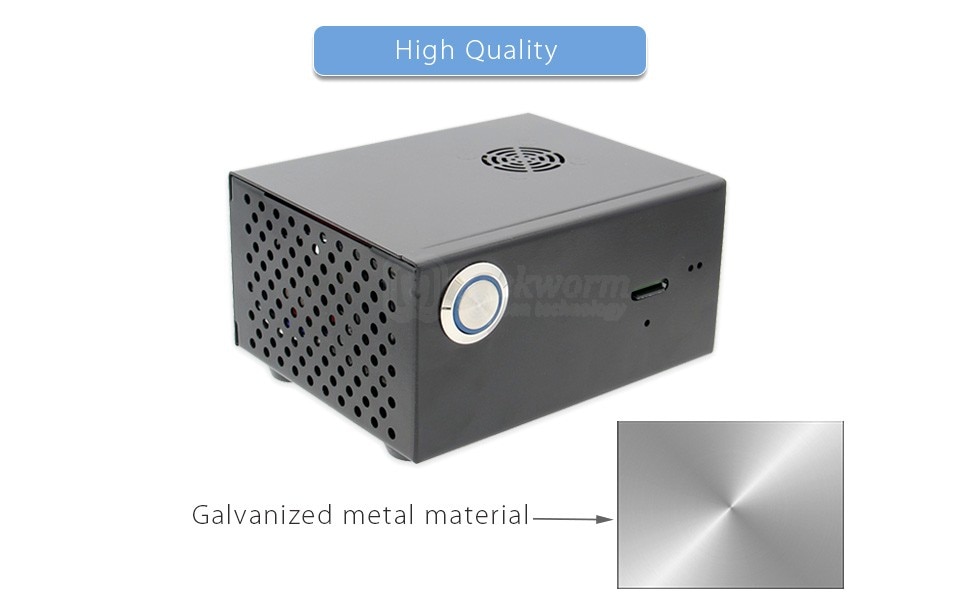

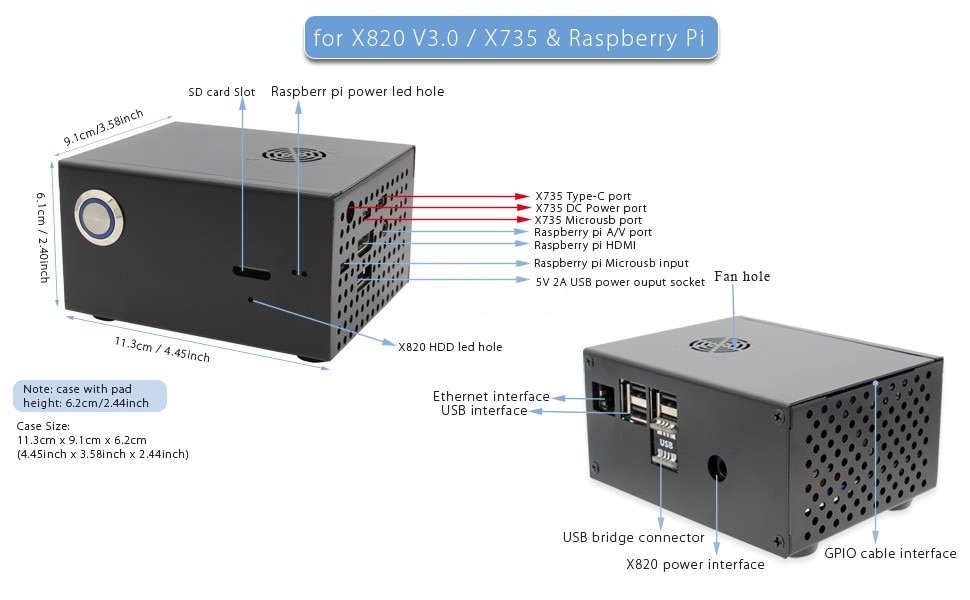

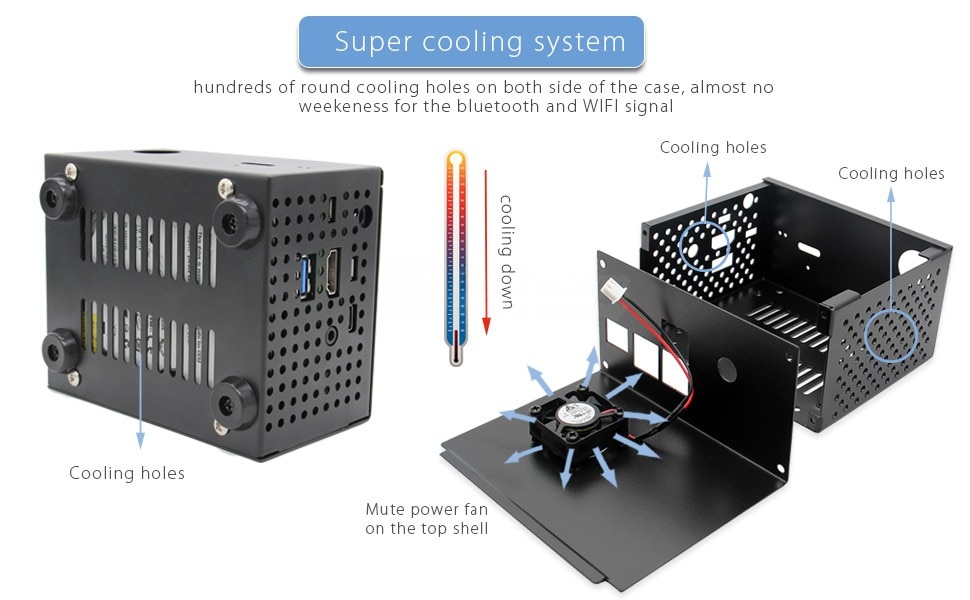

[Matching Metal Case]
Note: the Max. compatible thickness of the 2.5" SATA SSD/HDD is 10.4mm/0.41inch. (The stander 2.5" SATA SSD/HDD is 9.2mm/0.36inch)

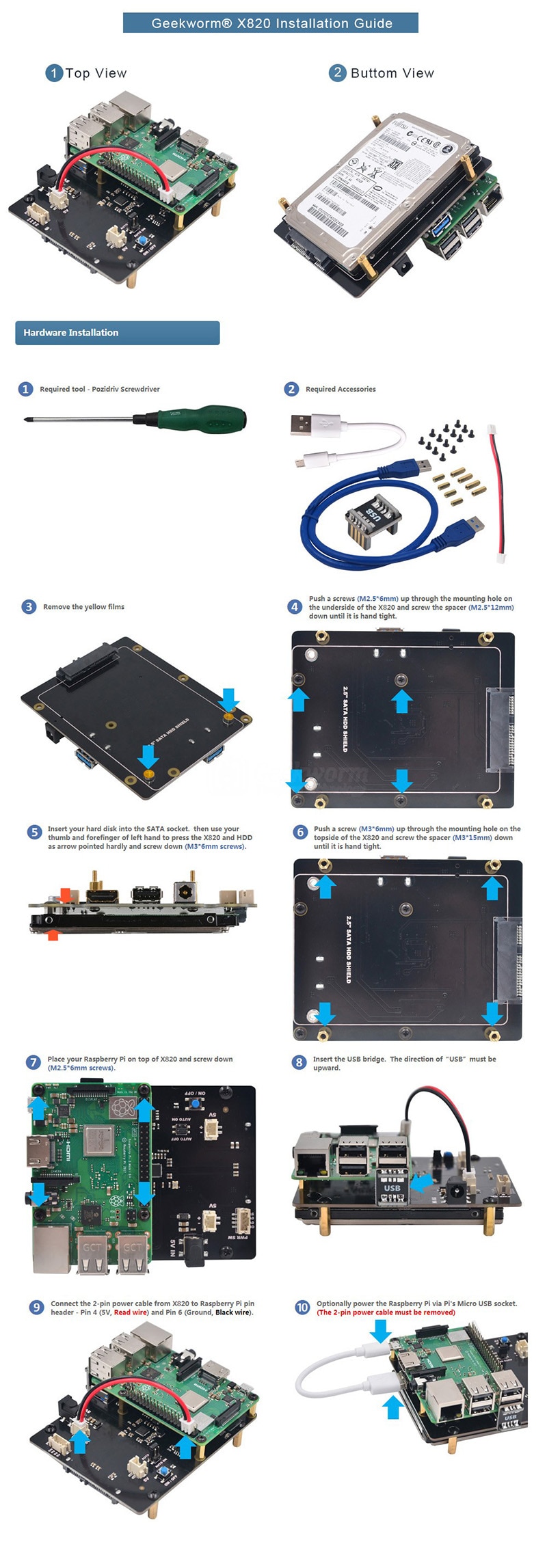

[How To Install]
[Notice]

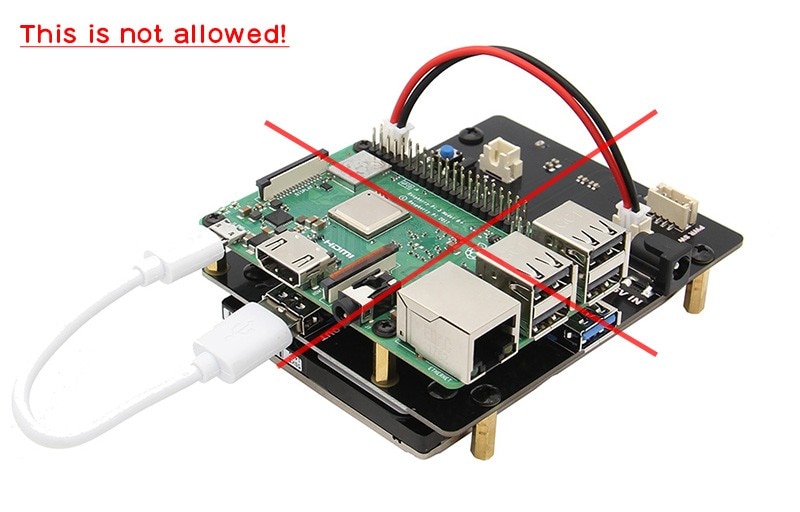

DO NOT APPLY POWER TO YOUR RASPBERRY PI VIA THE PI's USB PORT AND THE 5V OUT POWER PORT AT THE SAME TIME!
[FAQ]
1. Do I need an external power source supplying for x820 V3.0 board?
Yes, here is the specification: 5V and 4A with a 5.5mm barrel connector.and you can buy it here:
2. What to do if the X820 V3.0 board could not detect the HDD or SSD?
(1) At first, please use the high quality power supply adapter(we recommend the official power adapter on sale: ), the hard disk will not been recognized if you use the low quality power supply, as the current of this power supply is not enough.
(2) Please run 'lsusb' command under linux terminal, and save the screenshot of the result, then send it by message, then we will figure out your problem together.
3. How to detect X820 SATA expansoin board device?
Please refer to our WIKI to check out the solution you need: How to check X820
4. How to boot from a USB Mass storage device on a raspberry pi 3?
Please refer to our WIKI: https://wiki.geekworm.com/X820
5. How to do if I don't like the blue light on the power switch?
It is ok to disable the blue light on the power switch, and you just need to pull out the white cable.
[User Manual ]
https://wiki.geekworm.com/X820
- Interface: SATA
- Model Number: Raspberry Pi X820 V3.0 SATA Board
- Demo Board Type: ARM
- Brand Name: Geekworm
- Origin: Mainland China
- Certification: WEEE
- For Use With: Raspberry Pi 3 Model B Plus / 3B / 2B / B+
- OS: All Raspberry Pi operating systems (Raspbain)
- Feature: Supports 2.5-inch SATA hard drives; Powers the Raspberry Pi
- Power supply: +5V DC Max. 4A +/-5%
