ID: 42353

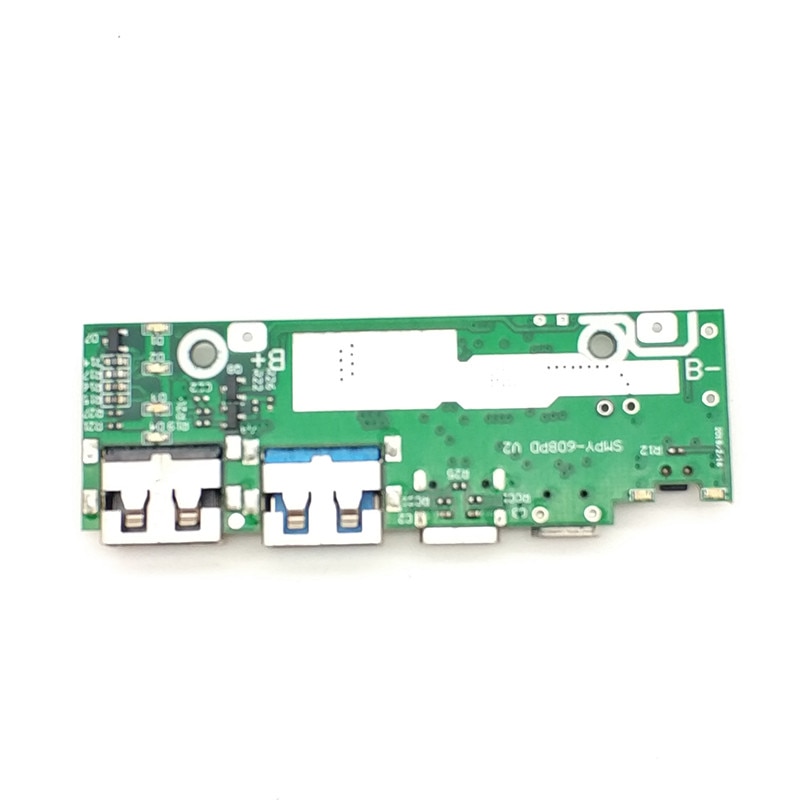

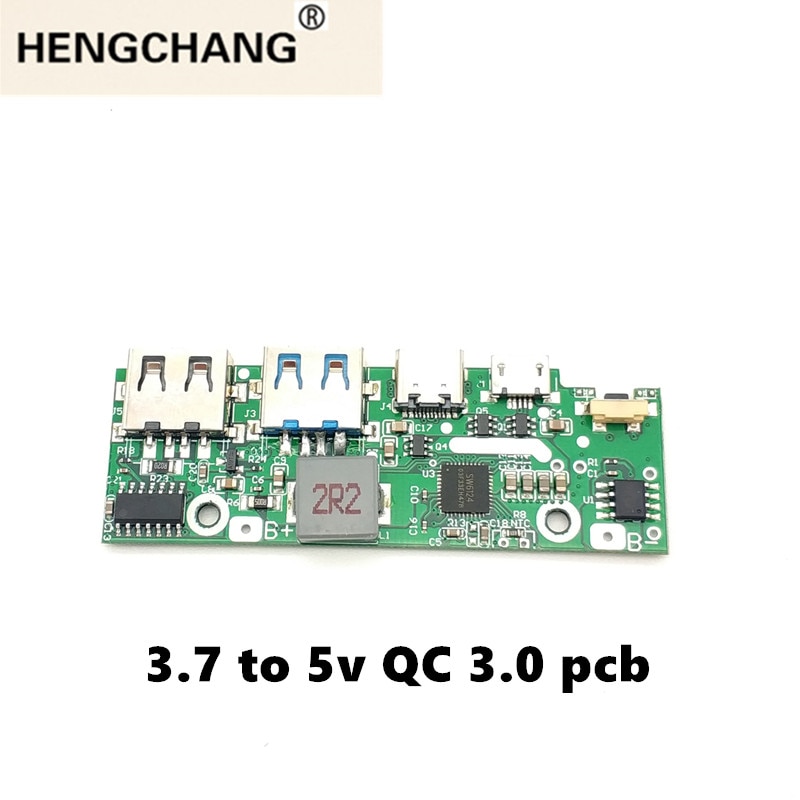

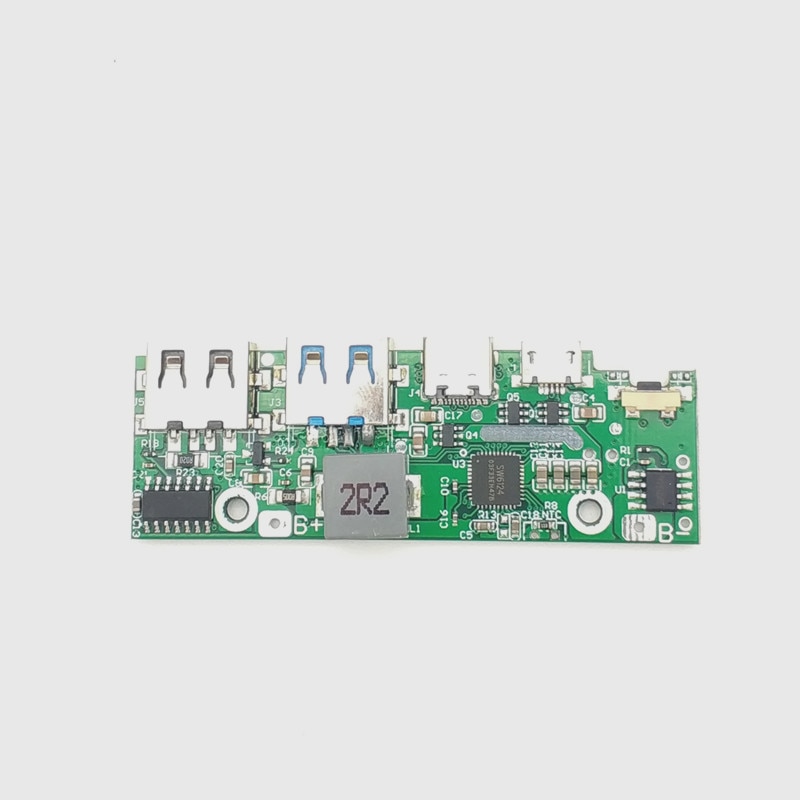

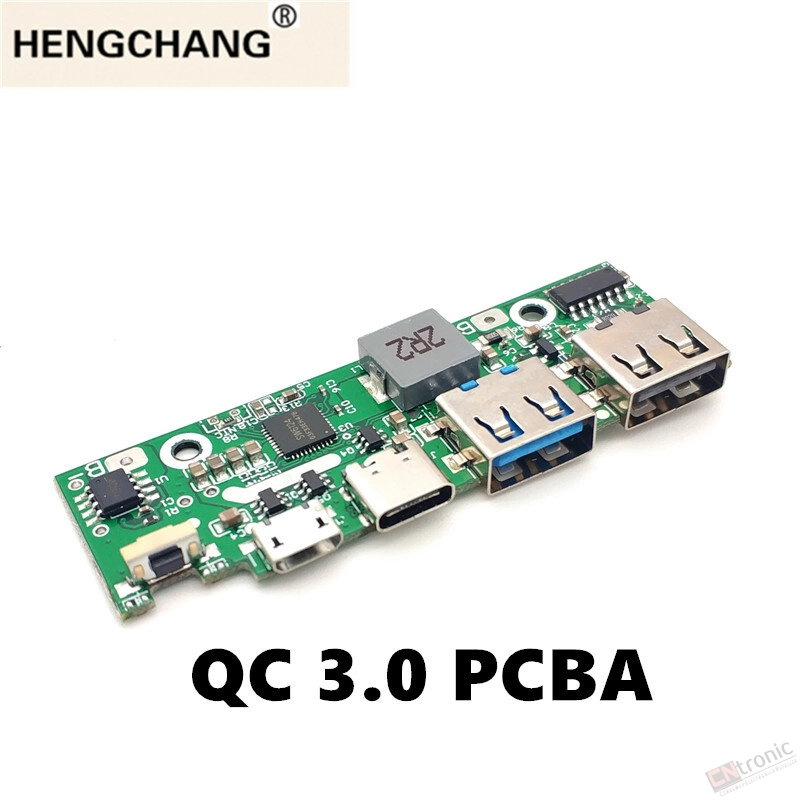

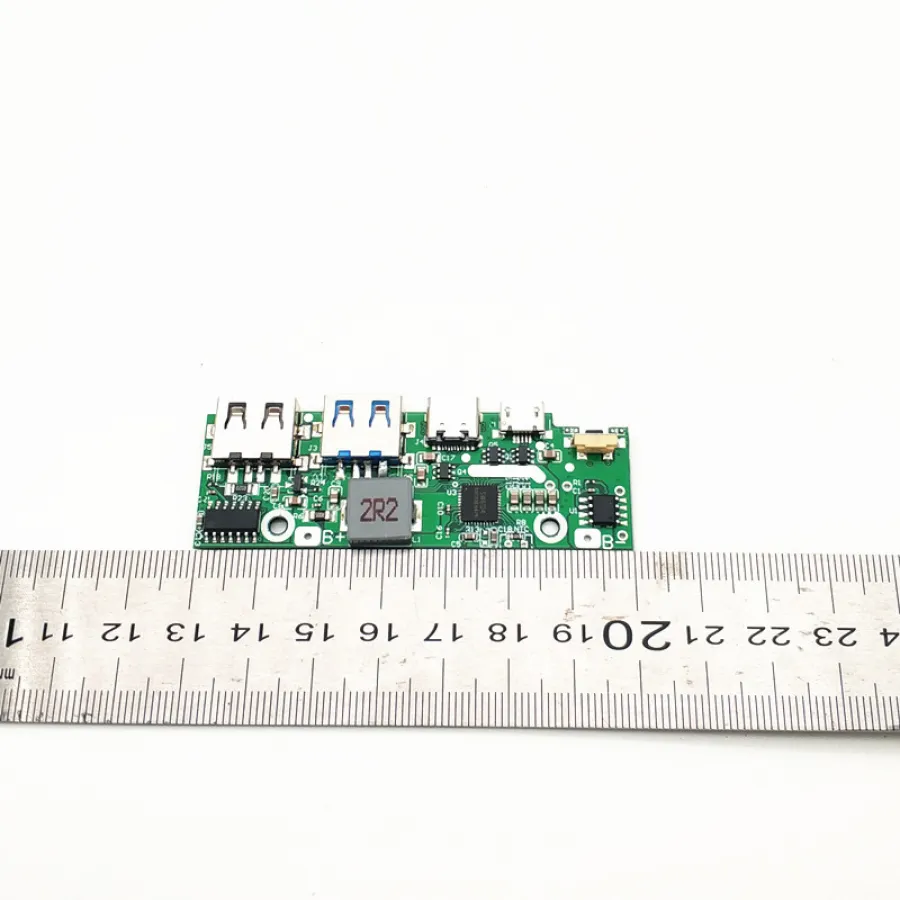

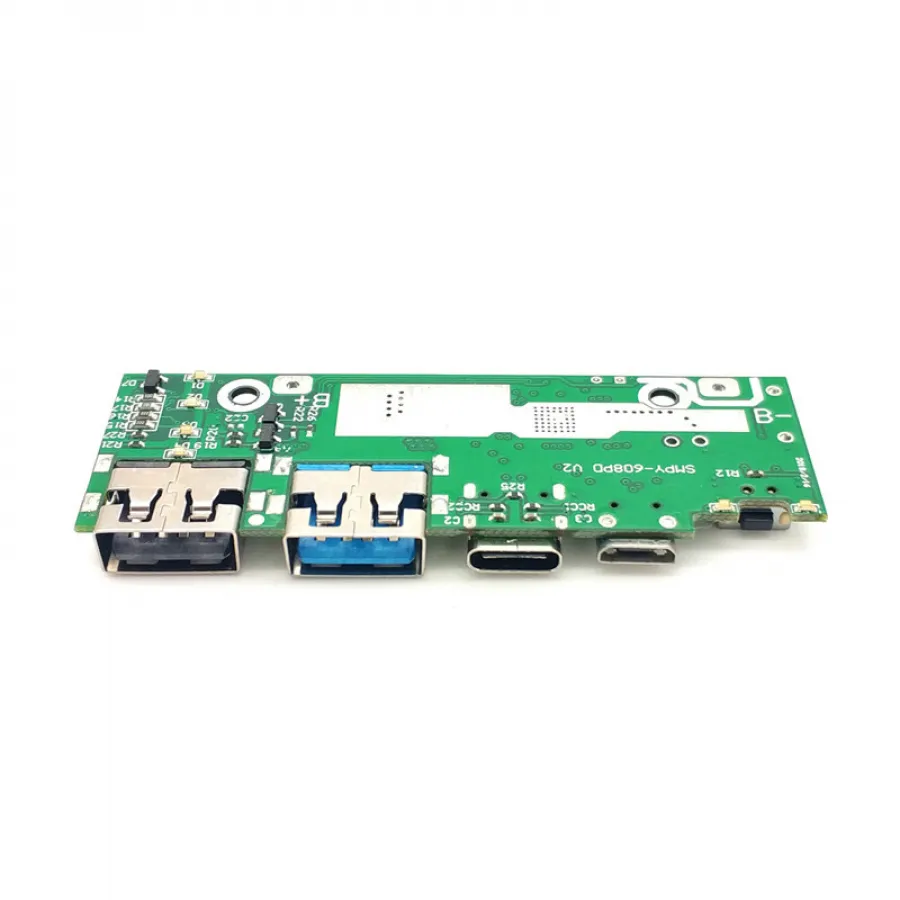

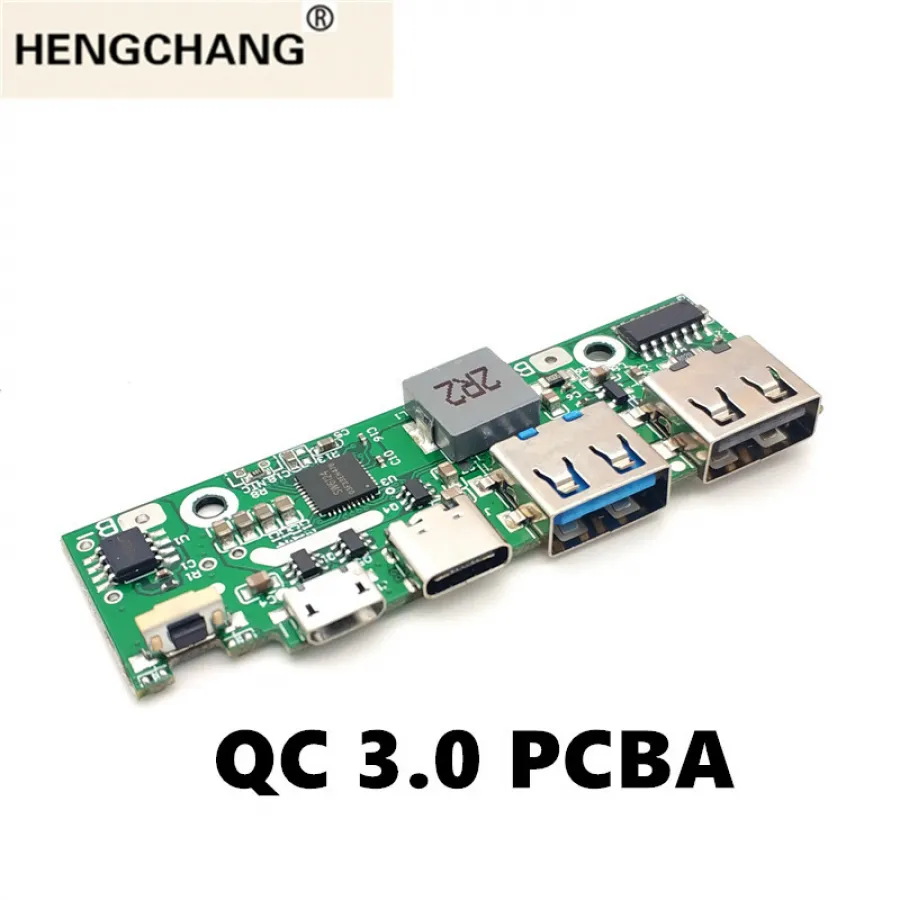

Quick Charge 3.0 Power Bank Part PD3.0 Li Ion Battery Pcba Supply Circuit Board PCB 5v2a 9v2a 12v1.5a Booster Module USB

0.0 (4 votes) | 34 orders
Price:
US $ 33.44 / 2 Pieces
Quantity

Do not connect the positive and negative terminals backwards, otherwise it will burn the circuit board

After put in battery must charging for this power bank activation , if not won't have the output

input1(micro)5V/3A

input2(type-c):5V3A 9V/2A 12V/1.5A

output1.5V/3A

output2.5V/3A 9V/2A 12V/1.5A

Power: 18W(MAX) if your phone charging more than 18W,can't use the Quick Charging

Fast charge specifications: Any one port supports fast charge,
Output quick charge protocol
Support QC3.0 QC2.0
Support the FCP
Support PE2.0 PE1.1
Support the SFCP
BC1.2 module
BC1.2 DCP mode is supported
Support iphone, samsung Large current charging mode recognition

The protection mechanism

Input overvoltage/overcurrent protection

Output overcurrent/short circuit protection

Charging timeout/overvoltage/overcurrent protection

Temperature protection

QC3.0 pcb 2pcs 1lot
Notice: The new tracking number for China Post Ordinary Small Packet Plus can be traced only befor it arrive the airport of your country=not be track,please choose China Post Air Mail if you want a full tracking info.


Packaging Details

  • Unit Type: 2 Pieces
  • Package Weight: 0.100
  • Package Size: 4x2x10

  • Brand Name: NoEnName_Null
  • Item Type: pcb board
  • Origin: Mainland China
  • Model Number: qc 3.0
  • power bank PCB: qc 3.0
  • pcb: 5v 2a 9v 2a 12v 1.5a
  • type: 2usb out
  • input: micro type c
  • features: power bank part
