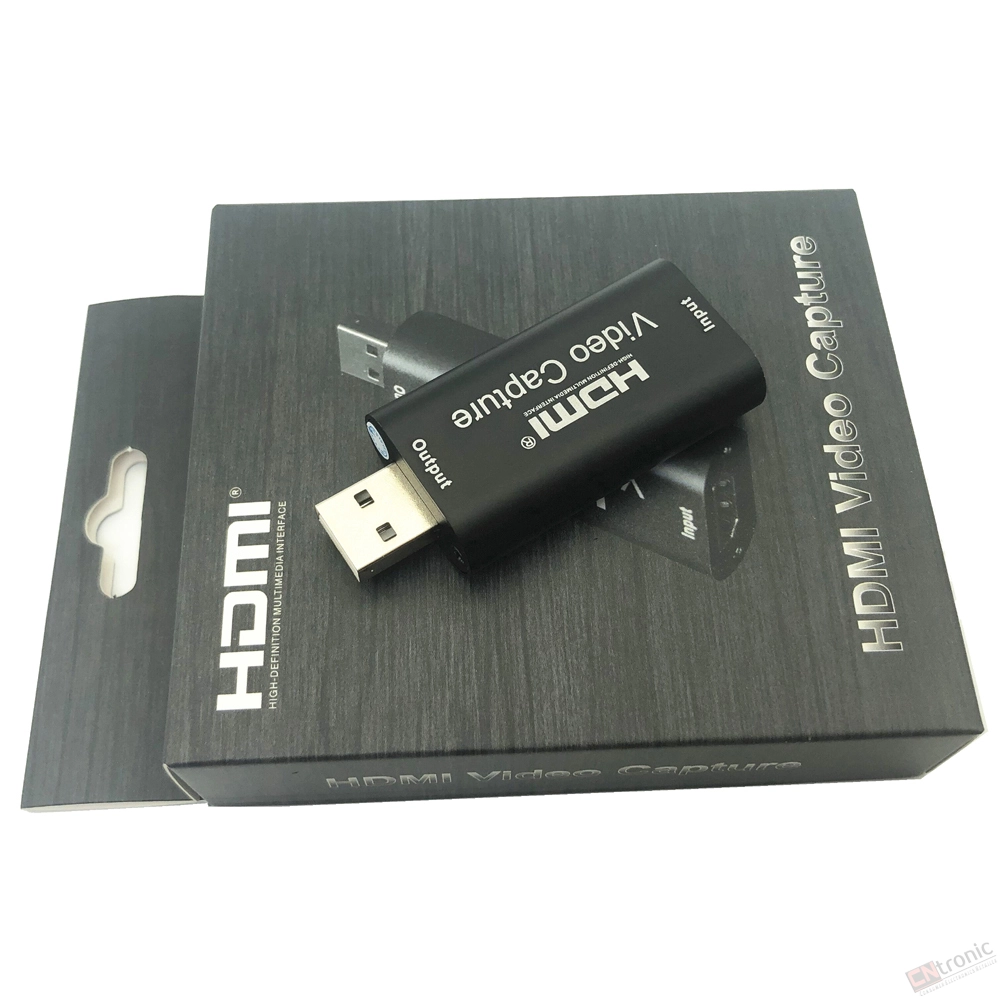

Portable USB 2.0 Audio Video Capture Card HD 1 Way HDMI to USB 2.0 1080P Mini Acquisition Card Converter for Computer Support Wi
0.0 ( votes)
Price:
US $31.98
Discount Price:
US $
30.38
-5%
- Color
-
-
Portable USB 2.0 Audio Video Capture Card HD 1 Way HDMI to USB 2.0 1080P Mini Acquisition Card Converter for Computer Support Wi
About Description:
Description:
This USB 2.0 acquisition card can capture both HDMI video and HDMI audio at the same time.
It can transmit audio and video signals to computers and smartphones for preview and storage.
Suitable for HD acquisition, teaching recording, medical image, etc.
Feature:
1. Support the maximum input resolution of 3840x2160@ 30Hz;
2. Support the maximum output resolution of 1920x1080@ 30Hz;
3. Support 8 / 10 / 12 bit color depth;
4. When standard AWG26 cable is used, the input transmission distance is up to 15m (resolution of 1080P and below);
5. Support most acquisition software, such as for VLC, OBS, Amcap, etc;
6. Support for windows, Android and Mac OS;
7. Conform to USB video UVC specification;
8. Conform to USB audio UAC specification;
9. Without external power supply, small and portable.
Specification:
HDMI resolution: up to 3840x2160 @ 30Hz
Video input format: 8 / 10 / 12 bit color depth
Video output mode: YUV, JPEG
Video output resolution: maximum output resolution 1920x1080 @ 30Hz
Support audio format: L-PCM
Input cable length: ≤ 15m, AWG26 HDMI standard cable
Maximum working current: 0.4A/5VDC
Operating temperature range: (- 10 to + 55 ℃)
Size: 64x28x13mm/2.52x1.1x0.51in
Connection operation:

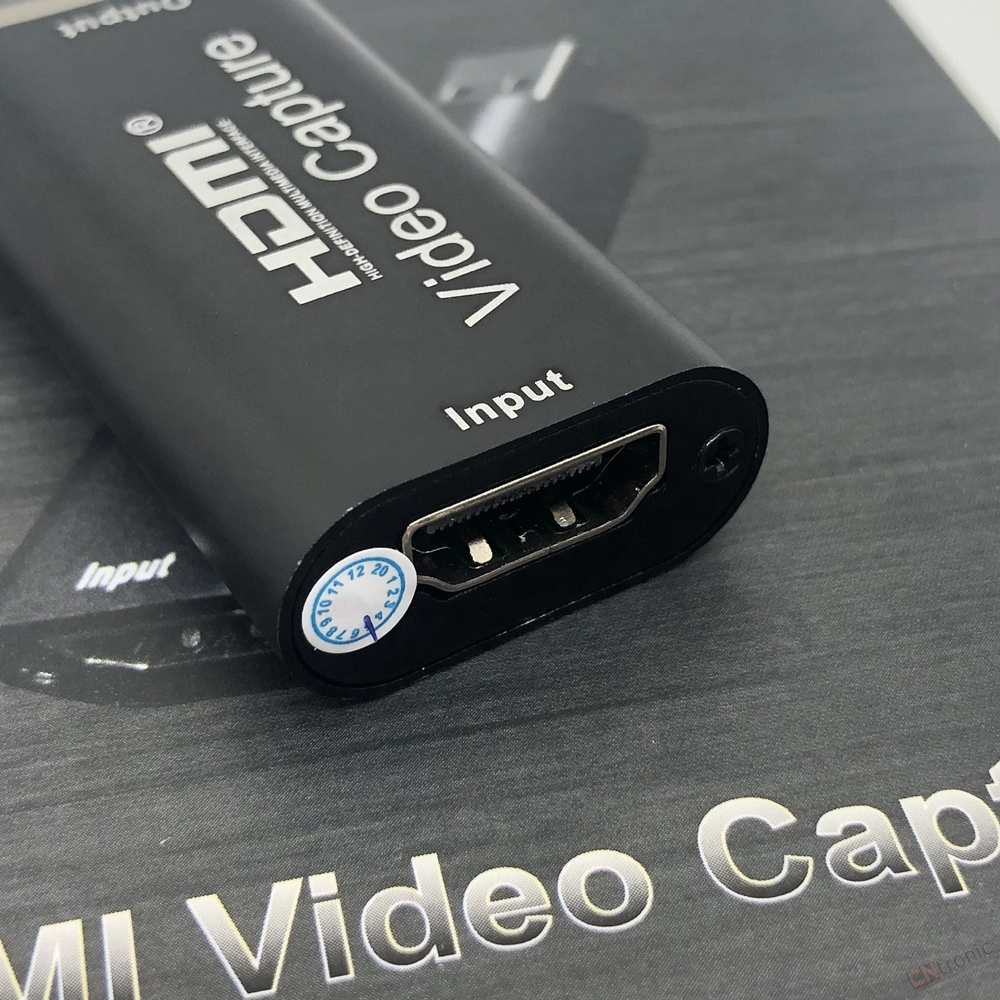

1: Connect the UHD signal source and the HDMI input port of the USB acquisition card with one HDMI line
2: Plug the USB male of the USB acquisition card into the USB port of the computer
3: Collection operation steps (OBS): open the software - add a new source - select "video capture device" - set the screen size - select "studio mode" (double window) - click "start recording"
Computer hardware configuration requirement:
CPU: PC i5-3400 or above; NB i7-3537u 2.0GHz or above
Display card: PC NVIDIA GT630 or above; NC NVIDIA GT735M or above
Storage: 4G RAM
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-3mm measuring deviation due to manual measurement.
You'll receive:
1 x Video Capture Card
1 x User Manual
- Please check pictures for more details.
Packaging Details
- Unit Type:
- Package Weight: 0.760
- Package Size: 18x8x20
- Brand Name: h1111z
- Model Number: AC4755
- Package: Yes
- Interface Type: USB
- Product name: USB 2.0 Mini Video Capture Card
- Type: Video & TV Tuner Cards
- Feature 1: video card
- Feature 2: video cards
- Feature 3: capture card
- Feature 4: hdmi capture
- Feature 5: streaming
- Feature 6: VHS
- Feature 7: hdmi video capture
- Feature 8: video capture
- Feature 9: board capture
- Feature 10: video capture card
- MAX Input Resolution: 4K
- MAX Output Resolution: 1080P
- Support System: Windows 7/8/8.1/10, Mac OS
- Color: Black
- Function 1: video capture usb
- Function 2: hdmi capture usb
- Function 3: hdmi to usb capture
- Function 4: hdmi to usb video capture
- Function 5: capture hdmi
- Function 6: hdmi capture card
- Function 7: usb video capture card hdmi
- Function 8: video capture box
- Function 9: game capture
- Function 10: usb video capture hdmi
- Function 11: capture hdmi usb
- Function 12: game capture card
- Function 13: hdmi video capture card
- Function 14: usb video grabber
- Function 15: video capture device
- Function 16: capture card hdmi
- Function 17: hdmi usb capture
- Function 18: video capture hdmi
- Function 19: capture card live streaming
- Function 20: capture card 4k
- Function 21: usb video capture
- Function 22: usb capture card
- Function 23: video capture 4k
- Function 24: 4k capture card
- Function 25: video capture hdmi 1080p
- Function 26: usb hdmi capture
- Function 27: hd capture
- Function 28: video grabber
- Function 29: hdmi grabber
- Function 30: grabber hdmi
