ID: 63865

Portable 3.5mm Jack Coaxial Optical Fiber Digital to Analog Audio AUX RCA L/R Converter SPDIF Digital Audio Decoder Amplifier

5.0 (1 votes) | 5 orders
Price: US $16.19 / piece
Discount Price:
US $ 14.20 / piece
-12%
Quantity



80018

computer part
This Digital Audio to Analog Audio Converter is designed for either home or professional audio switching.
It converts Coaxial or Toslink digital audio signals to analog L/R audio and available for connection to an external device such as an amplifier via standard RCA-style jacks.
This Digital to Analog Audio Converter Adapter is small in size and very easy to install.

- This Digital to Analog Audio Converter: Converts coaxial or toslink digital PCM audio signals to analog L/R RCA and 3.5mm Jack audio simultaneously ( not capable of being reversed).
- Input Audio Connector: 1 x Toslink, 1 x RCA (Coaxial); Output Audio Connector: 2 x RCA(R/L), 1 x 3.5mm Jack; Powered by 5.5mm USB Power Cable (Power Adapter is NOT Included); Do Not Use Other Plugs, It Can Only Use 5V 1APlug.
- Supports Sampling Rate at 32KHz, 44.1KHz, 48KHz and 96KHz; 24-bit S/ PDIF Incoming Bit Stream on Left and Right Channels.
- Supports Uncompressed 2-channel LPCM or PCM Digital Audio Signal Output; Provides Electromagnetic-noise-free Transmission(5.1 channel is incompatible, please set the audio output to PCM or LPCM).

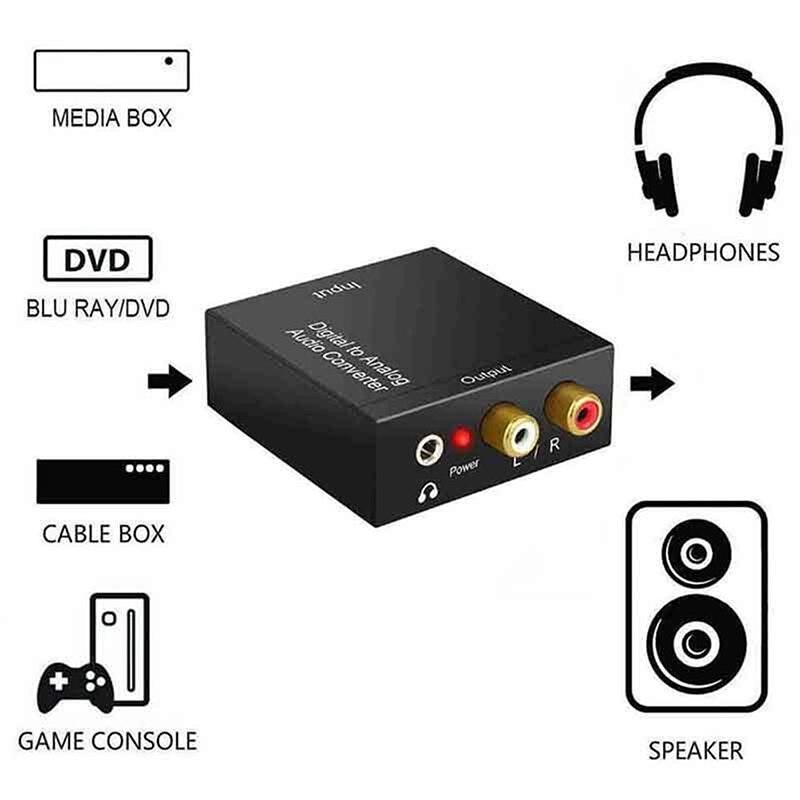

- Easy to Install and Simple to Operate; Can be Used for PS3, PS4, Xbox, Blu-ray Player, HD DVD, Home Cinema Systems, AV Amps, Etc.

-Converts Coaxial or Toslink digital audio signals to analog L/R audio and 3.5mm Jack audio simultaneously ( not capable of being reversed).
-Supports sampling rate at 32KHz, 44.1KHz, 48KHz and 96KHz.
-Supports uncompressed 2-channel LPCM digital audio signal output.
-24-bitS/ PDIF incoming bit stream on left and right channels.
-Provides electromagnetic-noise-free transmission.
-Input Audio: Coaxial or Toslink digital audio.
-Output Audio: 2 x L/R audio.
-Available for connection to an external device such as an amplifier via standard RCA jacks or a headphone via 3.5mm jack cable
-Full metal body, lightweight size, portable and easy to carry and operate.
-Power Supply: DC5V, 1A.
-Sampling rate: 32,44.1,48,96 and 192K Hz, up to 24-bit resolution.
-Easy to install and simple to operate
-Certificated by FCC RoHS

Specifications:

1.Color: Black
2.Housing: Full Metal
3.Weight: approx 90g

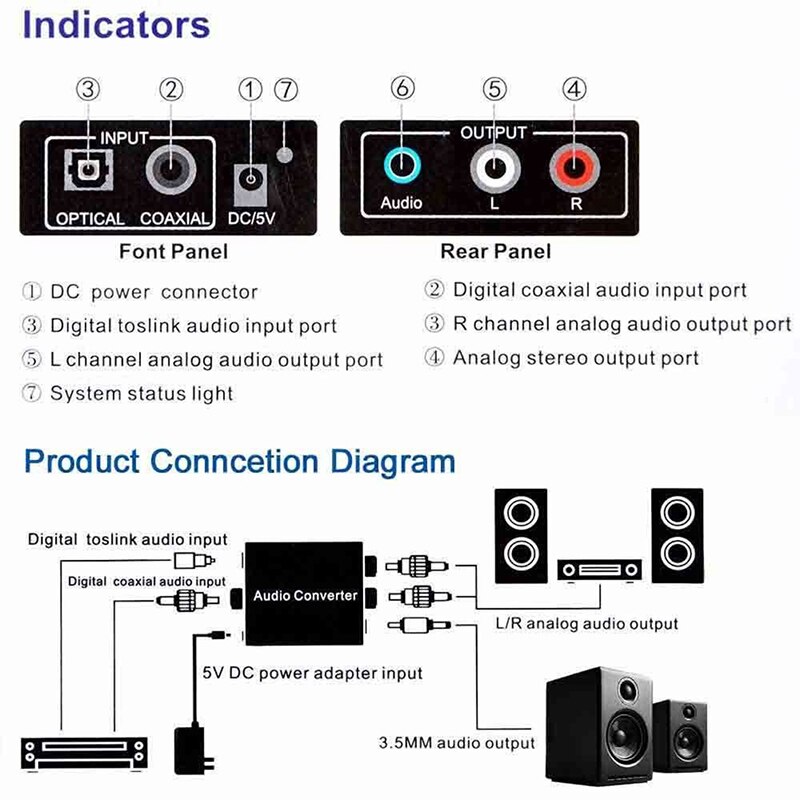

4.Input audio connector: 1 x Toslink, 1 x RCA (Coaxial)
5.Output audio connector: 2 x RCA(R/L), 1 x 3.5mm Jack
6.Powered by 5.5mm USB power cable
7.Consumption: 0.5W (max)

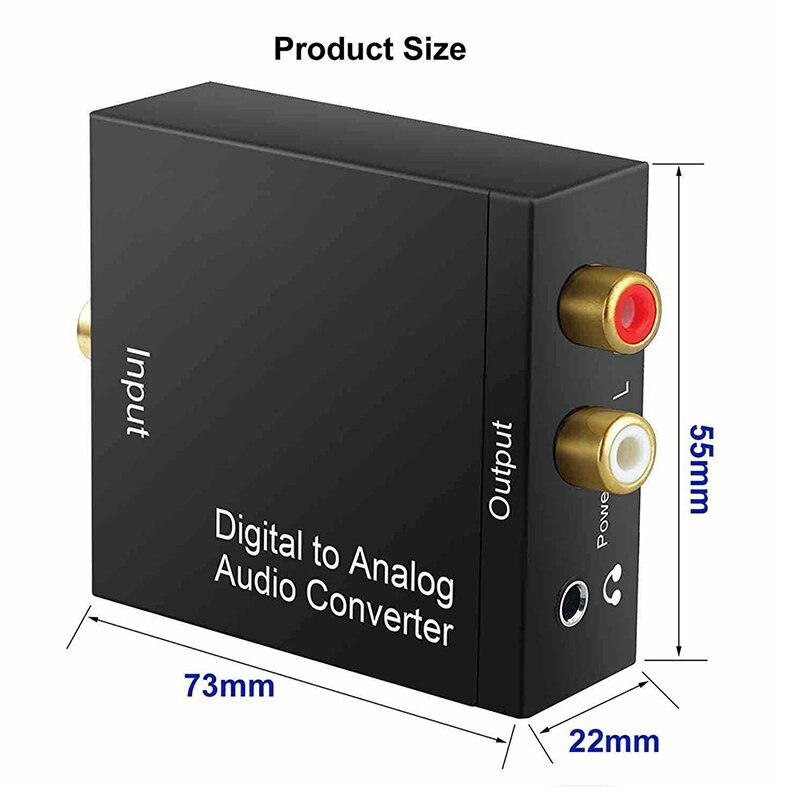

8.Dimension: 77 x 55 x 22 mm

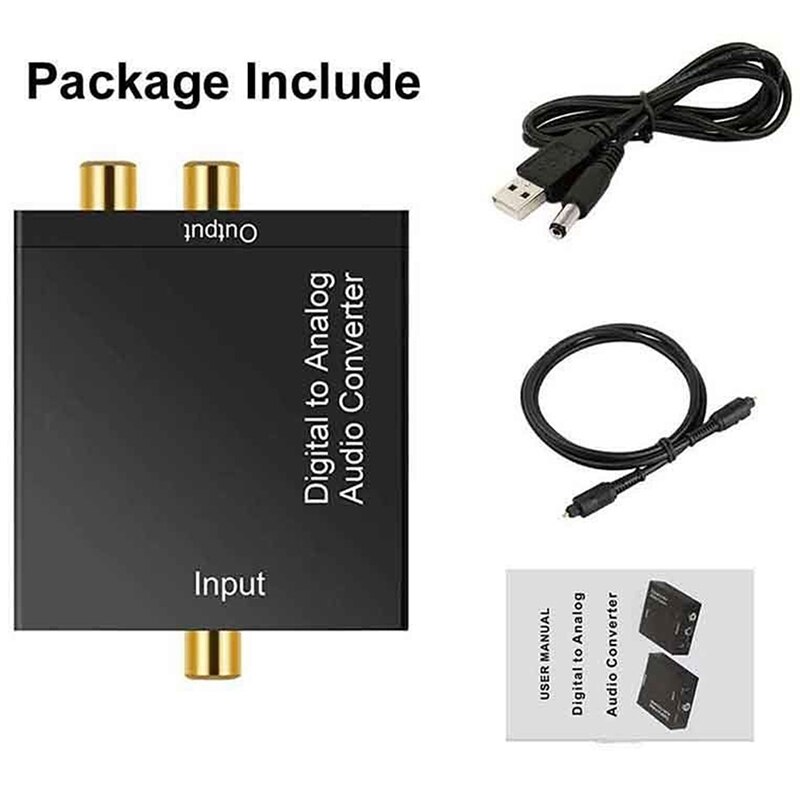

Package List:

Note: Please confirm your model before payment.
          Due to different production batches, The appearance of Audio Converter may be a little different from the pictures

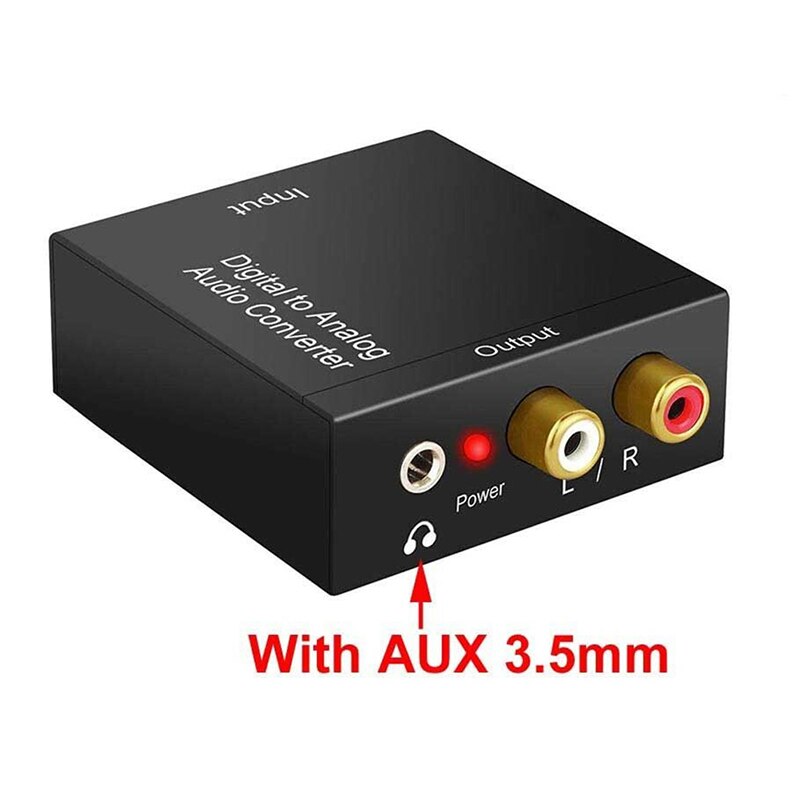

With AUX Package Include:

-1 x Digital to Analog Audio Converter With AUX 3.5mm Jack;
-1 x USB power cable;
-1 x User Manual;
-1 x Optical Cable(Toslink cable);

Without AUX Package Include:

-1 x Digital to Analog Audio Converter Without AUX 3.5mm Jack;
-1 x USB power cable;
-1 x User Manual;
-1 x Optical Cable(Toslink cable);

Fiber Cable 1.8m Package Include:

-1 x 1.8m Fiber Cable;
Note:
-Do Not Use Other Plugs, It Can Only Use Voltage: 5V, Current: >=1A Plug
-Please don't forget to set the audio output to PCM or LPCM as it is not compatible with 5.1 Channel Signal
-This item NOT convert Dolby.
-The Reason of cancel the external power adapter and use USB powered.

Many devices (e.g. Computer TV DVD) USB ports output stable voltage and current, And filters some bad waves. So the DAC( Digital to Analog audio converter) will works better, And decode will more stable.

-In addition ,Use USB output power that is more environmentally friendly, And reduce costs, And compatible with all country
