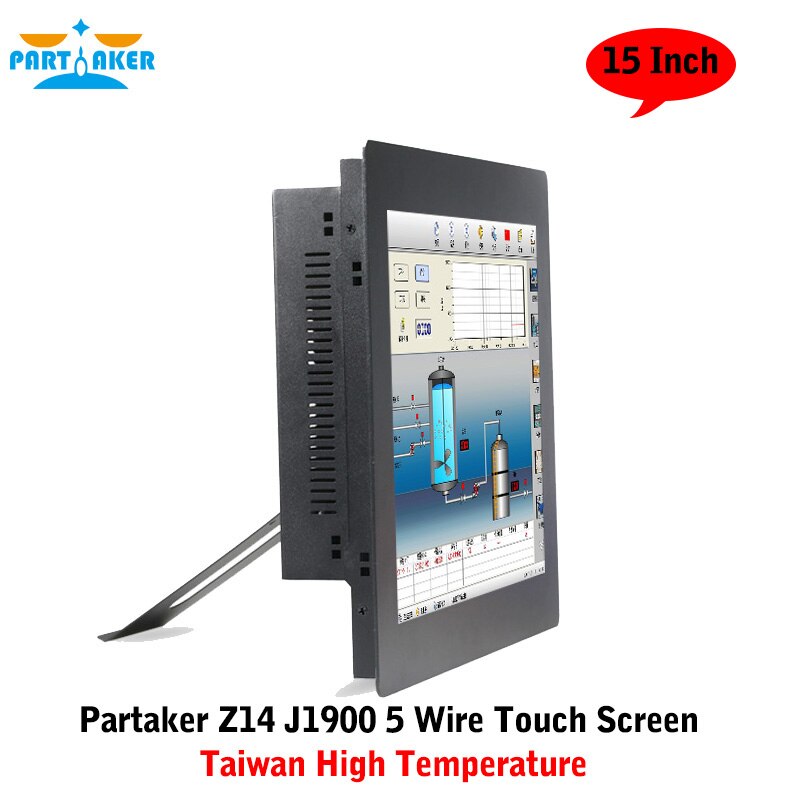

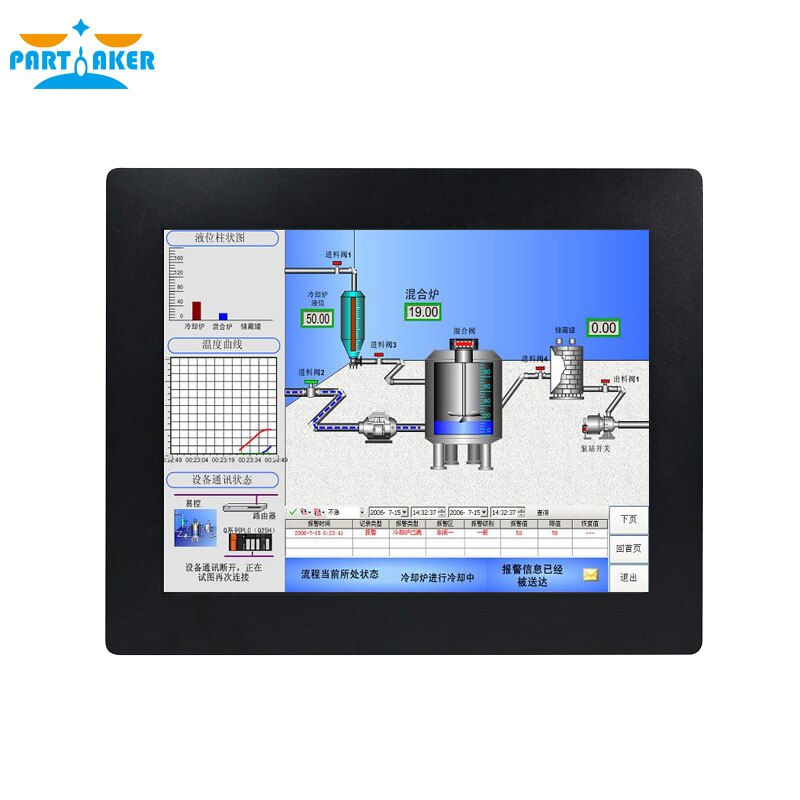

Partaker Elite Z14 15 Inch Taiwan High Temperature 5 Wire Touch Screen Intel J1900 Quad Core IP51 Panel PC With 2MM Panel
SALE
ID: 28708

Partaker Elite Z14 15 Inch Taiwan High Temperature 5 Wire Touch Screen Intel J1900 Quad Core IP51 Panel PC With 2MM Panel

0.0 ( votes) | 2 orders
Price: US $1128.04 - 1348.04 / piece
Discount Price:
US $ 1051.40 - 1253.80 / piece
-7%
Color
Plugs Type
Size
Quantity

Buy Now
Add to Cart




Good News:


Send from China to EU/RU/UK by DPD or DHL, TAX Free, must choose seller's shipping method.




Model Number:

Partaker Elite Z14

Screen Size:

15 Inch

Front Panel:

2MM Ultra Thin

Opening Hole Size:

358*290mm (Length*Width)

Screen Type:

Taiwan High Temperature 5 Wire Touch Screen

CPU:

Bay Trail Celeron J1900 Quad Core 2.0Ghz to 2.4Ghz

OS:

Windows Or Linux

RAM/SSD/HDD:

Maximum 8G RAM, 1* MSATA + 1*2.5 Inch HDD

I/O:

3*USB2.0/1*USB3.0/3*RS232

I/O:

1*VGA/1*RJ45

I/O:

1*DC/MIC-IN&LINE-OUT

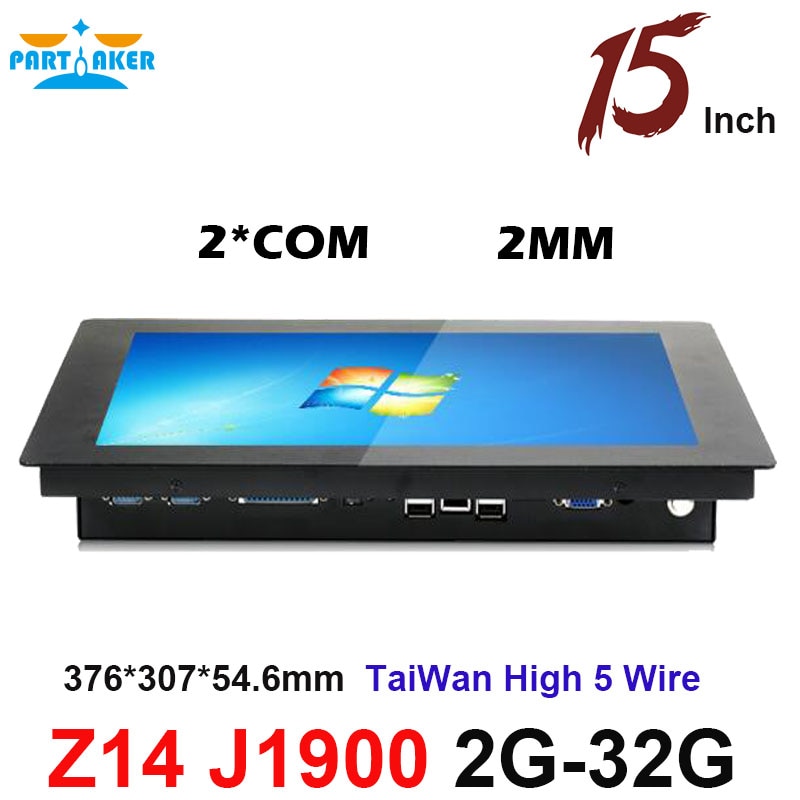

Physical Dimension:

376*307*54.6(mm)

Gross Weight:

6.5 KGS

3855U and J1900 CPU are without HDMI Port now, please note it


There is without LPT port by default,if you need it,please contact us before buy!



Model Number: Partaker Z14

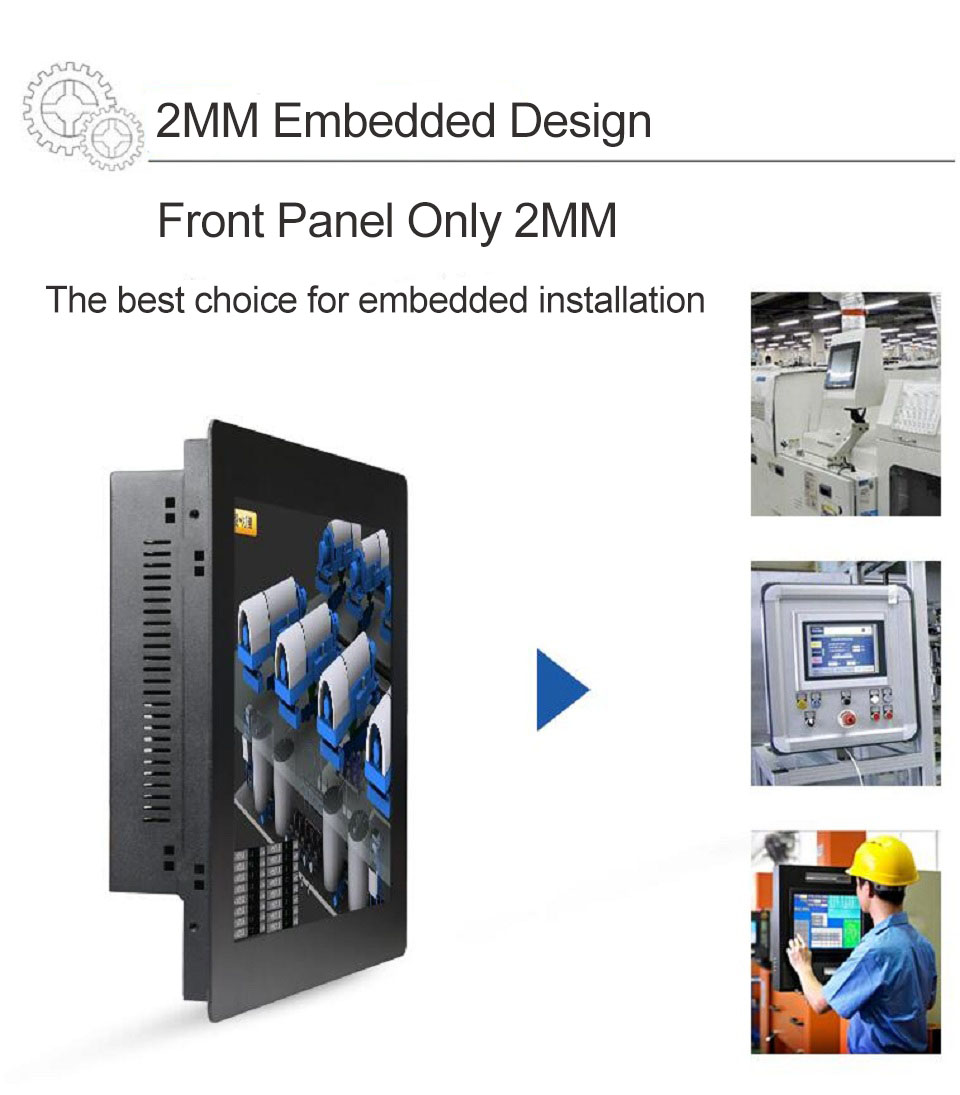

Front Panel: 2mm
Opening Hole Size: 358*290mm (Length*Width)
Screen Type: Made-In-China 5 Wire Resistive Touch Screen
CPU: Intel Celeron Processor J1900 (2M Cache, up to 2.42 GHz)
OS: Windows Or Linux
RAM/SSD/HDD: Max 8G RAM, 1* MSATA + 1*2.5 Inch HDD

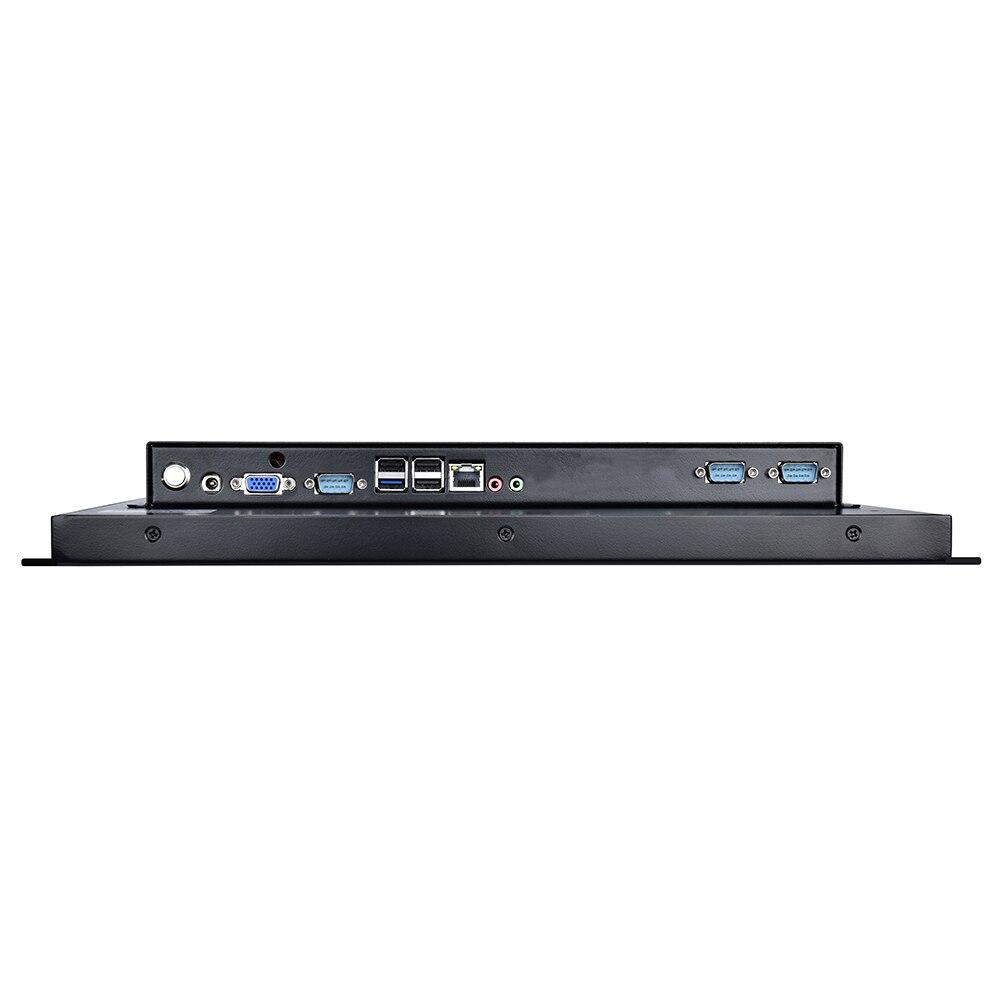

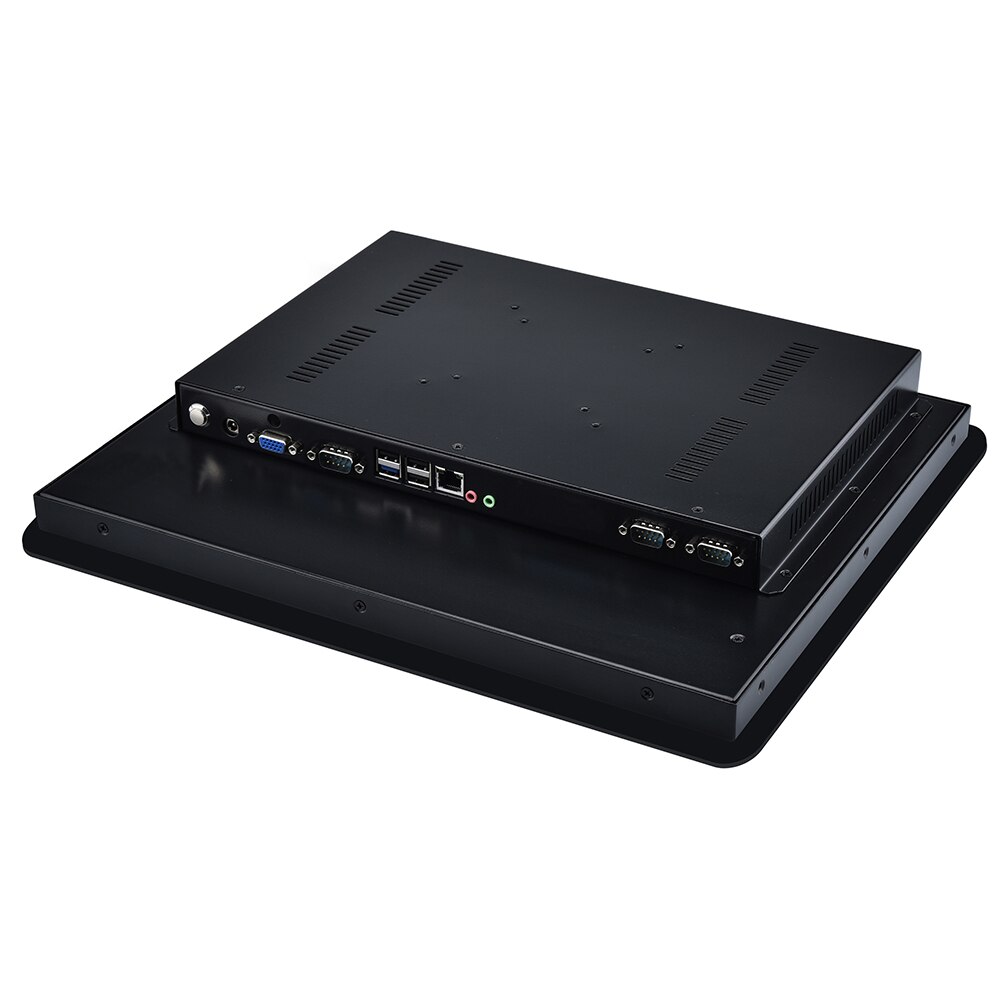

I/O: 3*RS232+VGA+LAN+3*USB2.0+1 USB 3.0+DC+Audio In &Out
I/O: Optional LPT, Default Without
Physical Dimension: 376*307*54.6(mm)
Gross Weight: 6.5 KGS
Panel Structure：

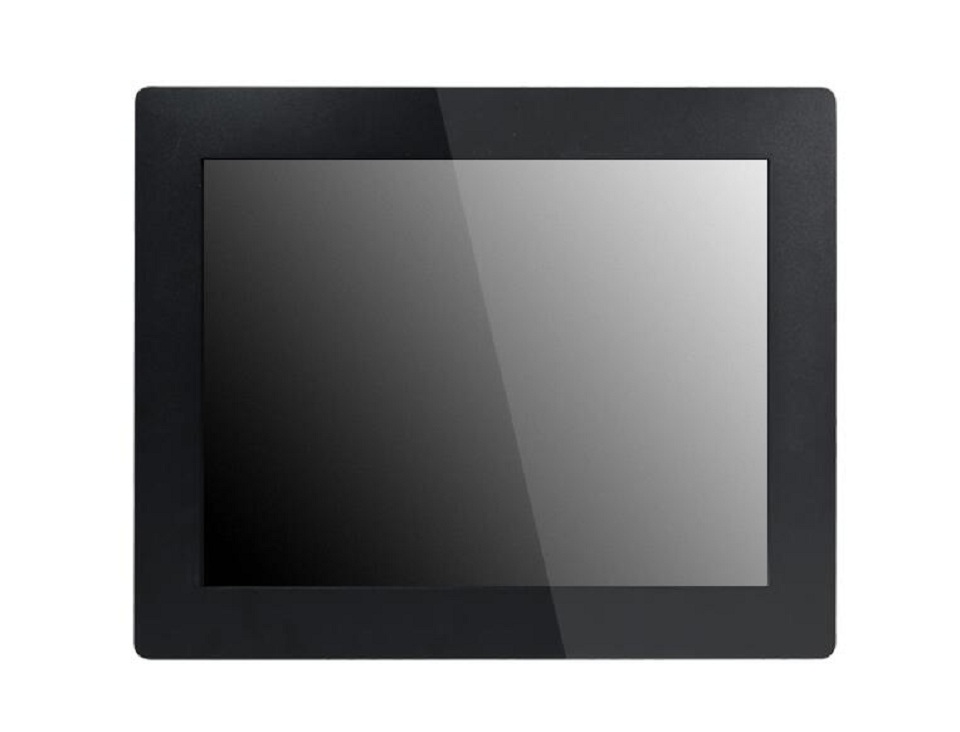

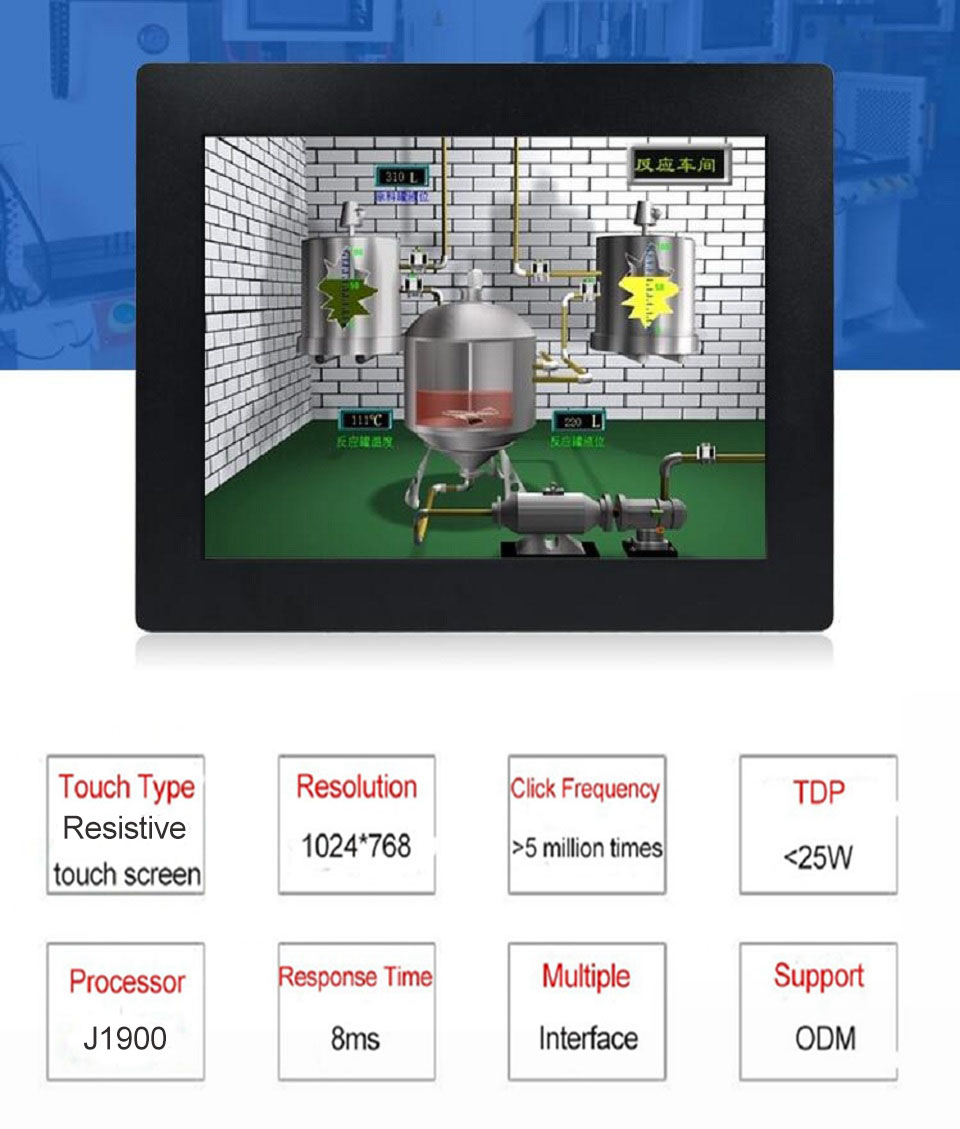

Panel Size: 15 Inch LED Screen
Resolution: 1024*768,Screen Ratio 4:3
Display Brightness: 430cd/m(2)
Contrast: 700 : 1
Response Time: 8ms
Touch Type: Using high-quality resistance touch screen click life> 1 million times
Usage Environment:
Operating Temperature: -10℃～60℃ Surface Air Flow
Operating Humidity: 10% ~ 95% @ 40 ℃ without condensation
Storage Temperature: -20 ℃ ~ 70 ℃

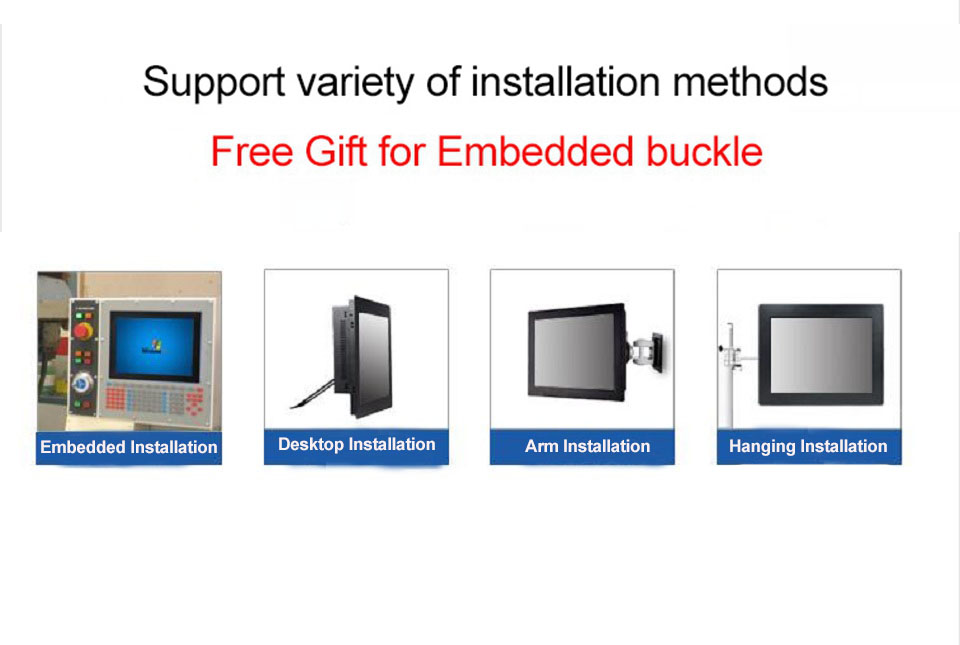

Installation Method:
1: Embedded (Recommended)
2: Wall-mounted
3: Desktop
4: Cantilevered
5: Other Installation Methods
Motherboard：
BIOS： AMI 32Mbit，Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog And Other Functions

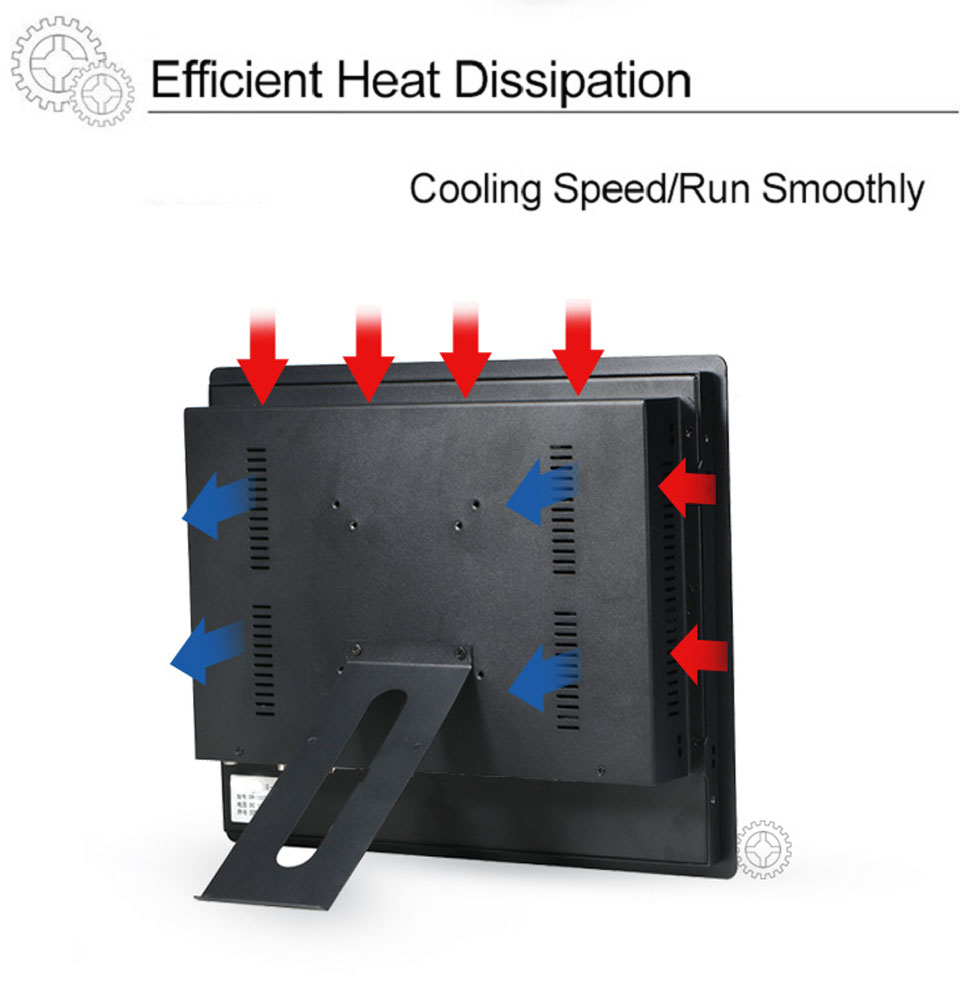

Motherboard: Fanless Design
I/O Interface：
Network: 1* Realtek 8111E 10/100/1000M
Audio: RealtekALC662 HD Audio
Package Information：
Package Size: 44CM（L）*36.2CM（W）*15.5CM（H）
Physical Weight: 4.15KG / 5.25KG(Net/Gross)
Power Supply: Input: 180-240V～1.0A 50-60Hz　　Output: 12VDC 4A MAX
Power Cord: Power Cord*1
Touch Pen: Resistance touch pen*1 (10 capacitive touch screen without touch pen)
Buckle: Embedded Installation Buckle* 1 Set



Z14 Made-In-China 5 Wire Resistive Touch Screen CPU Option Listing:
Z14 TaiWan High Temperature 5 Wire Touch Screen CPU Option Listing:

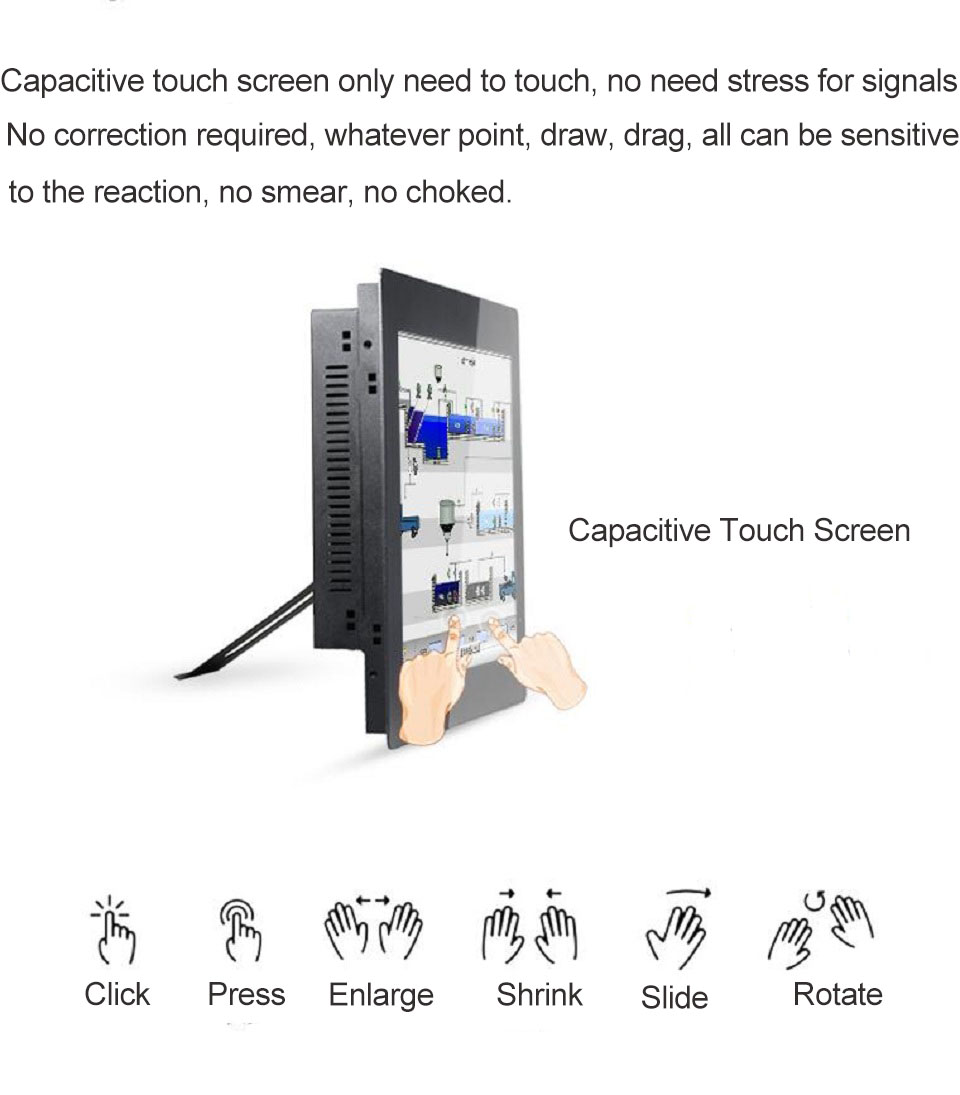

Z14 10 Points Capacitive Touch Screen CPU Option Listing:

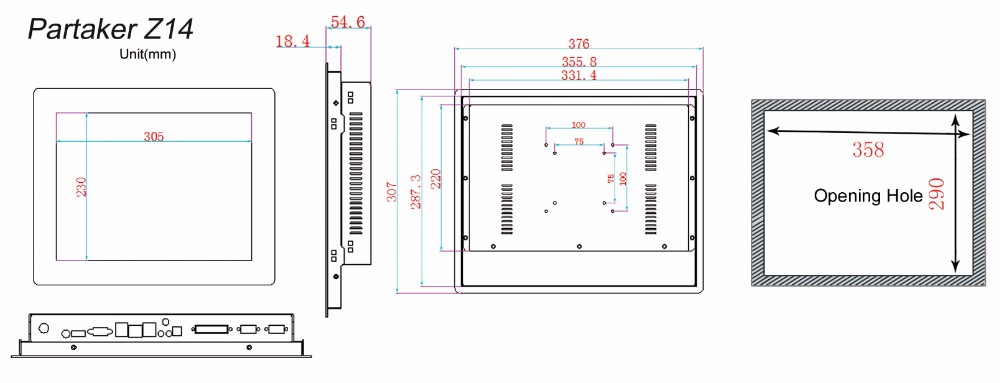

Opening Hole Size Drawing:





Features:

Resolution 1024*768, Screen Ratio 4:3

Optional WiFi module, support for 802.11b / g / n

Support call on boot, network wake-up

Standard VESA screw hole, can choose the installation method flexibly

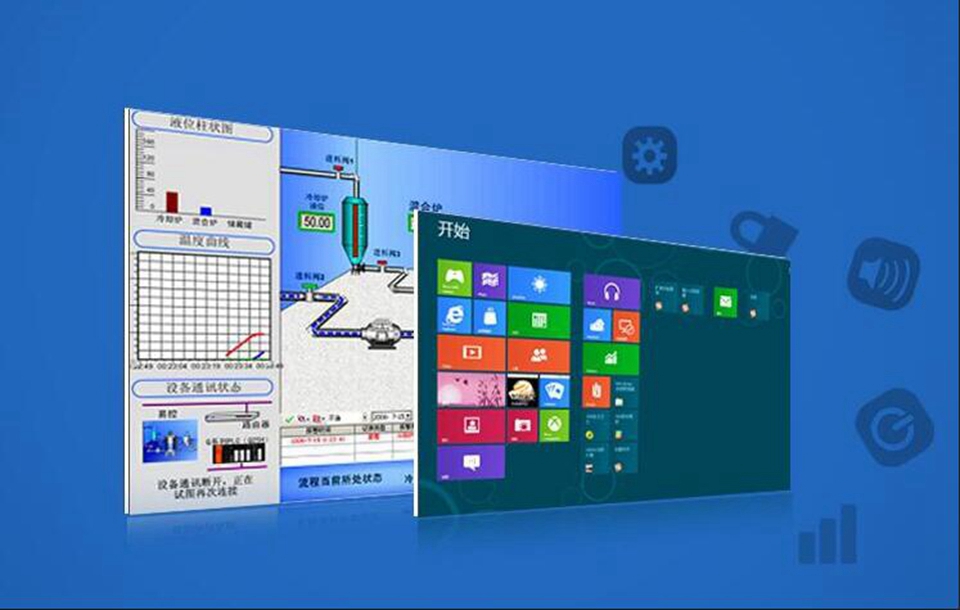

Support WinXP, Win7, Win8, Win10, Linux etc….




Panel Size

15 Inch LED Screen

Resolution

1024*768

Display Brightness

430cd/m(2)

Contrast

700:01:00

Response Time

8ms

Touch Type

Using Taiwan imported 5-wire high-temperature touch-screen click life> 35 million times


Motherboard:

BIOS：AMI 32Mbit，Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog And Other Functions

Display Mode：Single Display； VGA+LVDS，Synchronous / Asynchronous Dual Display

Motherboard:  Fanless Design


I/O Interface:

Network: 1* Realtek 8111E 10/100/1000M Adaptive Network Card Chip

Audio: Realtek®ALC662 HD Audio Decoding Core


Installation Method:

1. Embedded (Recommended)

2. Wall-mounted

3. Desktop

4. Cantilevered

5. Other Installation Methods


Usage Environment:

Operating Temperature:

-10℃～60℃ Surface Air Flow

Operating Humidity:

10% ~ 95% @ 40 ℃ without condensation

Storage Temperature:

-20 ℃ ~ 70 ℃



1.AccordingNewest CntronicBusiness Service Agreement informs all productsshould be showed real price to customs because buyers are responsible for paying tax involved, such as import tax, VAT, etc.
2. Due to the tax problem, buyer refuse to receive the goods, buyer need to responsible for the freight back and forth. Thank you for your cooperation. Any request, leave us message.
3. According to customs rules in Russia, we have to write real price to customs.and buyer have to offer passport information, personal VAT number and link of product to local customs for clearance. Thanks.
4. For German customers, please note that German custom decide to implement the single customs clearance costs for e-commerce goods from Mar.1 2018. Deutsche Post DHL will charge an additional fee of 6 EUR / set (including VAT) for taxable and hospitality tax on incoming mail.
5. For Swedish customer, please note that the Swedish Customs decided to impose VAT on all non-EU e-commerce items (including mail) starting March 1, 2018. The implementation of zero-value-added tax threshold, does not distinguish between the level of value, the recipient VAT. If the value of the goods is less than 150 euros, Sweden Post will charge 7.5 euros for services, more than 150 euros, for 12.5 euros service charges e-commerce items.
6. For Brazil customer, please note that the Brazil Customs decided to charge a fee of 15 reais (about 3.5 US dollars) per order for all international parcels handled by the customs from August 27, local time.You have to pay it within 30 days, otherwise the package will be returned or destroyed. For that, we wont do money refund.
7. To European union(28 counties) we have XINNUO or YUNTU shipping which will pre-paid taxes in our side which means no need pay taxes when goods received, the delivery time need 8-15 days to GB, France, Italy, Spain, Germany etc.Contact us if you need this service.
1. We prefer payment through ESCROW which is security way for you.
2. Pls make sure the shipping address, zip code and tel-number are correct before payment.
3. The buyers are responsible for all additional custom fees, brokerage fees, duties and taxes for importation into your country.
4. We also can accept the payment by Paypal if you think Paypal is convenient for you to order. But now only can ship to USA, UK, Italy, Spain, France, Germany.
5. Welcome to contact us by chat tool directly or leave a message if you order in bulk.
6. Refund will be done by Paypal.
1. All items will be double checked and well packed and they will be dispatched within 5 business days when order is paid.
2. Normally we ship package by DHL, it will take about 3~7 working days to most of countries, door to door.
3. If you address is a remote area by DHL, if you do not add remote area shipping fee, we will arrange shipment by our methods, hope you can kindly understand it, thanks.
4. e-EMS: it is for Russia and some other countries.
5.If youchoose the shipping wayis air post mail, it normally takes 30-90 days without tracking information, pls noticed. It's betterto chooseEMSor DHL, more fasterand safe.
6. If you don't get the package in normal time, please contact us kindly, we will do our best to assist you.
7. If you don't accept above terms, pls do not buy it, thanks.
1. We provide 1-3 year warranty period, repair or replace for free;the second year and the third year, we can repair it free. but we will charge for the parts that need to change.
2. If you are not satisfied with the item and want to return it reasonably, please contact us kindly first. We will try our best to deal with the issue for you or you can exchange or return the item in one week.
3. All returned items must be in its original conditions. Anthropogenic causes as defects are not guaranteed.
4. If you want to return the item, pls confirm the return address with us, we only accept EMS or Post for return product. Thanks.
5. If the productbreak down, please contact us.
1. We maintain high standards of excellence and strive for 100%customer satisfaction!
2. If you are satisfied with them, please lease 5 star positive feedback
3. Negative feedback or low DSR does no resolve any underlying issues. If you have a problem, please contact us via email firstly and give us the opportunity to reasonably rectify in a reasonable amount of time. We will try to respond ASAP, and we are always willing to work things out.
4. For some uncontrollable factors, the item may be damaged during shipping. If you receive a broken item, please contact us first, we will investigate and replace, if you have any other questions please email us. we will respond within 24 hours or less.


  • Weight: 6.5KG
  • Mouse & Keyboard: No
  • Display resolution: 1024*768
  • Processor Core: Quad Core
  • RAM Type: DDR3
  • Operating System: Windows&Linux
  • Memory Capacity: 32 MB
  • HDD Rotation Speed: SSD
  • Graphics Card Chipset: HD Graphics
  • Drive Type: No CD ROM
  • Dispaly Ratio: 4:3
  • Processor Main Frequency: 2.0
  • Display Size: 15"
  • Graphics Card Type: Integrated Card
  • Display Type: Touch Screen
  • Model Number: Elite Z14
  • Port: LAN
  • Processor Model Number: Intel Celeron
  • Type: All-In-One
  • Memory Capacity: 2GB
  • Hard Drive Capacity: 32G SSD
  • Brand Name: Partaker
  • Certification: CE
  • Origin: Mainland China
  • CPU: Bay Trail-D-Celeron J1900 Quad Core 2.0G
  • Memory: 2G DDR3(4GB, 8GB DDR3 as optional)
  • Hard Disk: 32GB SSD(64GB, 128GB SSD as optional)
  • Display Chipset: integrated intel HD graphics
  • Audio Chipset: integrated Realtek ALC662
  • Network Chipset: integrated RTL 8111E
  • Backlight life: >50000h
  • Power Supply: 12V 4A~5A
  • Machine Size: 376*307*54.6mm
  • RS232 Port: 3*COM
  • Touch Screen Type: Taiwan High Temperature 5 Wire Touch Screen
  • Ports: 3*RS232+VGA+LAN+3*USB2.0+1*USB 3.0+DC+Audio In &Out
