Orange Pi 5 RK3588S 8 Core 64-bit 4G / 8G / 16G RAM LPDDR4/4x Support 8K Video Codec Optional Power Supply Case Fan Heatsink
5.0 (26 votes)
Price:
US $334.34 - 629.12
/ piece
Discount Price:
US $
197.26 -
352.62
/ piece
-41%

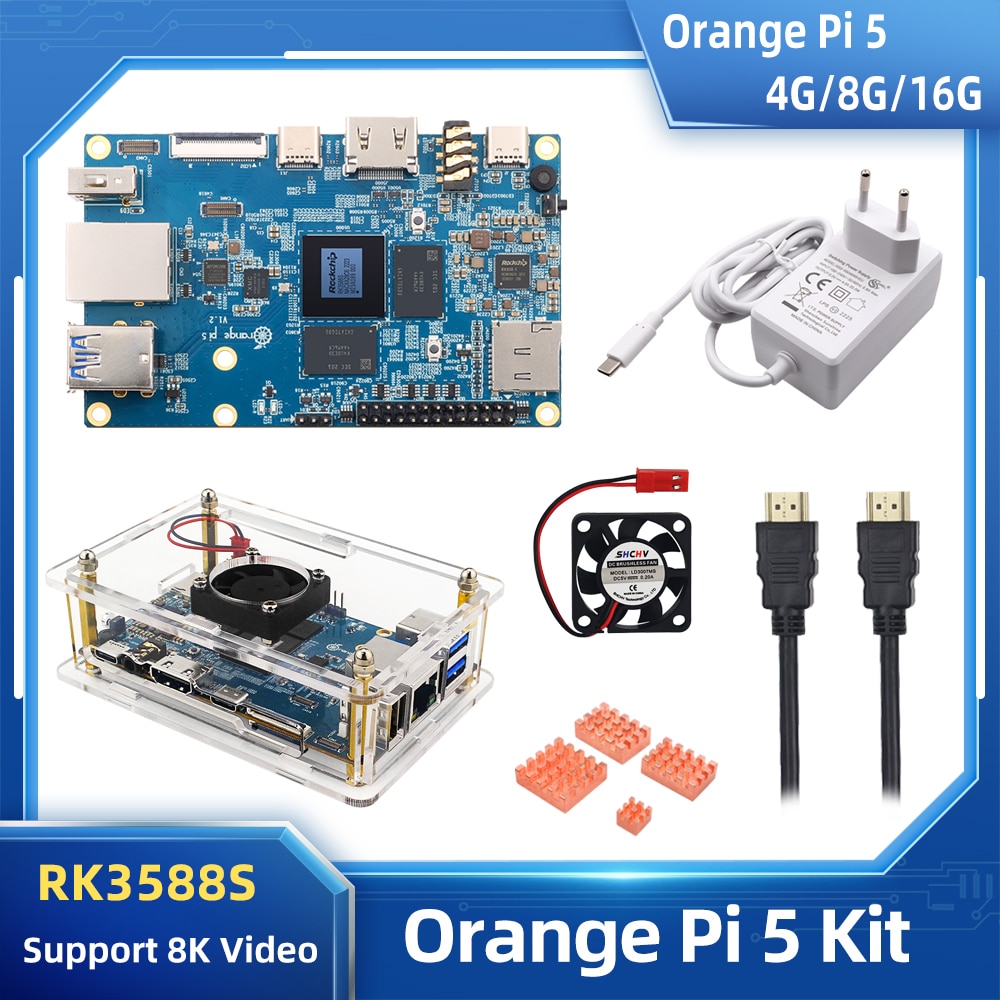

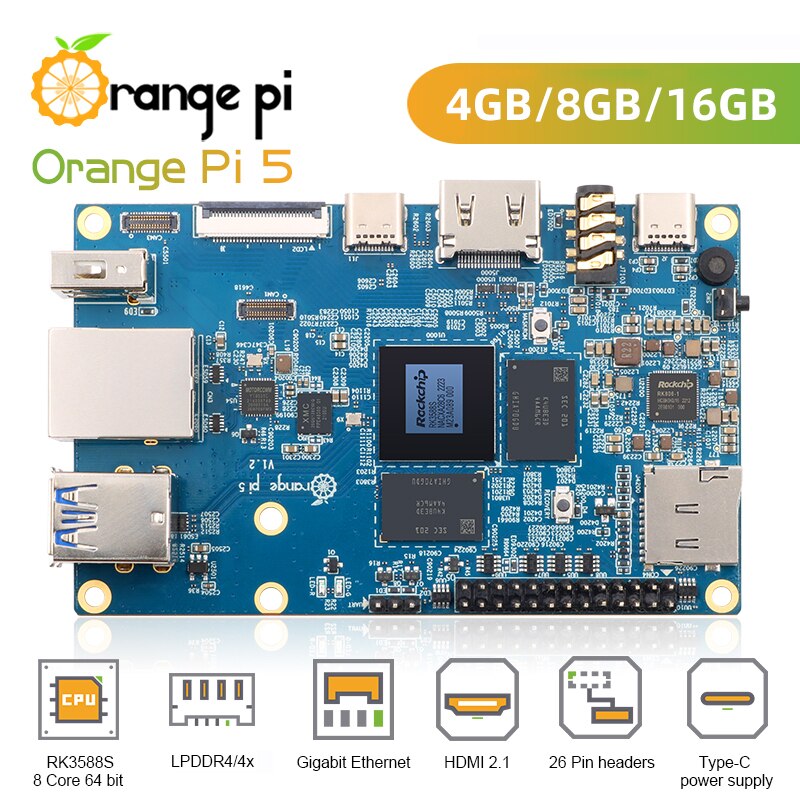

Orange Pi 5 RK3588S 8 Core 64-bit 4G / 8G / 16G RAM LPDDR4/4x Support 8K Video Codec Optional Power Supply Case Fan Heatsink
We provide different options to choose

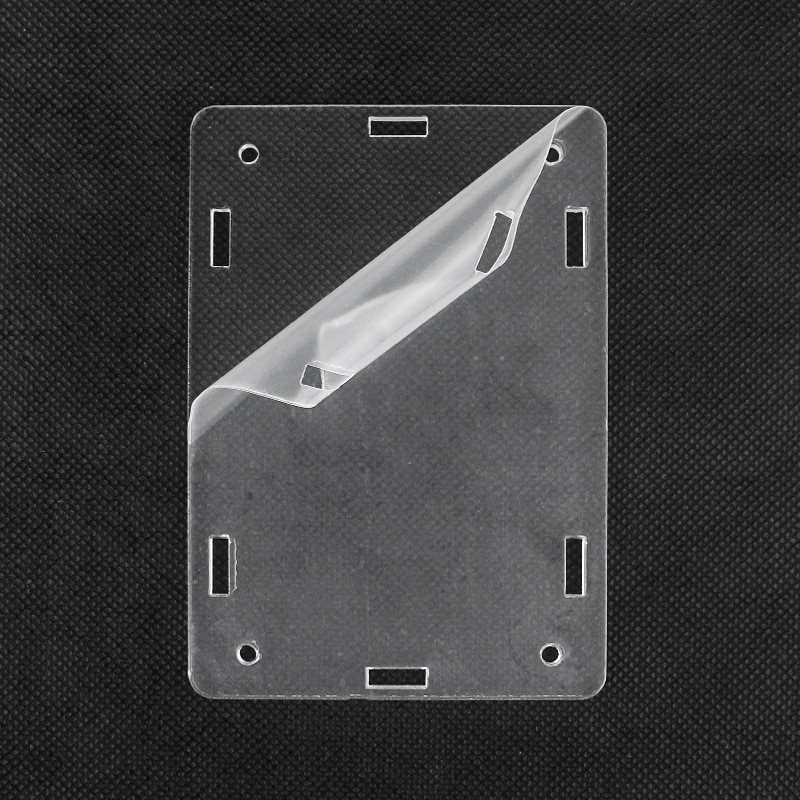

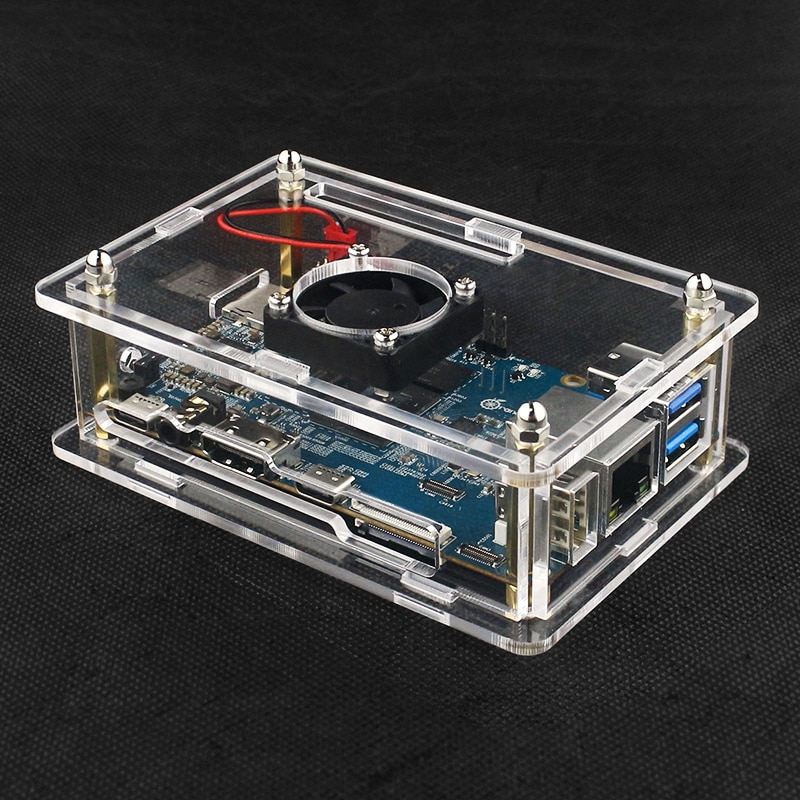

Acrylic Case
Please tear up the protection film on the surface of acrylic before use

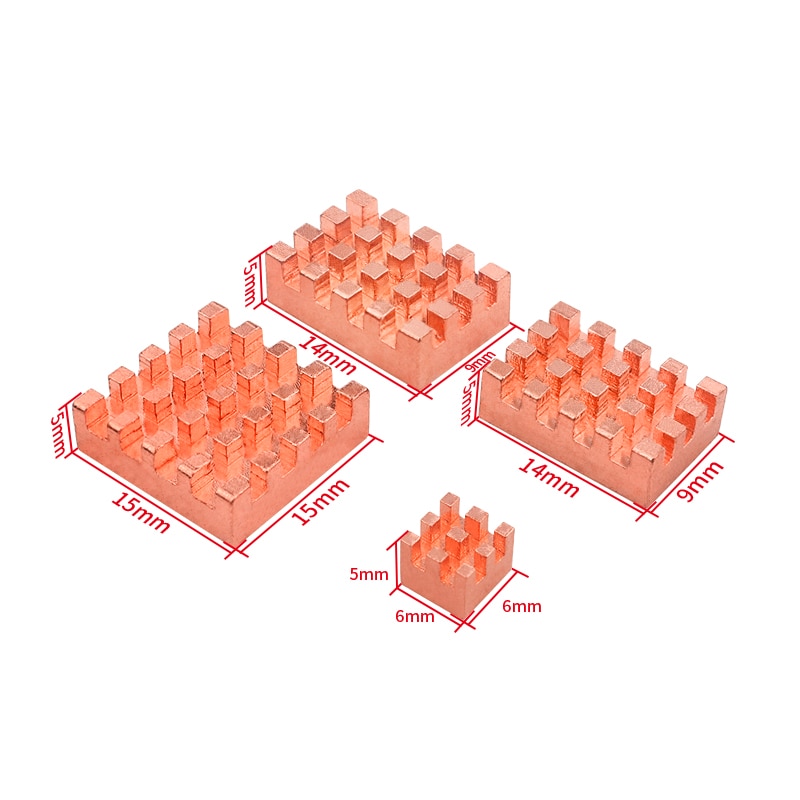

Copper Heatsinks

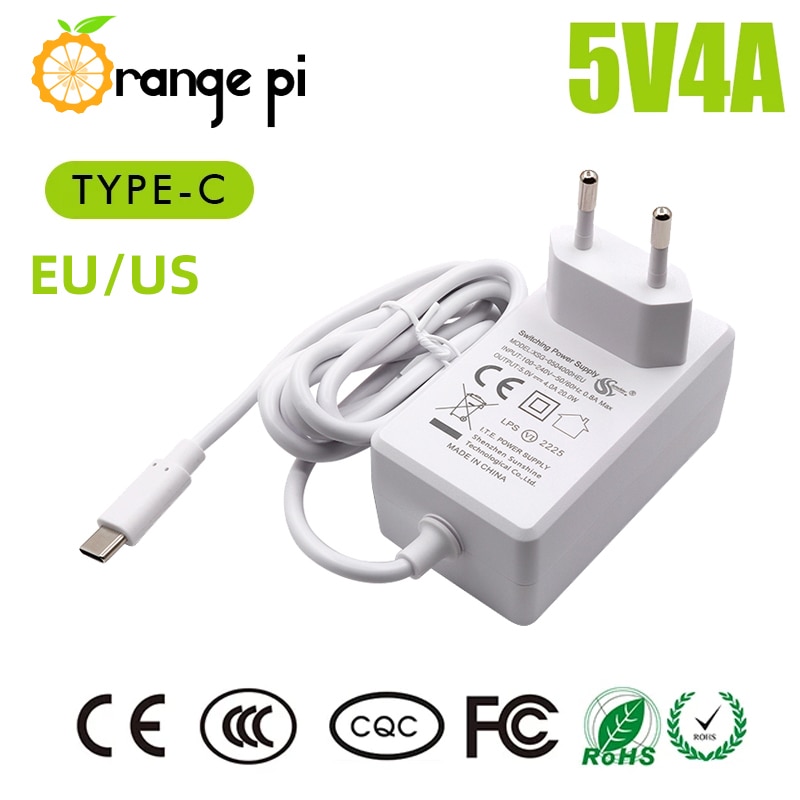

5V 4A Powr Suuply
Packing List

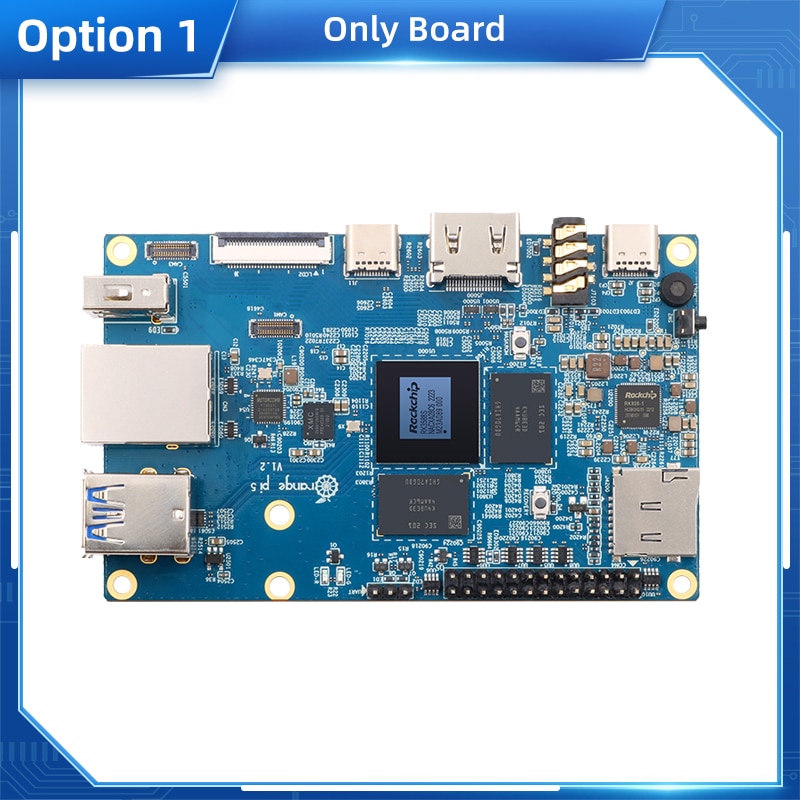

Option 1
1 x Orange Pi 5

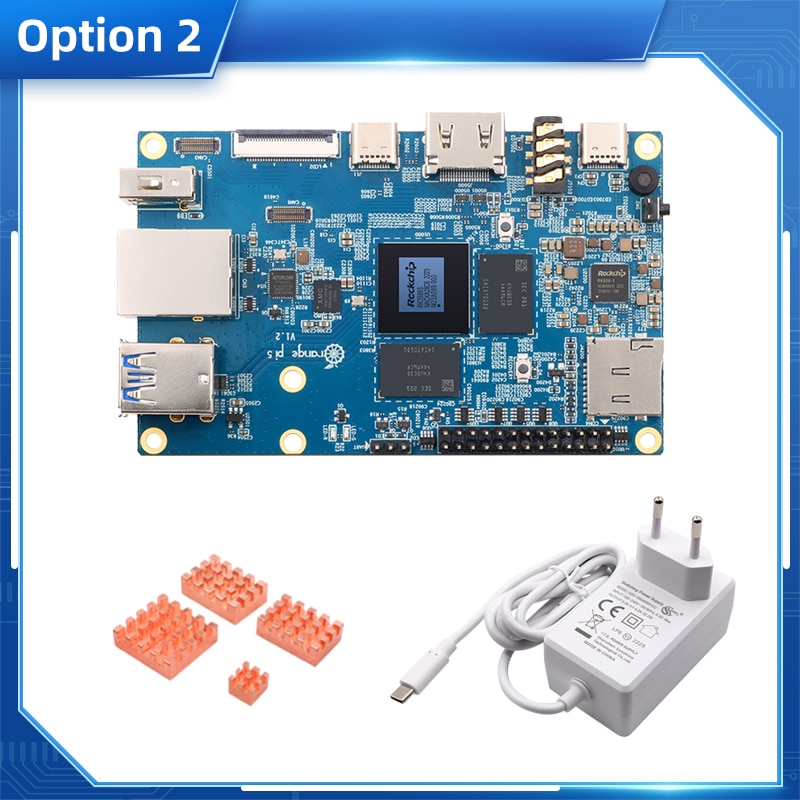

Option 2
1 x Orange Pi 5

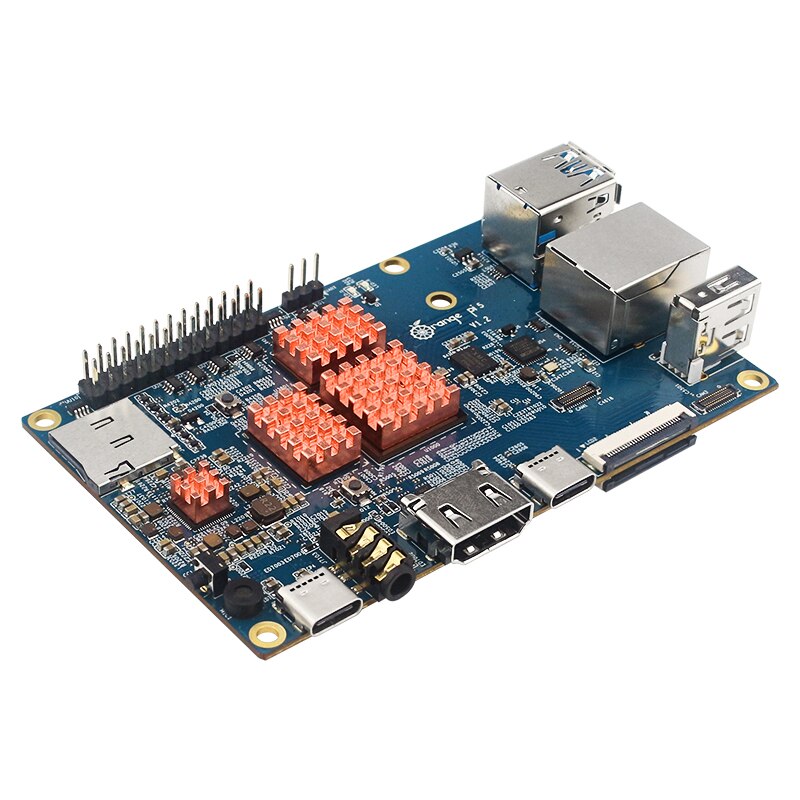

4 x Copper Heatsinks
1 x 5V 4A Power Supply

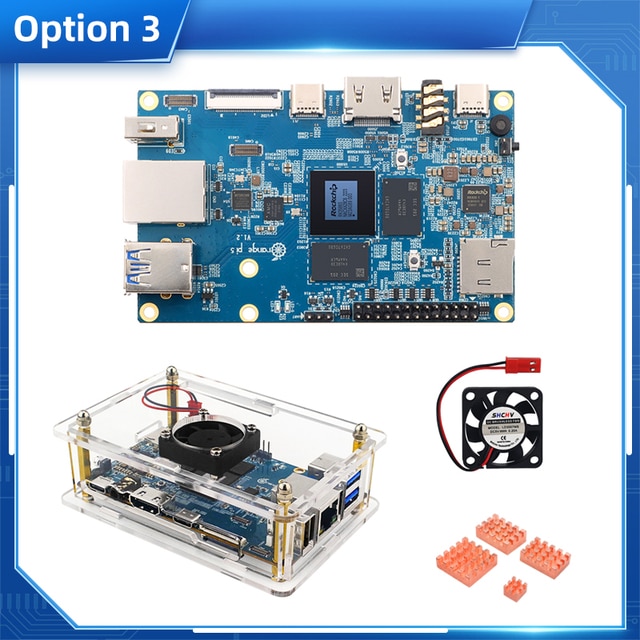

Option 3
1 x Orange Pi 5
1 x Acrylic Case
1 x Cooling Fan
4 x Copper Heatsinks

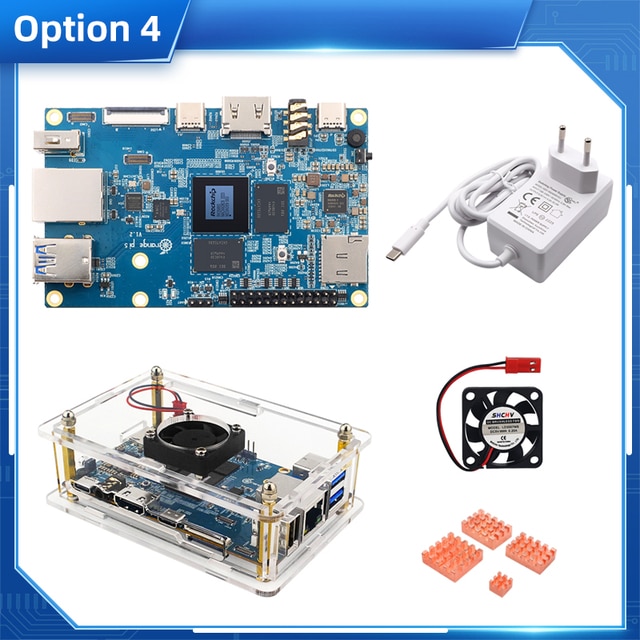

Option 4
1 x Orange Pi 5
1 x Acrylic Case
1 x Cooling Fan
4 x Copper Heatsinks
1 x 5V 4A Power Supply

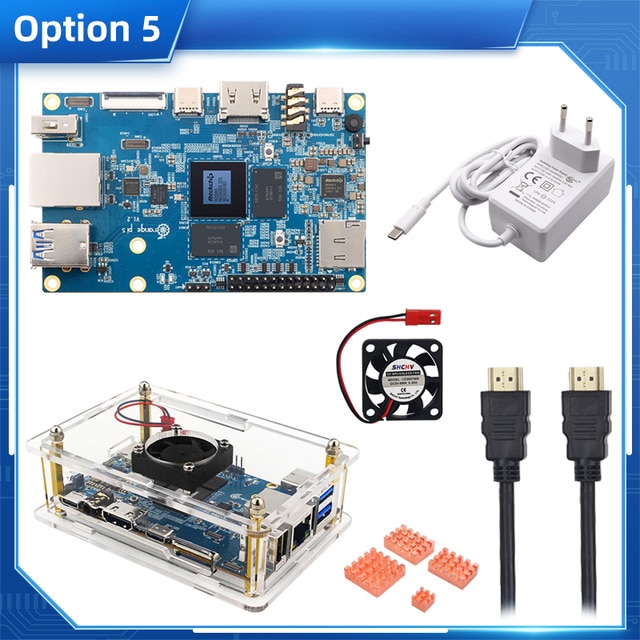

Option 5
1 x Orange Pi 5
1 x Acrylic Case
1 x Cooling Fan
4 x Copper Heatsinks
1 x 5V 4A Power Supply
1 x 1M HDMI-compatible Cable
Option 6
1 x Orange Pi 5
1 x Acrylic Case
1 x Cooling Fan
4 x Copper Heatsinks
1 x 5V 4A Power Supply
1 x 1M HDMI-compatible Cable
1 x 32GB SD Card
1 x USB Card Reader

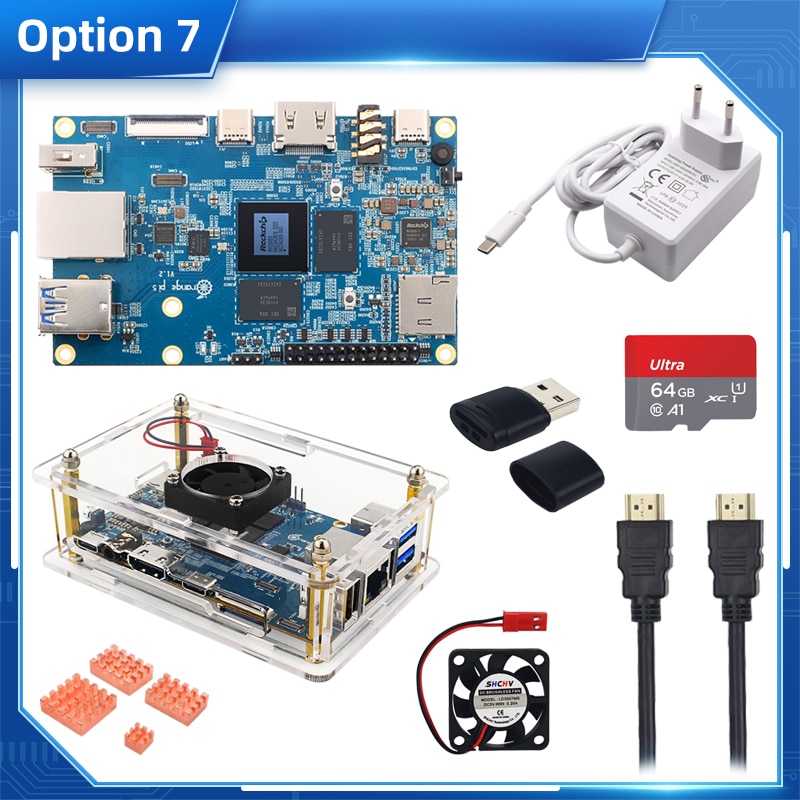

Option 7
1 x Orange Pi 5
1 x Acrylic Case
1 x Cooling Fan
4 x Copper Heatsinks
1 x 5V 4A Power Supply
1 x 1M HDMI-compatible Cable
1 x 64GB SD Card
1 x USB Card Reader
Option 8
1 x Orange Pi 5
1 x Acrylic Case
1 x Cooling Fan
4 x Copper Heatsinks
1 x 5V 4A Power Supply
1 x 1M HDMI-compatible Cable
1 x USB WiFi & Bluetooth Adapter

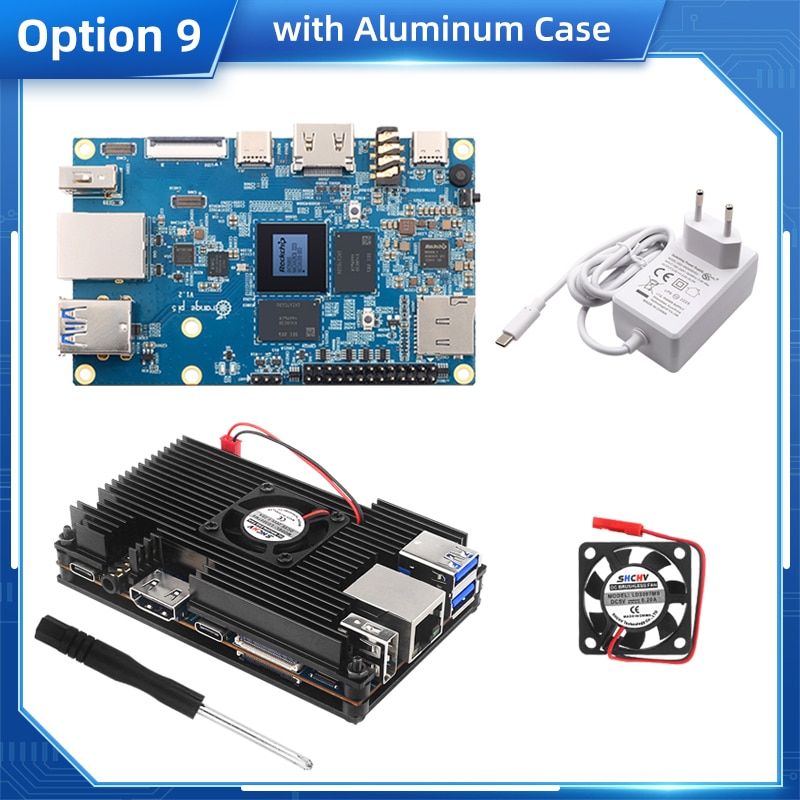

Option 9
1 x Orange Pi 5
1 x Aluminum Alloy Case
1 x Cooling Fan
4 x Silicone Heatsinks
1 x 5V 4A Power Supply

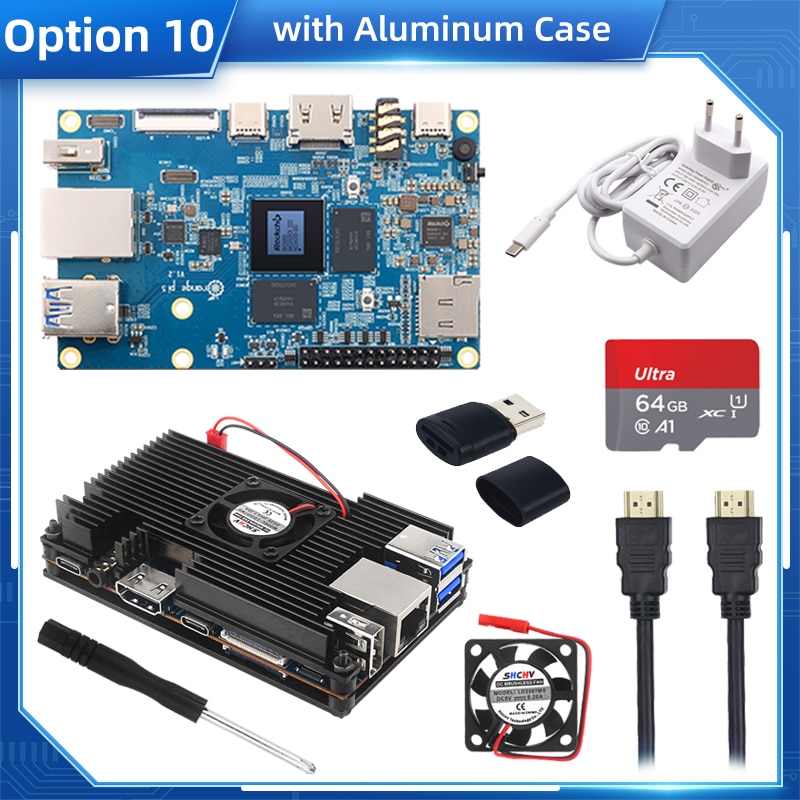

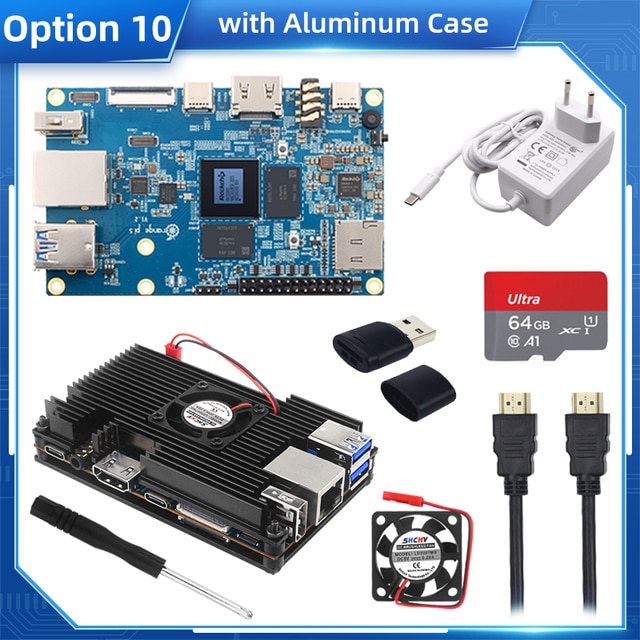

Option 10
1 x Orange Pi 5
1 x Aluminum Alloy Case
1 x Cooling Fan
4 x Silicone Heatsinks
1 x 5V 4A Power Supply
1 x 64GB Micro SD-compatible Card
1 x USB Card Reader
1 x 1M HDMI-compatible Cable
- Interface: TF Card Support,HDMI-Compatible/RCA Output
- Processor Brand: Rockchip

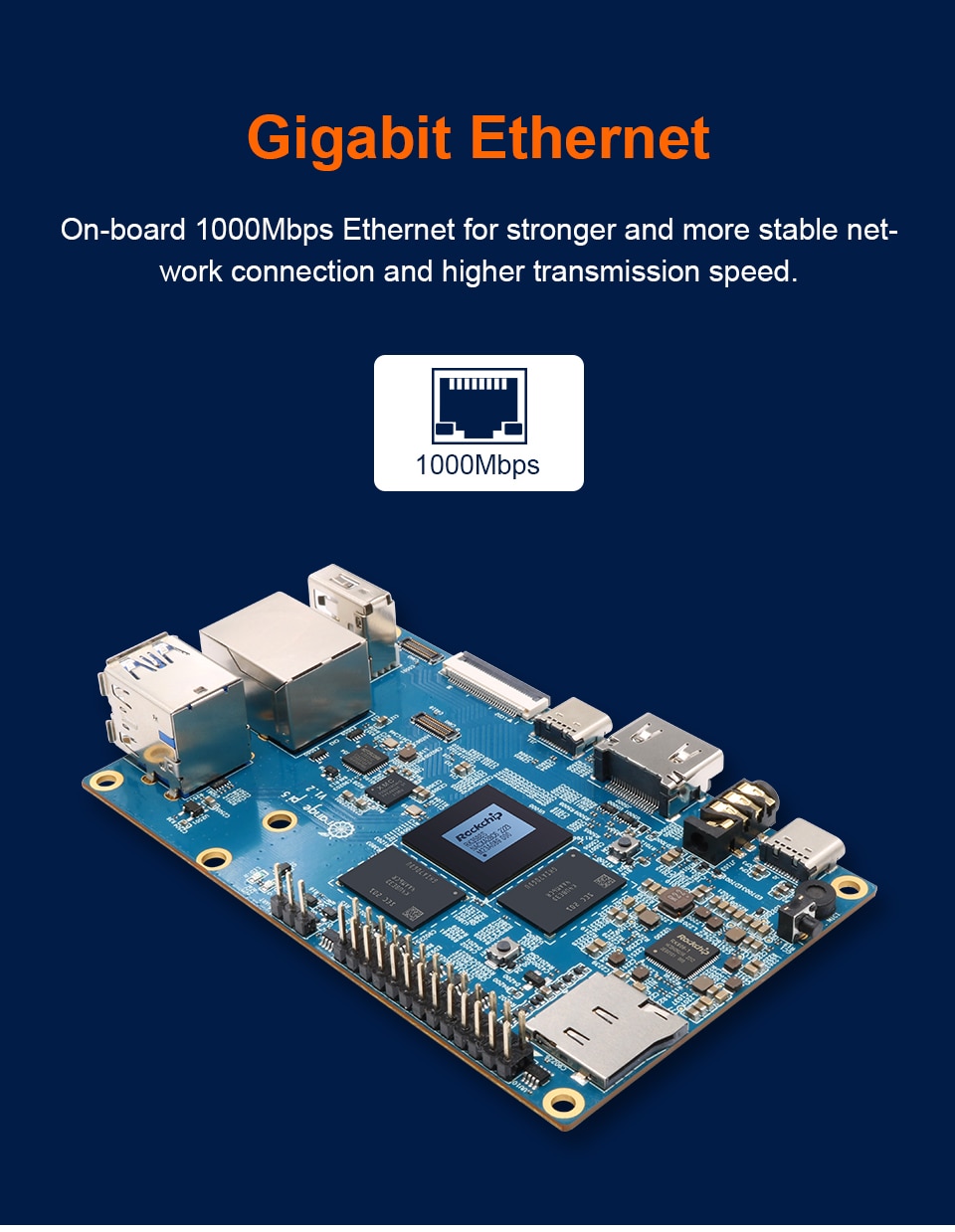

- Intergrated Feature: 10/100/1000Mbps
- ROM Capacity: None
- Model Number: Orange Pi 5
- Demo Board Type: ARM
- Brand Name: SHCHV
- Origin: Mainland China

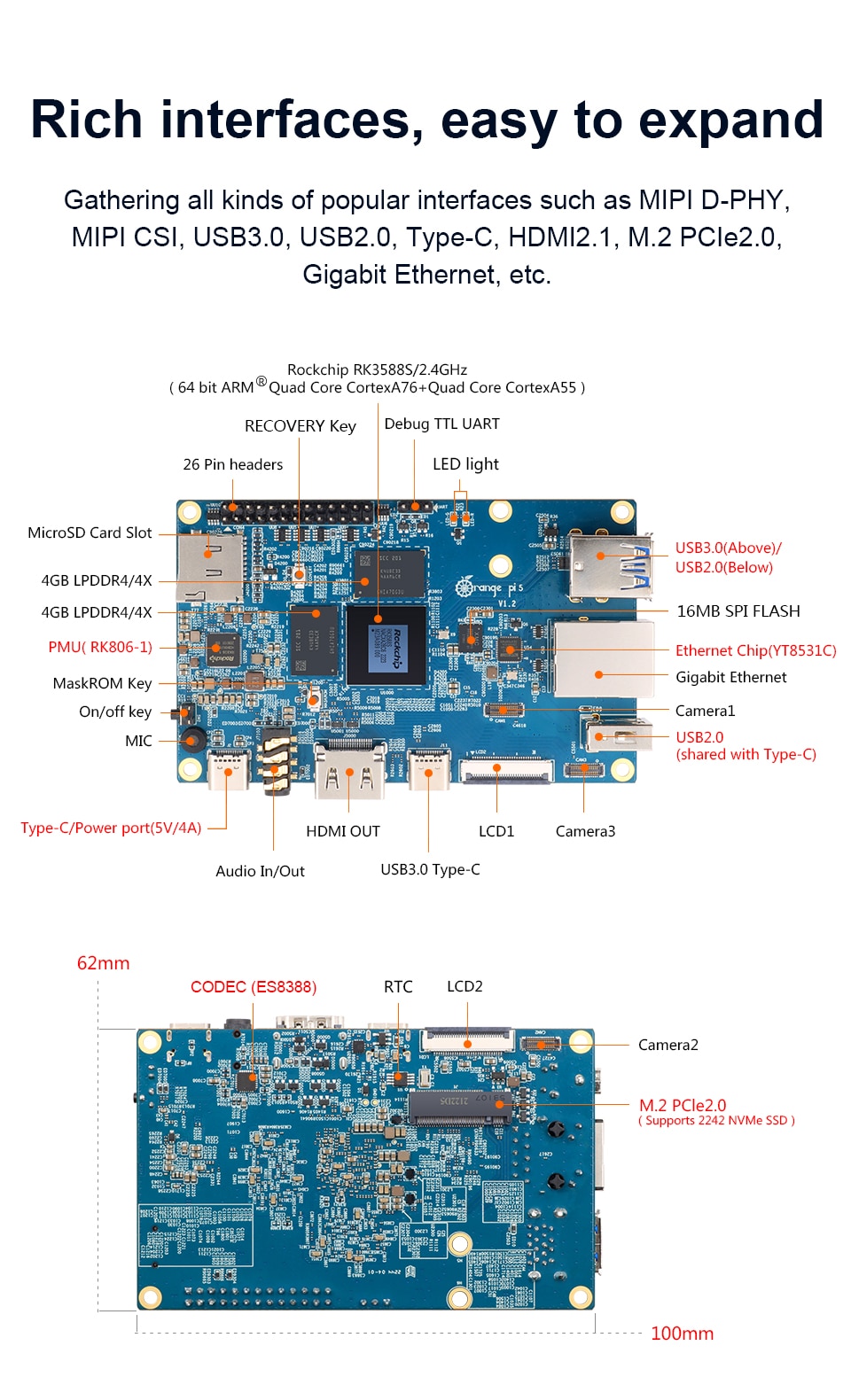

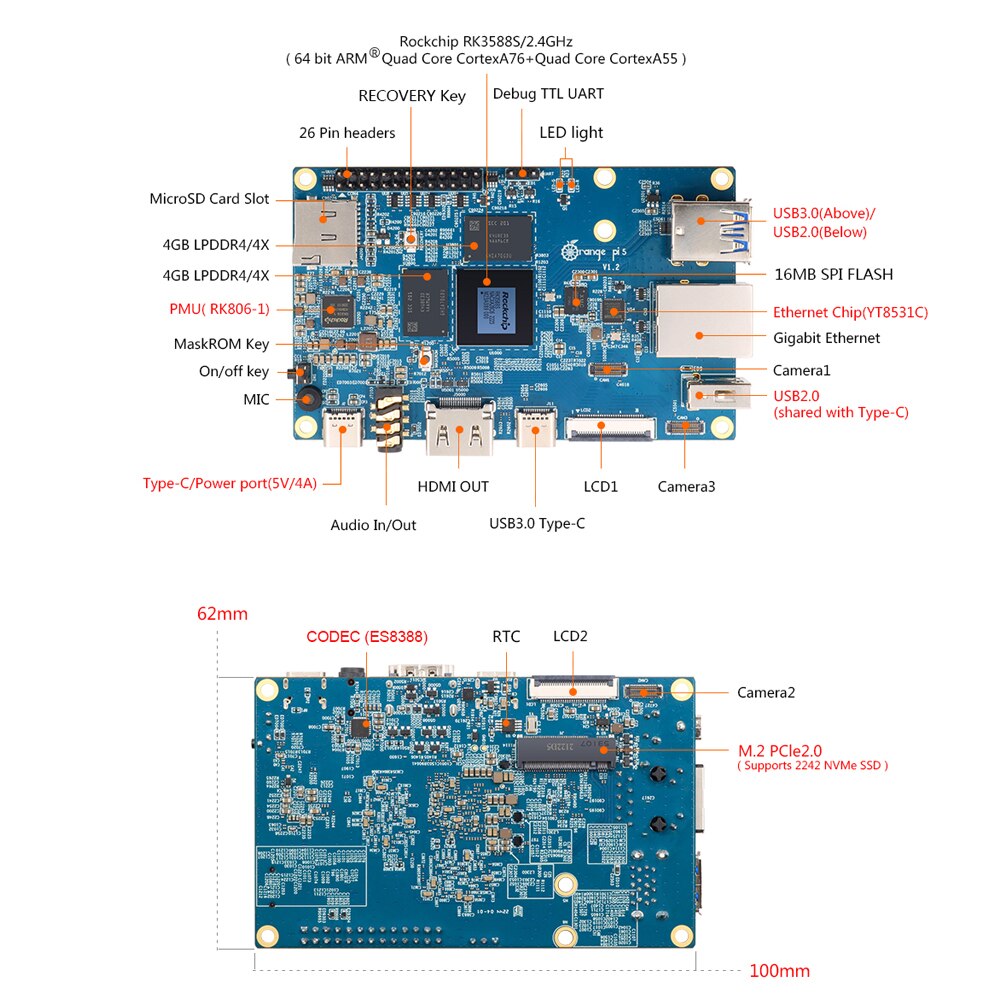

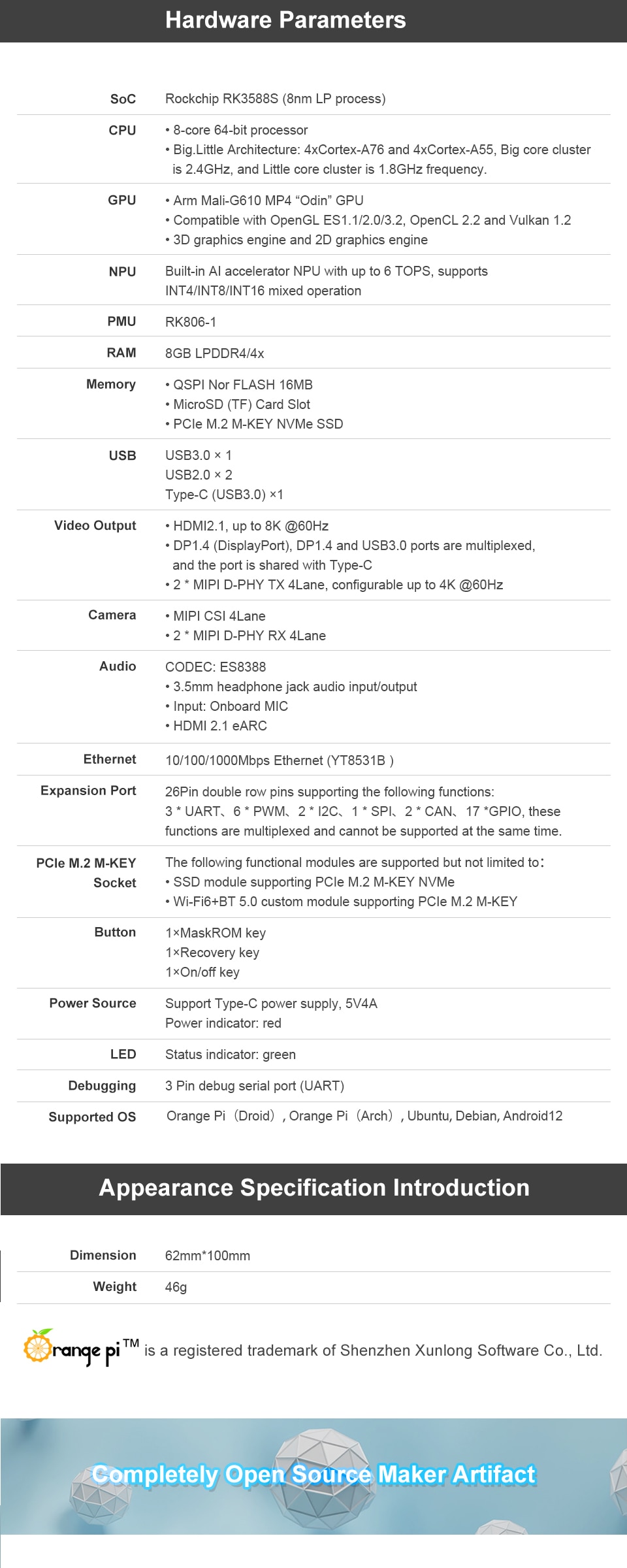

- SoC: Rockchip RK3588S (8nm LP process)
- CPU: 8-core 64-bit processor/Big.Little Architecture: 4xCortex-A76 and 4xCortex-A55, Big core cluster is 2.4GHz, and Little core cluster is 1.8GHz frequency
- GPU: Arm Mali-G610 MP4 "Odin" GPU
- NPU: Built-in AI accelerator NPU with up to 6 TOPS, supports INT4/INT8/INT16 mixed operation
- PMU: RK806-1
- RAM: Optional 4GB/8GB/16GB (LPDDR4/4x)
- Memory: QSPI Nor FLASH 16MB/MicroSD (TF) Card Slot/M.2 M-KEY Socket
- USB: USB3.0x1, USB2.0x2,Type C(USB3.1)x1
- Video Output 1: HDMI2.1-compatible, up to 8K @60Hz
- Video Output 2: DP1.4 (DisplayPort), DP1.4 and USB3.1 ports are multiplexed, and the port is shared with Type-C
- Video Output 3: 2 x MIPI D-PHY TX 4Lane, configurable up to 4K @60Hz
- Camera: MIPI CSI 4Lane / 2 x MIPI D-PHY RX 4Lane
- Audio 1: CODEC: ES8388
- Audio 2: 3.5mm headphone jack audio input/output
- Audio 3: Input: Onboard MIC / HDMI 2.1-compatible eARC

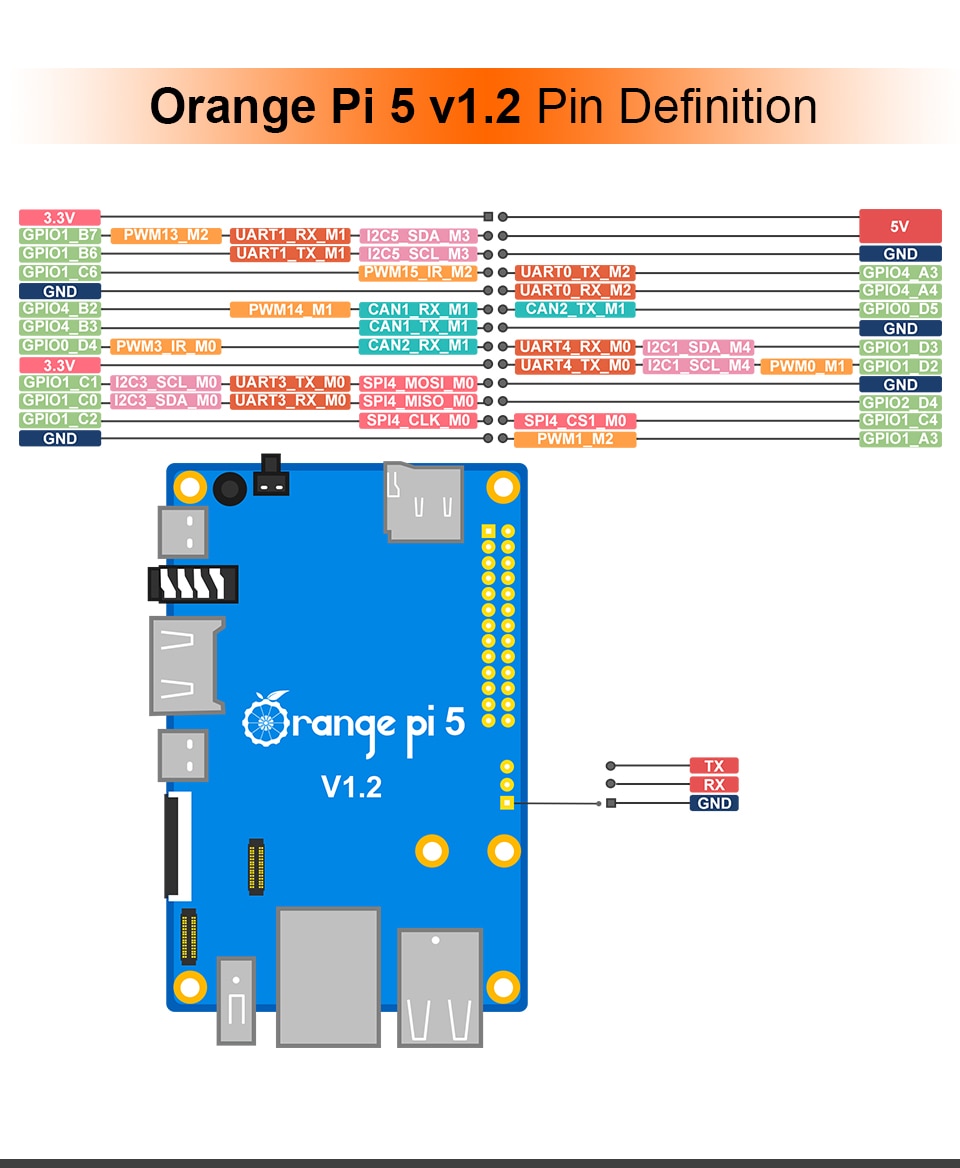

- Expansion Port: For extending UART, PWM, I2C, SPI, CAN and GPIO interfaces.

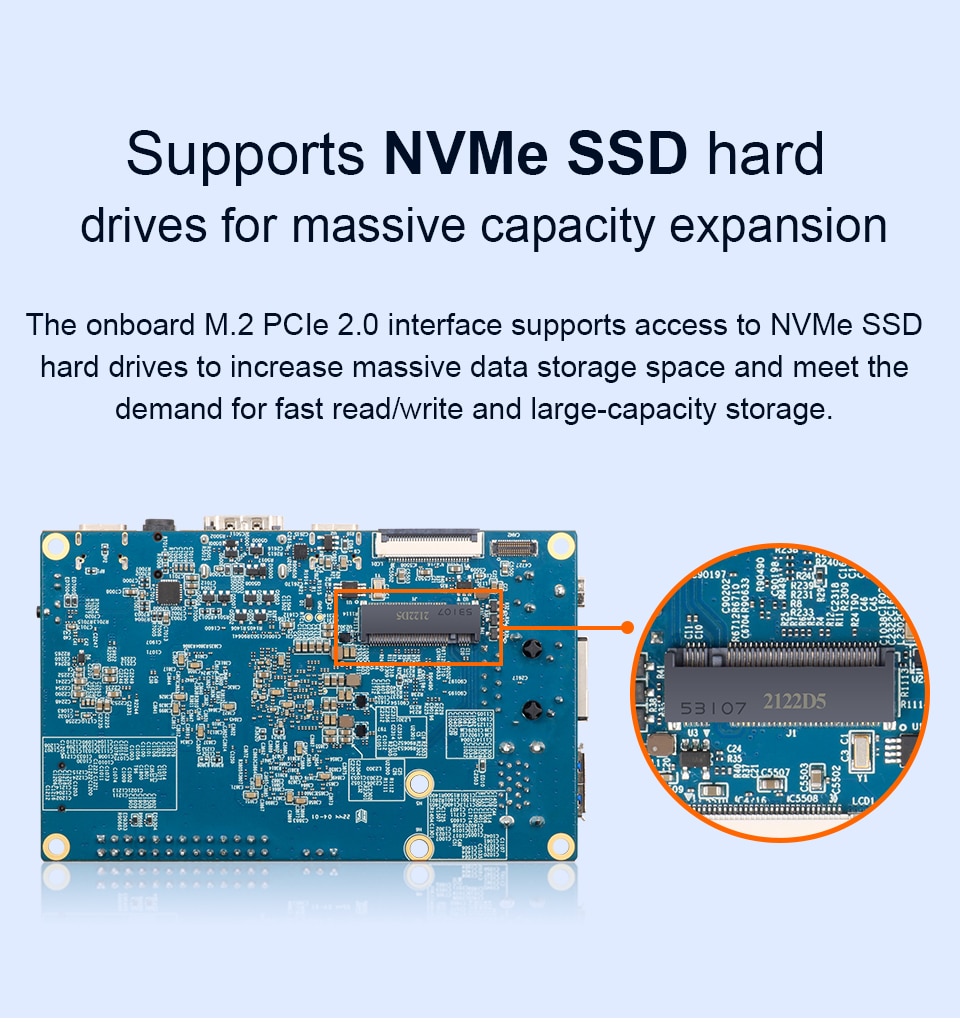

- M.2 M-KEY Socket Expansion Slot: Support PCIe NVMe SSD & custom PCIe Wi-Fi6+BT5.0 module
- LED: Power indicator: red / Status indicator: green
- Debugging: 3 Pin debug serial port (UART)
- Supported OS: Orangepi OS(Droi),Orangepi OS(Arch),Ubuntu,Debian,Android12
- Dimension: 62mm*100mm
