48V POE Network Switch 10/100/1000Mbps Ethernet Switch 4Port/8Ports Network Switching Hub IEEE 802.3 AF/AT Switch for IP Camera
54.40 47.08 $
SALE
ID: 103200
OPTFOCUS Ethernet Switch for cameras ip iphone wireless AP bridge Switch 4+2 6 ports 100Mbps POE Switch
4.9 (15 votes) | 47 orders
Price:
US $55.26 - 479.70
/ piece
Discount Price:
US $
37.91 -
303.81
/ piece
-31%
- Color
-
-
Sorry! This item is out of stock
Store Category
6 ports POE SWITCH
The PoE switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. It can be used for any 10/100Mbps link and supply industry-standard IEEE 802.3af/at power. Advanced auto-sensing algorithm gives power to 802.3af/at end devices, In addition, the PoE switch automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink. Easy to operate and reliable.

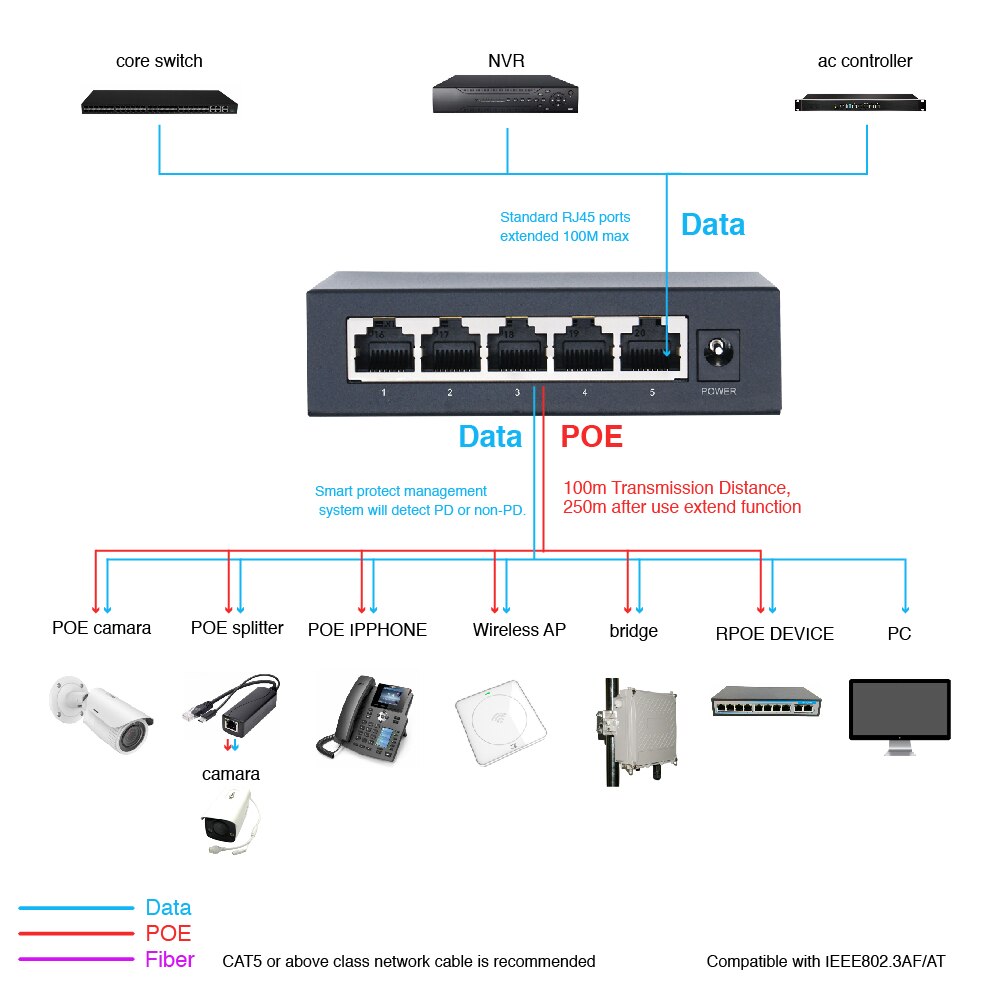

The PoE switch is ideal for powering PoE devices such as IP cameras, WLAN access point, IP phones, office access control systems, and other PD devices and offers a line of high quality products that provide a total solution for Ethernet application in different environments.
Features:

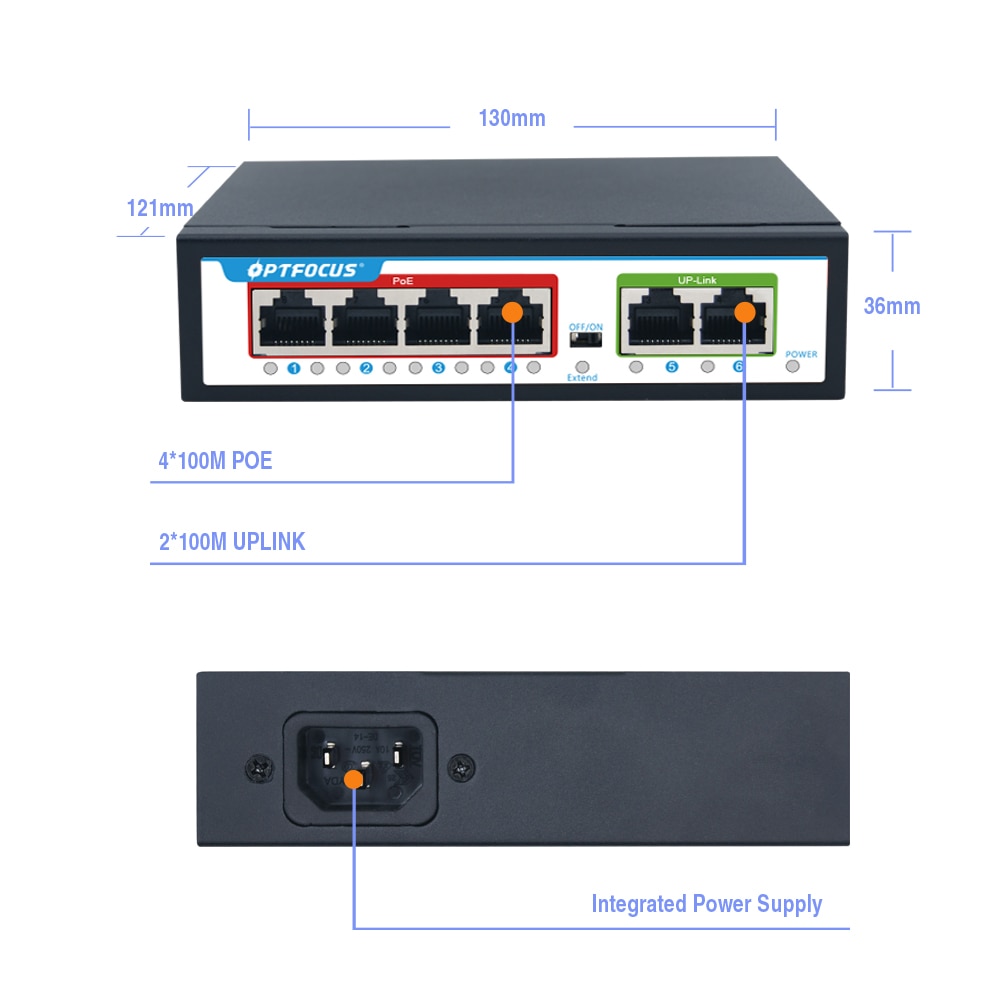

* 4*10/100mbps POE port,2*10/100mbps UP-Link port
* 100m Transmission Distance,250m after use extend function
* Compatible with IEEE802.3AF/AT
* The specification of the built-in power supply: 60W(52V 1.15A)
* All port supported by MDI/MDIX auto flip and self negotiation
* Supply 4pcs 10/100Mpbs adaptive high speed forwarding data packet non-lost port.
* Add high level lightning protection device, up to 6000V.
* Each port max. power supply reached 30W.
* Low heat design, safe and reliable, high stability
* Application:Wireless Access Point⊃2; IP Camera
IP Phone⊃2; Computer Networks
SPECIFICATION
Warranty：1 years
Covering any quality problems that are not artificially damaged
Shipping: FREE SHIPPING
to Worldwide by Cntronic standard shipping service

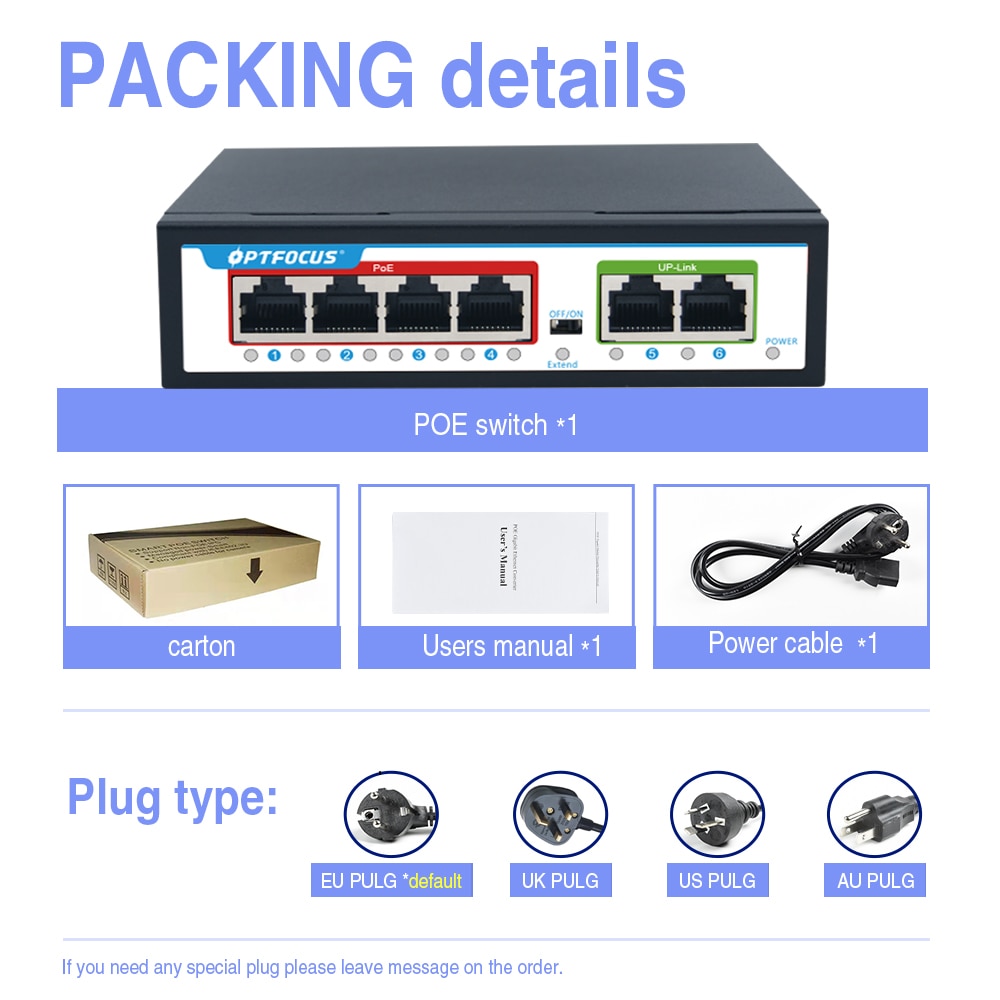

Packing list
1.Switch*1
2.Power adaptor or cable*1
3.Manual*1
please notice: Our default power adaptor is EU standard which is 2 round PIN. If you need any special plug please leave message on the order.
Something you must know:
1.If your address is defined as remote area, you'll need pay extra remote shipping fee. or please give us a new another address that is not remote.
2.If you have any change for the order, Please leave message in the order.
3.Some nations require VAT or TAX code. Please provide before shipping.
4.Express do NOT cover any Tax and Duty! Please follow your nations policy to finish custom clearance.
5.Our shipping service is based on our forwarder provider. So if you need to ship by other carriers like DHL, UPS. Please consult our sales person for quotation.
COMPANY PROFILE
FAQ:
1.Distance to the camera?

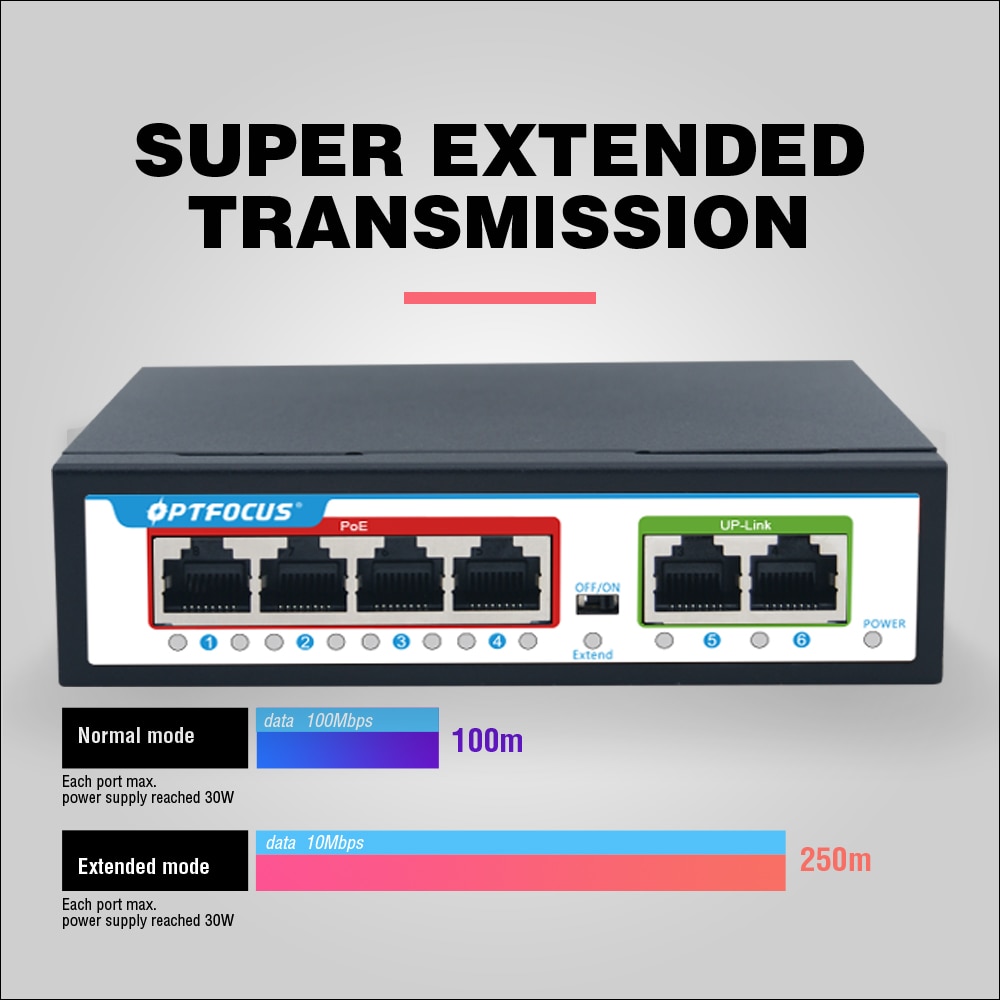

Our switch have 2 modes, EXTEND and NORMAL. EXTEND MODE supports 250M. NORMAL MODEL supports 100M.
PS: CAT5 or above level of cable was recommended.
2.Is that an active Poe? If the camera does not support Poe, will it not burn it?
Yes, it’s an ACTIVE POE. If camera doesn’t support POE, it will self-adaption and automatic select connection of POE or just data.
3.Which type of power adaptor?
Our power adaptor internal. INPUT is 52V.
Plug type: EU PULG *default, US PULG, UK PULG, AU PULG
4.What’s the data and power transmission method?
30W per port(IEEE802.3af/at).
Wiring: Data & power provided over pairs 1/2 and 3/6.
5.Does it supports Auto- Crossover (MDI / MDI-X)?
All port supported by MDI/MDIX auto flip and self negotiation
6.Enough power for 4 cameras?
OFS-PE-GT6-I total power budget is 60 watts. Depend on cameras power consumption, you can calculate how many units of cameras it able to carry. For example, if cameras power consumption is 15 watts. This switch is able to carry 4 cameras.
7.How many Watt single output POE?
15.4W/30W
- Brand Name: OPTFOCUS
- Origin: Mainland China
- Number of Interfaces: 7
- Certification: CE
- Switch Type: Fast Switch
- Package: Yes
- Communication Mode: Full-Duplex & Half-Duplex
- Model Number: OFS-PE-DT6-S
- Transmission Rate: 10/100Mbps
- VLAN: YES
- Plug Type: EU plug
- Switch Capacity: 6 ports
- Connector: 4*10/100mbps POE port,2*10/100mbps uplink port,Small
- PoE Output Power: 15.4W, 30W
- Network Medium: Cat5 (UTP) or more
- Backboard Bandwidth: 1 .2G
- Casing: Metal
