Neoteck 192kHz Digital to Analog Audio Converter Optical Toslink to RCA Audio Adapter Male Connector DAC Converter
4.8 (248 votes) | 1000 orders
Price:
US $31.64
Discount Price:
US $
15.58
-51%
- Color
-
-
• 192kHz Sampling Frequency :Enjoy high-quality audio with a sampling frequency of 192kHz, providing clear and crisp sound.
• Optical Toslink to RCA Audio Adapter :Connect your digital device to your analog audio system with ease using the optical Toslink to RCA audio adapter.
• Portable Design :Take your music on-the-go with you thanks to the portable design of this digital-to-analog converter.
• FCC Certified :Rest assured that this product meets the highest standards of quality and safety with its FCC certification.
Introduction：

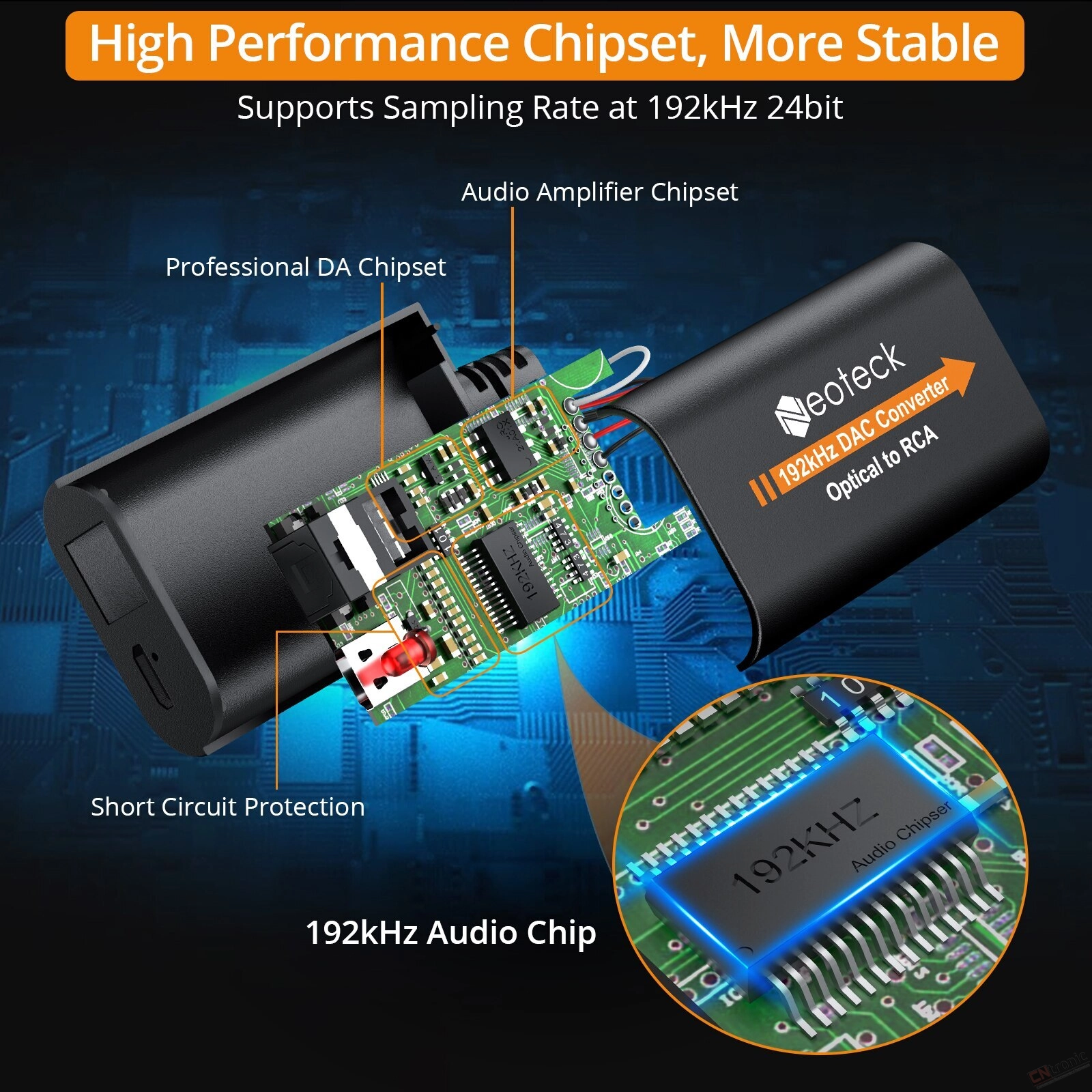

192kHz DAC is designed for professional audio signal processing. It can easily convert SPDIF optical interface to RCA analog audio interface for stereo amplifier.
Features:
1. One optical input interface to be connected to HD TV, DVD player and other devices.
2. One RCA output interface to be connected to the audio amplification device with RCA interface.

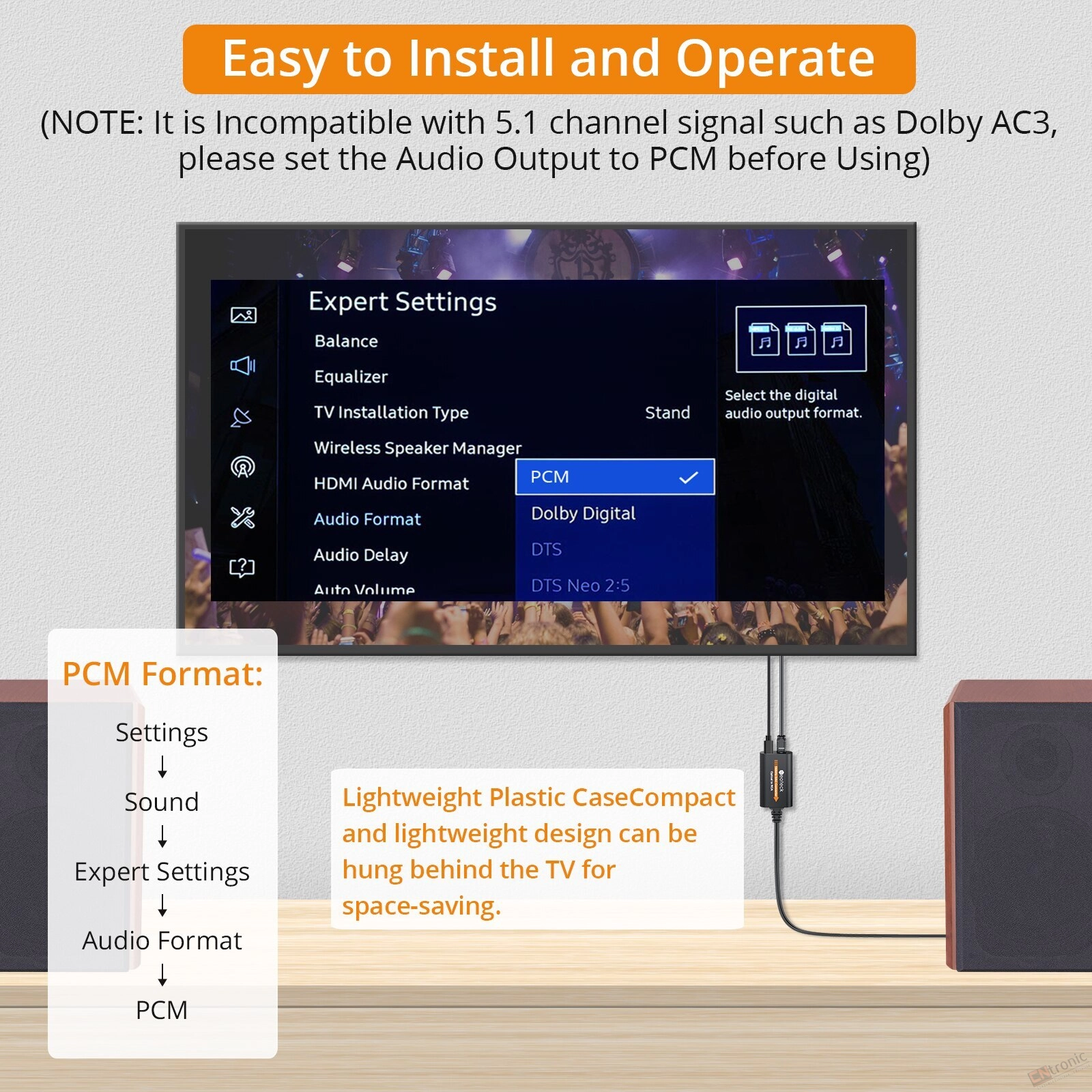

3. Eliminates the noise when no input signal and automatically mute when input non-audio signal.
4. Actually supports sampling rate at 192kHz 24bit.
5. Lightweight and compact.Good anti-interference function makes the sound pure and clear.
Specifications:
Support Audio Format: PCM
Signal-to-Noise Ratio: 105db
Separating Degree（1KHZ）: 94db
Response Frequency: 20Hz~20KHz -0.2db
THD+N: -90DB
Total Harmonic Distortion(THD): 90db
Blocking Time: 0.577Fs
Sampling Rate: 32~192 KHz
Bit Rate: 16~24 Bit
Input Electrical Level: -0.3-+3.6V
Output Electrical Level: 2V
Maximum Output Power: 0.3W
Working Voltage: +5.5V
Maximum Power Consumption: 100mA
Operating Temperature Range: -10-70℃
Storage Temperature Range: -60-150℃
Operating Humidity Range:10% - 80%RH(No Condensation)
Storage Humidity Range: 5- 90%RH(No Condensation)
Shell material: ABS
Color: Black

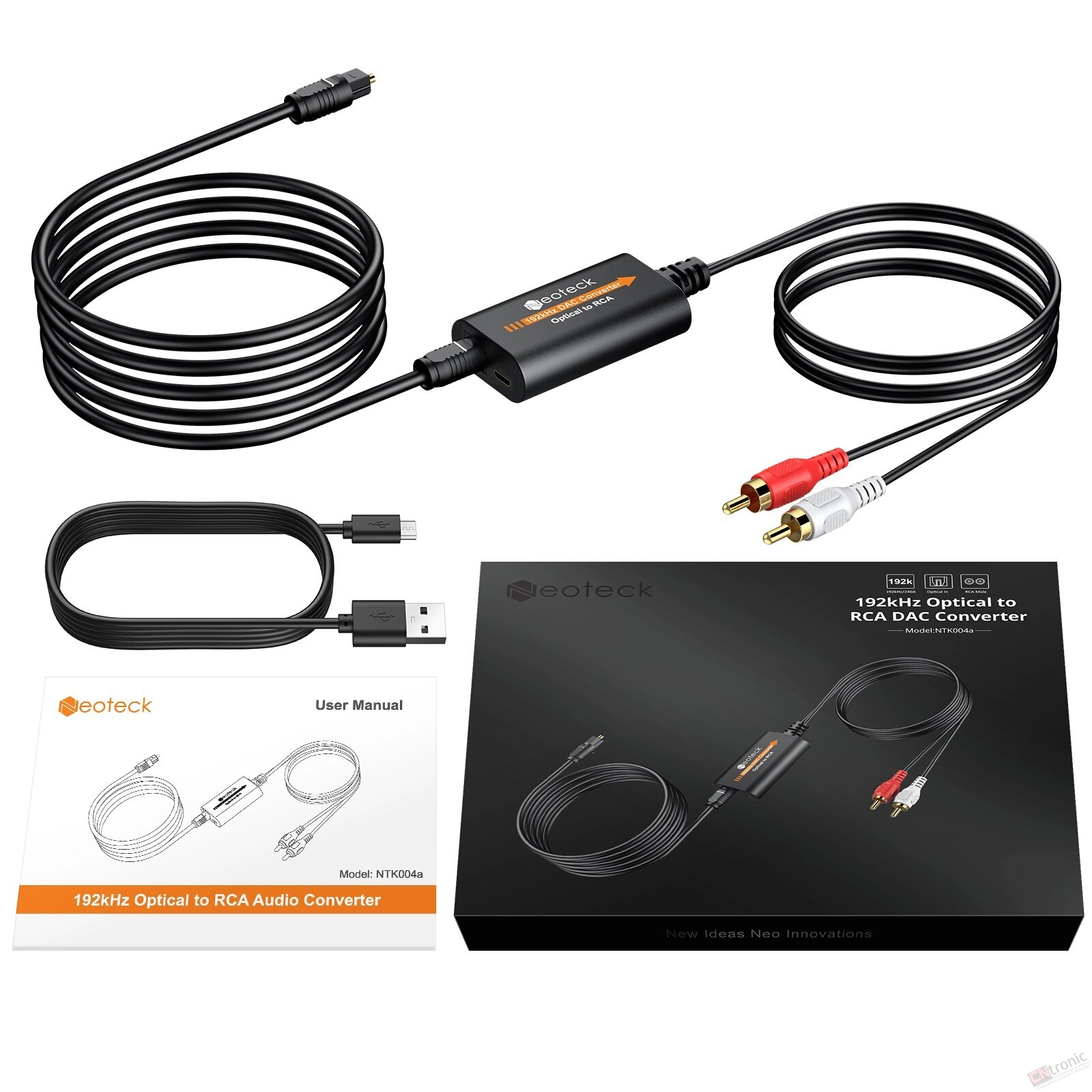

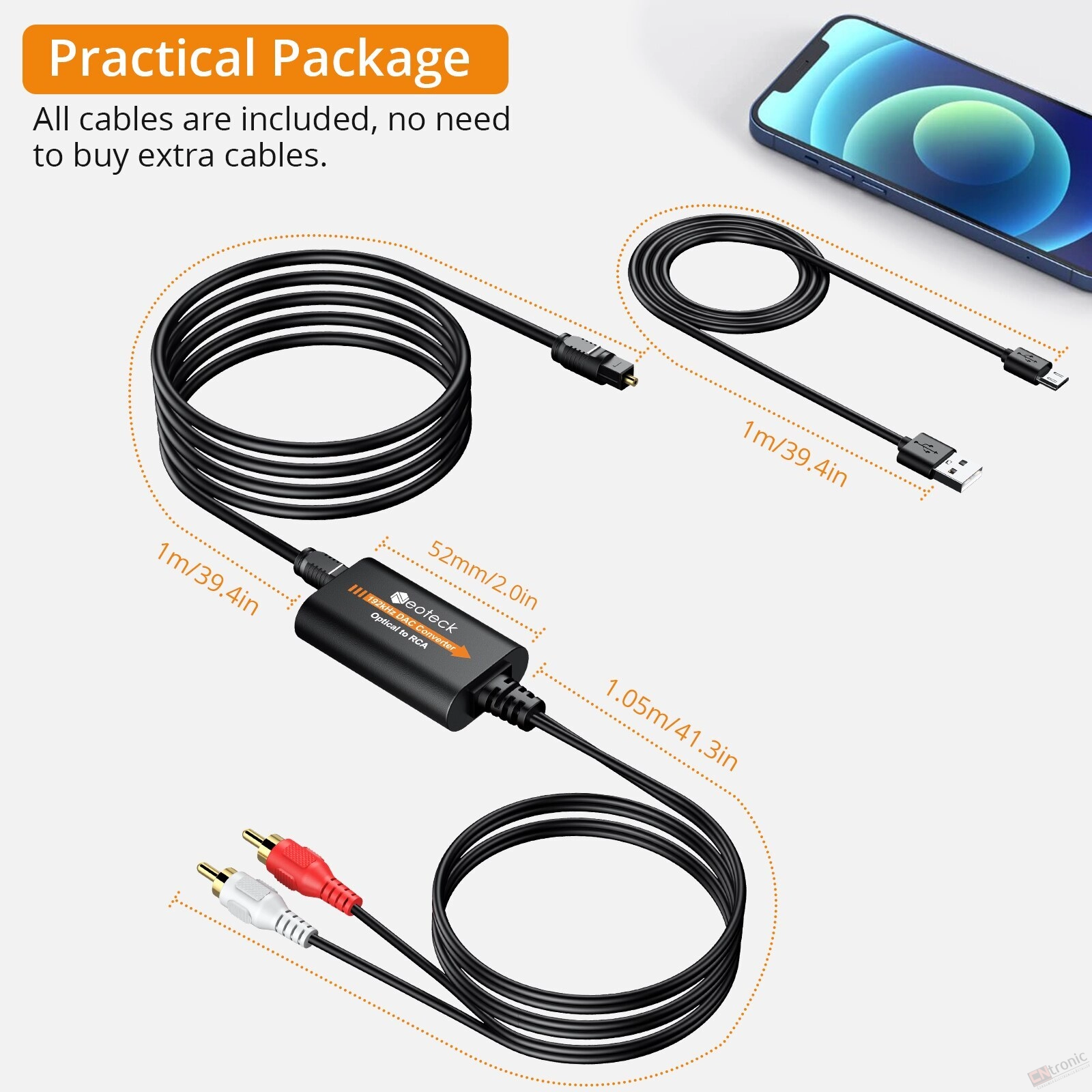

Package Contents:
1 x 192kHz Optical to RCA Cable (2.1m/7ft）
1 x User Manual
1 x USB Power Cable
Packaging Details
- Unit Type:
- Package Weight: 0.145
- Package Size: 17x2x18
- Brand Name: Neoteck
- Model Number: SPDIF to RCA Converter
- Type: Portable
- Input Format: PCM
- Inputs: Optical (SPDIF)
- WIFI: No
- Bluetooth: No
- Outputs: RCA
- Material: ABS
- PCM Sampling Frequencies: 44.1 kHz
- PCM Sampling Frequencies: 48 kHz
- PCM Sampling Frequencies: 96 kHz
- PCM Sampling Frequencies: 192 kHz
- NEOTECK Model: NTK004a
- PCM Word Length: 24-bit
- Origin: Mainland China
- Certification: CE
- Certification: FCC
- DSD Sampling Frequencies: None
- Choice: yes
