MACHINIST X99 PR9 X99 Motherboard Support LGA 2011-3 Intel Xeon E5 V3&V4 CPU DDR4 RAM SATA/NVME M.2 Slot
158.90 68.53 $
SALE
NEW
ID: 124511
Quantity
MACHINIST X99 Motherboard X99 PR9 Support LGA 2011-3 Intel Xeon E5 V3&V4 CPU DDR4 RAM SATA/NVME M.2 Slot
4.9 (816 votes) | 3000 orders
Price:
US $151.74
Discount Price:
US $
65.54
-57%
- Bundle

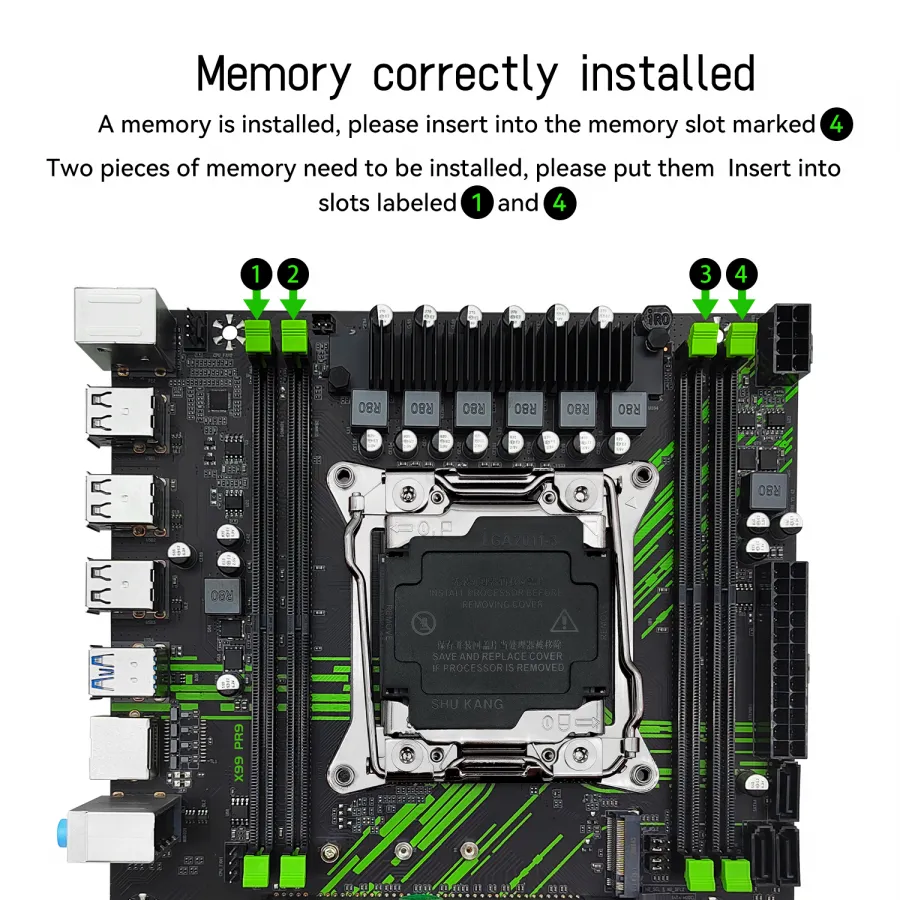

> > It should be noted that the memory slot of this motherboard is correctly installed in the fifth picture. The memory slots (#2/#3) in the middle of the motherboard cannot work independently. A single RAM needs to be installed in slot #1. Two RAM slots need to be prioritized for installation in slot #1 and slot #4."
> > Motherboard information:
Brand :MACHINIST.
Motherboard model :X99 PR9.
Processor: Supports LGA 2011-3 series
Chipset :B85/Q87/C226 Chipset.

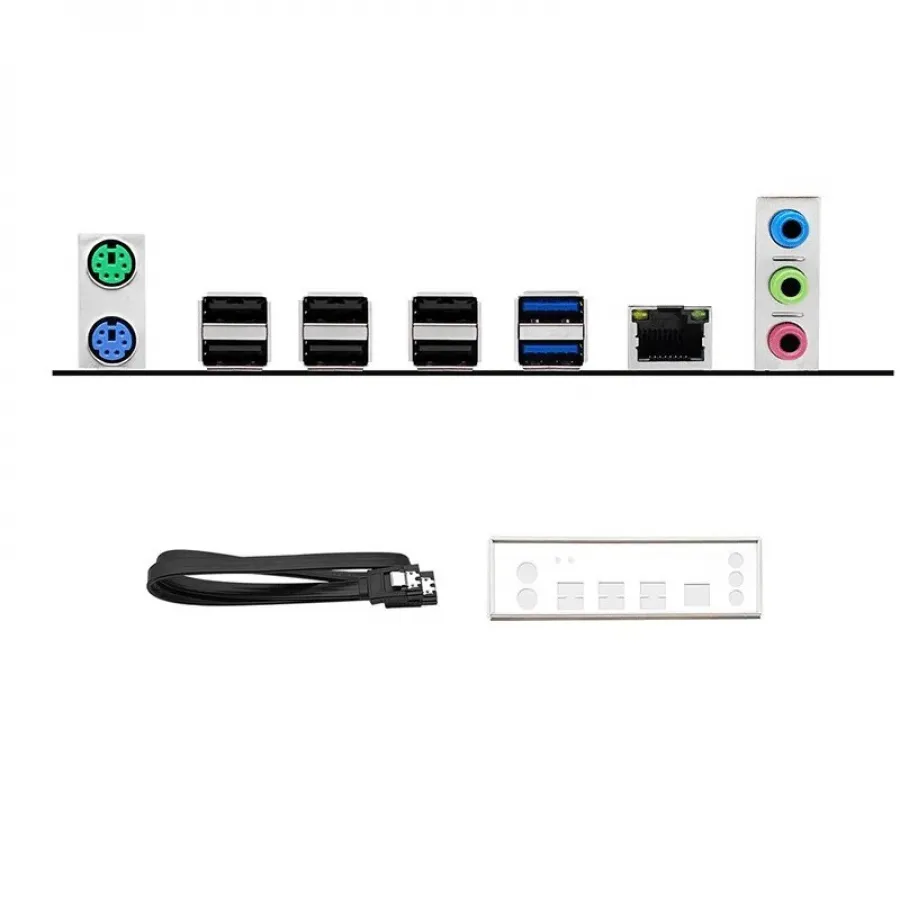

(Complimentary accessories: I/O shield *1, SATA cable *1, lga 2011 heat sink bracket *1.
All packages are manually tested before sending. If any gifts are missing, it cannot be used as a reason for a refund. Please understand!"
> > Memory:
Technology: Dual-channel DDR4. Supports 2133/2400/2666/3000/3200 MHZ.
The maximum capacity is 128GB (32G × 4).
Memory slot :4 * 288-pin DDR4.
Note #1: Please use international brands such as Samsung, Kingston, Sandisk, and Micron. There are incompatibility issues with other brands.

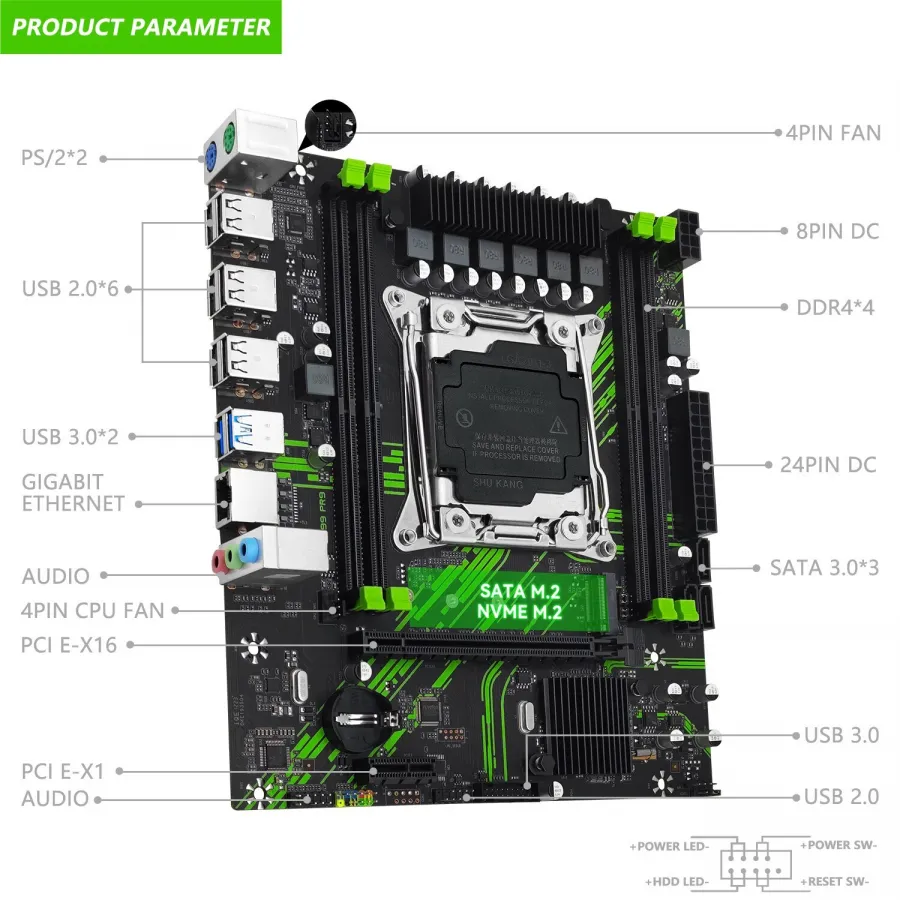

>> Post I/O:
PS/2: 1 KB interface + 1 MS interface.
USB interface :6 USB2.0 ports; Two USB3.0 ports.
Ethernet: 1 Gigabit network card.
Audio :1 (Mic-in, Line-out, Line-in).
>> Others:
SATA interfaces :2 (SATA2.0), 1 (SATA3.0).

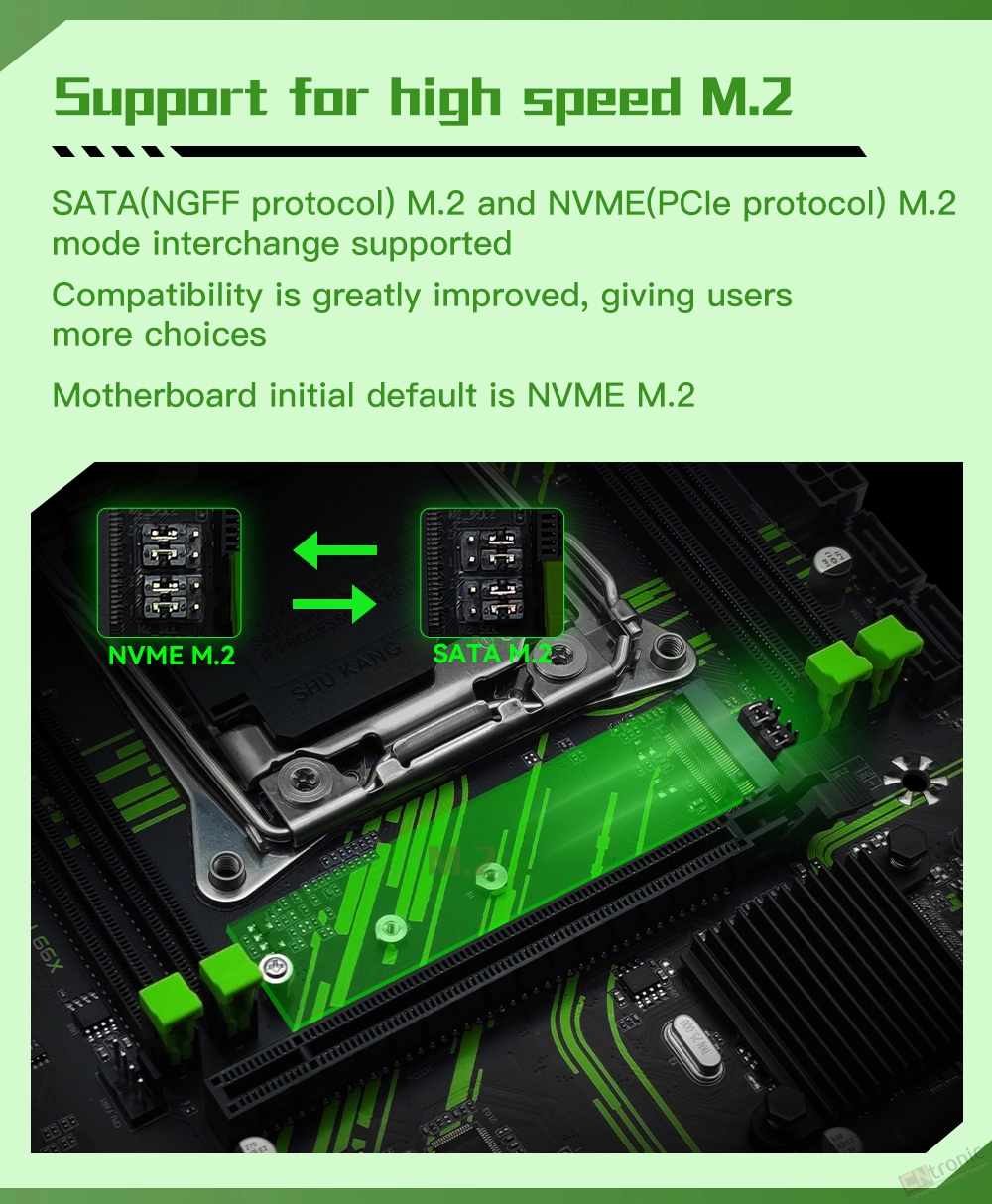

M.2:1 (nvme/sata).

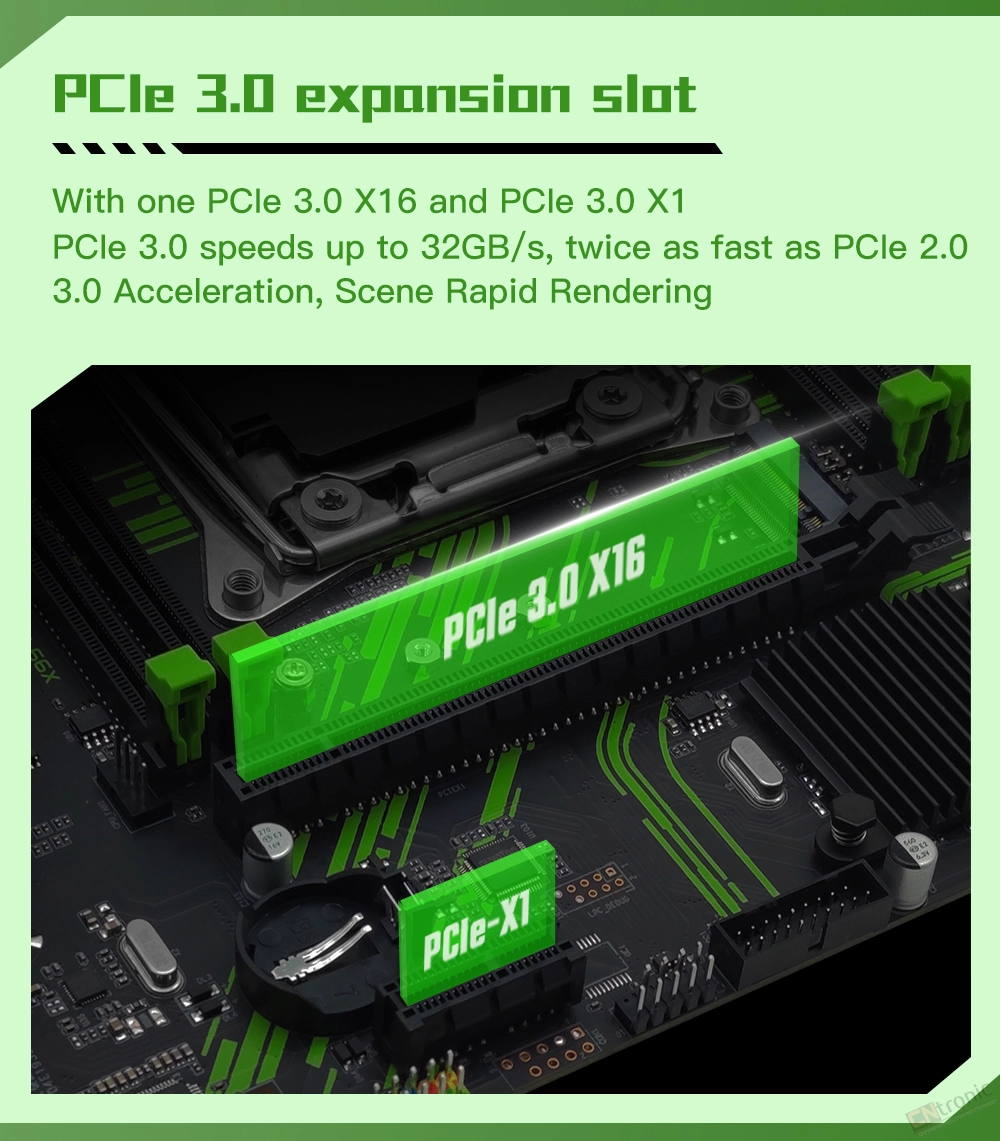

PCIe: 1 PCIe 16x, 1 PCIe 1x.
Overall dimensions :215mm * 185mm.
>> Regarding customs issues, please ensure that you can solve the customs clearance problem by yourself. If you cannot solve it, we do not recommend that you purchase goods in our store. We are not responsible for customs duties. thank you for understanding.
>> Notice:
(1) The color of the tank bottom plate may vary from batch to batch, but it will not affect the use of the product. Products are continuously optimized and upgraded.
(2) Due to manual measurement, please allow an error of 1-3mm.
(3)Due to different displays and different lights, the pictures may not show the actual color of the item. thank you for understanding.
(4) The platform requires a powerful power supply. Please make sure your power supply is sufficient for this platform. (At least 500w brand power supply)
(5) The battery in the motherboard photo is not included and will be removed before shipment because logistics requirements prohibit the use of this battery.
Packaging Details
- Unit Type:
- Package Weight: 0.872
- Package Size: 23x6x26
- Brand Name: MACHINIST
- MACHINIST Model: X99-PR9
- Chipset: Intel B85
- Onboard LAN: 1x RJ45
- Maximum Ram Capacity: 128 GB
- Battery Included: No
- Processor compatibility: Intel Xeon
- With CPU: No
- Support Memory Type: DDR4
- Number of PCI: 0
- Special Features: None
- Storage Interface Type: SATA
- Storage Interface Type: M.2 (NVMe)
- Package: Yes
- RAID Supported: No
- Application: Desktop
- Chipset Manufacturer: Intel
- Back I/O Ports: 1x RJ45
- PCI - E standards: PCI-E 2.0
- Socket Type: LGA 2011-3
- Hign-concerned Chemical: None
- Usage Scenario: Gaming
- Usage Scenario: Audio & Video
- Usage Scenario: Office
- Usage Scenario: others
- Origin: Mainland China
- Number of PCIe x 8: 0
- Number Of Memory Slots: 4
- Ports: M.2
- Support USB Type: USB 2.0
- Support USB Type: USB 3.0
- Number of PCIe x 4: 0
- Number of PCIe x 16: 1
- Onboard Connectors & Header: 24-pin Main Power Connector
- Onboard Connectors & Header: CPU Fan Connector(s)
- Onboard Connectors & Header: AAFP Connector
- Memory channel: Double
- SATA RAID: 0
- Max LAN Speed: 1000Mbps
- Quality Certification: ce
- Quality Certification: ROHS
- Number of PCIe x 1: 0
- Certification: RoHS
- Certification: CE
- Form Factor: Micro-ATX
- Supports M.2 SSD: 2280
- Number of M.2: 1
- Choice: yes
