Kllisre X79 LGA 2011 motherboard M-ATX M.2 NVME slot support Intel Xeon E5 V1&V2 processor DDR3 ECC RAM X79G desktop mainboard
165.28 118.62 $
SALE
ID: 62661
Quantity

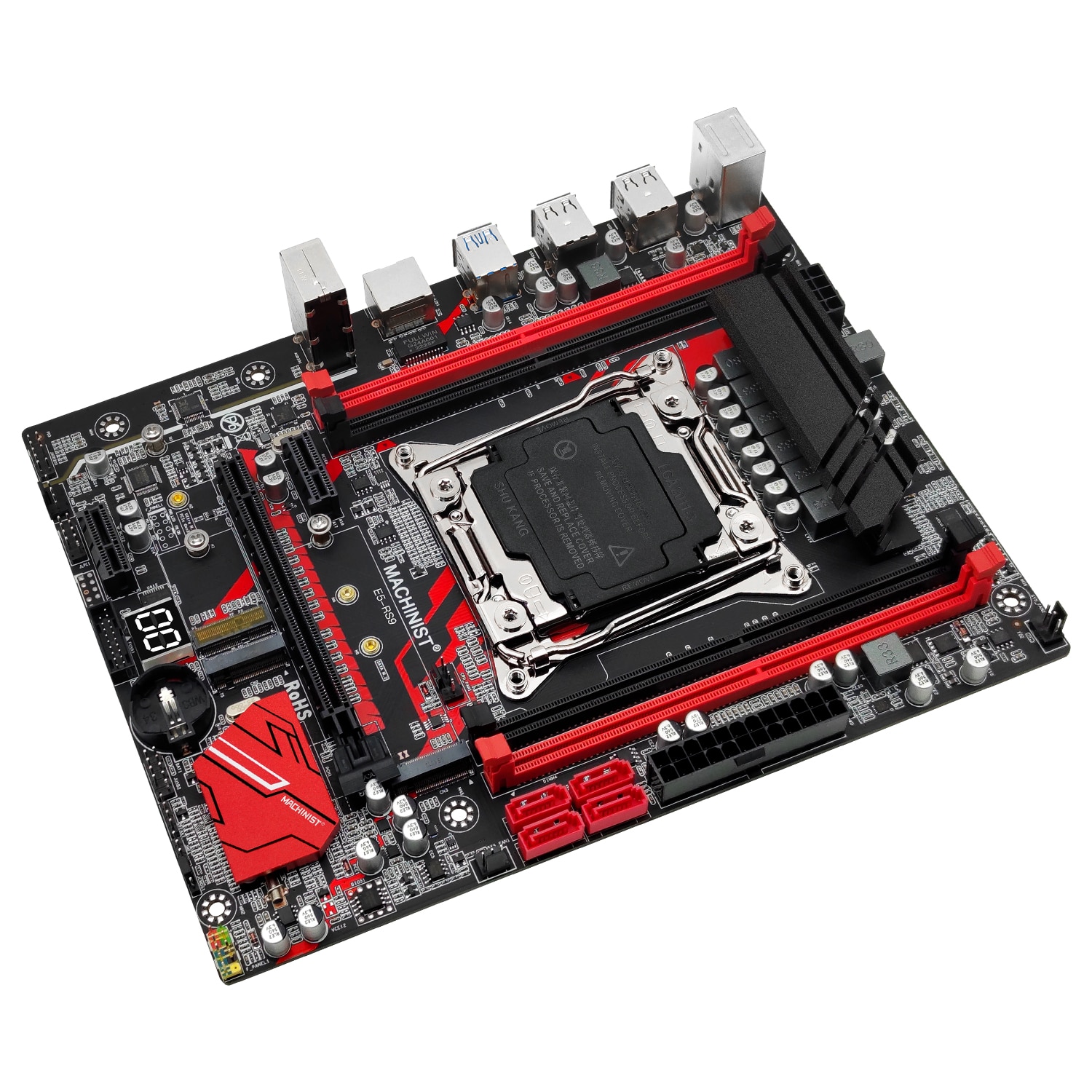

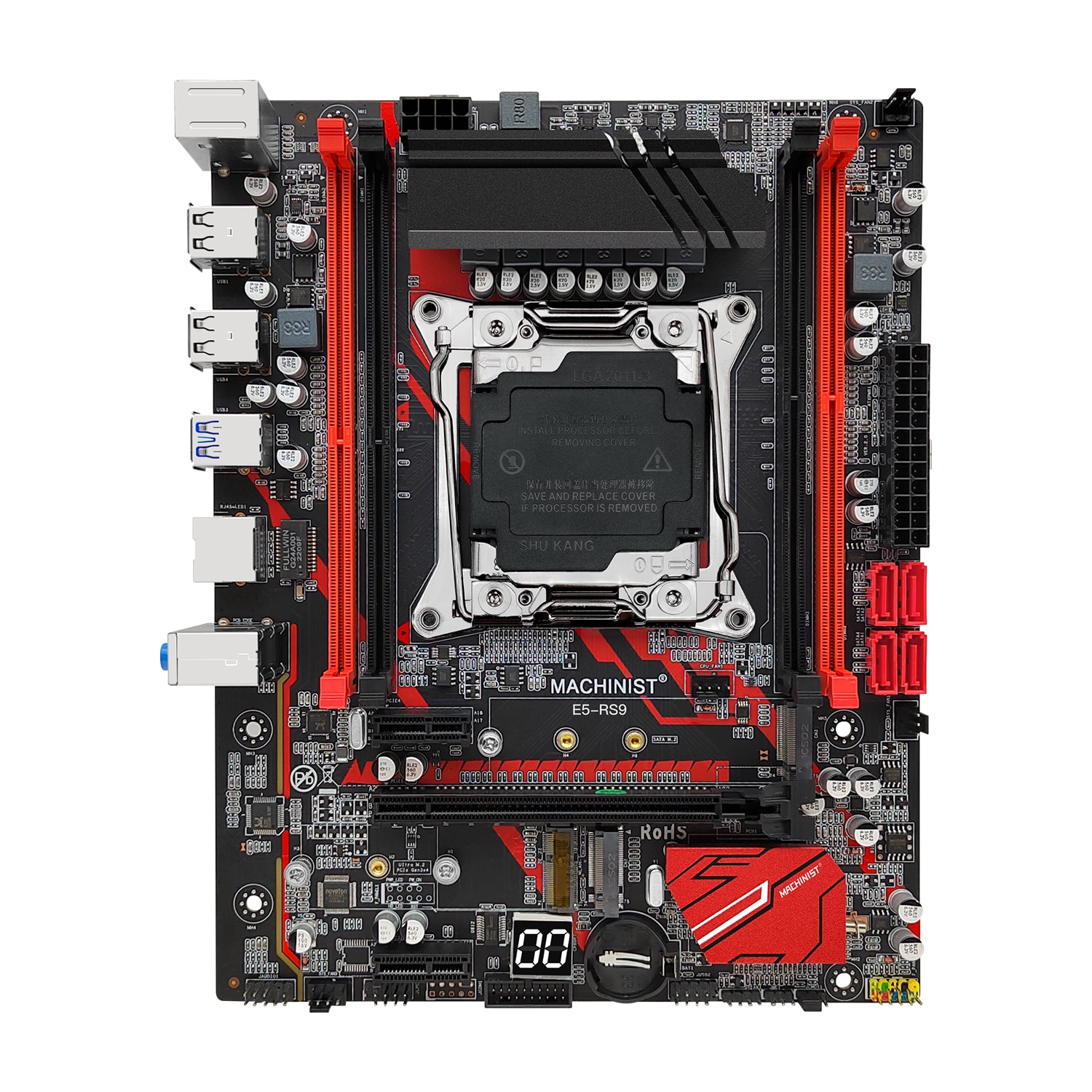

MACHINIST RS9 X99 Motherboard Support Xeon E5 V3 V4 LGA 2011-3 CPU Processor DDR4 RAM Four channel and SATA/ PCI-E M.2 Slot
4.7 (301 votes) | 1388 orders
Price:
US $175.62
/ piece
Discount Price:
US $
114.15
/ piece
-35%
- Ships From
- Bundle
MACHINIST Official Store Statement
>>What's in the package?
#Main products: MACHINIST E5 RS9 motherboard *1pcs;
##Gift accessories: i/o shield, CPU cooling bracket, sata cable (all are hand-tested and packaged, there may be omissions, please forgive me!);
>>For the tariff problem, please make sure you can solve the customs clearance problem by yourself, if you can't solve it, we do not recommend you to buy goods in our store. We are not responsible for customs duties. Thanks for your understanding.
>>Please note: Some processors only support up to DDR4 1866Mhz or 2133MHz memory. This means that when 3200Mhz or 2666Mhz is installed it will only show 1866Mhz and 2133MHz. If you mind, please don't place an order. You can read 3200mhz and 2133MHz on CPU-Z.
MACHINIST Product Details
> > Specifications:
Brand: MACHINIST;
Status: New;
Processor: Support Intel LGA2011-3 pin series processor;
Southbridge :Q87/Z87 chipset series; (Part is B85 and part is C226)
> > Memory
Technology: four-channel DDR4 2133/2666/3000/3200MHz;
Maximum capacity 64GB;
Memory slot :4 * 288 PIN DDR4;
Supported memory type: The memory type supports DDR4 desktop and server memory. (Please use Samsung, Kingston, Sandee, Micron, Hynix and other international brands, other brands may not be compatible);

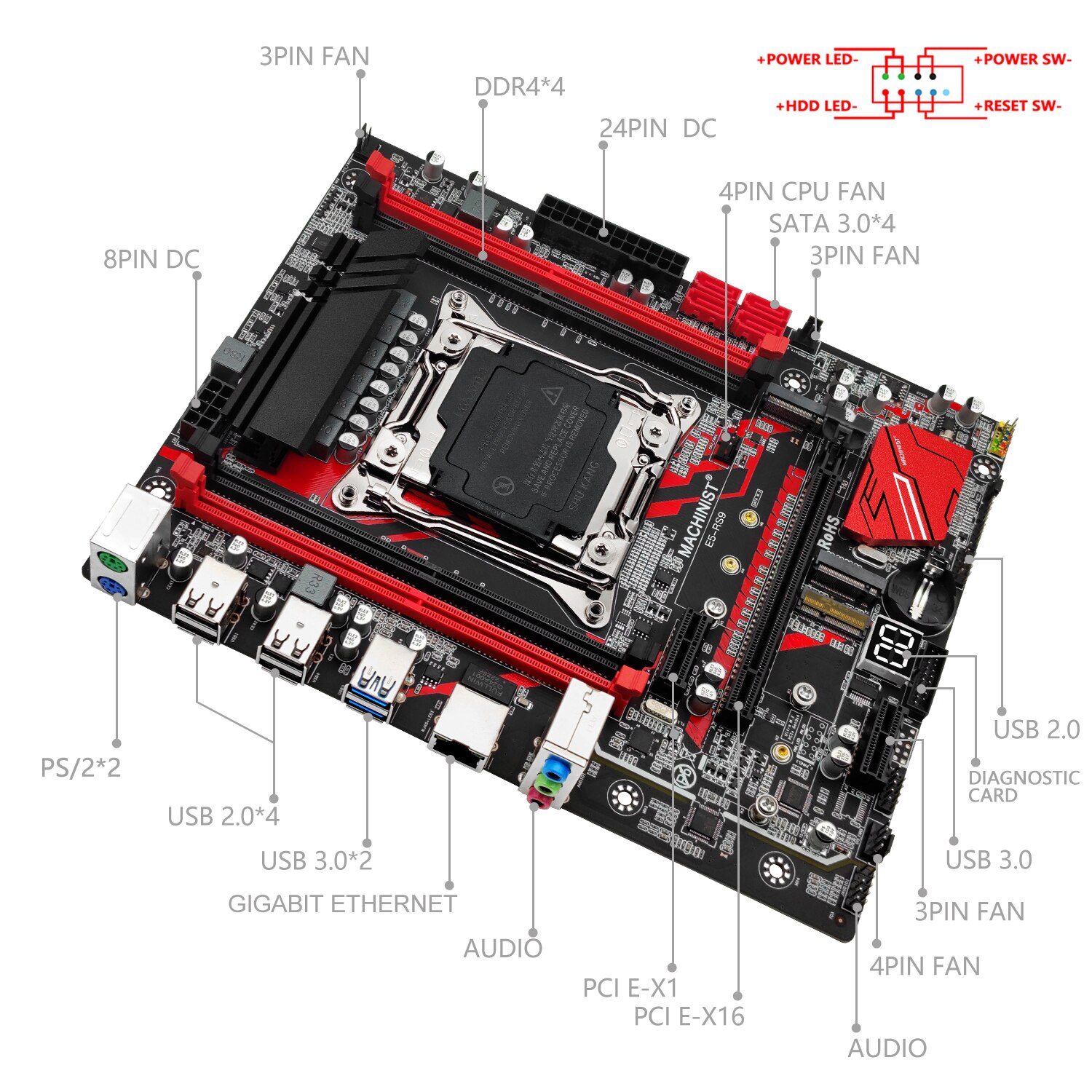

>> After l/O:
USB ports :2 USB 3.0; 4 USB 2.0;
Audio: 3-hole audio interface;
Ethernet :1 Realtek Gigabit LAN;
PS/2: 1 KB interface and 1 MS interface;
> > Internal connector
USB 2.0:4 (one FUSB can transmit two USB 2.0 ports);
USB 3.0: 2 (one FUSB can transmit two USB 3.0 ports);
Fan: (1* cfan +-3* sfan);
PCIe: (1 PCIe x16; 1 PCIe x1);
SATA ports :4 (4 SATA3.0);
1 standard 1x8PIN power outlet; 1 standard 1x24PIN power outlet;
JAudio: 1 2x5Pin pin;
Diagnostic card :1;
M.2 Interface :2 (1 x PCIB +2 x SATA).
> > Physical dimensions

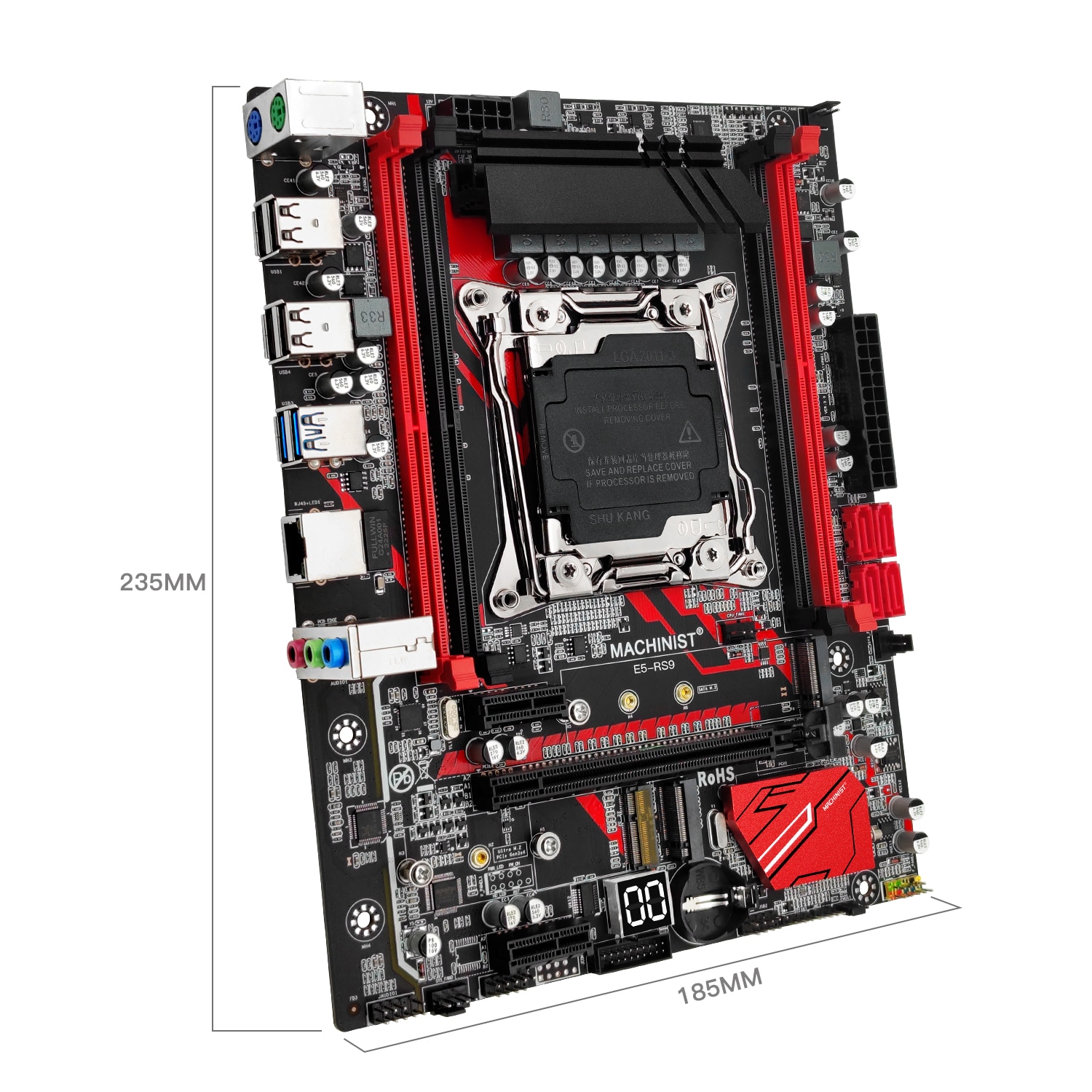

Size :235*185mm;
Motherboard weight (including packaging): about 0.95 kg.
Note:
(1) The color of the bottom plate of the slot may vary from batch to batch, but it will not affect the use of the product. The product is constantly optimized and upgraded.
(2) Please allow 1-3mm differs due to manual measurement.
(3) Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
(4) This planform needs powerful power supply. please make sure your power supply can enough to supports this planform.(at least 500w brand power supply)
(5) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.
- RAID Supported: No
- Processor compatibility: Intel Xeon Scalable,Intel Core
- Usage Scenario: Gaming,Audio & Video,Household,Office,DESIGN,Video Production,Workstation,Server,Scientific Computing
- Special Function: NONE
- Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector,USB 3.0 Connector,8-pin +12V Power Connector,USB 2.0 Connector
- Back I/O Ports: 1x RJ45,WIFI,3 x Audio Jacks,PS/2
- Support USB Type: USB 2.0,USB 3.0
- Onboard LAN: 1x RJ45,WIFI (AC)
- SATA RAID: 0
- Supports M.2 SSD: 2280
- Number of M.2: 3
- Number of SATA Ports: 4
- Storage Interface Type: SATA 3,M.2 (NVMe)
- Number of PCI: 0
- Number of PCIe x 1: 2
- Number of PCIe x 4: 0
- Number of PCIe x 8: 0
- Number of PCIe x 16: 1
- PCI - E standards: PCI - E 3.0
- Number Of Memory Slots: 4
- Support Memory Type: DDR4
- Quality Certification: ce,ROHS
- Memory channel: Four
- Form Factor: CeB
- Package: Yes
- Maximum Ram Capacity: 64 GB
- Form Factor: Micro-ATX
- Chipset Manufacturer: Intel
- With CPU: No
- Chipset: Q87
- Application: Desktop
- Socket Type: LGA 2011-3
- Brand Name: MACHINIST
- Origin: Mainland China
- Certification: RoHS,CE
- Chip set: Q87/Z87
