LVDS To HDMI-Compatible Adapter Board Converter Compatible with 1080P 720P Resolution
5.0 (1 votes) | 41 orders
Price:
US $
63.16
/ piece
- Color
-
-
[Overview]
There are two kinds of LVDS input in one board，
Double 8, Support 1080P (1920*1080P)
Single 8, Support 720P/768P/960P etc.
Note:
The default is Dual 8 mode, can switch to Single 8 mode by shorting Pin 3 & Pin 4 ( or GND & S1).
LVDS signal source: The default is VESA, please short Pin 1 & Pin 2 ( or S2 & GND) if you need JEIDA .
This board is limited to LVDS output, the resolution must be the VESA standard, and the driver board should be at least V59 grade, or the driver board is not available.
Because it is the DIY product, so sometimes there may be the compatibility problem. When it shows no signal or no sound, it may be the compability problem.
It is not recommend to use with 4K TV as it may have some compability problem.
[User Manual]
[Comptible Monitor Test by Customers]
V15 Model: NEC E242N
V2.0 Model: AOC I2276VW
[Packing List]
There are two version of this board. V1.5(new version) just with 1 LVDS connector, V2.0(old version) with 2 LVDS connectors, pls choose the right board according to your need.
Bundle 1:
1 x LVDS to HDMI Adapter Board V1.5
Bundle 2:
1 x LVDS to HDMI Adapter Board V1.5
1 x 2*15Pin Cable (Cable length: 25cm)
Bundle 3:
1 x LVDS to HDMI Adapter Board V20
Bundle 4:
1 x LVDS to HDMI Adapter Board V20
1 x 2*15Pin Cable (Cable length: 25cm)

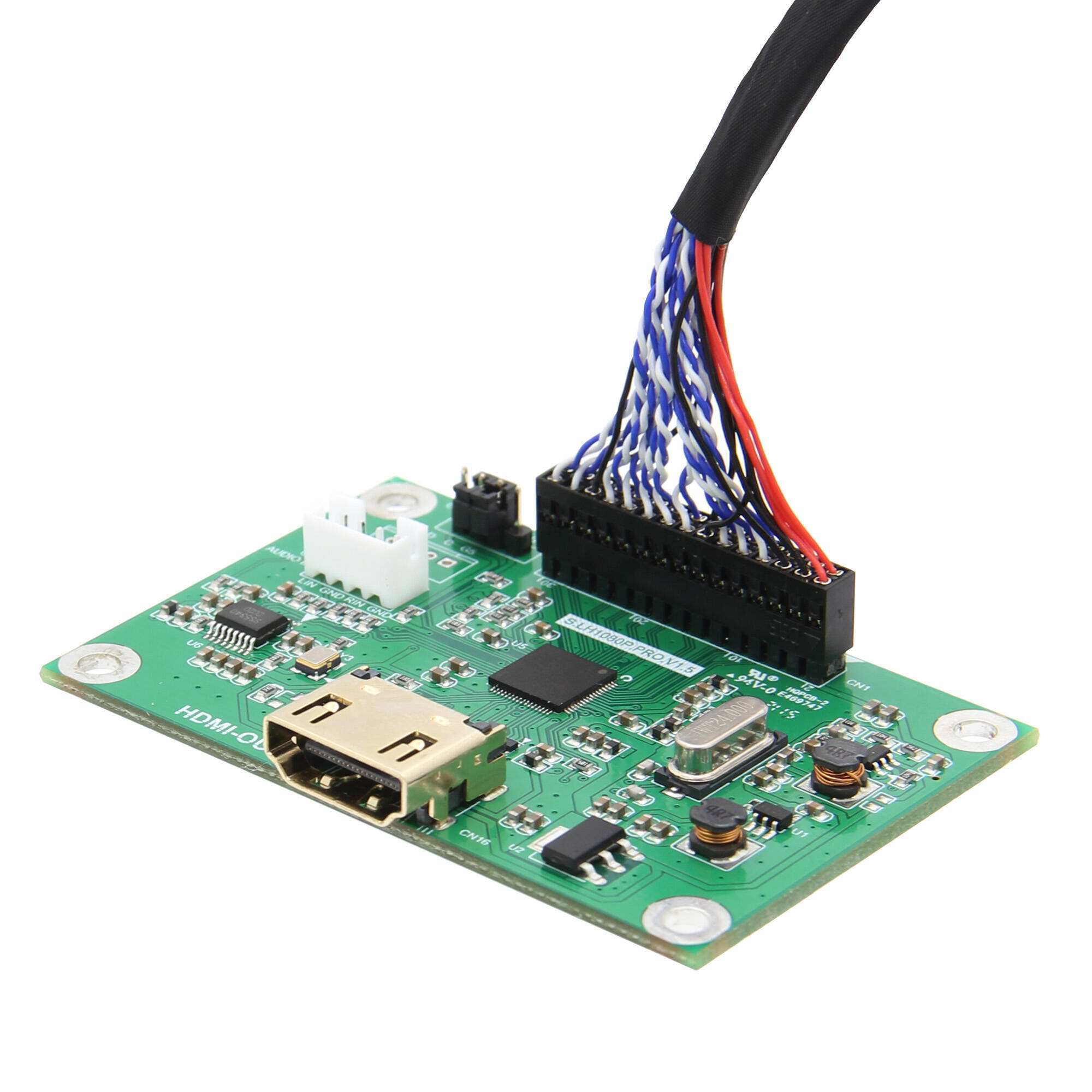

[Product View - V1.5 Version]

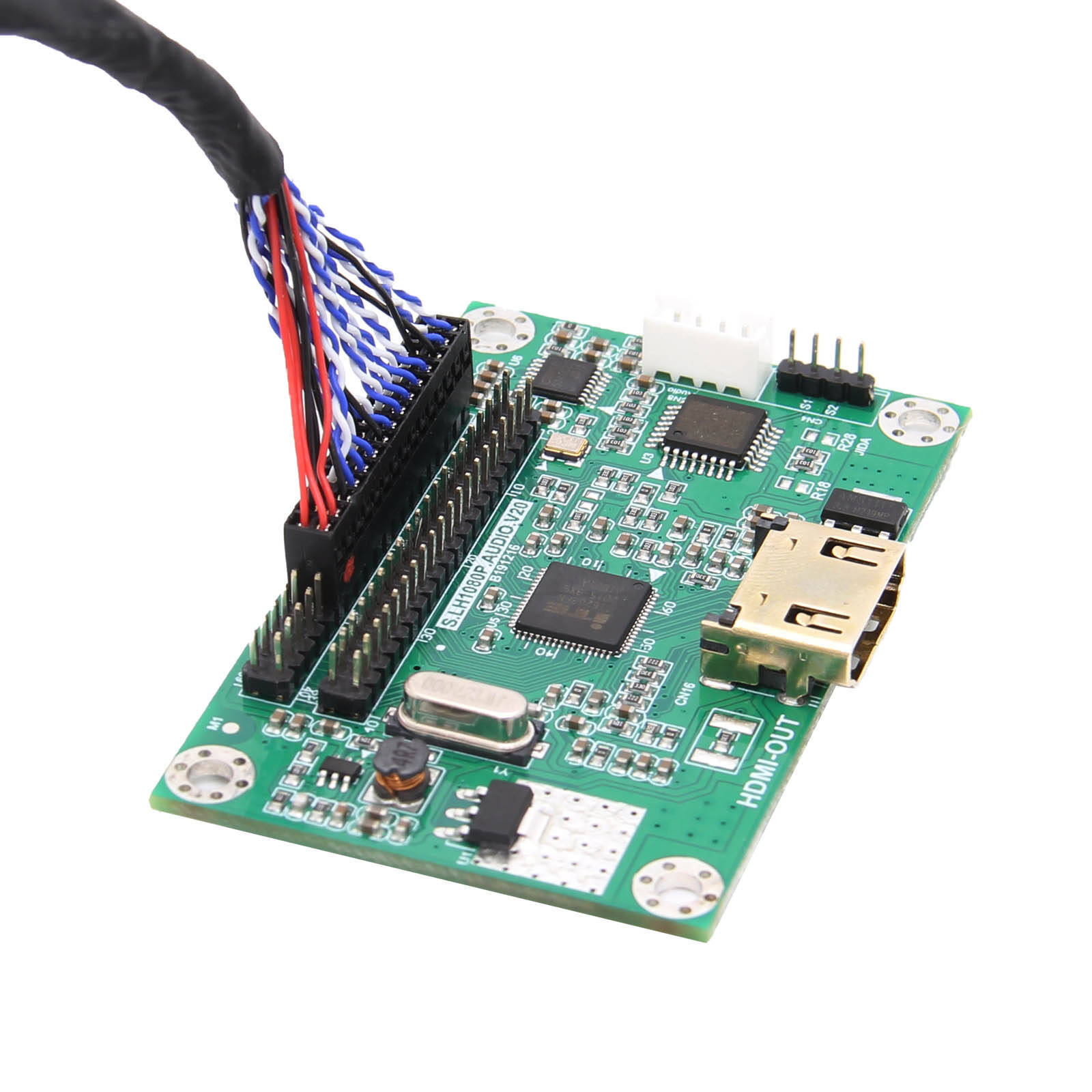

[Product View - V20 Version]
Packaging Details
- Unit Type: piece
- Package Weight: 0.079
- Package Size: 8x2x10
- Brand Name: Geekworm
- Accessory Type: Extension Board
- Battery Included: No
- Origin: Mainland China
- Hign-concerned Chemical: None
- Compatible With: Driver board / screen
