Lusya LDAC APTX HD Bluetooth 5.0 Wireless Receiver Board PCM5102A DAC Decoder Board Support 24BIT With Antenna
4.7 (6 votes) | 7 orders
Price:
US $94.13 - 107.87
/ piece
Discount Price:
US $
63.20 -
72.41
/ piece
-33%
- Color
-
-
LDAC APTX HD I2S DAC decoder support 24BIT
Two version:

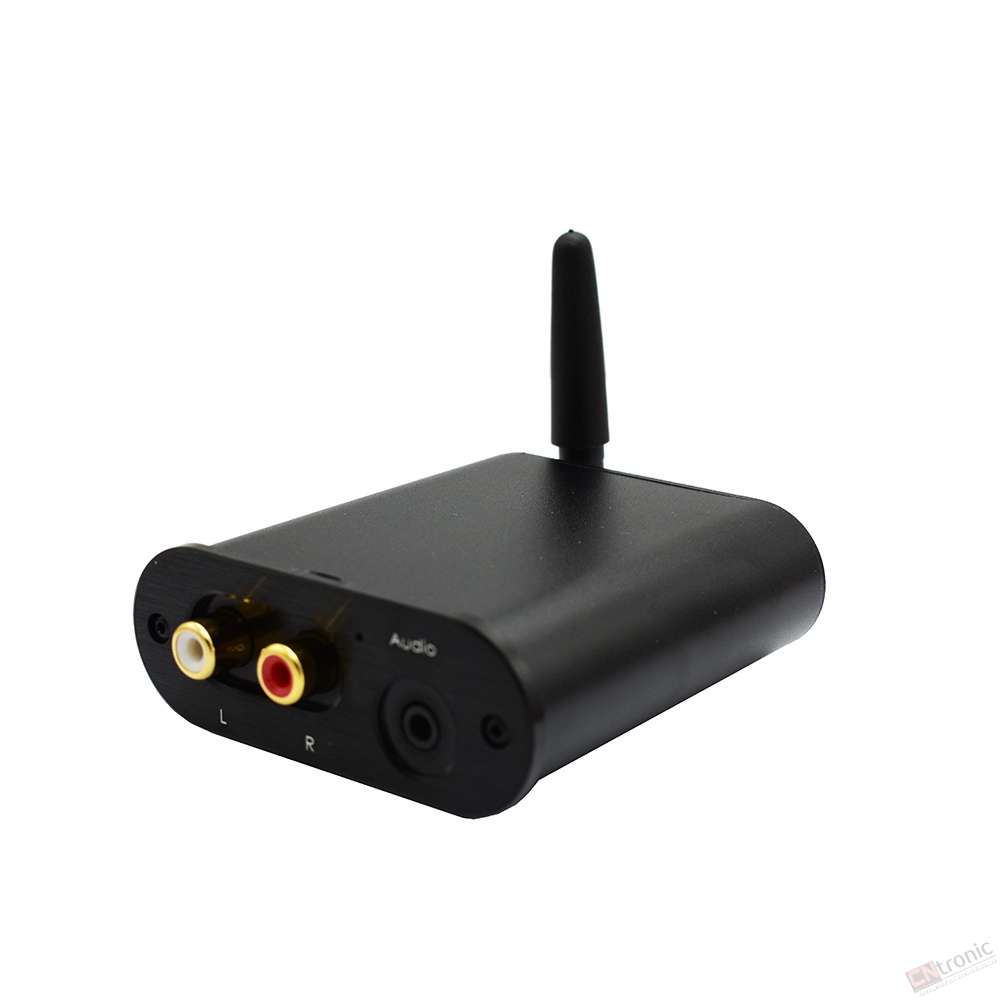

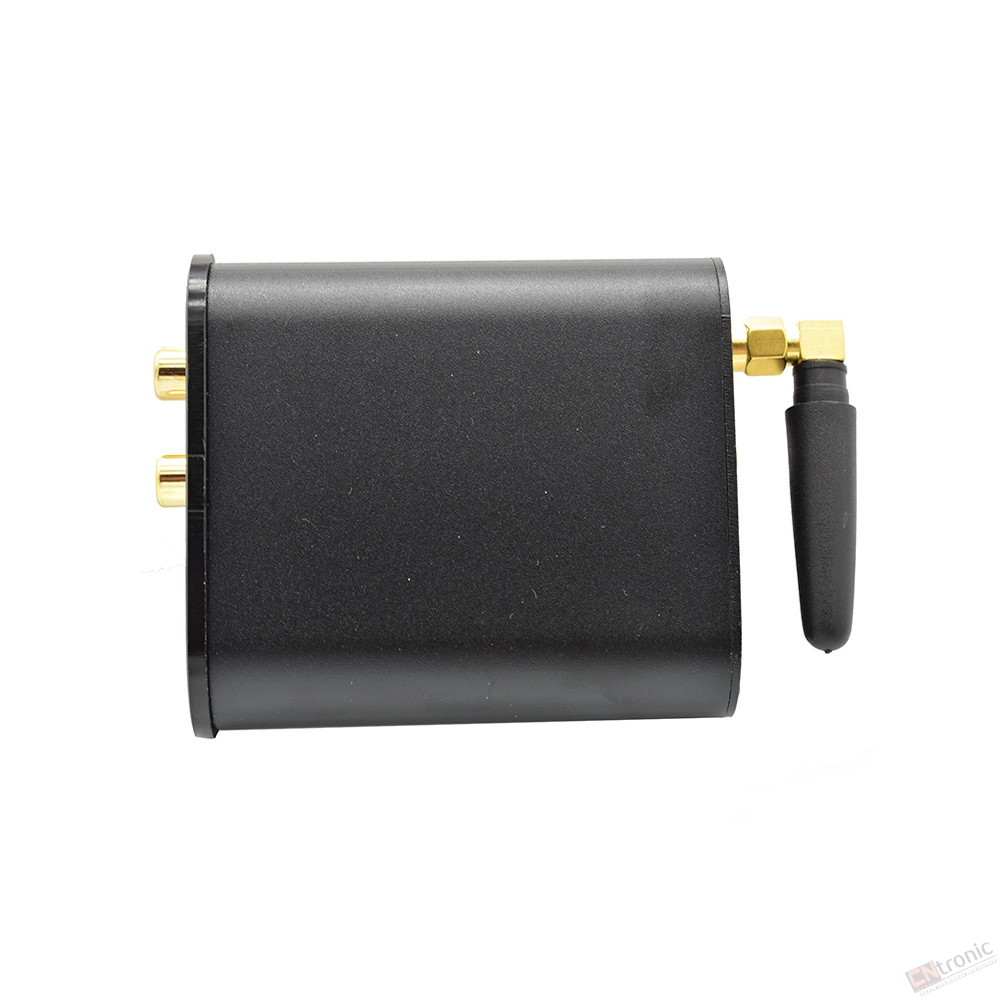

8675+PCM5102A :board only or board+case

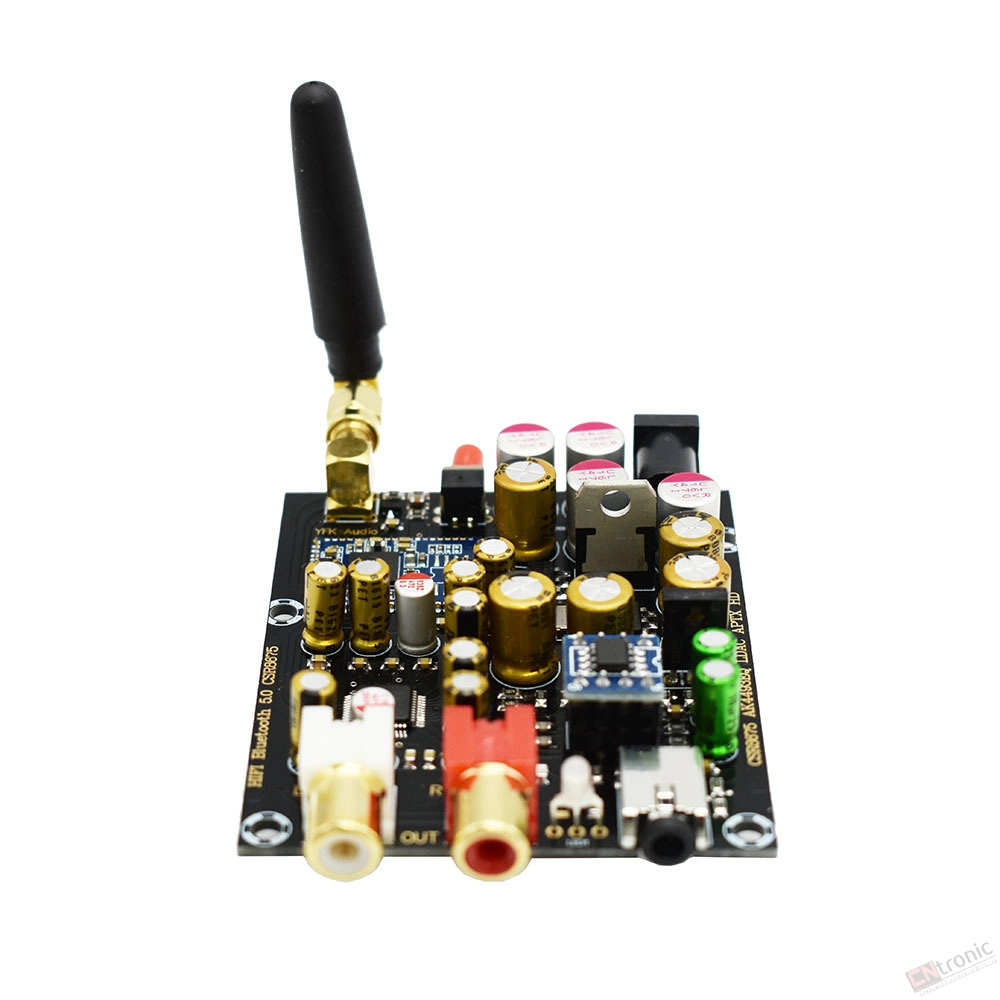

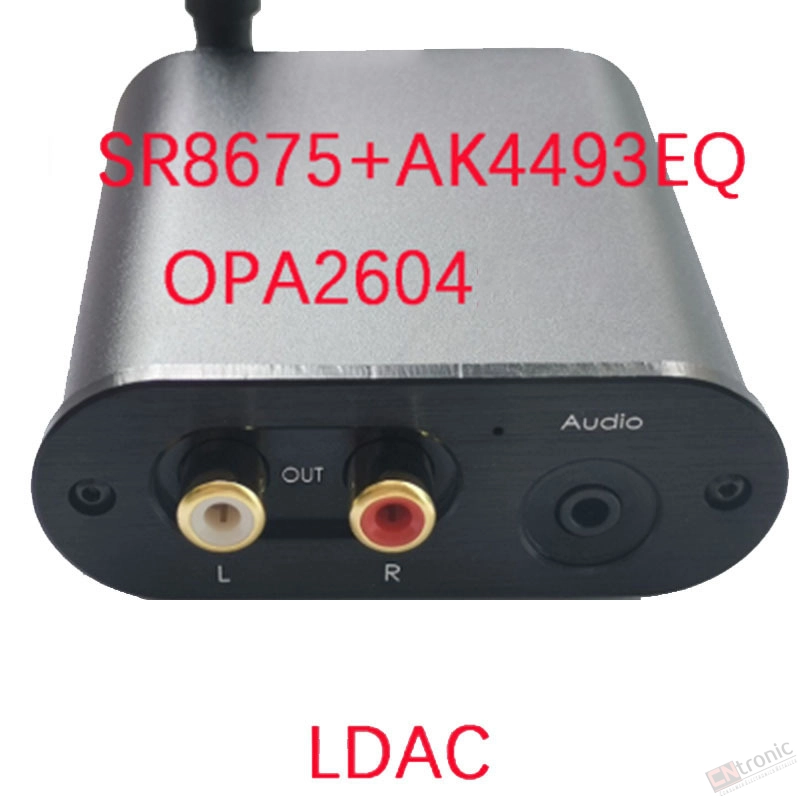

8657+AK4493:board only or board+case
support LDAC and APTX HD
LDAC supports 96KHz/24bit high quality audio up to 990kbps.
The Apt-X HD is up to 576kbps
Android 8.0 or higher system supports LDAC, the most accurate is to open the Bluetooth related settings to see which mode is supported, LDAC is supported. LDAC is not supported. Apt-X HD is generally supported.

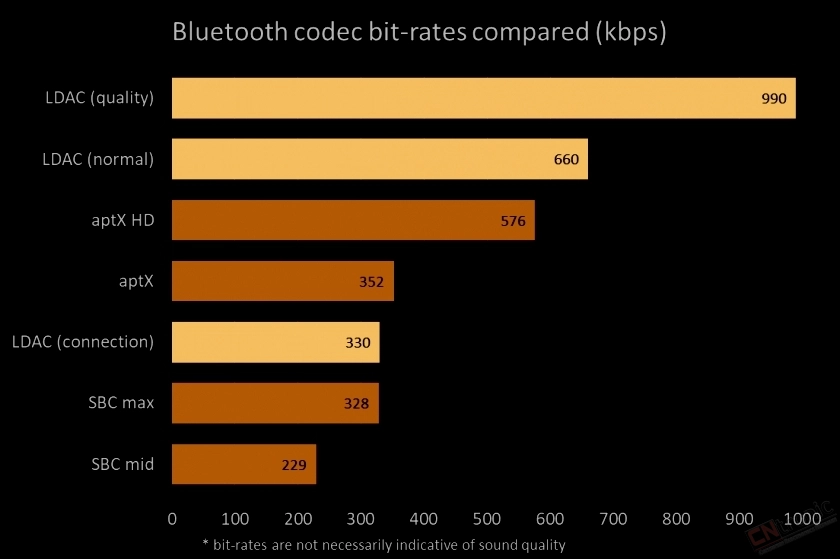

LDAC has three modes:
1.sound quality priority mode (990kbps),
2.standard mode (660kbps),
3.connection priority mode (330kbps).
The names of the three modes may be different on devices manufactured by different manufacturers. The sound quality priority mode allows the transmission rate to reach 990 kbps, enabling lossless playback of music. Generally, the mobile phone defaults to the priority mode, and you can set the sound quality priority mode yourself.

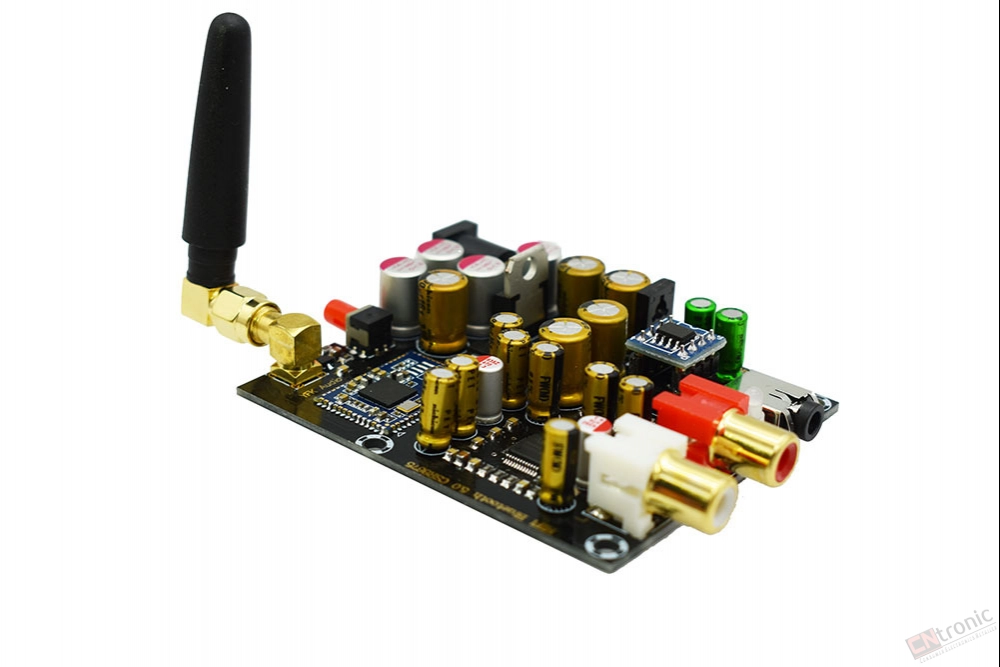

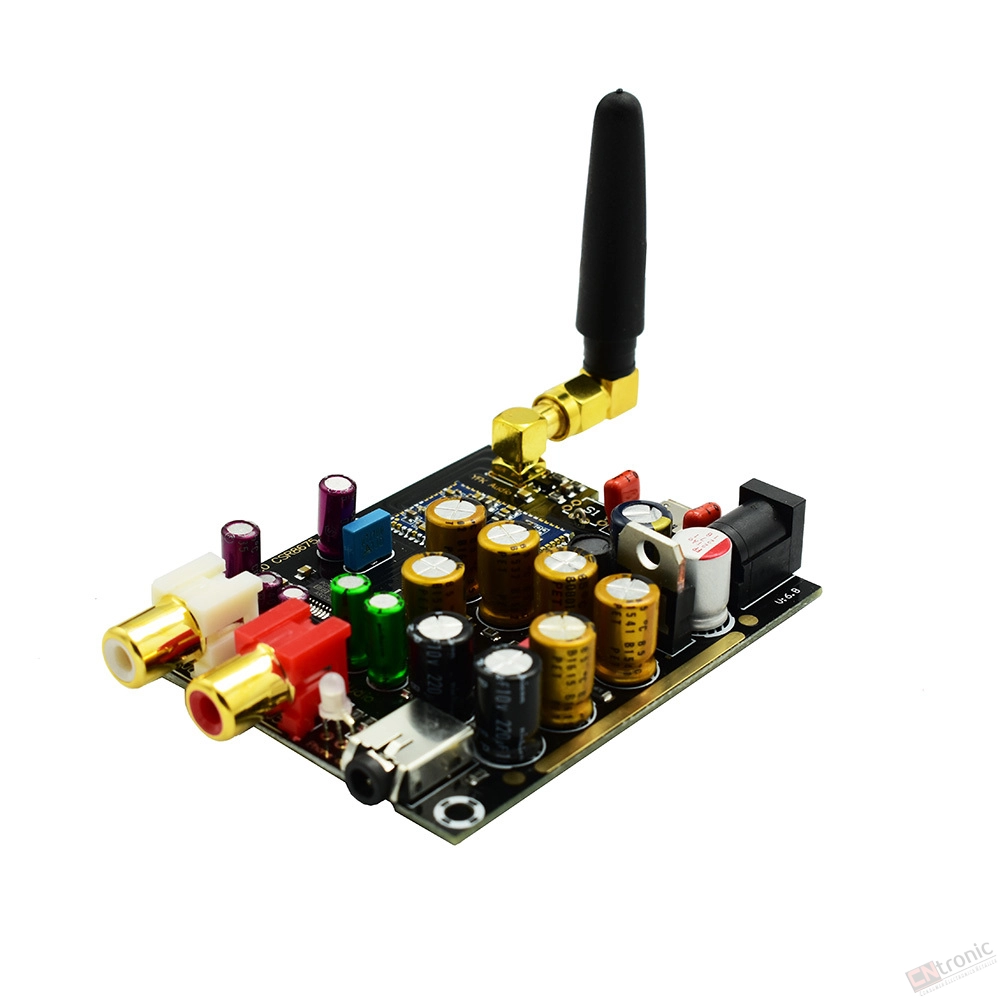

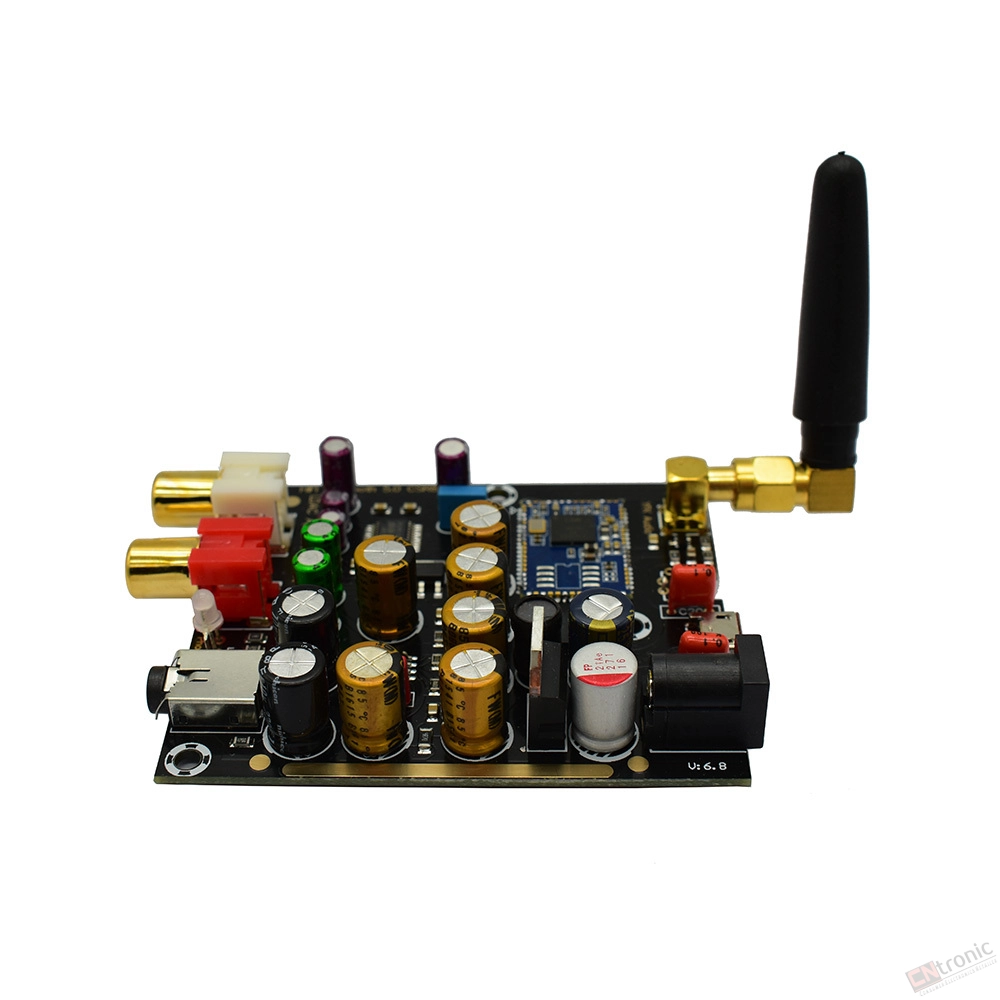

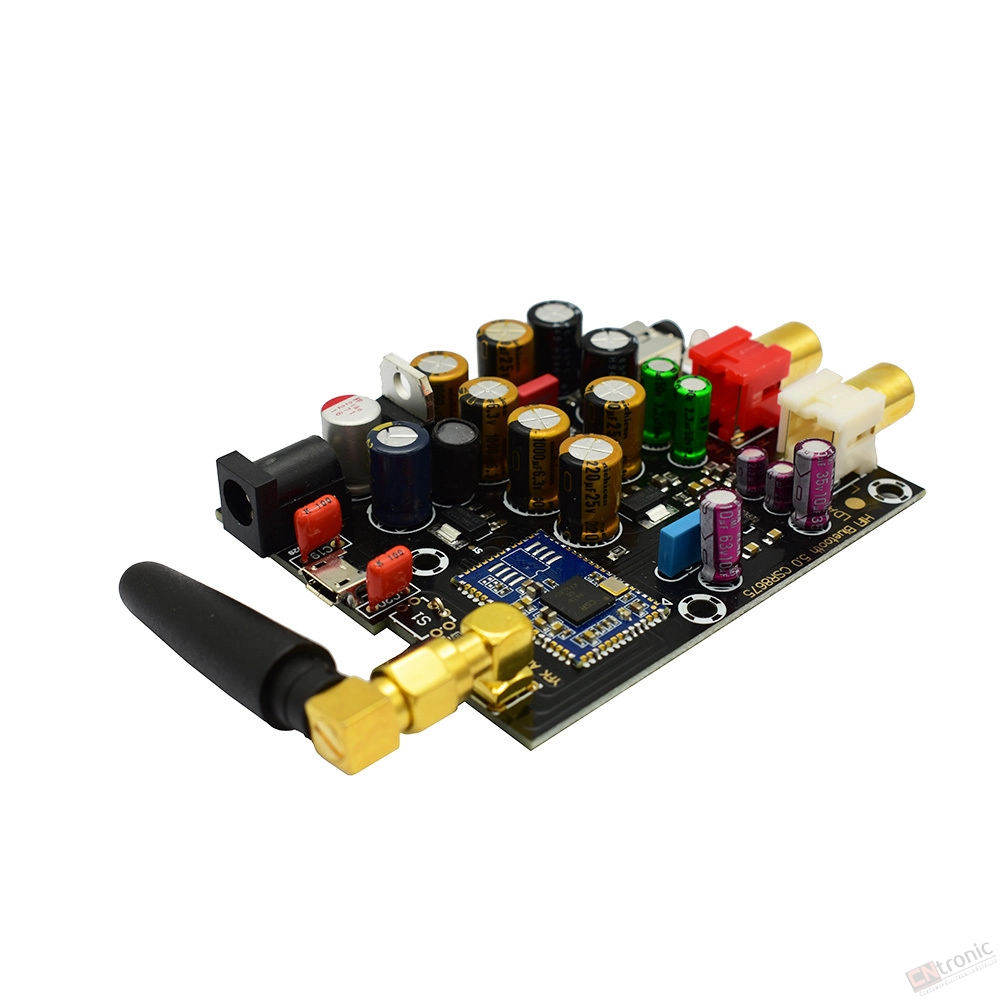

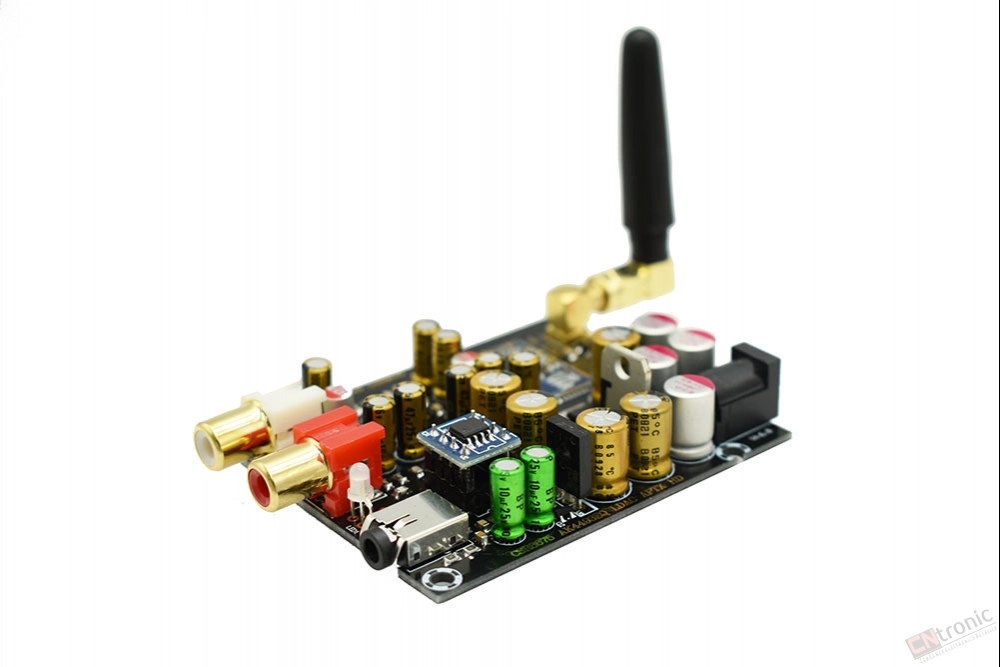

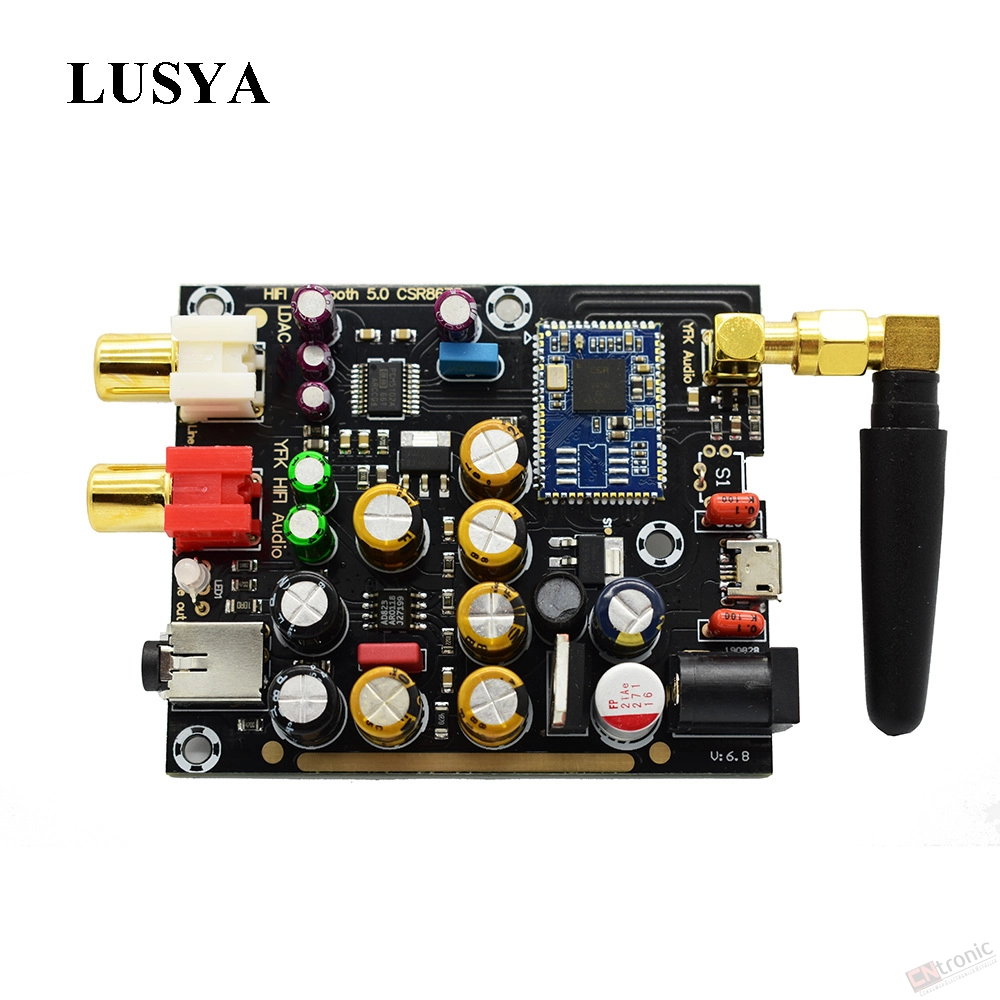

1.Bluetooth 5.0 8675 + PCM5102A decoding, support for LDAC and APTX HD . Real 5.0 module.
2. The PCM5102 is independently decoded, and the I2S protocol transmission is performed. It is much better than the Bluetooth playback board without decoding output. The decoding further improves the sound quality and resolution . Not a typical toy level Bluetooth audio output comparable. The signal-to-noise ratio is 112db, which directly outputs 2.1V RMS audio voltage. The high frequency is not burr, the low frequency is full, and the dive is good.
3.In order to have lower output impedance and good matching output, adopt the HIFI op amp AD823. This IC is used on the colorful classic player C4. The sound performance is clean and stable, the sound level is rich, and it has good control.
Parameters:
Chip: 8675+PCM5102A
Support: ATPX HD LDAC 24BIT
SNR :112db
dual audio output,dual power input interface (any one is ok) do not need to connect two.
(Please use high quality power supply, the power can directly affect the sound quality)

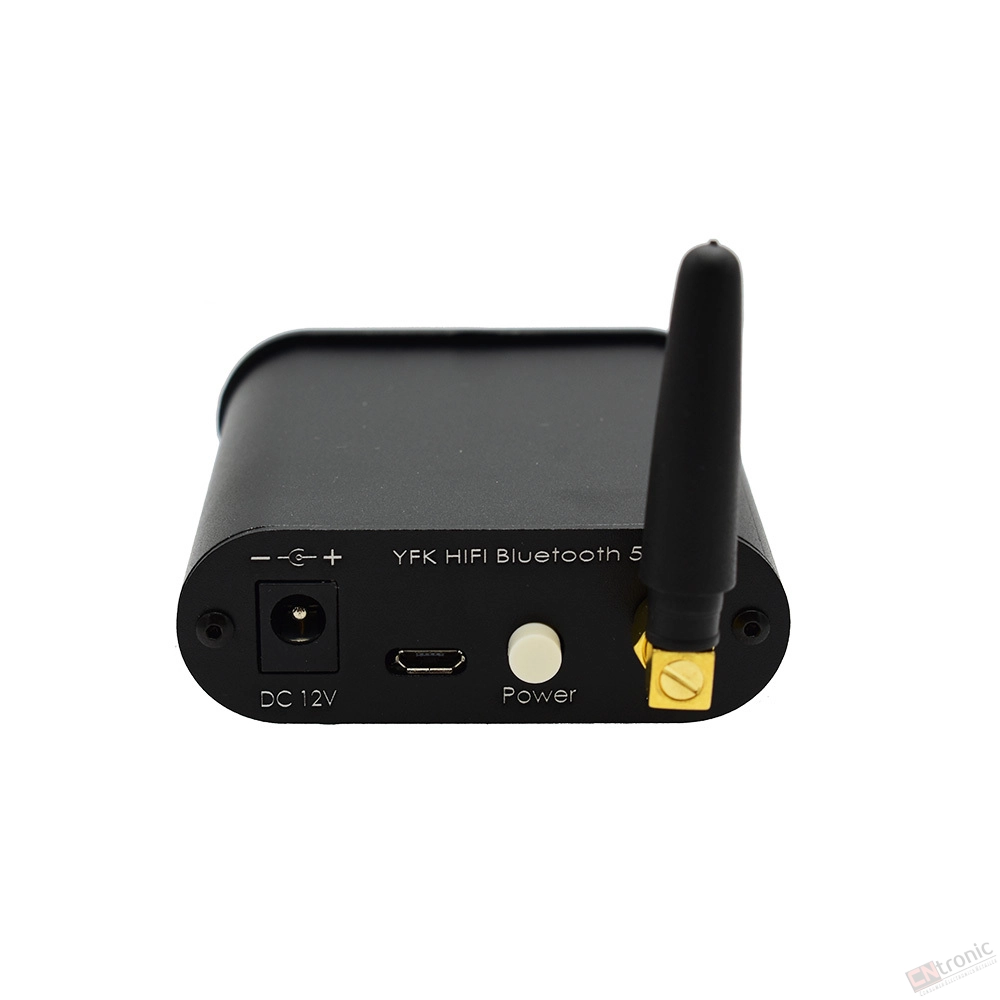

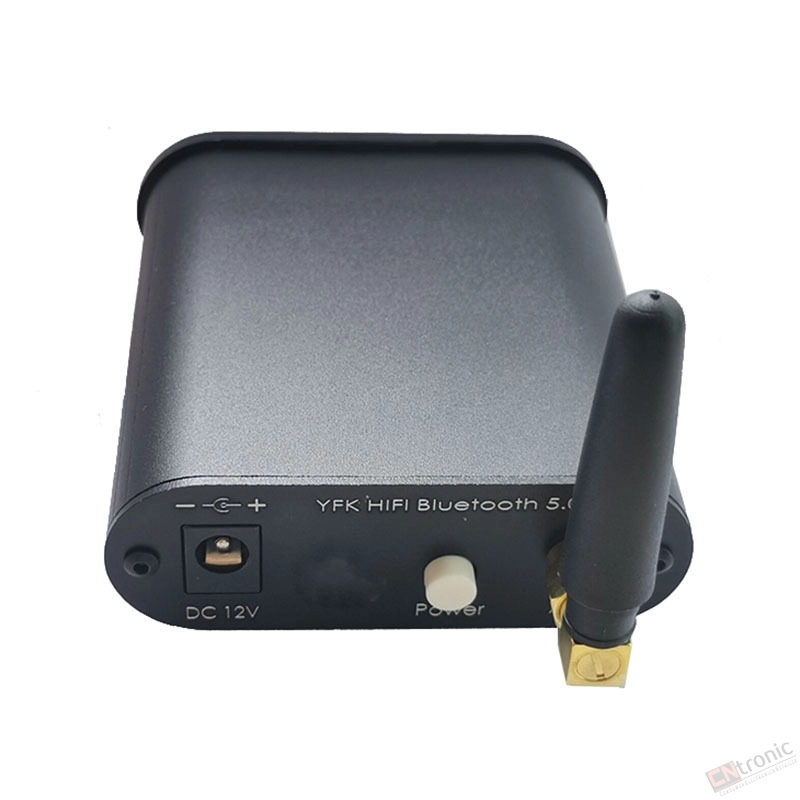

DC Input (5.5X2.1): 8-15V Power DC Adapter (300MA or more).
USB Input: 5V micro usb charger (500MA or above).

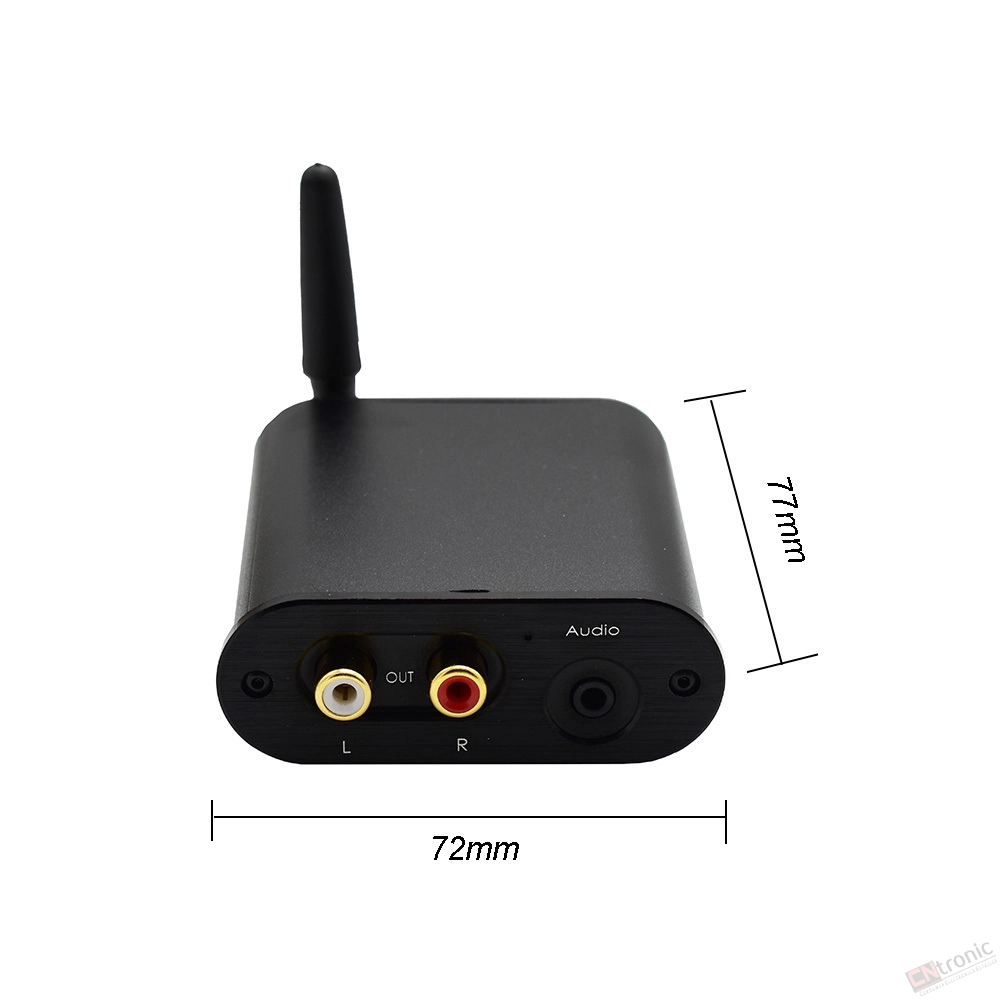

Output
RCA output, line out
3.5 Headphone output, phone out
Size:72*51mm
8675 AUX input:
https://www.Cntronic.com/store/product/Lusya-AUX-input-CSR8675-wireless-Bluetooth-5-0-Receiver-Board-PCM5102A-APTX-HD-I2S-DAC-decoder/314284_32956229503.html?spm=2114.12010611.8148356.4.2e1449c6AVlP3U
Quantity:
1pcs*
8675+PCM5102A version:
8675+AK4493 version:
- Dimensions (W x H x D): 72*51mm
- Bluetooth: Yes
- WIFI: No
- Input Format: RCA
- D/A Converter: PCM5102
- Model Number: CSR8675+PCM5102A
- Material: Plastic
- DSD Sampling Frequencies: NONE
- PCM Word Length: 24-bit
- PCM Sampling Frequencies: 192 kHz
- Outputs: RCA,3.5 mm
- Inputs: USB Type-A
- Type: Portable
- Brand Name: LUSYA
- Certification: NONE
- Origin: Mainland China
- type: dac
- type1: csr 8675
- type2: bluetooth 5.0
- type3: aptx hd
- type4: i2s dac
- type5: pcm5102a
- type6: bluetooth dac
