Liitokala Lii402 Lii202 Lii100 LiiS1 18650 Charger 1.2V 3.7V 3.2V AA/AAA 26650 NiMH li-ion battery Smart Charger 5V 2A EU Plug
66.26 41.46 $
SALE
ID: 26041
Quantity

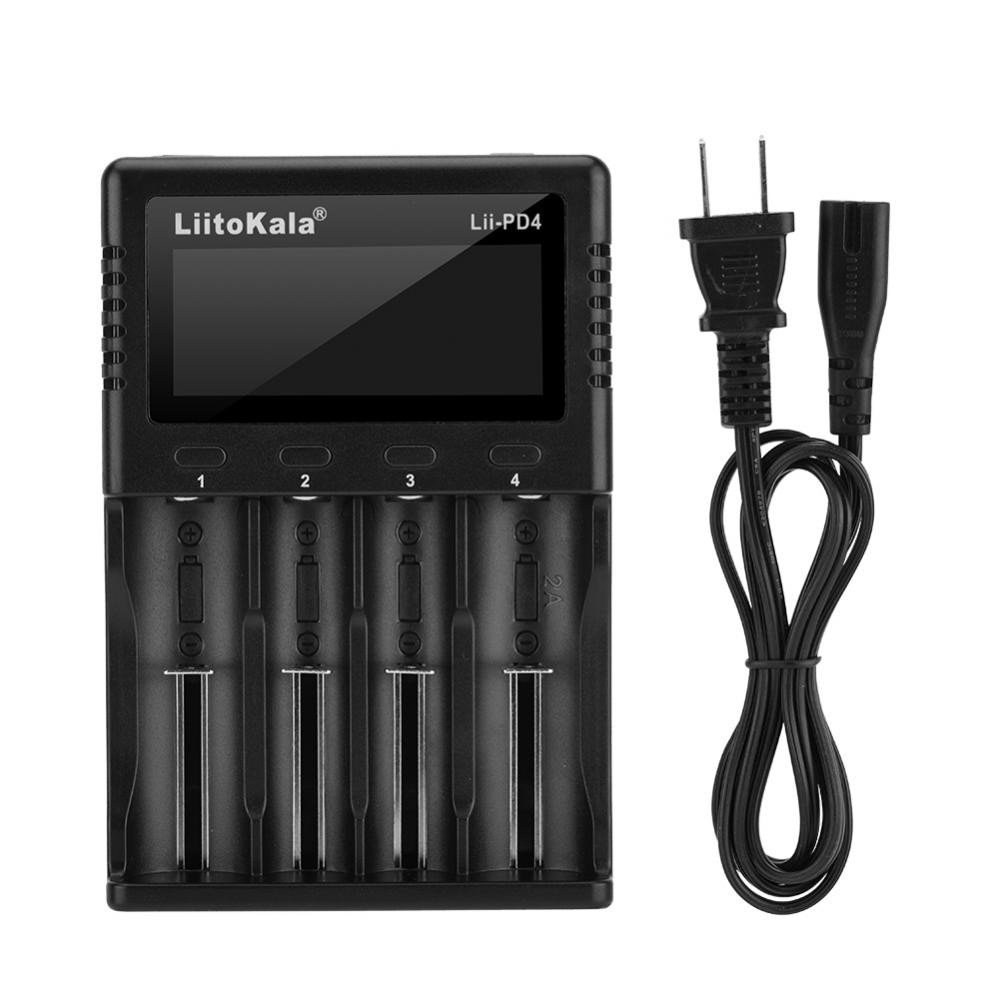

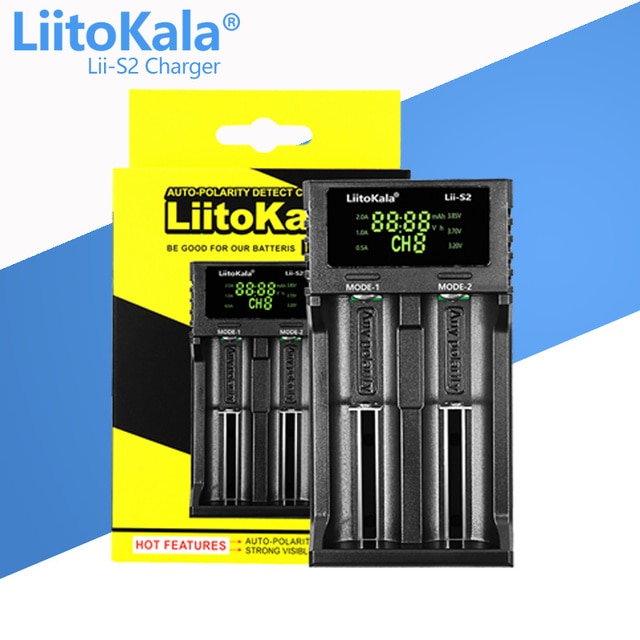

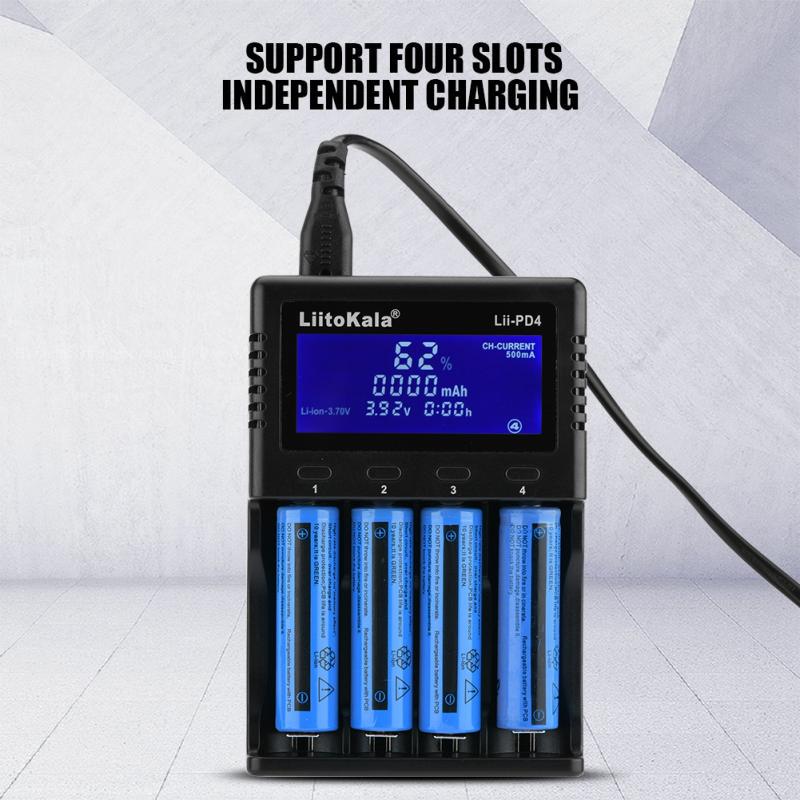

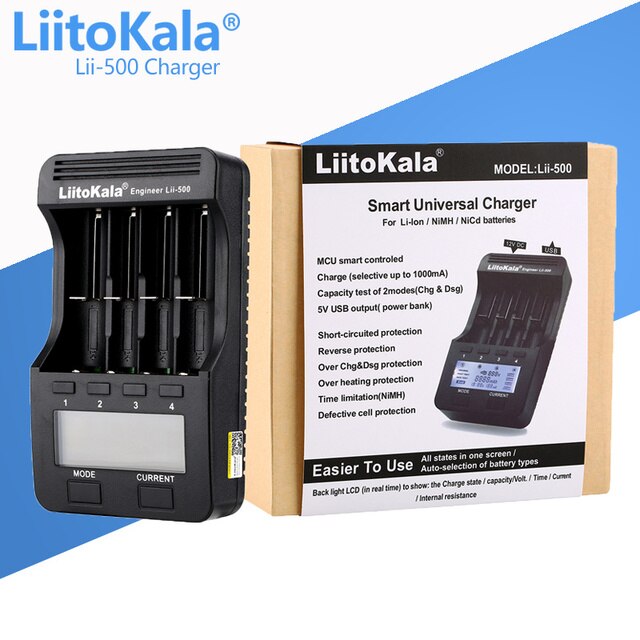

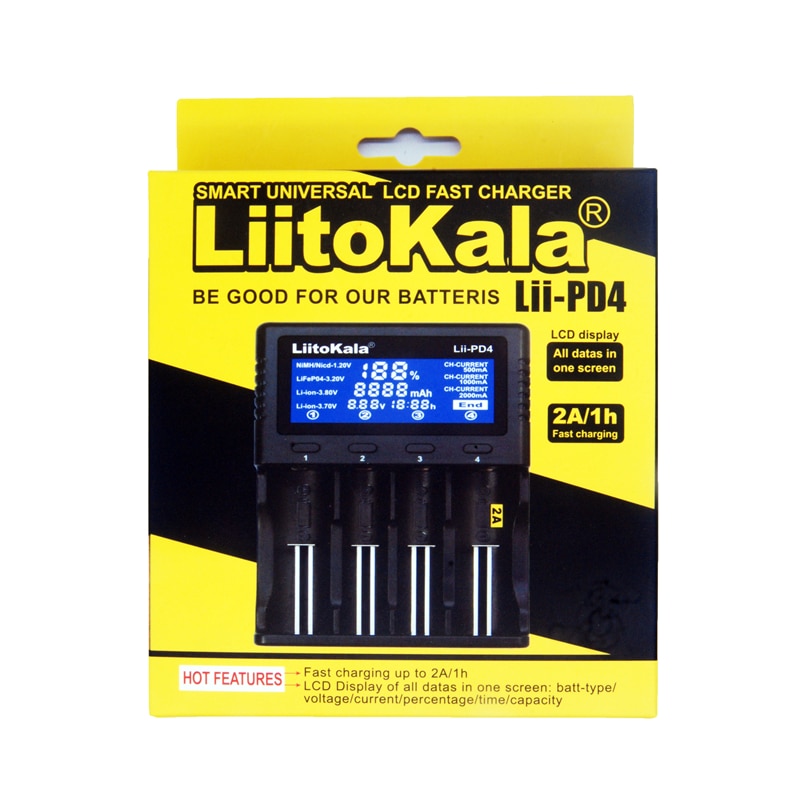

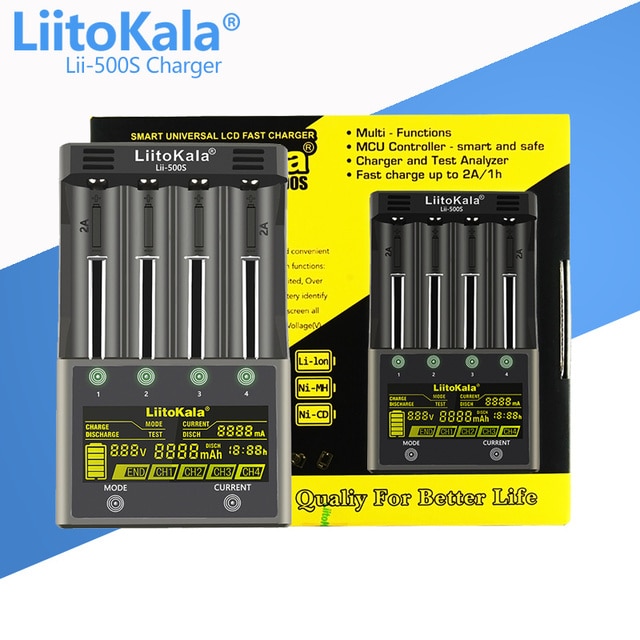

LiitoKalaLii-500S Lii-PD4 Lii-S2 Lii-S4 lii-500 lii-PD2 lii-S8 18650 26650 1.2V 3.7V 3.2V Lithium-ion NiMH Battery Smart Charger
5.0 (107 votes) | 522 orders
Price:
US $30.36 - 144.26
/ piece
Discount Price:
US $
17.76 -
80.01
/ piece
-42%
- Ships From
- Color
-
-

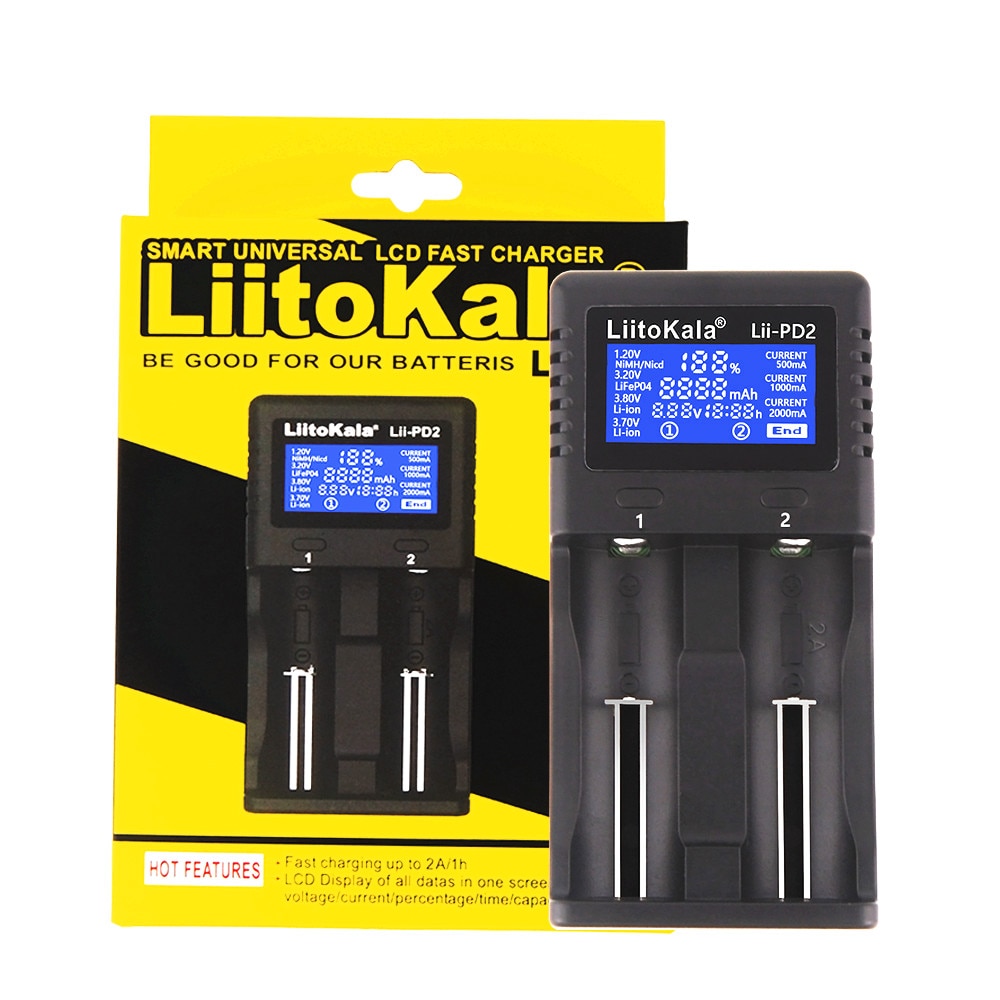

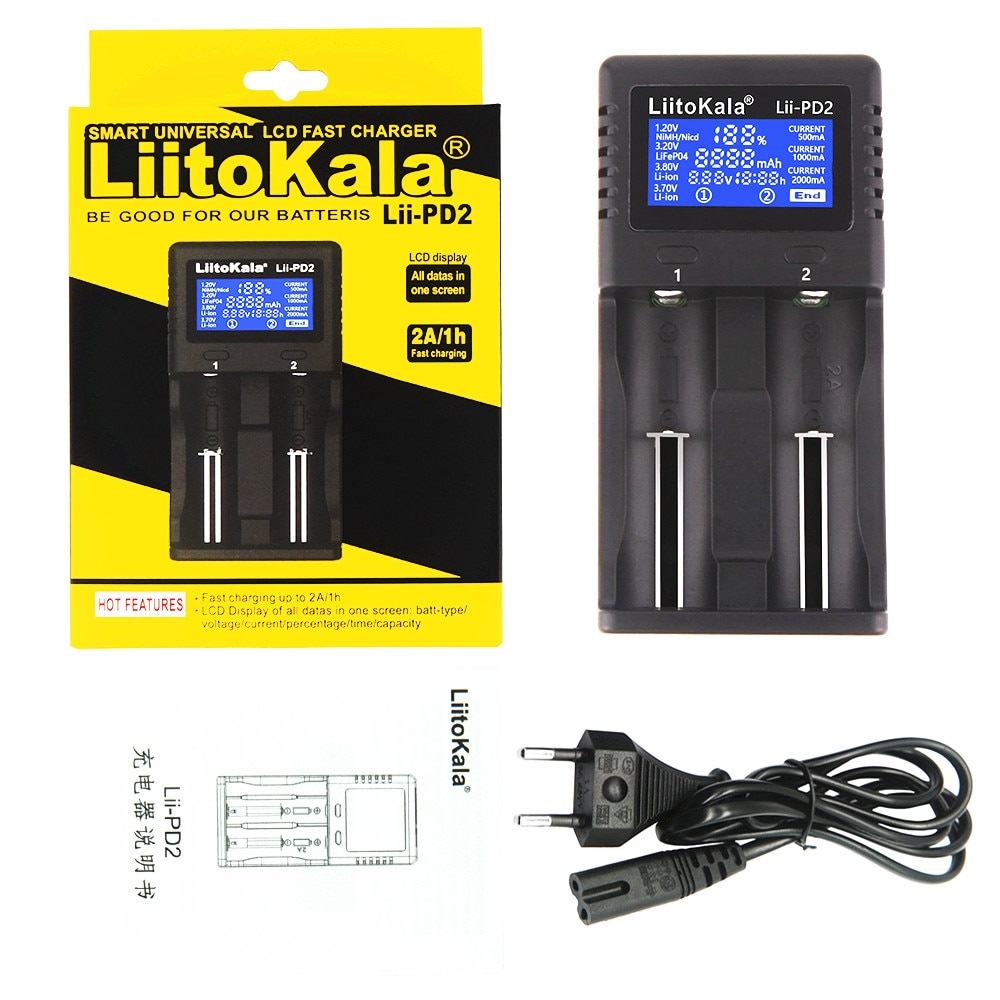

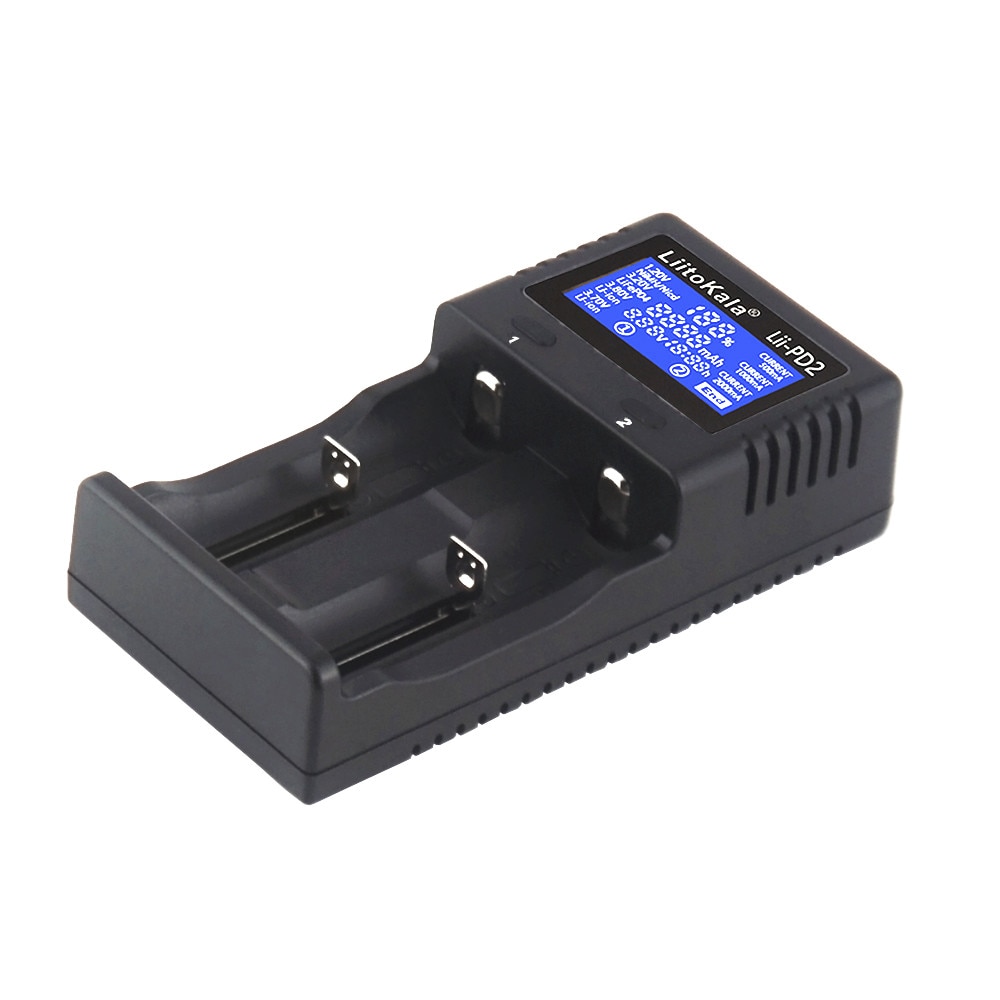

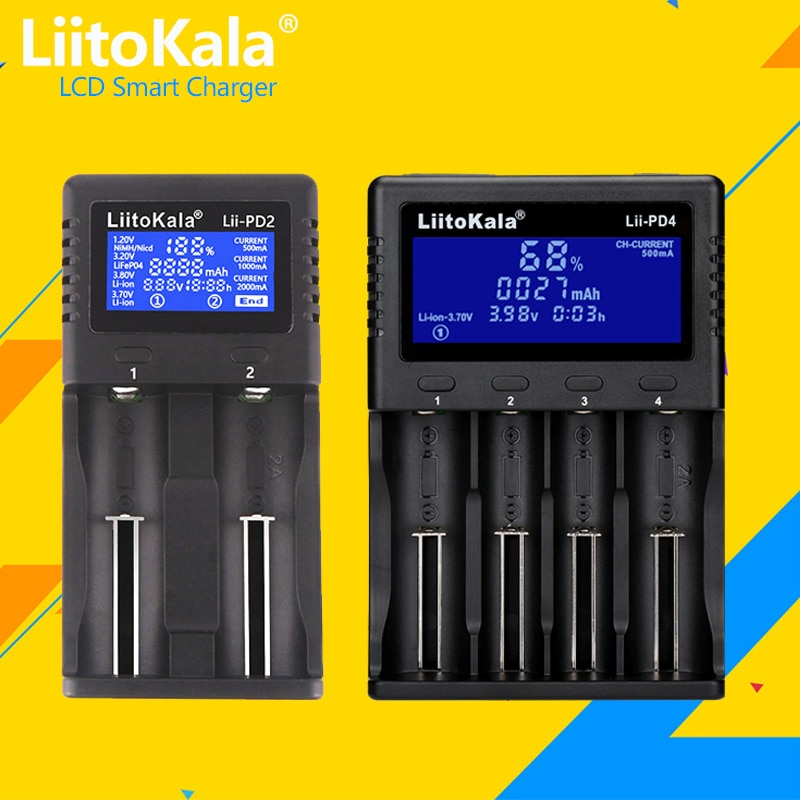

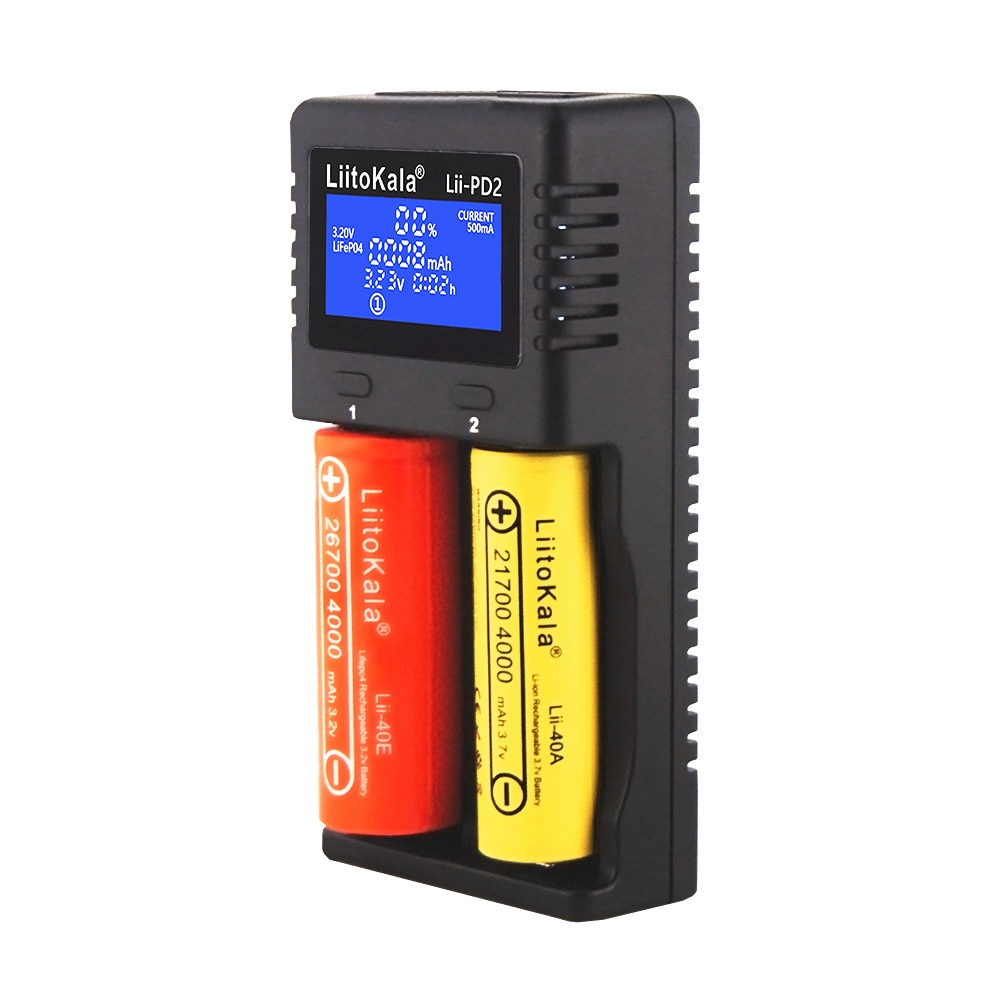

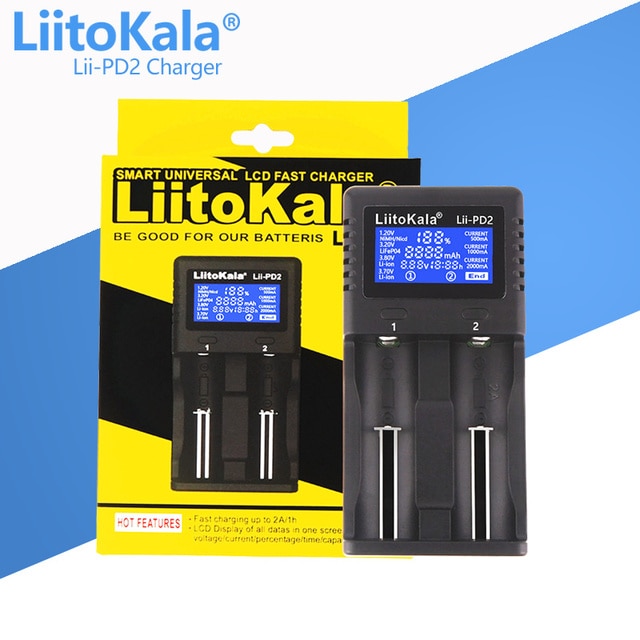

Charger PD2. Manual.
I. Charger specifications and functions:
1. DC12V1A (nominal) input, two-slot independent charging and
microcomputer management system.
2. The biggest highlight of this charger is that you can charge the battery
regardless of polarity!
3. There are three levels of charging current: 0.5A / 1.0A / 2.0A. The
default charging is 0.5A. You can press and hold the corresponding
button to select the charging current.

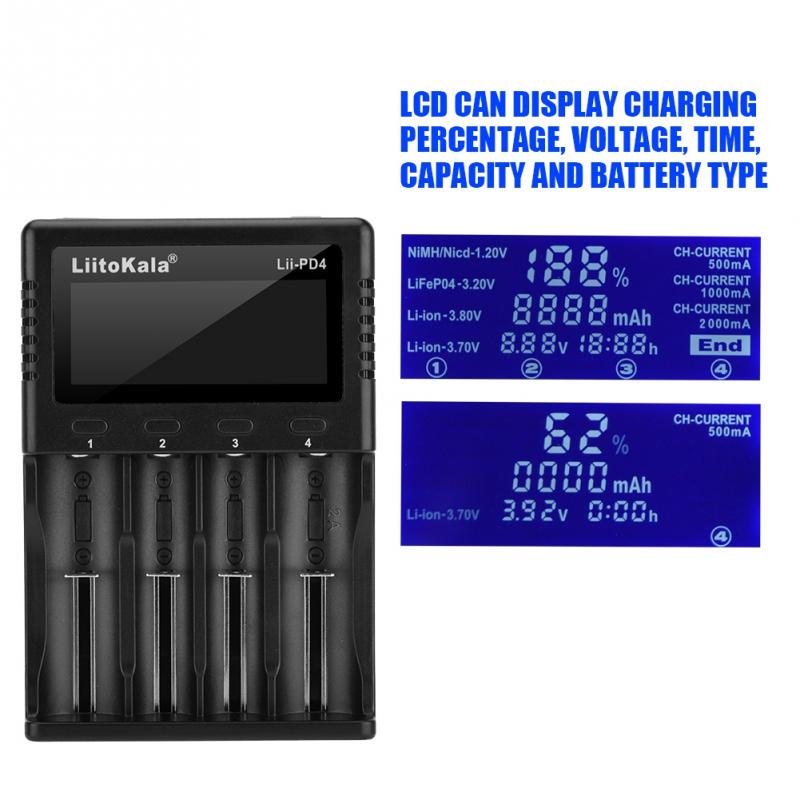

4. During charging the LCD can display the channel CH and the
charging current, voltage, time, capacity and battery type of the channel
Li-Fe 3.20V / Li-ion 3.70V / Li-ion 3.85V (IMR). The charging current of
the two slots does not exceed 2A in total. When one of the slots is
charged with 2A current, and then the battery is charged in the other
slot, the front 2A current will drop. Charge to 1A current; when the
battery is fully charged, the LCD will display FULL.
5. Automatic recognition of Li-Ion 3.70V and Ni-MH batteries, manual
selection of lithium iron phosphate battery (3.20V) and Li-Ion 3.85V
battery.
6. With 0V voltage activation function, 1.65-2.20V cannot be charged
(but there will be activated current trickle charging).
7. With multiple safety protection functions such as overcharge,
overdischarge, short circuit, etc., it can intelligently and automatically
identify bad batteries.
8. Charging mode: constant current and constant voltage.
II. Buttons and display:
1. Button (Mode): 2 buttons each control one slot. Within 5 seconds after
the battery is powered on, click the Mode button of the corresponding
slot to select the type of rechargeable battery. Press and hold the Mode
button to select the charging current. Determine the type of battery that
needs to be charged (such as 3.20V / 3.80V) and stop the operation
after charging current, and enter the charging state after 5 seconds. You
cannot switch the battery type during the charging process, but you can
click the button to light up the backlight and long Press to switch the
current.
2. LCD: After the charger is connected to the power supply, the LCD
display will be displayed for about 2 seconds, and then display null.
When the battery is detected, the LCD displays the corresponding slot
number, battery voltage and current, and the battery type symbol flashes
(NiMH / Nickel-cadmium 1.2V no battery type symbol blinks), after 5
seconds, it will enter the default recognition to charge the battery. At this
time, the charging display "%" symbol flashes to indicate that charging is
in progress, and END is displayed when charging is complete.
III. Electrical technical parameters:
1. Input power: DC 12V 1A.
2.Output voltage: DC 4.20V for Li-Ion, DC 4.35V for IMR, DC 3.65V for
LiFePO4, DC 1.48V for NiMH / NI-Cd.
3. Output current (optional): Li-Ion / IMR / LiFePO4: 2000mA * 1 (only
one) / 1000mA * 2 / 500mA * 2, NiMH / NiCd: 500mA.
4. Constant current / constant voltage charging, cut-off current: <100mA.
5. No-load standby current: <15m A.

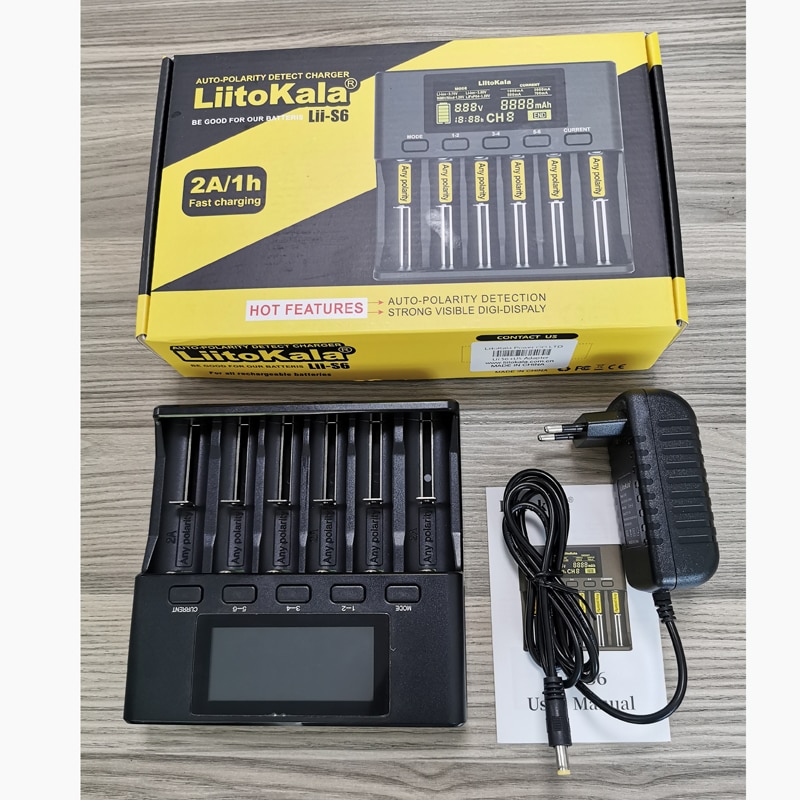

User Manual Lii-S6
Cautions:
1.Thischarger can chargeallcylindricalrechargeablebatteries 3.7VLi-Ion,3.8VIMR,1.2VNi-MH/Cd, 3.2VLiFePO4
2.Read this manual before use and pay special attention to the recommended charge current, must avoid to charge battery beyond the recommended current limit
3.If DC input, only12V3Ais recommended
4.Mindheating while charging
5.Remove the charger from power source after charging complete, and remove the battery from the charger at the same time
6.For indoor use only
7.The displaying dataonlyfor reference, pleaserefer to professional instrument for more accurate data
Specifications and functions:
1.Multi-powerinput: 12V 3A adapter(selective),four independent charging and micro computer management system.
2.Charge current intelligent auto-set of total three levels:500mA/700mA /1000mA/2000mA)，2000mAis fixed only for slot#1/3/6.
3.Multi-functionalLEDchargingindicators: forcharging progress: 25% - 50% - 75% -100%,battery types: Ni-MH 1.2V , Li-Fe 3.2V, Li-ion 3.7V, Li-ion 3.80V(IMR) and for charging current: 0.5A/1A/2A
4.Identify Li-ion and Ni-MH batteries automatically and adjust manually the charging mode for LiFePO4 and 3.80V li-ion batteries(IMR)
5.Refresh for OV battery. Itwill notcharge any battery of1.65 -2.20V (refresh current can be detected only)
6.Multi-safety protection function of over-charge and over-discharge,short circuited, polarity reverse and so on. It can smartly identify broken batteries with much more safety.
7.Chargingatconstant voltage and current
Button and LED :
1.Buttonof Mode: Whilepower supplyis connected, 1)Short clickthemodebutton to change the battery type. It will start to charge9seconds after setting the battery type (3.2V or 3.80V), 1.2V Ni-MH and 3.7V li-ion canbe detected automatically, so it needssettingonly 3.2V and 3.8V batteries; 2) During charging process, shortclickthe mode button todisplay battery type.
Note: Battery type can be only selective before charging starts.
2.LED: Whilepower supply connected, all LEDSlight up immediately 1) If no battery isinserted,the500mAh LED(one of the three current display LEDS ) willkeep on and others willbe off. 2) When battery isinserted anddetected, 4 LEDcharging indicator for the channelwill beonamong which3.7Vbattery typeLED keepsflashingindicatingto set the battery type, if no operationin5 seconds, it beginsbyautomaticdetection(Li-Ion 3.7V or NIMH)thenfour LEDindicatorswill display the charging status. 3)During charging, short clicktheModebuttontoshow the battery typewithin5 seconds;4)If nopower supplyis connected, insertinga battery, itcan quick shows the remainingchargervolumeof the battery.
*LED displaygraphic reference:
Electrical Parameters:
1. Input : DC 12V 3A（selective）；
2. Output voltage: DC 4.2V for Li-Ion 3.70V
DC 4.35V for Li-Ion 3.85V( IMR)
DC 3.65V for LiFePO4
DC 1.48V for NiMH/NI-Cd
3. Output current: Li-Ion/IMR/LiFePO4 2000mA*3(only for slot#1/3/6),
1000mA*6/700mA*6 /500mA*6
NiMH/NiCd: 500mA
4. Constant voltage, cut-off current: less than 100mA；
5. Standby current: less than 15mA。
Compatible battery types and sizes
Li-ion / IMR/LiFePO4: 26650，21700，20700, 18650, 18490, 18350, 17670, 17500, 16340(RCR123), 14500, 10440
NiMH/Cd: AA, AAA，SC, C
lii-S6 Size and weight:
157.0mm× 149.0mm×36.5mm (L x W x H)
Weight: 560g

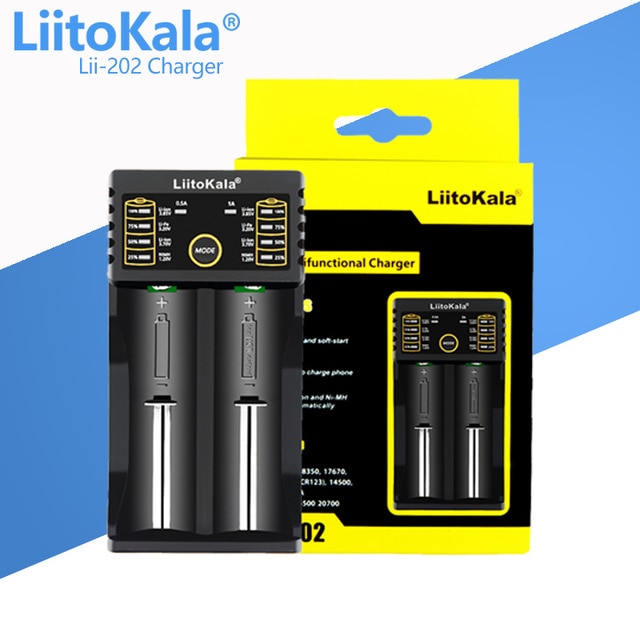

Lii-202 charger for instructions
This device is designed for portable, flexible, and several types of batteries. it can detect the battery type and charging the battery is automatically selected in accordance with the charging current. Built-in LED indicators to show charging status and 5 V / 100 mAh USB output function
warming:
this charge is only for charging the cylindrical lithium ion (3.7, 3.8), ni-mh / Ni-Cd, LiFePO4 (Li-Ion) batteries.
Please read these instructions before use; pay attention to the recommended charging current, never choose the wrong charging current
when charging with 5V USB AC adapter, 2A-current AC adapter recommended
Charger ma hot during operation for a long time, handle with care!
please cut off the electricity and remove the battery from the charger when charging is complete.
indoor condition only !!
data mapping Charger for reference only; please refer to the professional devices, if you need accurate data
2. Features and Specifications:
Micro USB DC 5V input, two independent slots and charging channels with built-in micro-computer control system to ensure high efficiency
Two charging current parameters (0.5A / 1.0A)
Four LEDs indicate the charging status (25%, 50%, 75%, 100%), and also shows the type of battery if it is installed in the battery (1.2 V Ni-Mh, 3.2 in Li-Fe, 3.7 in Li-Ion, 3.85 in li-ion)
automatically identify Li-Ion and Ni-Mh; But, you need to adjust the charging mode for LiFePO4 and 3.85 in the lithium-ion battery
it can actively 0 V battery, but the device does not charge in the 1.65 ~ 1.85 The types of batteries.
built with over-charging protection, over-discharge and reverse polarity protection. besides, it can detect a broken battery.
Charing mode: instantaneous value of current and voltage.
STANDING charging current: Operating voltage 5V-2A (Micro-connector)
Standard automatic 5 V / 1000 mAh USB output port
3. Select the button, LED and function.
MODE button:
select the type of battery when installing the battery. it will begin to charge the battery after fixing the battery type (please note that it will automatically identify Li-Ion and Ni-Mh, no need to choose manually)
Press and hold for 2 seconds, when after connecting to power, it can be switched between charging current of 0.5A and 1.0A;
led indicator
connect the charger to power, all LED indicators will be on when the battery is inserted after 5 seconds, the LED will be turned off except for the indicator 0.5A current
when the battery is inserted into the device, 4 LEDs will be turned on and 3.7 V LED is flashing, please press the MODE button to set the correct type of battery. it will begin to charge the battery after 5 seconds, and the LED indicator shows charging status.
Press the MODE button to show the type of battery (5 seconds) during charging and return to show the charging status
it can show the remaining battery power, if you put the battery in the charger (not connected to the charging source)
USB output indicator: When the USB output is detected, the volume of the battery indicator will be on for 10 seconds and then off, press the button to display the volume rate of the battery.
4. Specification:
Input: Micro USB DC 5V / 2A
Output: 1.4, 4.2 ± 05, ± 05 3.65 ± 4.35 05
Output Current: 500/1000 mAh
constant voltage charging cut-off current: <100 mAh
Standby current: <15 mAh
5. USB output function
USB output load voltage: 4.90 V-5.30
Output Current: 1000 mAh (1A)
No-load current: <1 mAh
the output voltage of 4.75 V-5.25 V, when the current 1000 mAh
output over-voltage protection: 3.0 ± 1
6. Compatibility
li-ion / IMR: 18650, 18490, 18350, 17670, 17500, 16340 (RCR123), 14500, 10440
7. Size
112 mm × 60 mm × 30 mm / 86 g + 15 g USB cable

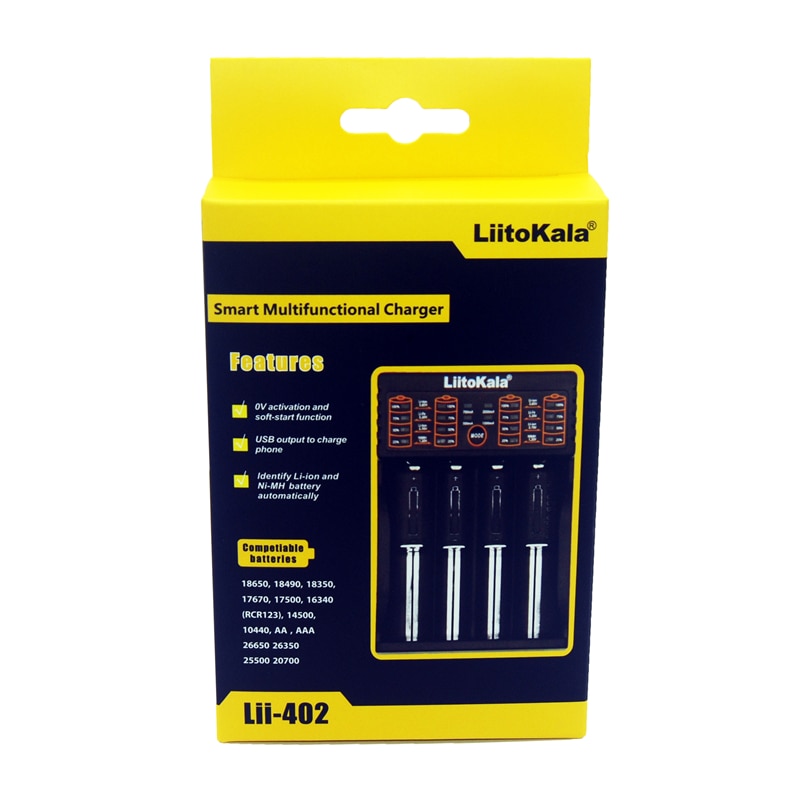

Lii-402 charger for instructions
1, the buyer attention
1. This charger can only charge cylindrical lithium ion battery (3.7V, 3.8V), nickel hydrogen / nickel cadmium, lithium iron phosphate battery;
2. Before use, please carefully refer to the instructions, pay attention to the recommended rechargeable battery charging current, do not exceed the recommended current charge;
3. Charge with a 5V USB adapter (adapter current recommended 2A);
4. Charger charge and discharge may be fever, be careful not to burn;
5. When you stop using it, unplug the power and unplug the battery.
6. Can only be used in normal room.
7. This product test data is for reference only, the actual situation, please refer to professional equipment.
2, the charger requirements and functions:
1. Micro USB DC 5V input, two separate charging and microcomputer management system
2. Available for 4 kinds of charging current selection (500mA / 700mA / 1000mA / 2000mA) 2000mA designated fourth slot.
3. LED display Charge status 25% 50% 75% 100% and battery type NiMH 1.2V Li-Fe 3.2V Li-ion 3.7V Li-ion 3.85V.
4. Can automatically identify lithium (Li-ion) batteries and nickel-metal hydride (Ni-MH) batteries, manually select the iron phosphate (Liepo4) battery and Li-ion 3.85V battery
5. 0V voltage activation function, 1.65-1.85V can not be charged (but there will be activated current trickle type charge).
6. Have over-charge, short circuit, intelligent identification of bad batteries and reverse battery detection protection.
7. Charging mode, constant current constant pressure
8. Using DC input, the charger power supply for the 5V-2A (Micro plug)
9. With standard 5V / 1000mA USB automatic identification output function,
3, the key, LED and function description
1. Press the key: hold the selector key for 2 seconds to switch 500mA 700mA 1000mA 2000mA charge current at power on,
When charging the battery, press the select key to change the type of rechargeable battery. When the rechargeable battery type is selected (for example, 3.20V 3.85V) for 5 seconds, enter the charging state.
2. LED: charger connected to the 5V power supply, the charger all the LED moment all bright, if the battery is not put into the charging slot, 500mA (LED) indicator light is on, the other lights go out.
When the battery is detected, the four LED lights are all bright, 3.7LED light will flash, then press the button to select the type of battery you need to charge, if not selected, 5 seconds into the default identification of the battery charge, charge The indicator light flashes at the corresponding charge ratio. Press the button to check the charge type (no power indication) 5 seconds after the return to the state of charge. When not energized, insert the battery to view the power ratio (5 seconds after extinguishing, need to view again press)
USB output indication: When the USB output is detected, the power indicator turns on for 10 seconds and presses to check the power.
4. LED display reference picture
4, the electrical technical parameters:
1, input power: Micro USB DC 5V / 2A
2, the output voltage: 1.42V
4.2V ± 0.05V,
3.65 ± 0.05V
4.35 ± 0.05V
3, the output current: 2000mA * 1 1000mA * 2 700mA * 3 500mA * 4
4, constant voltage charging, cut-off current: <100m A;
5, external power supply standby current: <15.0m A;
5, USB output function:
1, USB port output no-load voltage: 4.90-5.30V; specify the fourth slot for the USB output
2, the output current: 1000 m A;
3, no-load current: <1m A;
4, load 1000m A current, the port output voltage: 4.75-5.25V;
5, stop output protection voltage: 3.0 ± 0.1V;
6, compatible batteries: Li-ion / IMR: 18650, 18490, 18350, 17670, 17500, 16340 (RCR123), 14500, 10440
7, charger size: 112mm × 90mm × 30mm (length / width / height)
Weight: g + g (micro line)

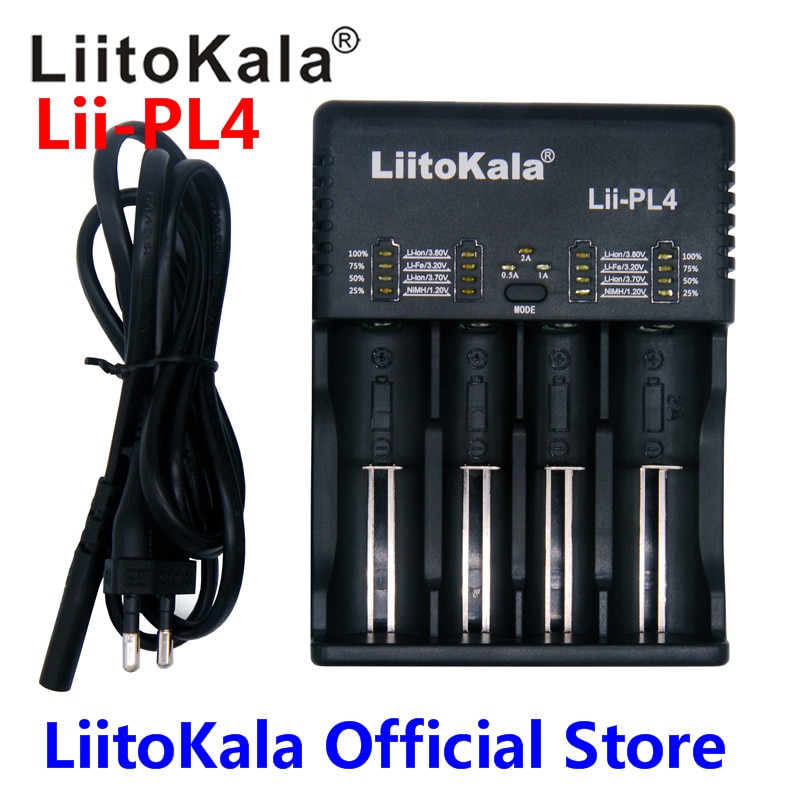

Lii-PL4charger for instructions
Precautions
1. This charger can handle all cylindrical batteries 3.7V Li-ion, 3.8V IMR, 1.2V Ni-MH / Cd, 3.2VLiFePO4
2. Read this manual before use and pay special attention to the recommended charging current, needs to be above the recommended current limit
3. If DC input, only 12V 1A is recommended
4. Spirit heating during loading
5. Remove the charger from power source after charging finished, and remove the battery from the charger at the same time
6. for the interior only
7. The display data for reference only, please refer to professional instrument for more accurate data
specification and function
1. Multi-power input: AC cable 110-240V 50 / 60Hz (included) / 12V 1A adapter (selective), four independent and micro computer management system.
2. Three charging mode (500mAh / 1000mAh / 2000mAh, 2000mAh current mode is fixed only to the fourth slot.
3. The LED charging indicators: both for charging progress: 25% -50% -75% -100% and battery types: Ni-MH 1.2V, Li-Fe 3.2V, Li-ion 3.7V , Li-ion 3.80 V (IMR)
4. Automatically identify Li-ion and Ni-MH batteries and manually set the charging mode for LiFePO4 and 3.80V lithium ion batteries (IMR)
5. Upgrade for OV battery. there will be no battery of1.65-1.85V (refresh current can only be detected)
6. Protection for overcharge and over-discharge and short-circuit. identify broken battery and polar reverse polarity protection.
7. Charging under constant voltage and current
Button, LED and function
1. Keys: While power supply is connected, 1) Short press (less than 2S) to change the mode, the battery type. It will start to charge 5 seconds after the setting of the battery type (3.2V or 3, 80V), 1.2V Ni-Mh and 3.7V li-ion can be detected automatically, so it only needs adjustment of 3.2V and 3.8V batteries; 2) Change the charging current anytime during the charging process by pressing long (more than 2s) the mode button
2. LED: While power is plugged in, all LEDs light immediately 1) If no battery is inserted, the 500mAh LED (one of the three power display LEDs) will stop and others will go away. 2) When battery is inserted and detected, 4 LED charge indicator for the channel will open on taking which 3.7V battery type LED keeps flashing indicating to the battery type, if no operation in 5 seconds, it will start by automatic detection (Li -Ion 3.7V or NIMH) then four LED displays will show the charge status. 3) During the charging process, short-press the mode button to set the battery type within 5 seconds; 4) When no power is connected, insert a battery, it can quickly shows the remaining battery charger volume of the battery.
3. LED display graphic reference
technical specification
1. input: AC cable 110-240V 50 / 60Hz (included) / DC 12V 1A & # 65288; selective & # 65289;
2. Output voltage: 4.2V DC for 3.7V Li-Ion
DC 4.35 V for Li-Ion 3.8 V (IMR)
DC 3.65 V for LeFePO4
DC 1.48 V for NiMH / NI-Cd
3. Output current: Li-ion / IMR / LiFePO4 2000mA * 1 (only for slot # 4),
1000mA * 2, 500mA * 3 500mA * 4
NiMH / NiCd: 1000mA * 2, 500mA * 3 500mA * 4
4. Constant voltage, cut-off current: less than 100mA
5. Standby current: less than 15mA

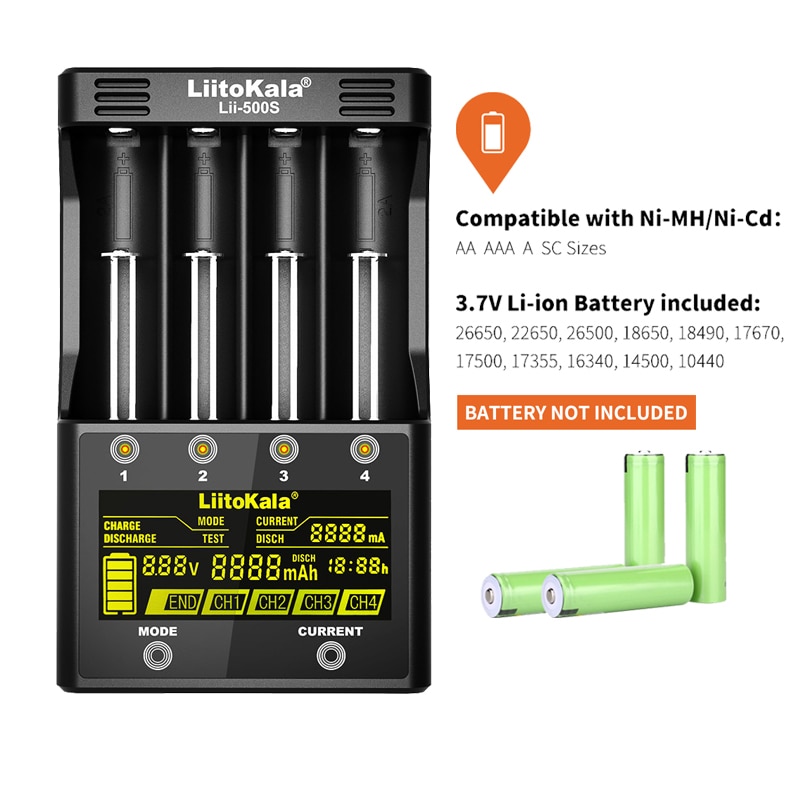

Compatible battery types and sizes
li-ion / IMR / LiFePO4: 26650 & # 65292; 21700 & # 65292; 20700, 18650, 18490, 18350, 17670, 17500, 16340 (RCR123), 14500, 10440
NiMH / Cd: AA, AAA & # 65292; SC, C
size:
133mm x 100mm x 35mm (L x W x H)
Weight: 175g: gram (including micro cable)
- Data Transmission: Other
- Output Interface: USB Output
- Package: Yes
- Use: Standard Battery
- Model Number: liitokala
- Display screen: Yes
- Intelligent Charge: Yes
- Quick charge: Yes
- Type: Electric
- Brand Name: liitokala
- Origin: Mainland China
- Certification: CE,FCC,RoHS
SHIPPING AND DELIVERY
We are proud to offer international shipping services that currently operate in over 200 countries and islands world wide. Nothing means more to us than bringing our customers great value and service. We will continue to grow to meet the needs of all our customers, delivering a service beyond all expectation anywhere in the world.
How do you ship packages?
Packages from our warehouse in China will be shipped by ePacket or EMS depending on the weight and size of the product. Packages shipped from our US warehouse are shipped through USPS.
Do you ship worldwide?
Yes. We provide free shipping to over 200 countries around the world. However, there are some location we are unable to ship to. If you happen to be located in one of those countries we will contact you.
What about customs?
We are not responsible for any custom fees once the items have shipped. By purchasing our products, you consent that one or more packages may be shipped to you and may get custom fees when they arrive to your country.
How long does shipping take?
Shipping time varies by location. These are our estimates:
| Location | *Estimated Shipping Time |
|---|---|
| United States | 10-30 Business days |
| Canada, Europe | 10-30 Business days |
| Australia, New Zealand | 10-30 Business days |
| Central & South America | 15-30 Business days |
Do you provide tracking information?
Yes, you will receive an email once your order ships that contains your tracking information.
My tracking says “no information available at the moment”.
For some shipping companies, it takes 2-5 business days for the tracking information to update on the system.
Will my items be sent in one package?
For logistical reasons, items in the same purchase will sometimes be sent in separate packages, even if you've specified combined shipping.
If you have any other questions, please contact us and we will do our best to help you out.
REFUNDS & RETURNS POLICY
Order cancellation
All orders can be cancelled until they are shipped. If your order has been paid and you need to make a change or cancel an order, you must contact us within 12 hours. Once the packaging and shipping process has started, it can no longer be cancelled.
Refunds
Your satisfaction is our #1 priority. Therefore, if you’d like a refund you can request one no matter the reason.
If you did not receive the product within the guaranteed time(60 days not including 2-5 day processing) you can request a refund or a reshipment.
If you received the wrong item you can request a refund or a reshipment.
If you do not want the product you’ve receive you may request a refund but you must return the item at your expense and the item must be unused.
- Your order did not arrive due to factors within your control (i.e. providing the wrong shipping address)
- Your order did not arrive due to exceptional circumstances outside the control of CNTRONIC Consumer Electronics Retailer (i.e. not cleared by customs, delayed by a natural disaster).
- Other exceptional circumstances outside the control of cntronic.com
*You can submit refund requests within 15 days after the guaranteed period for delivery (60 days) has expired. You can do it by sending a message on Contact Us page
If you are approved for a refund, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within 14 days.
Exchanges
If for any reason you would like to exchange your product, perhaps for a different size in clothing. You must contact us first and we will guide you through the steps.
Please do not send your purchase back to us unless we authorise you to do so.
LARGE ORDER DEALS
Thank you for your interest doing business with us!
If you would like to get a discounted price for your large purchase orders, fill in the required blanks along with your email address, the product Item ID # and/or the link of the item that you want to order, item quantity (minimum of 30 pieces), shipping country and payment method is required. We will contact you with a discounted price as soon as we receive your inquiry.
