18650 Charger Independent Charging 3.7V Li-ion Battery Charger For 18350 16340 14500 10440 14500 16340 16650 14650 18350 18500
12.95 9.95 $
SALE
ID: 106795
Quantity
LiitoKala Lii-PD4 Lii-S8 Lii500 Lii600 battery Charger for 18650 26650 21700 18350 AA AAA 3.7V/3.2V/1.2V/ lithium NiMH battery
4.9 (609 votes)
Price:
US $45.56 - 147.96
/ piece
Discount Price:
US $
23.38 -
71.98
/ piece
-49%
Specific parameters

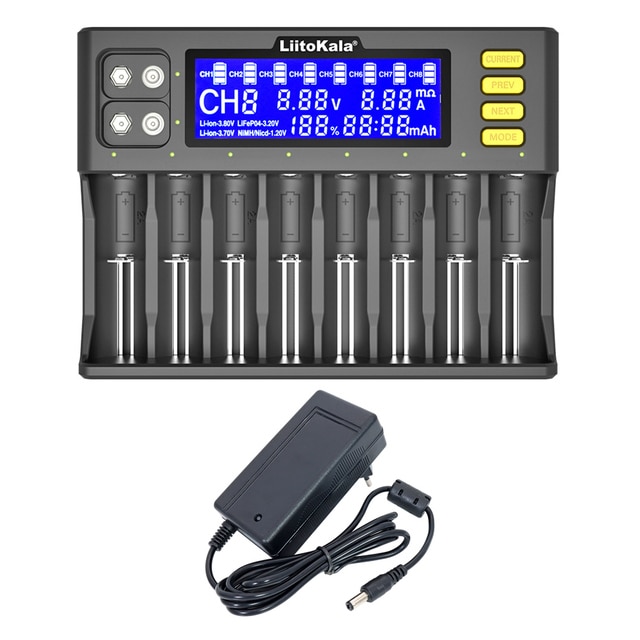

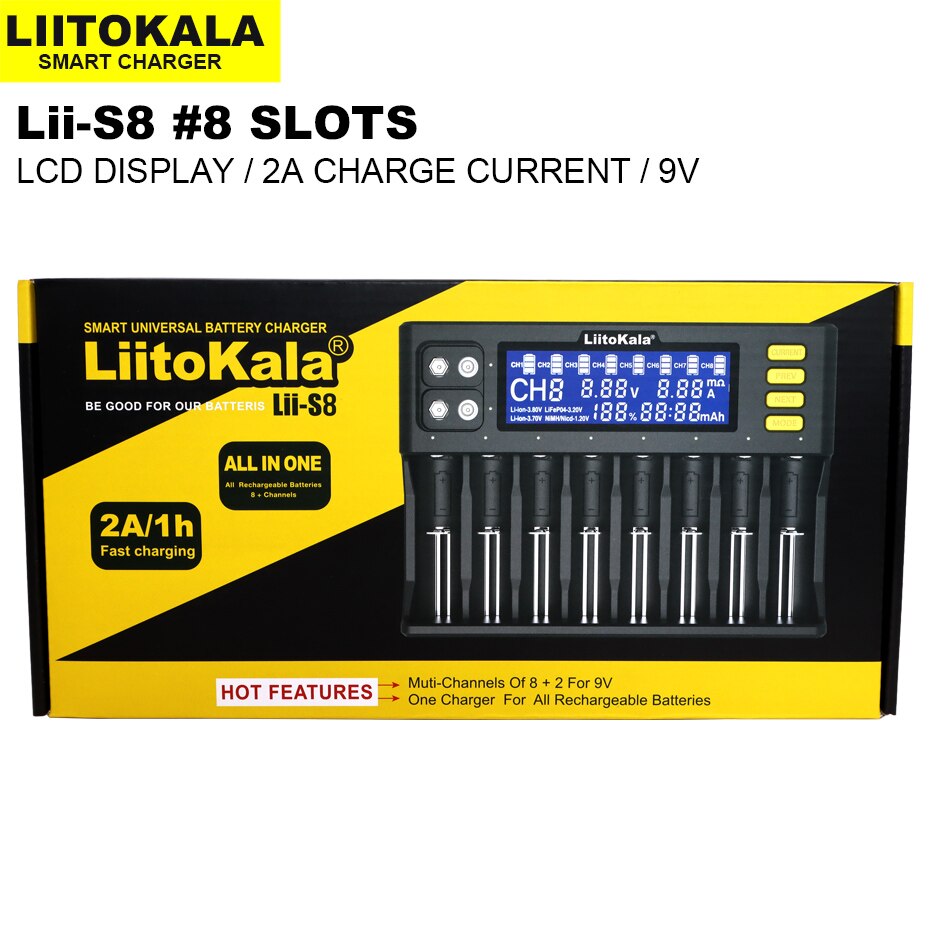

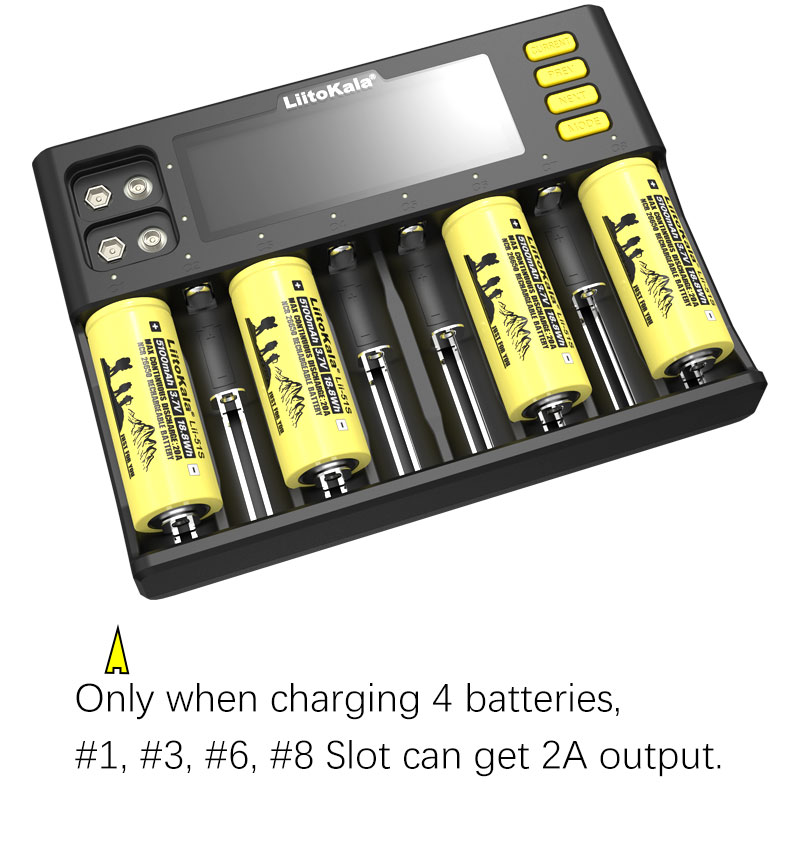

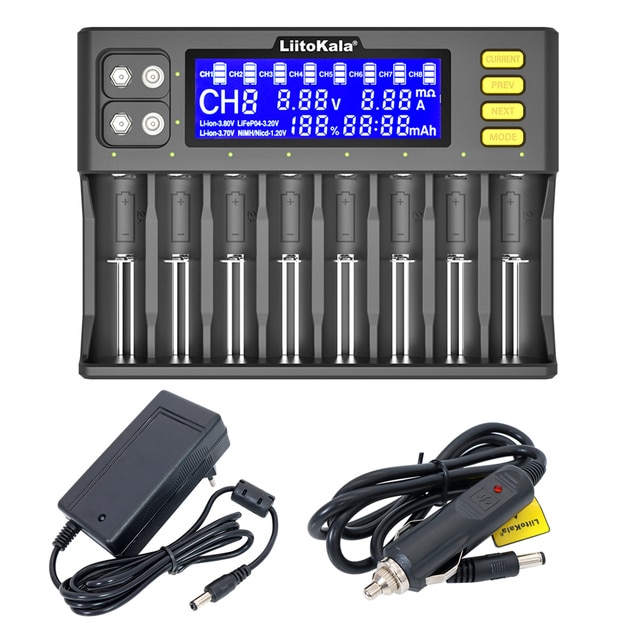

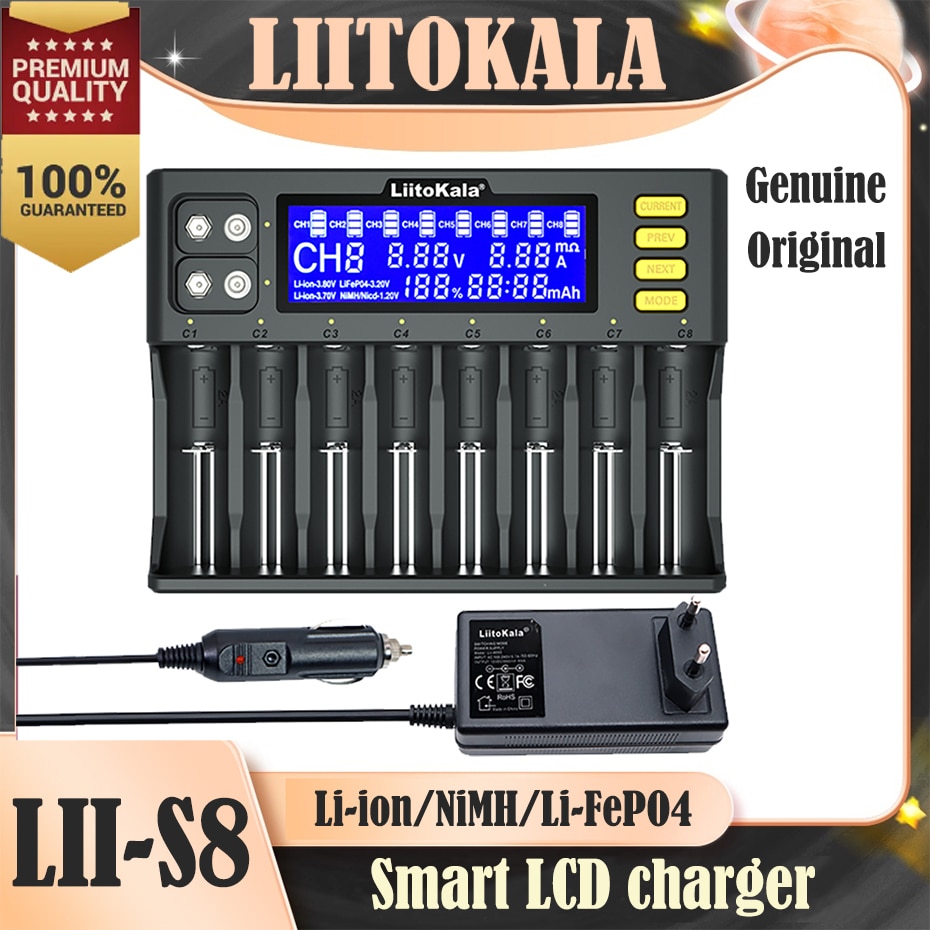

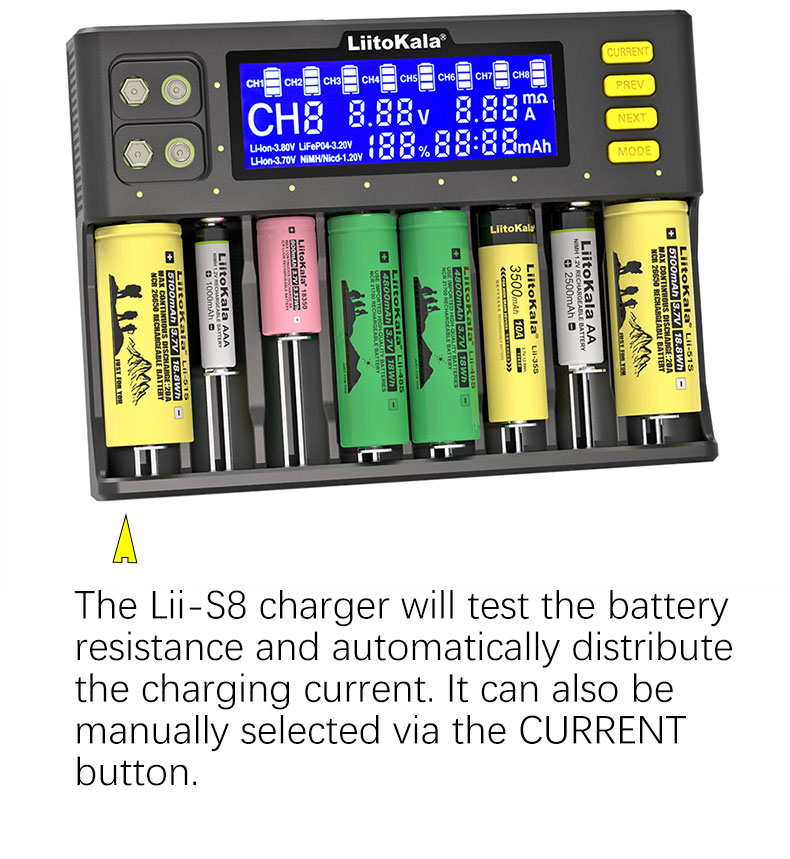

LII-S8
Input voltage: DC 12V/4A
Output voltage:DC 4.2V / DC 1.48V / DC 3.65V / DC 4.35V / 9V
Output current Lithium battery charging current: 2000mA*4 / (300mA / 500mA / 700mA / 1000mA)*8 NiMH battery

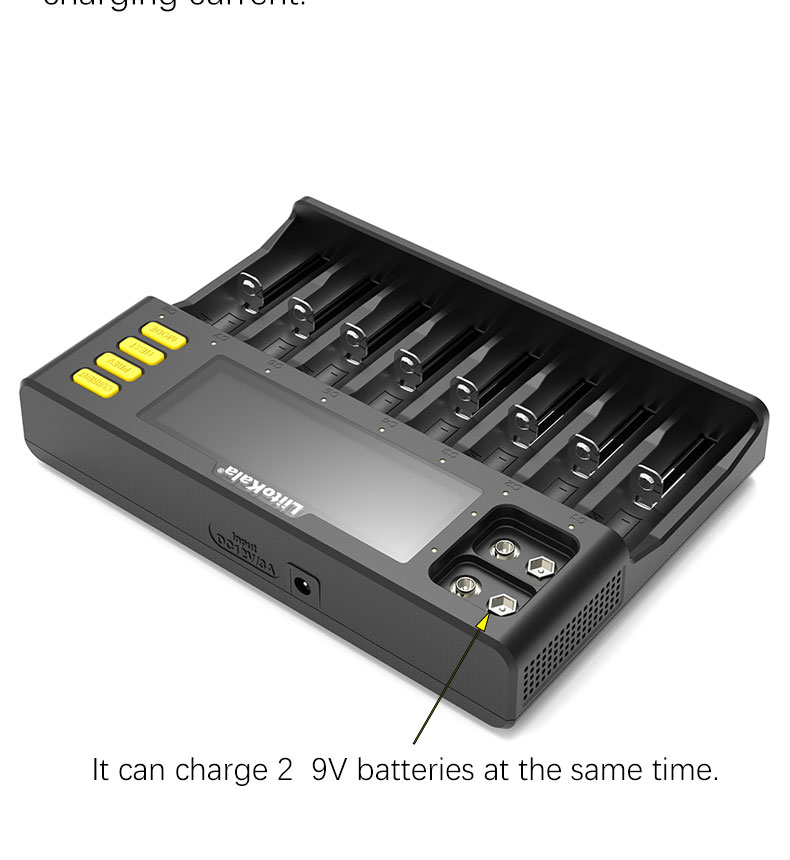

charging current: 500mA *8 9V battery
charging current: 85mA *2 Rechargeable battery specifications: 26650,21700,18650,18350, 20650,14500, AA, AAA, C,SC 9V etc.
Termination method: intelligent voltage monitoring Dimensions: 195mm (length) * 142mm (width) * 35mm (height).

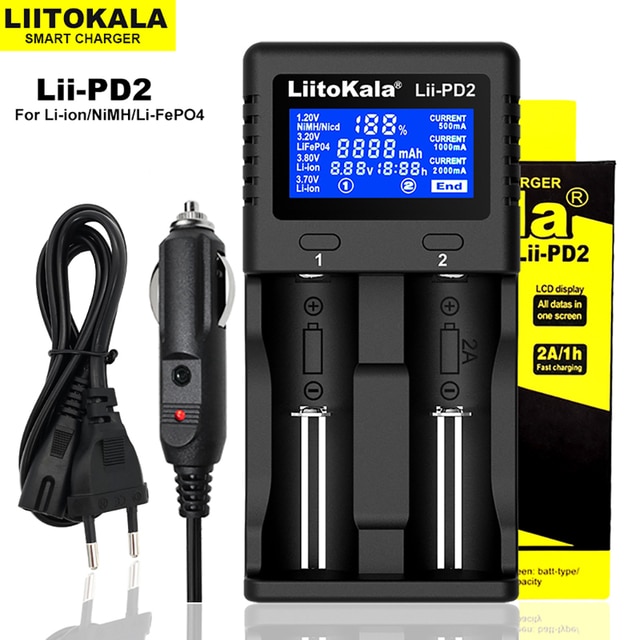

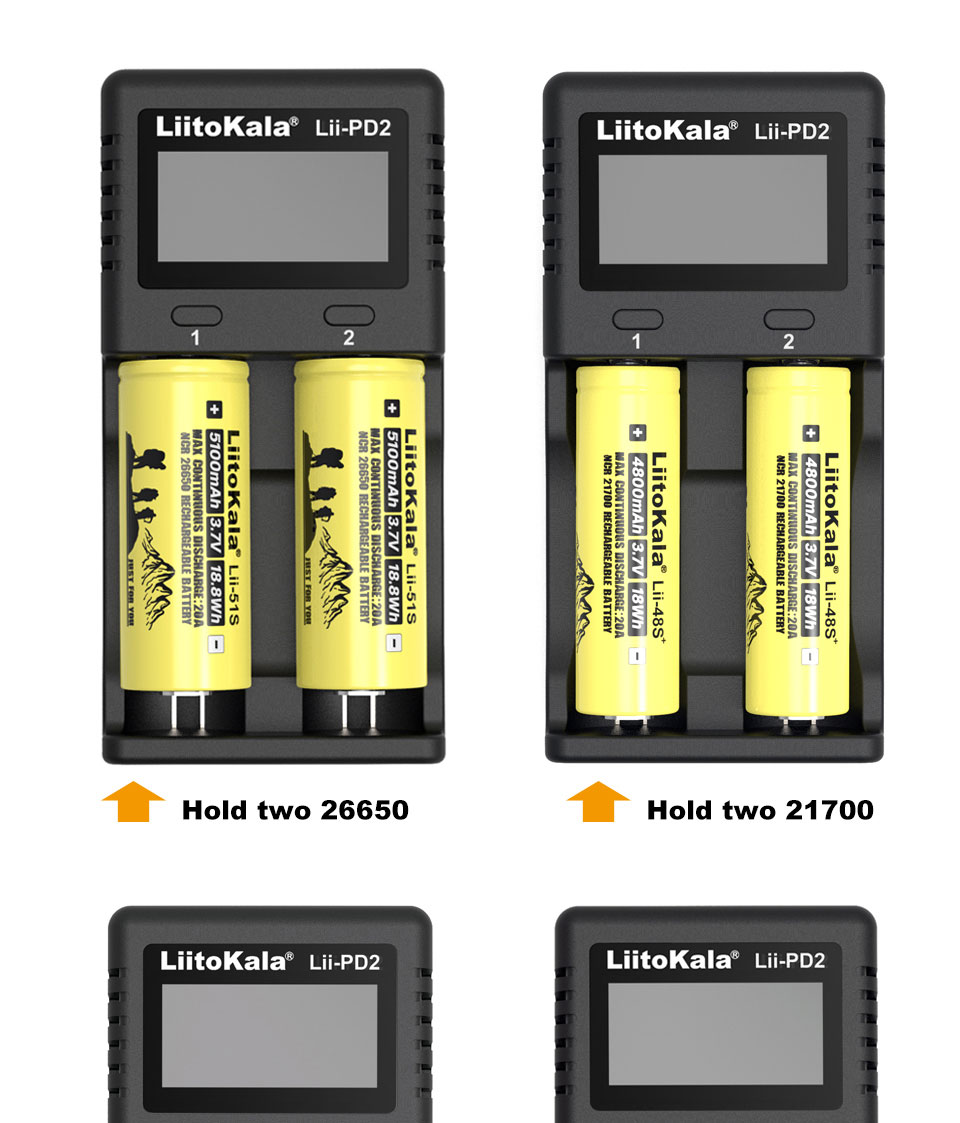

LII-PD2
There are many product styles, please check the product picture when you buy to buy the required charging set.

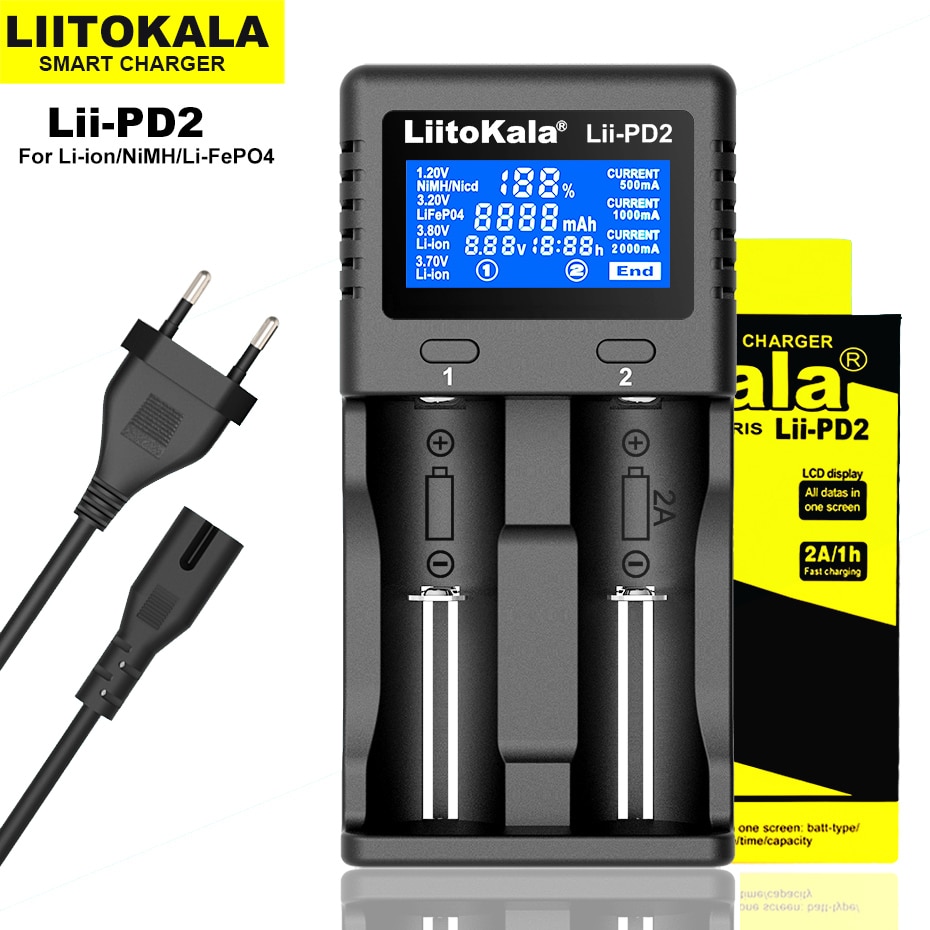

2020 Liitokala New Charger Lii-PD2 Manual
First, the charger specifications and functions:
1. Adopt DC12V1A (nominal) input, two-slot independent charging and microcomputer management system;
2. The biggest highlight of this charger is that it can charge the battery regardless of polarity!

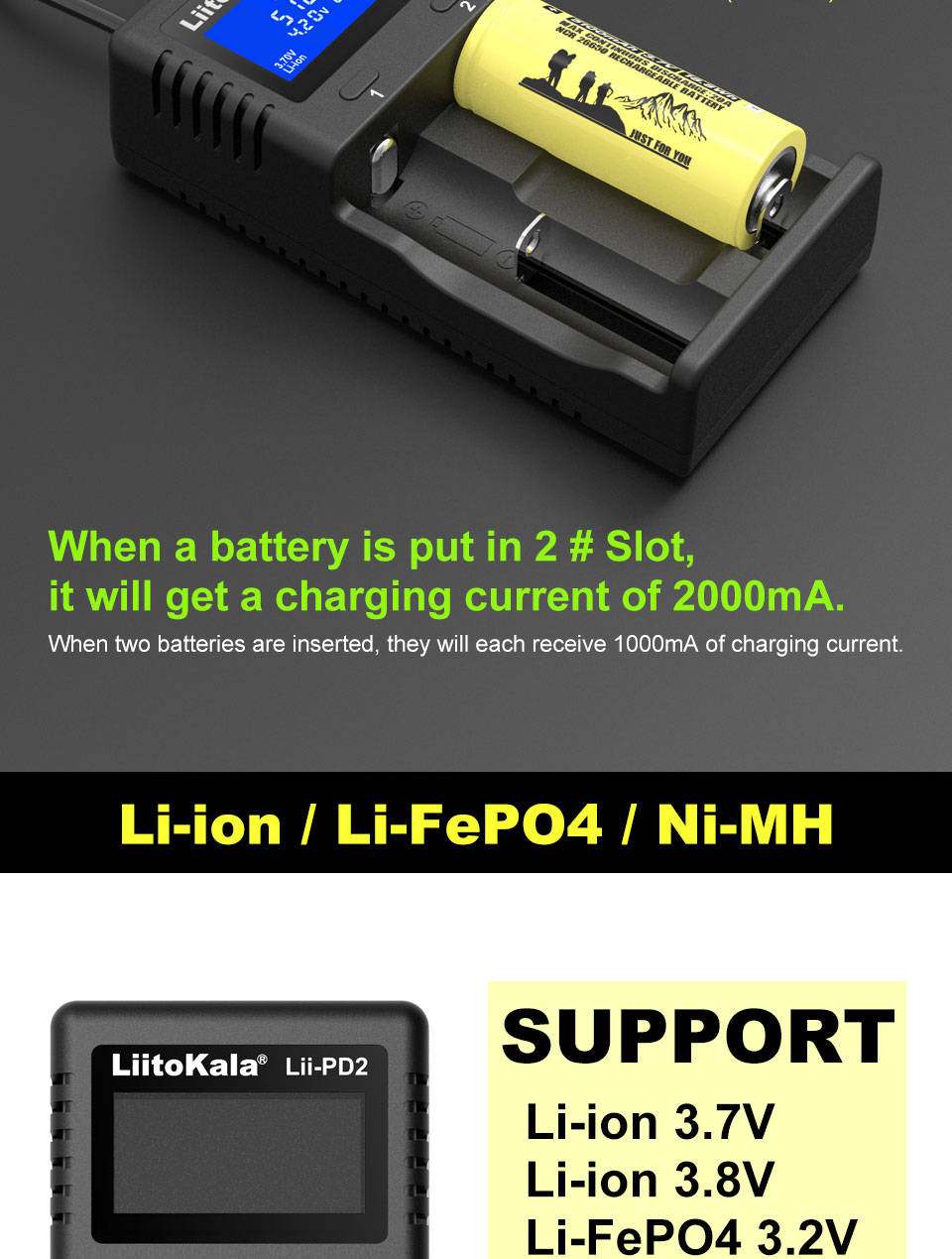

3. The charging current has three levels of 0.5A /1.0A/2.0A, the default is 0.5A charging, you can press the corresponding button to select the charging current;
4. During charging, the LCD can display the channel CH and the charging current, voltage, time, capacity and battery type of the channel Li-Fe 3.20V /
Li-ion 3.70V / Li-ion 3.85V (IMR); the charging current of the two tanks does not exceed 2A in total, that is, when one of the tanks is charged with 2A current, and then the battery is charged in the other tank, the front 2A current will drop Charge to 1A current; LCD will display FULL when the battery is full;
5. Li-ion (Li-Ion 3.70V) battery and nickel-metal hydride (Ni-MH) battery can be automatically identified, and the lithium iron phosphate battery (3.20V) and
Li-Ion 3.85V battery;
6. With 0V voltage activation function, 1.65-2.20V can not be charged (but there will be activated current trickle type charging).
7. There are multiple safety protection functions such as overcharge, overdischarge, short circuit, etc. At the same time, it can intelligently and automatically identify bad batteries;
8. Charging mode: constant current and constant voltage.
2. Buttons and display:
1. Button (Mode): Each of the two buttons controls a slot. Within 5 seconds after power-on, put the battery in, click the Mode button of the corresponding slot to select the type of rechargeable battery. Long press the Mode button to select the charging current. Set the type of battery to be recharged (for example, 3.20V / 3.80V) and the charging current, then stop the operation, and enter the charging state after 5 seconds; you cannot switch the battery type during the charging process, but you can click the button to light the backlight Press to switch the current,
2. LCD: After the charger is connected to the power supply, the LCD display will display for about 2 seconds, and then display null. When a battery is detected, the LCD displays the corresponding slot number, battery voltage and current, and the battery type symbol flashes (NiMH / Nickel-cadmium 1.2V (no battery type symbol flashes), after 5 seconds, enter the default recognition to charge the battery, at this time the charging display "%" symbol flashing indicates that charging is in progress, and END is displayed when charging is completed;

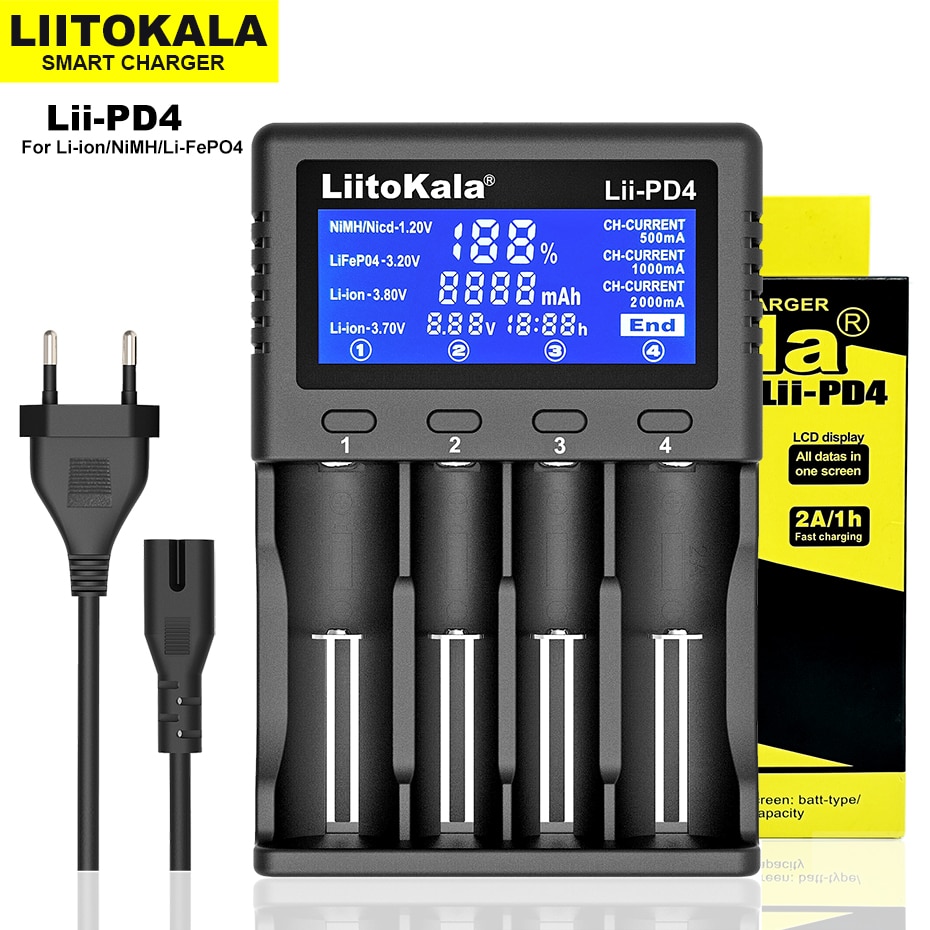

Lii-PD4
1. Input : AC cable 110-240V 50/60Hz (included)/ DC 12V 1A(selective)
2. Output voltage: DC 4.2V for Li-Ion 3.7V
DC 4.35V for Li-Ion 3.8V( IMR)
DC 3.65V for LiFePO4
DC 1.48V for NiMH/NI-Cd
3. Output current: Li-Ion/IMR/LiFePO4 2000mA*1(only for slot#4),
1000mA*2, 500mA*3 500mA*4
NiMH/NiCd: 1000mA*2, 500mA*3 500mA*4
4. Constant voltage, cut-off current: less than 100mA
5. Standby current: less than 15mA

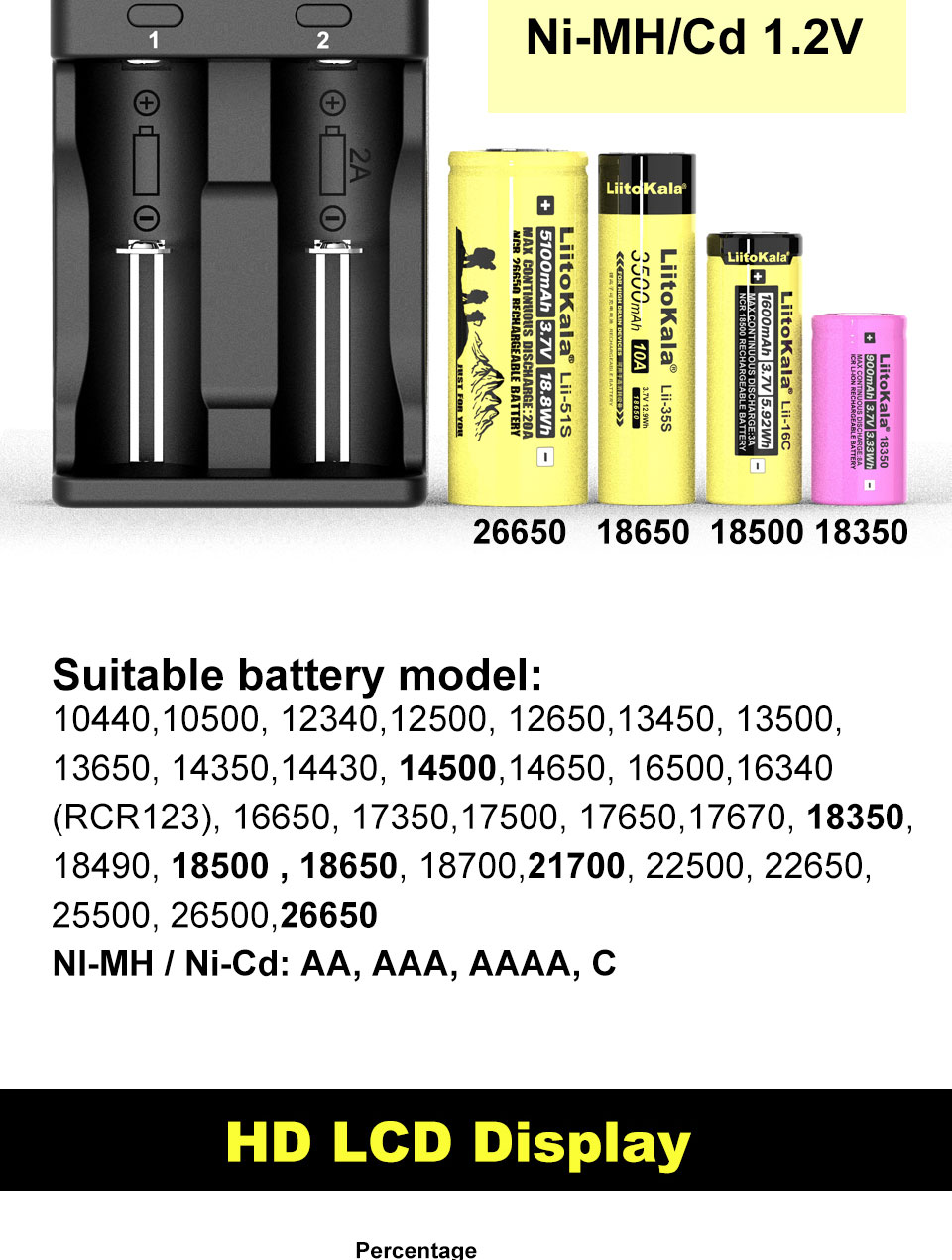

Compatible battery types and sizes
Li-ion / IMR/LiFePO4: 26650,21700,20700, 18650, 18490, 18350, 17670, 17500, 16340(RCR123), 14500, 10440
NiMH/Cd: AA, AAA,SC, C
Size and weight:
133mm x 100mm x 35mm (L x W x H)
Weight: approx175g (not including AC cable)

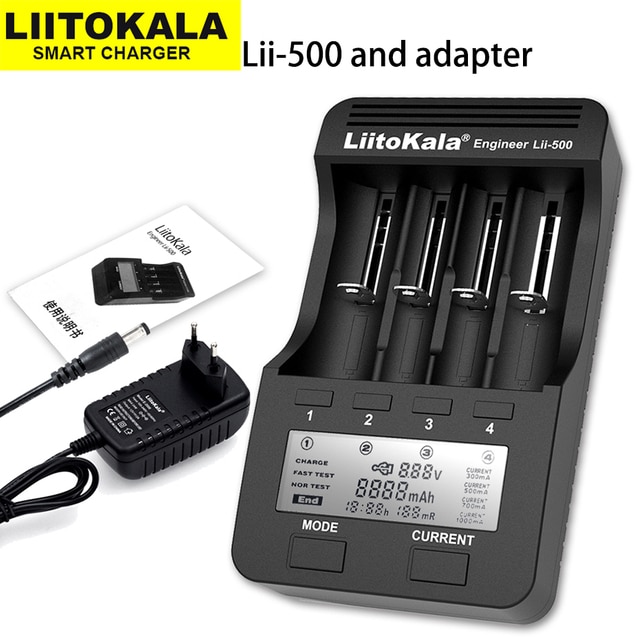

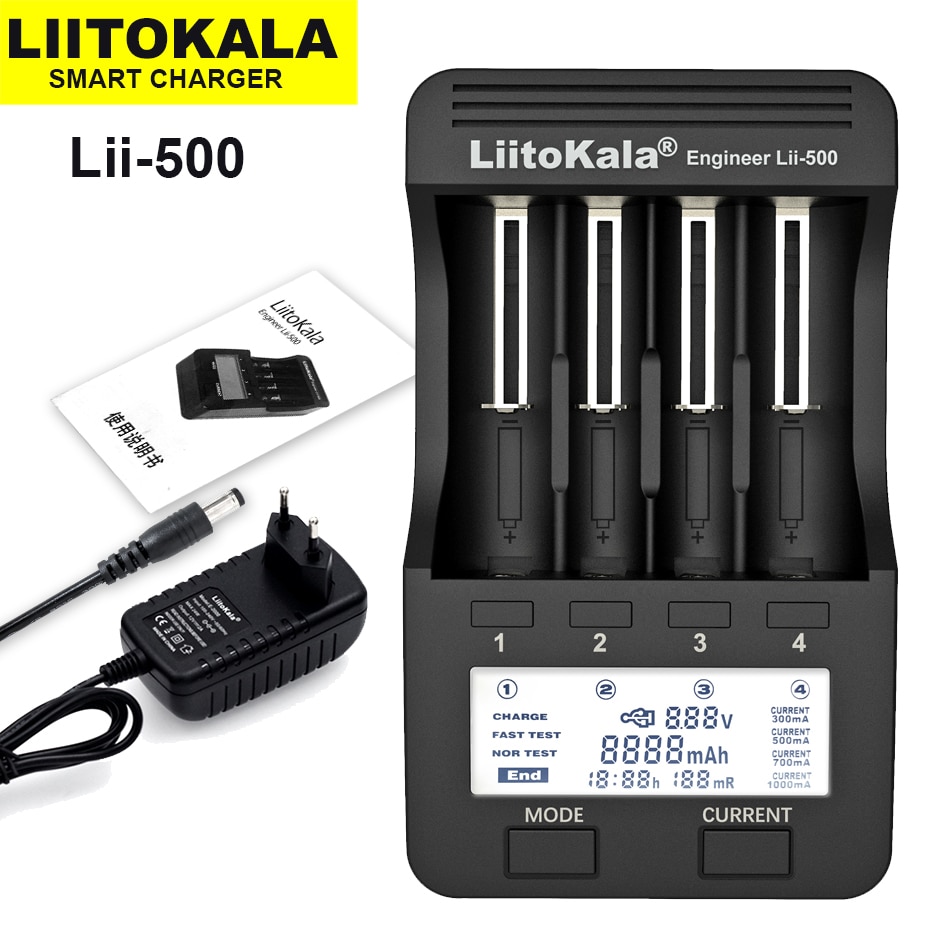

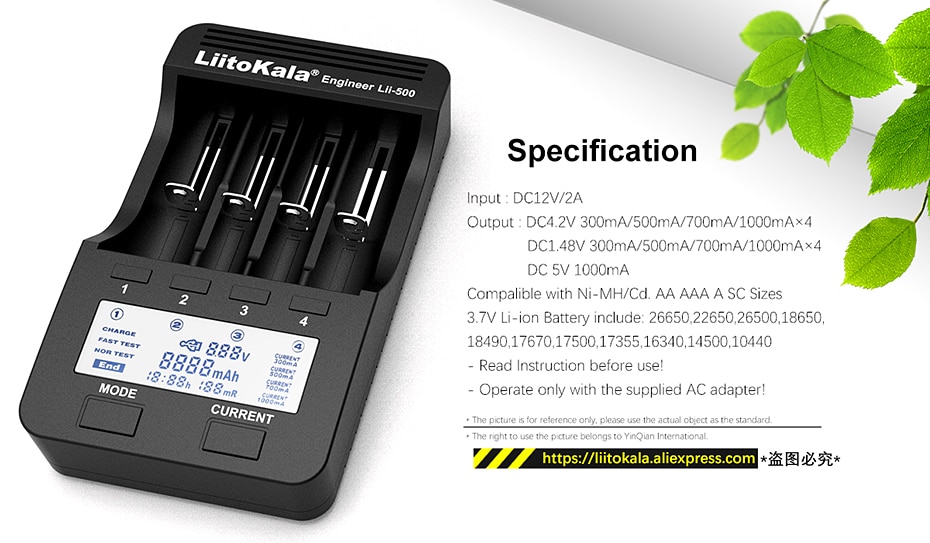

Lii-500
• DC12V/2A input power.
• 4bay independent ports
•Test the battery capacity
• LCD displays show different modes
• 3 modes of worke
• 4 charging current (300,500, 700, 1000 mAh)
• Supports different battery sizes
• Automatic identification of battery type (Li-ion, Ni-Mh)
• Overcharge protection. Positive and negative reverse connection protection. Over-temperature protection. NiMH battery negative voltage detection (-dtv).
• battery fault detection
• 5V 1000mAh USB output discharge
• For NiMH / CD AAA / Micro, AA / mignon, c.
Li-Ion 26650, 22650, 18650.18490, 18500,
17500, 17355, 16340 (RCR123), 14,500, 10440

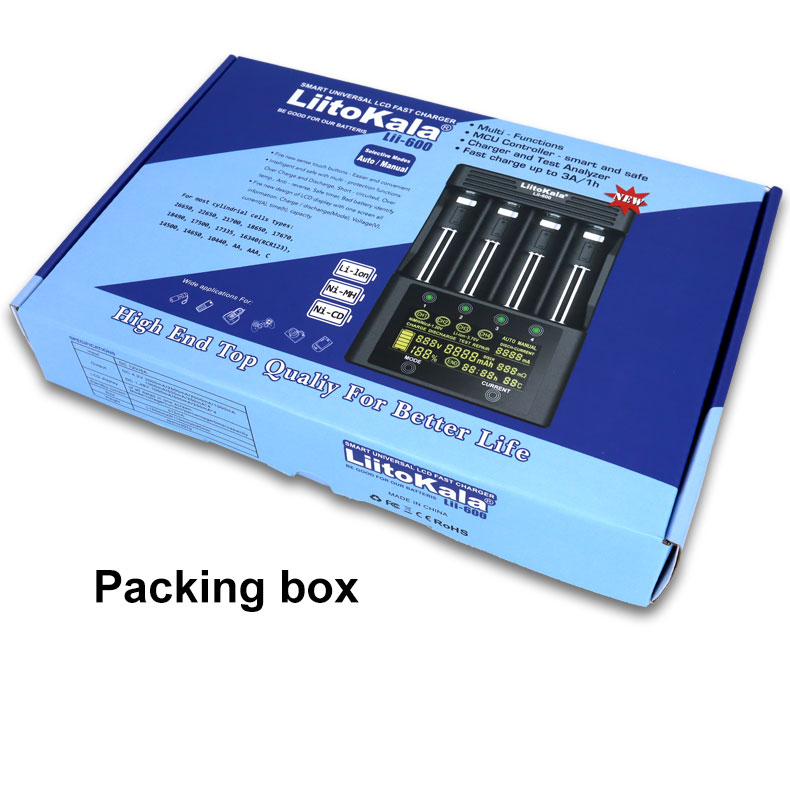

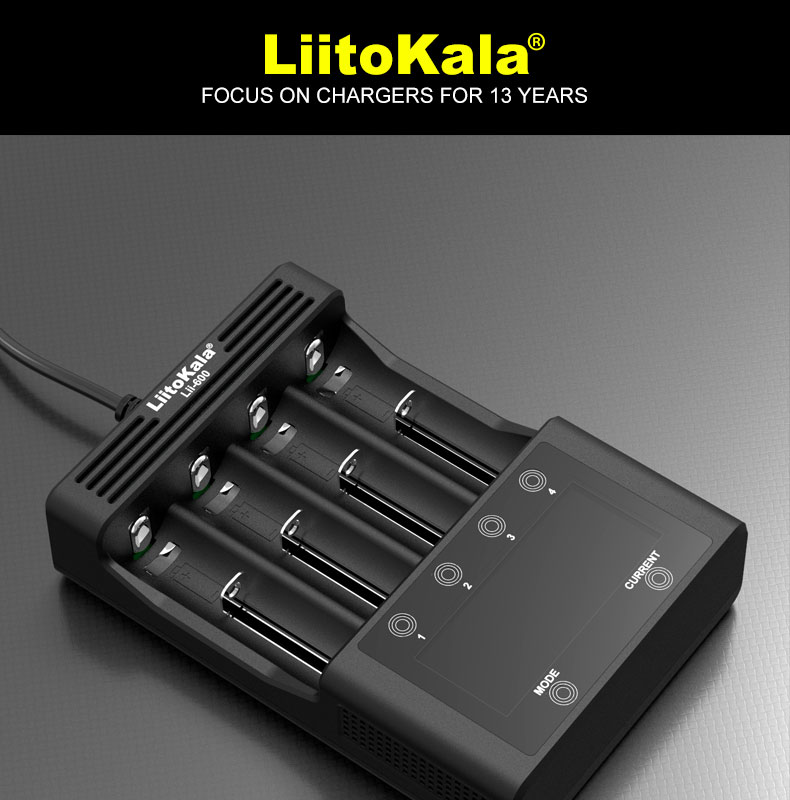

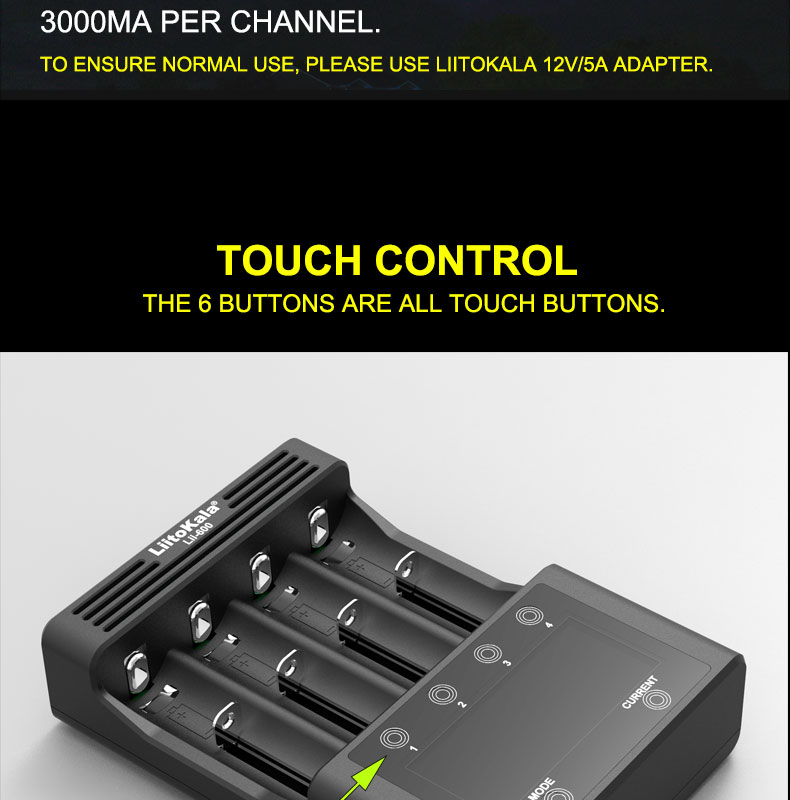

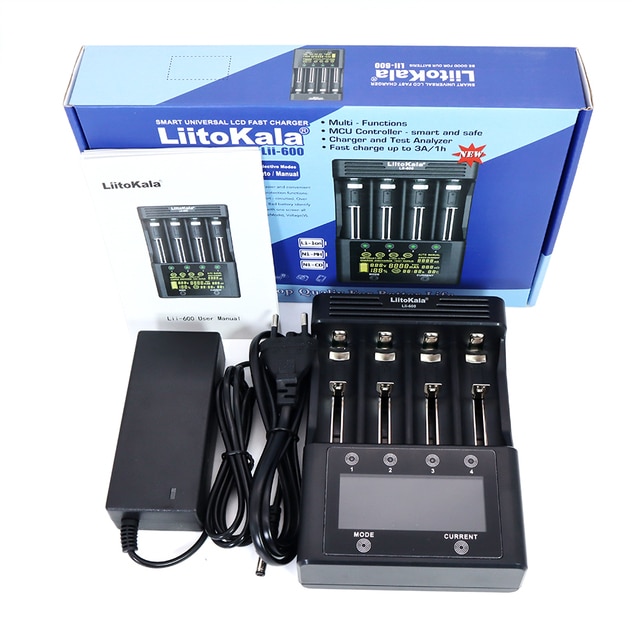

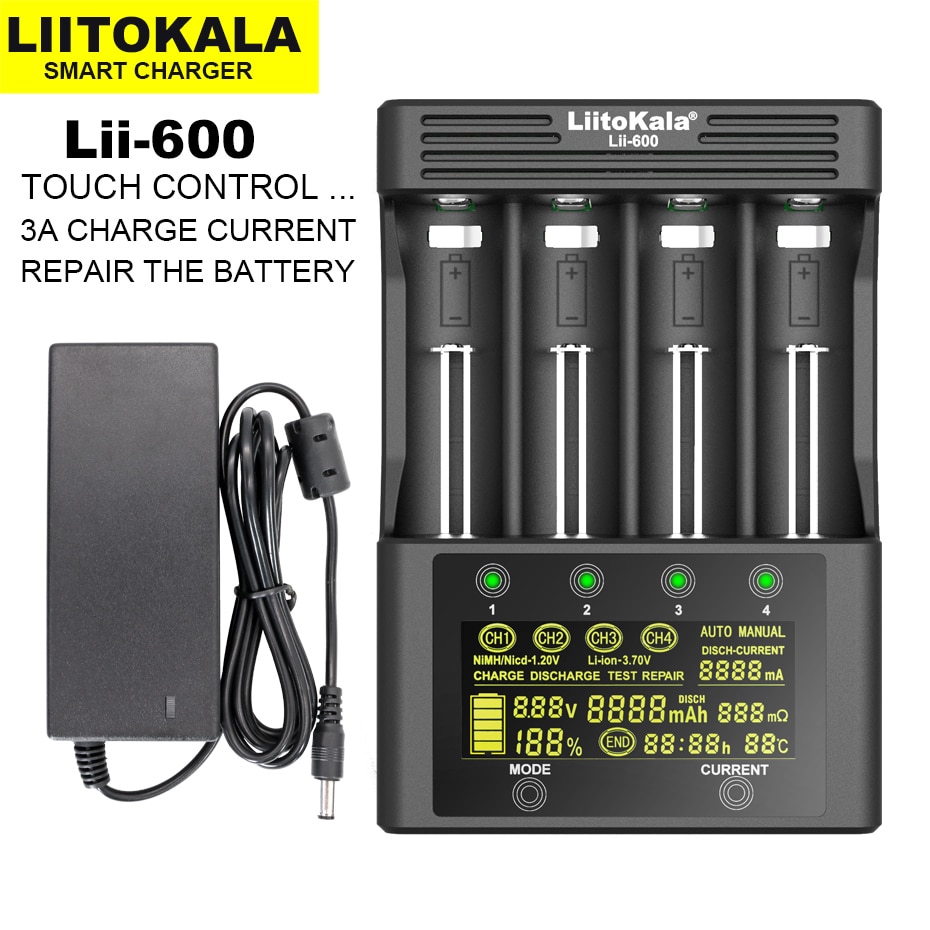

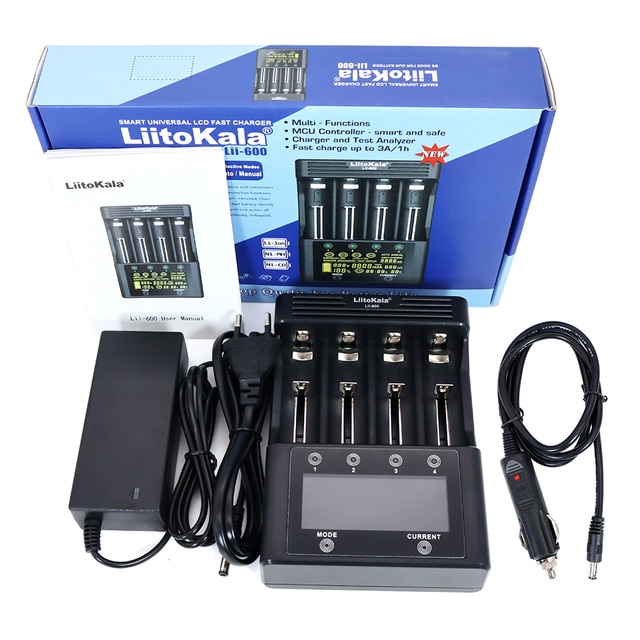

Lii-600 Battery Charger

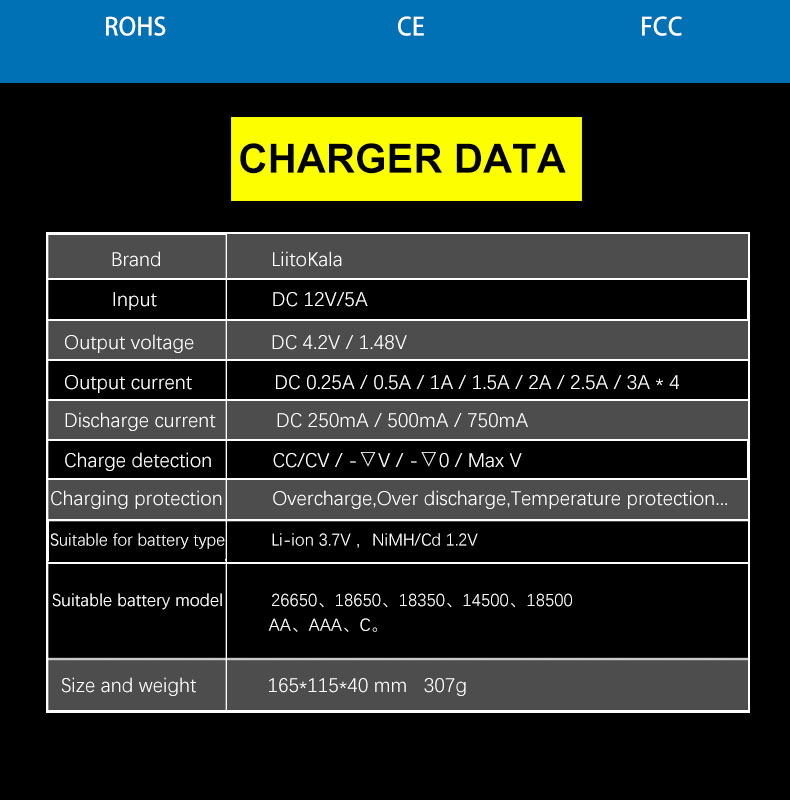

Specific parameters Input voltage: DC 12V/5A
Output voltage:DC 4.2V / DC 1.48V
Output current Lithium battery
charging current: (250mA / 500mA /1000mA / 1500mA / 2000mA / 3000mA)*4 NiMH battery
charging current: (250mA / 500mA /1000mA)*4 Discharge current: 250mA / 500mA /750mA
Rechargeable battery specifications: 26650,21700,18650,18350, 20650,14500, AA, AAA, etc.
Termination method: intelligent voltage monitoring Dimensions: 165mm (length) * 115mm (width) * 40mm (height).
- Data Transmission: USB
- Output Current: 2A
- Voltage: 3.7 В
- Output Interface: USB Output
- Package: Yes
- Use: Standard Battery
- Model Number: LII-PD2-PD4-500-600-S8
- Display screen: Yes
- Intelligent Charge: Yes
- Quick charge: Yes
- Type: Electric
- Brand Name: liitokala
- Origin: Mainland China
- Certification: CE,FCC,RoHS
