LiitoKala Lii-M4 lii-S8 Lii-PD4 lii-500S lii-500 lii-600 3.7V 18650 18350 21700 20700 26650 lithium 1.2V battery Charger
SALE
ID: 45558

LiitoKala Lii-M4 lii-S8 Lii-PD4 lii-500S lii-500 lii-600 3.7V 18650 18350 21700 20700 26650 lithium 1.2V battery Charger

4.5 (65 votes) | 140 orders
Price: US $45.56 - 144.26 / piece
Discount Price:
US $ 25.25 - 75.80 / piece
-45%
Ships From
Color
Quantity

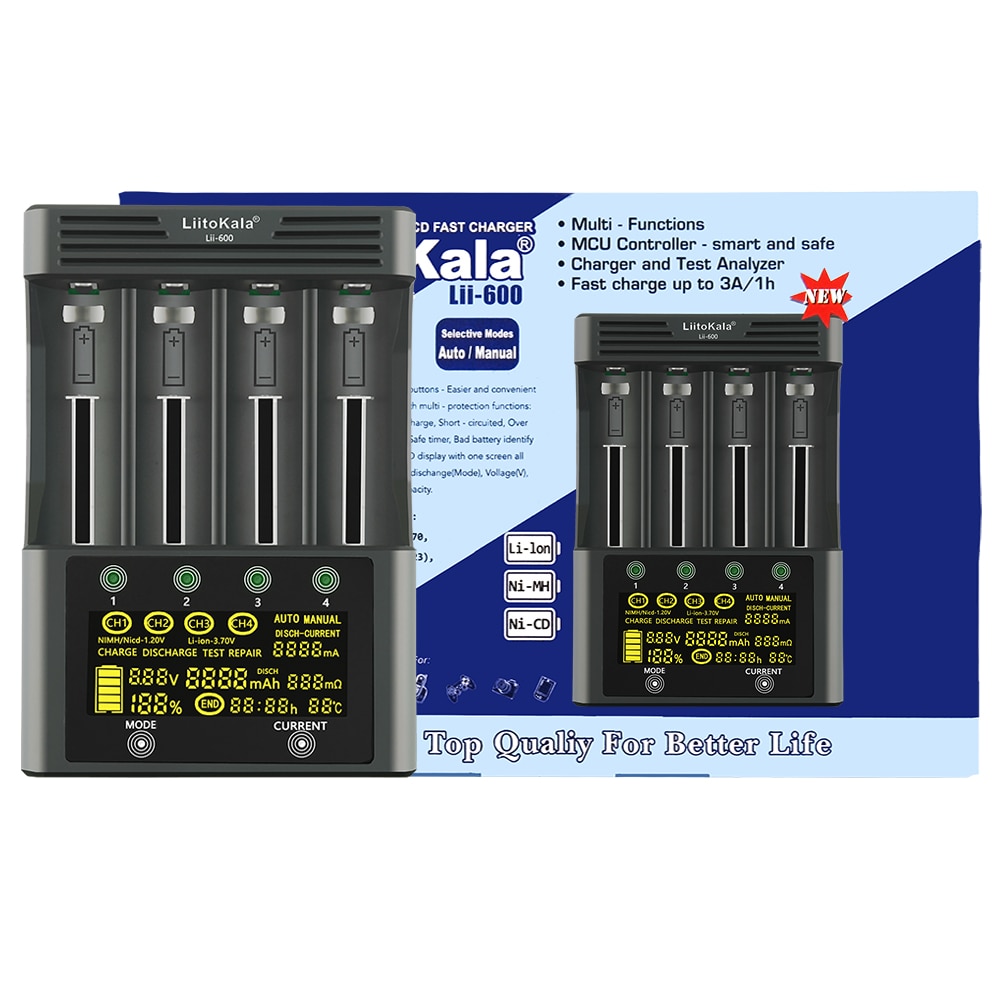

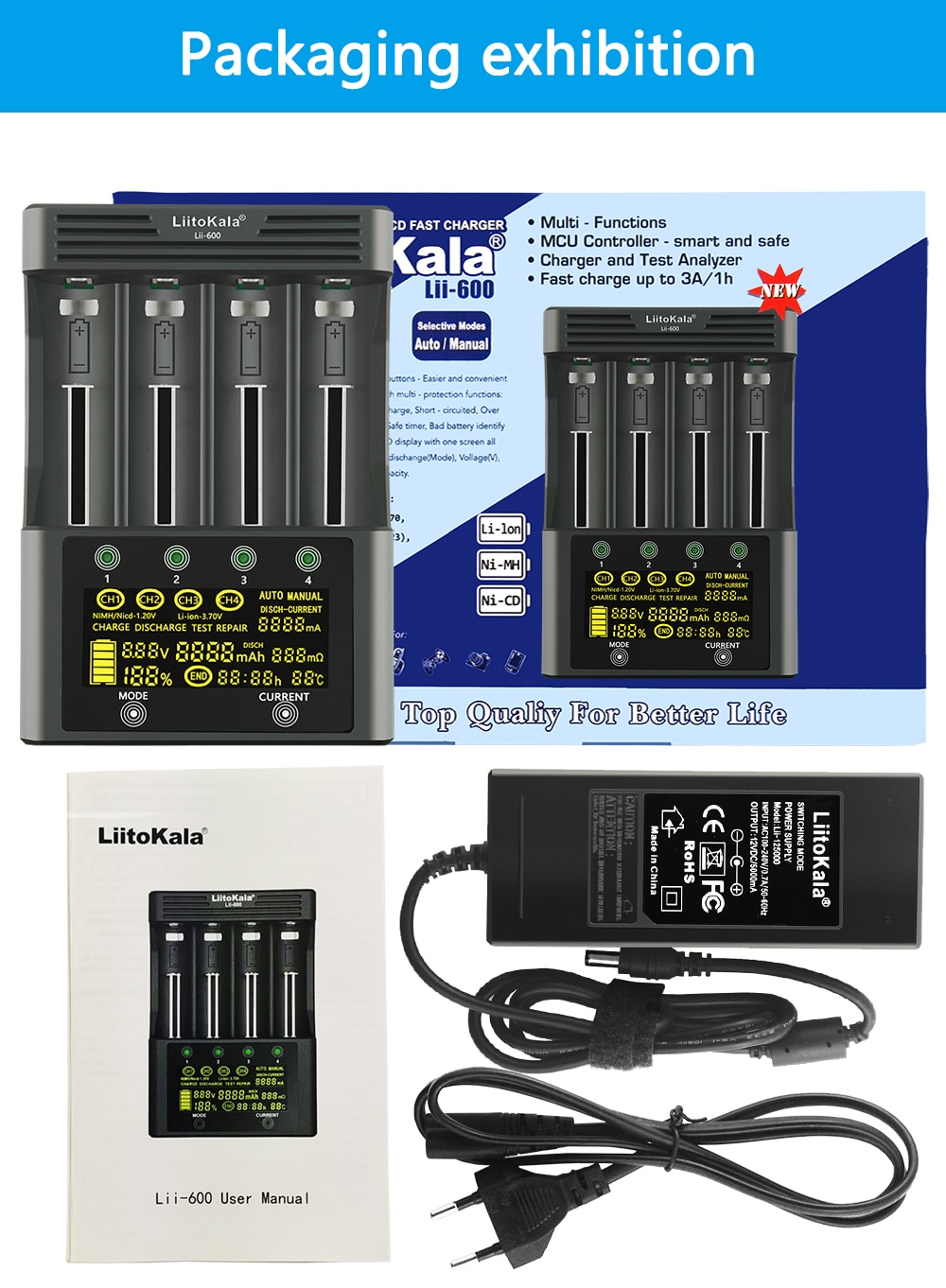

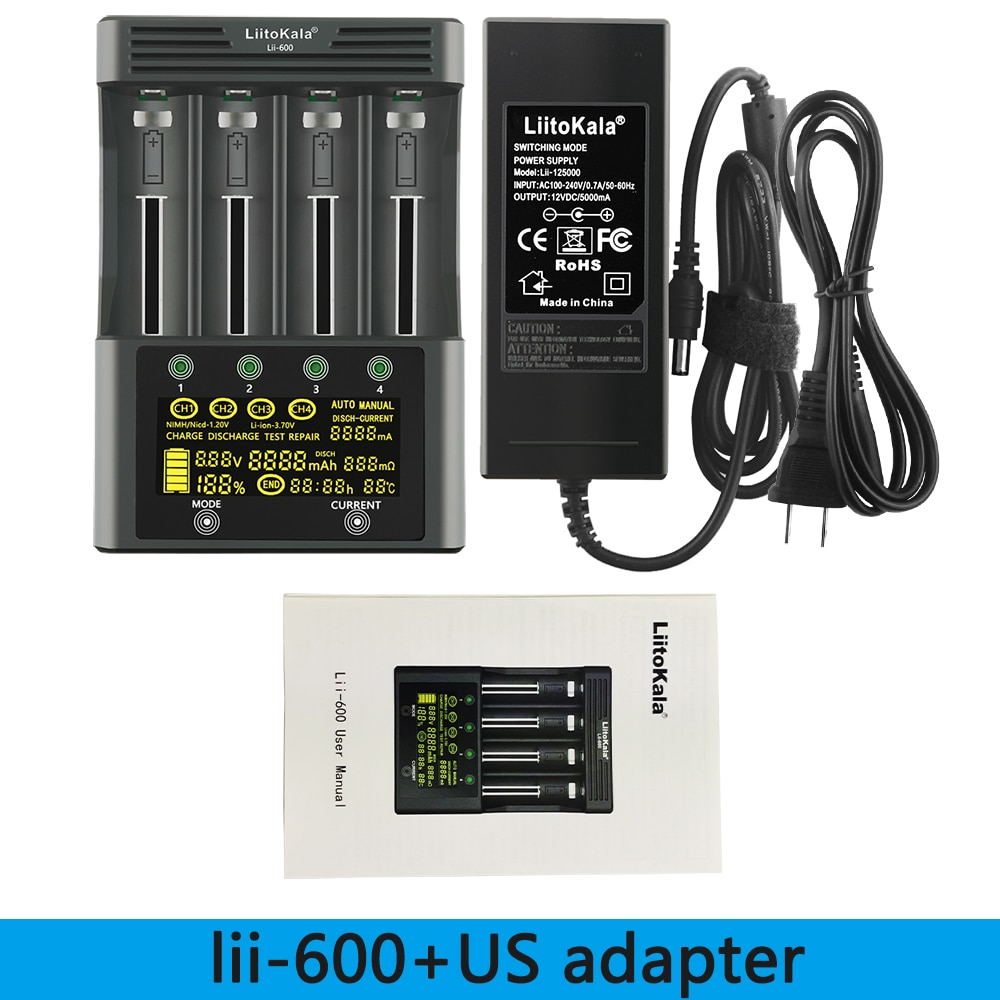

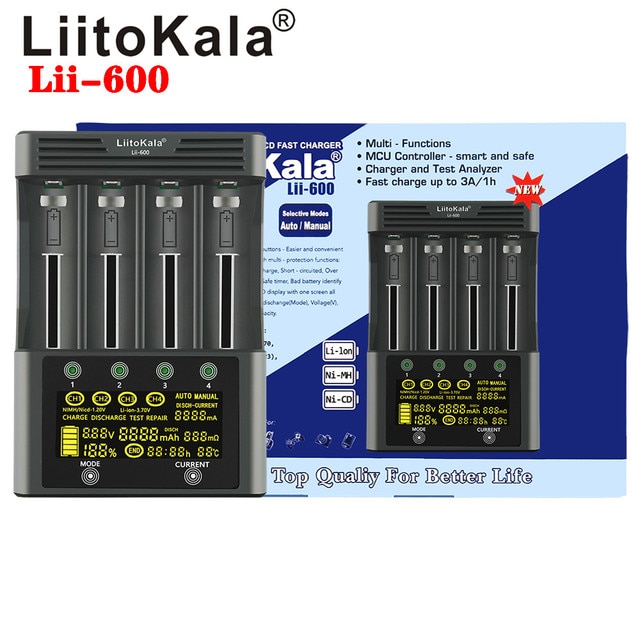

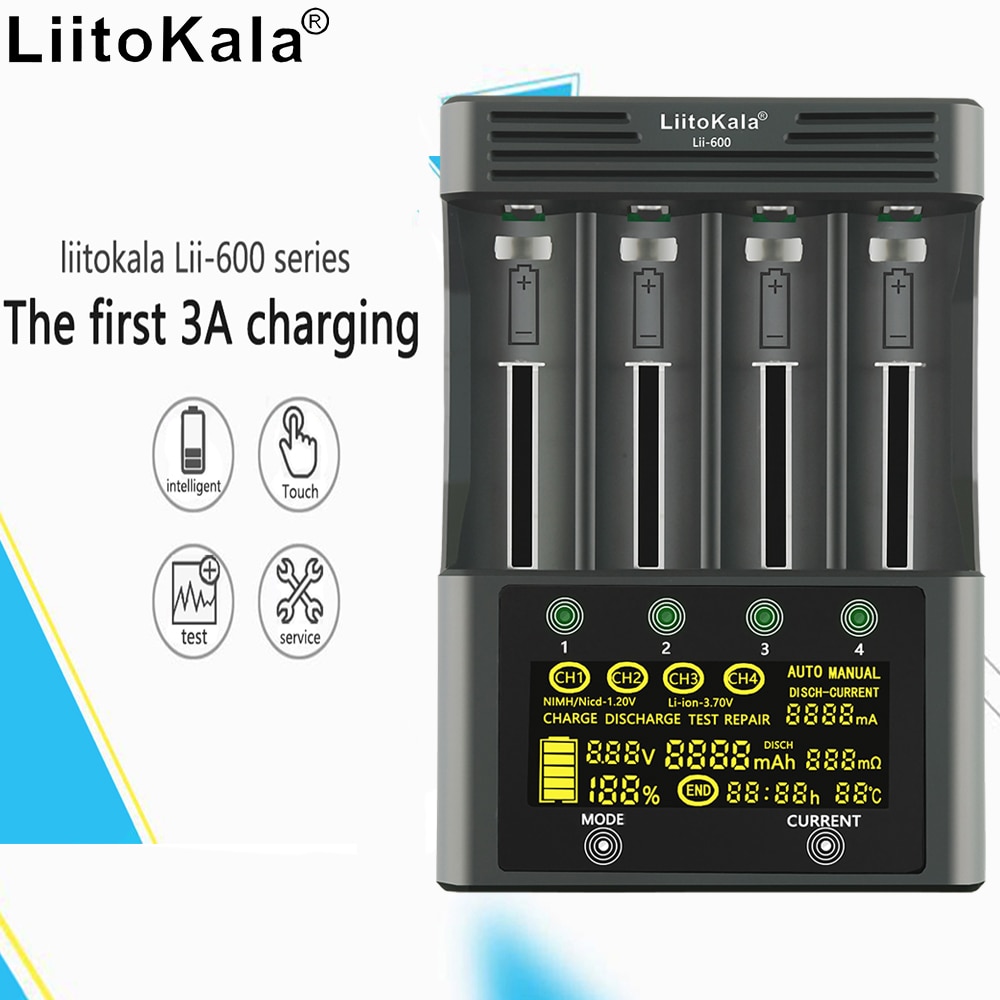

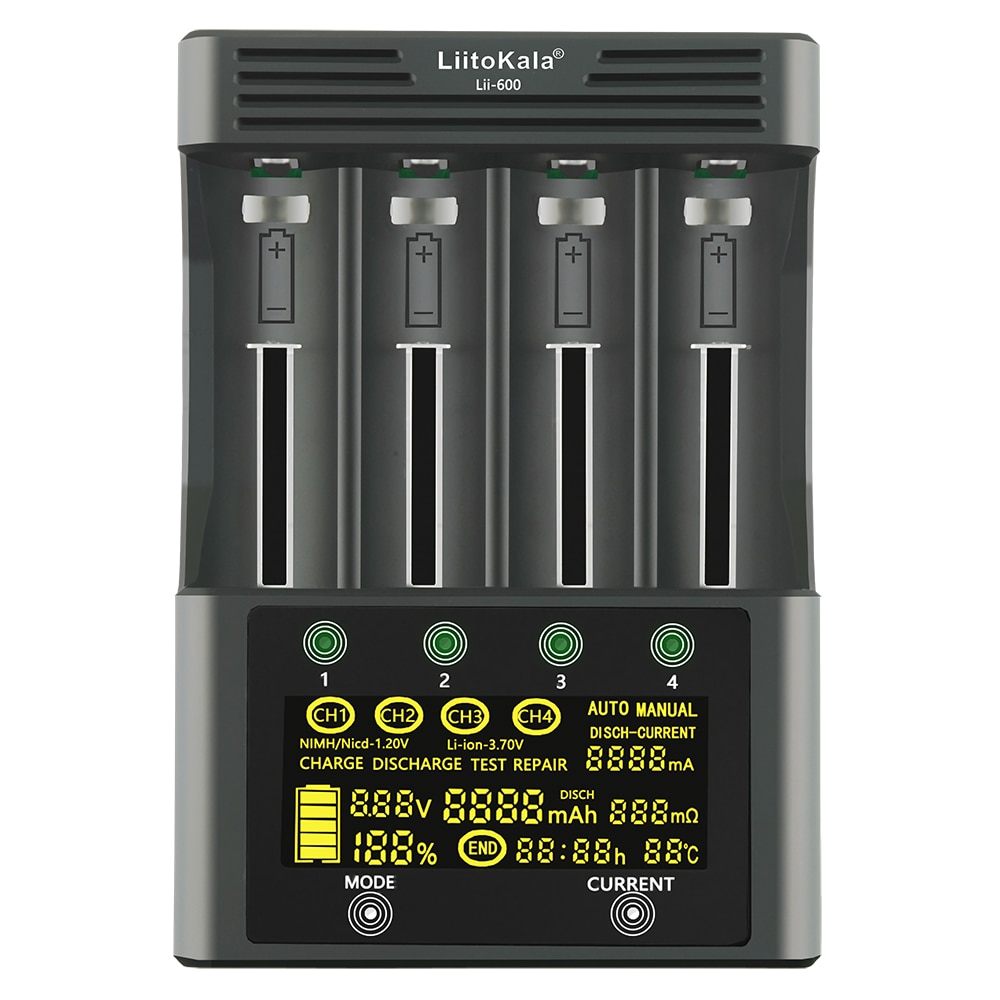

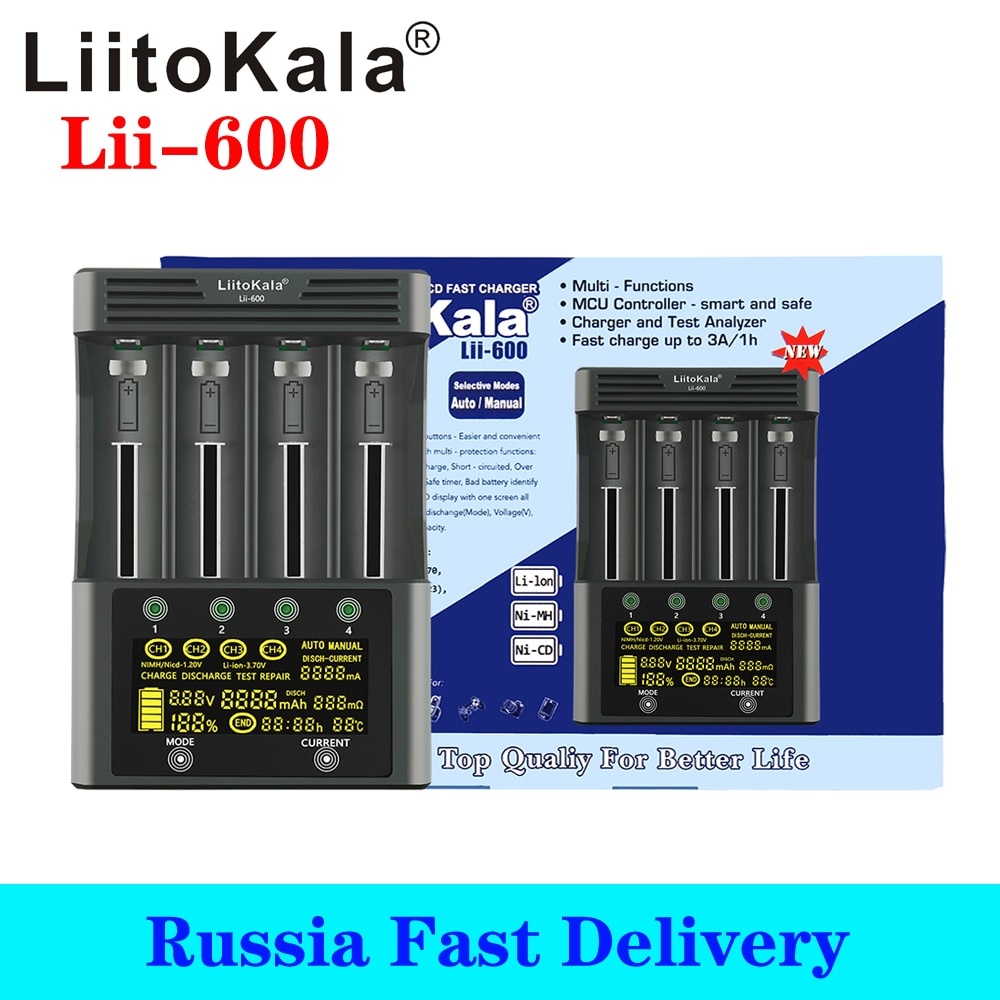

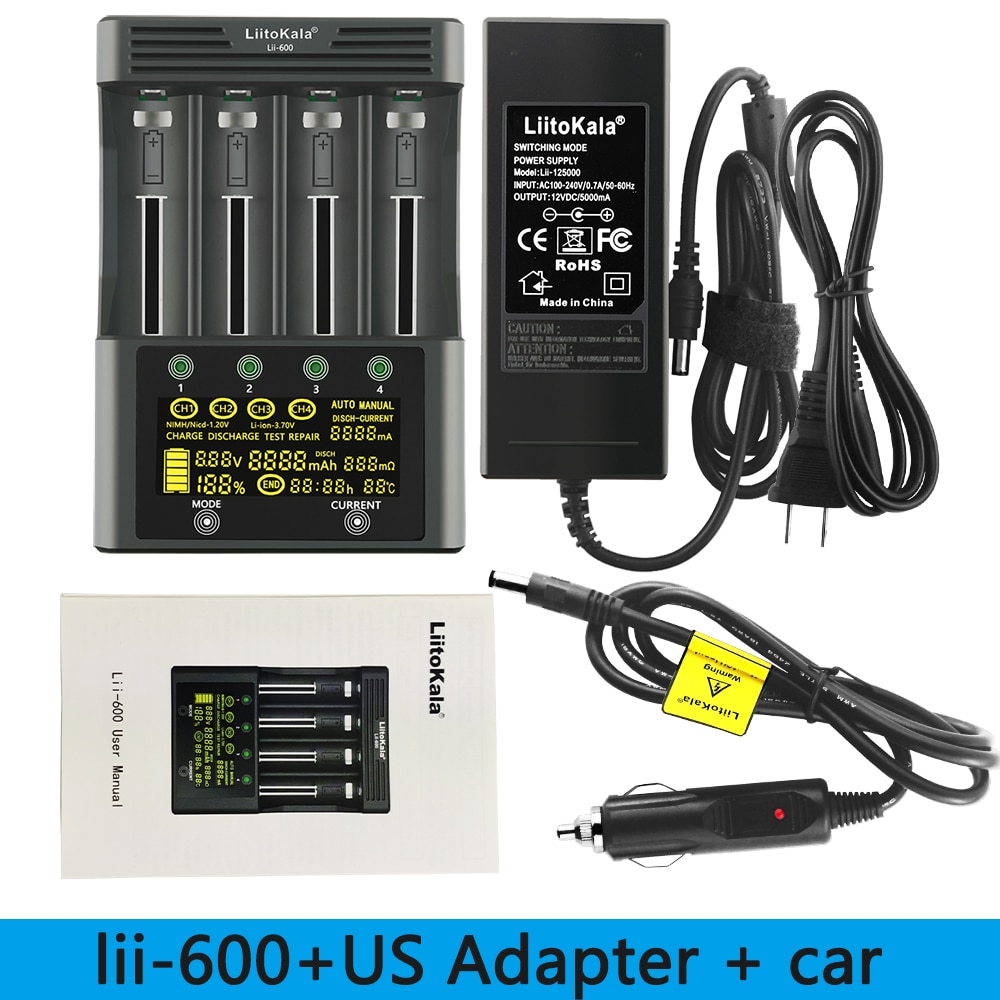

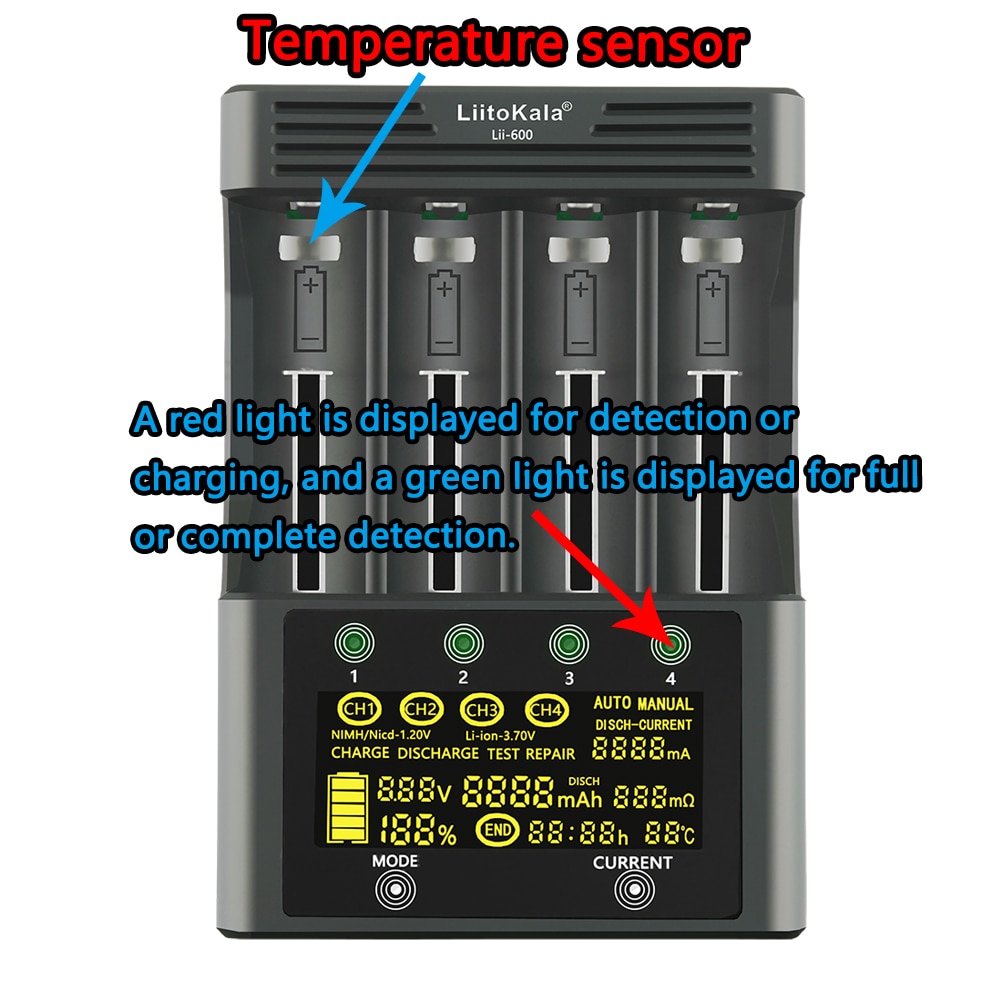

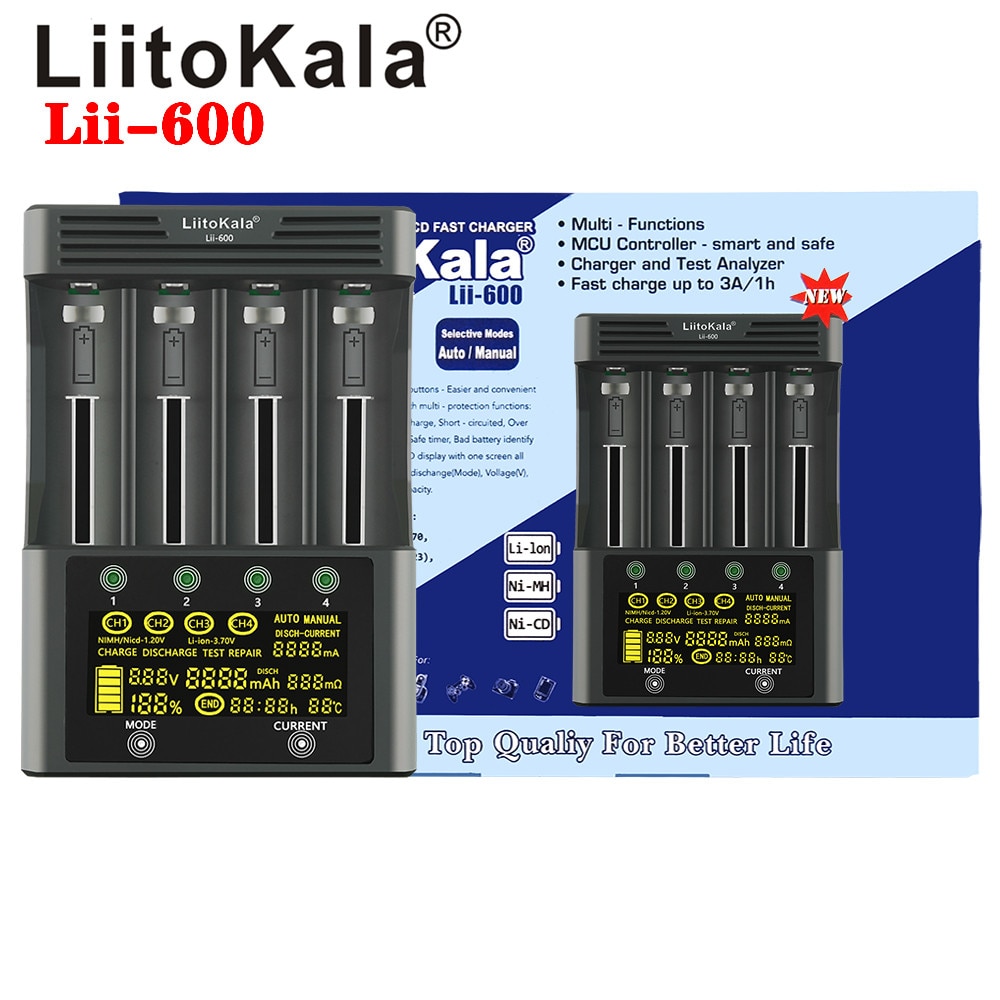

Lii-600 Operation manual
Thank you for using our smart charger products - Lii - 600, this is a high-end smart quick charger, touch-screen control / 4 channel independent rechargeable battery capacity testing/meter/temperature/short circuit protection, overcharge protection protection and zero volt battery activation function, and can automatically timely monitor the battery charge and discharge and testing process.
Lii-600 can charge various sizes of cylindrical lithium ion batteries and nickel metal hydride batteries, widely used in strong light flashlight, power tools, instrumentation, digital cameras and other electronic products battery charging. Beautiful appearance, safe and easy to operate, easy to carry, powerful function, is your good helper at home.
A, warning,
1. This charger can only charge cylindrical lithium ion battery and nickel metal hydride battery, not charge lithium iron phosphate battery;
2. Before use, please carefully refer to the manual, pay attention to the recommended charging current of the rechargeable battery, do not exceed the recommended charging current;
3. Do not use other non-standard power adapter;
4. Chargers may get hot when charging and discharging, so be careful not to burn;
5. When it stops using, please unplug the power and remove the battery;
6. Use only at room temperature and indoors;
7. The test data of this product is for reference only, please refer to professional instruments for the actual situation.

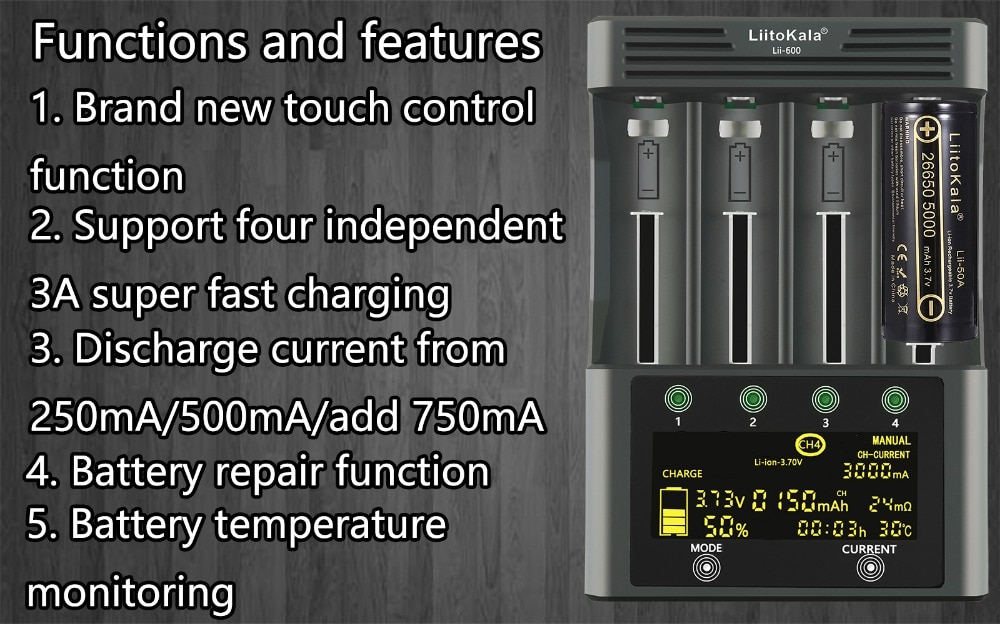

Ii. Functional characteristics
1. New touch control function;
2. The four slots work independently;
3. It has two working modes: automatic AUTO and MANUAL; (The default of the system is AUTO AUTO, automatically distributing current)
4. A variety of optional charging current: 250 ma ma / 500/1000 ma / 1500 ma ma / 2000/2500 3000 ma ma /;
5. Third-stage discharge current: 250mA/500mA/750mA;
6. Different specifications (18650/26650... /AA/AAA) Charging the battery at the same time;
7. Use a separate LCD display for this product. Contains battery type (Li - ion - 3.7 V, the Ni - MH1.2 V), work (AUTO automatic/MANUAL MANUAL), battery channel (CH1 - CH4), work mode (CHARGE CHARGE/DISCHARGE DISCHARGE models/TEST inspection/REPAIR REPAIR mode), CHARGE and DISCHARGE capacity (mAh), CHARGE and DISCHARGE time (h), CHARGE and DISCHARGE current (mA), battery voltage (V), battery percentage %, battery internal resistance (m Ω) ℃, temperature and other parameters, detailed and clear;
8. In CHARGE mode, 4 channels work independently, and each channel can choose different charging current and test charging capacity;
9. Under DISCHARGE mode, four channels work independently, and each channel can select different DISCHARGE current and detect DISCHARGE capacity;
10.TEST mode: The normal TEST process of battery capacity consists of three steps (1 charge,2 discharge, and 3 recharge) to TEST the battery capacity process;
11. Different channels can be operated with different modes (CHARGE, DISCHARGE, TEST and REPAIR); Independently set charging/discharging capacity testing/normal capacity testing functions;
12. Multiple protection function: the overcharge discharge, short circuit, temperature and activation function, 0 V voltage (- Δ Δ V & 0 V), 1.65 V to 2.2 V cannot charge function, bad battery intelligent recognition and reverse connect battery protection.

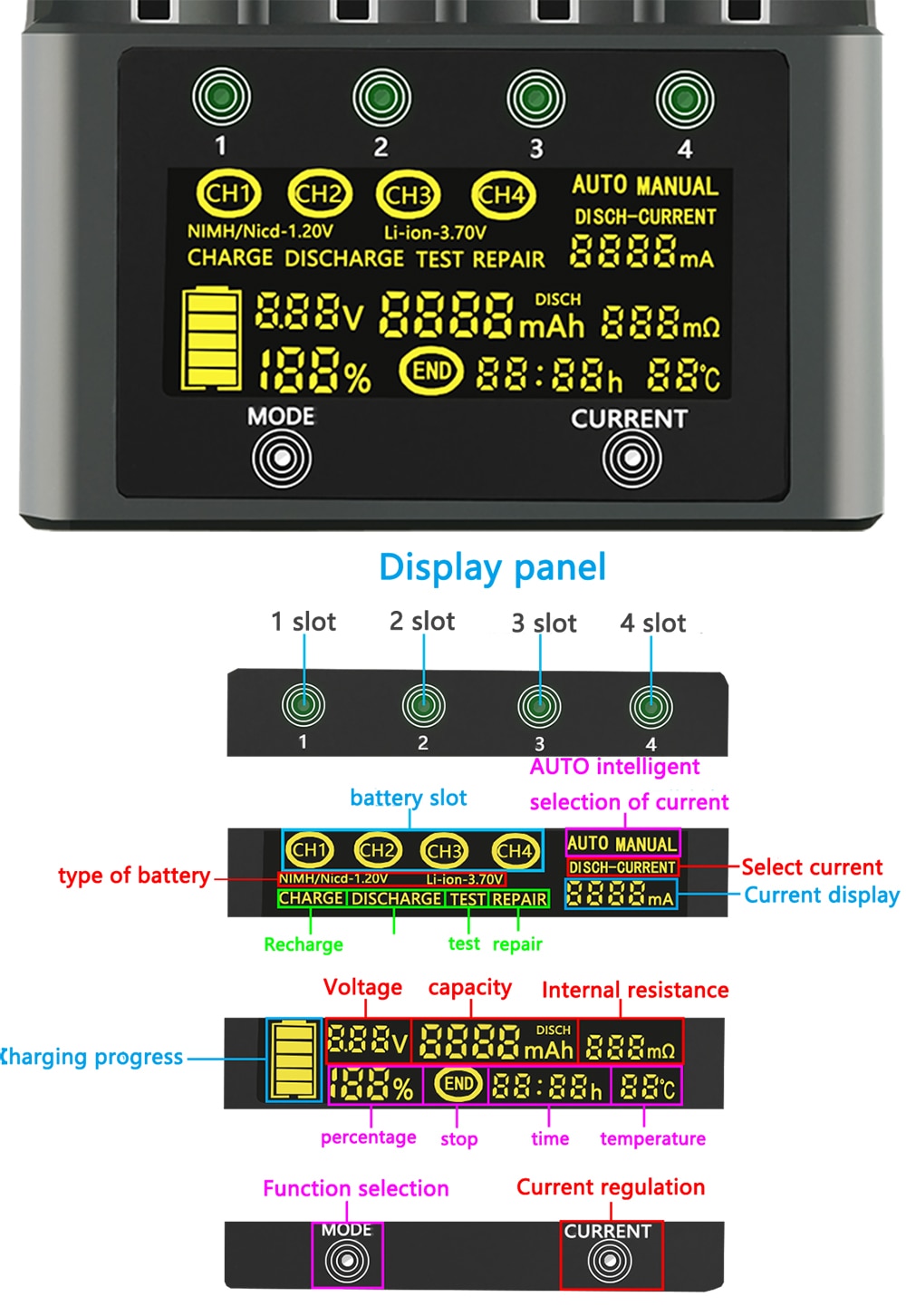

Iii. Description of touch points
The charger has 6 touch and contact points, including MODE, CURRENT, independent select and view data point (1234). The 6 touch MODE keys also have the function of lighting LCD backlight, which is simple and convenient to use.
1. MODE (MODE selection) includes CHARGE charging MODE, DISCHARGE MODE, TEST capacity detection MODE and REPAIR REPAIR MODE;
2. The CURRENT touch: (short for the CURRENT selection) including 250 ma / 500 ma ma / 1000/1500 / ma / 2000 ma ma / 2500/3000 ma; Long touch "CHARGE" point, you can choose to work in AUTO or MANUAL mode.
3. Touch points of 1/2/3/4 channels :(corresponding to 1/2/3/4 channels respectively); Short touch can be independently selected and the corresponding channel data can be viewed. Any point of long touch can control the LCD display (normally on or off);
4. In any case a long touch MODE point can change the CHARGE after the sound of "du" (rechargeable) MODE, DISCHARGE (DISCHARGE), TEST (capacity), REPAIR (REPAIR) model, and then touch your corresponding function in 8 seconds touch point can change pattern, the current size, independent, pretend to be, detection capacity, 8 seconds after selected into the working state, in the working status can touch (1/2/3/4) touch point, checking their corresponding, Including model/type/charge of the battery charge capacity (mAh)/charging time (h)/charging current (mA)/battery voltage (V)/percentage % / battery internal resistance (m Ω)/parameters such as temperature ℃, finally will show "End", the End of this working process.
Iv. Operation Description of the mode:
When the charger plug charger LCD screen instantly full bright full show, at the same time 1/2/3/4 channel LED lights hint red, green, ready to enter, if the battery is not in the will show "Null", light is not bright, if it's bad battery into or the battery reverse connect will display "Err", the battery work normally on red LED lamp, batteries or stop filling the green LED lights normally on accompanied by prompt;
1) CHARGE (charging mode)
1.1 After the charger is installed and the battery is connected to the power supply, the system will enter CHARGE mode automatically. After long contact with the "CHARGE" point, the system will enter into MANUAL MANUAL charging mode. The default charging current of the charger is 1000mA (if there is no long contact with the CHARGE point, the system will be charged by AUTO, and the system will automatically allocate the current according to the charged battery); In flow can be achieved through 8 seconds to get an electric shock the touch point (CURRENT) choose the charging CURRENT size, the system will lock in 8 seconds for charging CURRENT of your choice, if for 8 seconds, not set, then the system automatically default for charging CURRENT at 1000 ma, the electric CURRENT, and other functions will not be able to change again, if need to change, need long touch MODE then re-election;
1.2 Under CHARGE mode, independent charging or different current selection can be changed arbitrarily within 8 seconds, as well as different battery charging mix; Jane operation
Single, 8 seconds touch 1/2/3/4 slot battery corresponding touch points, and then touch MODE change CURRENT MODE, touch the CURRENT point detection, independent, pretend to be, capacity, 8 seconds into the working state after selected, pay attention to choose the charging CURRENT according to battery capacity size, if you don't need fast charging, suggest using 500 ma charge, this is the most appropriate and safe;
1.3 charging mode, through the light touch 1/2/3/4 touch point can switch to view each slot case: including model/type/charge of the battery charge capacity (mAh)/charging time (h)/charging current (mA)/battery voltage (V)/percentage % / battery internal resistance (m Ω) / ℃ temperature parameters, such as battery charge will be displayed after the "End" (charge);
1.4 lithium ion battery charging current can choose 250 ma ma / 500/1000 ma / 1500 ma ma / 2000/2500 3000 ma ma /;
1.5 Ni-MH battery charging current is available at 250mA/500mA/1000mA.
1.6 Refer to the following table for charging process:
Go into CHARGE select AUTO or MANUAL select CHARGE current battery CHARGE END
2) DISCHARGE (DISCHARGE mode)
2.1 when the battery charger installed after turning on the power supply, light touch (MODE) choose 8 seconds (DISCHARGE DISCHARGE MODE), and then a long touch CURRENT (CURRENT) make the system into the MANUAL DISCHARGE manually, select the desired CURRENT (250 ma ma / 500/750 ma), if do not select the CURRENT, the system automatically default DISCHARGE CURRENT is 500 ma, stop touching, system will lock in 8 seconds of your choice. If the system is discharged automatically by AUTO, the system will automatically distribute the current according to the condition of the discharged battery. The system will record the discharge data to detect the discharge capacity of the battery.
2.2 through the light touch 1/2/3/4 touch point can switch to view each slot case: including battery type/working mode charge/discharge (mAh)/discharge time (h)/discharge current (mA)/battery voltage (V)/percentage % / battery internal resistance (m Ω)/parameters such as temperature ℃, after will show "End" (discharge);
2.3 Refer to the following table for the discharge process:
Enter DISCHARGE END of the battery with DISCHARGE current selected by DISCHARGE
3) TEST(Capacity Detection mode)
TEST mode is to first charge the battery, then discharge the battery and record the discharge quantity and other parameters, then automatically charge the battery and record the charging quantity and other parameters, and finally charge the battery fully. It has both discharge capacity test function and charge capacity test function. The detailed steps are as follows:
Enter TEST selected current charging battery charging battery discharge recharging END
3.1 In any state, the long touch MODE "Du" prompts can enter TEST MODE;
3.2.1 into TEST mode, after 8 seconds long time can touch touch point (CURRENT) select MANUAL manually or AUTO automatic mode, select MANUAL after manually, and choose CURRENT short touch touch point (CURRENT) size, the system will lock in 8 seconds for charging CURRENT of your choice, if there are no make the 8 seconds set, then the system will automatically lock 1000 ma CURRENT charging; If you choose AUTO, the system will automatically distribute the current according to the battery.
3.2.2 When the battery is fully charged, the system will automatically turn to discharge, and the discharge current will be determined according to the charging current (250mA is charged, and 250mA is discharged; When the charge is 500mA or 1000mA, the discharge is 500mA; When the charge is above 1000mA, the discharge is 750mA), and the data during the discharge is recorded, so as to detect the discharge capacity of the battery.
3.2.3 When the battery is discharged, the system will be automatically converted to charging. The charger will charge the battery again according to the previously selected current parameters and record the charging data, so as to detect the charging capacity of the battery. At this point, the system shows "END", stop charging.
4) REPAIR (REPAIR mode)
4.1 MANUAL, this mode is repaired with 250mA current.
4.2 AUTO (automatic adjustment), lithium batteries (Li - ion - 3.7 - v) repair process is according to the current file (250 ma / 500 ma ma / 1000/1500 / ma / 2000 ma ma / 2500/3000 ma), the system automatically for charging current distribution, until full;
4.3 Under AUTO (automatic adjustment), the repair process of ni-MH-1.2V battery is that the system automatically charges with 250mA current, then discharges with corresponding current, and then recharges, after several times, until the repair is full.
Vi. Specific parameters
6.1 DC input voltage: 12.0V/5.0A
Charging current of ni-MH battery: 1.48V 250mA/500mA/1000mA*4
Lithium battery charging current, 4.20 500 V, 250 ma/ma / 1000 ma ma / 1500/2000 ma ma / 2500/3000 ma * 4
6.3 rechargeable battery specifications: 18650,26650,14500, AA, AAA, etc
Discharge current: 250mA*4/500mA*4/750mA*4
6.5 Termination mode: Intelligent voltage monitoring
6.6 External dimension: 165mm(length)*115mm(width)* 40mm (height).
6.7 Weight: g (excluding data cable)
Lii-600 Operation manual
Thank you for using our smart charger products - Lii - 600, this is a high-end smart quick charger, touch-screen control / 4 channel independent rechargeable battery capacity testing/meter/temperature/short circuit protection, overcharge protection protection and zero volt battery activation function, and can automatically timely monitor the battery charge and discharge and testing process.
Lii-600 can charge various sizes of cylindrical lithium ion batteries and nickel metal hydride batteries, widely used in strong light flashlight, power tools, instrumentation, digital cameras and other electronic products battery charging. Beautiful appearance, safe and easy to operate, easy to carry, powerful function, is your good helper at home.
A, warning,
1. This charger can only charge cylindrical lithium ion battery and nickel metal hydride battery, not charge lithium iron phosphate battery;
2. Before use, please carefully refer to the manual, pay attention to the recommended charging current of the rechargeable battery, do not exceed the recommended charging current;
3. Do not use other non-standard power adapter;
4. Chargers may get hot when charging and discharging, so be careful not to burn;
5. When it stops using, please unplug the power and remove the battery;
6. Use only at room temperature and indoors;
7. The test data of this product is for reference only, please refer to professional instruments for the actual situation.
Ii. Functional characteristics
1. New touch control function;
2. The four slots work independently;
3. It has two working modes: automatic AUTO and MANUAL; (The default of the system is AUTO AUTO, automatically distributing current)
4. A variety of optional charging current: 250 ma ma / 500/1000 ma / 1500 ma ma / 2000/2500 3000 ma ma /;
5. Third-stage discharge current: 250mA/500mA/750mA;
6. Different specifications (18650/26650... /AA/AAA) Charging the battery at the same time;
7. Use a separate LCD display for this product. Contains battery type (Li - ion - 3.7 V, the Ni - MH1.2 V), work (AUTO automatic/MANUAL MANUAL), battery channel (CH1 - CH4), work mode (CHARGE CHARGE/DISCHARGE DISCHARGE models/TEST inspection/REPAIR REPAIR mode), CHARGE and DISCHARGE capacity (mAh), CHARGE and DISCHARGE time (h), CHARGE and DISCHARGE current (mA), battery voltage (V), battery percentage %, battery internal resistance (m Ω) ℃, temperature and other parameters, detailed and clear;
8. In CHARGE mode, 4 channels work independently, and each channel can choose different charging current and test charging capacity;
9. Under DISCHARGE mode, four channels work independently, and each channel can select different DISCHARGE current and detect DISCHARGE capacity;
10.TEST mode: The normal TEST process of battery capacity consists of three steps (1 charge,2 discharge, and 3 recharge) to TEST the battery capacity process;
11. Different channels can be operated with different modes (CHARGE, DISCHARGE, TEST and REPAIR); Independently set charging/discharging capacity testing/normal capacity testing functions;
12. Multiple protection function: the overcharge discharge, short circuit, temperature and activation function, 0 V voltage (- Δ Δ V & 0 V), 1.65 V to 2.2 V cannot charge function, bad battery intelligent recognition and reverse connect battery protection.
Iii. Description of touch points
The charger has 6 touch and contact points, including MODE, CURRENT, independent select and view data point (1234). The 6 touch MODE keys also have the function of lighting LCD backlight, which is simple and convenient to use.
1. MODE (MODE selection) includes CHARGE charging MODE, DISCHARGE MODE, TEST capacity detection MODE and REPAIR REPAIR MODE;
2. The CURRENT touch: (short for the CURRENT selection) including 250 ma / 500 ma ma / 1000/1500 / ma / 2000 ma ma / 2500/3000 ma; Long touch "CHARGE" point, you can choose to work in AUTO or MANUAL mode.
3. Touch points of 1/2/3/4 channels :(corresponding to 1/2/3/4 channels respectively); Short touch can be independently selected and the corresponding channel data can be viewed. Any point of long touch can control the LCD display (normally on or off);
4. In any case a long touch MODE point can change the CHARGE after the sound of "du" (rechargeable) MODE, DISCHARGE (DISCHARGE), TEST (capacity), REPAIR (REPAIR) model, and then touch your corresponding function in 8 seconds touch point can change pattern, the current size, independent, pretend to be, detection capacity, 8 seconds after selected into the working state, in the working status can touch (1/2/3/4) touch point, checking their corresponding, Including model/type/charge of the battery charge capacity (mAh)/charging time (h)/charging current (mA)/battery voltage (V)/percentage % / battery internal resistance (m Ω)/parameters such as temperature ℃, finally will show "End", the End of this working process.
Iv. Operation Description of the mode:
When the charger plug charger LCD screen instantly full bright full show, at the same time 1/2/3/4 channel LED lights hint red, green, ready to enter, if the battery is not in the will show "Null", light is not bright, if it's bad battery into or the battery reverse connect will display "Err", the battery work normally on red LED lamp, batteries or stop filling the green LED lights normally on accompanied by prompt;
1) CHARGE (charging mode)
1.1 After the charger is installed and the battery is connected to the power supply, the system will enter CHARGE mode automatically. After long contact with the "CHARGE" point, the system will enter into MANUAL MANUAL charging mode. The default charging current of the charger is 1000mA (if there is no long contact with the CHARGE point, the system will be charged by AUTO, and the system will automatically allocate the current according to the charged battery); In flow can be achieved through 8 seconds to get an electric shock the touch point (CURRENT) choose the charging CURRENT size, the system will lock in 8 seconds for charging CURRENT of your choice, if for 8 seconds, not set, then the system automatically default for charging CURRENT at 1000 ma, the electric CURRENT, and other functions will not be able to change again, if need to change, need long touch MODE then re-election;
1.2 Under CHARGE mode, independent charging or different current selection can be changed arbitrarily within 8 seconds, as well as different battery charging mix; Jane operation
Single, 8 seconds touch 1/2/3/4 slot battery corresponding touch points, and then touch MODE change CURRENT MODE, touch the CURRENT point detection, independent, pretend to be, capacity, 8 seconds into the working state after selected, pay attention to choose the charging CURRENT according to battery capacity size, if you don't need fast charging, suggest using 500 ma charge, this is the most appropriate and safe;
1.3 charging mode, through the light touch 1/2/3/4 touch point can switch to view each slot case: including model/type/charge of the battery charge capacity (mAh)/charging time (h)/charging current (mA)/battery voltage (V)/percentage % / battery internal resistance (m Ω) / ℃ temperature parameters, such as battery charge will be displayed after the "End" (charge);
1.4 lithium ion battery charging current can choose 250 ma ma / 500/1000 ma / 1500 ma ma / 2000/2500 3000 ma ma /;
1.5 Ni-MH battery charging current is available at 250mA/500mA/1000mA.
1.6 Refer to the following table for charging process:
Go into CHARGE select AUTO or MANUAL select CHARGE current battery CHARGE END
2) DISCHARGE (DISCHARGE mode)
2.1 when the battery charger installed after turning on the power supply, light touch (MODE) choose 8 seconds (DISCHARGE DISCHARGE MODE), and then a long touch CURRENT (CURRENT) make the system into the MANUAL DISCHARGE manually, select the desired CURRENT (250 ma ma / 500/750 ma), if do not select the CURRENT, the system automatically default DISCHARGE CURRENT is 500 ma, stop touching, system will lock in 8 seconds of your choice. If the system is discharged automatically by AUTO, the system will automatically distribute the current according to the condition of the discharged battery. The system will record the discharge data to detect the discharge capacity of the battery.
2.2 through the light touch 1/2/3/4 touch point can switch to view each slot case: including battery type/working mode charge/discharge (mAh)/discharge time (h)/discharge current (mA)/battery voltage (V)/percentage % / battery internal resistance (m Ω)/parameters such as temperature ℃, after will show "End" (discharge);
2.3 Refer to the following table for the discharge process:
Enter DISCHARGE END of the battery with DISCHARGE current selected by DISCHARGE
3) TEST(Capacity Detection mode)
TEST mode is to first charge the battery, then discharge the battery and record the discharge quantity and other parameters, then automatically charge the battery and record the charging quantity and other parameters, and finally charge the battery fully. It has both discharge capacity test function and charge capacity test function. The detailed steps are as follows:
Enter TEST selected current charging battery charging battery discharge recharging END
3.1 In any state, the long touch MODE "Du" prompts can enter TEST MODE;
3.2.1 into TEST mode, after 8 seconds long time can touch touch point (CURRENT) select MANUAL manually or AUTO automatic mode, select MANUAL after manually, and choose CURRENT short touch touch point (CURRENT) size, the system will lock in 8 seconds for charging CURRENT of your choice, if there are no make the 8 seconds set, then the system will automatically lock 1000 ma CURRENT charging; If you choose AUTO, the system will automatically distribute the current according to the battery.
3.2.2 When the battery is fully charged, the system will automatically turn to discharge, and the discharge current will be determined according to the charging current (250mA is charged, and 250mA is discharged; When the charge is 500mA or 1000mA, the discharge is 500mA; When the charge is above 1000mA, the discharge is 750mA), and the data during the discharge is recorded, so as to detect the discharge capacity of the battery.
3.2.3 When the battery is discharged, the system will be automatically converted to charging. The charger will charge the battery again according to the previously selected current parameters and record the charging data, so as to detect the charging capacity of the battery. At this point, the system shows "END", stop charging.
4) REPAIR (REPAIR mode)
4.1 MANUAL, this mode is repaired with 250mA current.
4.2 AUTO (automatic adjustment), lithium batteries (Li - ion - 3.7 - v) repair process is according to the current file (250 ma / 500 ma ma / 1000/1500 / ma / 2000 ma ma / 2500/3000 ma), the system automatically for charging current distribution, until full;
4.3 Under AUTO (automatic adjustment), the repair process of ni-MH-1.2V battery is that the system automatically charges with 250mA current, then discharges with corresponding current, and then recharges, after several times, until the repair is full.

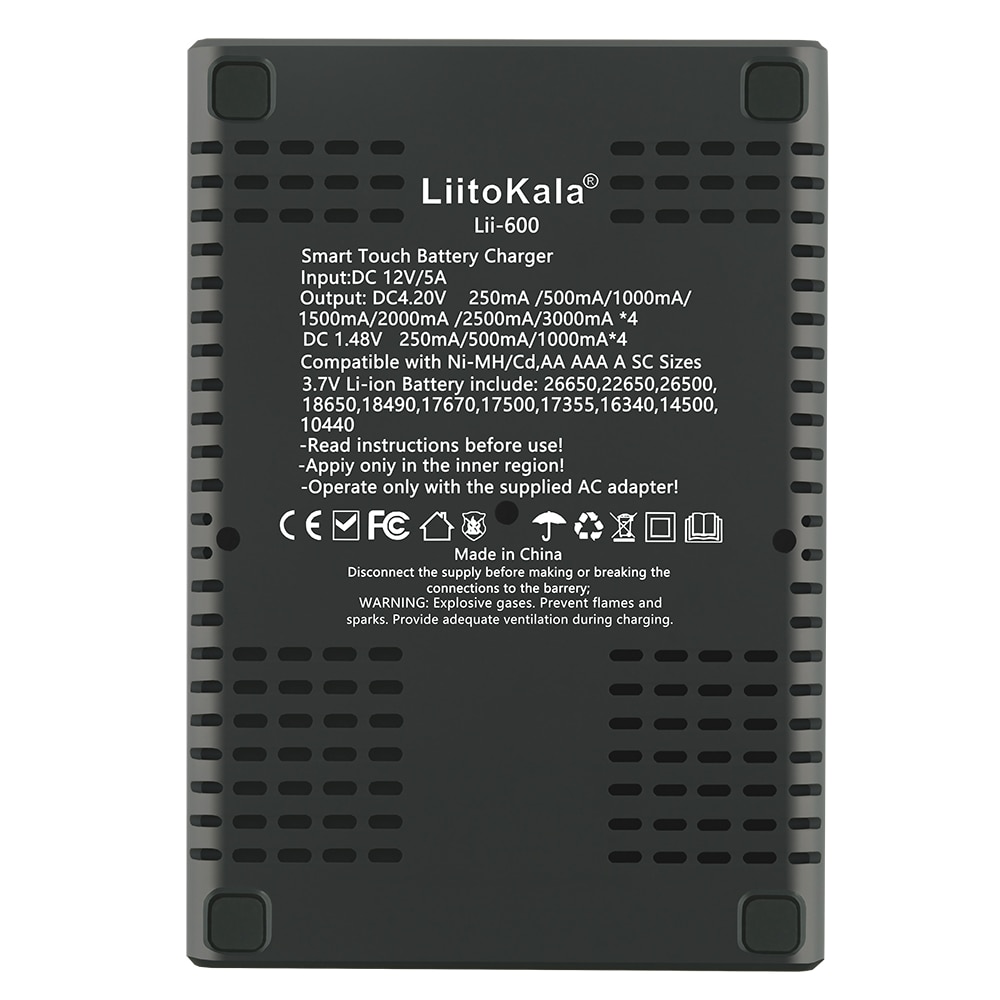

Vi. Specific parameters

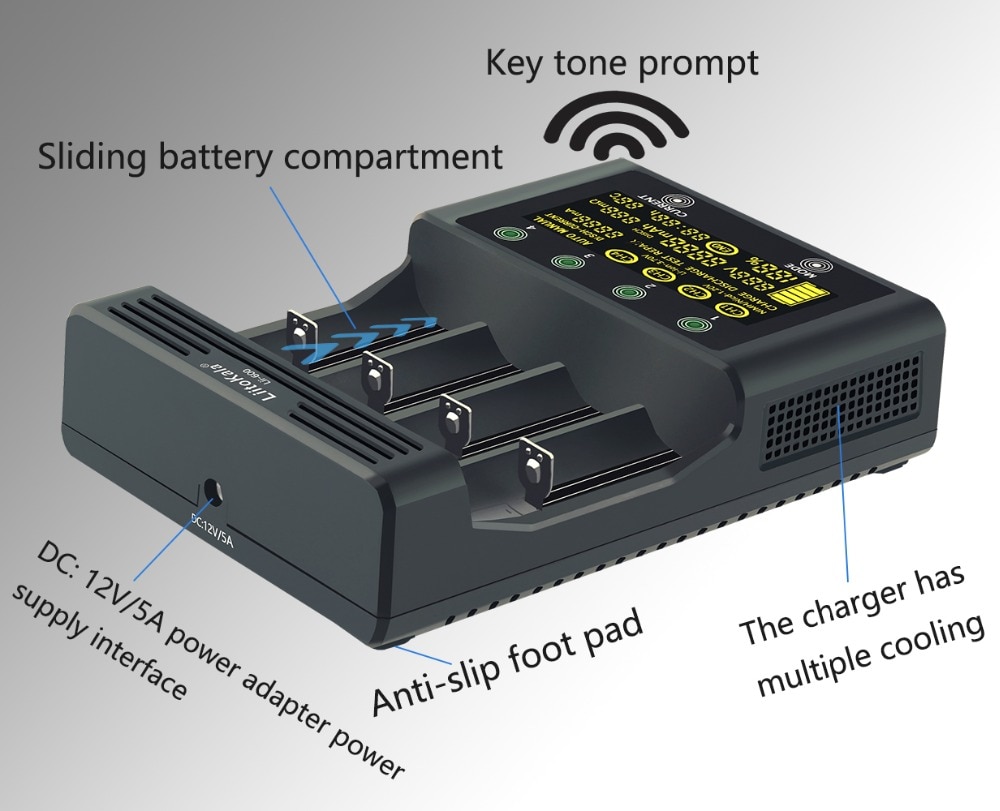

6.1 DC input voltage: 12.0V/5.0A
Charging current of ni-MH battery: 1.48V 250mA/500mA/1000mA*4
Lithium battery charging current, 4.20 500 V, 250 ma/ma / 1000 ma ma / 1500/2000 ma ma / 2500/3000 ma * 4
6.3 rechargeable battery specifications: 18650,26650,14500, AA, AAA, etc
Discharge current: 250mA*4/500mA*4/750mA*4
6.5 Termination mode: Intelligent voltage monitoring
6.6 External dimension: 165mm(length)*115mm(width)* 40mm (height).
6.7 Weight: g (excluding data cable)

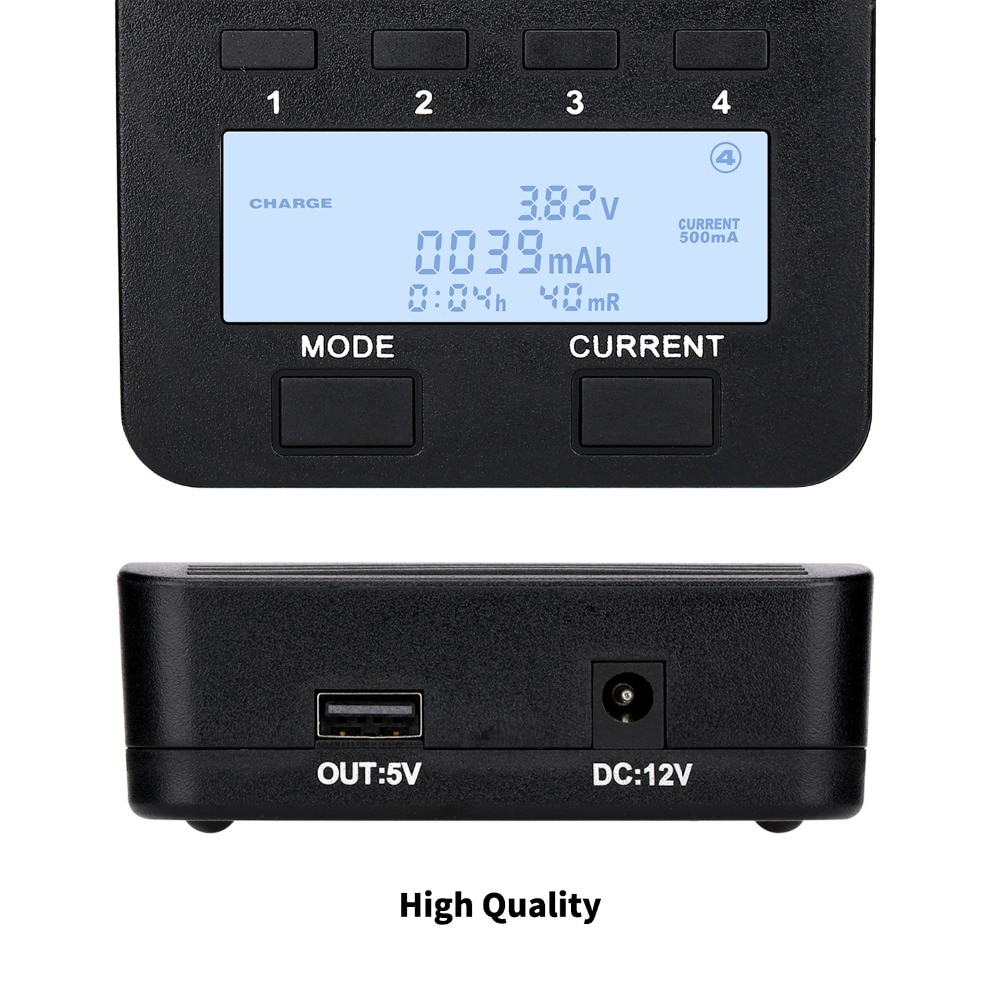

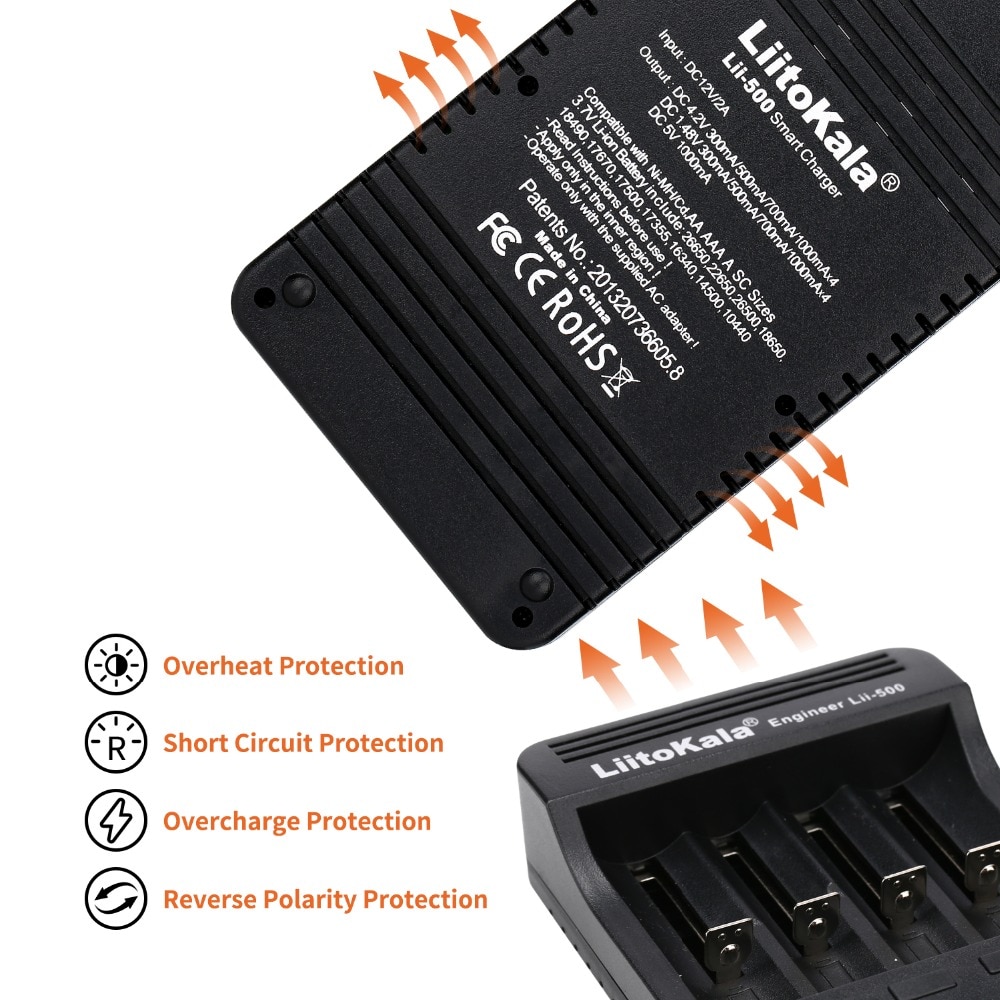

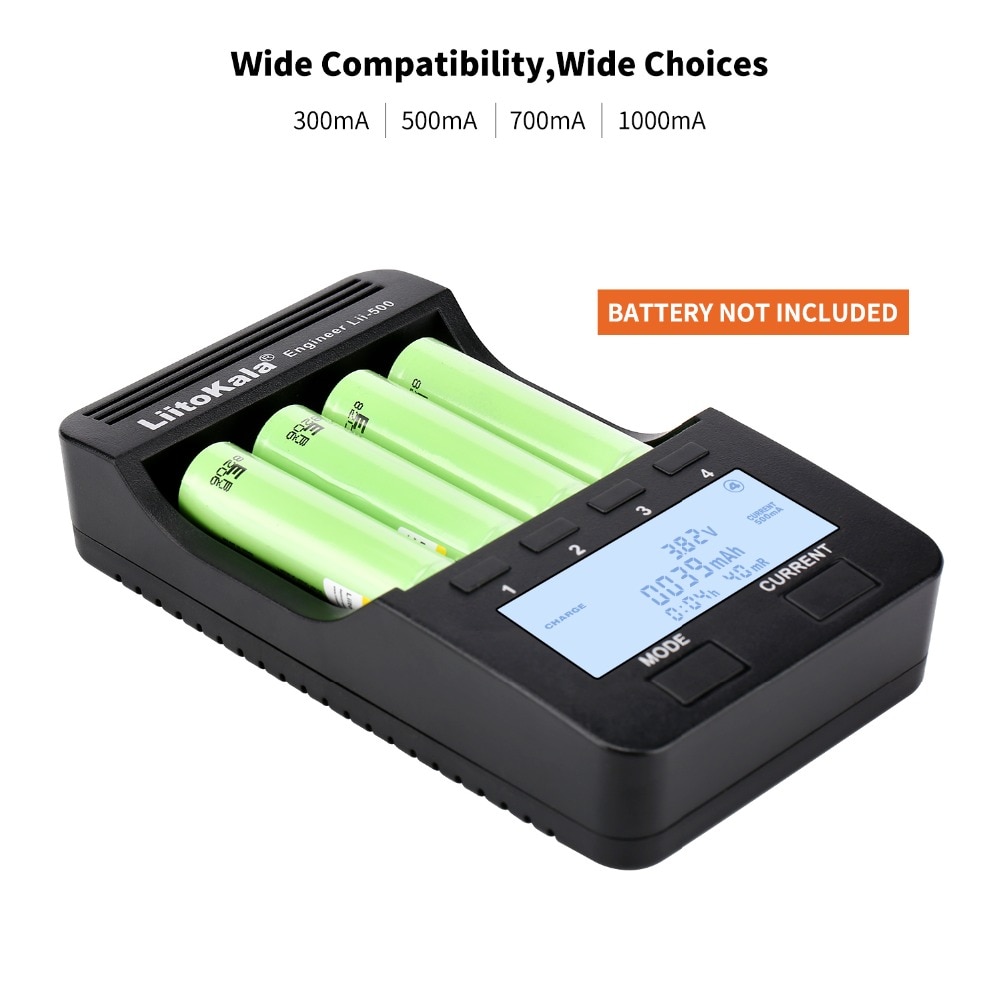

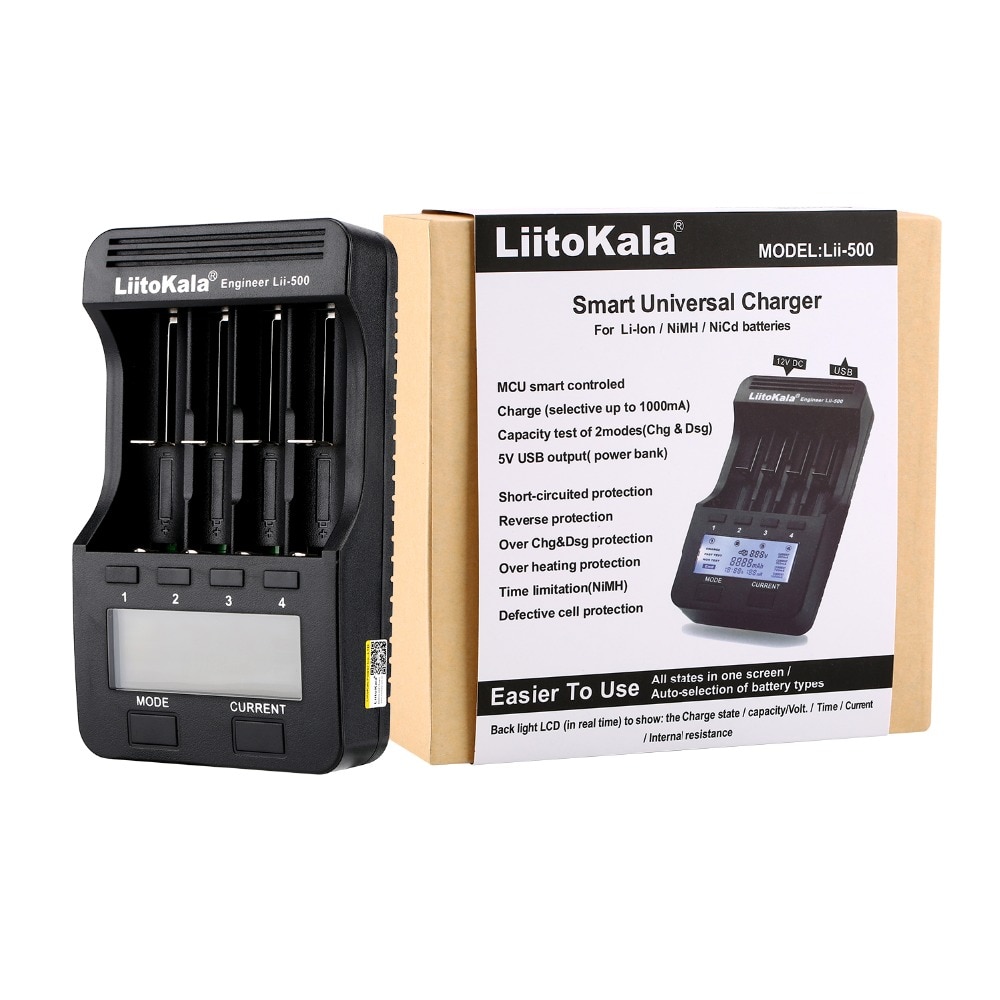

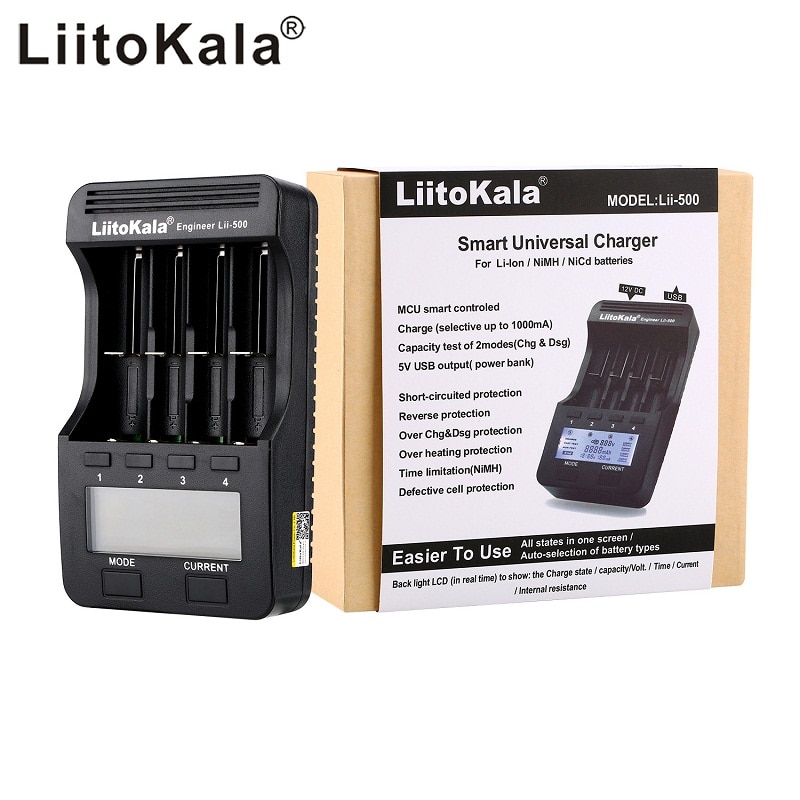

Lii-500 Specifications:
• DC12V/2A input power.
• 4bay independent ports
• Test the battery capacity
• LCD displays show different modes
• 3 modes of worke
• 4 charging current (300,500, 700, 1000 mAh)
• Supports different battery sizes
• Automatic identification of battery type (Li-ion, Ni-Mh)
• Overcharge protection. Positive and negative reverse connection protection. Over-temperature protection. NiMH battery negative voltage detection (-dtv).
• battery fault detection

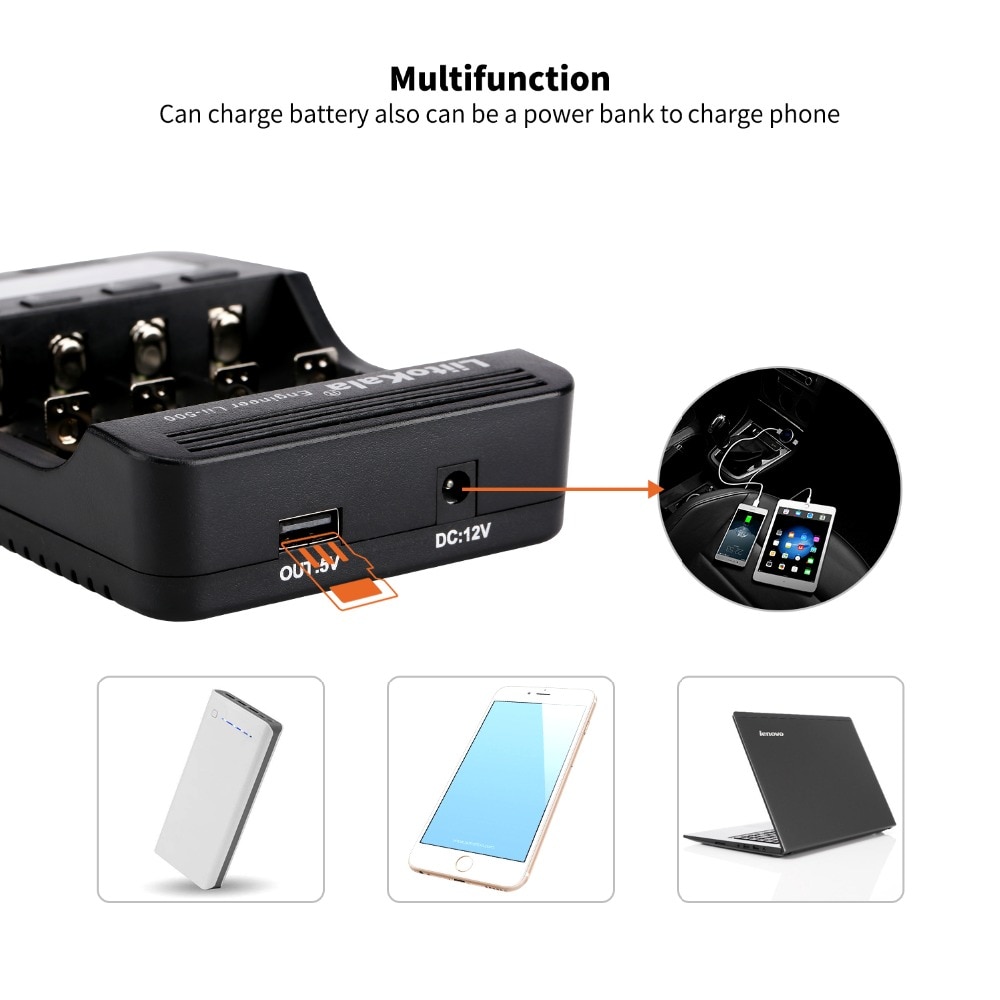

• 5V 1000mAh USB output discharge
• For NiMH / CD AAA / Micro, AA / mignon, c.
Li-Ion 26650, 22650, 18650.18490, 18500,
17500, 17355, 16340 (RCR123), 14,500, 10440

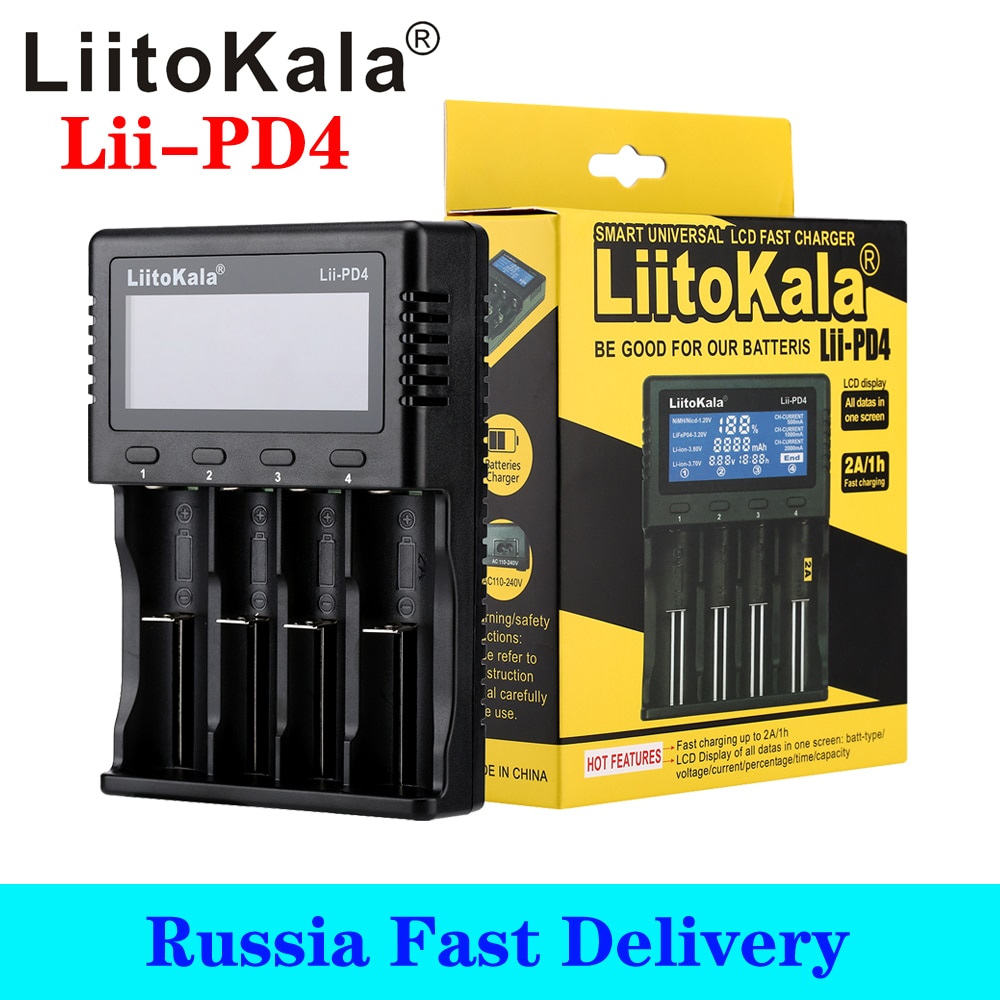

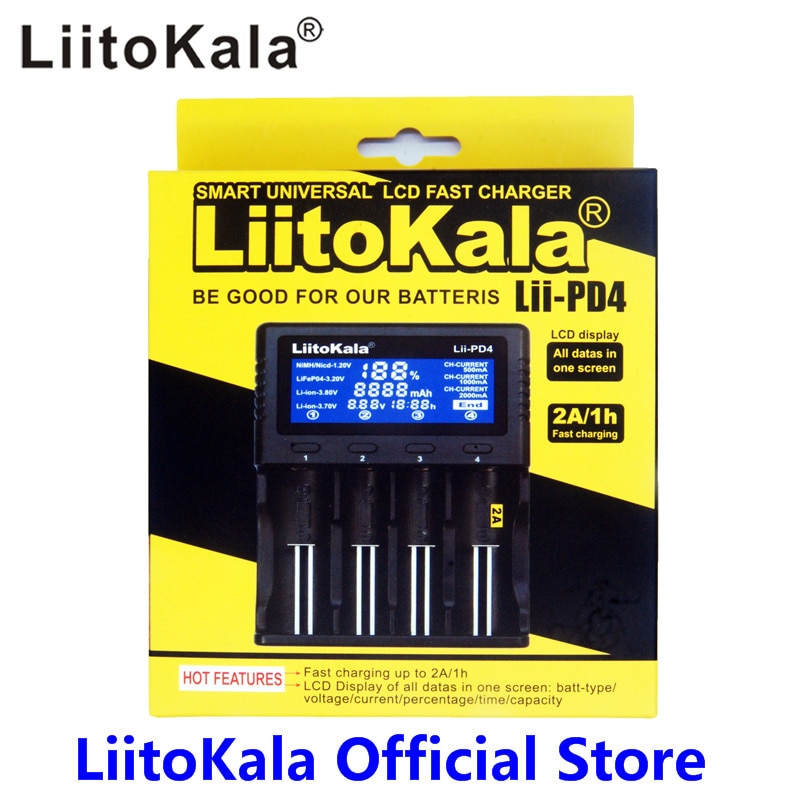

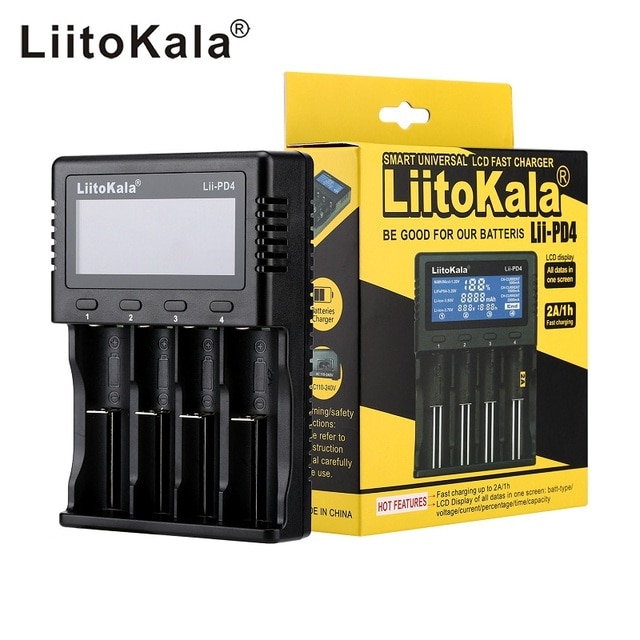

User Manual Lii-PD4

Cautions:

1.Thischarger can chargeallcylindricalrechargeablebatteries 3.7VLi-Ion,3.8VIMR,1.2VNi-MH/Cd, 3.2VLiFePO4

2.Read this manual before use and pay special attention to the recommended charge current, must avoid to charge battery beyond the recommended current limit

3.If DC input, only12V1Ais recommended

4.Mind heating while charging

5.Remove the charger from power source after charging complete, and remove the battery from the charger at the same time

6.For indoor use only

7.The displaying dataonly for reference, please refer to professional instrument for more accurate data



Specifications and functions:

1.Multi-powerinput: AC cable 110-240V 50/60Hz (included)/ 12V 1A adapter(selective), four independent charging and micro computer management system.

2.Charge current intelligent auto-set of total three levels:500mA /1000mA/2000mA),2000mA is fixed only for slot#4.

3.Multi-functionalLCDchargingdisplay: forcharging progress25% - 50% - 75% -100%,battery types: Ni-MH 1.2V , Li-Fe 3.2V, Li-ion 3.7V, Li-ion 3.80V(IMR), charging capacity, voltageandcurrent: 0.5A/1A/2A.

4.Identify Li-ion and Ni-MH batteries automatically and adjust manually the charging mode for LiFePO4 and 3.80V li-ion batteries(IMR)

5.Refresh for OV battery. Itwill not charge any battery of1.65 -2.20V (refresh current can be detected only)

6.Multi-safety protection function of over-charge and over-discharge,short circuited, polarity reverse and so on. It can smartly identify broken batteries with much more safety.

7.Chargingat constant voltage and current



Button and LCD :

1.Buttonof Mode(Channel button):there are 4 independent buttons separately for each channel.Whilepower supplyis connectedand battery inserted,  1)Short clickthechannelbuttonin 5Sto change the battery type. It will start to charge 5 seconds after setting the battery type (3.2V or 3.80V),  1.2V Ni-MH and 3.7V li-ion canbe detected automatically, so it needs setting only 3.2V and 3.8V batteries;

Note: Battery type can be only selective before charging starts.



2.LCD: Whilepower supply connected,the LCDwilllight upfor 3S:1) If no battery isinserted,the LCD will display"null"and will be off in 30S2) When battery isinserted anddetected,the LCD will show channel number while the battery type image"Li-Ion 3.7V"flashingindicatingto set the battery type: this momentifshort click the channel button, it can set battery type; ifno operationin5 seconds, it beginsbyautomaticdetection(Li-Ion 3.7V or NIMH)thencharging percentage image will flash meaning the start of charging. At the same time the LCD displays also charge voltage, capacity, time and current. When charge completes, it will display"100%"mean while it shows"End" on the LCD right down corner.

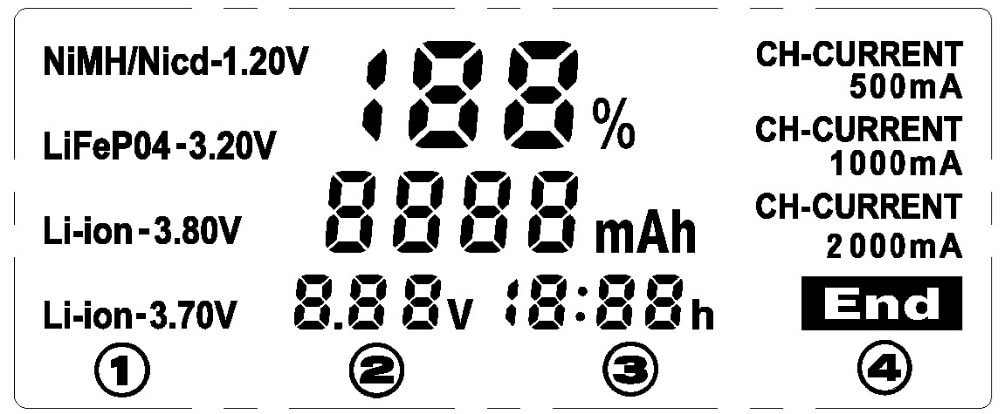

LCD displaygraphic reference:



Electrical Parameters:

1. Input : AC cable 110-240V 50/60Hz (included)/  DC 12V 1A(selective)

2. Output voltage: DC 4.2V for Li-Ion 3.7V

DC 4.35V for Li-Ion 3.8V( IMR)

DC 3.65V for LiFePO4

DC 1.48V for NiMH/NI-Cd

3. Output current: Li-Ion/IMR/LiFePO4 2000mA*1(only for slot#4),

1000mA*2, 500mA*3  500mA*4

NiMH/NiCd: 1000mA*2, 500mA*3  500mA*4

4. Constant voltage, cut-off current: less than 100mA

5. Standby current: less than 15mA

Compatible battery types and sizes

Li-ion / IMR/LiFePO4: 26650,21700,20700, 18650, 18490, 18350, 17670, 17500, 16340(RCR123), 14500, 10440

NiMH/Cd: AA, AAA,SC, C

Size and weight:

147mm x 100mm x 37mm (L x W x H)

Weight:      approx221g (not including AC cable)

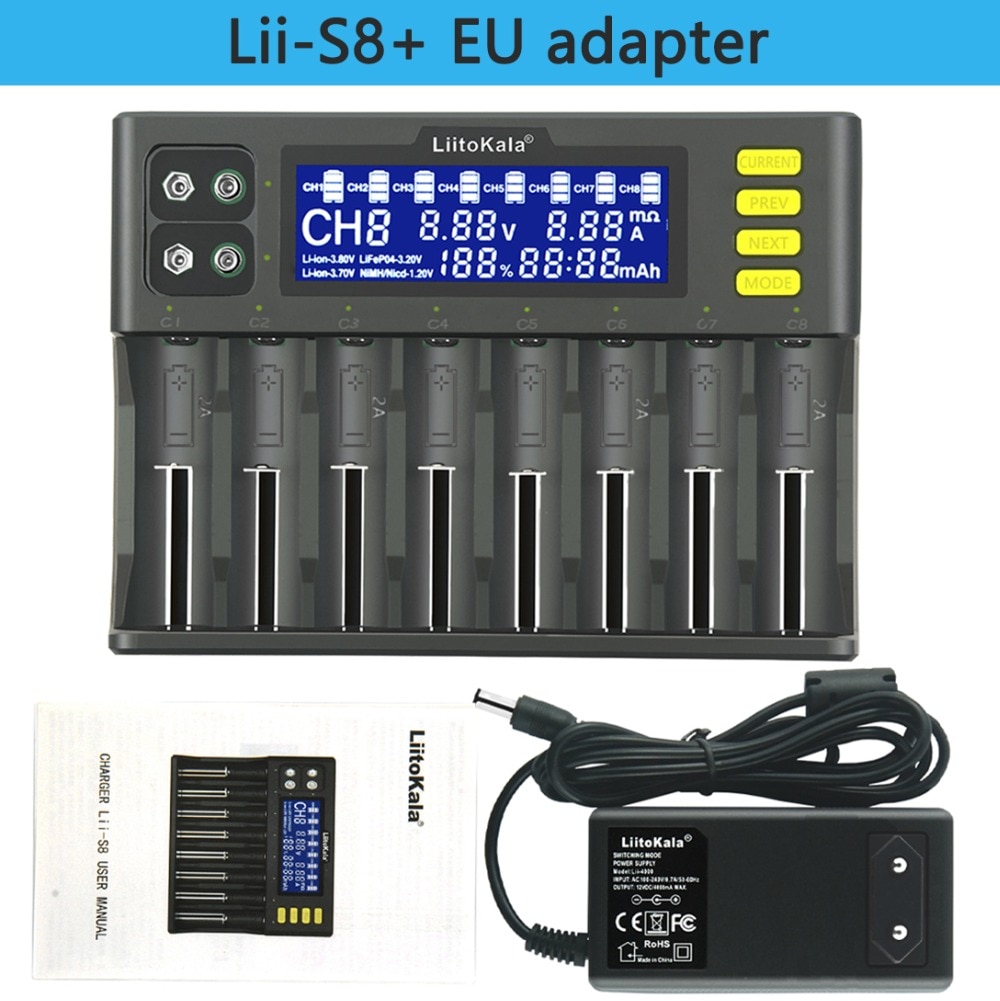

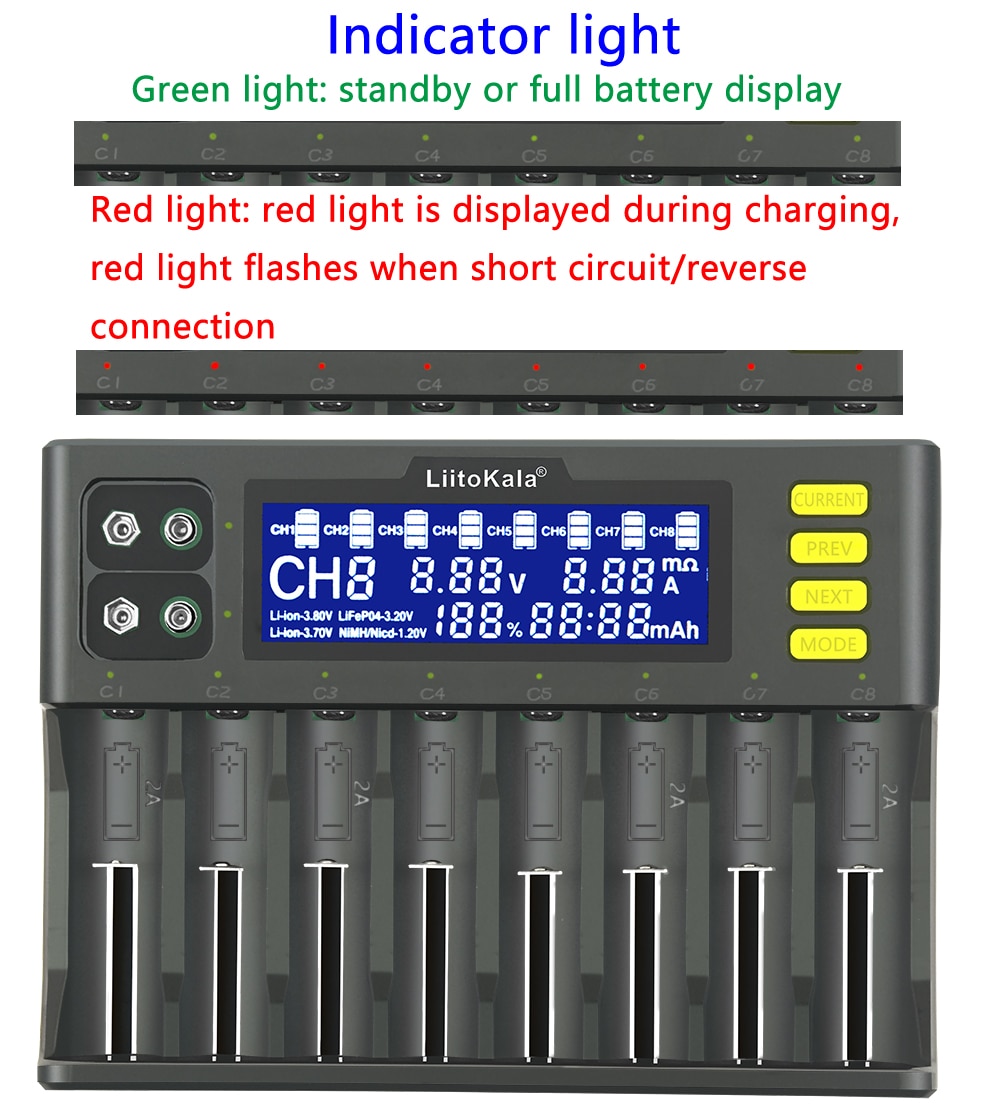

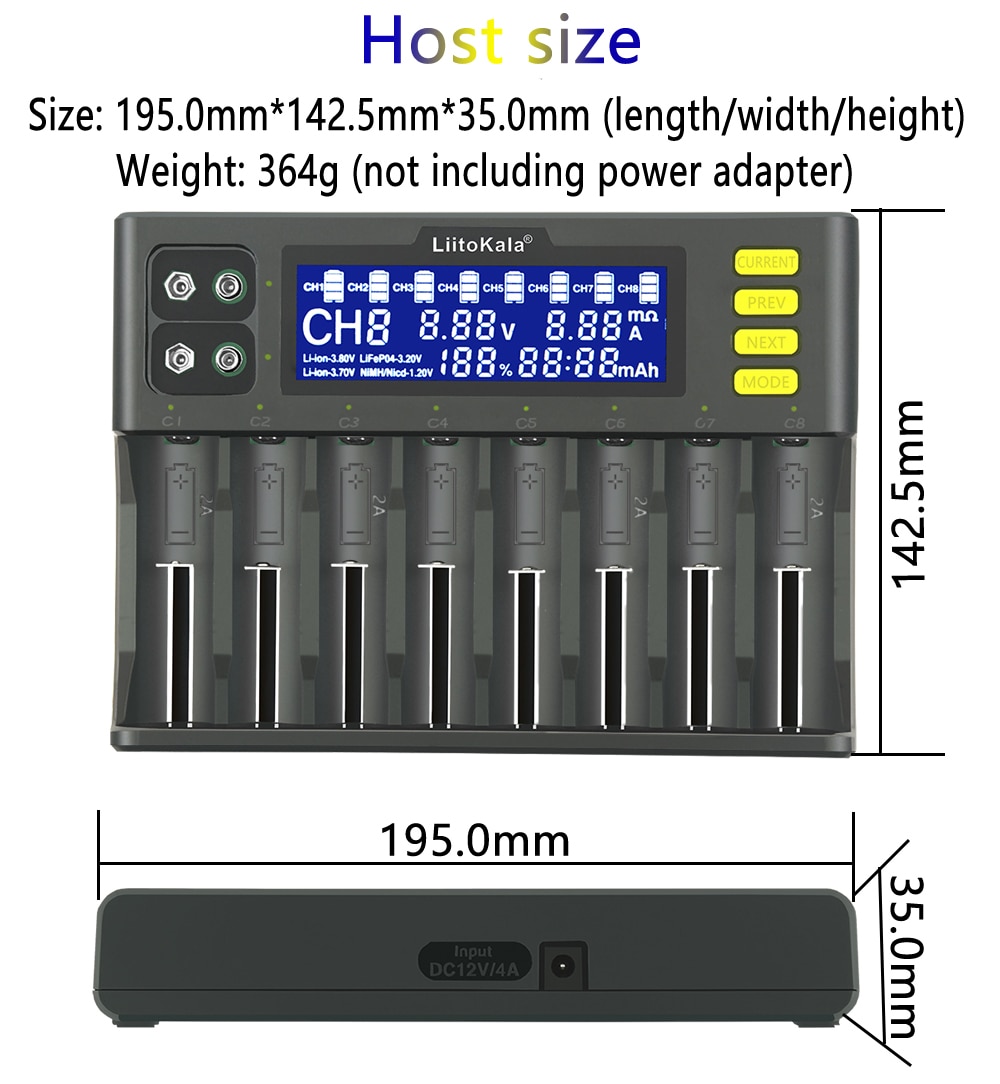

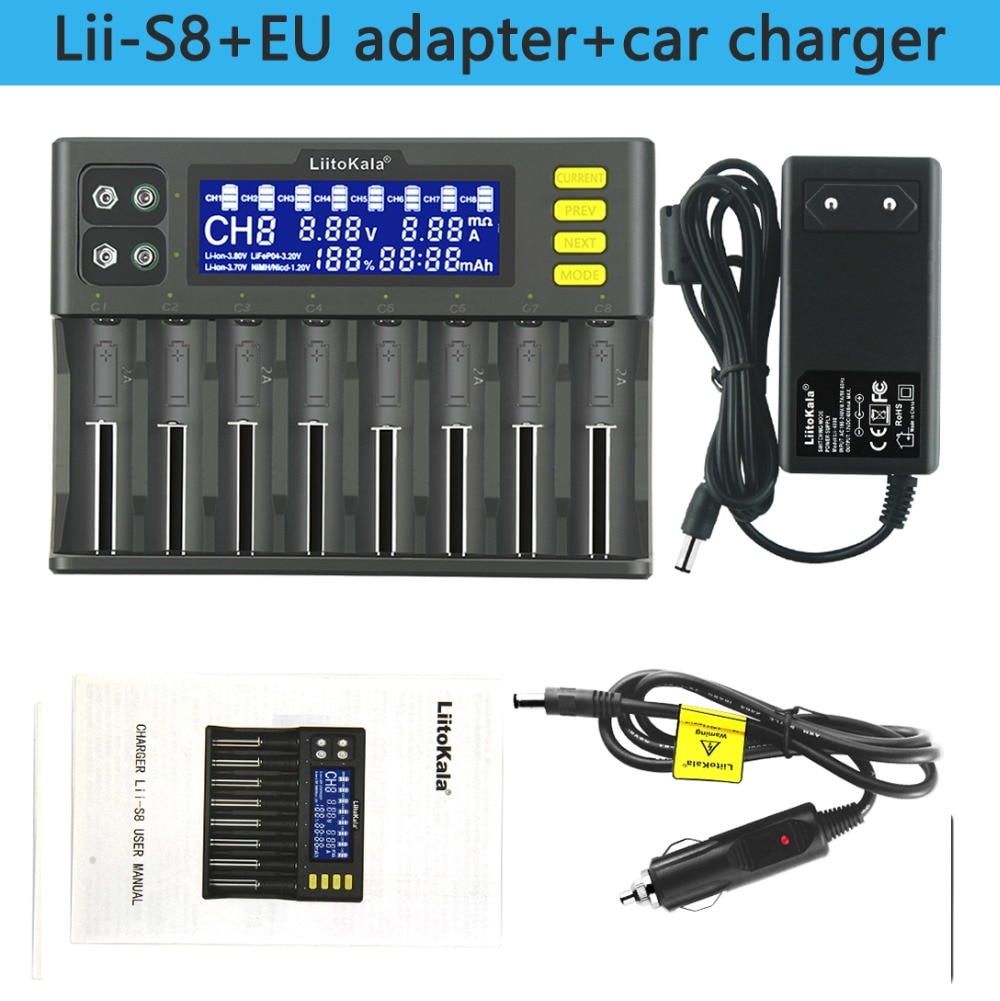

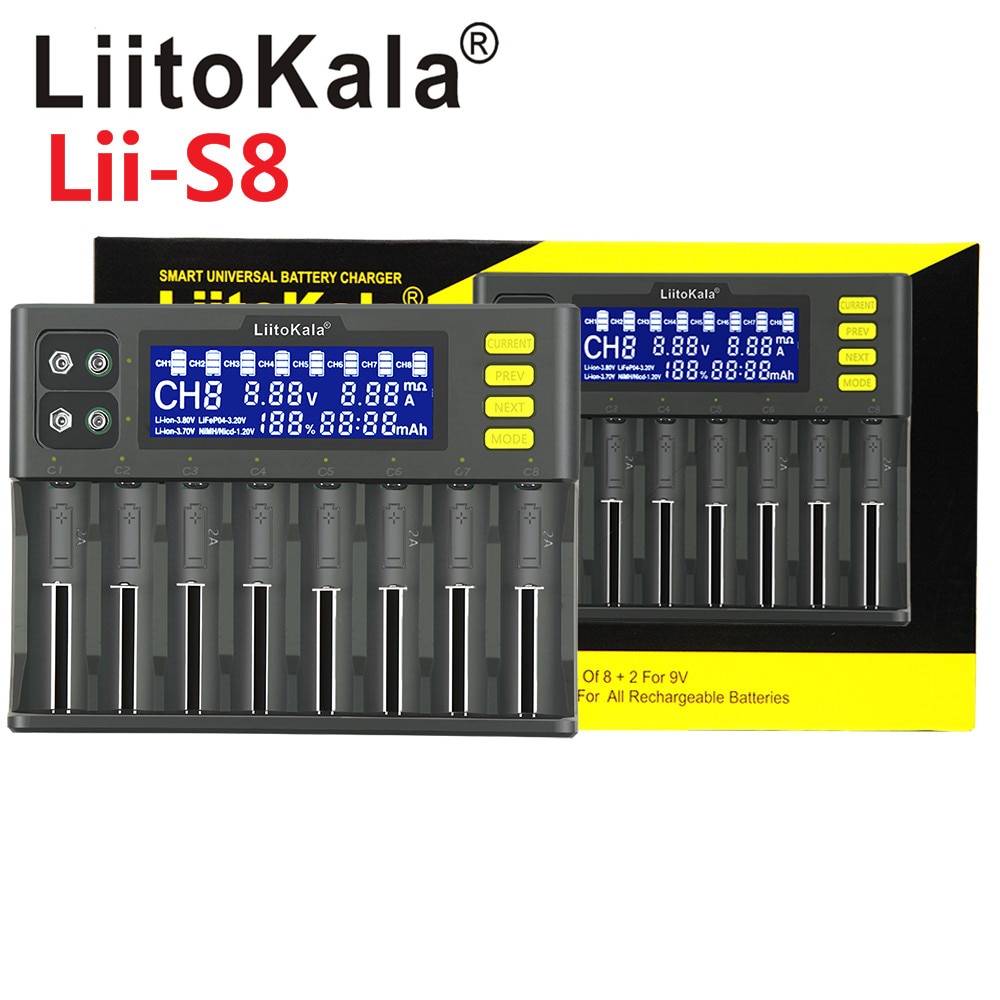

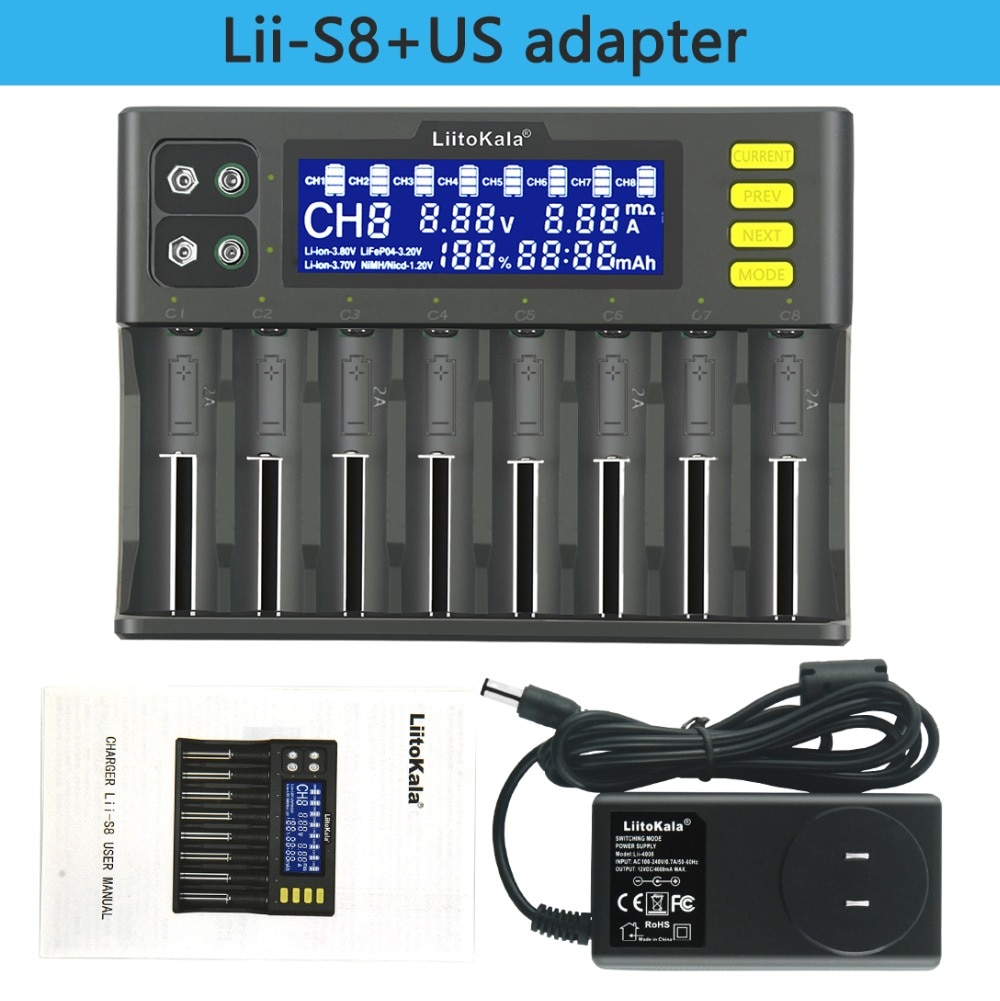

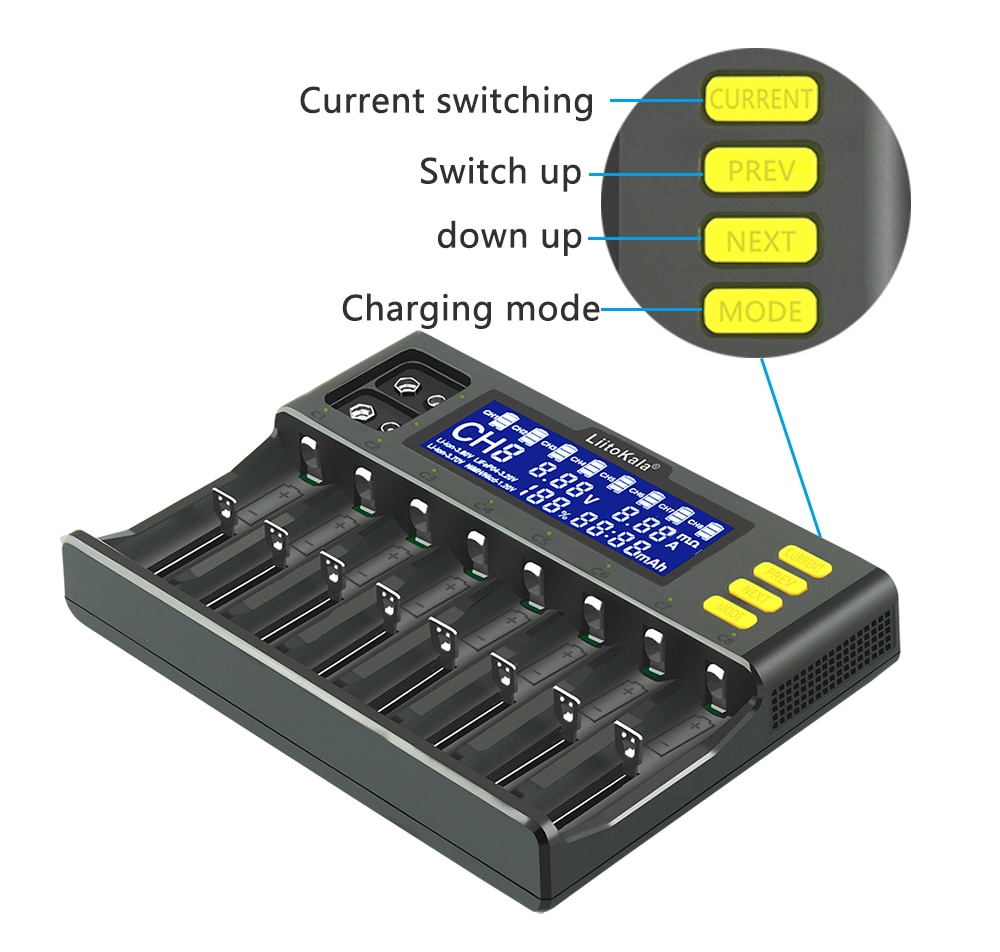

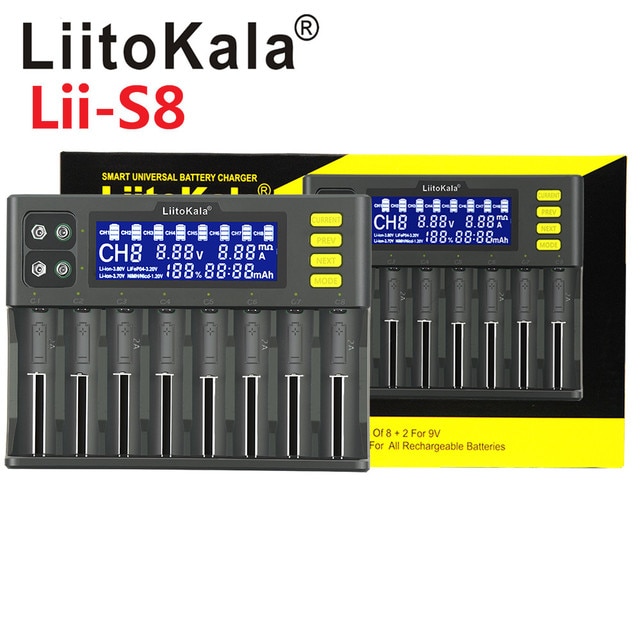

Specification for Charger LII-S8
I. Warning:
1. This charger can only charge cylindrical lithium ion battery (Li-Ion-3.70V /3.80V), lithium iron phosphate battery (LifePO4-3.20V), and ni-MH/NICd-1.20V; And the square 9V ni-MH-9V rechargeable battery;
2. Before use, please carefully refer to the manual, pay attention to the recommended charging current of the rechargeable battery, do not exceed the recommended charging current;
3. Choose to use the 12.0V DC adapter, and the supply current shall not be less than 4.0A (ampere);
4. The charger may get hot when charging, please put it out of the reach of children to charge;
5. When it stops using, please unplug the power and remove the battery;
6. It can only be used at room temperature.
7. The test data of this product is for reference only, please refer to professional instruments for the actual situation.
Ii. Charger Specifications and Functions:

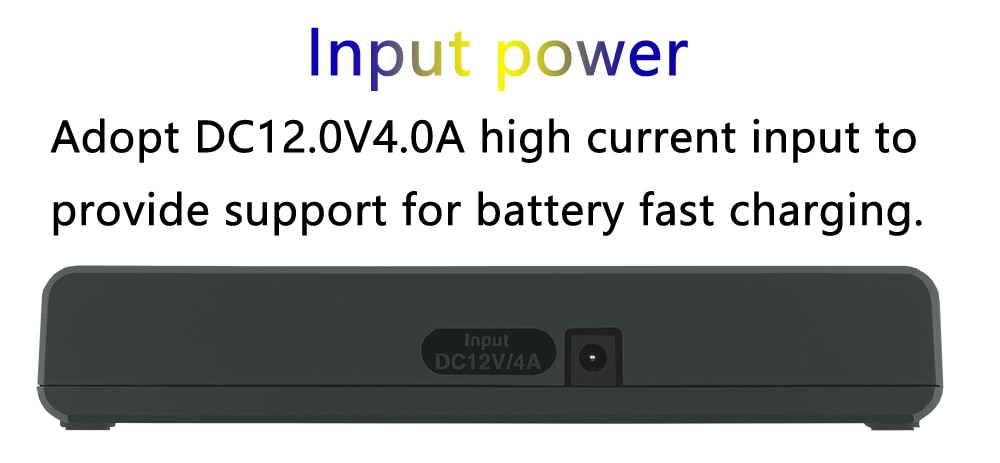

1. Dc12.0v 4.0A(minimum) input, intelligent charging and microcomputer management system for each tank;
2. The biggest highlight of this charger is that it can charge rapidly with multiple channels of 2 amps at the same time and 9V nickel metal hydride charging battery;
3. Charging current has five grades 0.30A/0.50A /0.70A /1.00A/2.00A;
4. Charging current:
4.1 lithium-ion batteries (3.70 V / 3.80 V) and lithium iron phosphate batteries (3.20 V) on electricity, according to buy battery internal resistance by detecting system automatic configuration CURRENT size, if you want to change the charging electric CURRENT size can be long press CURRENT, first to flash show short when CURRENT value according to the CURRENT key, you can select charging CURRENT (A/A / 0.50 0.30 0.70 2.00 1.00 A/A/A) (note: in the first 1/3/6/8 slot maximum charging CURRENT is 2.0 A, 1.0 A maximum in the first 2/4/5/7 slots). The charging current between the first and second slots, the third and fourth slots, the fifth and sixth slots, and the seventh and eighth slots will not exceed 2A in total, that is, when one slot is charged with 2A current, and then put the battery into the other slot, the 2A current will fall back to 1A current charging;
4.2Ni-MH/Ni-Cd battery (1.20V) charging current is fixed at 0.50A, and current cannot be selected;

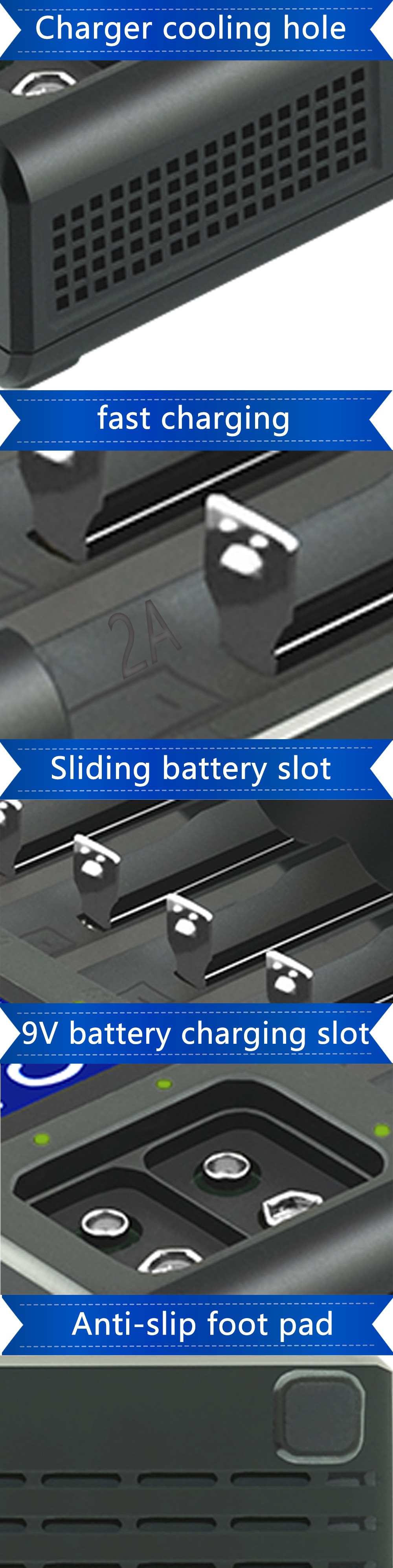

4.3 The nickel metal hydride (9.0V) rechargeable battery can be charged in a specific place, and two batteries can be charged at the same time. The charging current of each battery is about 85mA;
5. When charging, the LCD can display the battery symbol/CH and the groove groove tao battery type/charging current A/V battery voltage, charging time h/charging capacity mAh and percentage % / battery internal resistance m Ω data; When the battery is full, the data on the LCD will be saved and displayed at 100%. The battery symbol will not move when the battery is full. Each slot pair should have red and green indicator LED lights. The red light will be on when charging, the green light will be on when standby and stop charging, and the red light will flash warning when the battery or slot channel is abnormal (short circuit/reverse connection, etc.);
6. The system can automatically identify lithium battery 3.70V and nickel metal hydride/nickel cadmium (1.20V) batteries. Press MODE button to manually select lithium iron phosphate battery 3.20V and lithium iron 3.80V batteries (IMR).
7. With activation function of 0V voltage, 1.65-2.20V cannot be charged (but there will be activation current trickling charging);
8. It has multiple safety protection functions, such as overcharge, overdischarge, short circuit, reverse connection, etc. At the same time, it can automatically identify the bad battery intelligently;
9. Charging mode: constant current and constant voltage.
Iii. Button and Display:
1. The key:
1.1 Button MODE (charging MODE) : This button is the battery type selection key; Click MODE to select the types of rechargeable batteries (Li-Ion-3.70V, Li-Ion-3.80V and LifePO4-3.20V), but other types cannot be selected when ni-MH/NICd-1.20V are charged. During charging, long press the MODE key to re-select the type of rechargeable battery, but the previous charging data will not be saved.
1.2 Press NEXT (NEXT channel) : This button is 1 to 8 channel query key. Click this key once to display charging data from low channel to high channel (CH1CH8 direction); Long press this button to make the display screen in the state of constant light, long press again to remove the constant light;
1.3 PREV (previous channel) : This button is the 8 to 1 channel query key. Once clicked, the channel displays charging data from high channel to low channel (CH8CH1 direction); Long press this button to make the display screen in the state of constant light, long press again to remove the constant light;
1.4 CURRENT (CURRENT adjustment) : This button is the charging CURRENT selection button; The system will automatically configure the current according to the internal resistance of the battery. To change the charging CURRENT of a channel, click NEXT or PREV to display the channel, and then press CURRENT for a long time. When the CURRENT value is flashed, press CURRENT for a short time to change the charging CURRENT of the channel. To make the charging CURRENT of all the battery channels the same, long press CURRENT first and then short press to adjust the CURRENT when the battery type is still flashing. At this time, the CURRENT value of all the channels is the same.
2. LCD display and indicator light:
2.1 After the charger is connected to the power supply, the LCD display will display null for about 3 seconds. Meanwhile, the indicator light corresponding to the channel will first turn red, then turn green and then turn off. When null is displayed, the green light will always turn on; Standby; 9V charging channel indicator light is always on green for charging;
2.2 when testing A battery, LCD will display A battery symbol/CH and the groove groove tao cell types (Li - ion - 3.70 V, the Li - ion -, LiFePO4-3.20 V, 3.80 V Ni MH/Nicd - 1.20 - V)/charging current A/V battery voltage, charging time mAh and h/volume percentage % / battery internal resistance m Ω data, such as the selected type of rechargeable battery (for example, 3.20 V / 3.80 V or default) and charging current after stop operation, the battery type 7 flashes, about 9 seconds after formally to the battery to charge, At this time, the battery symbol cycle ladder rises, indicating that the charging is going on, and the corresponding channel indicator lights up red;
During charging, you can click NEXT or PREV to query the battery parameters of each slot. When the LCD is in the dark screen, click any key will light up the screen; Among them, long press NEXT or PREV key can make the LCD in the normal state; When the battery symbol is fully charged, it will be displayed at 100%. The charging parameters will be saved and the indicator light will always turn green.
2.3 When abnormal conditions (short circuit/reverse connection, etc.) are detected in the battery or channel, the screen will display CH, Err, all battery symbols and the battery symbol of the corresponding channel will flash full grid, and the corresponding indicator light will flash red for warning. When the 9V charging channel detects abnormal battery or channel (short circuit/reverse connection, etc.), there will be no change in the screen display, but the red light will always be on at the same time.
*LCD display reference figure:
Iv. Electrical technical Parameters:
1. Input power supply: DC 12.0V 4.0A
2. Output voltage: DC 4.20V for Li-ion
4.35 V DC for IMR
3.65 V DC for LiFePO4
1.48 V DC for the NiMH/Ni - CD
9.0 V DC for the NiMH
3. Output current:
Li-ion/IMR/LiFePO4:2.00A*4(1/3/6/8 channel only), 0.30A /0.50A/0.70A/1.00A*8
The NiMH/Nicd: 0.50 A * 8
NiMH-9V: 85mA*2
4. Constant current/constant voltage charging, cut-off current: 100mA;
5. No-load standby current: <50mA;
V. Types and models of compatible batteries
Li-ion/IMR/LiFePO4: 26650,21700,20700, 18650, 18490, 18350, 17670, 17500, 16340(RCR123), 14500, 10440
NiMH/Cd: AA, AAA, SC/C
Vi. Charger Size:
195.0mm× 142.5mm×35.0mm(Length/width/height)
Weight: G (excluding data cable)





  • Brand Name: liitokala
  • Origin: CN(Origin)
  • Display screen: No
  • Quick charge: Yes
  • Type: Electric
  • Intelligent Charge: Yes
  • Certification: CE
  • Certification: FCC
  • Certification: RoHS
  • Package: Yes
  • Use: Standard Battery

SHIPPING AND DELIVERY

We are proud to offer international shipping services that currently operate in over 200 countries and islands world wide. Nothing means more to us than bringing our customers great value and service. We will continue to grow to meet the needs of all our customers, delivering a service beyond all expectation anywhere in the world.

How do you ship packages?

Packages from our warehouse in China will be shipped by ePacket or EMS depending on the weight and size of the product. Packages shipped from our US warehouse are shipped through USPS.

Do you ship worldwide?

Yes. We provide free shipping to over 200 countries around the world. However, there are some location we are unable to ship to. If you happen to be located in one of those countries we will contact you.

What about customs?

We are not responsible for any custom fees once the items have shipped. By purchasing our products, you consent that one or more packages may be shipped to you and may get custom fees when they arrive to your country.

How long does shipping take?

Shipping time varies by location. These are our estimates:

Location *Estimated Shipping Time
United States 10-30 Business days
Canada, Europe 10-30 Business days
Australia, New Zealand 10-30 Business days
Central & South America 15-30 Business days
*This doesn’t include our 2-5 day processing time.

Do you provide tracking information?

Yes, you will receive an email once your order ships that contains your tracking information.

My tracking says “no information available at the moment”.

For some shipping companies, it takes 2-5 business days for the tracking information to update on the system.

Will my items be sent in one package?

For logistical reasons, items in the same purchase will sometimes be sent in separate packages, even if you've specified combined shipping.

If you have any other questions, please contact us and we will do our best to help you out.

REFUNDS & RETURNS POLICY

Order cancellation

All orders can be cancelled until they are shipped. If your order has been paid and you need to make a change or cancel an order, you must contact us within 12 hours. Once the packaging and shipping process has started, it can no longer be cancelled.

Refunds

Your satisfaction is our #1 priority. Therefore, if you’d like a refund you can request one no matter the reason.

If you did not receive the product within the guaranteed time(60 days not including 2-5 day processing) you can request a refund or a reshipment.

If you received the wrong item you can request a refund or a reshipment.

If you do not want the product you’ve receive you may request a refund but you must return the item at your expense and the item must be unused.

  • Your order did not arrive due to factors within your control (i.e. providing the wrong shipping address)
  • Your order did not arrive due to exceptional circumstances outside the control of CNTRONIC Consumer Electronics Retailer (i.e. not cleared by customs, delayed by a natural disaster).
  • Other exceptional circumstances outside the control of cntronic.com

*You can submit refund requests within 15 days after the guaranteed period for delivery (60 days) has expired. You can do it by sending a message on Contact Us page

If you are approved for a refund, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within 14 days.

Exchanges

If for any reason you would like to exchange your product, perhaps for a different size in clothing. You must contact us first and we will guide you through the steps.

Please do not send your purchase back to us unless we authorise you to do so.

LARGE ORDER DEALS

Wholesale

Thank you for your interest doing business with us!

If you would like to get a discounted price for your large purchase orders, fill in the required blanks along with your email address, the product Item ID # and/or the link of the item that you want to order, item quantity (minimum of 30 pieces), shipping country and payment method is required. We will contact you with a discounted price as soon as we receive your inquiry.

You may also like these products
