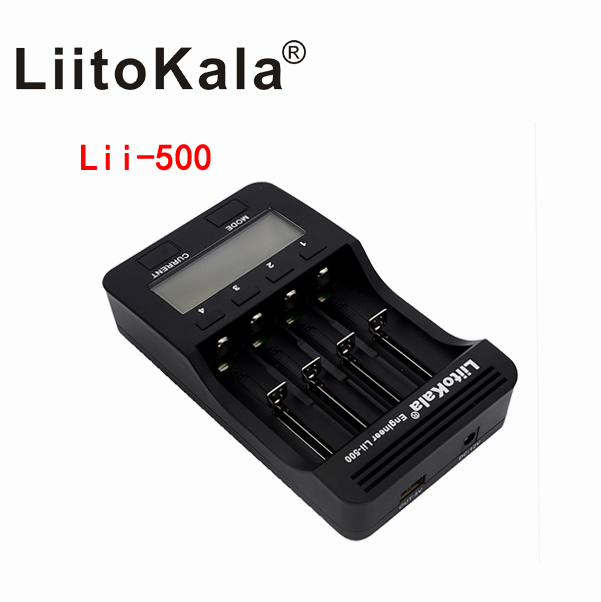

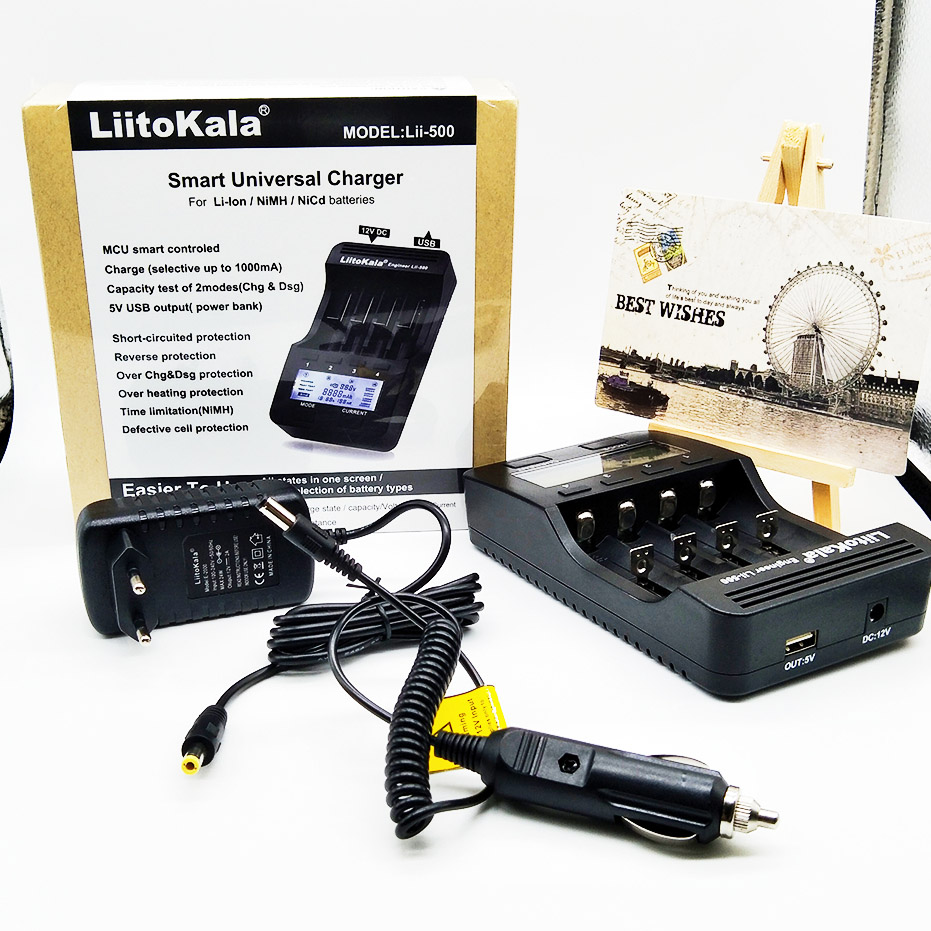

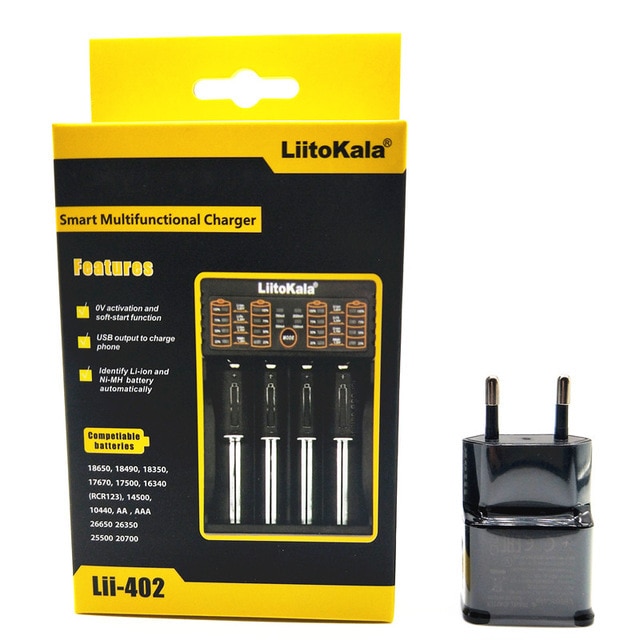

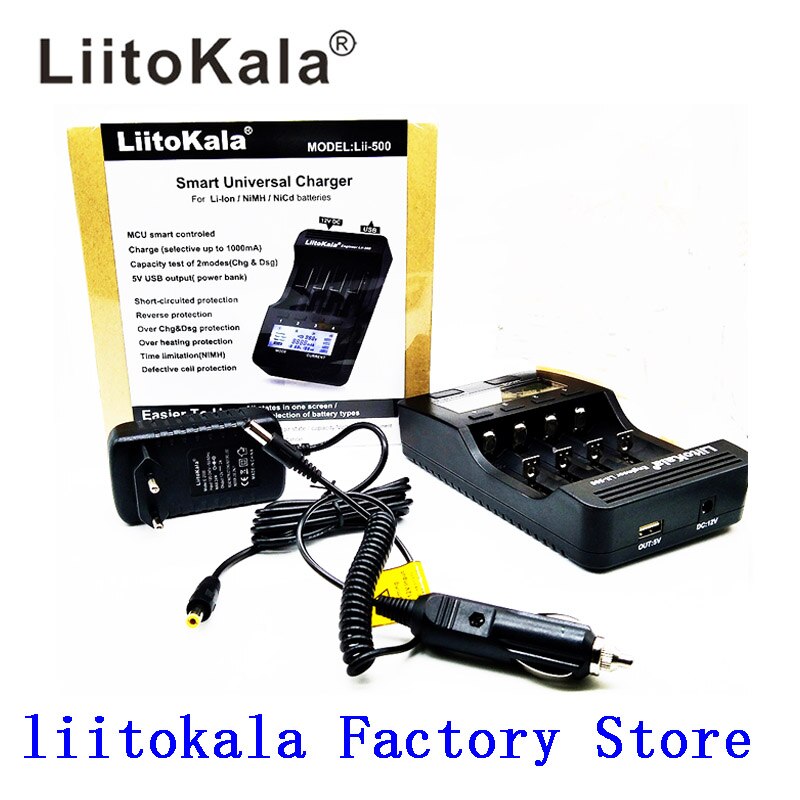

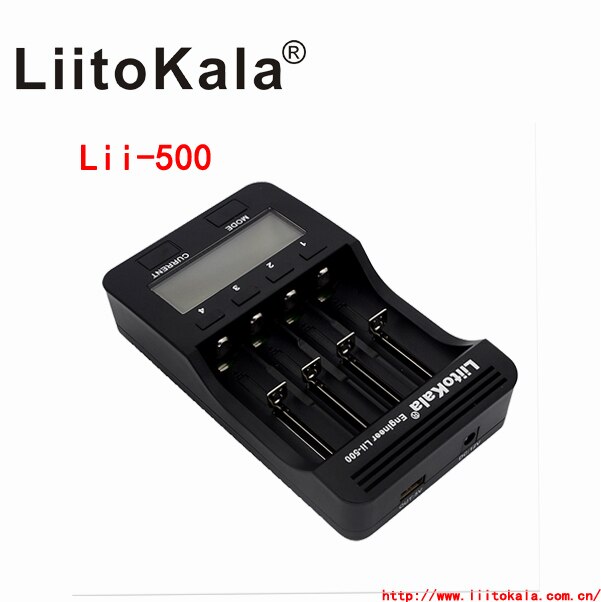

Liitokala lii-500 lii-202 lii-100 lii-402 battery charger 3.7V/1.2V 18650/26650/16340/18500 Battery Charger with screen lii500

1. DC Input voltage: 12V / 2.0A
2. LI-ION battery charging current: 4.2 V 300mA / 500mA / 700mA / 1000mA
3. NiMH battery charging current: 1.48 At 300mA / 500mA / 700mA / 1000mA
4. Rechargeable Battery Specifications: 18650.26650, 14500, AA, AAA, and others.
5. Discharge Current: 250mA, 500mA
6. USB Output: 5V --- 1000mA
7. Termination: Intelligent voltage monitoring
8. Size: 162 mm (length) * 96 mm (width) * 36 mm (height).

Characteristics:

1.4 kinds of charging current regulator (mA / 500mA / 700mA / 1000mA);
2.Various specifications (18650/26650 ...... / AA / AAA) into the battery charger;
3.The charger eliminates the use of a separate LCD screen, Voltage (V) Current (MA) time (H) Capacity (mAh) Resistance (MR) Options, E ... view;
4.Under the charge mode, 4 channel work independently, you can select different charging current for charging and hunchong lithium-ion batteries and nickel-metal hydride battery.
5.Under the Quick Test mode, 4 channels can quickly detect battery capacity, regardless of the lithium-ion batteries and nickel-hydrogen batteries, work independently. Rapid detection process of the battery capacity (1 category, 2 full) two steps
6.Neither the test mode, battery capacity is usually found three step process of (1 first charged, then discharged 2 and 3 refill), battery capacity detection process;
7.Charging and fast test / no test 3 modes can operate simultaneously; Independent set charge / fast detection capability / Normal capacity of detection;
8.Various protection functions: Overload and over discharge, short circuit, temperature, voltage of 0V function is activated, (& Delta; V and 0 & Delta; V), 1.65 B 2.2 B can not be charged, Intelligent recognition bad battery and reverse-battery detection protection.
9.With standard 5V / 1000mA USB output: 1 to 4 lithium batteries Lithium batteries USB output is completed, the product can not be nickel-metal hydride battery with USB output.

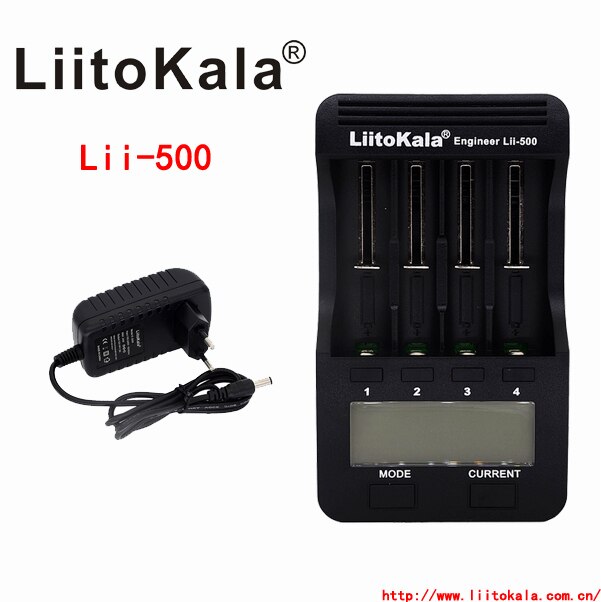

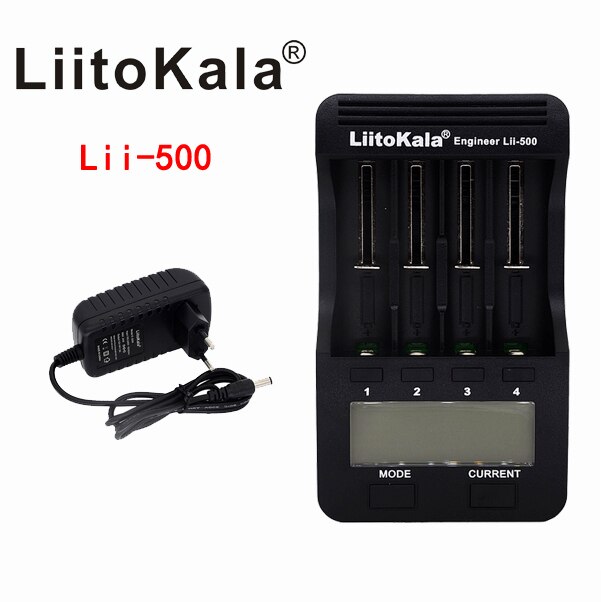

10.With special power adapter: DC Input voltage: 12V / 2A.

Description of keys:
1.The charger has six buttons, key mode (mode), the current selection key (NAP), and view the data independently selected key (1234), the use of simple and convenient;
2.Hold down the Mode key in any case, and for 3 seconds to change the fee (Free) mode or quick test No test (capacity test) mode, then press again the corresponding function keys can be changed within 8 seconds, Current, Independent , Hunchong, capacity test, the selected function after 8 seconds in a working condition, in working condition can press (1234) To view the current (MA) / Capacity (mAh) / Voltage (V) / Time (H) / Resistance (MR) data reference.

Mode Description:
(Charge mode)
1.When power is on the charger, battery charger all instant full brightness LCD screen when the battery is not placed in the display Null, if it is a bad battery will also be displayed in the Null;
2.Insert the battery charger, battery charger for three seconds or so to measure the internal resistance of the battery, after which the system automatically switches to charging mode (FREE), charger will automatically default charging current "500mA, in 8 seconds for the current selection Key (NAP) Select 300mA, 500mA, 700mA, 1000mA charging current lock system that you select will be charged in eight seconds if within 8 seconds, do not set, then the system will automatically default charging current 500MA, current and other functions in this time will not be changed if you want to change, change the mode of election of the Press;
3.In the charging mode (FREE) Within 8 seconds to change any of independent charging or other current selection, as well as various battery hunchong. Make a simple, 8 seconds, press the corresponding button battery 1234 Press the MODE button to change the mode, press the key to changing the current Independent, Hunchong, detection capacity, chosen after 8 seconds in the operation, attention to choose the size according to the current battery capacity charge, if not faster charging we recommend charging 500MA, This is the safest;
4.Charging Mode by pressing the keys, you can switch to view the 1234 power charge (mAh) / charging time (H) / internal resistance of the battery (MR) / charging current (MA), Voltage (V) 5 kinds of units, the battery is fully charged after the show (End of charge);
The capacity of the detection mode (Quick Test or Test) two types
(A) Quick test (rapid capacity test mode)
1.When the power is turned back into the charger, 8 seconds Touch (Key Mode Mode) Select (quick test quick capacity test mode), then press (current selection key CURREN) Select System 8 seconds after locking your choice to work. Quick Reference Table Capacity test procedure
Quick test - enter selected discharge current battery recharge -
The first battery is low, then the battery is fully charged the batteries, to detect and record the capacity of the battery.
Please note that this product is the power test mode, discharge mode is divided into two types, When you select the charge current (300mA, 500mA), The system will automatically default discharge current of 250mA, When you select the charge current (700mA, 1000mA), The system automatically default discharge current 500mA,
(B) or test (Normal capacity detection mode)
1.No test mode: The first battery is fully charged and then discharge the battery discharge capacities to detect and record the capacity of the battery after the battery is fully automated; The ability to detect a process with reference TABLE II
No test enter selected current battery recharge and discharge -
2. When the power is turned back into the charger, 8 seconds Touch (Key Mode Mode) No test mode is selected, in any mode, press the mode button for 2 seconds, you can enter any test mode;
3.After you enter any test mode, you can select the key (NAP) Select 300mA, 500mA, 700mA for 8 seconds, or 1000 mA current, the current system is locked after selecting 8 seconds if the 8 second, do not make a set, the system will automatically lock mA charge current (When current default charging current is automatically selected when the discharge current of 250 mA discharge), in which for 8 seconds Select 700mA or 1000mA charge current will automatically select the discharge current of 500mA discharge.
4.When the battery is fully charged, the system will automatically discharge, discharge current, the system default (relationships Select the charging current), and writing data to detect the discharge capacity of the battery, when is displayed, Capacity test mode, this setting LCD display the actual battery capacity reference value.
5.Capacity Test Mode finished, the charger will be selected by the current settings again before charging the battery to full.
Five, USB 5 V output

función de salida USB: construido con 5 V/1000 mAh de salida
tamaño Flexible: de una sola ranura de carga y sistema de gestión, Micro puerto USB DC 5 V de entrada, portátil para llevar a todas partes
500 mAh, 1000 mAhcorriente de carga para la selección
CC/CV carga modose aplica a la batería para mantener un flujo de corriente constante y proteger la batería y la seguridad de los usuarios
indicadores LEDmostrar el estado de carga de 25pct 50pct-75pct-100pct
cuando usted carga LiFePO4 o 3.85 V de la batería, debe fijar el modo de carga: Identifica 1.2 V Ni-MH/3.7 V Li-ion batería de forma automática yseleccione manualmente para 3.85 V batería de Li-ion y la batería LiFePO4
función de actualización para0 V batería
protecciones:el exceso de carga, sobre-descarga, inversión de polaridad, la protección de cortocircuito
identificarmuerto o malbaterías
parámetros:
constante de carga con corte de corriente de menos de 100 mAh
tensión de salida: 1000 mAh y el voltaje de salida es de 4.75-5.25 V
voltaje de cortede salida: 3.0 +/-0.1 V
corriente espera: No más de 15 mAh
corriente de salida:500 mAh/1000 mAh

precauciones:
1. no Se Puede cargar la batería de tipo de 1.6-2.2 V
2. Las Baterías no se incluyen

& #8203;

lista de embalaje:

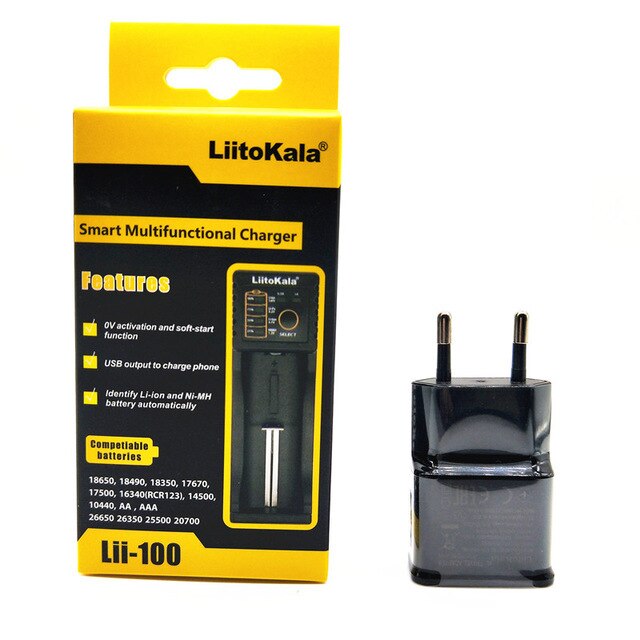

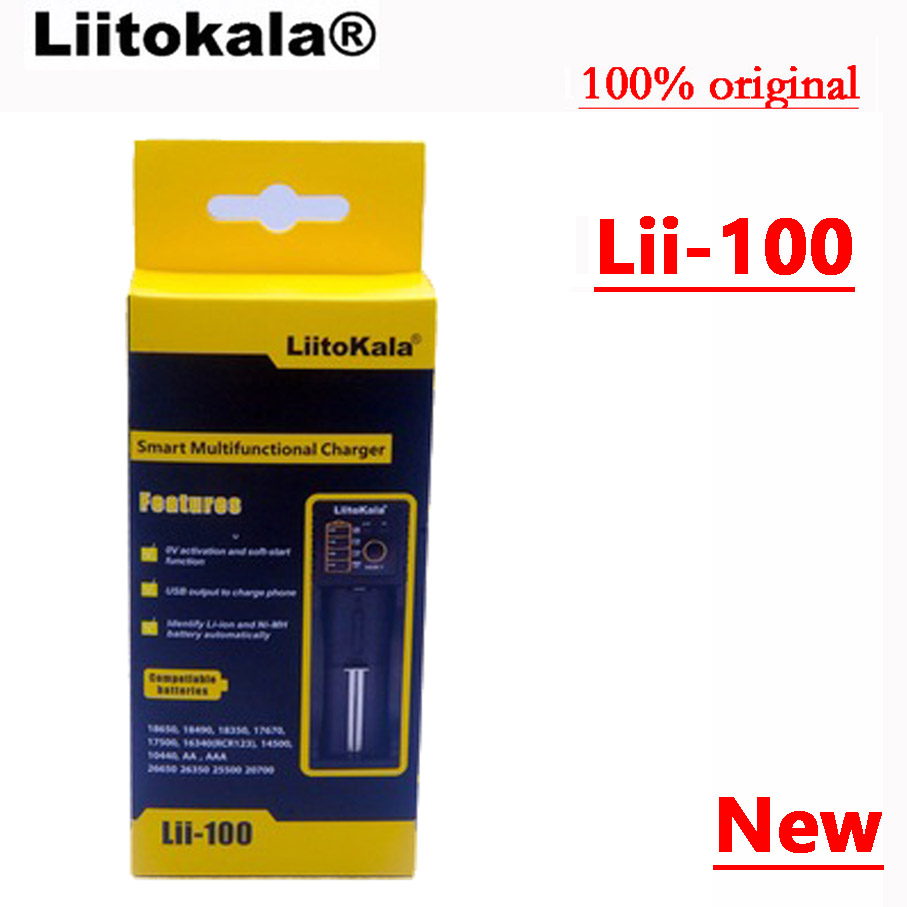

1 * cargador Liitokala Lii-100 (sin incluir la batería)

1 * USB canble

& #8203;1 * Manual

1 * número de seguimiento.

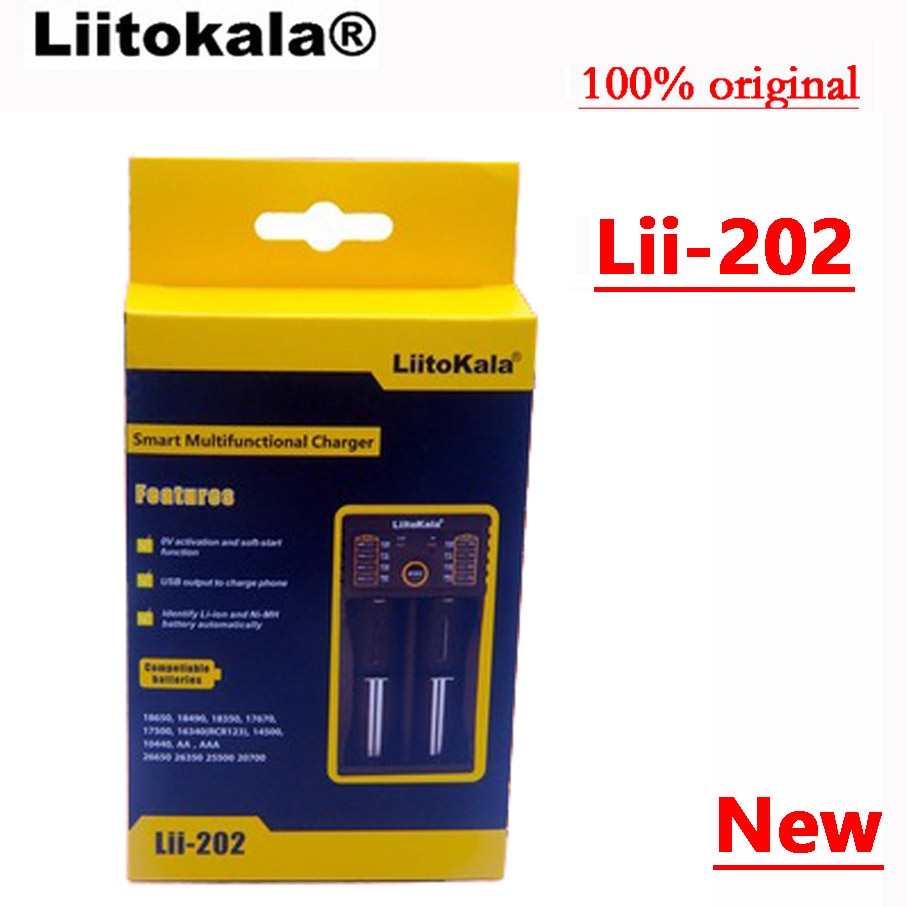

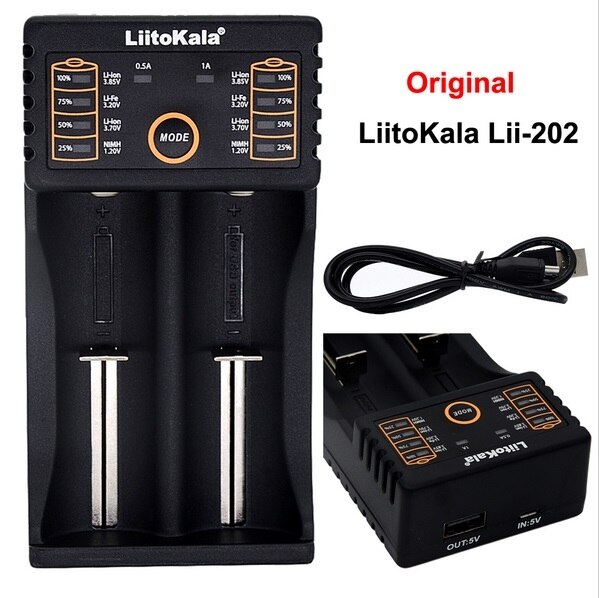

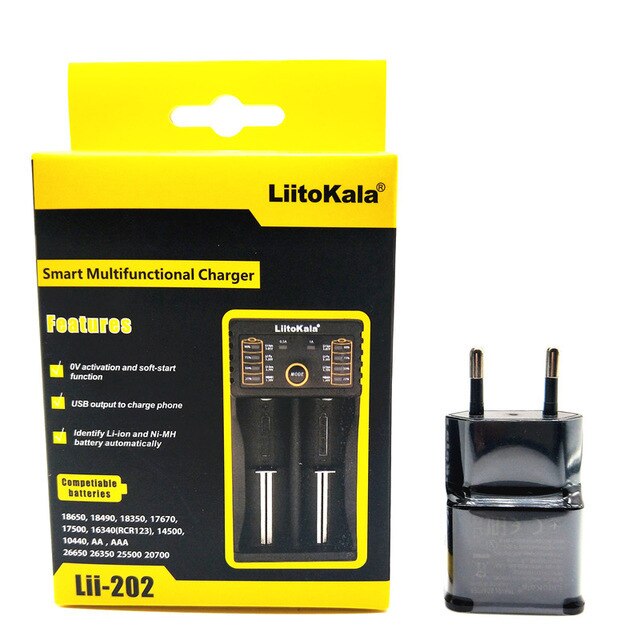

LiitoKala Lii-202es un cargador universal inteligente que es capaz de cargar casi todos Li-ion, Ni-MH, las baterías de NiCd. es capaz de detectar el tipo de batería y cargue la batería corriente de carga automáticamente en virtud de su seleccionado. el Lii-202 cuenta con un Micro USB puerto de entrada y un puerto de salida USB en general. con los indicadores LED, usted puede leer el proceso de carga con claridad. el circuito de protección incorporado le permite cargar sus baterías sin tener en cuenta los problemas de seguridad. diseñado para portátiles, flexible y de múltiples funciones, el LiitoKala Lii-202 es su asistente inteligente cuando usted está en casa o de viaje.

Características principales:
2 canales independientes de carga con una función de micro-sistema informático de gestión para garantizar la alta eficiencia
entrada Micro USB, puerto de salida USB de 5 V 1A para cargar sus teléfonos móviles
dos opciones de corriente de carga: 0.5A, 1A
modos de carga: corriente constante y tensión
indicadores LED muestran el proceso de carga y el tipo de batería
detecta el tipo de batería y cargue la batería corriente de carga automáticamente en virtud de su seleccionado
identifica baterías rotas, 0 V batería recargable de activación, no cargue 1.65-1.85 V baterías
incorporado un circuito de protección, con la protección del cargo excesivo, protección de sobre-descarga y cortocircuito

parámetros:
Compatible con:
Li-ion:10440, 14500, 16340, 17355, 17500, 17670, 18490, 18650, 22650, 26500, 26650
Ni-MH y las baterías de NiCd:A, AA, AAA, SC
voltaje de entrada:DC 5 V
corriente de entrada:2A
tensión de salida:4.35 V/4.20 V/3.65 V/1.48 V
corriente de salida:0.5A/1A
salida USB:5 V, 1A

lista de embalaje:

1 * cargador LiitoKala Lii-202 (sin incluir la batería)

1 * cable USB

& #8203;1 * Manual

1 * número de seguimiento.
