LDROBOT D500 lidar kit TOF laser Radar Lidar Scanner 360° 30000Lux support ROS1 ROS2 for Indoor and outdoor replace D300 kit
4.9 (10 votes) | 86 orders
Price:
US $203.21
Discount Price:
US $
152.35
-25%
Kind reminder: For customers in Russia, it is better to choose the warehouse in Russia (express) for delivery, so that you can receive the goods within 3 days at the soonest.

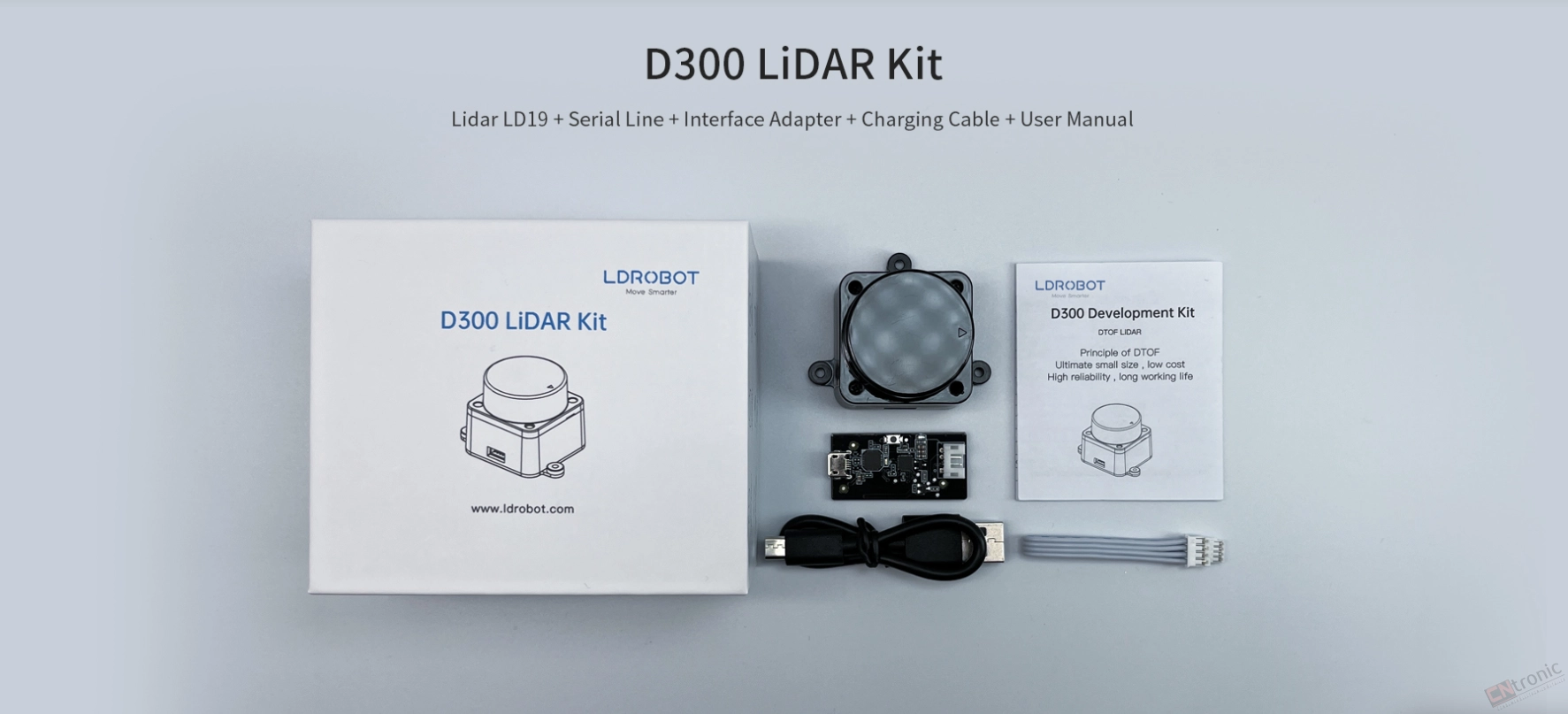

The D300 kit is the same LIDAR product as the LD19.

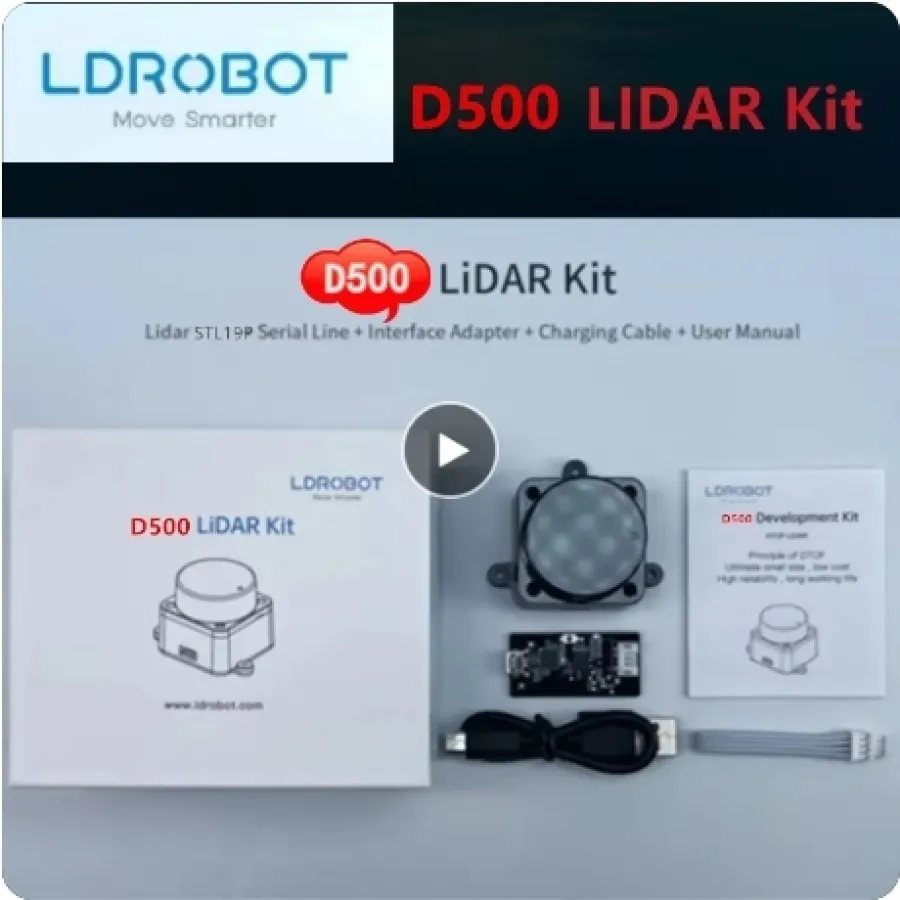

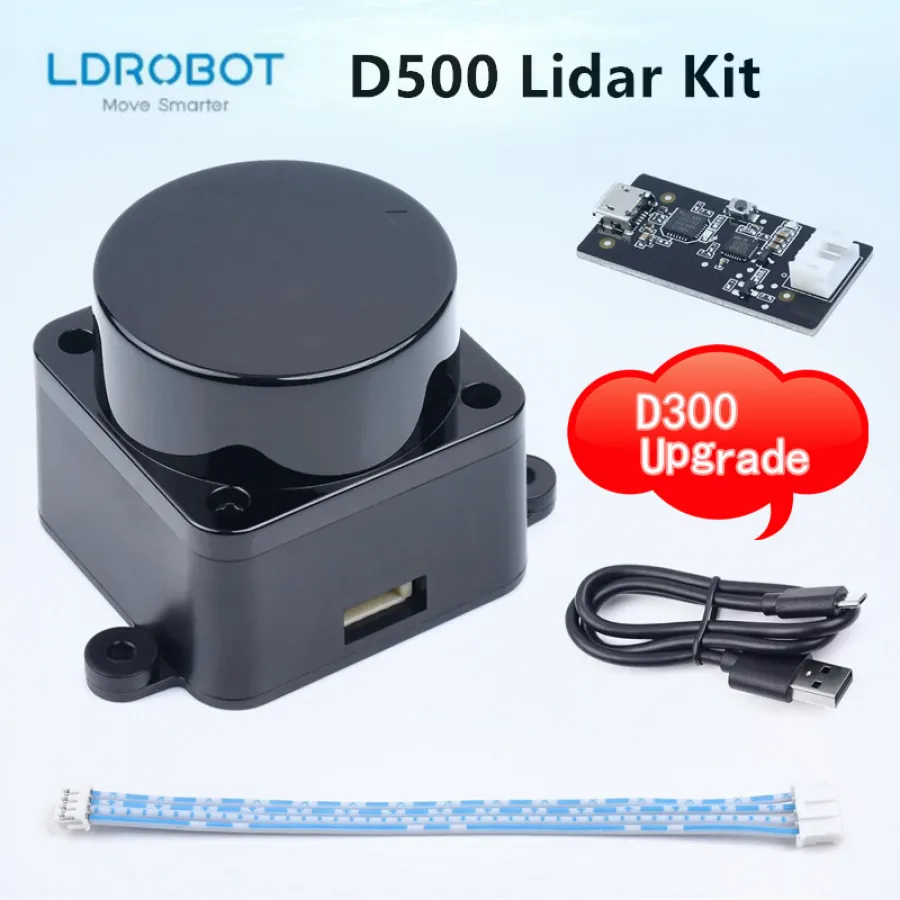

The D500 kit is an upgraded version of the D300 kit, with the same appearance and size, but better performance.
The D500 kit can completely replace the D300 kit and LD19
So if you need to purchase LD19 or D300 kit, just buy D500 kit.
Note: COIN-D4A and D500 come from different factories, so their user manuals and software are different. If you need a user manual and software, please contact the seller.

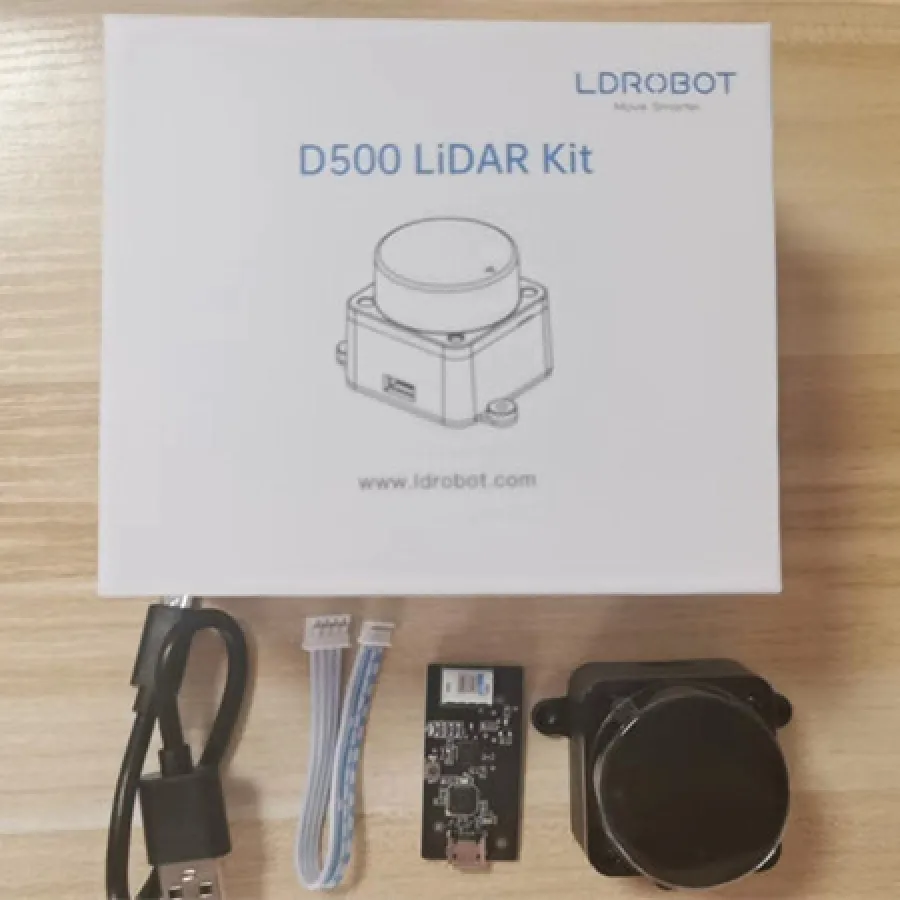

D500 Developer Kit, DTOF Laser Ranging Sensor, 360° Omni-Directional Lidar, UART Bus

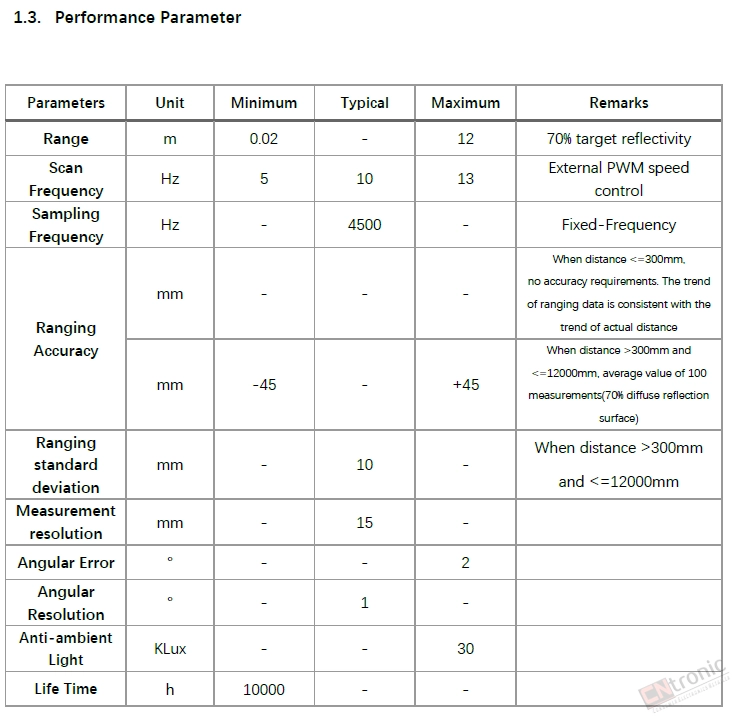

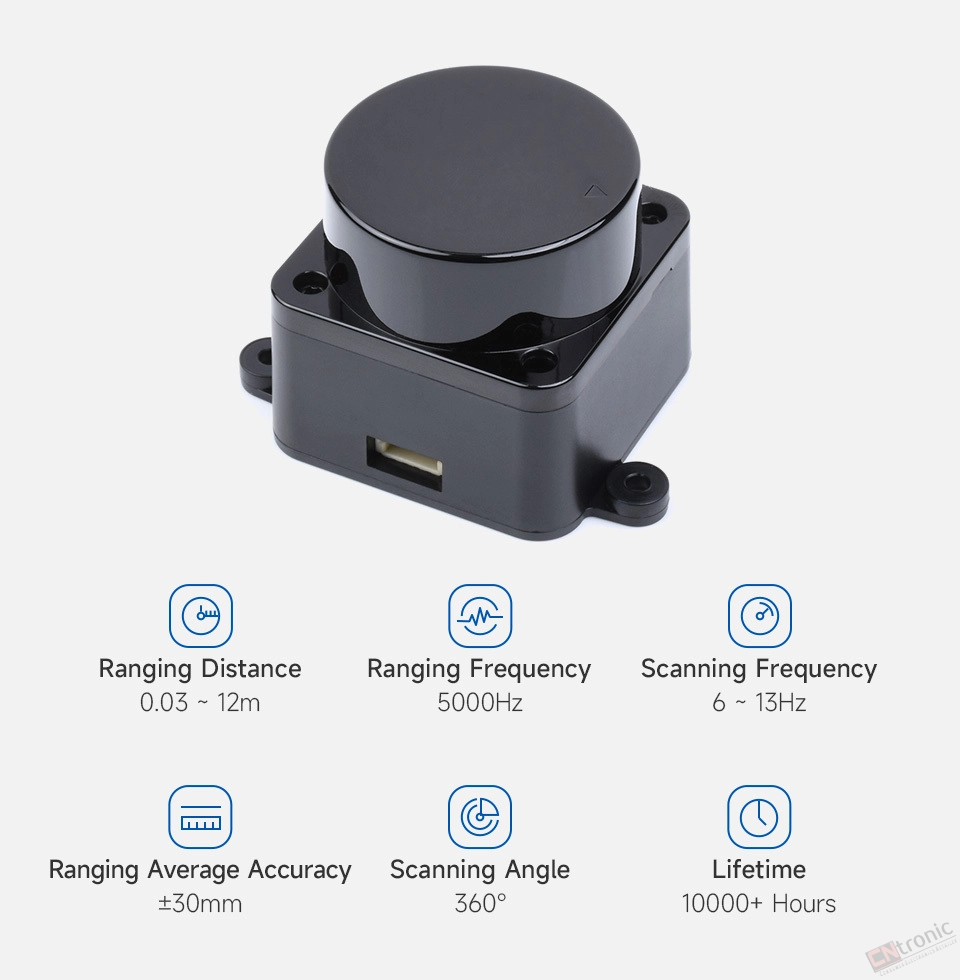

Specifications
RANGING DISTANCE | 0.03 ~ 12.00m |
RANGING AVERAGE ACCURACY | ±10 mm (within 0.3 ~ 0.5m) |
SCANNING FREQUENCY | 6 ~ 13Hz (Typ 10Hz) |
SCANNING ANGLE | 360° |
RANGING FREQUENCY | 5000Hz |
WAVELENGTH | 895 ~ 915 nm (Typ 905) |
COMMUNICATION INTERFACE | UART @230400 |
AMBIENT LIGHT TOLERANCE | 60KLux |
POWER SUPPLY | 5V |
POWER CONSUMPTION | 1.45W |
OPERATING CURRENT | 290mA |
WEIGHT | 45g |
OPERATING TEMPERATURE | -10 ~ 45°C |
LIFETIME | 10000+ hours |

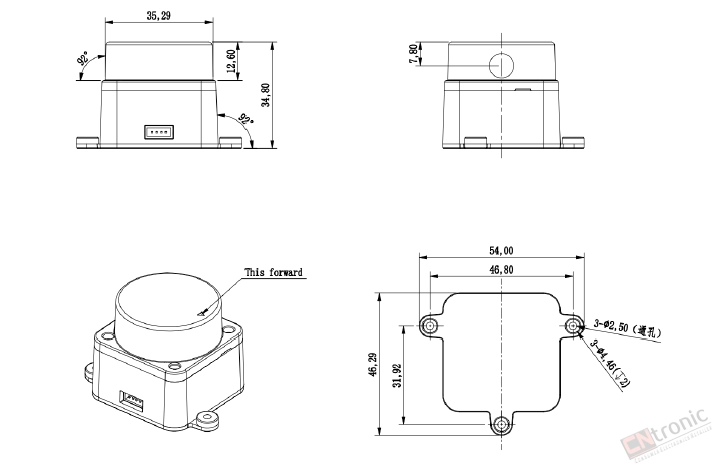

DIMENSIONS | 54.00 × 46.29 × 35.00mm |
Note:
LD19 is the upgraded version of LD06, LD19 than LD06 more than a bottom mounting plate.
For more information and support, please contact the seller.

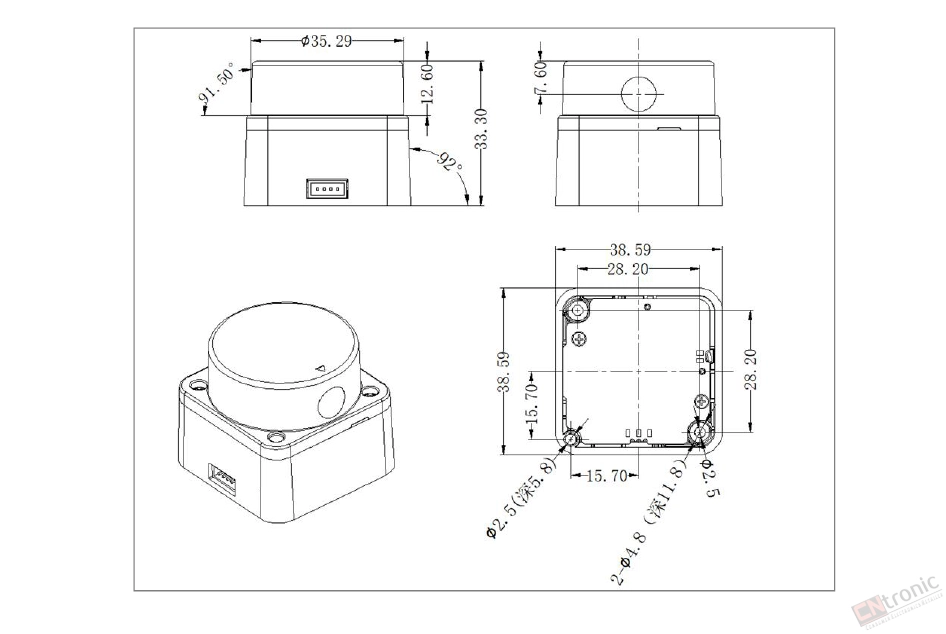

LD06 Size
LD19 Size
Download more information：
1. LDROBOT Sensor Team Repository
GitHub：https://github.com/ldrobotSensorTeam
Gitee: https://gitee.com/ldrobotSensorTeam
2. LiDAR LD06，LD19 and D300 SDK Software Package
Linux SDK ：
https://github.com/ldrobotSensorTeam/ldlidar_stl_sdk
https://gitee.com/ldrobotSensorTeam/ldlidar_stl_sdk
ROS Package ：
https://github.com/ldrobotSensorTeam/ldlidar_stl_ros
https://gitee.com/ldrobotSensorTeam/ldlidar_stl_ros
ROS2 Package ：
https://github.com/ldrobotSensorTeam/ldlidar_stl_ros2
https://gitee.com/ldrobotSensorTeam/ldlidar_stl_ros2
3. LiDAR LD14 SDK Software Package
Linux SDK ：
https://github.com/ldrobotSensorTeam/ldlidar_sl_sdk
4. LiDAR 3D Model File Resources
LD14/LD19
https://github.com/ldrobotSensorTeam/Product_3D_model/releases
5. Windows assessment host computer resources
https://github.com/ldrobotSensorTeam/ld_desktop_tool/releases
6. Development Manual Resources
LD06/LD19 /D300
https://github.com/ldrobotSensorTeam/ldlidar_stl_ros/releases
7. Raspberry Pi application custom image usage tutorial resources
LD06/LD19 /D300
https://github.com/ldrobotSensorTeam/ldlidar_stl_ros/wiki

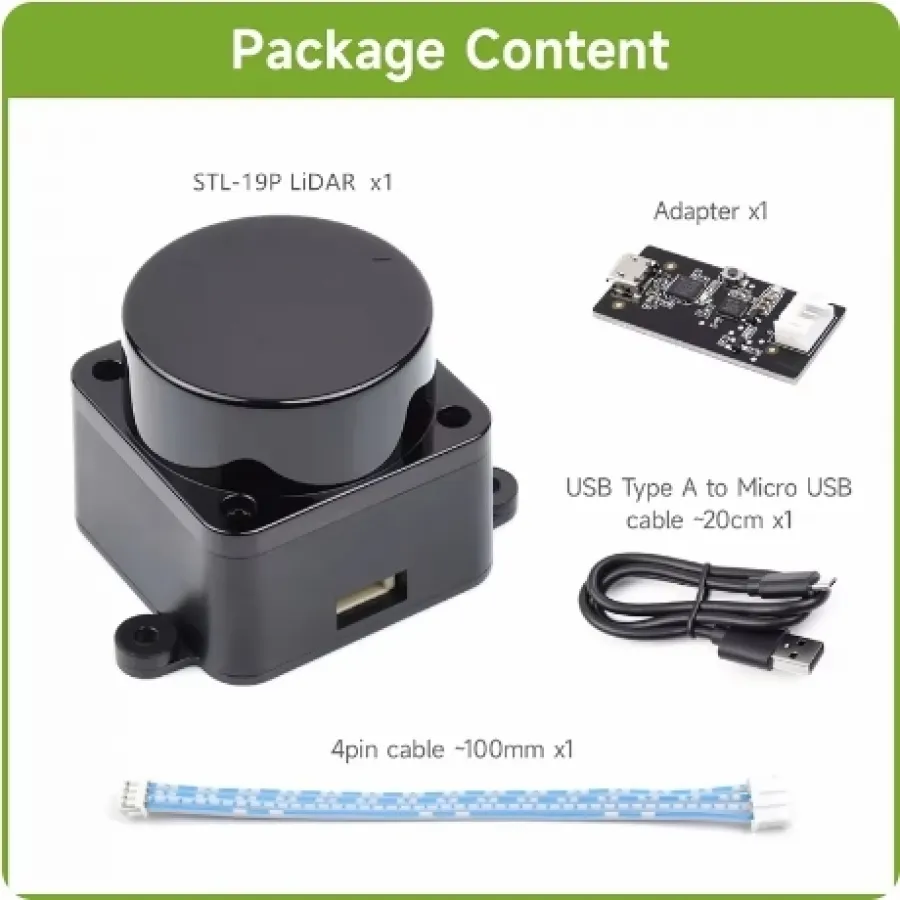

Packaging Details
- Unit Type:
- Package Weight: 0.200
- Package Size: 10x15x10
- Brand Name: FDROBOT
- Power Source: Other
- Origin: Mainland China
- Communication method: other
- Hign-concerned Chemical: None
- Inbox adaptor: No
- Compatibility: Android
- Certification: CE
- Certification: RoHS
- Model Number: LD06 / LD19 / D300 / D500
