KeepLink 9-Port Multi-Gigabit Managed Switch with 8-2.5Gbps PoE and 1-10Gb SFP+ Uplink

4.9 (49 votes) | 500 orders
Price: US $287.77
Discount Price:
US $ 119.82
-58%
Color
Quantity

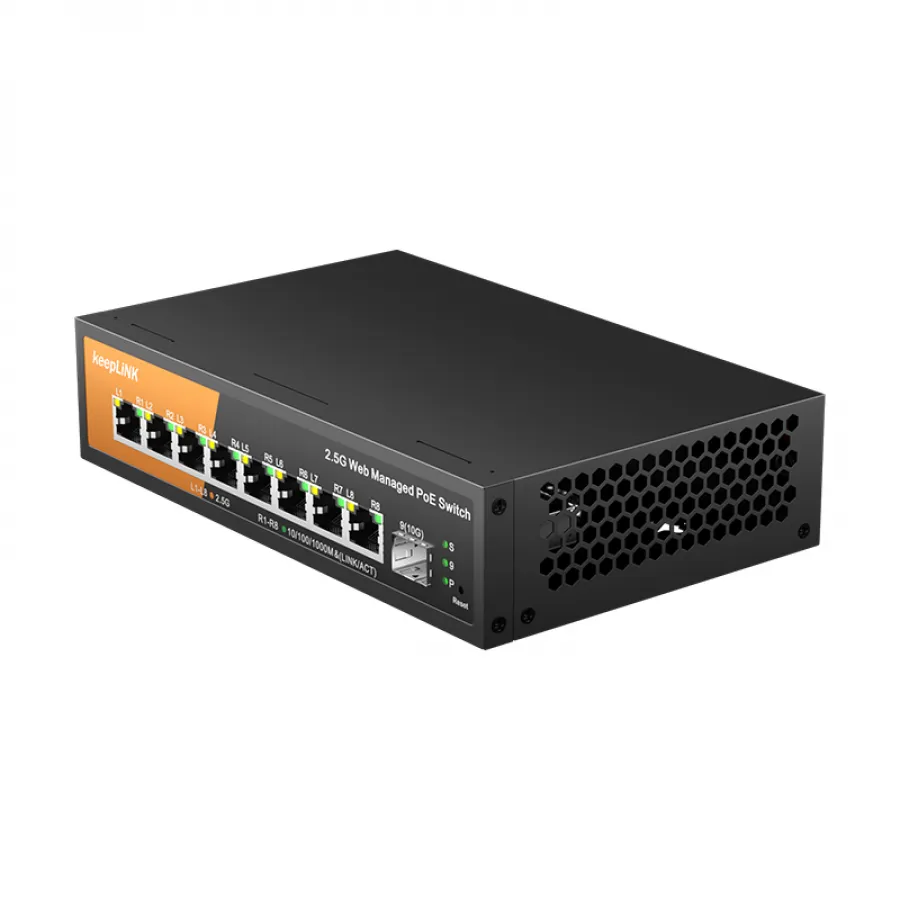

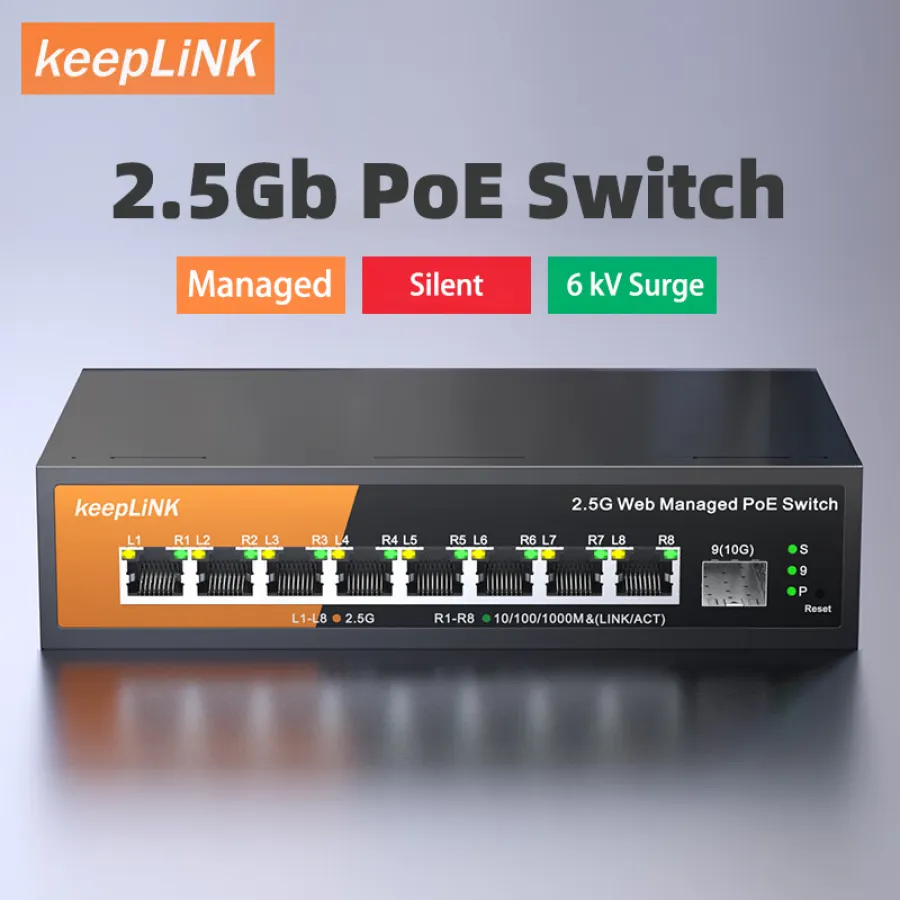

Product Overview

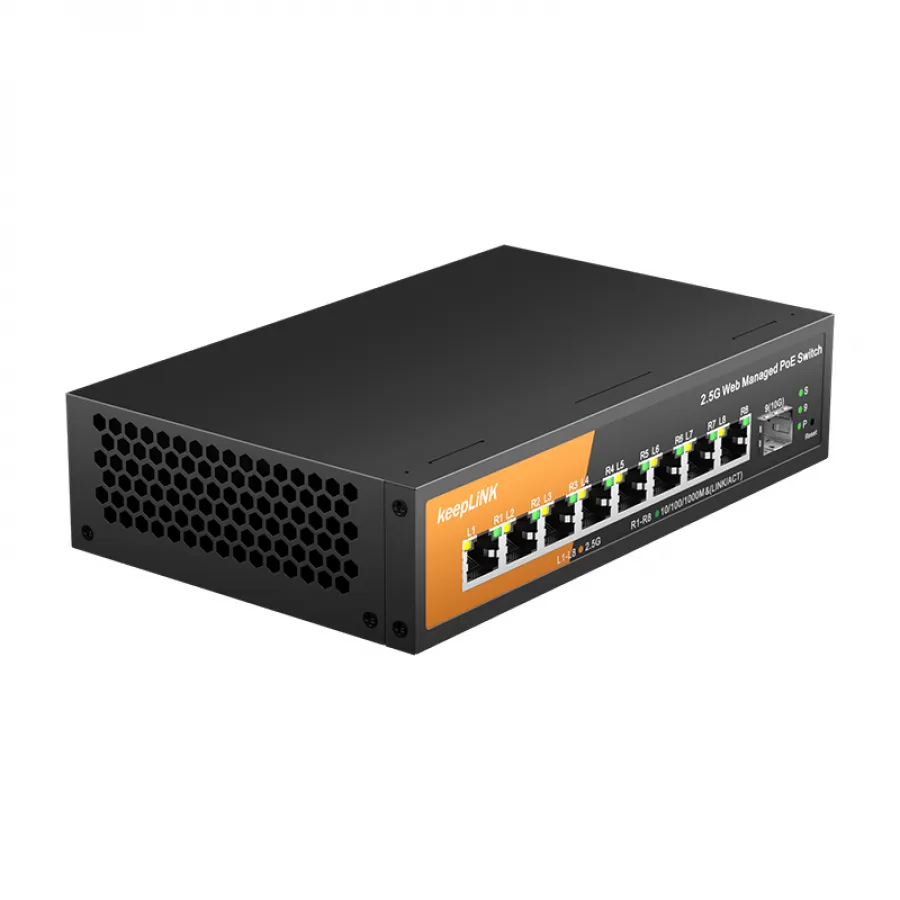

The KeepLink 9-port Multi-Gigabit web-managed PoE Switch, KP-9000-9XHPML-X, offers powerful L2 Lite features, better PoE functionality, and enhanced performance and usability, helps businesses cost effectively expand their networks with multi-gig speeds. The KP-9000-9XHPML-X Multi-Gigabit Ethernet switch comes with eight (8) 2.5G ports and one (1) 10G SFP+ port in a metal case and can be placed on a desk or mounted on a wall with the included wall-mount kit. This switch is energy efficient, built to last, and rigorously tested to provide the reliability businesses need. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.

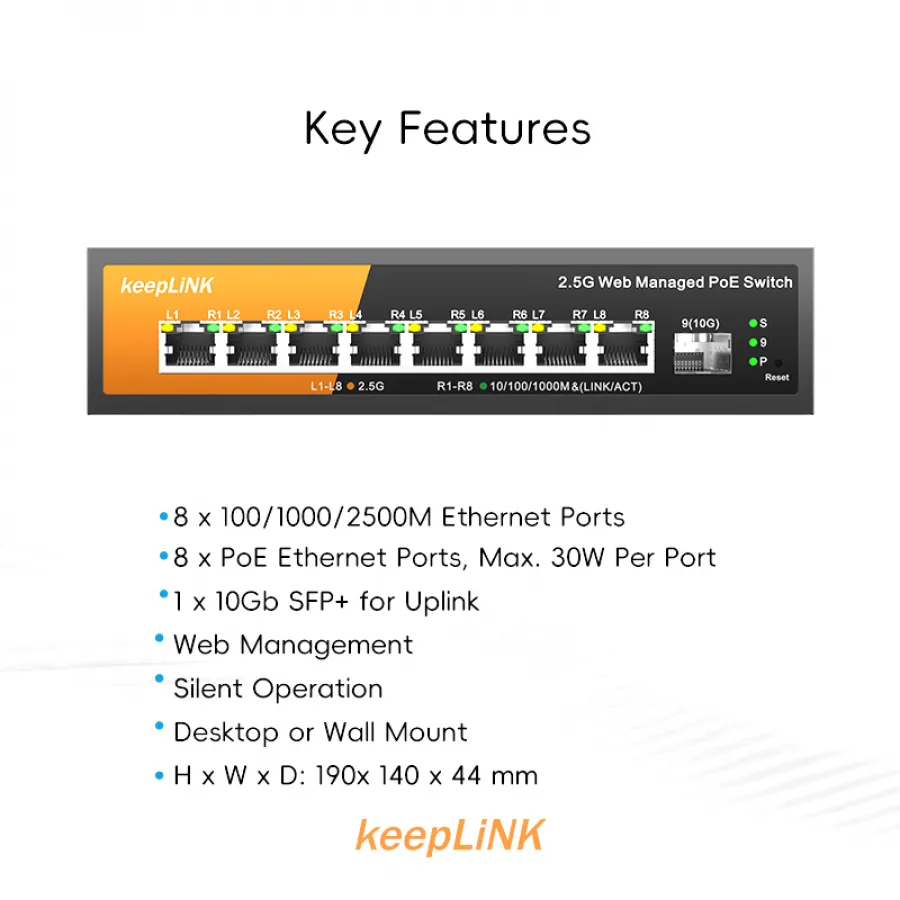

Product Highlights

  • Offers powerful L2 Lite features by web-management

  • Flexible desktop or wall placement.

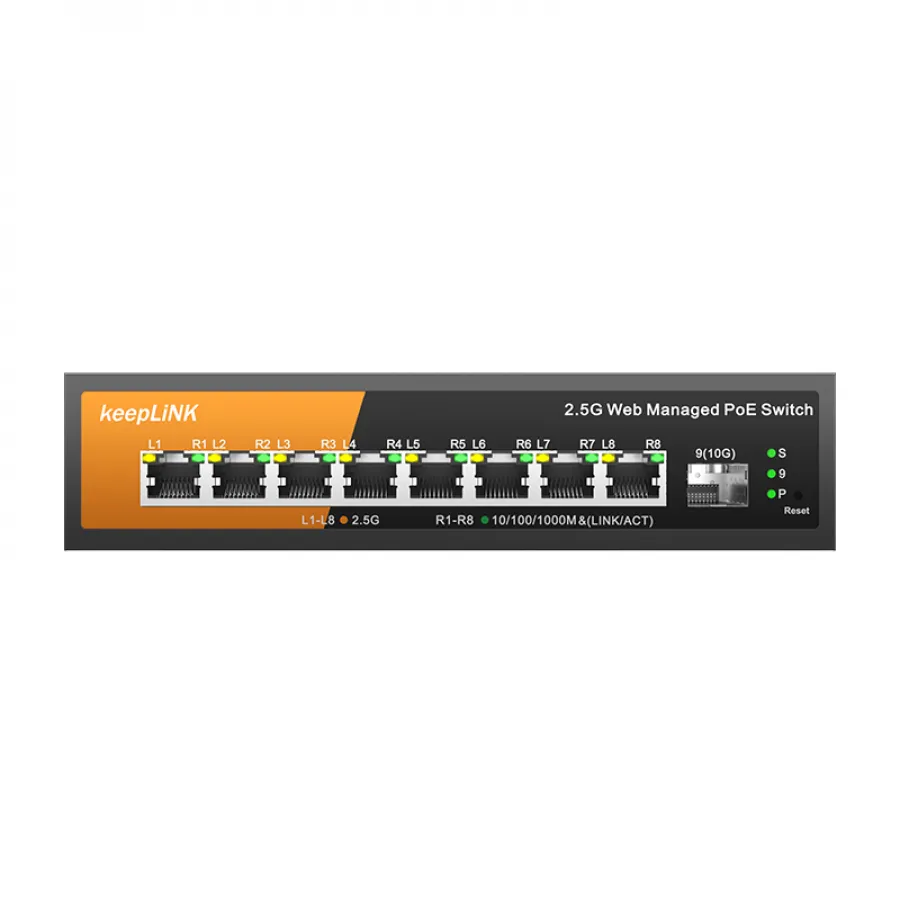

  • Easy monitoring through per port LEDs for port activity and speed.

  • Energy Efficient Ethernet (IEEE802.3az) support for maximum power savings.

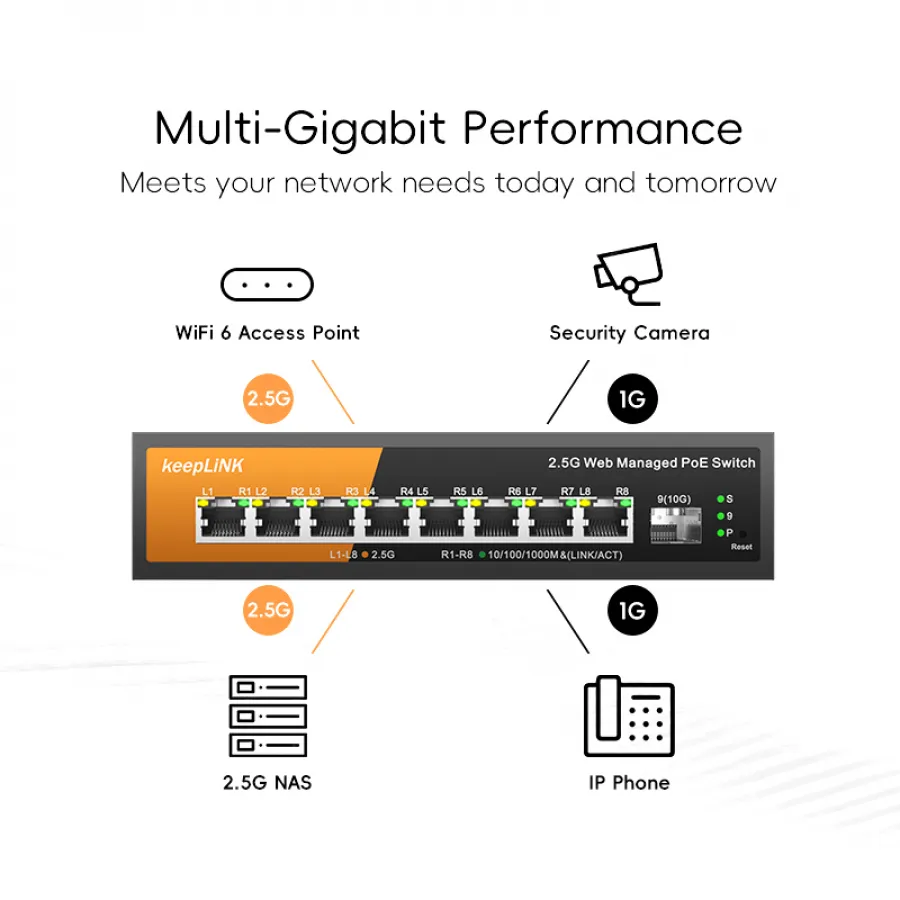

  • 8 ports of multi-gig 1G/2.5G speeds to connect devices instantly and give them each exactly the speed they need: 1G or 2.5G automatically.

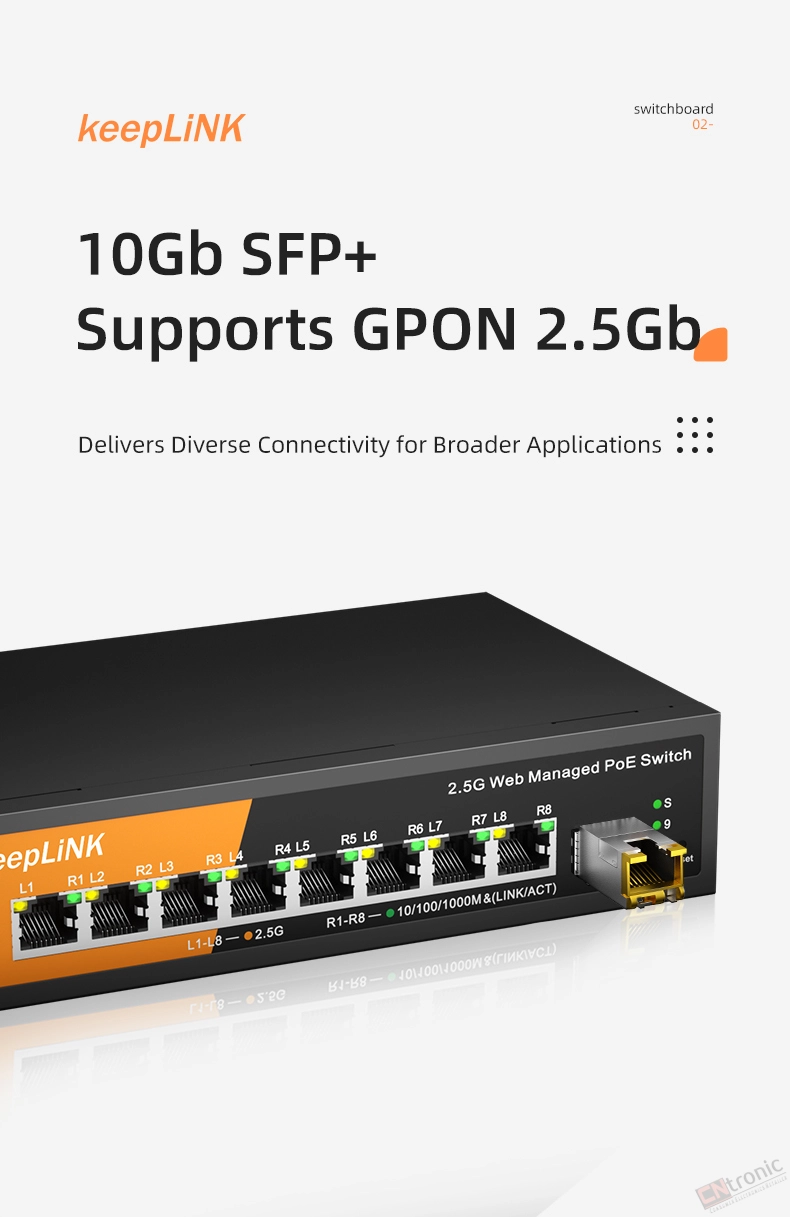

  • 1 port of 1G/10G SFP+ Speeds, and compatible with 2.5Gb Cat Stick

  • 8-port PoE Ports, PoE power budget 120W, complies with standard PoE protocol. PoE devices encompass VoIP phones, IP Security Cameras, Wireless access points, proximity sensors, door locks and other IoT devices. Wave 2 802.11ac access points and PTZ cameras increasingly require 30W (PoE+).

  • Non-blocking switching architecture for maximum throughput at wire speed.



Packaging Details

  • Unit Type:
  • Package Weight: 1.526
  • Package Size: 24x9x30

  • Brand Name: keepLiNK
  • Origin: Mainland China
  • Hign-concerned Chemical: None
  • Function: POE
  • Function: QoS
  • Function: SNMP
  • Function: VLAN Support
  • Number of Interfaces: 10
  • Certification: CE
  • Certification: FCC
  • Certification: RoHS
  • Package: Yes
  • Communication Mode: Full-Duplex & Half-Duplex
  • Model Number: KP-9000-9XHPML-X
  • Transmission Rate: 10000 Mbps
  • VLAN: Yes
  • Switch Capacity: 60Gbps
  • Fiber Port: 1 x 1000/2500/10000 Base-X
  • Etherner Port: 8 x 10/100/1000/2500 Base-T
  • Network Topology: Ring Star Bus Tree and Hybrid

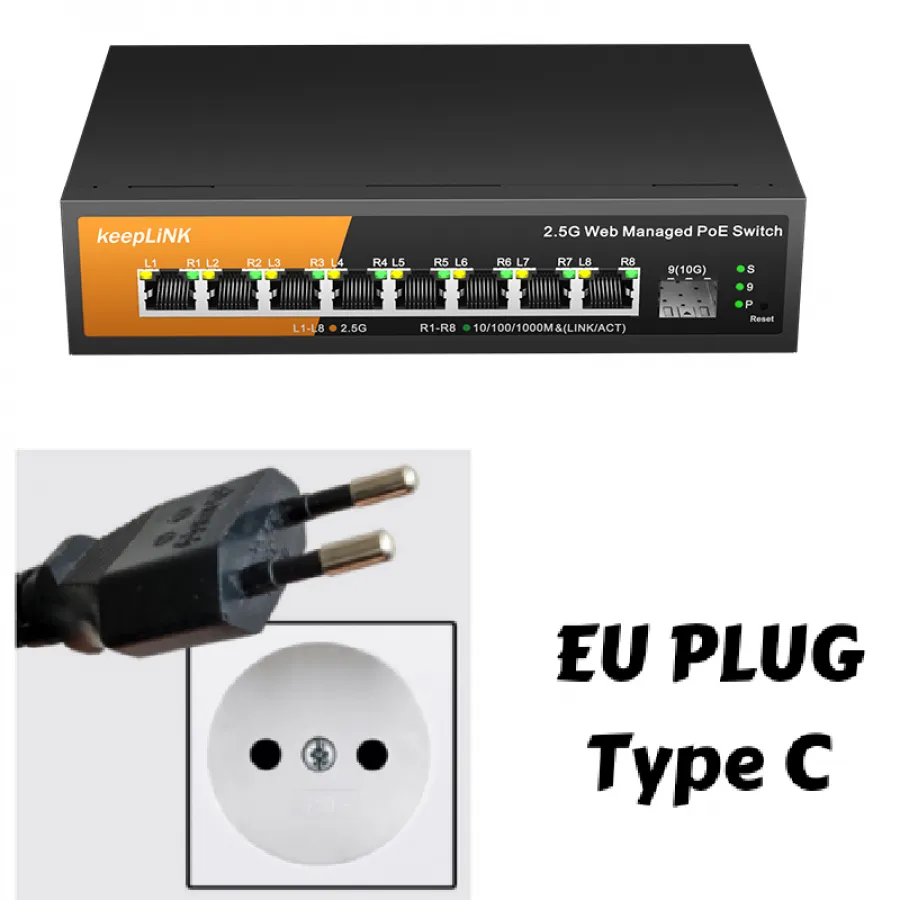

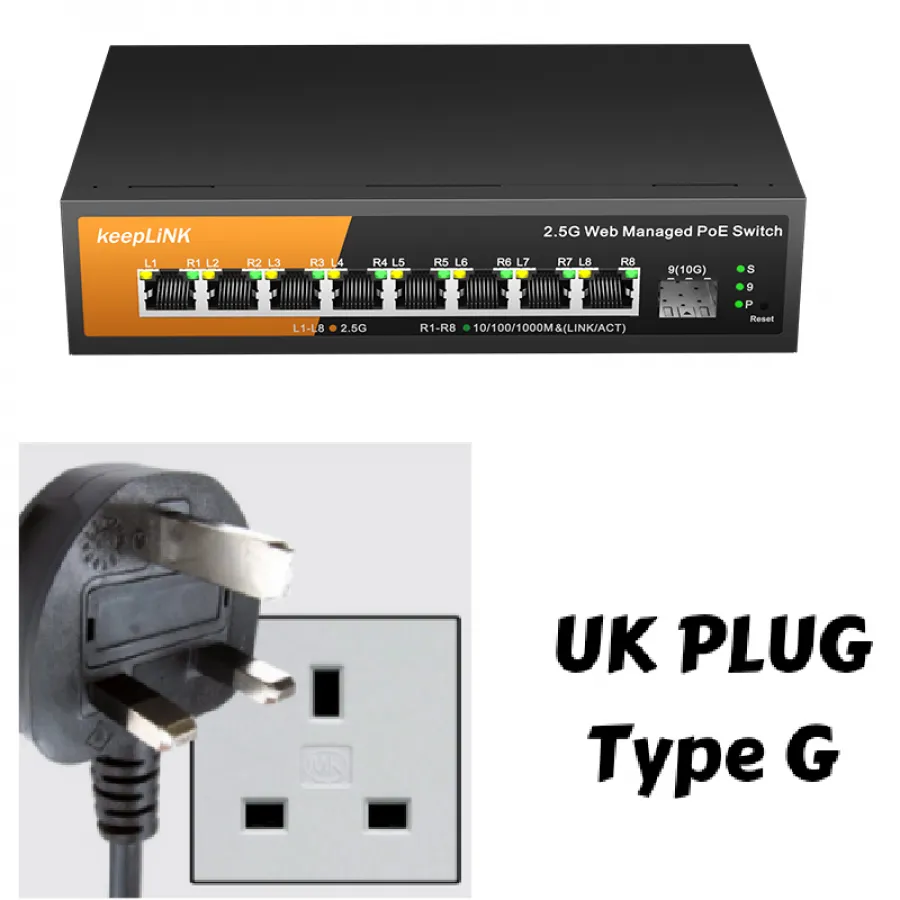

  • input voltage: AC 100-240V 50/60Hz
  • PoE port: 1-8
  • PoE Protocol: IEEE802.3 af/at
  • PoE Pinout: 1,2,3,6
  • PoE Power Budget: 130W
  • PoE Management: Yes
  • Switching capacity: 60Gbps
  • Packet forwarding rate: 44.64Mpps
  • MAC address table: 4K
  • Buffer: 8M bytes
  • Forwarding delay: <10us
  • MDI/MDIX: yes
  • VLAN: 32
  • LACP: yes
  • Flow Control: yes
  • Operating temperature: -10℃~+50℃
  • Fan-less: yes
  • Product size: 190 x 140 x44 mm
  • Installation Method: desktop or wall-mounted
  • Weight: 0.73 kg
  • Choice: yes
