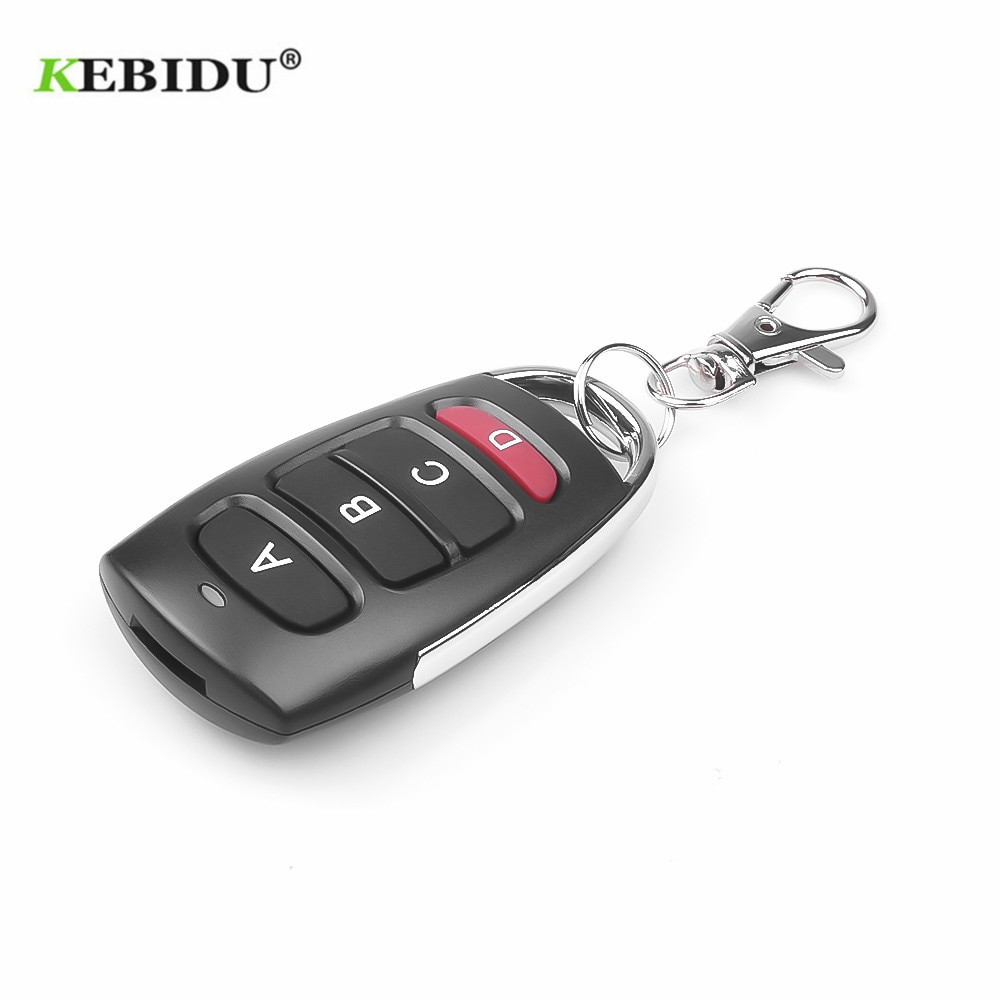

KEBIDU Universal 433 MHZ Wireless Clone Switch Cloning Copy 433mhz Gate Garage Door Control Duplicator Portal Remote Control Key

4.6 (538 votes)
Price: US $11.91 / piece
Discount Price:
US $ 10.32 / piece
-13%
Color
Quantity

Check your device Frequency and IC chip model before buying
Must be meet the following three conditions:
1.You must have a good remote controller.(Or will copy the bad command, can't work)

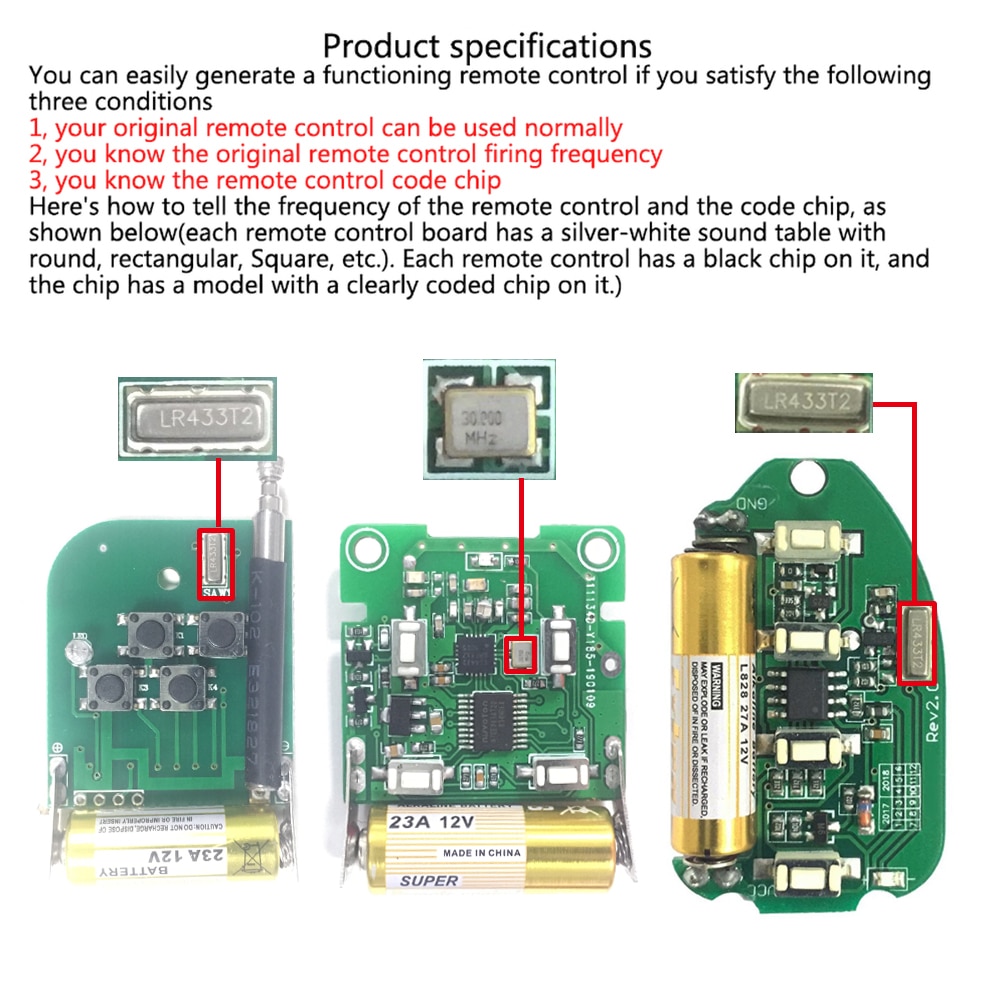

2.You need to know the device frequency and IC chip model of your current remote controller.

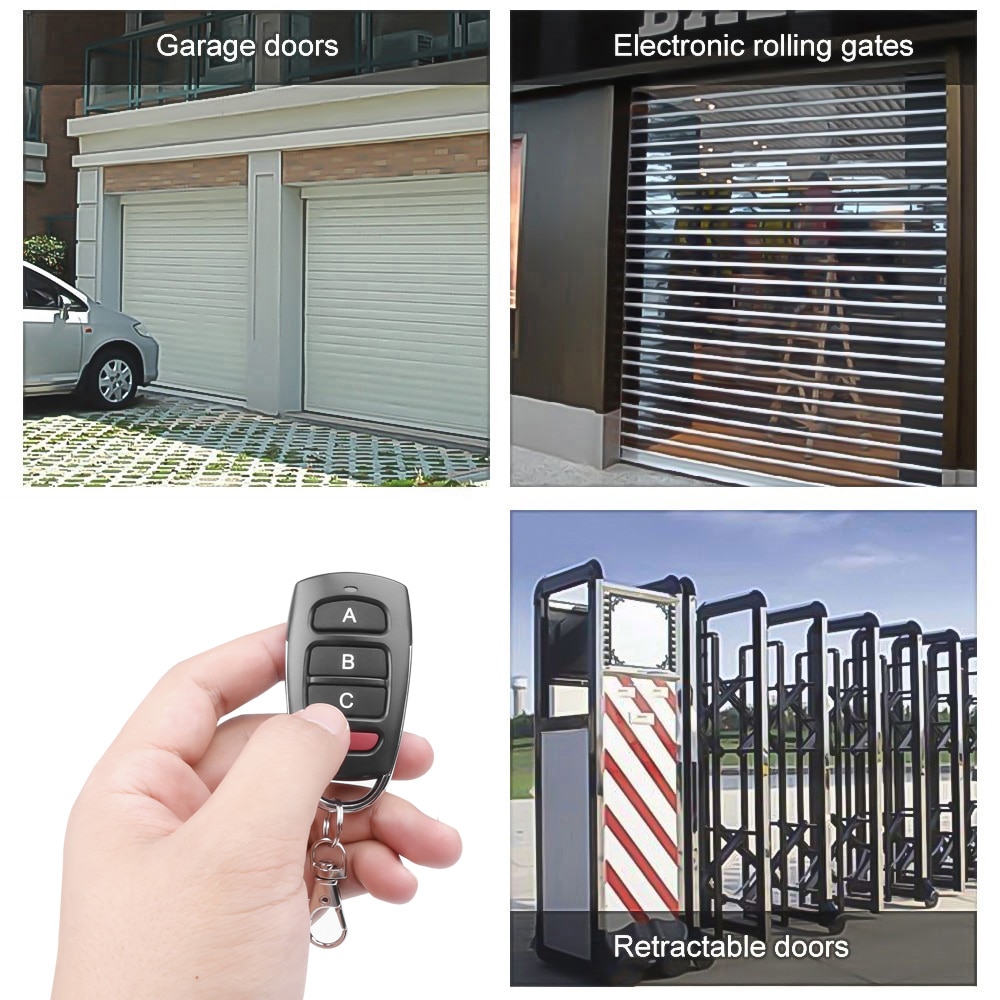

3.This remote controller is mainly suitable for rolling door, retractable door, Road gate, etc.

If your door is a reverse door, you 'd better confirm it with our customer service before purchasing.

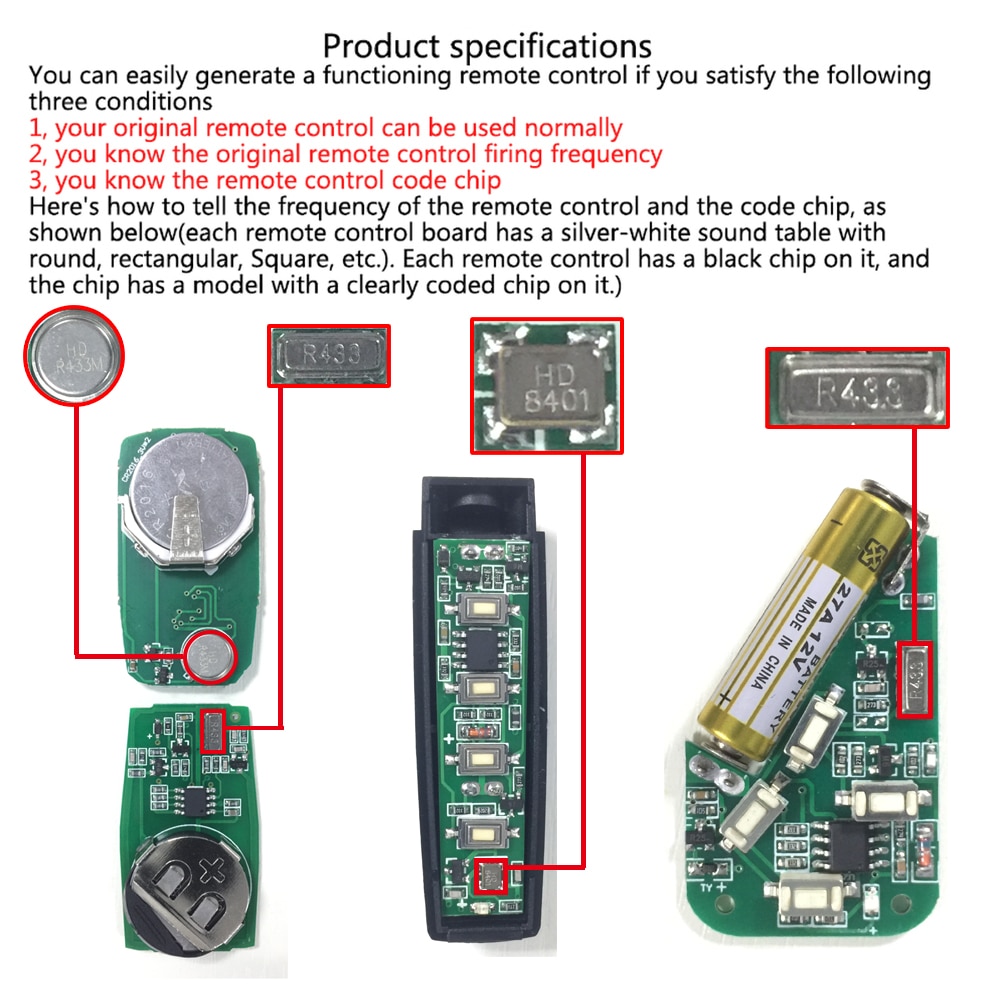

For example: open your remote controller and check device frequency 433, IC chip model is 2264, and you also have a usable remote controller, will be ok to choose this product.

Compatible IC chip:2260(as,PT2260,SC2260,HS2260 LX2260,HX2260); 2262(as,PT2262,SC2262,LX2262,HS2262,HX2262), PT2264,PT2240(LX2240 LX2241 SCL2240),CS5211,1527( EV1527,HS1527,HX1527 SC1527 GP1527 CP1527 AD1527 SCL1527 TL1527 ZX1527),SMC918,AX5026,SMC926,AX5326-3,AX5326-4, FP527,HT600,HT680,HT6207,HT6010,HT6012,HT6013,HT6014,HT12D, HT46F49E, PIC16F630 ULN2003, etc.

RF frequency type: 315/868/433 (Listing product only support 433.92 MHZ)

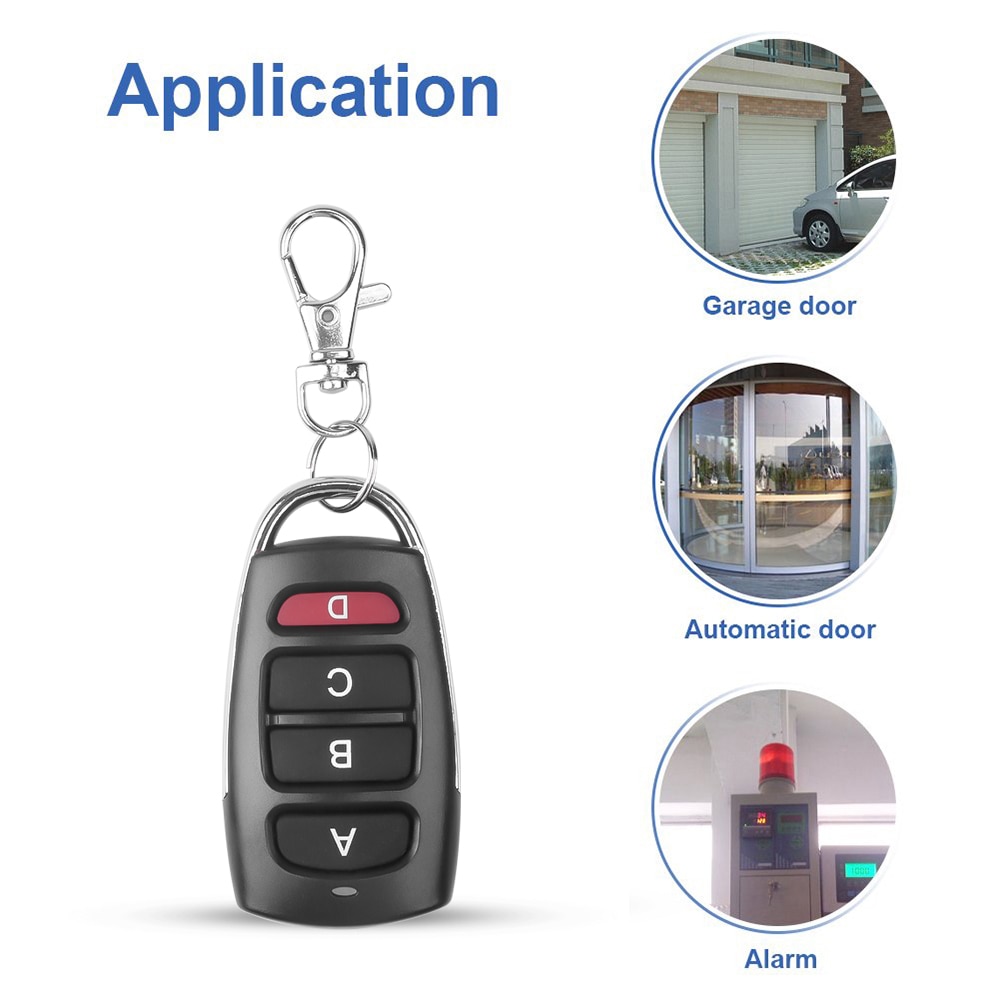

Duplicate Your Existing Remote Controllers so you always have a backup:
1.Vehicle central locking systems
2. Garage doors
3. Electronic gates
4. Electrical appliances/Home automation i.e. lights
5. Car sunroofs
6. Car/Motorbike alarms

Operating Current: ≤12mA
Operating frequency: 433.92Mhz
Transmitting power: ≥10mW
Transmission Distance: 50 meters (open)
Frequency deviation: ± 0.2MHz
Transfer rate: 50--60KHZ
Working temperature: -20~70℃
Storage temperature: -10~ 50℃
Humidity: 85% or less

How to Program:
Step-1 Clear the history code from duplicator:
Hold down the A and B buttons, LED lights flash slowly three times then off, then press and hold the A button to remain intact, release the B button, immediately press the B button three times in a row (this action must be completed within 3 seconds) and then LED flashes quickly, which indicates that the code has been cleared.
Step-2 Copy code from original transmitter:
Place the cloner remote and the original remote close together side by side. Make sure they are touching.
1. Simultaneously press a button on your original remote and one of the buttons on the clone remote and hold until the LED on the clone remote flashes steadily. The Blue LED will first flash 3 times quick, then stops for a second, then flashes steadily.
2. Release both buttons. Programming is successful. Copy other buttons in same way.
Recovery: If you accidentally remove a copy from the remote control code, you can simultaneously press the A and D, 3S later, LED flashes 3 times, then began to flash rapidly, indicating the copy from the remote control code is restored.



  • Support APP: No
  • Frequency: 433 MHz
  • Channel: 4
  • Package: No
  • Model Number: Garage gate remote control
  • Wireless Communication: RF
  • Use: Universal
  • Brand Name: kebidu
  • Origin: Mainland China
