KEBIDU DC 5V Bluetooth MP3 WMA Decoder Board Audio Module USB TF Radio Wireless FM Receiver MP3 Player 2 x 3W Amplifier For Car
ID: 24351

KEBIDU DC 5V Bluetooth MP3 WMA Decoder Board Audio Module USB TF Radio Wireless FM Receiver MP3 Player 2 x 3W Amplifier For Car

4.7 (28 votes) | 55 orders
Price: US $12.62 / piece
Discount Price:
US $ 10.84 / piece

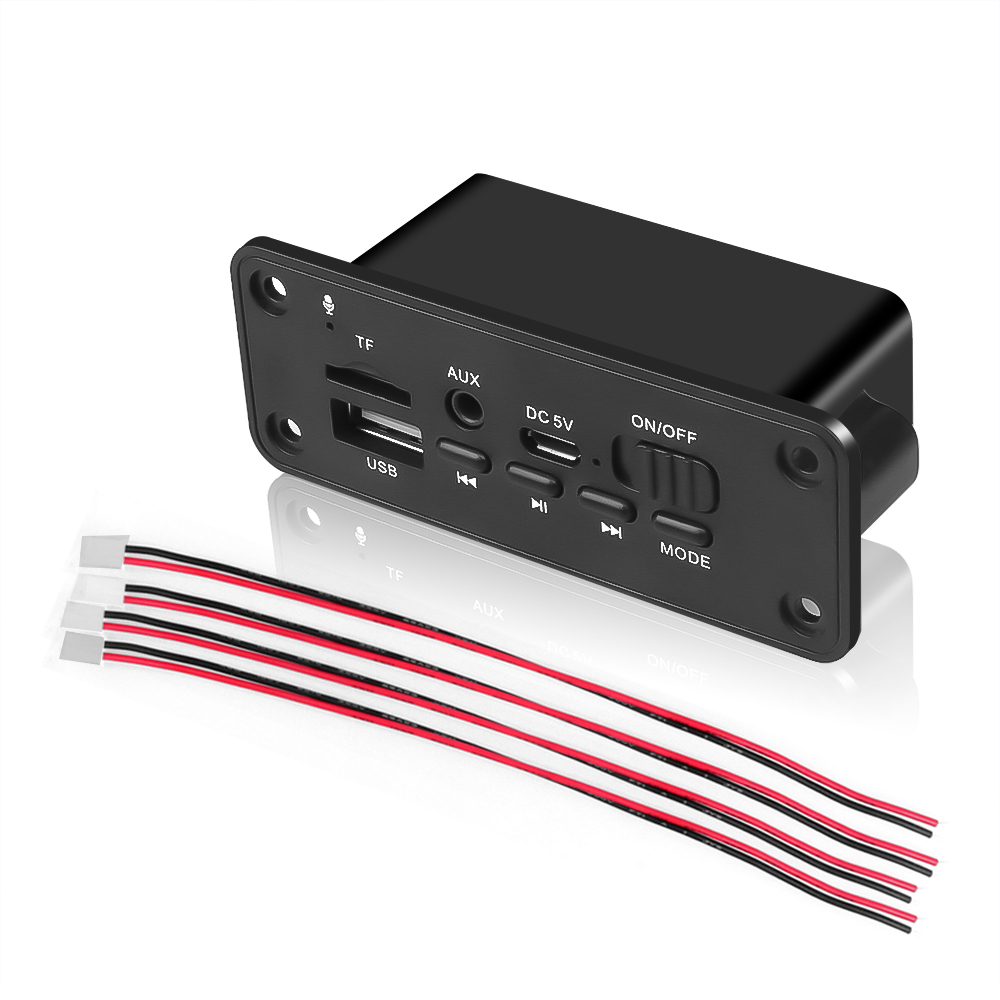

① Mic: Support Call
② TF: Supports TF cards (up to 32GB)
③ AUX: Audio Input Interface
④ DC  5V: Charging Interface
⑤ ON/OFF: Power Switch
⑥ USB: Connect to U disk ( up to 32GB)
⑦ VOL-: Short press is the last song; Long press is the volume reduction.
⑧ PLAY/PAUSE: Short press is the switch between pause and playback; Long press is the radio FM automatic station.
⑨ VOL+: Short press is to choose the next song; Long press is to increase the volume.
1. Support MP3/WMA/WAV/FLAC / APE
2, Power amplifier :2 * 3W
3, Support: MP3 / USB(U disk) / TF / LINE IN / FM / BLUETOOTH / DC 5V
4. Radio FM Frequency Band: 87.5MHZ-108.0MHZ
5, Power failure memory function
6, Remote Control Distance: 5-10M
7. Four Button: the previous song / play pause / next song / MODE
1. VOL-button (previous song/volume reduction): In MP3 state, VOL-short press is the previous song, long press is for volume reduction; in FM state, short press to adjust one station number; in Bluetooth Short press under the function is the last song of Bluetooth, long press to decrease the volume.
2. AUTO button (play/pause): In the MP3 state, AUTO is short pressed to play/pause; in FM state, short press is play/pause, long press is for automatic receiving and saving; in Bluetooth function, short press to play /time out.
3, VOL + button (the next song / volume increase): In the MP3 state, VOL + short press for the next song, long press for the volume to increase; short press in the FM state to adjust a station number; under the Bluetooth function Short press for the next song of Bluetooth, long press for the volume to decrease.
4. MODE button: switch between USB/SD/FM/AUX/Bluetooth function.
AAR000582 (4)
AAR000582 (6)AAR000582 (3)AAR000582 (9)AAR000582 (10)AAR000582 (5)AAR000582 (7)AAR000582 (8)详情页

  • Brand Name: kebidu
  • External Memory: Yes
  • Audio Format Support: FLAC,APE,MP3,WAV,WMA
  • Balanced Out: No
  • DSP: AC5322B
  • Dimensions (WxHxD): 85x32x33cm
  • Have Speakers or not: No
  • Battery Specification: External Power
  • Function: FM Radio,bluetooth
  • Bluetooth: Yes
  • Battery Life: > 20 hours
  • Display Size: None
  • Model Number: MP3 WMA Decoder Board
  • WIFI: No
  • Style: Car MP3
  • Operation Mode: Touch Tone
  • Body Material: Plastic
  • Package: Yes
  • Supports FM: Yes
  • DAC: -
  • Supports Recording Function: No
  • Signal Noise Ratio: ≥89dB
  • Screen: No
  • Storage Type: Flash Memory
  • Supports EBook Reading: No
  • Bluetooth: Bluetooth 5.0
  • Bluetooth IC: AC5322B
  • Supply: 5V (no 12v)
  • Support: MP3 / USB / TF / LINE IN / FM / BLUETOOTH / DC 5V
  • Power Amplifier: 2 x 3W Amplifier
  • Battery: no includes
