JONSBO C2 Computer Case Support ITX MicroATX Motherboard for ATX Power USB3.0 Desktop HTPC Aluminum Chassis
0.0 (3 votes) | 7 orders
Price:
US $130.04
/ piece
Discount Price:
US $
117.09
/ piece
-10%
- Ships From
- Color
-
-
Model: C2 (Silver)

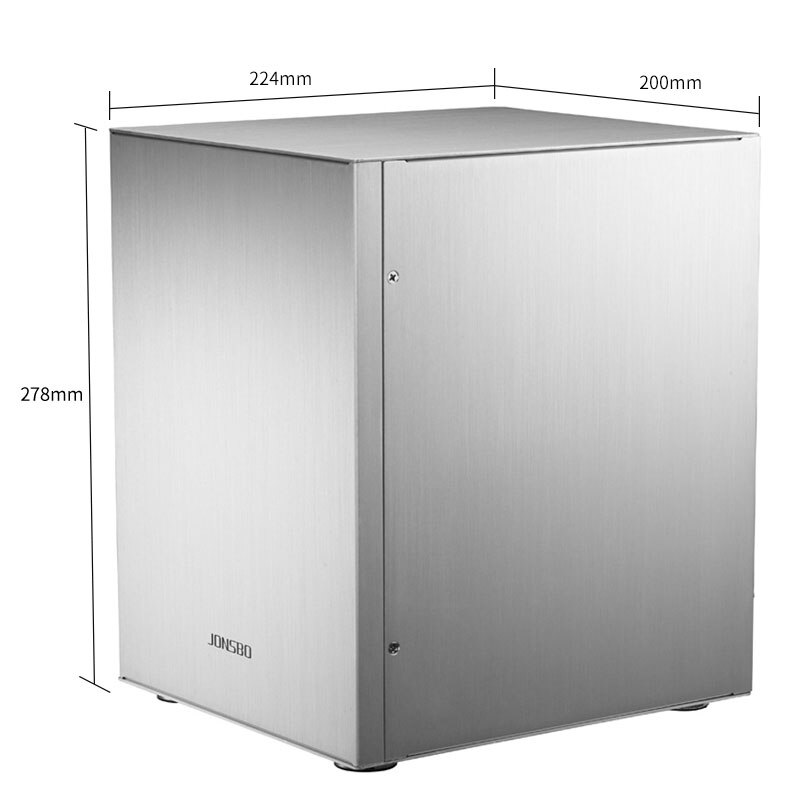

Dimension: 200 mm (W) x 224 mm (D) x 270 mm (H)
Material: Top cover: 1.5MM anodized aluminum alloy plate HDD rack: 1.0MM anodized aluminum alloy Other: 1.2MM anodized aluminum alloy
Motherboard: ITX / Micro-ATX (245 x 215 MM)

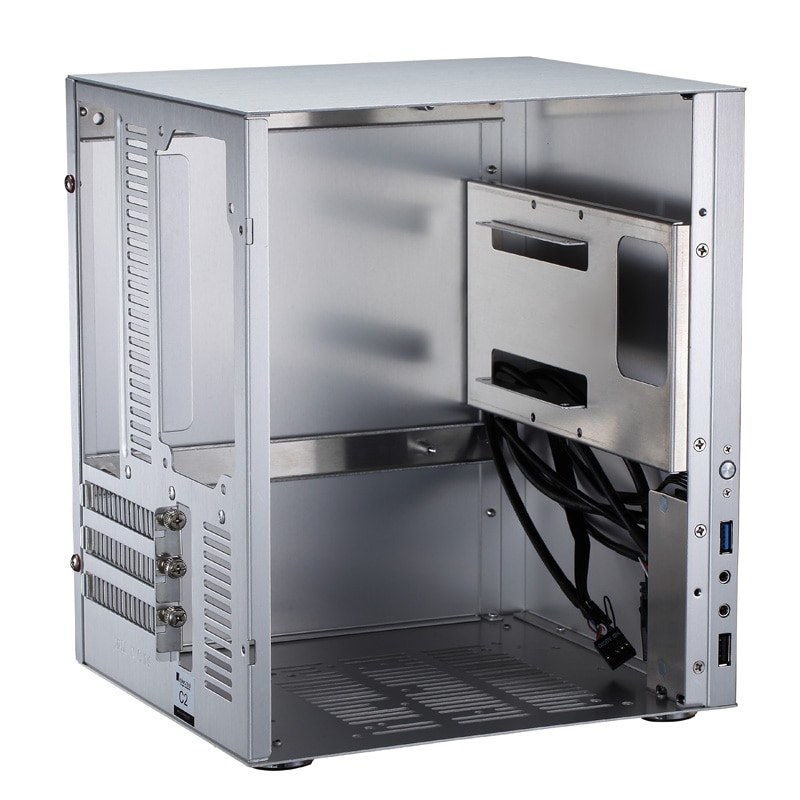

Drive Bay: 170x170MM motherboard installed: (HDD: 2x3.5, 2x2.5, if 12 or 14cm fan is installed then HDD will be 1x3.5, 1x2.5)
245x215MM motherboard installed: (HDD: 1x3.5 or 1x2.5)
Cooling System: Bottom: 1 × 120 / 140mm fan (Not built-in)
CPU Cooler: Not higher than 80mm , Display Card: Not looger than 220mm

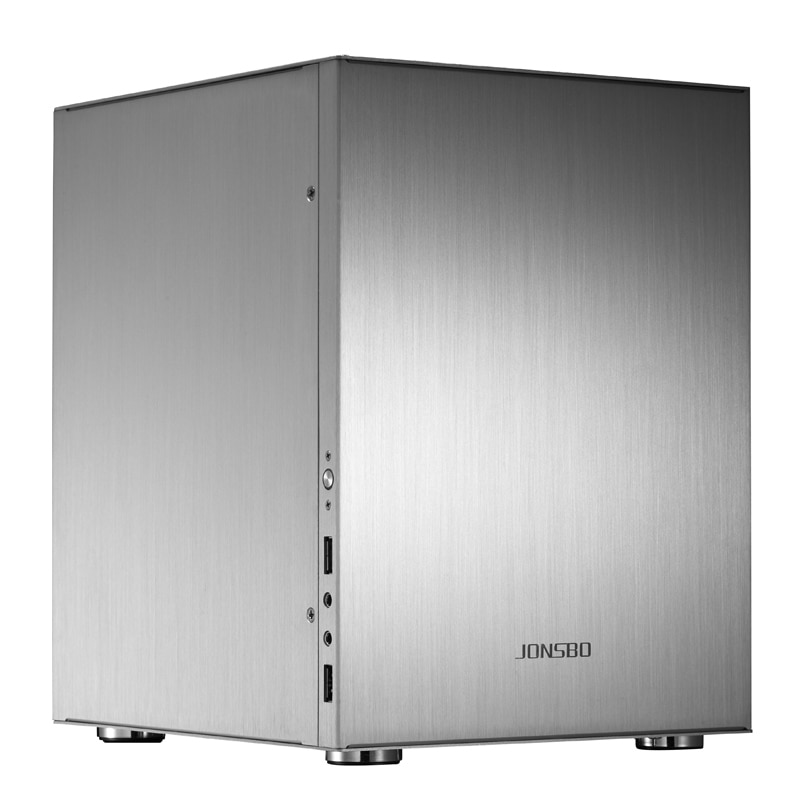

Front I/O: USB3.0 × 1, USB2.0 × 1, Audio × 1, Mic × 1
Power Supply: PSII （ATX）
Expansion Slot:3
NET/Gross Weight: 1.6kg / 2 kg
Photo Reference Order Not include: Motherboard Memory Drives
C2 is introduced by Jonsbo in February 2014 with right angular design element ITX chassis. With the guarantee of good appearance, workmanship and quality, it is not an easy task to develop an aluminum ITX case with low price, but we believe
that we make it with C2. For hardware support for C2, you will be surprised with its strong compatibility, it supports ATX PSU,
3.5 and 2.5 inch HDD, dual-slot full height display card, all kind of ITX motherboard, and even most of the MATX motherboard
with sizes smaller than 245 × 215MM.
1. C2 is introduced by Jonsbo in February 2014 with right angular design element ITX chassis. With the guarantee of goodappearance, workmanship and quality, it is not an easy task to develop an aluminum ITX case with low price, but we believe that we make it with C2. For hardware support for C2, you will be surprised with its strong compatibility, it supports ATX PSU,3.5 and 2.5 inch HDD, dual-slot full height display card, all kind of ITX motherboard, and even most of the MATX motherboard with sizes smaller than 245 × 215MM.
2. It seems that Jonsbo products are favorite in elegant styling with big circular corner but lack of more simple line style. After the tough style W1, C2 is the second case which does not have big circular corner design. The right angle corner style of C2 makes it a simple style and personalized case.
3.The details and the positioning for screws, USB interface and vents can usually reflect the attitude and aesthetic standard of the manufacturer to the product. In order to maintain the sense of simplicity, C2 is design with no vent on top cover and both side plates, the cooling vents are hidden on the bottom; also no screw is used to fix the top cover and USB interface.
4. Taking into account the low price and high market share of MATX Motherboard, although C2 is announced to be an ITX case, it also support MATX motherboard with sizes smaller than 245 × 215MM, it helps users to assemble an ideal small PC withvery low cost.

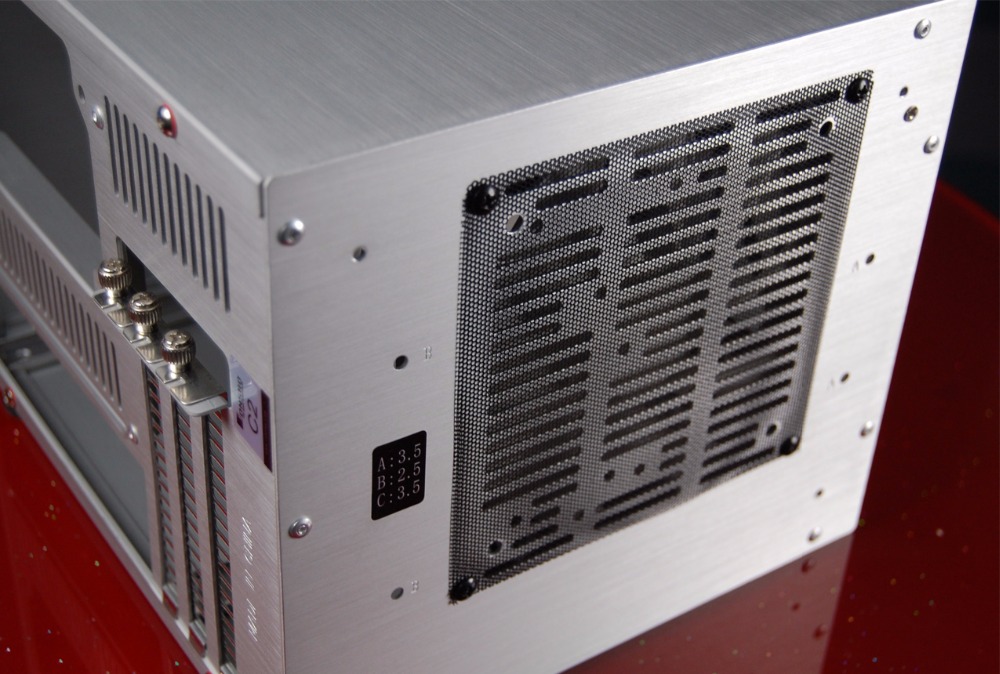

5.Comparing with similar products, the most obvious differences for C2 are that without affecting the appearance and size of the case, there is a hidden active cooling channel on the bottom, one 12CM or 14CM fan can be installed. Besides up to 220MM display card can be installed too. If you need an inexpensive but powerful small size case, we believe C2 will be a very good choice for you.
- With Power Supply: No
- With Fan: No
- With Side Panel Window: No
- Power Supply Mounted: Top
- Dust Filters: Bottom
- RGB Support: NO RGB
- 140mm Fan Options: 1
- 120mm Fan Options: 1
- Expansion Slots: 3
- Hot-Swap Drive Bays: 0
- Internal 2.5" Drive Bays: 1
- Internal 3.5" Drive Bays: 1
- Radiator Size: 120mm
- Max GPU Length: 210mm
- Max CPU Cooler Height: 80mm
- Max PSU Length: 150mm
- Case Weight: 2kg
- Case Size: 200 mm (W) x 224 mm (D) x 270 mm (H)
- Power Model: ATX
- Series: C
- Chassis Type: Desktops
- Front Ports: USB
- Application: Desktop
- Form Factor: MicroATX
- Material: Aluminum Alloy
- Model Number: C2
- Type: Vertical
- Brand Name: Jonsbo
- Origin: Mainland China
- Chassis Type: Desktop Chassis
- Structure: ITX MATX
- Model: C2
- Color: Silver
- Condition: New
