Itead SONOFF Sensor Si7021 AM2301 Temperature Humidity Sensor DS18B20 Sensor With 5M Extension Cable AL560 For Sonoff TH10/TH16
SALE
ID: 61208

Itead SONOFF Sensor Si7021 AM2301 Temperature Humidity Sensor DS18B20 Sensor With 5M Extension Cable AL560 For Sonoff TH10/TH16

4.9 (380 votes) | 887 orders
Price: US $15.27 - 17.43 / piece
Discount Price:
US $ 9.95 / piece
-35%
Color
Quantity

Itead SONOFF Sensor Si7021 AM2301 Temperature Humidity Sensor DS18B20 Sensor With 5M Extension Cable AL560 For Sonoff TH10/TH16

With the latest eWeLink app, users can create a series of simple conditional statement (Smart Scene) to trigger on/off other smart devices. This means users can use Sonoff TH10 or Sonoff TH16 with AM2301, DS18B20 or DHT11 sensor to collect temperature/humidity data, which can be used to as a condition to trigger on/off other devices, such as Sonoff, Sonoff RF, Sonoff SV, S20 smart socket .
This device works perfectly with electric fan, air conditioner, humidifier, smart fish tank, watering system, etc.
Note:

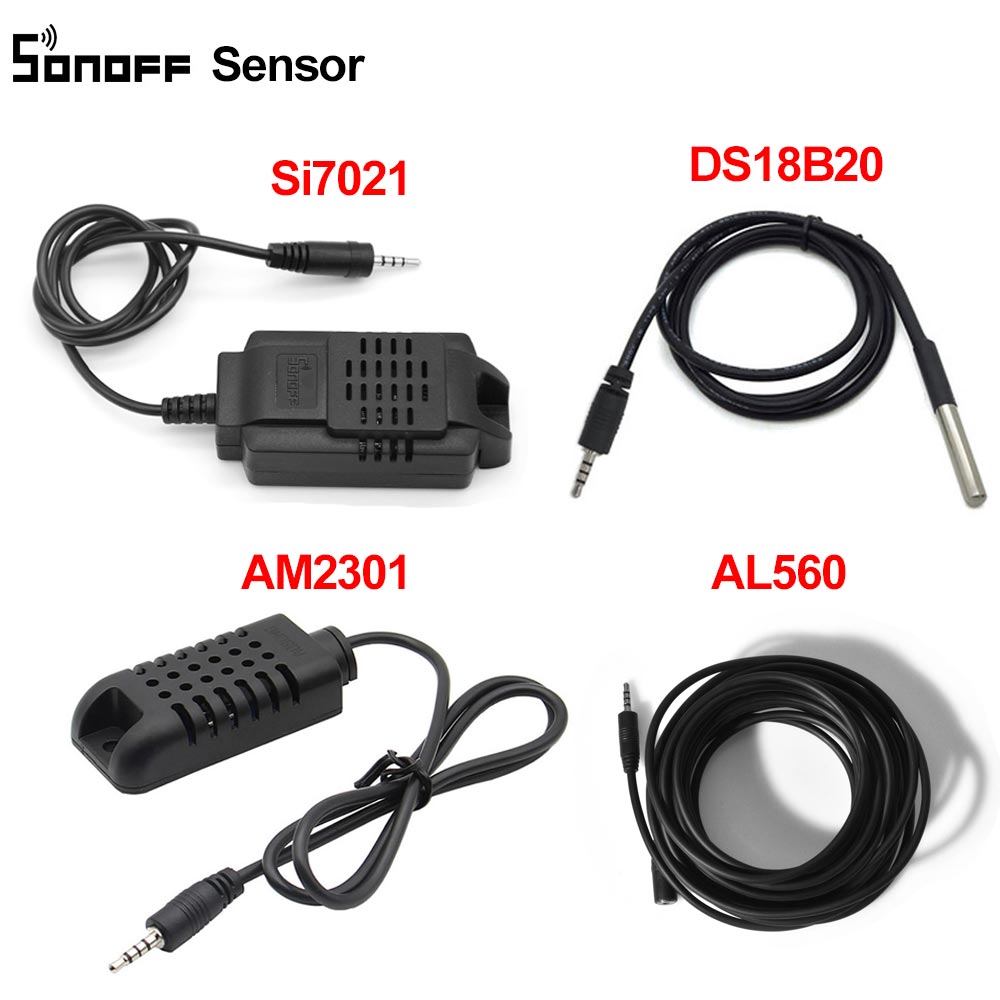

Sensor-AM2301 And Si7021 is the Temperature and Humidity Sensor , No Waterproof.
Sensor-DS18B20 is the Temperature Sensor , Waterproof .

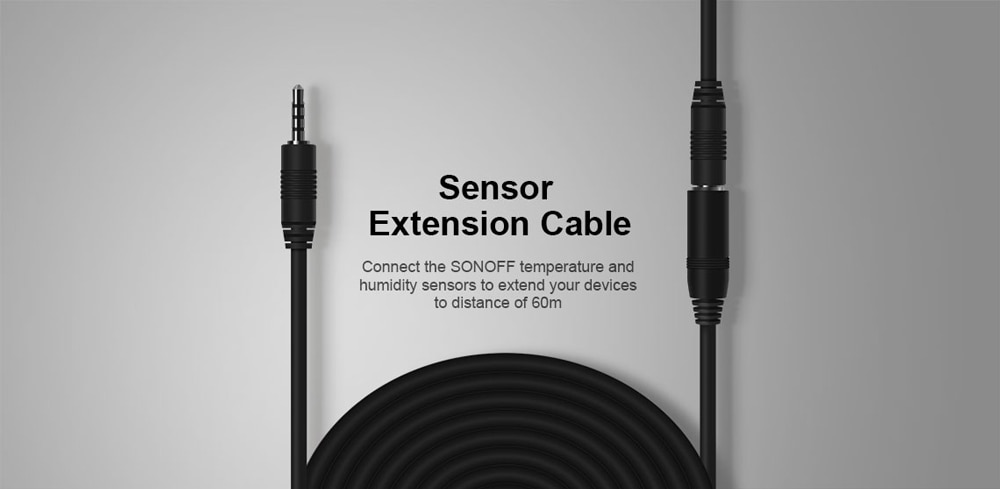

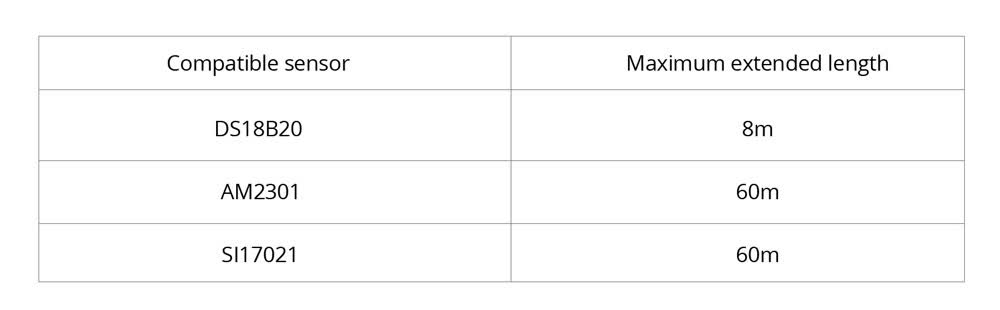

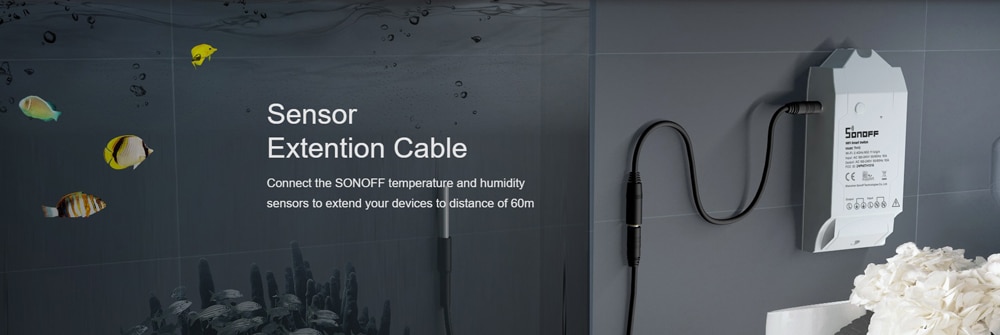

AL560 is a sensor extension cable can connect the SONOFF temperature and humidity sensors to extend your devices to distance of 60m, suitable for SONOFF DS18B20, Si7021 and AM2301.

Specification:

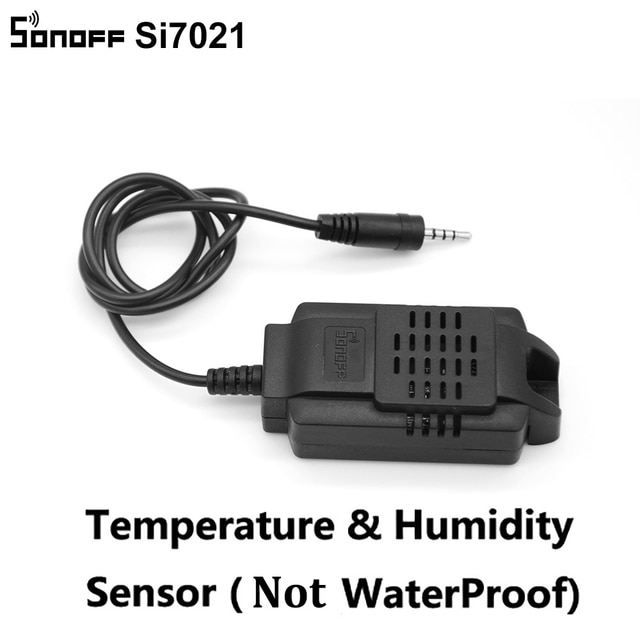

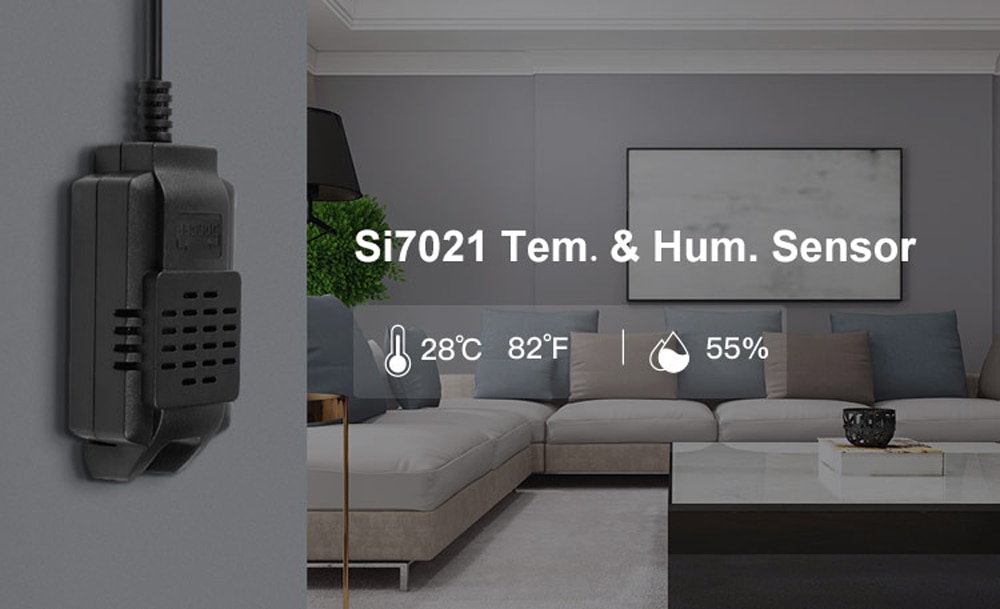

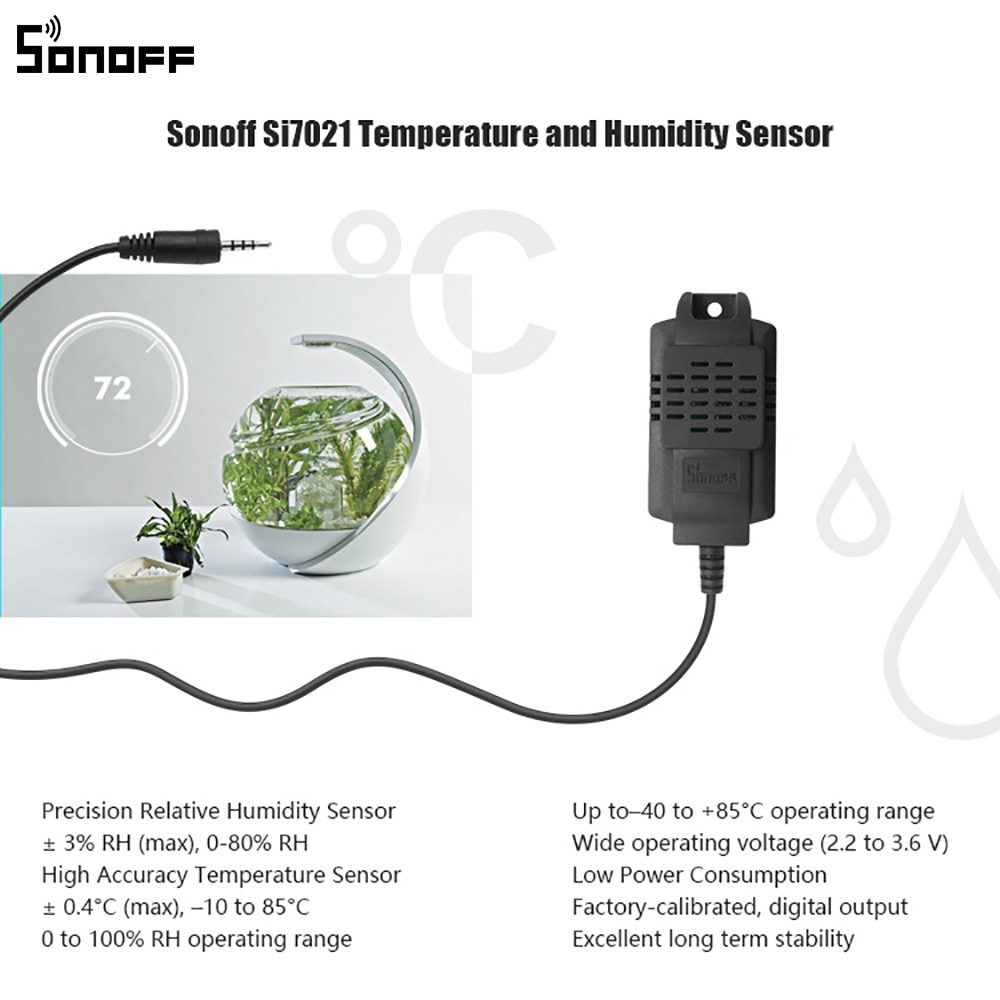

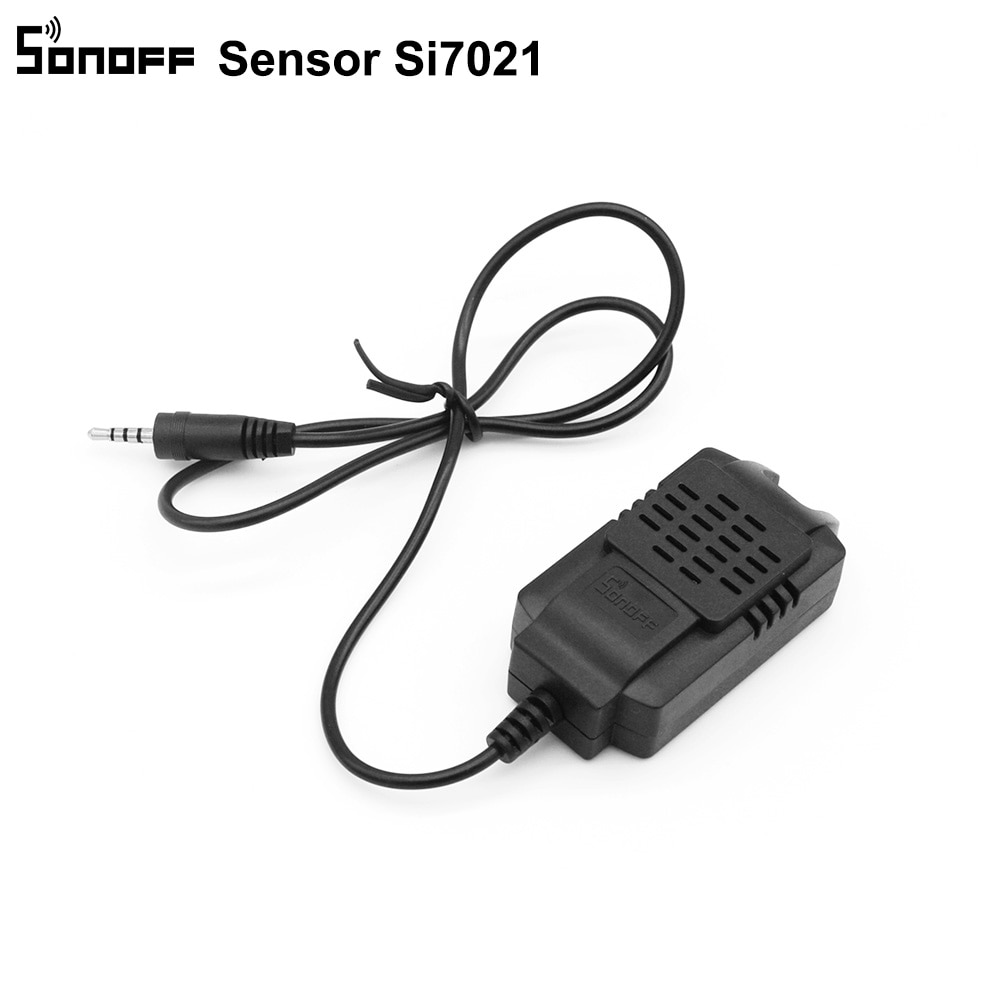

Si7021:
Temperature Measuring Range: –10℃ ~ +85°C
Humidity Measuring Range: 0 ~ 100%RH
Storage Temp.: –65℃ ~ +150°C

Operating Voltage: 2.2 – 3.6V
Weight: 26g
Length: 0.5m

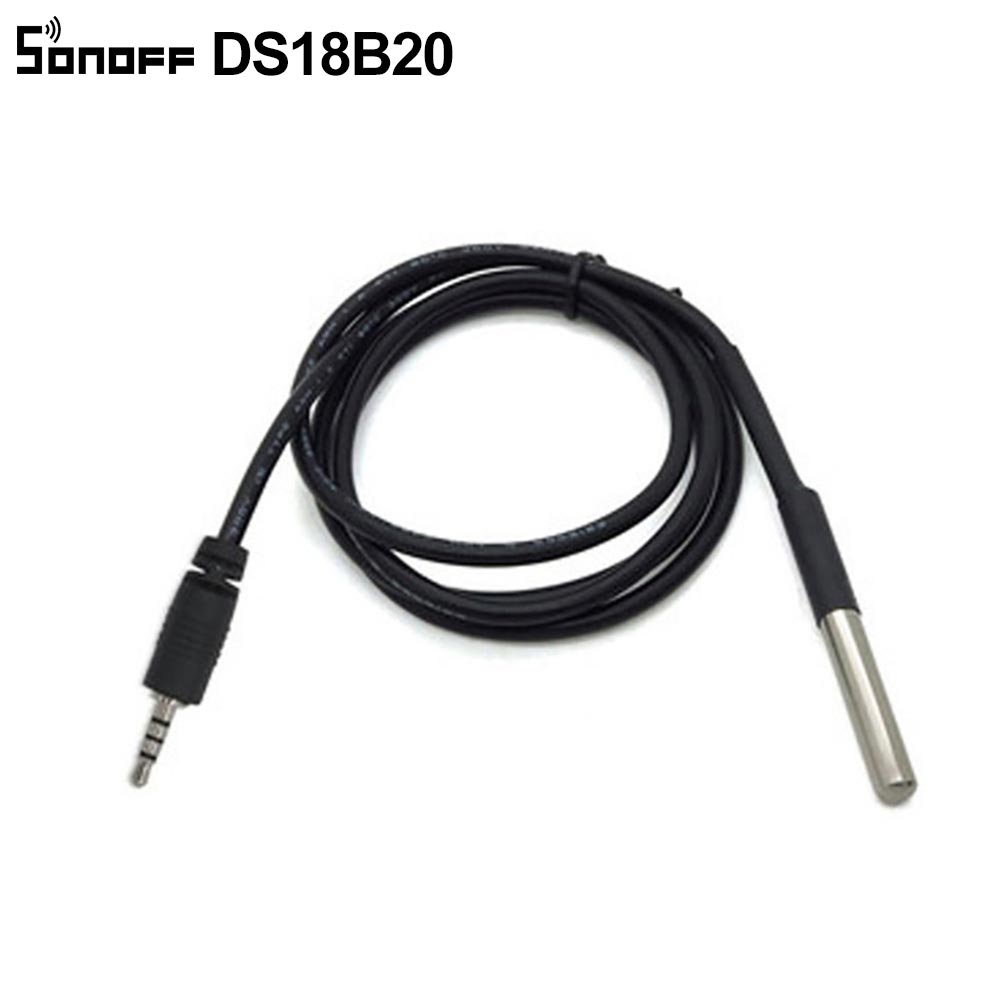

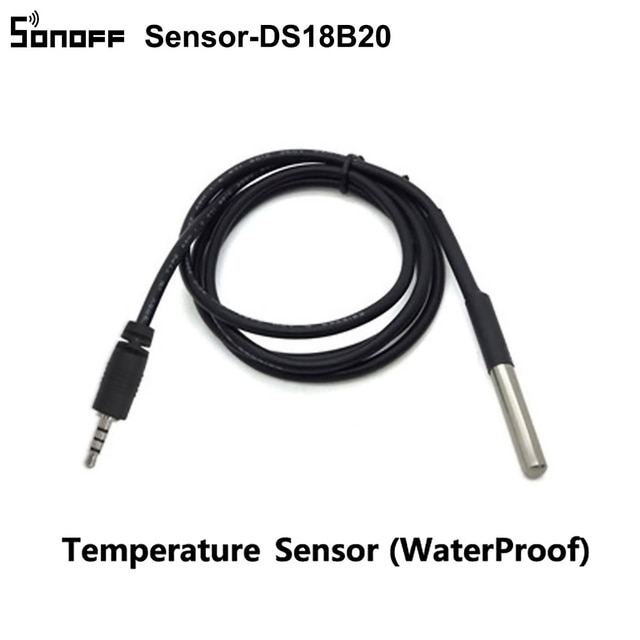

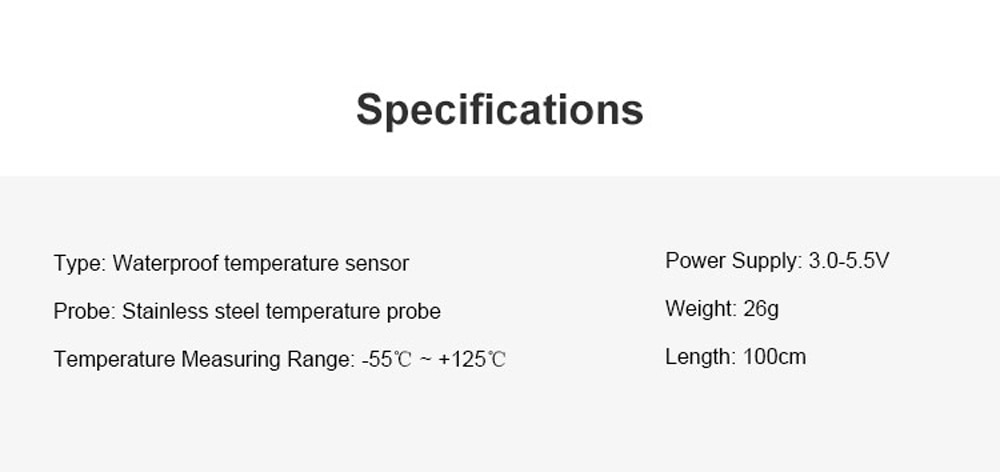

DS18B20:
Type: Waterproof temperature sensor

Probe: Stainless steel temperature probe

Temperature Measuring Range: -55℃ ~ +125℃
Power Supply: 3.0-5.5V
Weight: 26g
Length: 100cm

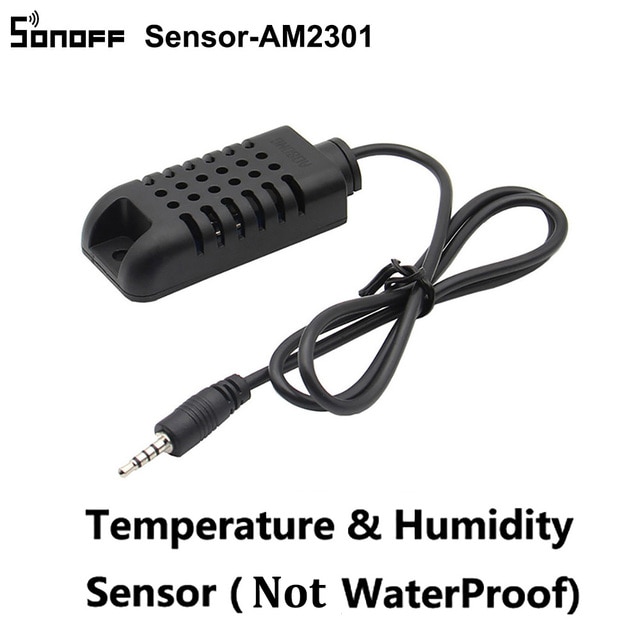

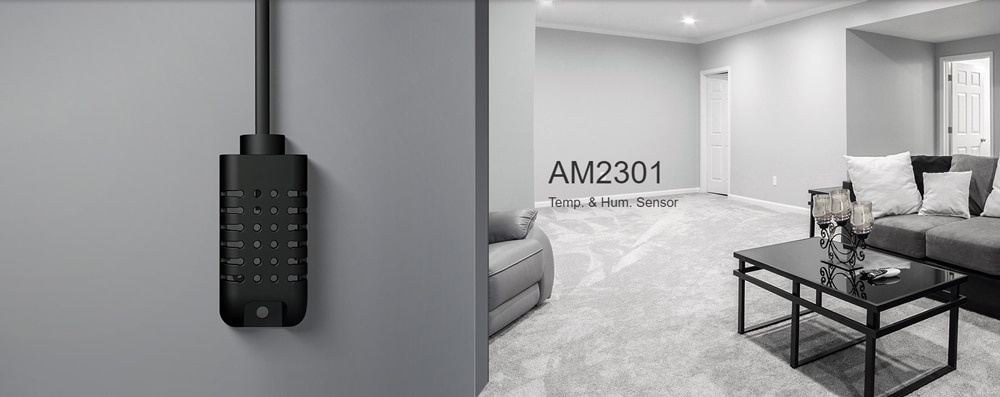

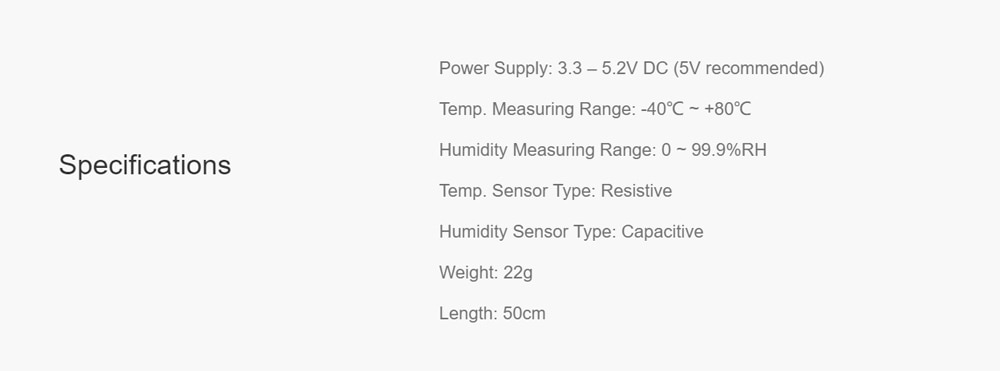

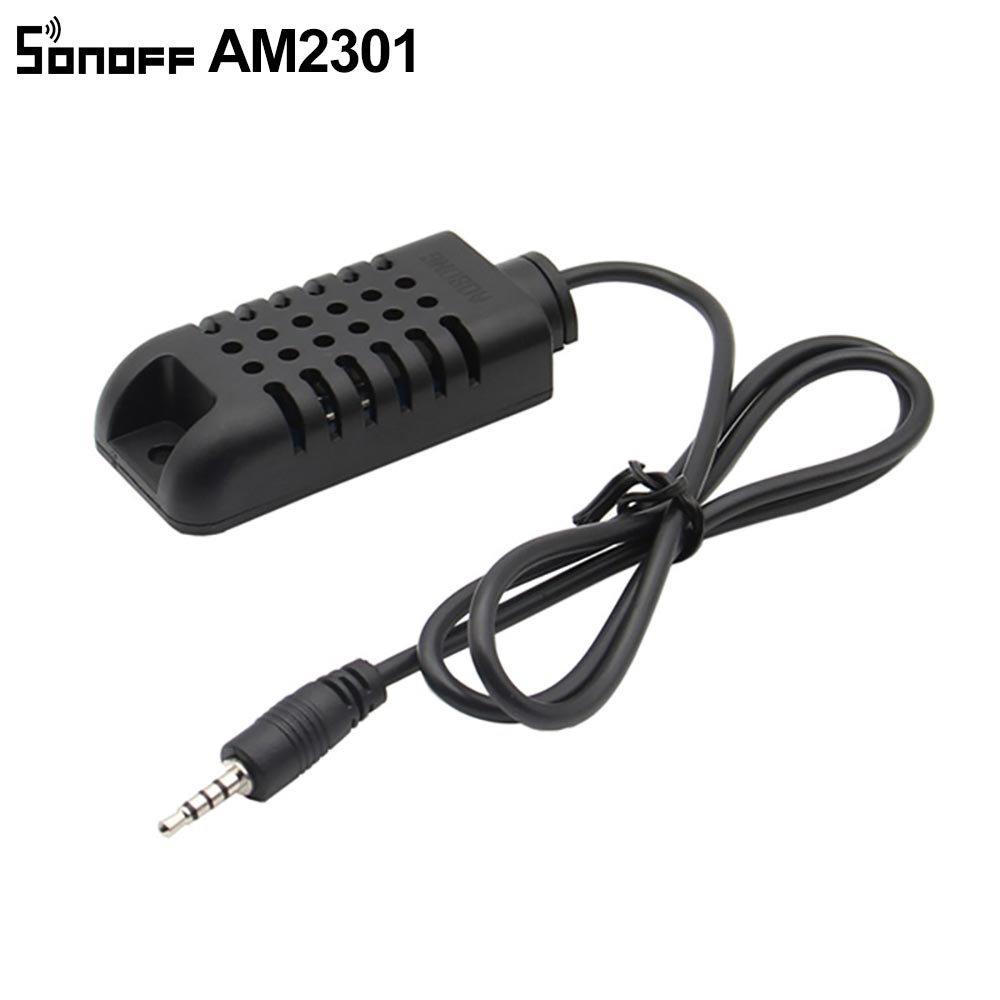

AM2301:
Power Supply: 3.3 – 5.2V DC (5V recommended)
Temp. Measuring Range: -40℃ ~ +80℃
Humidity Measuring Range: 0 ~ 99.9%RH
Temp. Sensor Type: Resistive
Humidity Sensor Type: Capacitive
Weight: 22g
Length: 50cm

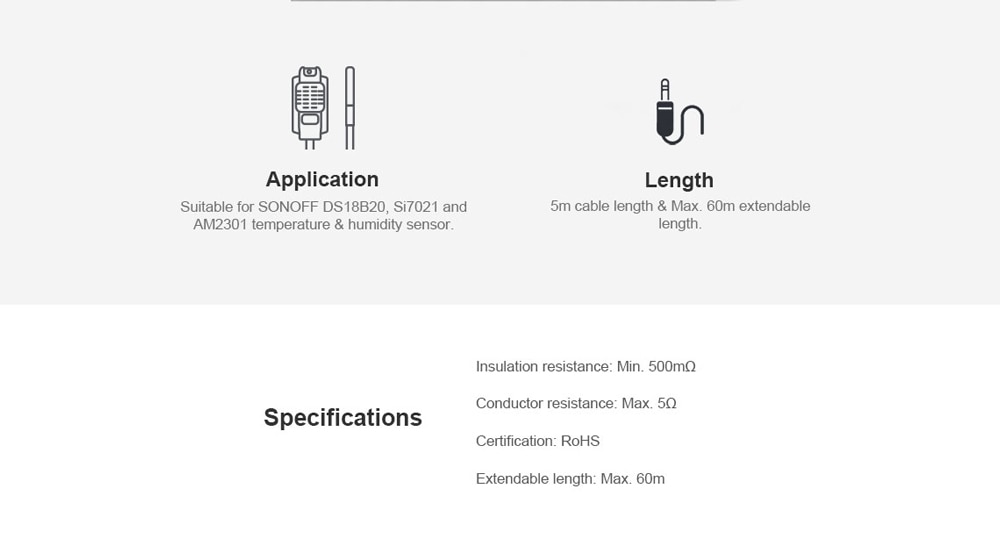

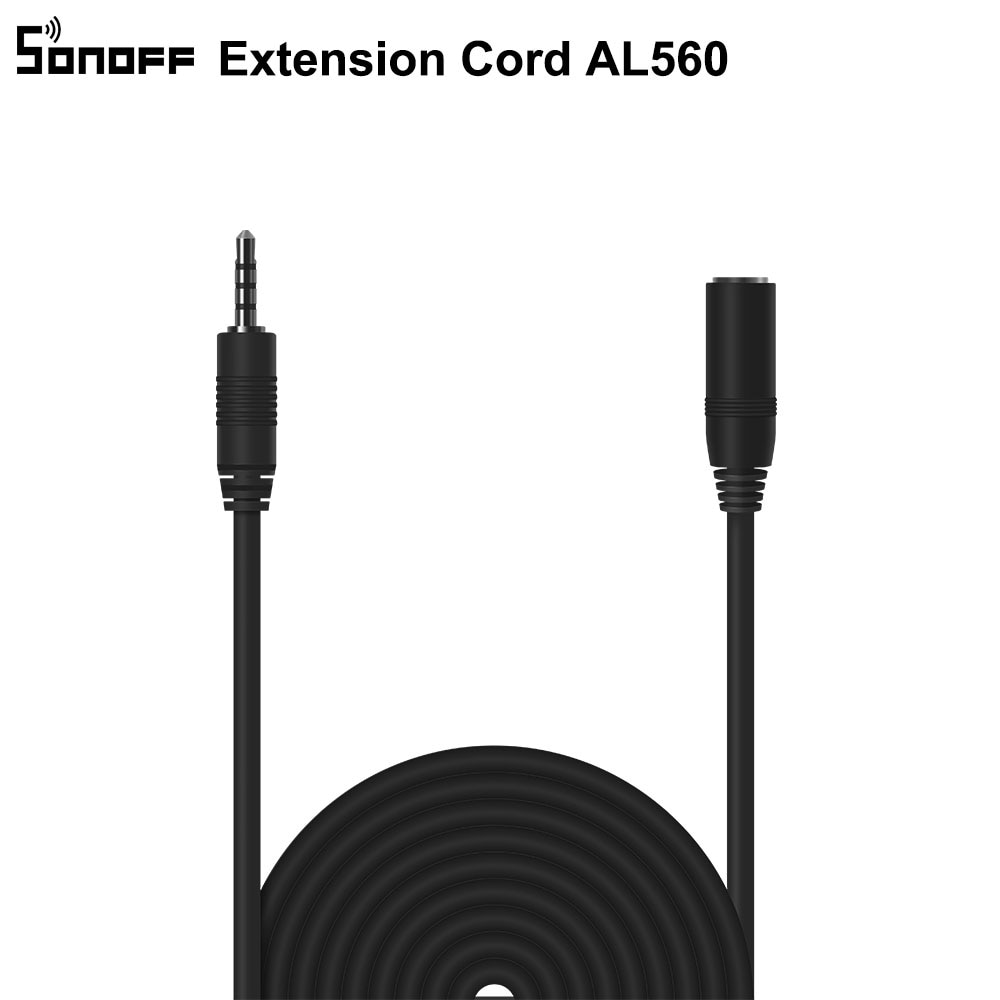

AL560:
Insulation resistance: Min. 500mΩ
Conductor resistance: Max. 5Ω
Certification: RoHS
Extendable length: Max. 60m



  • Brand Name: SONOFF
  • Certification: CE
  • Certification: FCC
  • Origin: CN(Origin)
  • State of Assembly: Ready-to-Go
  • Compatibility: All Compatible
  • Bundle: SONOFF AL560 Extension Cable
  • Camera Equipped: No
  • Model Number: SONOFF Si7021 Sensor
  • Shell Material: ABS plastic
  • Operating temp. Range: -40~+85
  • Power Supply: 2.2-3.6V VCC
  • Supports Sonoff: For Sonoff TH10 and Sonoff TH16
