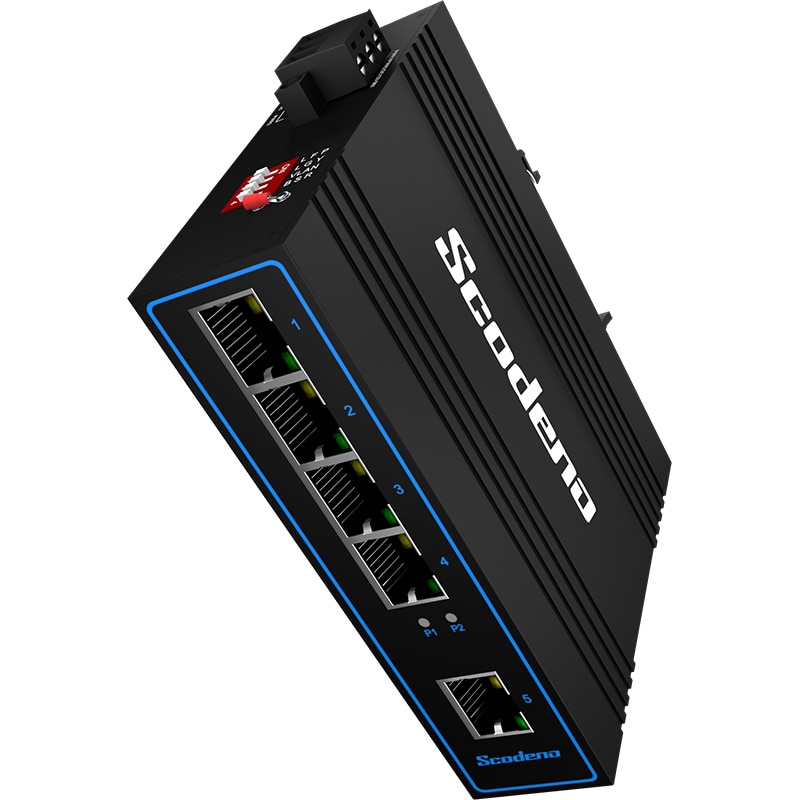

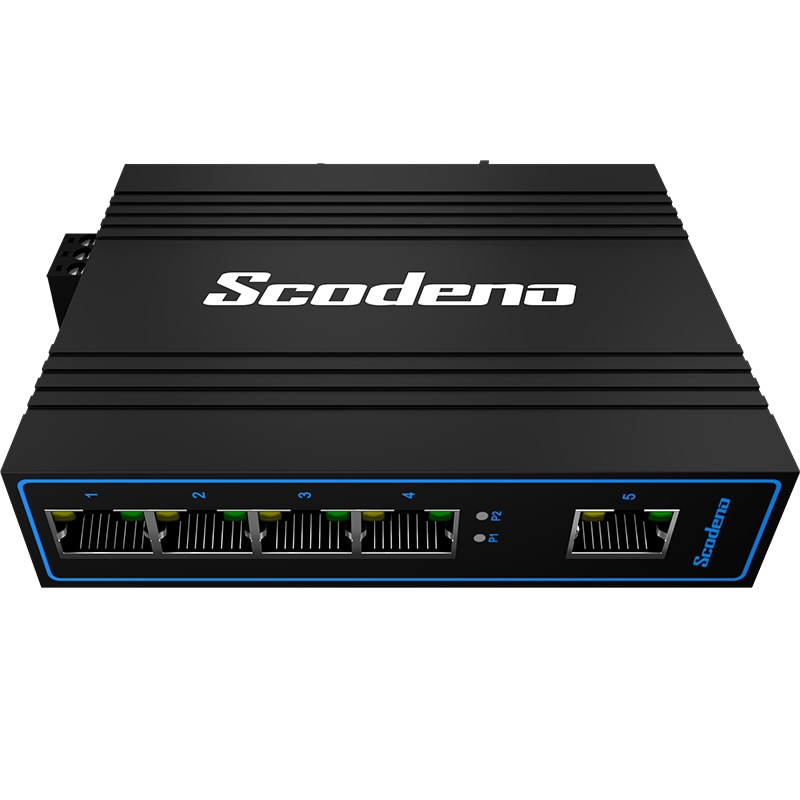

Industrial Ethernet Switch Fast Network 5 Port 10/100Base-T DIN IP40 Outdoor Network Switch
SALE
ID: 63437

Industrial Ethernet Switch Fast Network 5 Port 10/100Base-T DIN IP40 Outdoor Network Switch

5.0 (50 votes) | 131 orders
Price: US $55.10 / piece
Discount Price:
US $ 46.84 / piece
-15%
Ships From
Color
Quantity

Lightning and Surge Protection

Say Goodbye to Thunderstorm


Best-in-Class Industrial Chip

to use in harsh environment


Wide Range of Temperature

from -40℃ to 75℃


Redundant D ual Power Supply

10V to 58V Wide Range of Voltage Inpute

Features with DIP switches

versatile for every moment use

Comes with Alll the Necessary Certifications

Ultra-Strong Compatibility

Compatible with variety brands

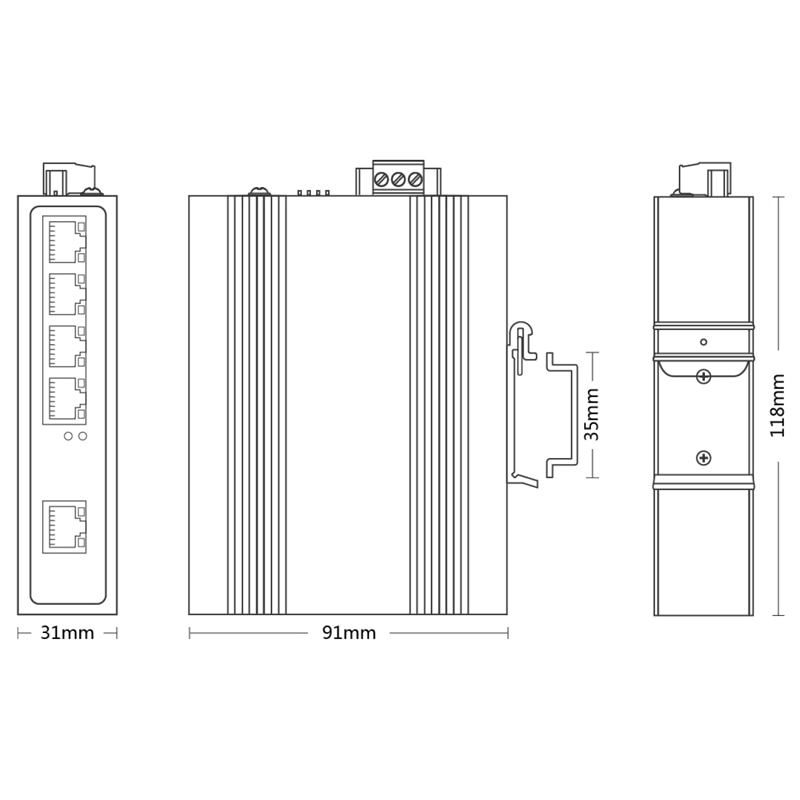

Product Dimentions


A cost-effective way of entering the world of Industrial Ethernet technology

The unmanaged switches from Scodeno are a cost-effective way of entering the world of Industrial Ethernet technology without compromising on quality and reliability. All switches have been specially designed for use in harsh environments and come with all the necessary certifications. They are suitable for all applications in which switch management is unnecessary: at field level in industrial networks, for example, or in smaller infrastructures.

With its extremely wide range of industry-grade unmanaged switches, Scodeno is able to provide the ideal solution for every customer and every area of application. As well as switches with a redundant power supply and signal contact, the portfolio also features devices with a robust IP40 housing for use in the most demanding environments. Our portfolio is rounded off by certifications for a wealth of application areas, including those for vehicles, potentially explosive environments and transformer substations.

Whether you need a cost-effective, entry-level switch - or something more robust, with many customizable features - the Scodneo will meet your network's unique needs.

Benefits

• Compact design – small size saves space in tight areas and makes installation simple and fast
• Cost-effective – reduces overall lifecycle costs with low power consumption
• Highly ruggedized – built to withstand extreme industrial environments, including a wide range of temperatures, through an IP40 metal case and an optional protective coating
• Expanded industrial certifications – approved for use in a variety of industrial markets

Features

 Up to 5 Fast Ethernet Ports 10/100BaseT(X) (RJ45 connector)
 Compact size for easy installation
 QoS supported to process critical data in heavy traffic
 IP40-rated metal housing
 -40 to 75°C wide operating temperature range

Applications

Scodeno Standard Black switches are suitable for both harsh environments and applications in which switch management is unnecessary
• Manufacturing
• Machine Building
• Transportation
• Automotive
• Process Automation
• Physical Security

Description

Description: Entry Level Industrial Ethernet Rail-Switch
Part Number: XPTN-9000-45-5TX
Port type and quantity: 5 x 10/100 BASE-TX, RJ45 sockets

Standards

IEEE 802.3
IEEE 802.3u
IEEE 802.3i
IEEE 802.3at

Network Size

Twisted Pair (TP): 0-100m

Power requirements

Operating Voltage: DC 12V-58V
Power consumption: <5w

More Interfaces

Power supply: 1 x plug-in terminal block (redundant)

Ambient Conditions

MTBF: 100,000H
Operating Temperature: -30℃ to 75℃
Storage Temperature: -30 to 75
Relative humidity (non-condensing): 10-95%

Diagnostics Features

Diagnostic functions: LEDs (power, link status, data, data rate)

Approvals

CE FCC CCC

Switch properties

Switching Capacity: 1G
Processing type: store and forward
MAC Table Size: 2K
Packet Buffer Size: 768K

Mechanical Construction

Dimensions (W x H x D): 118 X 91 X 31mm
Weight: 0.36kg

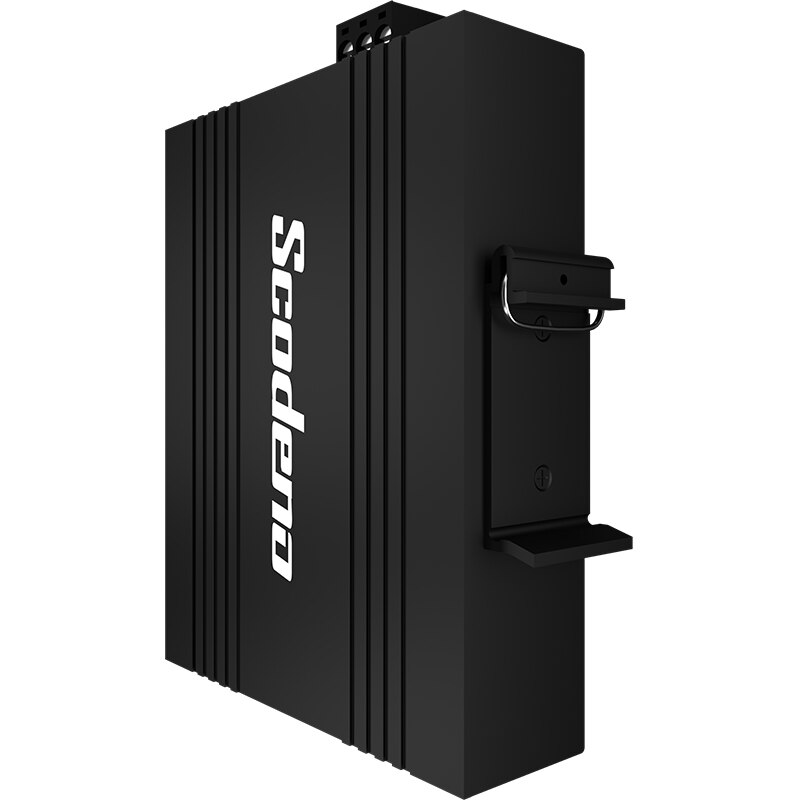

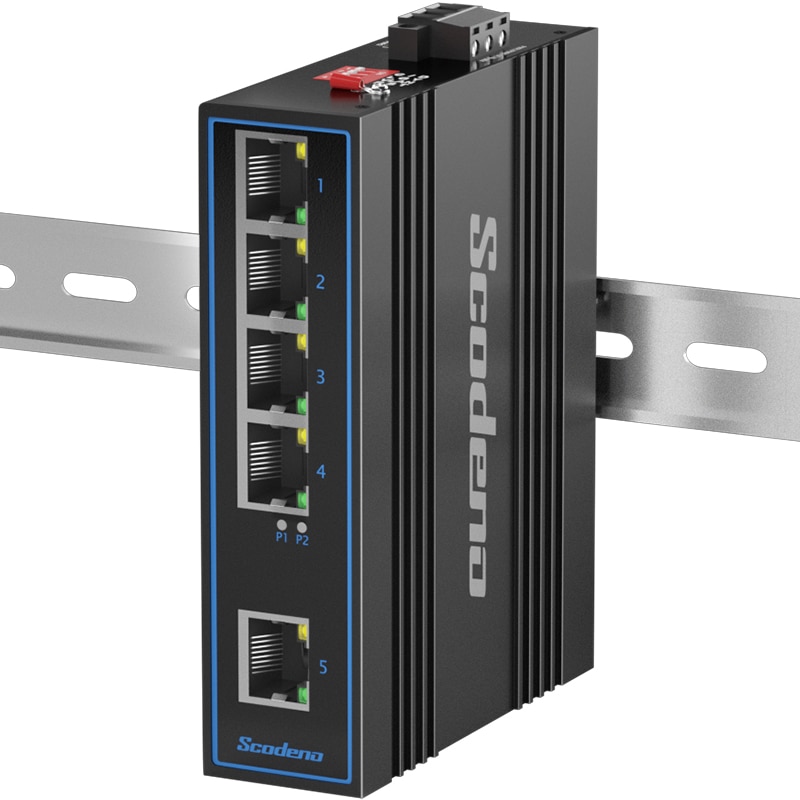

Mounting: DIN rail
Protection class: IP40

EMC interference immunity

EN 61000-4-5 surge voltage (power & data line): 4 kV (line/earth), 2 kV (line/line)
EN 61000-4-2 electrostatic discharge (ESD): 8 kV contact discharge, 15 kV air discharge

EMC emitted immunity

FCC CFR47 Part 15: FCC 47CFR Part 15, Class A

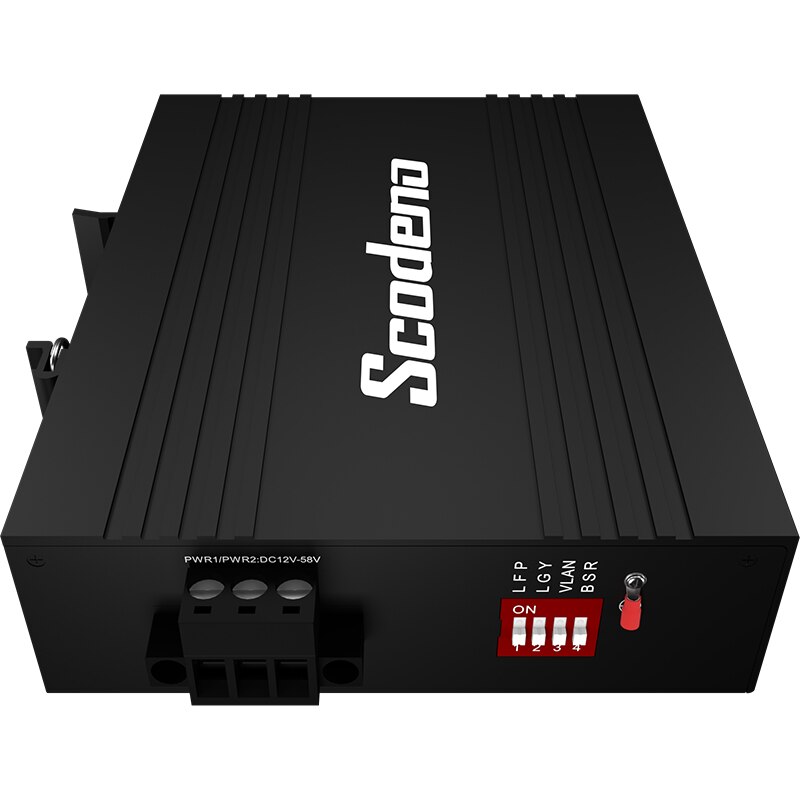

DIP Switch

1. LEP-->Reserve
2. LGY-->Standard or Non Standard PoE
3. VLAN-->Port Isolation
4. BSR-->Storm Control Configuration



  • Brand Name: Scodeno
  • Certification: CE
  • Certification: FCC
  • Certification: RoHS
  • Origin: CN(Origin)
  • Function: LACP
  • Function: QoS
  • Function: VLAN Support
  • Model Number: XPTN-9000-65-5TX-mini
  • Transmission Rate: 10/100Mbps
  • Number of Interfaces: 7
  • VLAN: yes
  • Switch Type: Fast Switch
  • Switch Capacity: 1G
  • Package: Yes
  • Communication Mode: Full-Duplex & Half-Duplex
  • Power Interface: Phoenix terminal
  • Dual Power Supply: YES
  • LED Indicators: P1/P2, OPT
  • Ring Topology: Unsupported
  • Star topology: Support
  • Bus topology: Support
  • Tree Topology: Support
  • Input voltage: DC12~58V
  • Total Power consumption: <5W
  • Packet forwarding rate: 0.744Mpps
  • MAC address table: 2K
  • Forwarding delay: <5us
  • Buffer: 768K
  • MDX/MIDX: Support
  • Flow control: Support
  • Jumbo frame: 2K bytes
  • Storm Control: Support
  • Port-Isolation: Support
  • Remote PD Reset: Support
  • Operating temperature: -30℃~+75℃
  • Storage temperature: -30℃~+75℃
  • Relative humidity: 10%~90%
  • Thermal methods: Fanless, natural cooling
  • MTBF: 100,000 hours
  • Product size: 91x118x31mm
  • Installation Method: DIN-rail
  • Weight: 0.36KG around
  • IP Level: IP40
  • Surge protection of Power: 4KV/2KV
  • Surge protection of Ethernet port: 4KV/2KV
  • ESD: 8K/15K
