Product Description

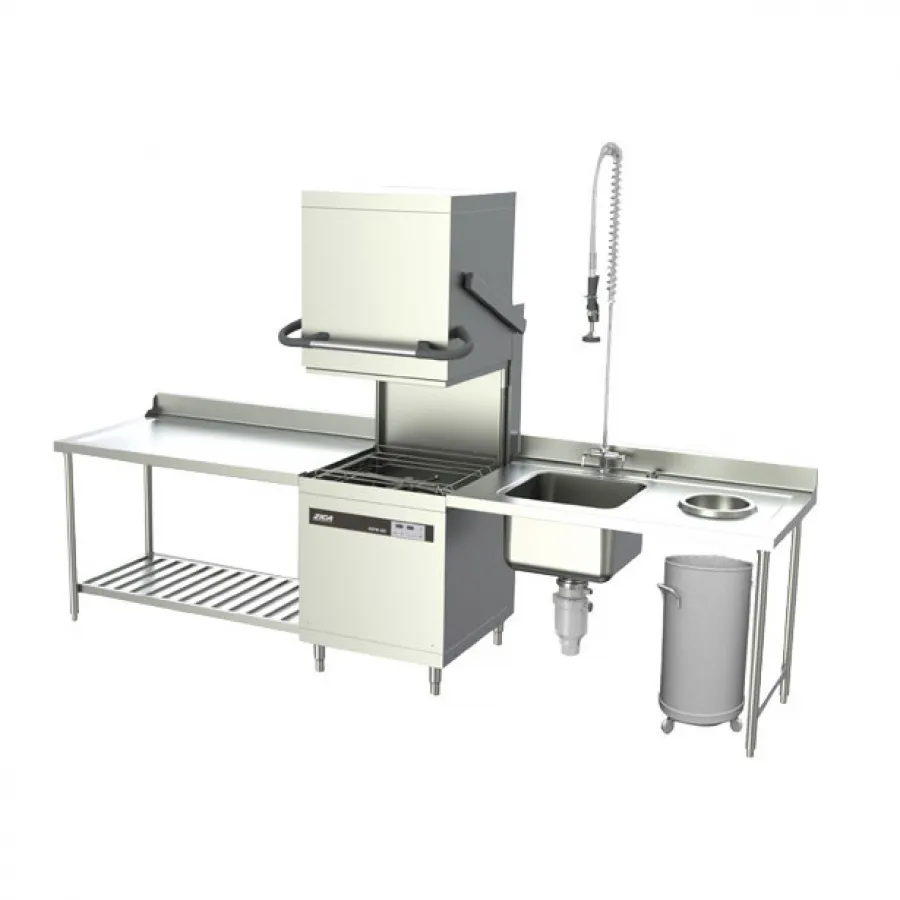

1)Main applications:

Allkinds of restaurant chain, starred hotel, dinner room of enterprise and factory etc

2)Convenient and practical:

2.1) Tunnel type/basket transter type design. It adopts the washing method which is "Two enters, one exits", in order to guarantee all-dimensional spray.

2.2) Optical ways of heating, for instance, electric heating. It can also be transformed into other ways of heating, such as steam, natural gas, liquefied petroleum gas and so on, which is more considerate and convenient.

3)Safe and reliable:

3.1) When the dishwasher is under operation, the pump and the driving motor willautomatically close once the detecting gate opens by accident, to prevent hot water from spilling. It's safe and comfortable.
3.2) High quality temperature control function, guarantee the rinse water temperature is above 86 degrees, achieve the best effect of disinfection,
3.3) The end of the optional exit working desk has a automatic turning-off protective device, to prevent tablewares from damaging due to not timely uninstall. It's time saving and cozy.

4)Efficient and energy saving:

4.1)  Adopt recycling water to finish the first cleaning step, save washing water volume, environmental-protection and energy saving.
4.2) When tablewares enter the high temperature spraying area, the spraying system will open automatically, achieving the effect of energy saving.
4.3) Washing arm has a design of concave nozzie to prevent blocking. With a fan type water spray form of 60 degrees, it perfectly expands the spray scale. Super cleaning ability ensures you a perfect washing effect.





Optional accessories:

1.Dirty dish desk(entrance working desk of dishwasher),

2.Clean dish desk(exit working desk of dishwasher),

3.High pressure water faucet,

4.Double pump dispenser

5. Dish-washing basket

6.Specifled detergpent for dishwasher,specified drier for distwasher

 Item No. Product Name Specification
YDW-YT005

Conveyor Type

Dishwasher

Specification:1100*780*1600
Basket/h: 130 baskets/h
Piece/h: 2600 plates/h
Main wash tank capacity : 91L
Rinse capacity: 24L
Tank temp: 50~70° C
Temp boiler : 75~95° C
Water pressure: 1.4Bar
Heater tank: 100 W.
Heater boiler: 27 KW.
Heater rinse tank: 9 KW.
Motor conveyor: 750W.
Motor pump : 1.5KW
Total electrical power: 37KW
Voltage:380V/50HZ
Height when open machine: 2100MM
Door entry height : 400MM
Weight: 230Kg
Equiped with 3 pieces dish baskets: 500*500*100
YDW-YT006

Double Cylinder &Double Spray

Tunnel Type Dishwasher

Specification:1500*780*1600
Basket/h: 153 baskets/h
Piece/h: 3700 plates/h
Voltage:380V/50HZ
Power:38kw/h
Main wash tank capacity : 91L
Rinse capacity: 24L
Tank temp: 50~70° C
Temp boiler : 75~95° C
Water pressure: 1.4Bar
Rinse consumption: 17L
Heater tank: 200W.
Heater boiler: 27 KW.
Heater rinse tank: 9 KW.
Motor conveyor: 750W.
Motor pump : 1.5KW
Height when open machine: 2100MM
Door entry height : 400MM
Weight: 290Kg
Equiped with 3 pieces dish baskets: 500*500*100

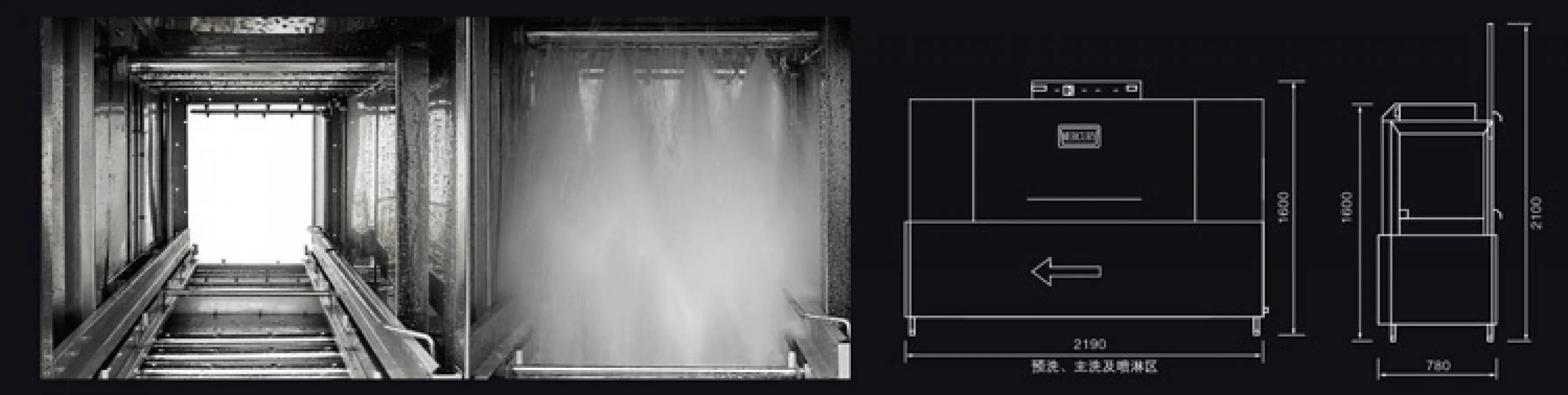

 YDW-YT007

Pass Through

Dishwasher

Specification:2200*780*1630
Basket/h: 185 baskets/h
Piece/h: 5000 plates/h Voltage:380V/50HZ
Power:42kw/h
Pre wash tank capacity :85L
Main wash tank capacity : 91L
Rinse capacity: 24L
Tank temp: 50~70° C
Temp boiler : 75~95° C
Water pressure: 1.4Bar
Rinse consumption: 17L
Heater tank: 200W.
Heater boiler: 27 KW.
Heater rinse tank: 9 KW.
Motor conveyor: 750W.
Motor pump : 3KW
Height when open machine: 2100MM
Door entry height : 400MM
Weight: 360Kg
Equiped with 3 pieces dish baskets: 500*500*100
 YDW-YT008

Single Cylinder&Double Spray

Tunnel Type Dishwasher,

Equipped With Single Dryer

The larget washing capacity:186Pc/H
Washing Height:400MM
The largest water consumption:360 L/H
Cleaning cy1inder capacity:98L
High temperature cylinder capacity:30L
Cteaning cylinder power:9KW
High temperature cylinder power:27KW
Dryer Power:10KW
Total power:48.5KW
Power requirements;380V/AC/50HZ/5N
Input Water pressure:0.15-0.3MPA
Dimensions:2500*780*1630MM
Equiped with 3 pieces dish baskets: 500*500*100
 YDW-YT009

 Conveyor

Dishwasher with Dryer

Specification:3200*780*1630
Drying machinery:1000*780*1700H
Basket/h: 185 baskets/h
Piece/h: 6000 plates/h
Voltage:380V/50HZ
Power:54kw/h
Pre wash tank capacity :85L
Main wash tank capacity : 91L
Rinse capacity: 24L
Tank temp: 50~70° C
Temp boiler : 75~95° C
Water pressure: 1.4Bar
Rinse consumption: 17L
Heater tank: 200W.
Heater boiler: 27 KW.
Heater rinse tank: 9 KW.
Heater air dry : 9KW
Motor fan dry: 1.1KW
Motor conveyor: 750W.
Motor pump : 3KW
Height when open machine: 2100MM
Door entry height : 400MM
Weight: 425Kg
Equiped with 3 pieces dish baskets: 500*500*100
 YDW-YT010

Conveyor Type

Dishwasher with Dryer

Specification:4000*780*1920
Drying machinery:1800*780*1630
Basket/h: 250 baskets/h
Piece/h: 8000 plates/h
Voltage:380V/50HZ
Power:60kw/h
Pre wash tank capacity :85L
Main wash tank capacity : 91L
Rinse capacity: 24L
Tank temp: 50~70° C
Temp boiler : 75~95° C
Water pressure: 1.4Bar
Rinse consumption: 17L
Heater tank: 200W.
Heater boiler: 27 KW.
Heater rinse tank: 9 KW.
Heater air dry : 9KW.X2
Motor fan dry: 2.2KW.X2
Motor conveyor: 750W.
Motor pump : 3KW
Height when open machine: 2100MM
Door entry height : 400MM
Weight:360Kg
Equiped with 3 pieces dish baskets: 500*500*100





About Us



Project Case

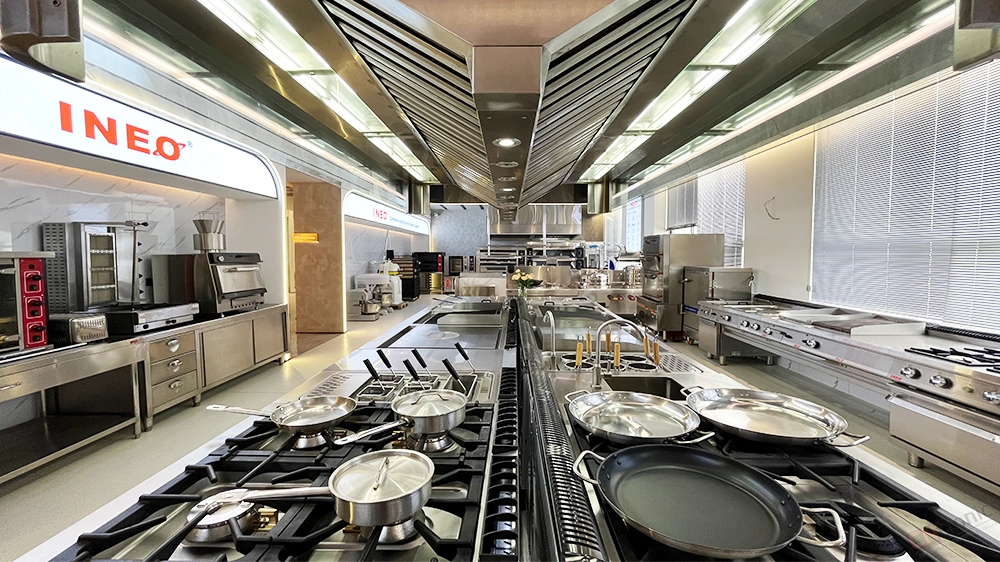

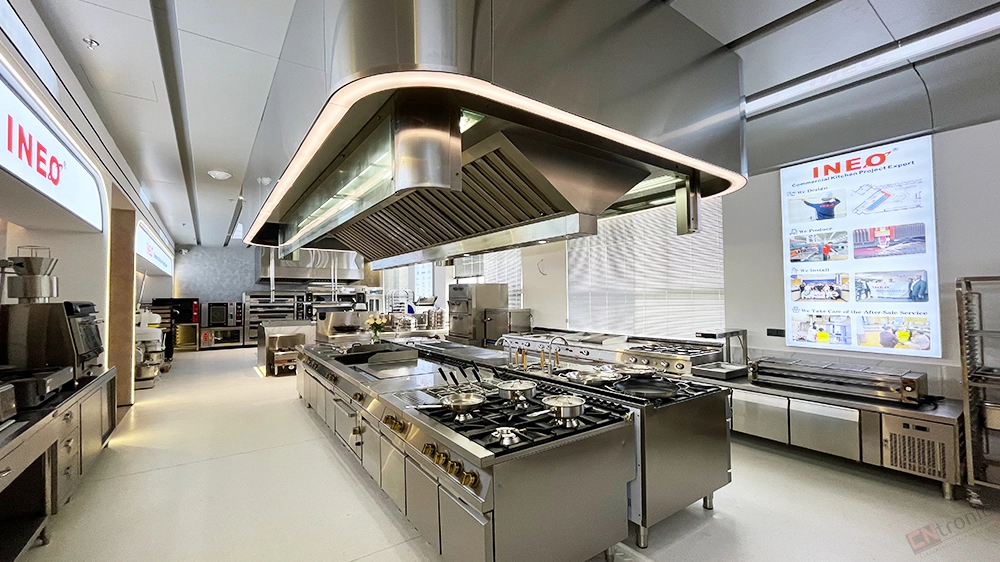

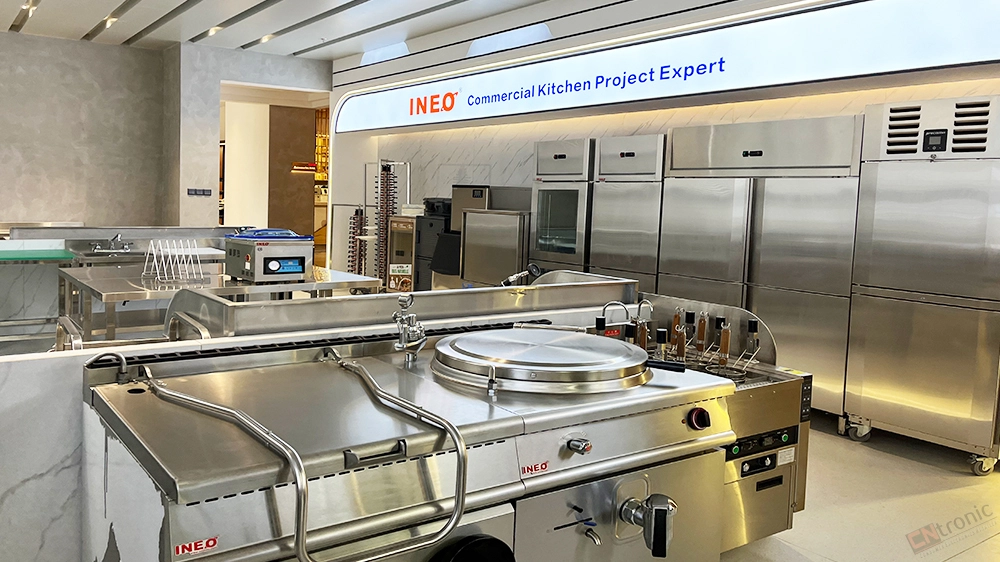

Show Room
