HINK-E075A01 7.5inch E-Ink Display HAT 640x384 Resolution SPI interface Compatible with Raspberry Pi 3B/3B+/Zero
4.7 (13 votes) | 201 orders
Price:
US $
43.47
Shipping list: only 7.5 screen
To use the Raspberry Pi, you need to purchase an adapter board
640x384 Resolution, 7.5inch E-Ink display HAT, SPI interface Compatible with Raspberry Pi 3B/3B+/Zero/Zero W 7.5'' e-Paper HAT
Item Description:

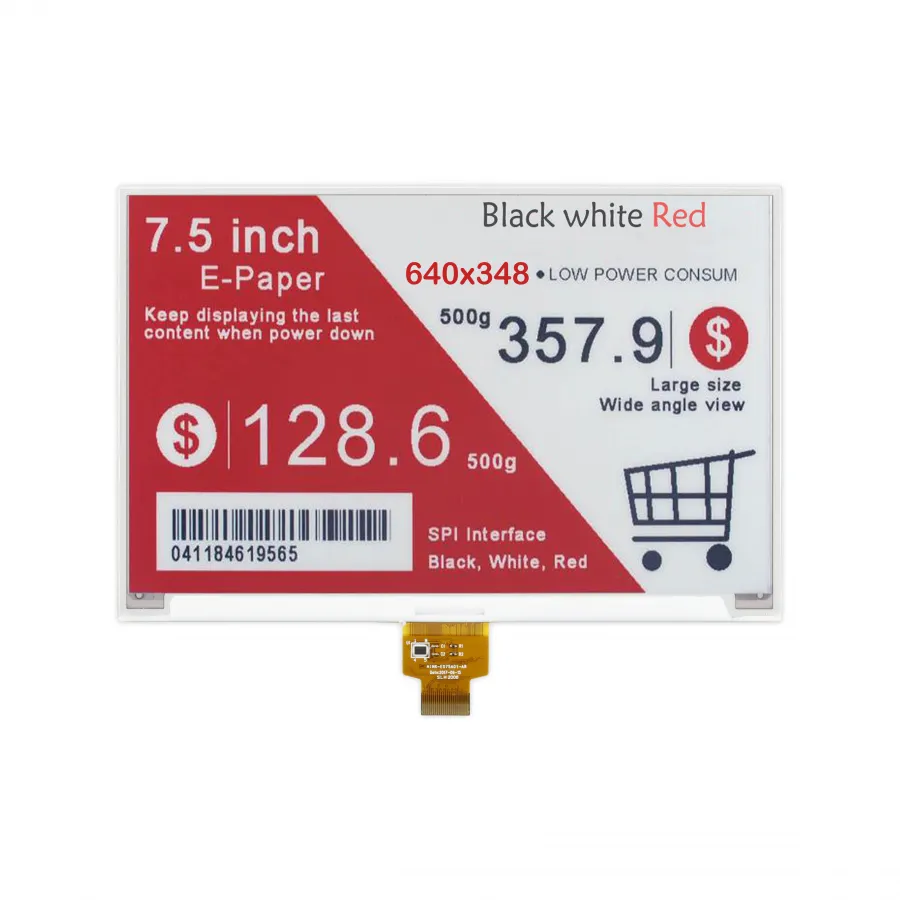

This is an E-Ink display HAT for Raspberry Pi, 7.5inch, 640x384 resolution,
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features:
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Compatible with Raspberry Pi 2B/3B/3B+/Zero/Zero W
SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
Onboard voltage translator, compatible with 3.3V/5V MCUs
Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Item Specification:
Operating voltage: 3.3V~5V
Interface: SPI
Outline dimension: 170.2mm × 111.2mm
Display size: 163.2mm × 97.92mm
Dot pitch: 0.255 × 0.255
Resolution: 640 × 384
Grey level: 2
Refresh power: 38mW(typ.)
Standby power: <0.017mW
Viewing angle: >170°
Packaging Details
- Unit Type:
- Package Weight: 0.300
- Package Size: 15x15x15
- Brand Name: XSRUPB
- Product Type: Tablet LCD
- Origin: Mainland China
- Model Number: HINK-E075A01
- Compatible Brand: Universal
- Display Size: 7~10 Inch
- Certification: None
- Screen Type: EPD
- Choice: yes
- semi_Choice: yes
