WE ARE HI-LINK MODULE MANUFACTURER, WELCOME TO PLACE ORDER HERE!
We are Shenzhen Hi-Link Electronic co.,td, manufacturer of DC DC power module for over 14 years in China.
If you need samples, please place order here, we will ship to you soon.
If you need more quantity, welcome to contact us directly, we will provide you best price and best shipping method to you.
Email: annie@hlktech.com
whatsapp: +8618797402505
Choose us with high quality and favourable prices.
1. Product features:
1).Ultra-thin, ultra-small, smallest volume;
2).Global universal input voltage (90~265Vac)
3).Low power consumption, green environmental protection, no-load loss<0.1W
4).Low ripple, low noise
5).High output short circuit and over-current protection and self recovery
6).High efficiency, high power density
7).Input and output isolation voltage 3000Vac
8).100% full load aging and testing
9).High reliability, long life design, continuous working time is greater than 100,000 hours;
10).Meet UL, CE requirements; product design to meet EMC and safety testing requirement;
11).Using high-quality environmentally friendly waterproof plastic potting, moisture, vibration, water and dust to meet IP65 standards
12).Economic solutions, cost-effective
13).Work without external circuit
14).1 year quality guarantee period
2. Environment Condition
Items | TechnicalParameters | Units | Notes |
Working temperature | -25—+60 | ℃ | |
Storage temperature | -40—+80 | ℃ | |
Relative humidity | 5—95 | % | |
Thermal methods | Natural cooling | ||
Atmospheric pressure | 80—106 | Kpa | |
Altitude | ≤2000 | m | |
Vibration | Vibration coefficient 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes | Meets requirements for secondary road transportation |
3.Electrical Characteristic
1).nput characteristics (test at room temperature 20 ℃）
Items | Technical Parameters | Units | Notes |
Rated input voltage | 100-240 | Vac | |
Input voltage range | 85-265 | Vac | or 120-350Vdc |
The maximum input current | ≤0.1 | A | |
Input inrush current | ≤10 | A | |
Input low start | ≤50 | mS | |
Long-term reliability | MTBF≥100, 000 | h | |
External fuse recommended | 1A / 250Vac or 10Ω wire wound resistance | Slow blow |
2).Output features(5V/600mA)
Items | TechnicalParameters | Units | Notes |
No-load rated output voltage | 5.0±0.1 | Vdc | |
Full-load rated output voltage | 5.0±0.2 | Vdc | |
Short time maximum output current | ≥700 | mA | |
Rated output current | 600 | mA | |
Voltage regulation | ±0.2 | % | |
Load regulation | ±0.5 | % | |
Input low voltage efficiency | Vin=115Vac, Output full load≥73 | % | |
Input high voltage efficiency | Vin=230Vac, Output full load≥73 | % | |
Output ripple and noise (mVp-p) | ≤100 Rated input voltage, output full load. With 20MHz bandwidth oscilloscope, Load side 10uF and 0.1uF capacitance test. | mV | |
Switching on/offovershoot amplitude | (Rated input voltage, output plus 10% load)≤5 | %VO | |
Output over-current protection | Output maximum load110-150% | A | |
Output short circuit protection | Direct short circuit in normal output and automatic return to normal operation after removal of short circuit | No-damage tothe whole device |

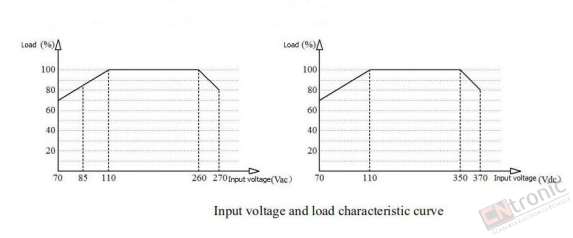

4.Input voltage and load characteristic

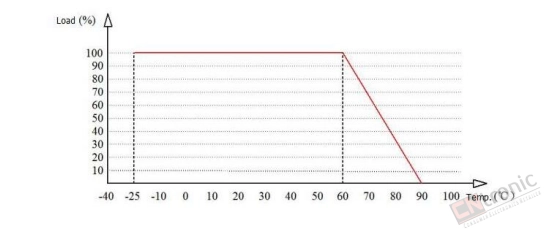

5.Working environment temperature and load characteristic

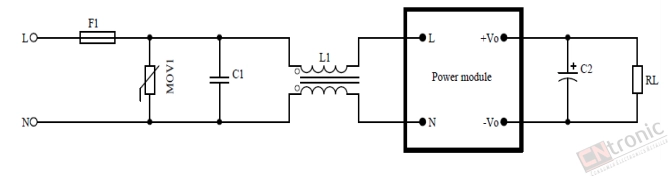

6.Typical application circuit
About us
Packaging Details
- Unit Type:
- Package Weight: 0.030
- Package Size: 8x6x8
- Brand Name: bibikoo
- Power Source: AC&DC
- Hign-concerned Chemical: None
- Inbox adaptor: NO
- Origin: Mainland China
- Power Source: AC&DC
- Compatible Brand/Model: None

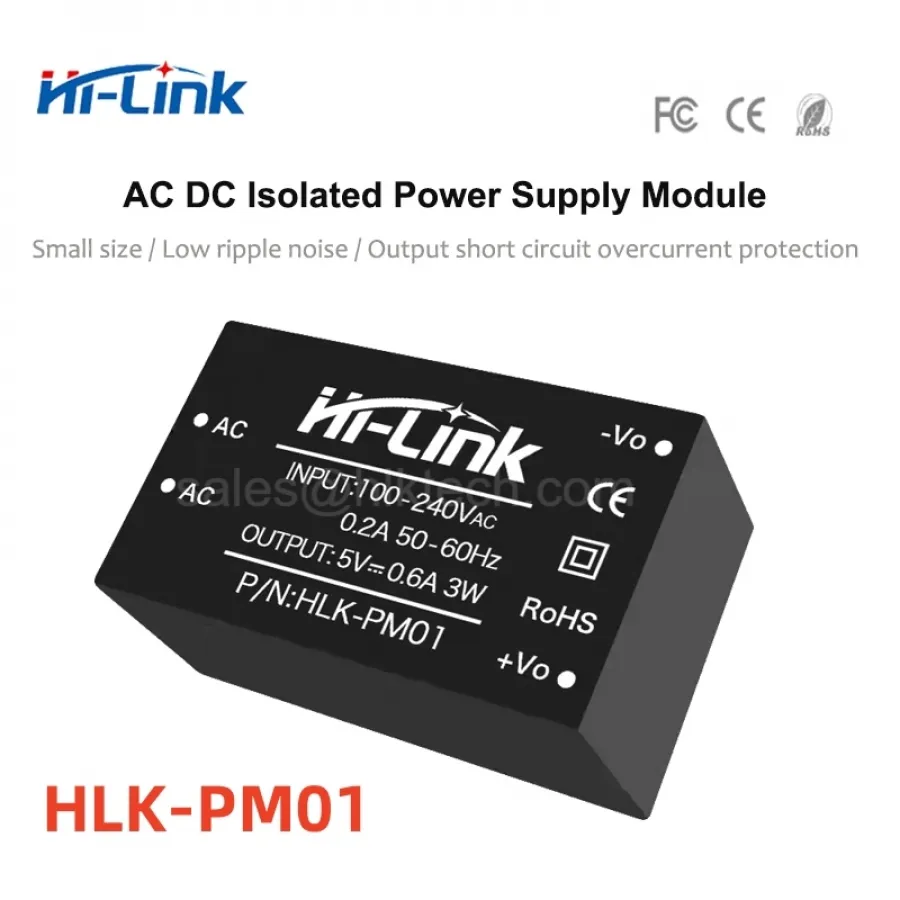

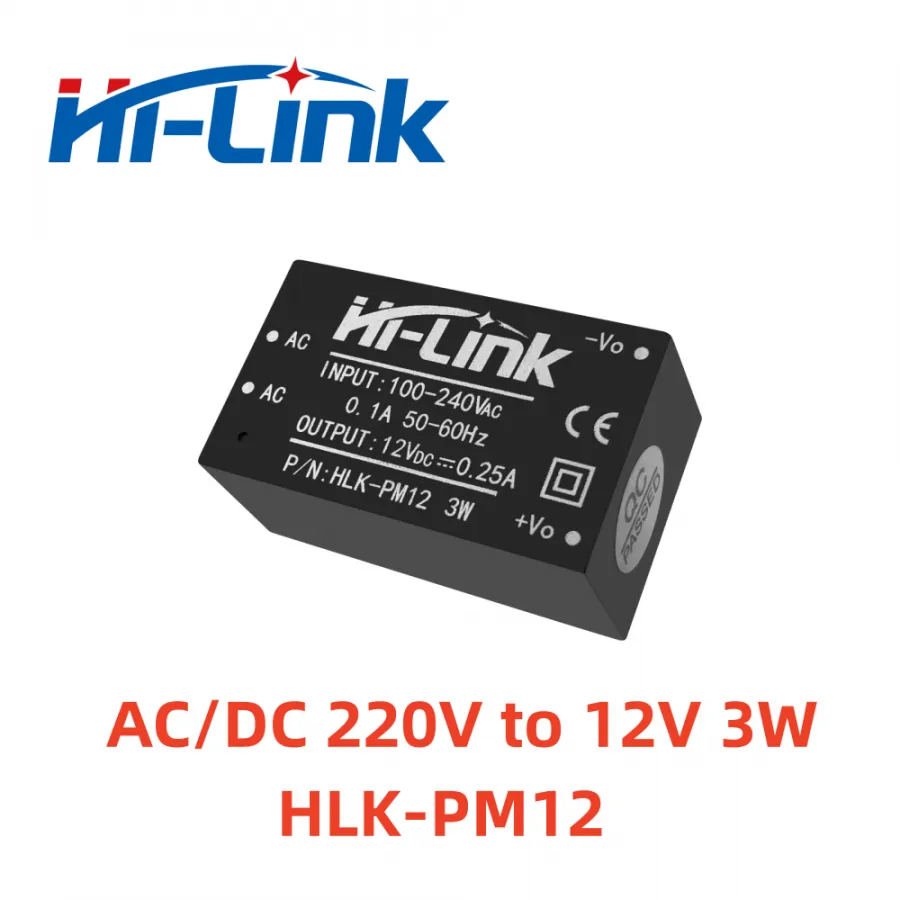

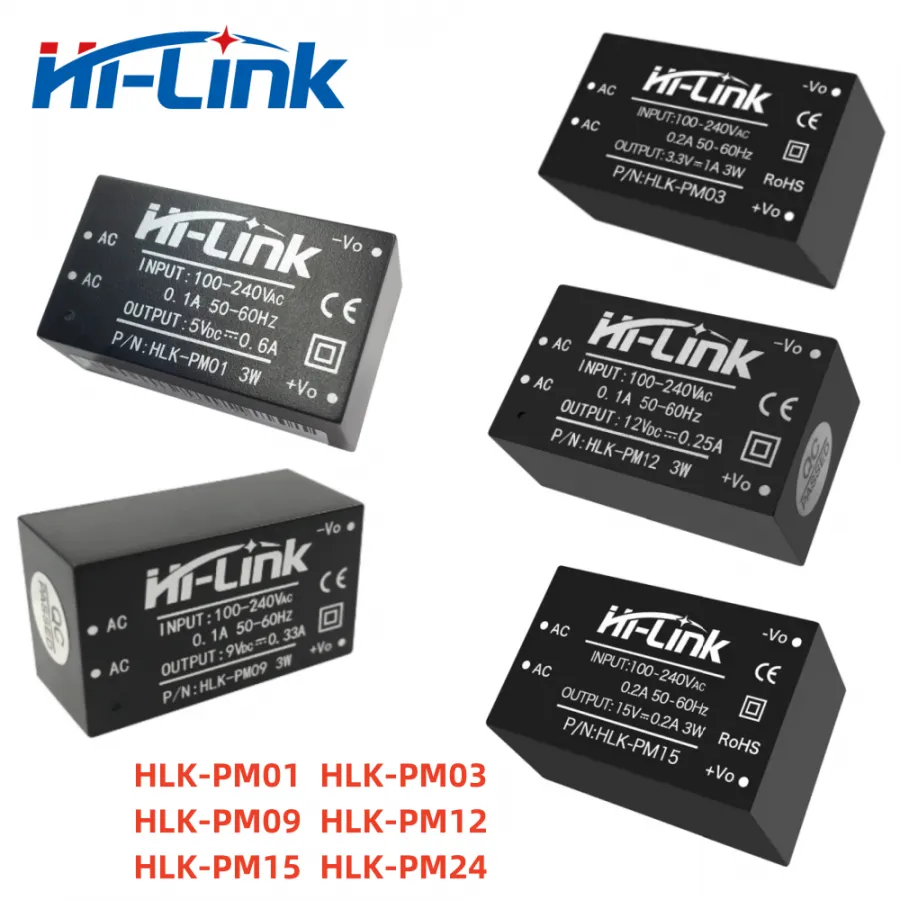

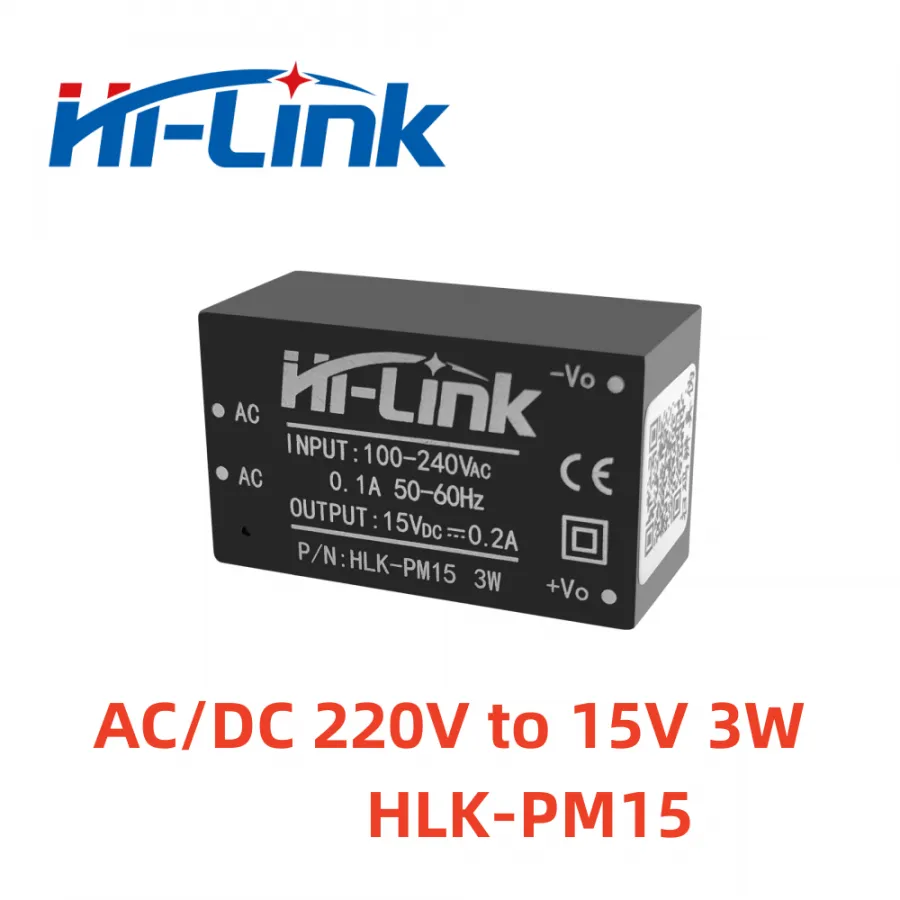

- Model Number: HLK-PM01/HLK-PM03/HLK-PM09/HLK-PM12/HLK-PM15/HLK-PM24
- Certification: RoHS
- color: Black
- Store Temperature: -40~+80 ℃
- Thermal methods: Natural cooling
- Rated input voltage: 100-240VAc
- Input voltage range: 90-264VAc
- Insulation voltage: I / P-O / P: 2500VAC
- weight: 20g
- demension: 34.8*20.5*15mm
