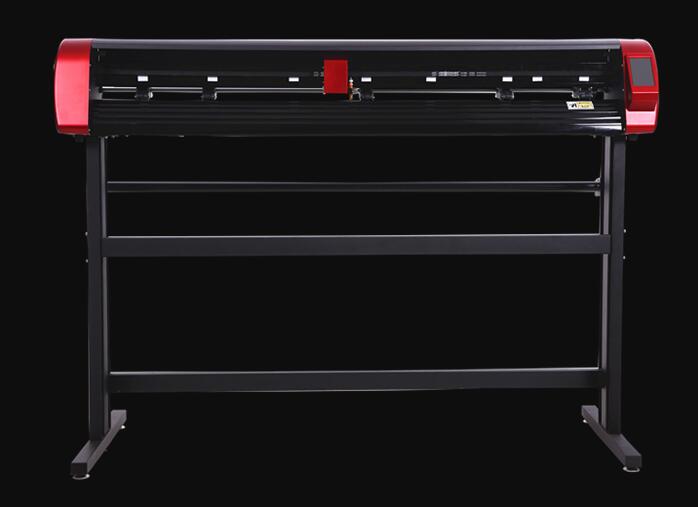

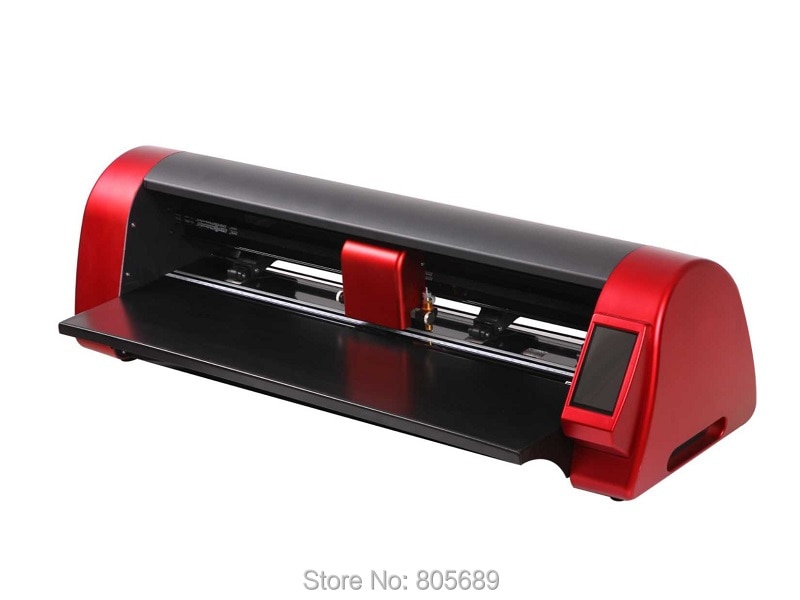

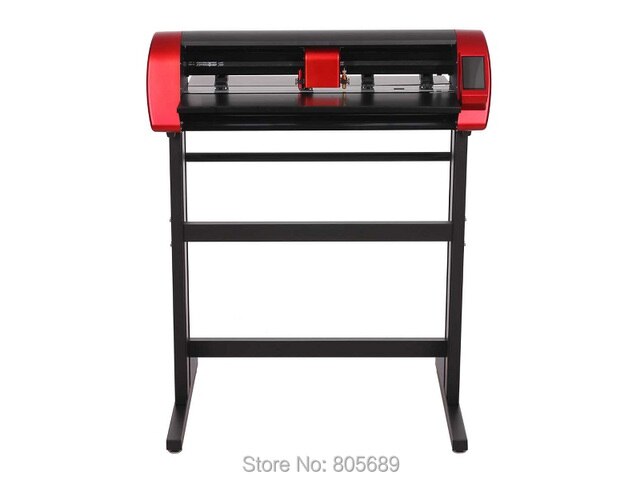

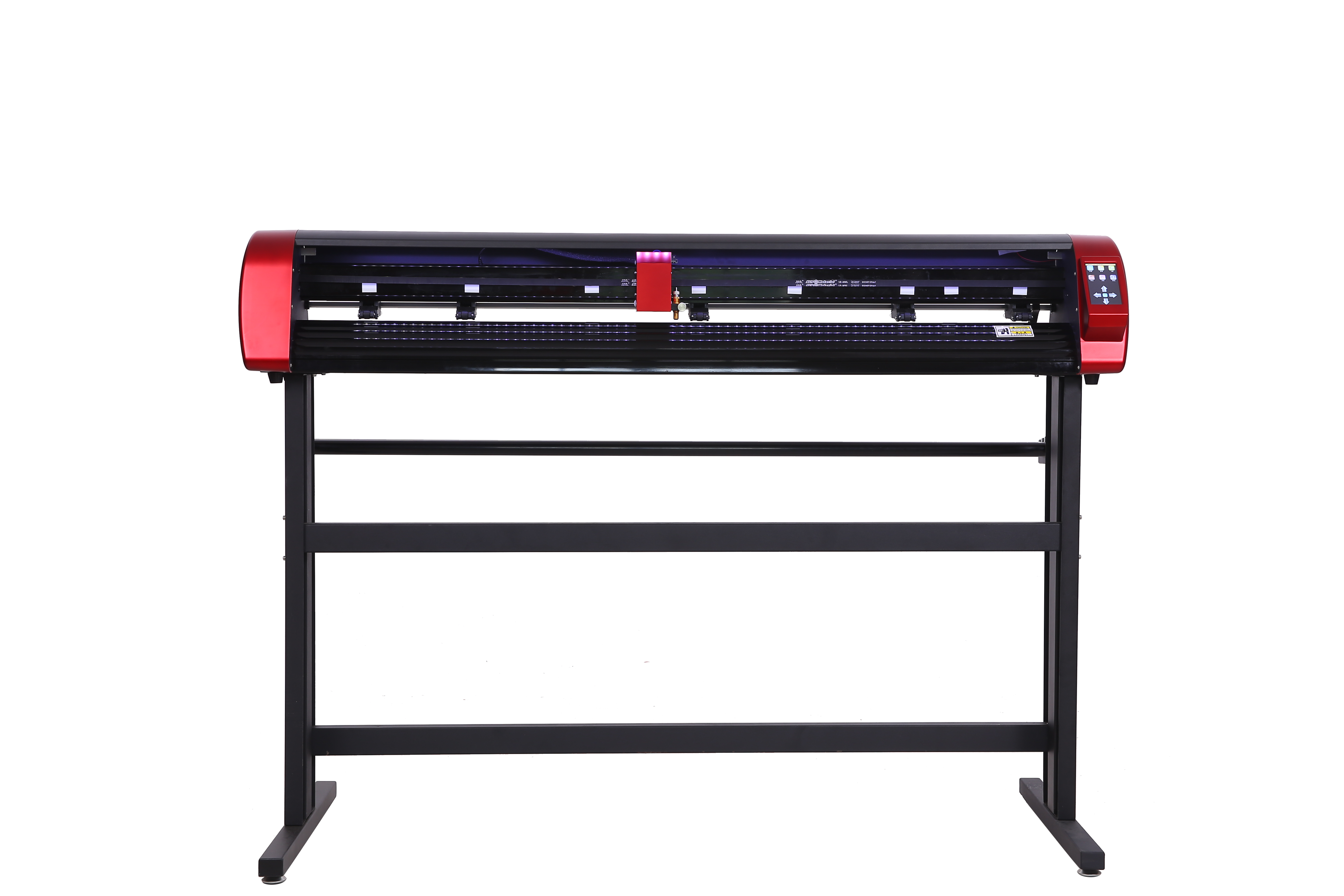

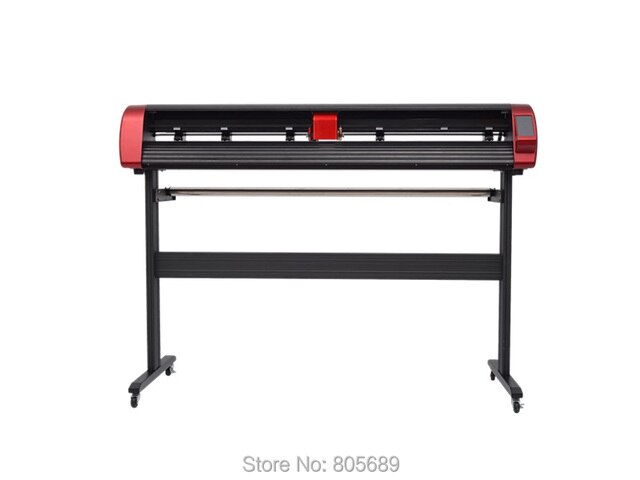

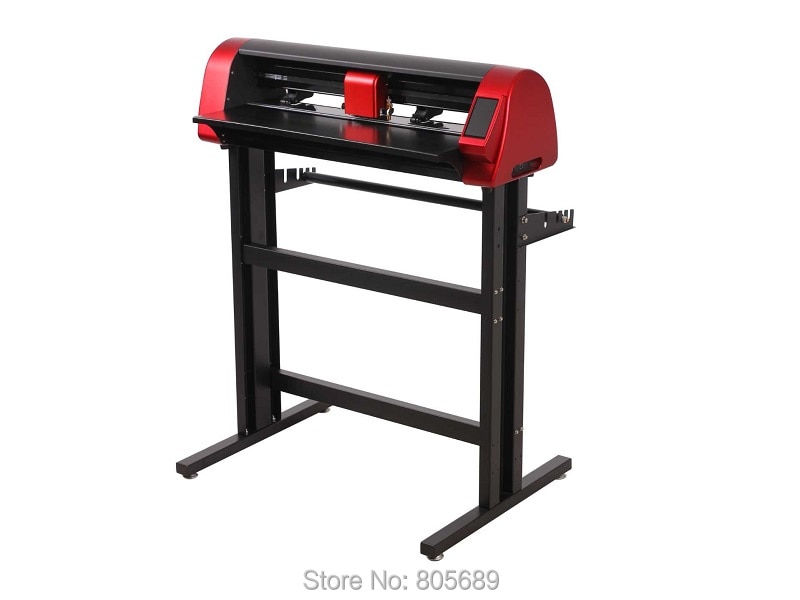

High Quality Desktop Cricut Graph Reflective Film Cutter 24" 48" Double Head Cutting Plotter Vinyl Cutter

0.0 ( votes)
Price: US $1878.00 - 2758.00 / piece
Discount Price:
US $ 1802.88 - 2647.68 / piece
-4%
color
Ships From
Quantity

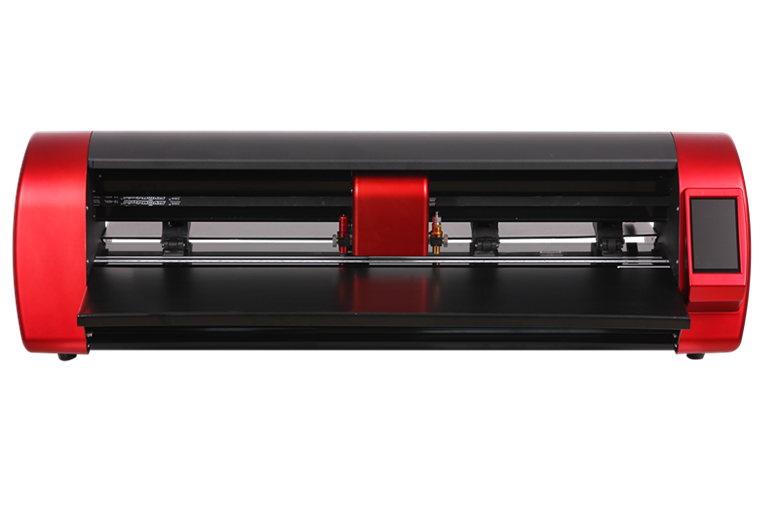

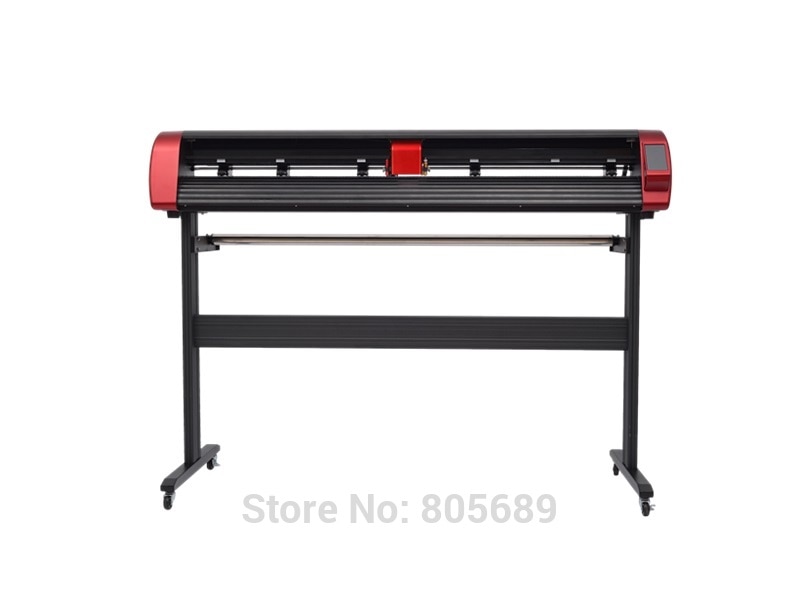

Dual heads contour cutting vinyl plotter

Main Features

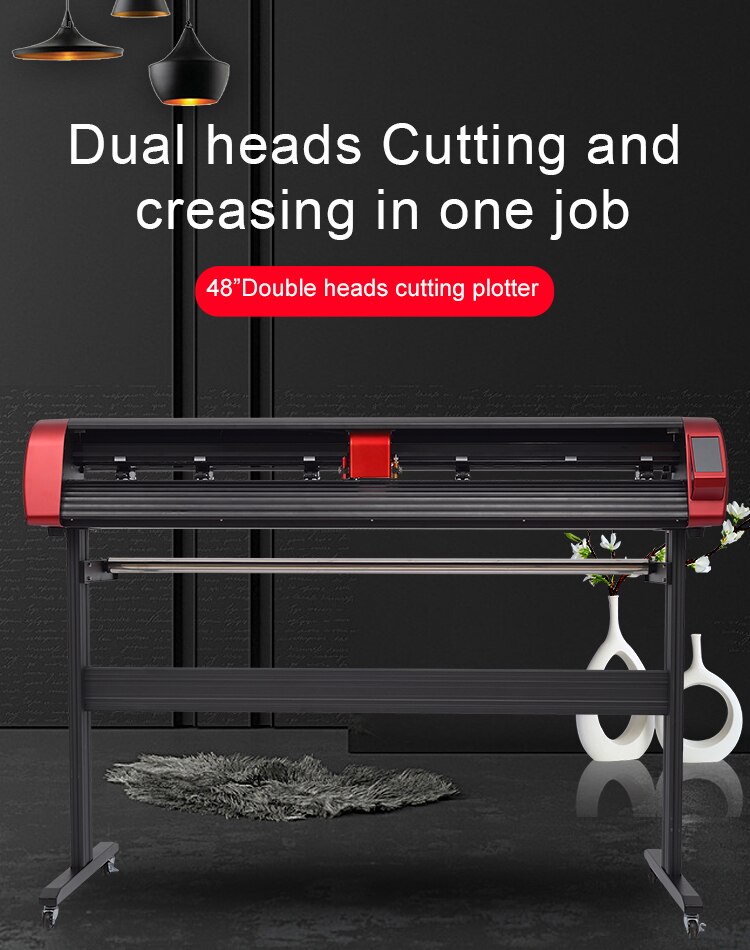

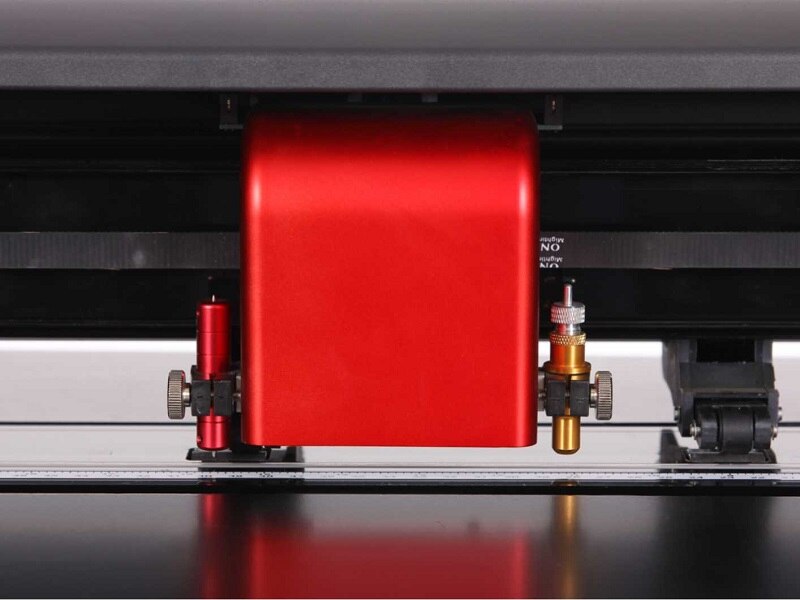

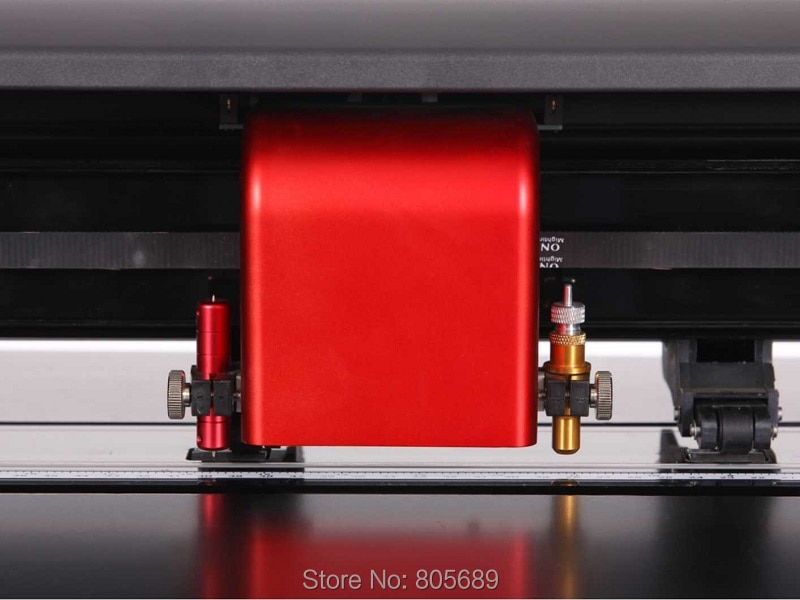

1) Dual heads cutting for plotting&cutting with one step

2) Cutting force Max 2000 g, Support Cutting force test and adjsut

3) Camera/Scanner + ARM 7.0+8MB Cache+4.3" Full Touch Screen

4) USB, U disk connection. WIFI, Mobile APP optional

5) Dual spring wheel pinch, high precision steel roller

6)Multi language, SignMaster Cut Software, Stand available

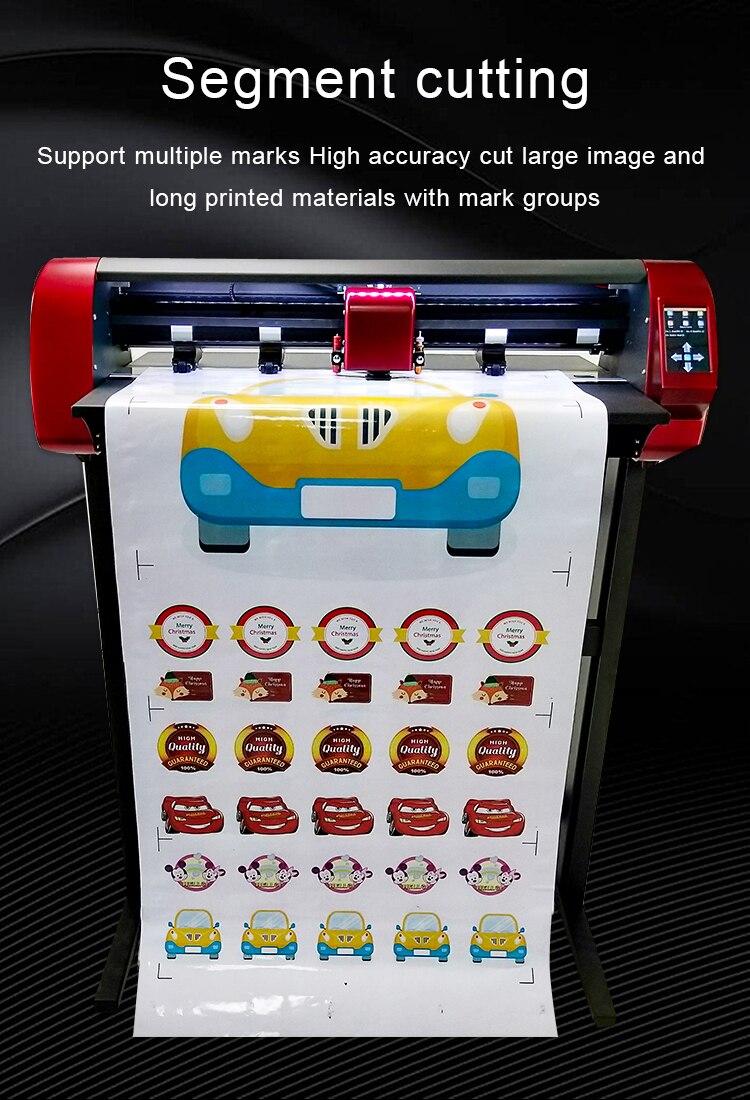

7)Support Contour cutting, Repeat Cutting, Auto Calibrating offset value


parameter

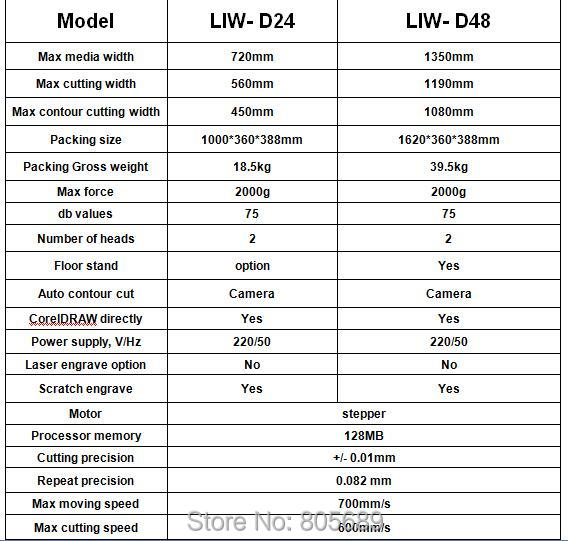

Model

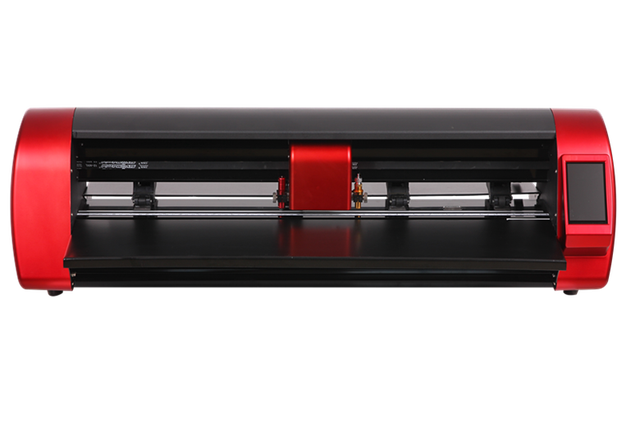

D24
D48
D60
Max cutting width
550mm
1180mm
1420mm
Max media width
720mm
1350mm
1650mm
Cutting head
Dual
Dual
Dual
Camera/Scanner
Support

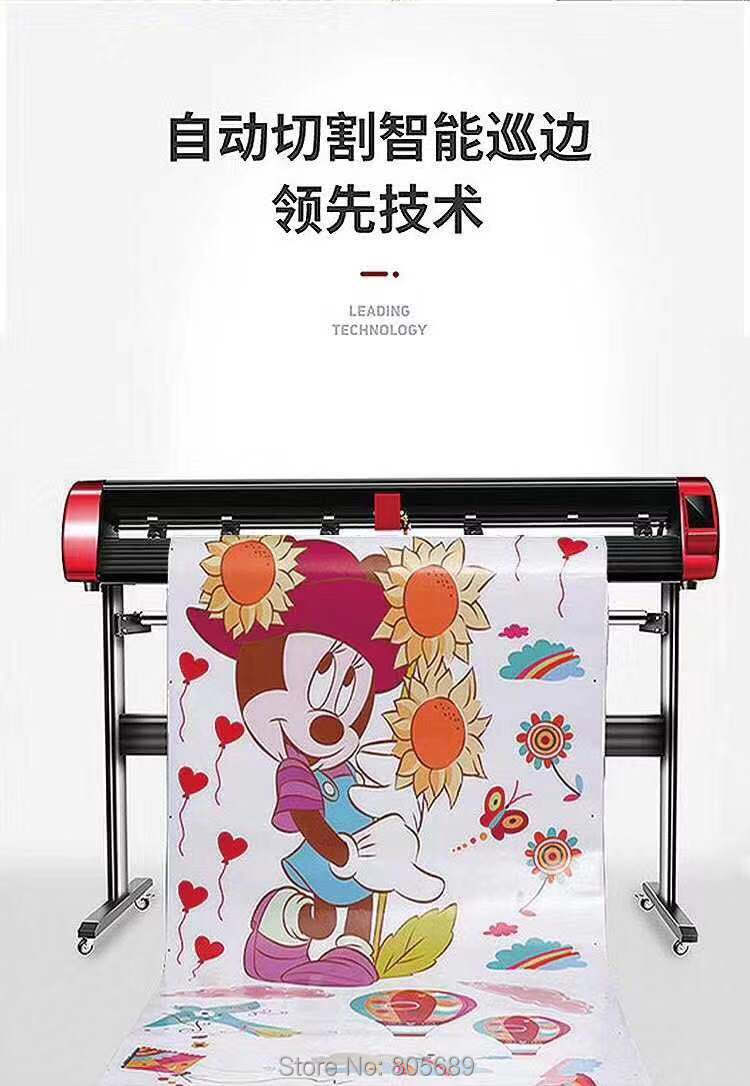

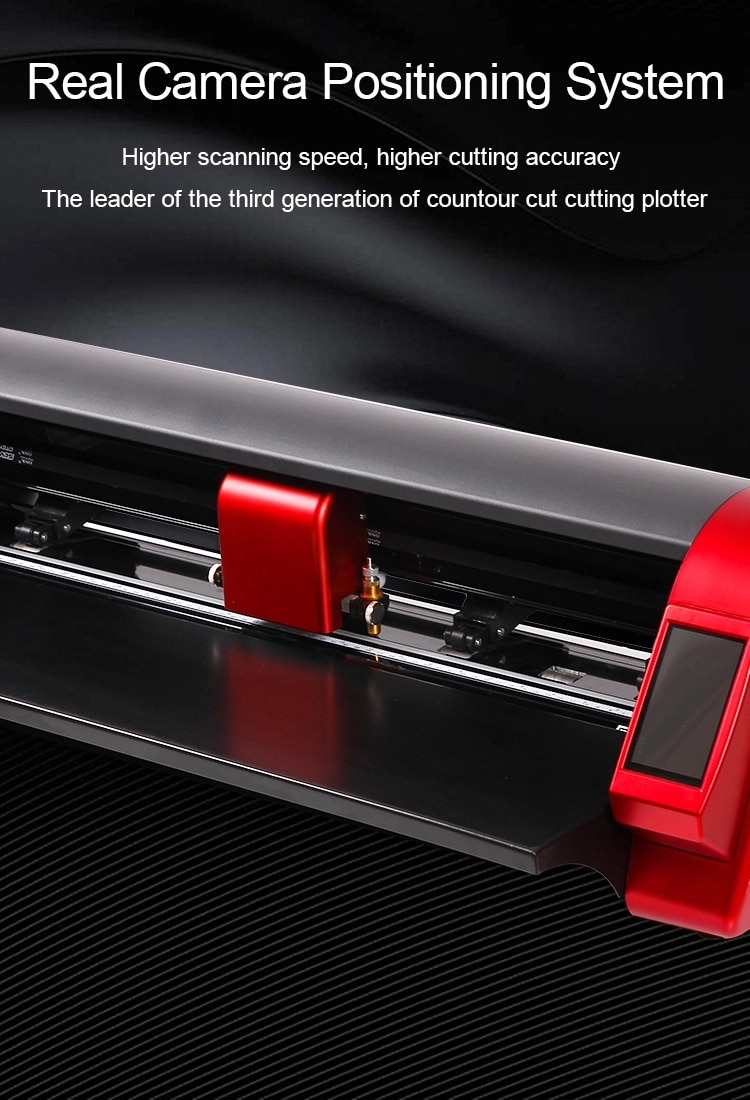

Auto Contour cutting
Fast, automatically and high precision contour cut by using the camera.
Operation

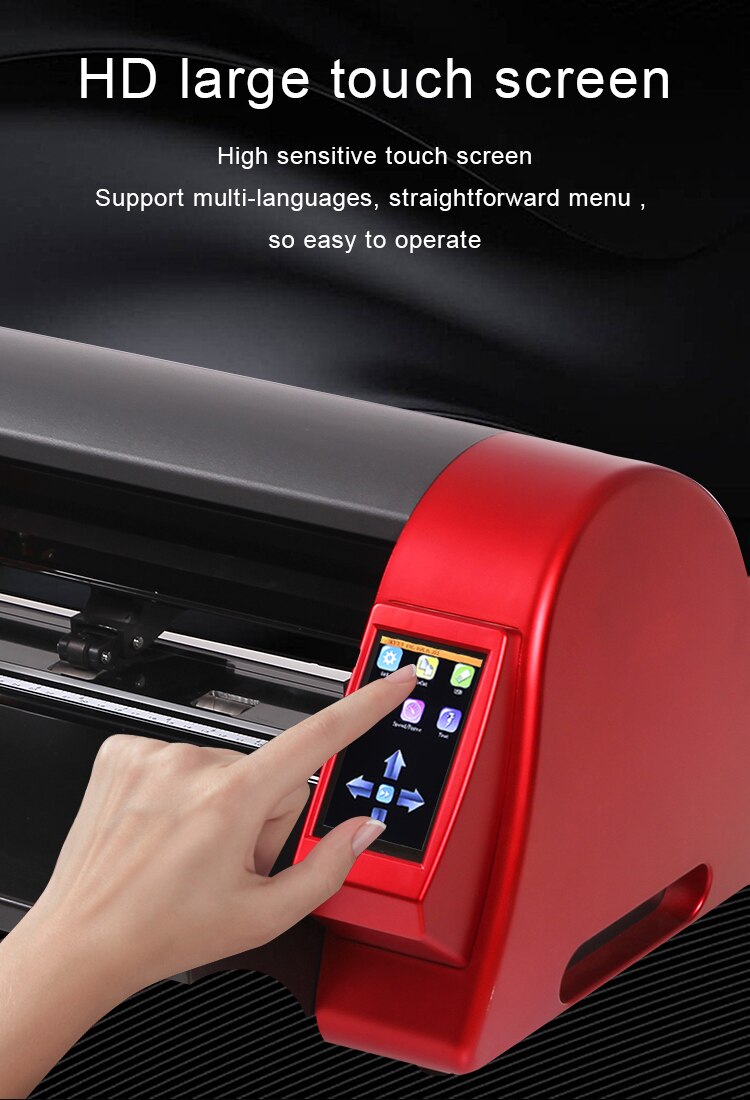

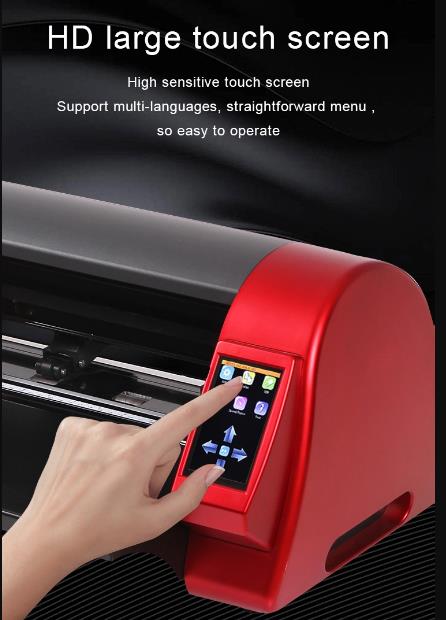

4.3" TFT LCD Large touch screen
Interface
HD large screen full-color APP information function display
Connector
USB cable, USB flash drive
Contour cutting&calibration
Easy use and high precision calibrate
Mainboard
32bit ARM Cortex M4 MCU,128M memory. Support remote and one key update.
Location mode
Bound system. set origin freely
Driver
Digital DC stepper motor,microstep driving
Command
HP-GL, DMPL
Max moving speed
960mm/s
Max cutting speed
750mm/s
Max cutting thickness
2mm
Force
Dual head:50g~2000g ( 160 setting adjustable )(independent setting of each head)
Cutting precision
< 0.01mm
Repeat precision
0.082mm
Power supply
AC100~240V/50Hz~60Hz
AC100~240V/50Hz~60Hz
+5℃~ +45℃,relative humidity 30%~70%
Color
White/grey/red(optional)

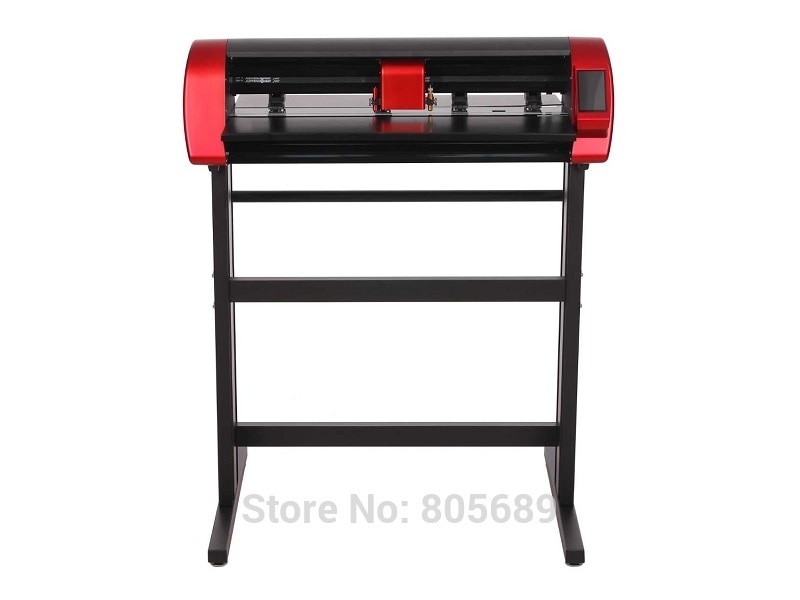

Bracket
YES

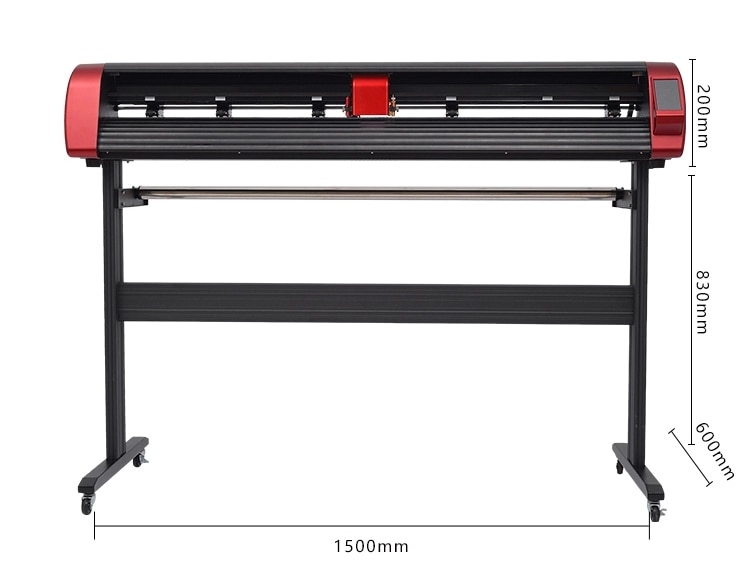

Size
1000*375*370mm
1600*375*370mm
1920*360*388mm
Gross Weight
16.8kg
40.5kg
49.5kg

Operation system
Windows2000 / XP / 2003 / win7 / 2003 / win7 /win10
MAC OSX10.2.8 or above



  • Paper Feed Width: 720mm/1350mm
  • Repeat Cutting: YES
  • Driver: stepping
  • Cutting Width: 550mm/1190mm
  • Voltage: 90-260V
  • Cutting Length: Unlimited Cutting Plotter
  • Cutting Speed: 960MM/S
  • Cutter Pressure: 50g~2000g ,160 grade adjustable
  • Cache Capacity: 8M
  • Max Paper Siz: 720mm/1350mm
  • Interface Type: USB flash/ WiFi(option)/ USB cable
  • Type: Dot-matrix
  • Model Number: LIW-D24/D48
  • Brand Name: LIW
  • Certification: CE
  • Origin: Mainland China
  • Interface: USB flash/ WiFi(option)/ USB cable
  • Contour cutting function: Fast , automatically and high precision contour cut buy using camera
  • Voltage:: AC100-240V/50HZ-60HZ
  • Cache Capacity:: 128MB

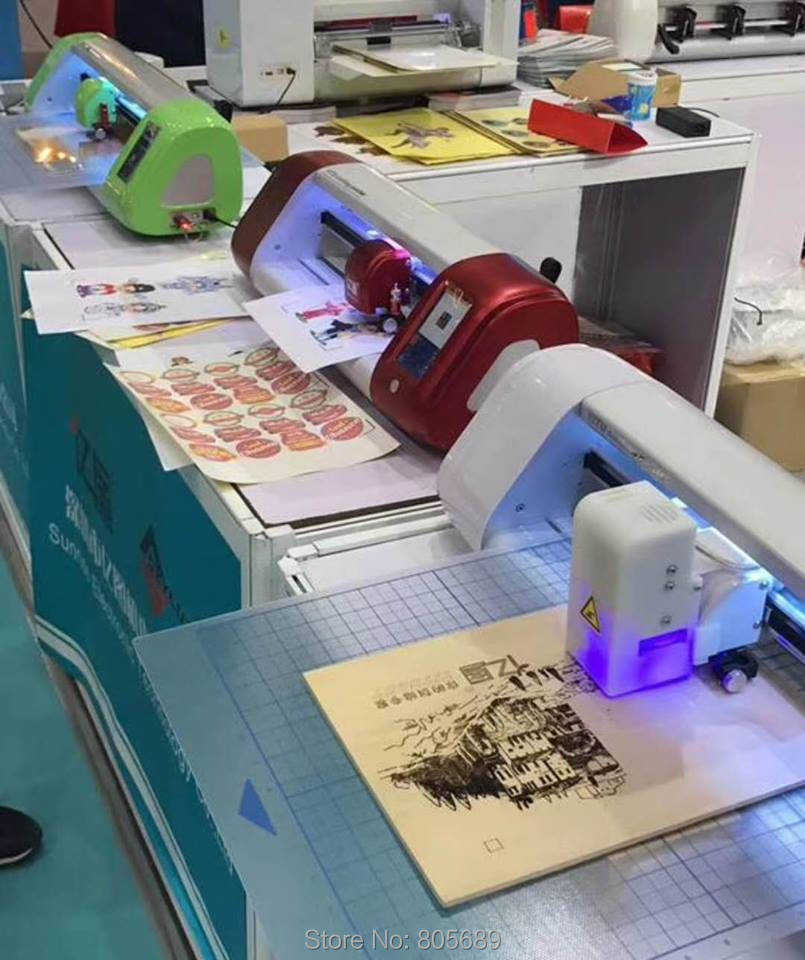

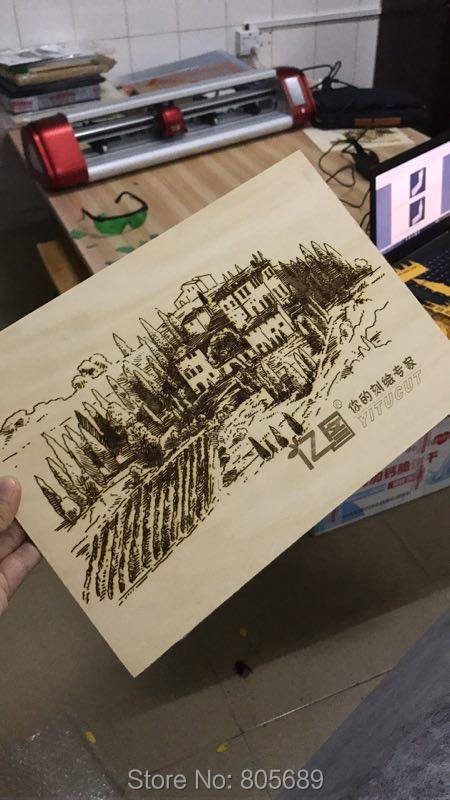

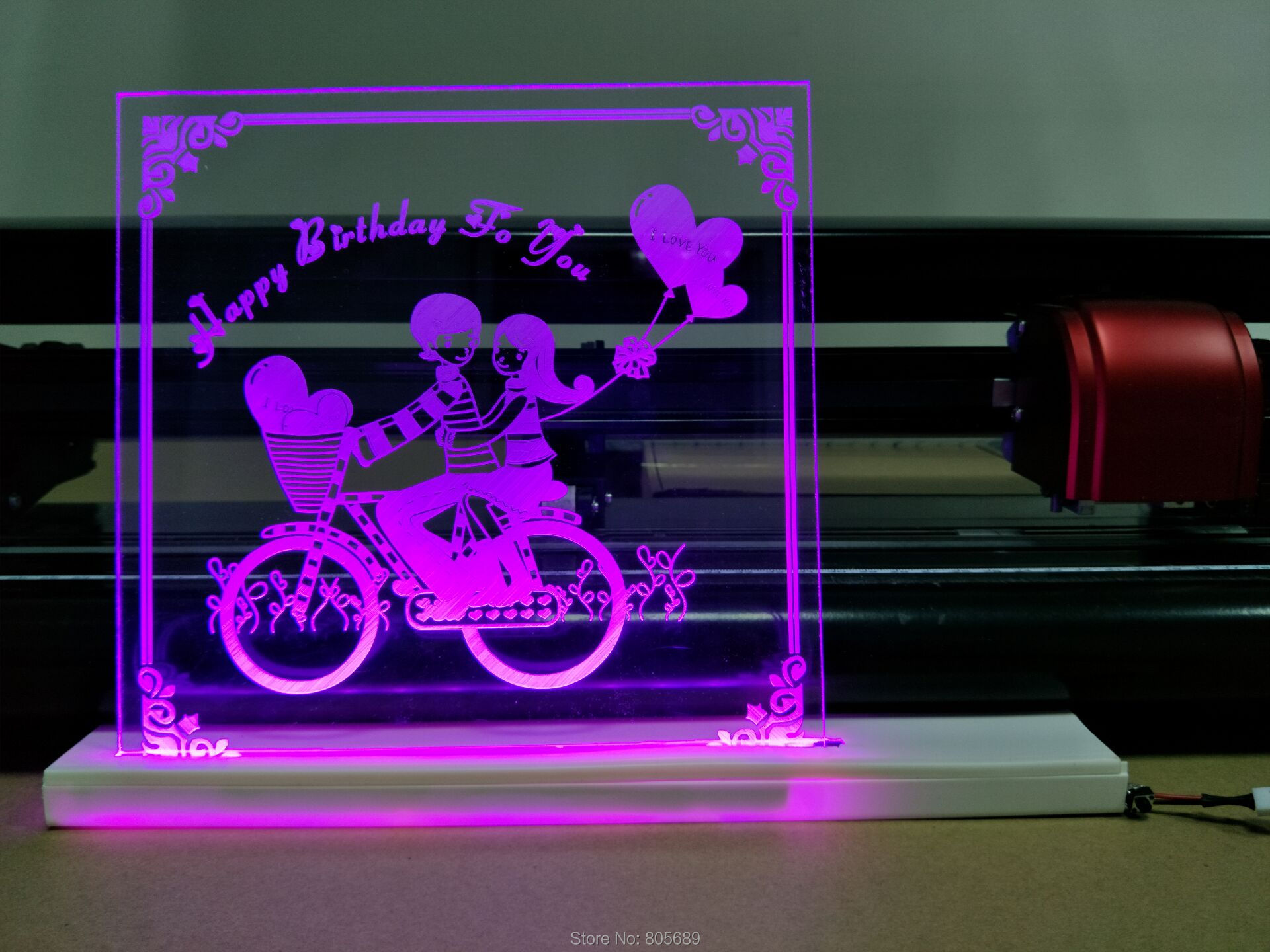

  • Laser Carving:: Yes, 0.5W-2.5W adjustable
  • Repeat Cutting:: 0.082mm
  • Operation:: 4.3" TFT LCD Large touch scre
  • Command:: HP-GL, DMPL
  • Mainboard: 32bit ARM cortex M4 MCU,8M memory. Support remote and one key update
  • Max cutting thickness: 2.5mm
  • Mechanical precision: 0.025mm
  • Operation system: Windows 10 Windows 8 window 7 so on
  • LED light bar: user can change color freely LED
  • Positioning mode:: Fully automatic positioning by CCD Camera
  • WIFI: option yes/no

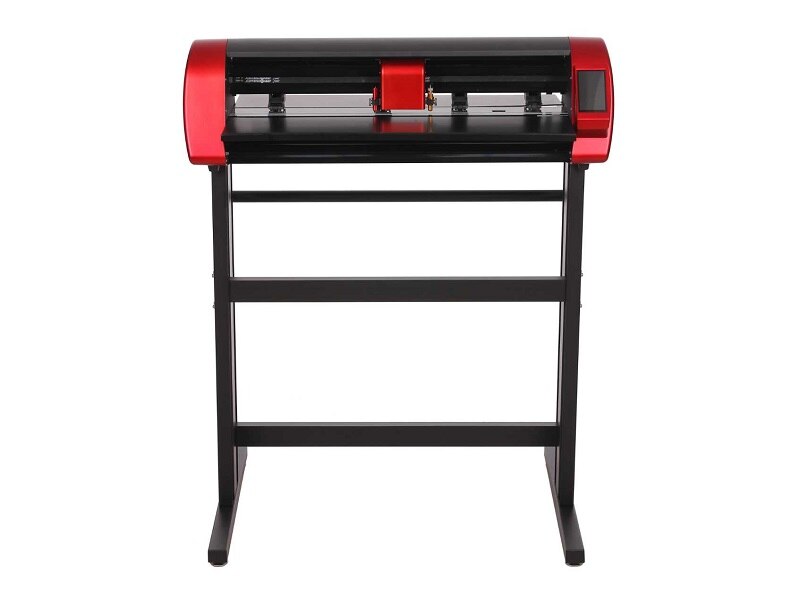

  • stand legs: have
  • Force:: One head 50g~2000g ( 160 setting adjustable )
  • Motor:: Digital DC stepper motor,microstep driving
  • Cutting head:: Double cutting heads
  • Positioning:: Camera/Scanner
