Hi-Link Low Cost 5V 600mA 3W/5V 1A 5W/12V 10W HLK-3M05B HLK-5M05B HLK-10M12B AC DC Power Supply Source Module
4.6 (8 votes) | 63 orders
Price:
US $21.31
Discount Price:
US $
21.18
-1%
- Bundle
Product Features:
1. Meet UL, CE requirements,
2. Ultra-thin, ultra-small
2. All voltage input (AC: 90 ~ 265V)
3. Low ripple and low noise
4. Output overload and short circuit protection
5. High efficiency, high power density
6. The product is designed to meet the requirements of EMC and Safety Test
7. Low power consumption, environmental protection, no-load loss <0.1W
8.100% load aging and testing
9.1 year warranty period
Please notice that HLK-PM01B change to HLK-3M05B(just silk model number change)
Environment Condition:
Item Name Technical Criteria Unit

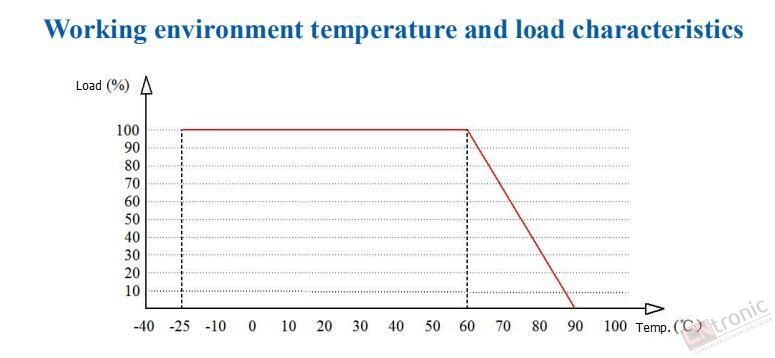

Operation Temperature -20—+60 ℃
Store Temperature -40—+80 ℃
Relative humidity 5—95 %
Cooling way Cooling by radiation
Atmospheric pressure 80—106 Kpa
Sea level elevation ≤2000 m
Vibration Vibration coefficient 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes
Electrical Characteristic:
Items | Technical Parameters | Units | Notes |
No-load rated output voltage | 5.0±0.1 | Vdc | |
Full-load rated output voltage | 5.0±0.2 | Vdc | |
Short time maximum output current | ≥700 | mA | |
Rated output current | 600 | mA | |
Voltage regulation | ±0.2 | % | |
Load regulation | ±0.5 | % | |
Input low voltage efficiency | Vin=115Vac, Output full load ≥73 | % | |
Input high voltage efficiency | Vin=230Vac, Output full load ≥73 | % | |
Output ripple and noise (mVp-p) | ≤100 Rated input voltage, output full load. With 20MHz bandwidth oscilloscope, Load side 10uF and 0.1uF capacitance test. | mV | |
Switching on/off overshoot amplitude | (Rated input voltage, output plus 10% load) ≤ 5 | %VO | |
Output over-current protection | Output maximum load 110-150% | A | |
Output short circuit protection | Direct short circuit in normal output and automatic return to normal operation after removal of short circuit | No-damage to the whole device |
Safety Characteristics:
Products designed to meet UL, CE safety certification requirements.
Safety and electromagnetic compatibility
Designed with the input of 0.5A UL certified insurance;
PCB board using double-sided copper clad plate production, material for the 94-V0 fire rating level;
Safety standards: Compliance with UL1012, EN60950, UL60950
Insulation voltage: I / P-O / P: 2500VAC
Insulation resistance :I / PO / P> 100M Ohms / 500VDC 25 ℃ 70% RH
Conduction and radiation :comply with EN55011, EN55022 (CISPR22)
Electrostatic discharge :IEC / EN 61000-4-2 level 4 8kV / 15kV
RF radiation Immunity: IEC / EN 61000-4-3 See Application Note
Temperature safety design
At room temperature,the capacitors of this power , the inner surface of the main converter maximum temperature does not exceed 90 ℃;
Shell maximum surface temperature does not exceed 60 ℃

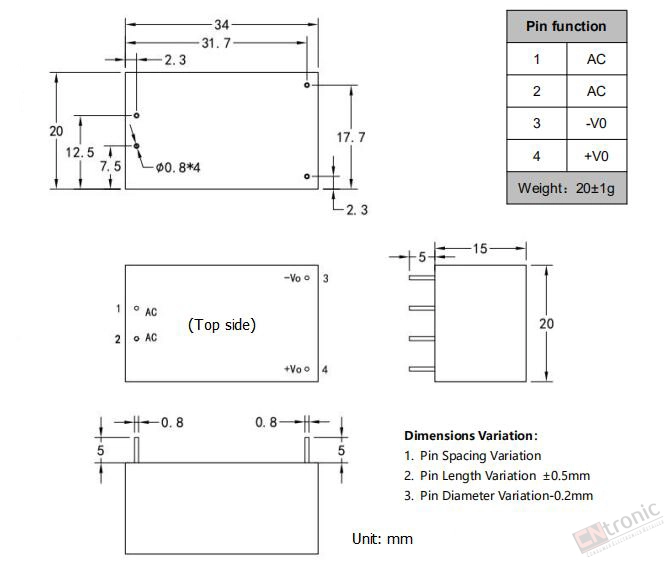

Weight and Dimensions:
HLK-3M05B is same size as HLK-PM01
HLK-5M05B is same size as HLK-5M05
HLK-10M12B is same size as HLK-10M12

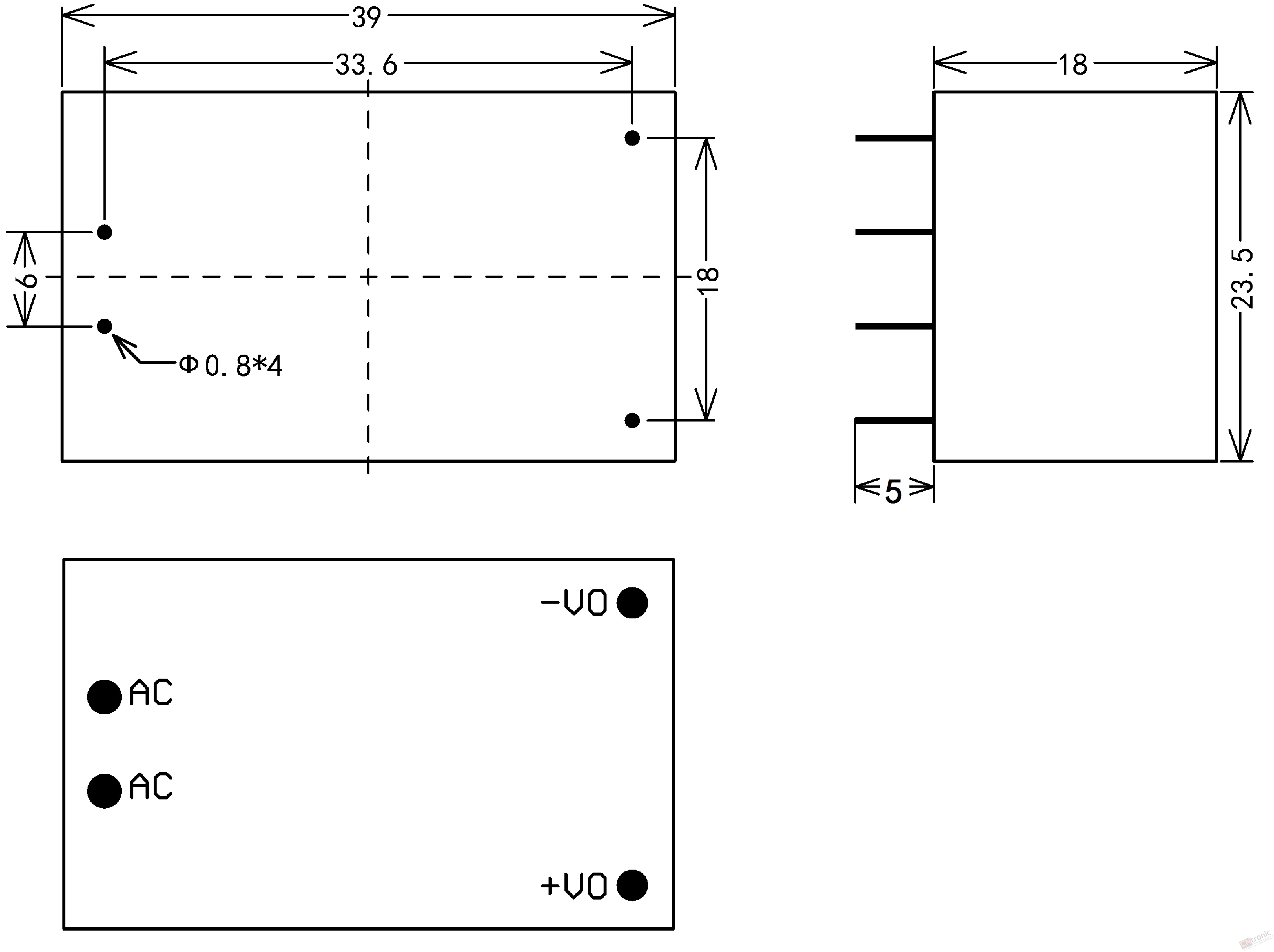

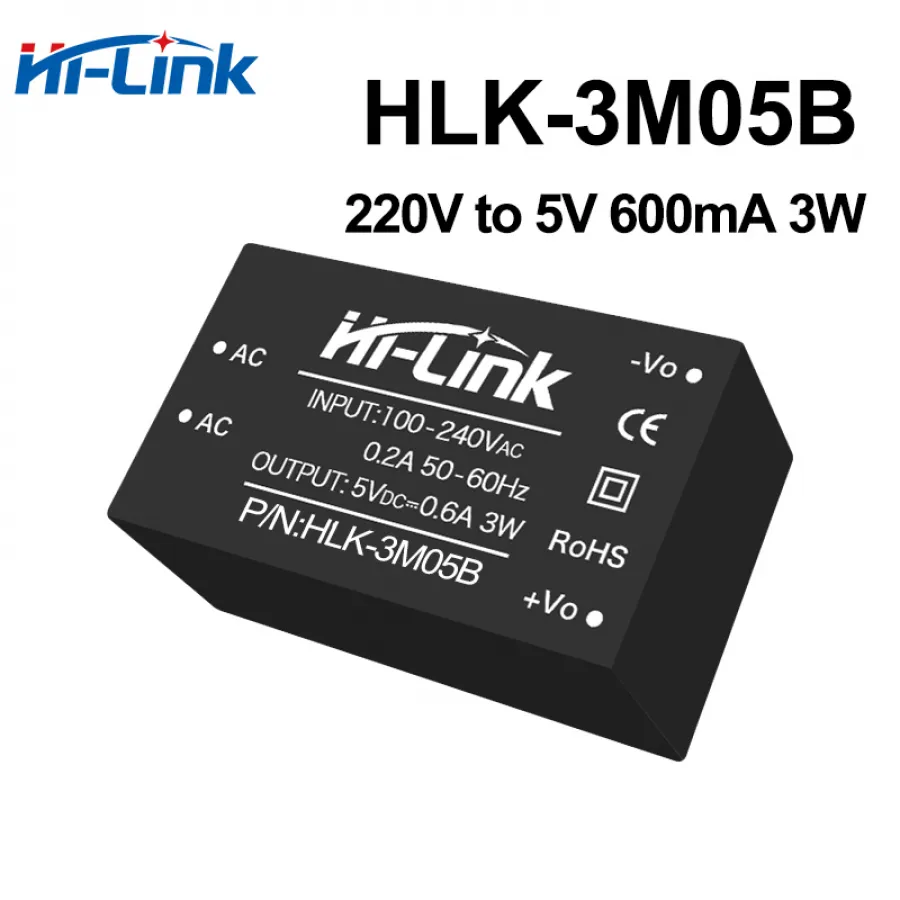

HLK-3M05B:

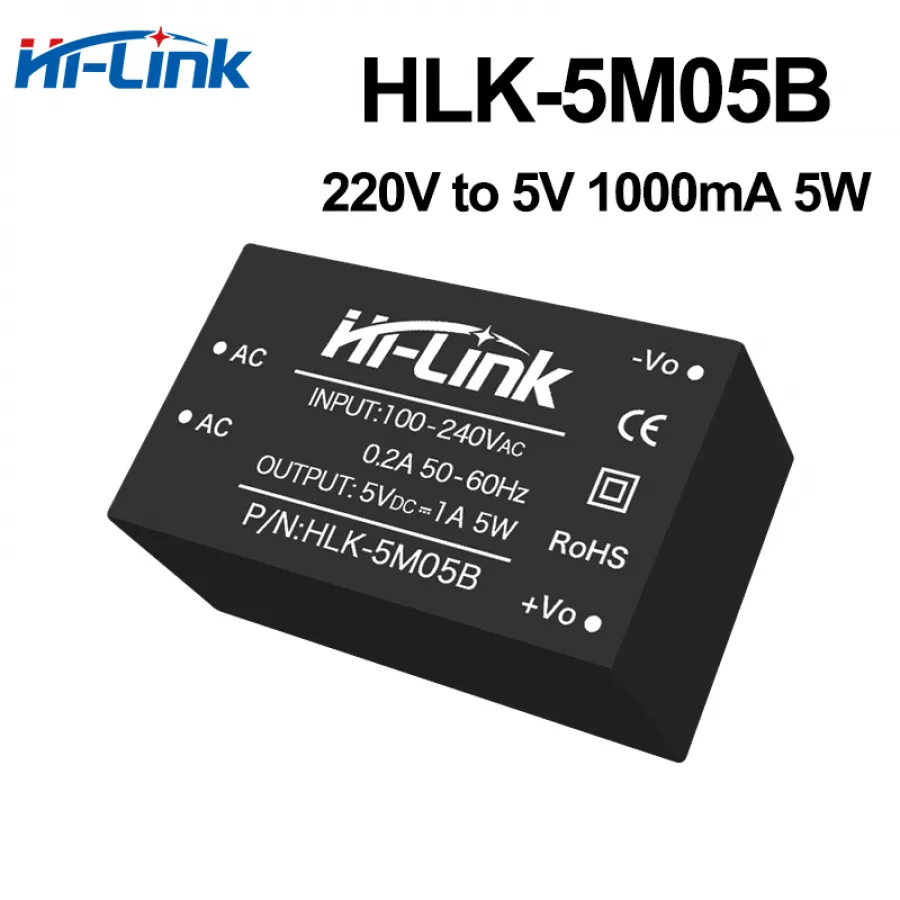

HLK-5M05B

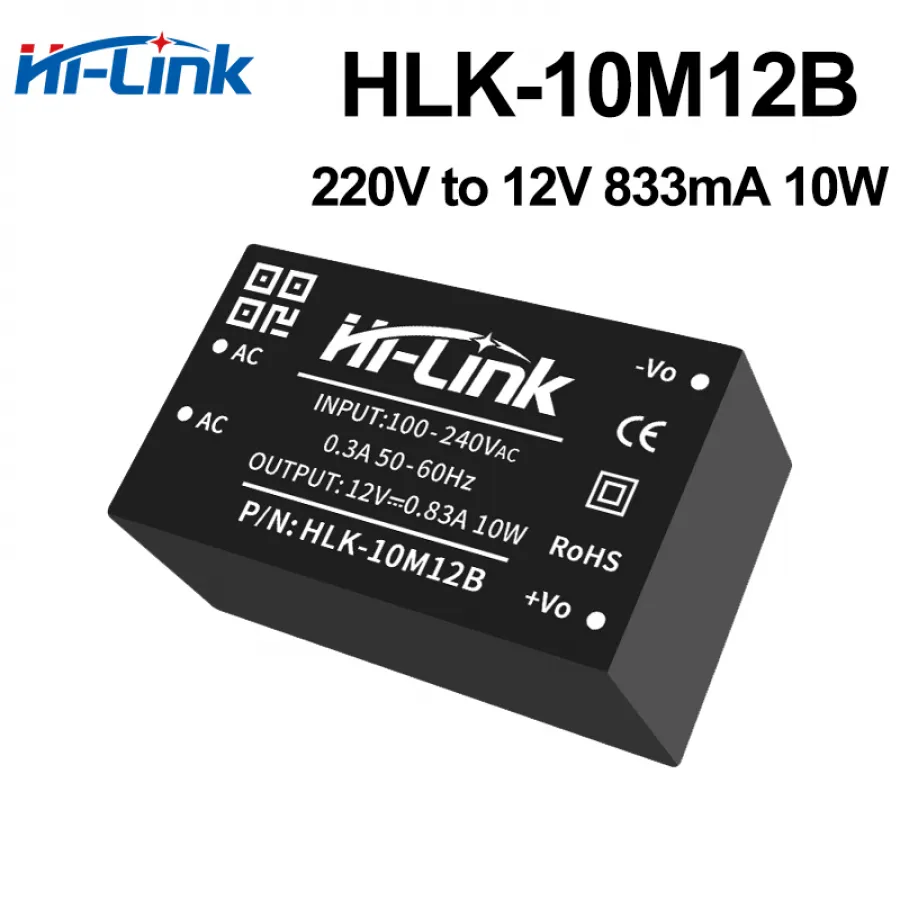

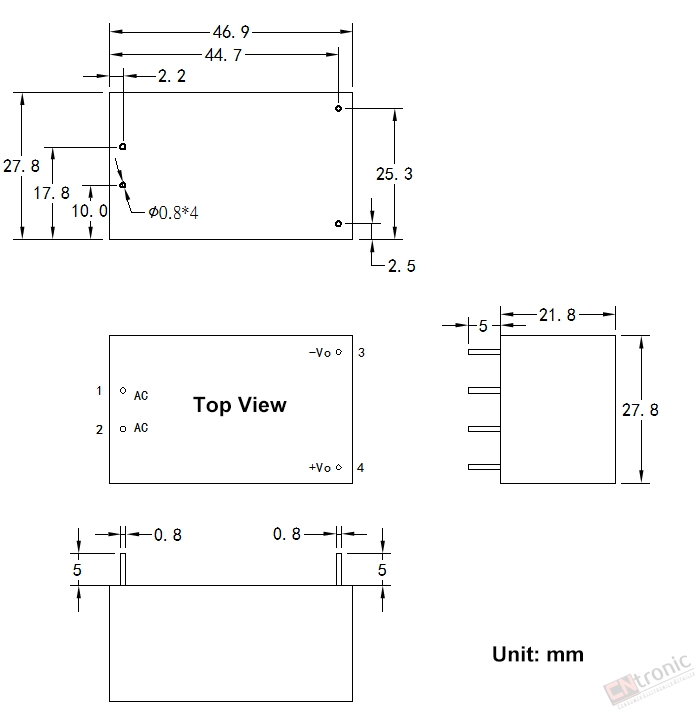

HLK-10M12B
Please notice:
We are manufacturer, the open frame is available, OEM/ODM accepted.

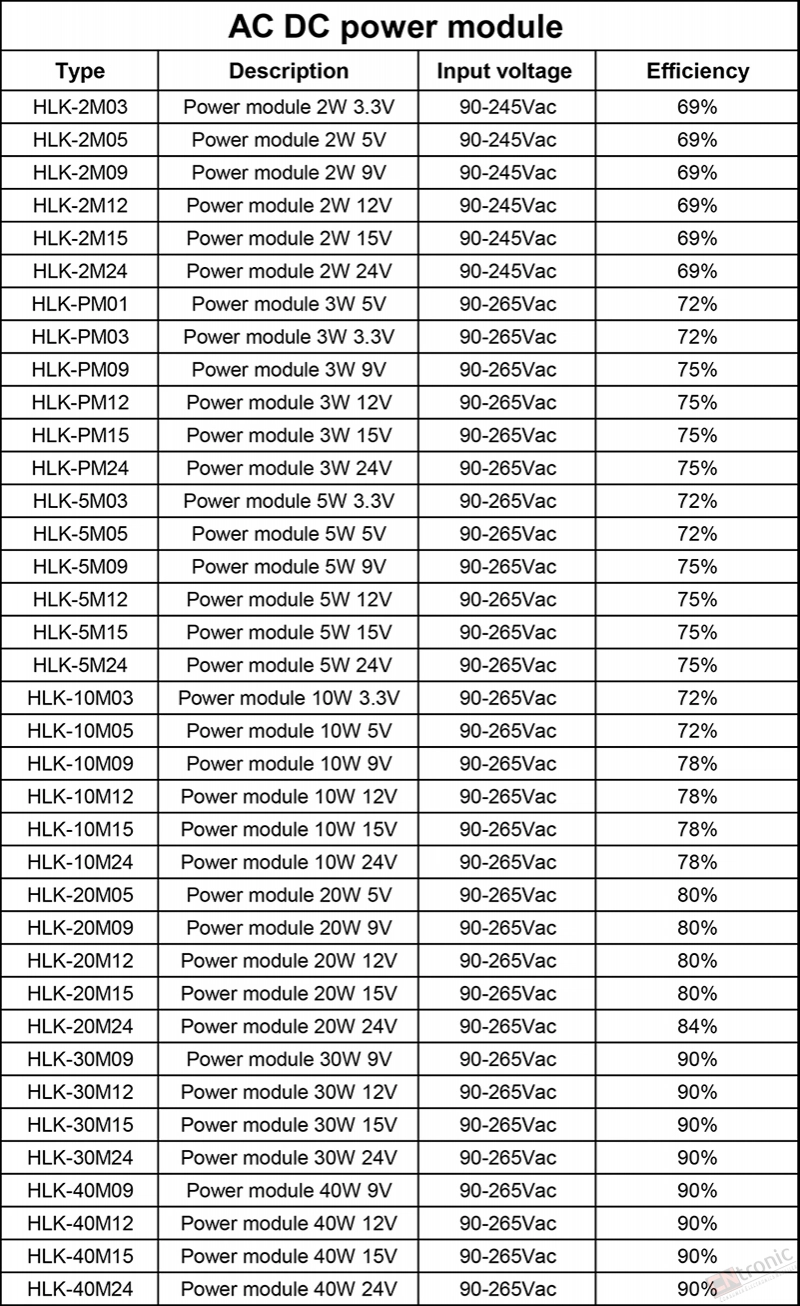

We also get 2W 3W 5W 10W 20W 30W 40W series for standard.
Our Company
Packaging Details
- Unit Type:
- Package Weight: 0.050
- Package Size: 9x3x15
- Brand Name: Hi-Link
- Power Source: AC&DC
- Hign-concerned Chemical: None
- Inbox adaptor: NO
- Origin: Mainland China
- Power Source: AC&DC
- Compatible Brand/Model: None
- Model Number: HLK-3M05B/5M05B/10M12B
- Plug Type: EU Plug
- Certification: CE
- Certification: RoHS
- Model: AC DC Power Module
- Output Power: 1 - 50W
- Output Type: Single
- Output Frequency: 50/60Hz
- Input Voltage: 220V
- Output Voltage: 5V
- Output Current: 600MA
- Warranty: 1 Year
- Isolation: 3000Vac
- Sample: available, more cheaper
