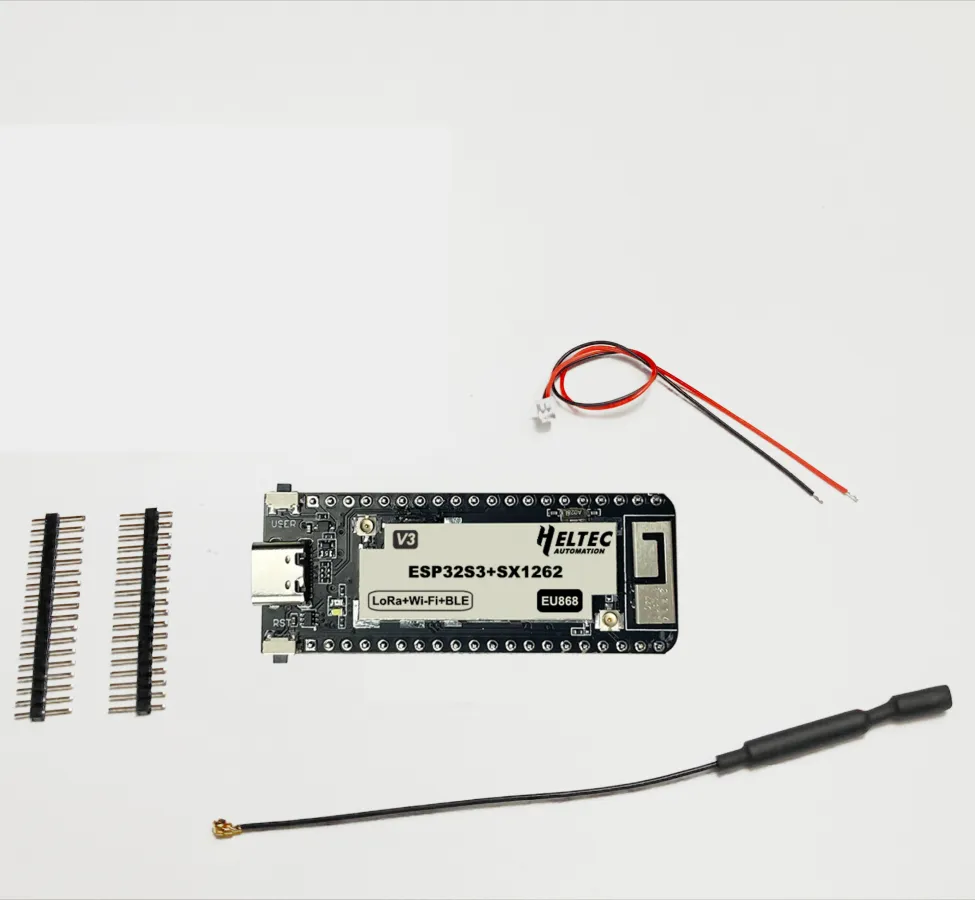

Heltec Wireless Stick Lite with ESP32-S3FN8 and SX1262 Support Bluetooth WiFi and LoRa Connections
4.9 (12 votes) | 102 orders
Price:
US $48.64
Discount Price:
US $
34.54
-29%
- Bundle
-
-
Attention American customers, this product can be shipped directly from the United States and
takes approximately 3-4 days to arrive.
Please go to:

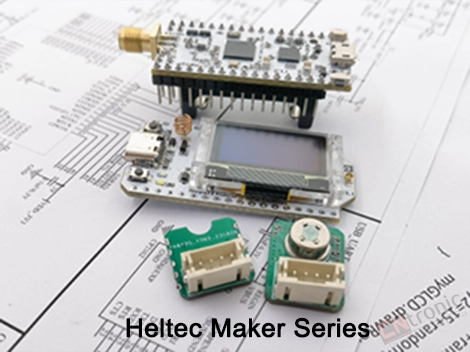

Why do we need Maker series products?
Summary

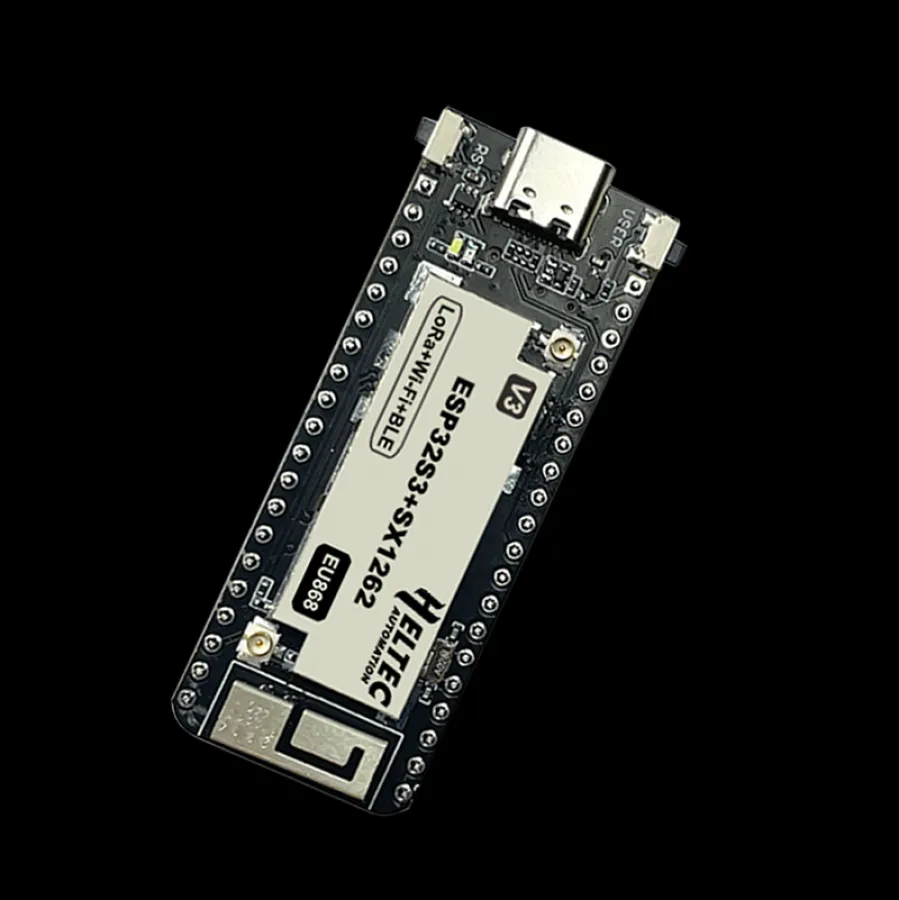

HTIT-WSL is a development board for Wi-Fi, Bluetooth and LoRa. Because some customers do not need OLED screen when using WiFi Lora32, we launched this product.
The HTIT-WSL is composed up of an MCU (ESP32-S3FN8) and Semtech LoRa Transceivers (SX1262), perfectly support Arduino®. Users can easily carry out secondary development and application.
Wireless Stick Lite (V3) supports the following development methods:

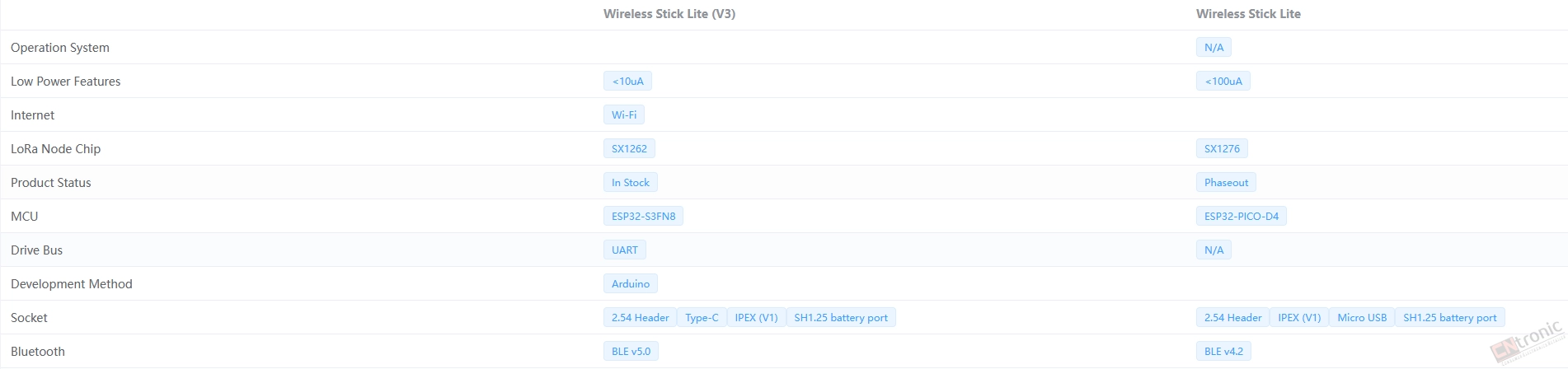

Compared to Wireless Stick Lite (V2), V3 has made the following upgrades:
Wireless Stick Lite(V3) is compatible with the following open-source projects:
We also provide a standard ESP32 Arduino LoRaWAN library:
This library is already included in the Heltec ESP32 Arduino Framework by default.
Specifications
Parameters | Description |
Master Chip | ESP32-S3FN8 (Xtensa®32-bit lx7 dual core processor) |
LoRa Chipset | SX1262 |
USB to Serial Chip | CP2102 |
Frequency | 470~510MHz, |
Max. TX Power | 21d B ± 1d B |
Max. Receiving sensitivity | -134dBm |
Wi-Fi | 802.11 b/g/n, up to 150Mbps |
Bluetooth LE | Bluetooth 5, Bluetooth mesh |
Hardware Resource | 7*ADC1 + 9*ADC2; |
Memory | 384KB ROM; |
Battery | 3.7V lithium battery power supply and charging |
Operating temperature | -20 ~ 70 ℃ |

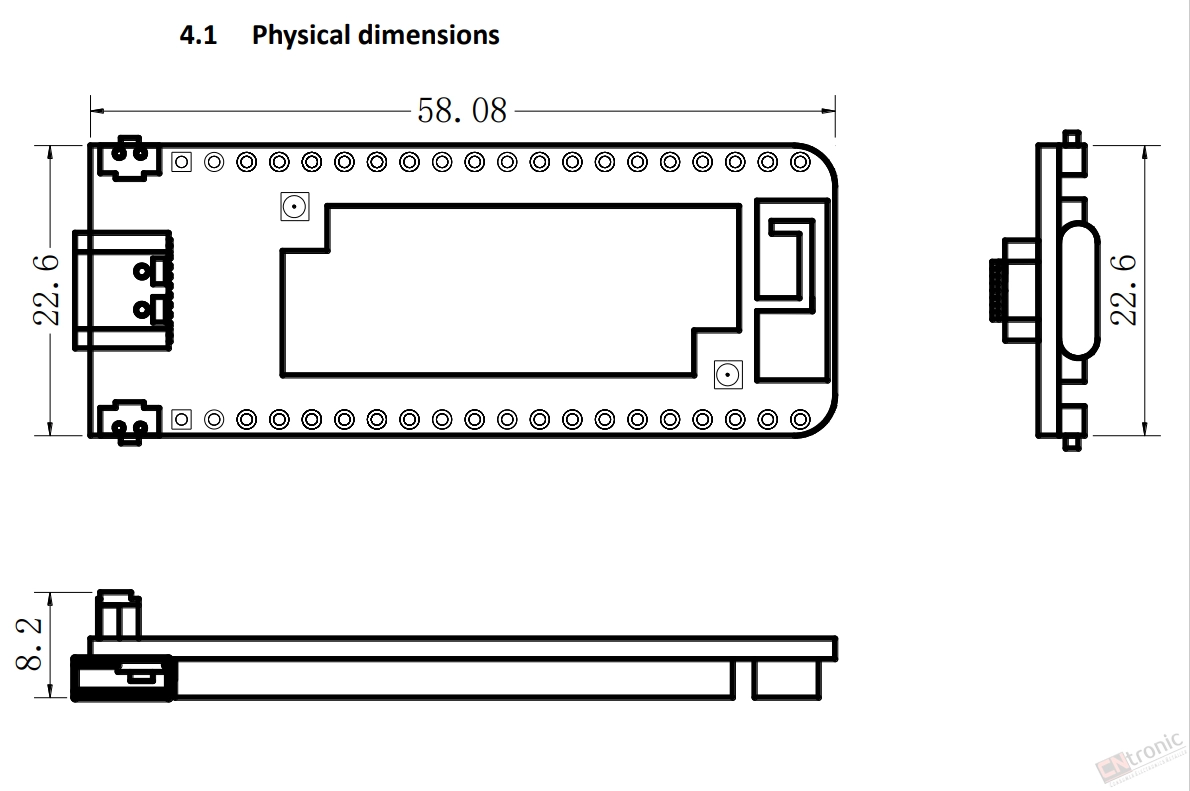

Dimensions | 58.08 * 22.6* 8.2 mm |
Interface | Type-C USB; |
Resource

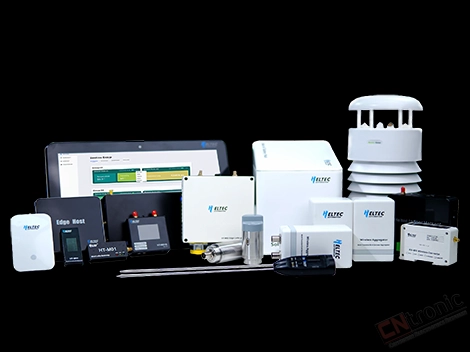

More info about Heltec products:

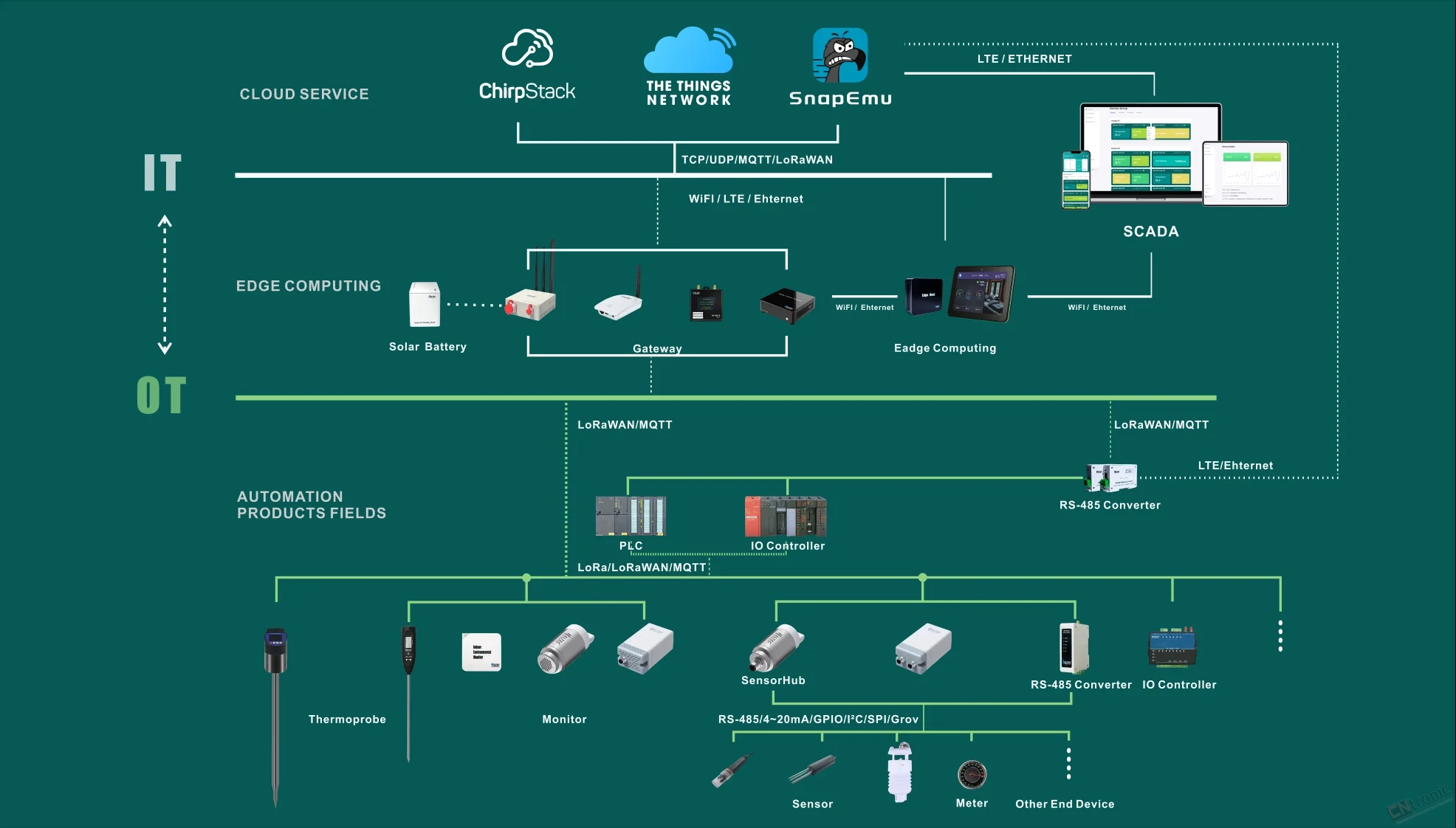

Help Achive Comprehensive System Architecture

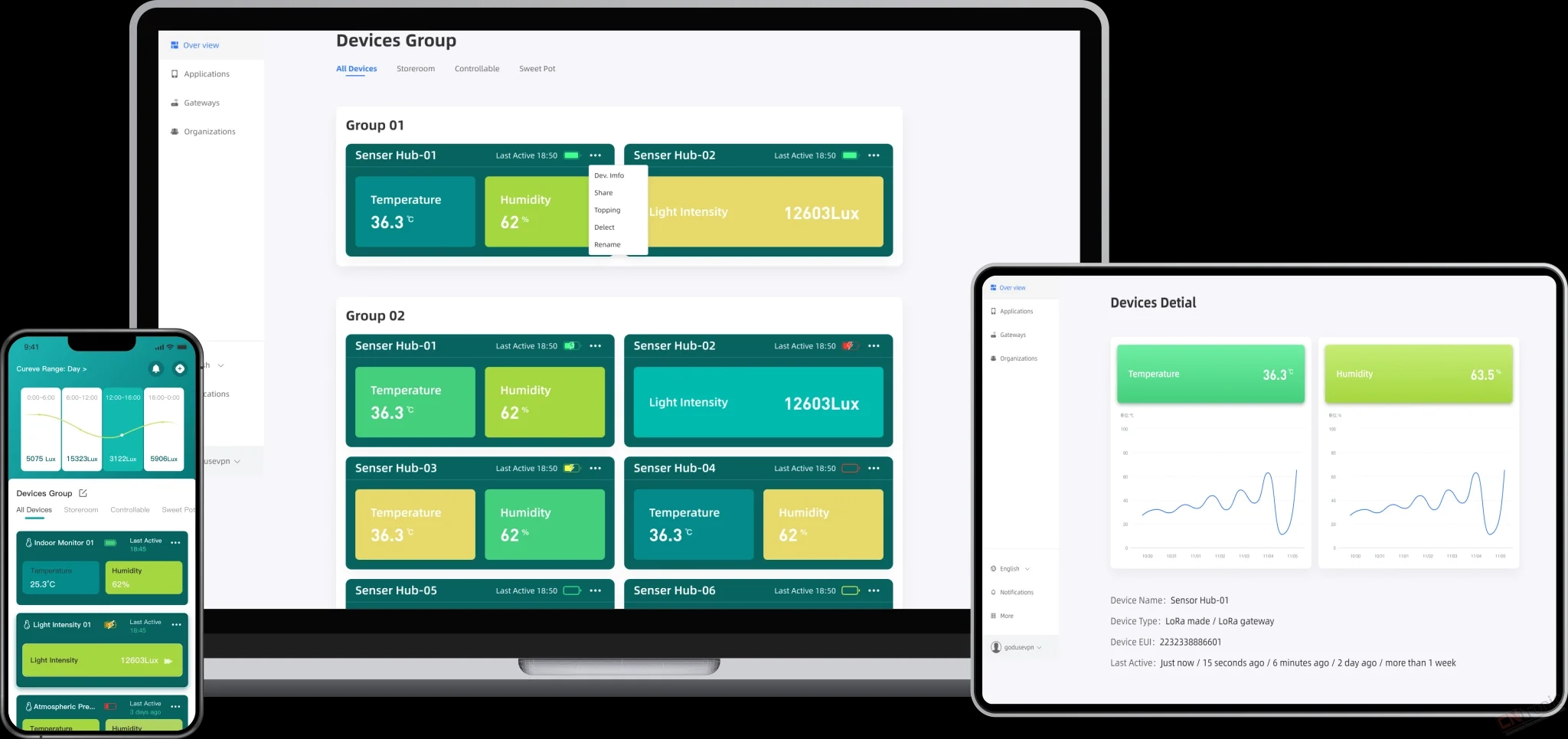

Cloud & APP Ready
Heltec provides a comprehensive app and cloud platform that enables efficient and effective device
registration, management, data storage, and graphing.
* To use its LoRaWAN function and achieve cloud/APP platform management, you may need a
LoRaWAN gateway.
Packaging Details
- Unit Type:
- Package Weight: 0.050
- Package Size: 7x5x8
- Brand Name: Heltec Automation
- Demo Board Type: ARM
- Hign-concerned Chemical: None
- Battery Included: No
- Origin: Mainland China
- Model Number: Wireless Stick Lite
- Intergrated Feature: WiFi 802.11b/g/n
- Intergrated Feature: Bluetooth
- Certification: CE
- Certification: FCC
- Master Chip: ESP32-S3FN8 (Xtensa 32-bit lx7 dual core processor)
- LoRa Chipset: SX1262
- USB to Serial Chip: CP2102
- Max. TX Power: 21d B ± 1d B
- Max. Receiving sensitivity: -134 dBm
- Wi-Fi: 802.11 b/g/n, up to 150Mbps
- Bluetooth: Bluetooth LE: Bluetooth 5, Bluetooth mesh
- Hardware Resource: 7*ADC1 + 9*ADC2; 8*Touch; 3*UART; 2*I2C; 2*SPI; etc.
- Memory: 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SiP Flash

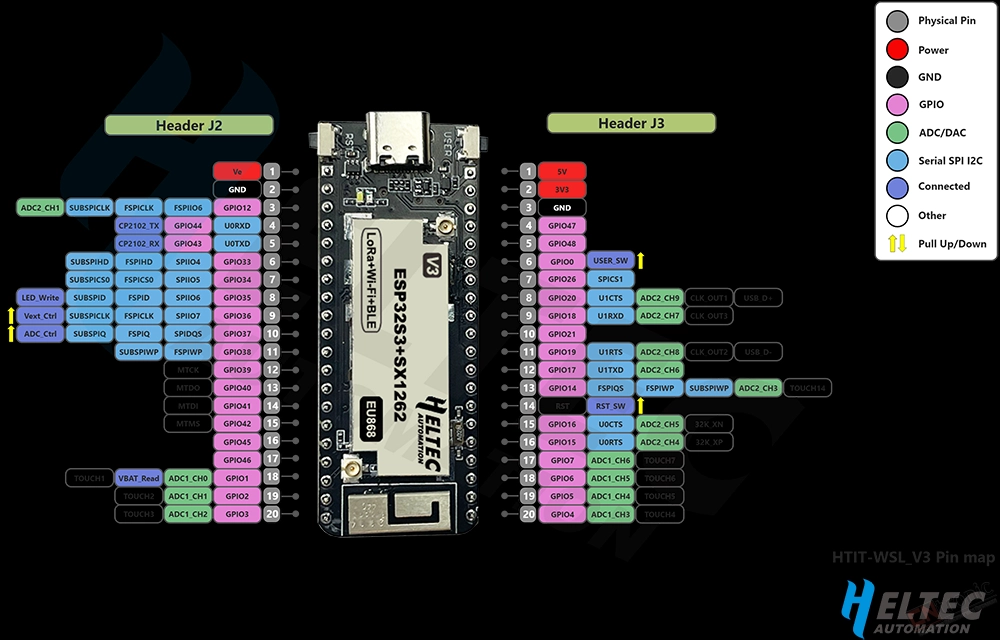

- Interface: Type-C USB; 2*1.25 lithium battery interface; LoRa ANT(IPEX1.0); 2.4G ANT(IPEX1.0); 2*20*2.54 Header Pin
- Battery: 3.7V lithium battery power supply and charging
- Operating temperature: -20 ~ 70 ℃
- Dimensions: 58.08 * 22.6* 8.2 mm
