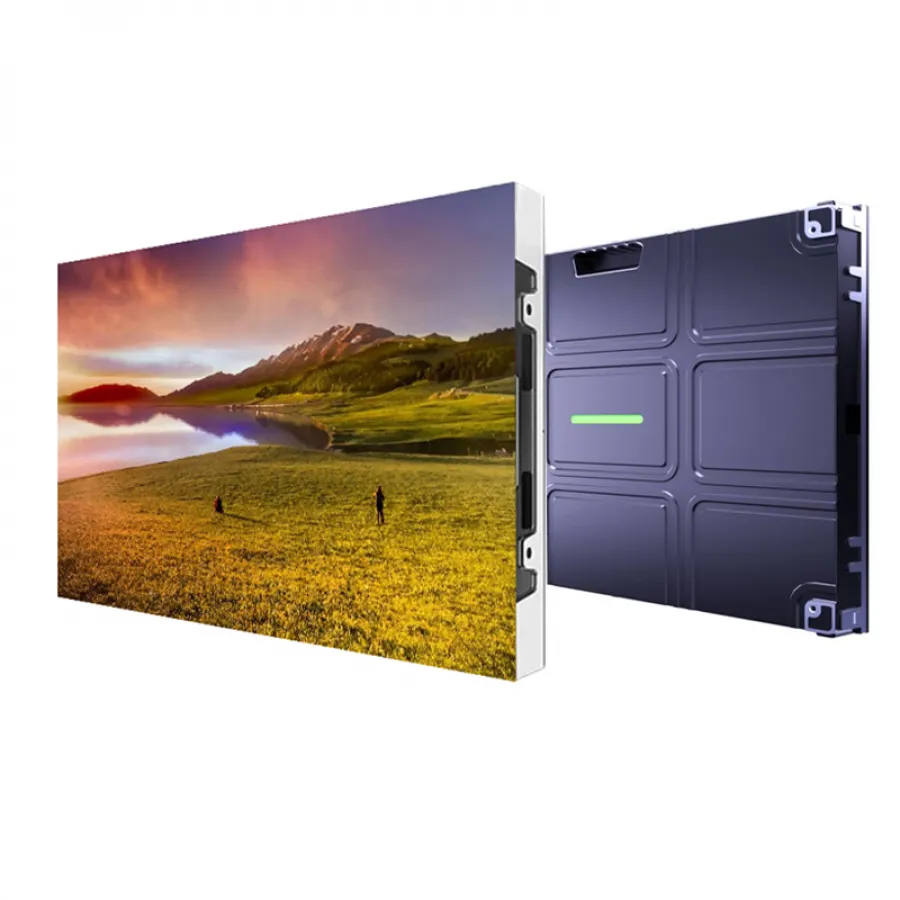

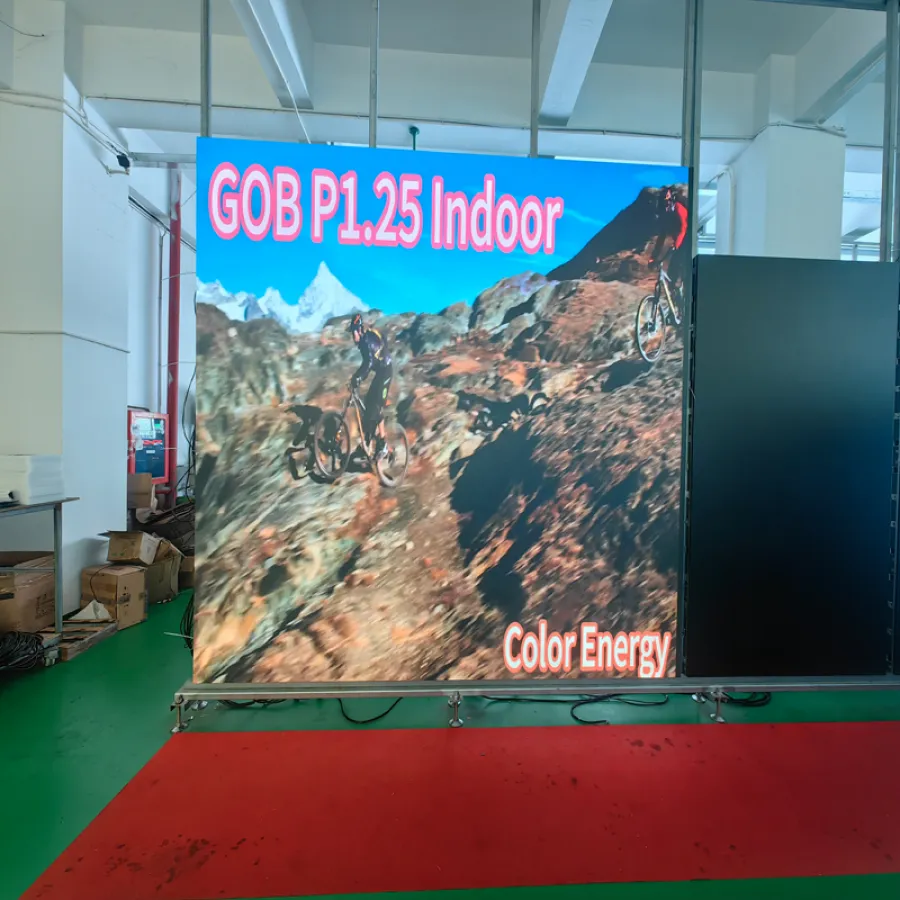

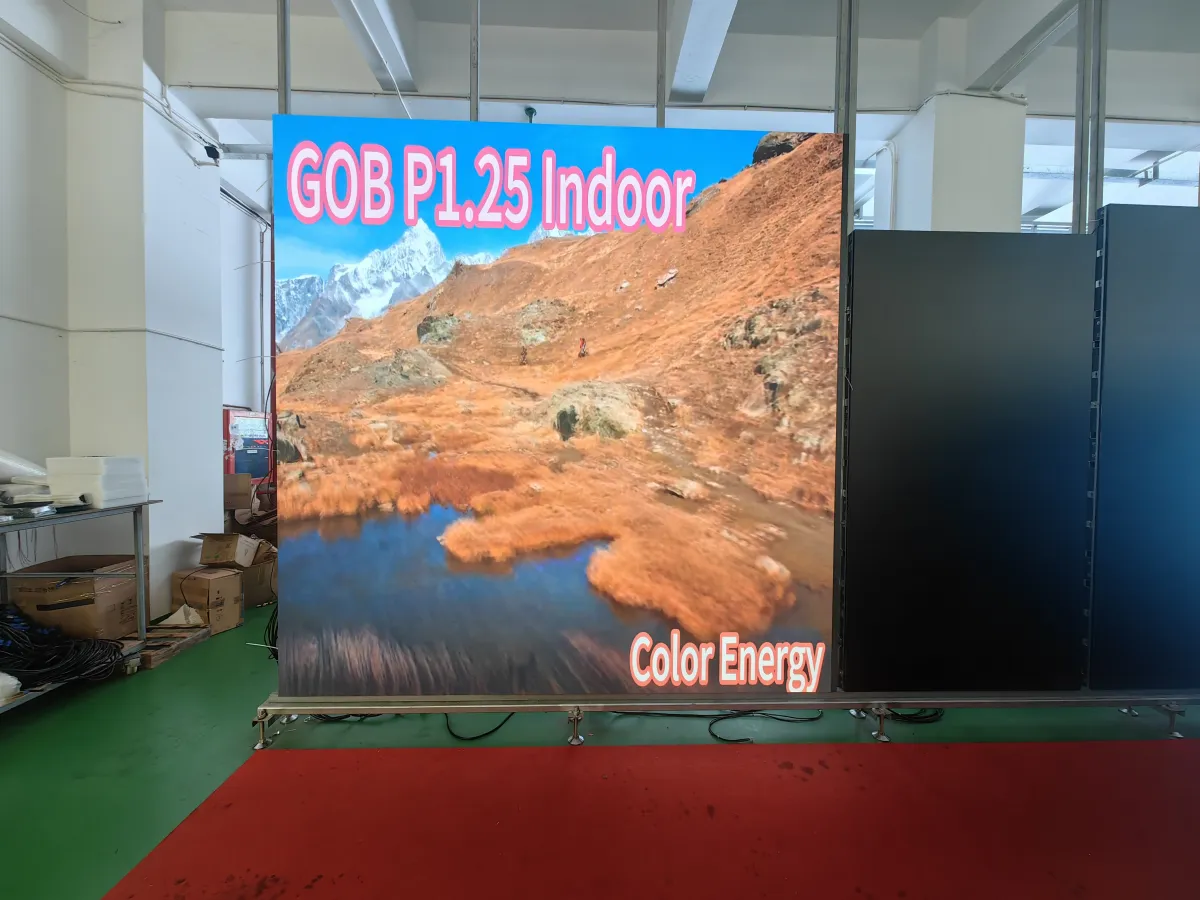

GOB HD P1.25 LED Display - Indoor Full-Color Digital Video Wall Panel, High Definition Seamless Screen for Commercial/Event Use

0.0 ( votes)
Price:
US $ 2191.90
Quantity

My friend, welcome to our store, if you need other models of this product, please contact me, I will send the product link for you to buy! If you have any questions, please send me a private message or contact me through WhatsApp or email. Whatsapp:+86 19967880889 E-mail: zj19967880889@gmail.com

Why Choose Colorful Energy LED?

1. Our factory has been focusing on Led display screen manufacturing for more than 13 years,which could provide you with the most affordable price and guarantee high quality one.
2. Tailored service:We always offer the most clear and flexible solution through professinal reply to our customers.
3. Nice quality:Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Besides, we will do an aging test for at least 72 hours before shipment.
4. Installation guidance:We will offer you the CAD drawing to guide you for installation.After you receive the goods,there is a professional engineer team to help you operate the control system of our Led display screen.
5. Trade insurance:We support Cntronic Trade Assurance Order.We will refund your money if the quality is not good.
6. Customized service:We do OEM&ODM in all kinds of led display screen designs to meet your varied requirements.

Products Description
Pixel Pitch
1.25mm
1.53mm
1.86mm
2mm
2.5mm
LED Configuration
SMD1010
SMD1212
SMD1515
SMD1515
SMD2121
Application
Indoor
Indoor
Indoor
Indoor
Indoor
Pixel Density/sqm
640000dots
422500 dots
288906 dots
250000 dots
160000 dots
Module Size/mm
320 x 160
320 x 160
320 x 160
320 x 160
320 x 160
Module Resolution
256 x 128 dots
208 x104 dots
172 x 86 dots
160 x 80 dots
128 x 64 dots
Cabinet Size
640X480mm
640x640mm
640X480mm
640x640mm
640X480mm
640x640mm
640X480mm
640x640mm
640X480mm
640x640mm
Cabinet Resolution
512 x 384dots
512 x 512 dots
416 x 312 dots
416 x 416dots
344 x 258dots
344 x 344dots
320 x 240dots
320 x 320dots
256 x 192dots
256 x 256 dots
Cabinet Weight
8kg
9Kg
8kg
9Kg
8kg
9Kg
8kg
9Kg
8kg
9Kg
IP Rating
IP31
IP31
IP31
IP31
IP31
Scan
1/64S
1/52S
1/43S
1/40S
1/32S
Brightness /sqm
800-1000 nits
800-1000 nits
800-1000 nits
800-1000 nits
800-1000 nits
View Angle/°
160°/ 140°(H/V)
160°/ 140°(H/V)
160°/ 140°(H/V)
160°/ 140°(H/V)
160°/ 140°(H/V)
Gray Scale/bit
16 bit
16 bit
16 bit
16 bit
16 bit
Max. Power Consumption/W
640 W/sqm
640 W/sqm
640 W/sqm
640 W/sqm
640 W/sqm
Ave. Power Consumption/W
192 W/sqm
192 W/sqm
192 W/sqm
192 W/sqm
192 W/sqm
Refresh Frequency/Hz
3840 Hz
3840 Hz
3840 Hz
3840 Hz
3840 Hz
Operating Power
AC 96~242V 50/60Hz




Operating Temperature
-40鈩儈+60鈩�




Operating Humidity
10~90%RH




Operating Life
100,000Hours

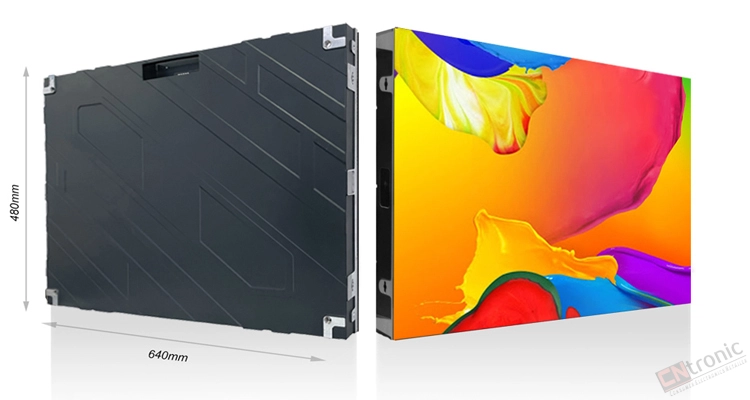

LED Cabinet Specification

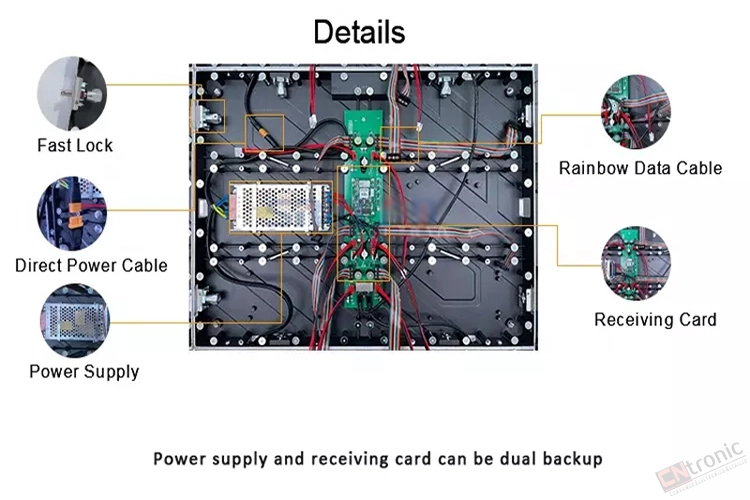

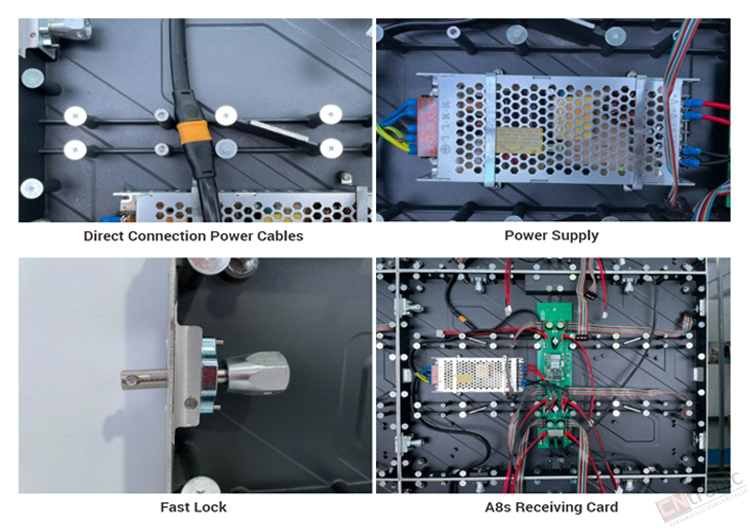

Details Images

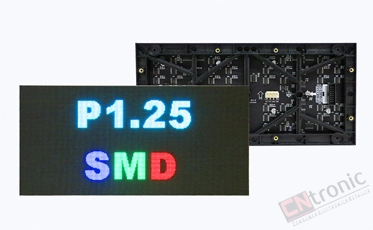

P1.25
Pixel Pitch : 1.25mm
Size: 320x160mm
Resolution: 256x128 pixels
Scan Method: 1/64 Scan
P1.53
Pixel Pitch : 1.53mm
Size: 320x160mm
Resolution: 208x104 pixels
Scan Method: 1/52 Scan

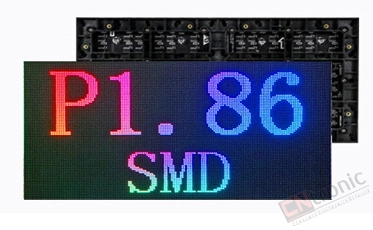

P1.86
Pixel Pitch : 1.86mm
Size: 320x160mm
Resolution: 172x86 pixels
Scan Method: 1/43 Scan

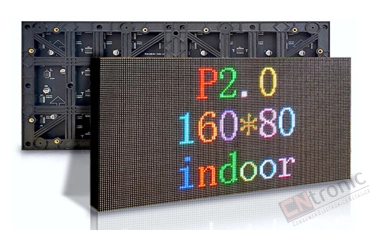

P2.0
Pixel Pitch : 2mm
Size: 320x160mm
Resolution: 160x80 pixels
Scan Method: 1/40 Scan

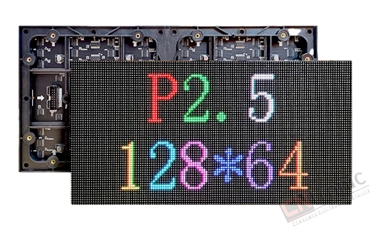

P2.5
Pixel Pitch : 2.5mm
Size: 320x160mm
Resolution: 128x64 pixels
Scan Method: 1/32 Scan
P3.076
Pixel Pitch : 3.076mm
Size: 320x160mm
Resolution: 104x52 pixels
Scan Method: 1/26 Scan

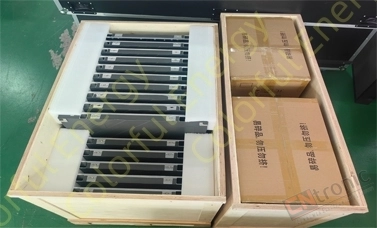

Export wooden box packaging
Flight aviation box packaging
System topology diagram
Product packaging

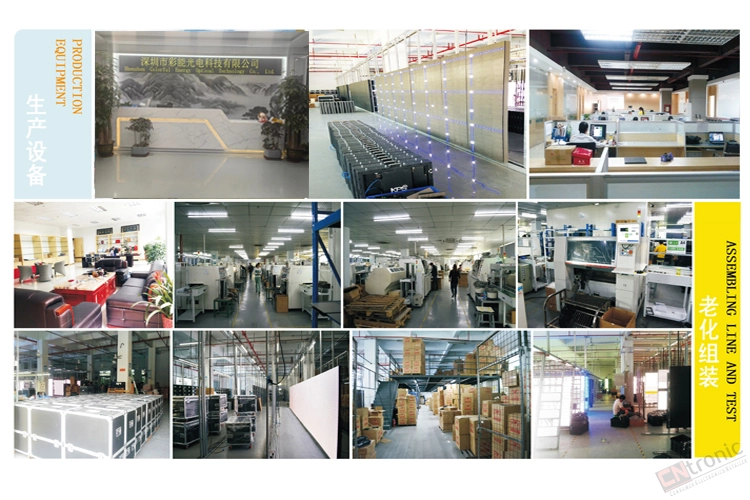

Company Profile

1.Shenzhen Colorful Energy Optical Co., Ltd. is a professional manufacturer of led display screen manufacturers, as well as several well-known brand to do OEM and ODM.
2.Located in Xili Town, Nanshan District, Shenzhen with more than 5,000 square meters,it has equipped with world-class scientific research and analysis team, mature production department, testing and installation engineers,ect.
3.As one of the modern high-tech enterprises,we always committed to provide the deepest understanding of customer needs and actively match customer strategy.
4.Core values:"integrity, pragmatic, rigorous, innovative" we always adhere to customer first and take social responsibility actively.
Our Advantages
1. 3 years' warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. Business trip to visit and regular inspection
FAQ
Q1:Are you a manufacturer or trading company?
A1:We are a Professional OEM/ODM manufacturer which has specialized in led display industry for more than 13 years.

Q2:How does your factory do regarding quality control?
A2:Quality is priority.We always attach great importance to quality controlling from the very beginning to the very end. We focus on every detail,Our factory has gained ISO9001, ISO14001, CE, RoHS ,FCC authentication.

Q3:Can a sample order be placed before the mass production?
A3:Yes,we acceptable sample orders led display, please let us know your detail request then we will send you the sample asap for confirmation.

Q4:When will you make the delivery?
A4:We can make the delivery within 3-5 working days for the led modules and 10-12days for the led finished screen according to the size and quantities of your order.

Q5:What technical supports can you offer?
A5:We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory. we can send an engineer team to the country of the customer to instruct the installation.

Q6:How long is the warranty?
A6:The standard warranty is 3 year.

Q7:Do you provide any free spare parts in each order?
A7:Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.

Packaging Details

  • Unit Type:
  • Package Weight: 50.000
  • Package Size: 60x70x120

  • Brand Name: DUTRIEUX
  • Screen Size Range: 60-69"
  • TV Type: LED TV
  • Receiving System: DVB-T
  • Type Of OS: ANDROID
  • Display Size: 74.5 inches
  • Hign-concerned Chemical: None
  • Resolution: 4K(3840*2160)
  • Origin: Mainland China
  • warranty: 3 years
  • Content Management System: Mobile CMS
  • Remote Device Management: User Role Permissions
  • type: LED
  • brand name: Colorful Energy
  • application: indoor
  • media available: datasheet, Photo, EDA/CAD Models, Other
  • color: Full color
  • model number: P1.25
  • pixel density: 640000 dots/square meter
  • place of origin: Guangdong, China
  • pixels: 1.25MM
  • Brightness: 1200cd, 1100cd/sqm
  • Pixel Pitch: 1.25,mm
  • Product name: HD Led Video Display
  • Screen Size: Customized
  • Module size: 320mmx160mm
  • Cabinet size: 640mmx480mm
  • Refresh rate: 3840Hz
  • Material: Die-casting Aluminum
  • Warranty: 3 Years
  • Brand: Colorful Energy
