Gigabit Ethernet Switch Fiber Optical switch 4F3E Industrial Grade 4 sc Fiber Port 3 RJ45 10/100/1000M PCB board
4.4 (9 votes) | 57 orders
Price:
US $79.92 - 89.06
/ piece
Discount Price:
US $
54.52 -
60.37
/ piece
-32%
- Color
-
-
please note:
Default with 2pcs 1310nm A side Fiber module and 2pcs 1550nmB side, 4pcs 1550nm B Side or 4pcs 1310nm A side can be provided as request.

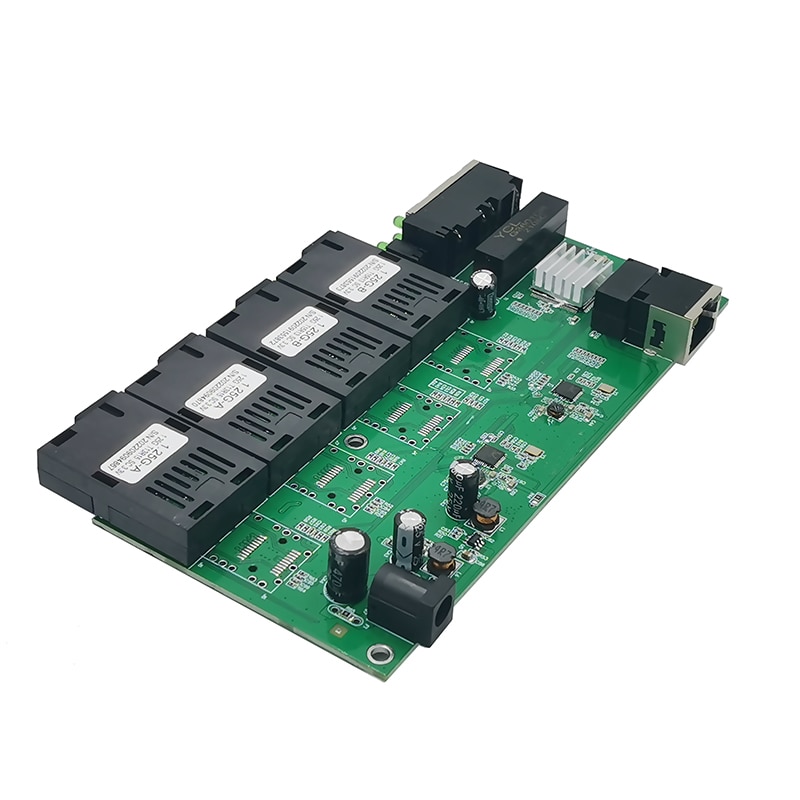

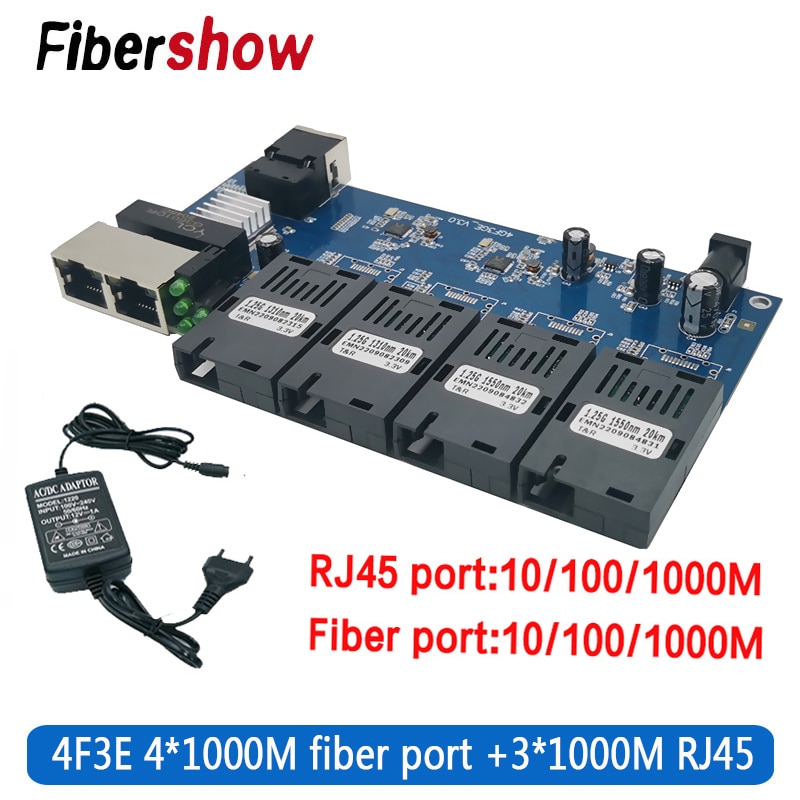

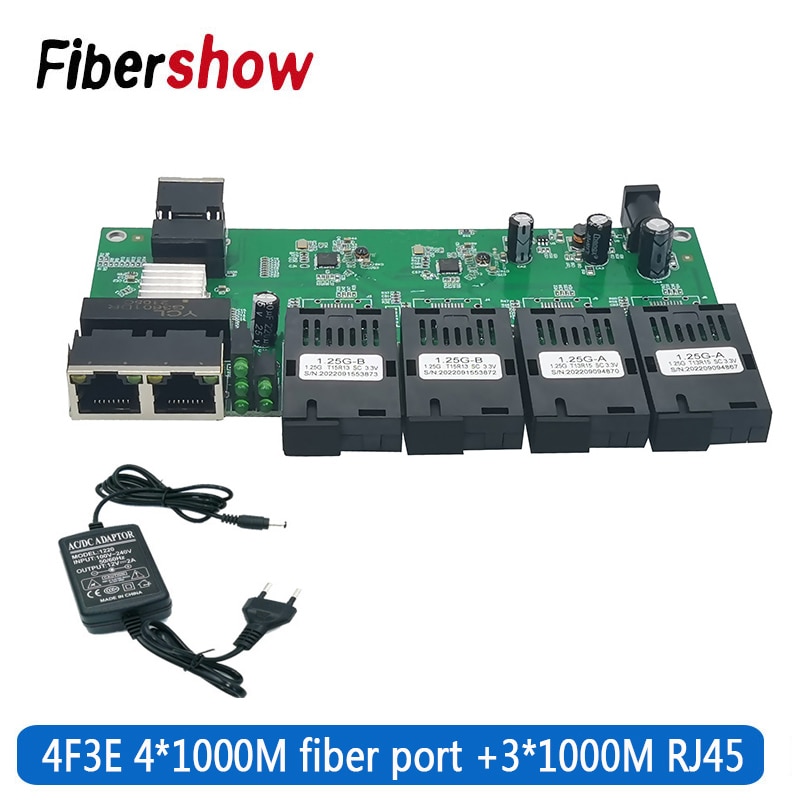

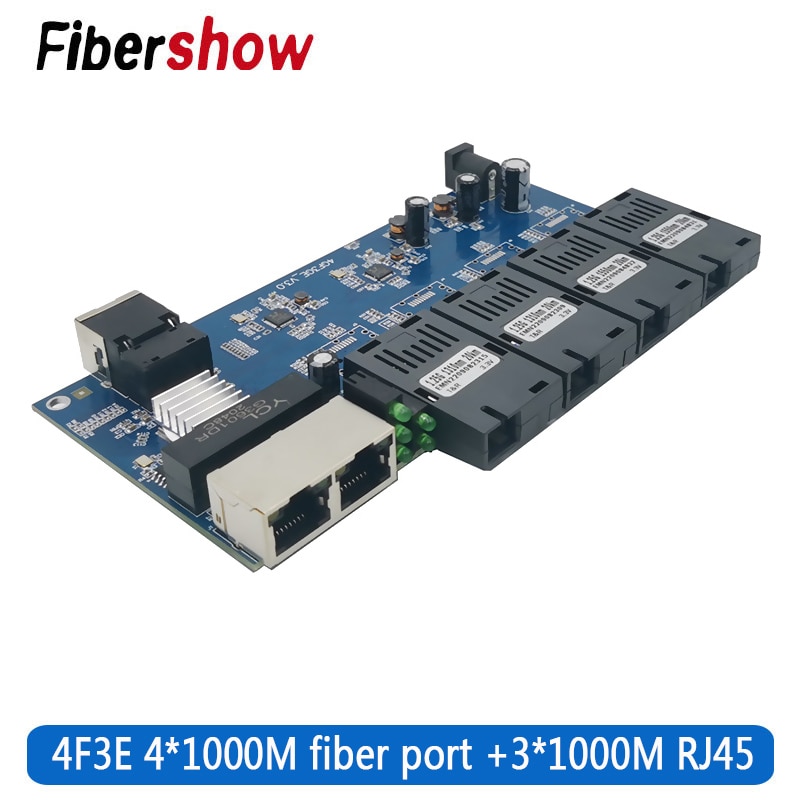

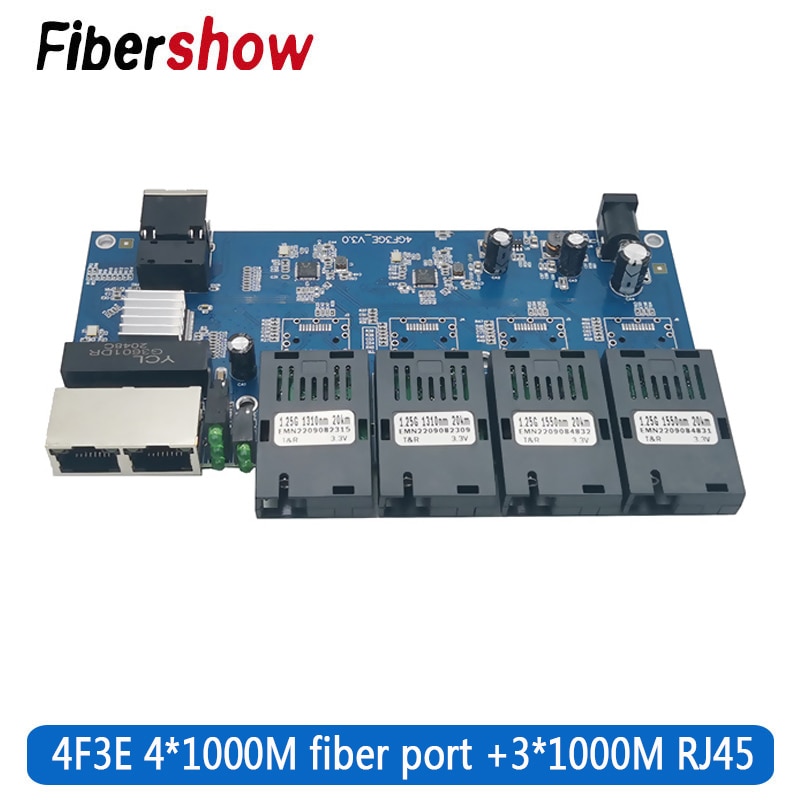

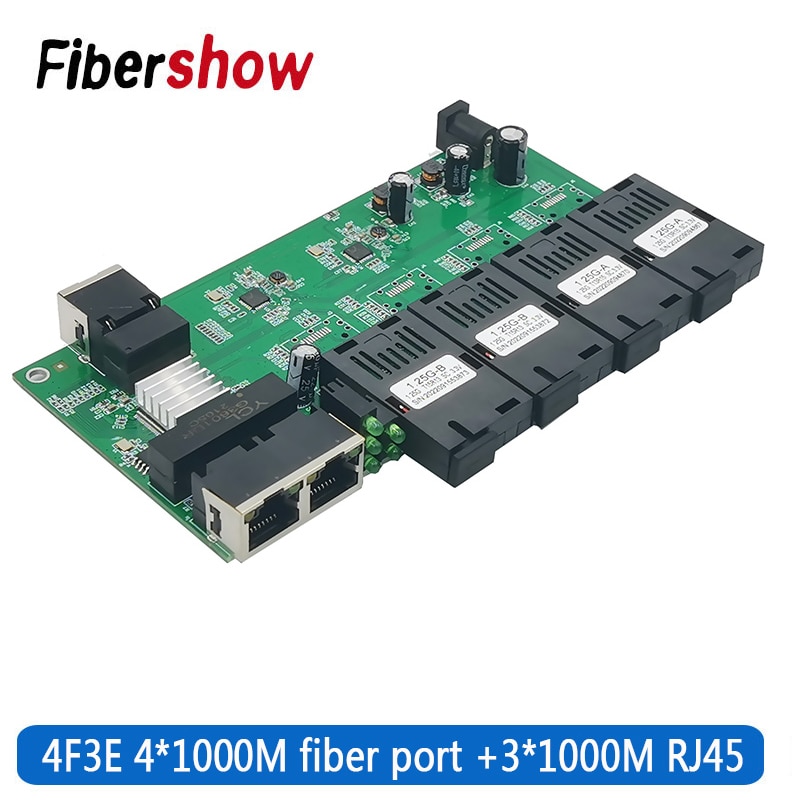

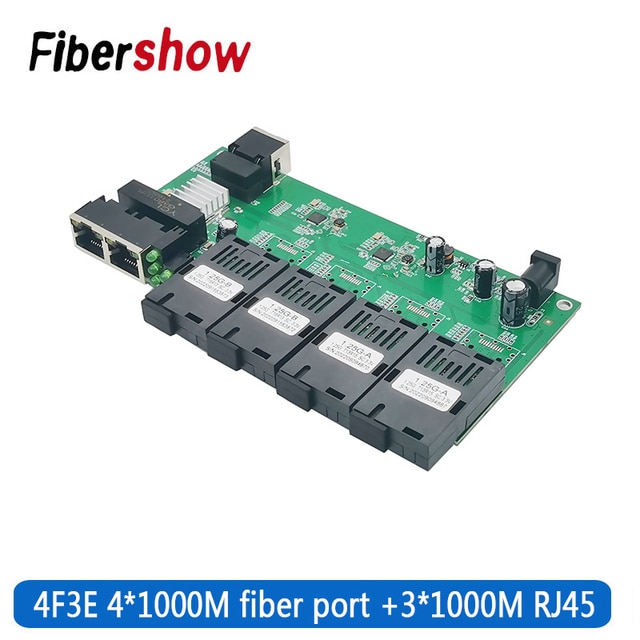

Gigabit Ethernet Switch 4G3E Series Fiber Switch

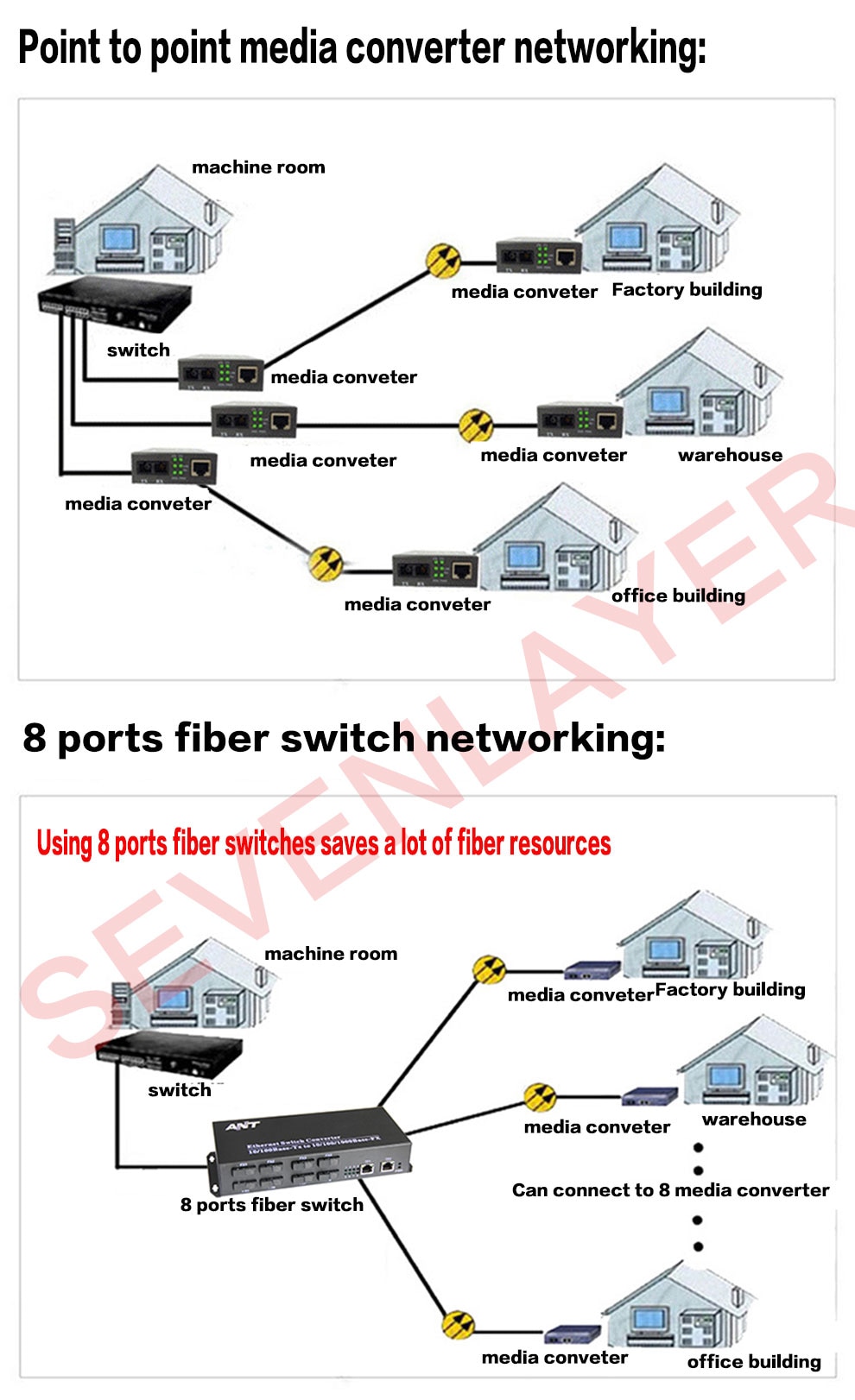

The Gigabit 4G3E is an Ethernet Fiber Switch which is specially designed for network monitoring. It
has 3*10/100/1000Mbps Ethernet ports and 4*1.25Gbps fiber ports. It adopts Marvell chips to ensure
low power consumption and high stability. It extends the transmission distance of a network from
100m to 120km via copper cables. It can extend the transmission distance; there are also many other
advantages such as isolation protection, good data security, working stability and easy maintenance.
Main Features:
1.Support the switch between 10/100/1000Base-TX and 1000Base-SX/LX
2.4*1.25Gbps full-duplex fiber ports and 3*10/100/1000M Ethernet ports with auto-negotiation function
3.Support 1000M speed rate, MDI/MDIX and half/full-duplex with auto-negotiation function
4.Each port has the complete LED Indicator light

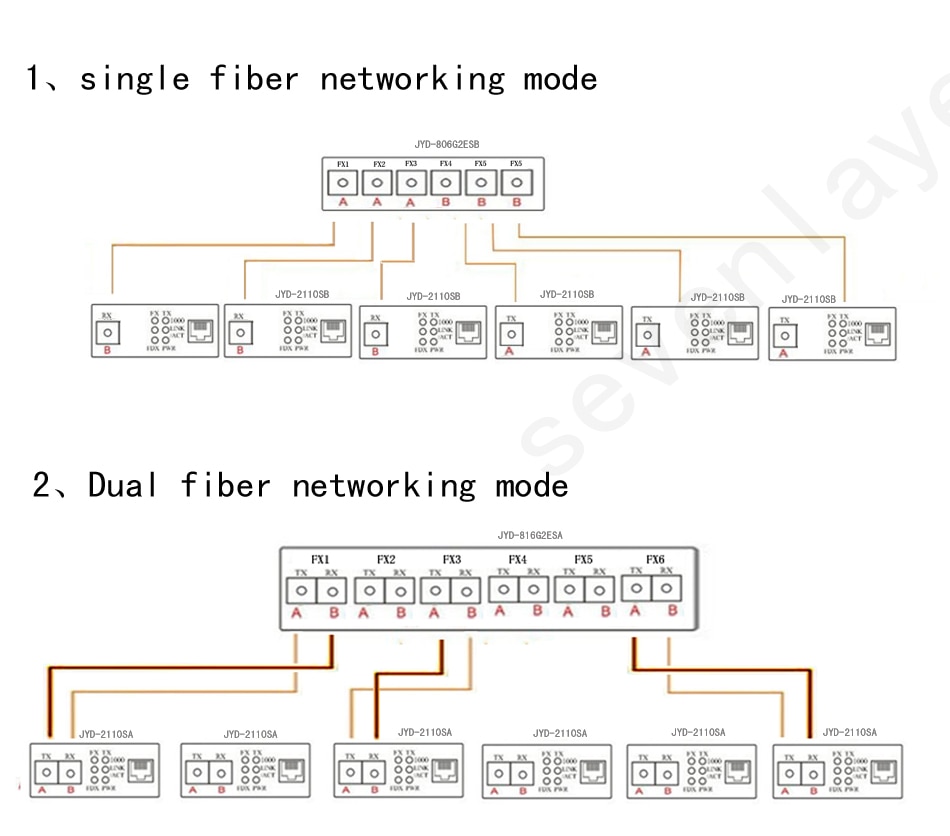

5.Support single mode single fiber,single mode dual fiber ,multi-mode dual fiber and SFP slot
6.Support IEEE802.1d Spanning Tree
7.Support high performance QoS function on each port
8.Support 5-16V voltage input
9.Support IEEE 802.3x flow control and back pressure control
10.Require no configuration and will instantly operate as soon as you power it up
11.Low power consumption chip with heat sink built in to ensure longtime efficient operation
Specifications:
Standards | IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX IEEE802.3z 1000Base-SX/LX IEEE802.3x Flow control IEEE802.1p QoS IEEE802.1d Spanning Tree |
| Connector: RJ45 Data Rate:10/100/1000M Distance: 100m UTP Type: UTP-5E or higher level |
Fiber Port | Connector: SC/FC/ST/SFP slot Data Rate:1.25Gbps Optical Wavelength: 850nm/1310nm/1550nm Distance: 550m～120km |
Performance | Processing Type: Store and Forward MAC Table Size:4K/6K/8K Buffer Space:500kbs/1Mbit/2Mbit Jumbo Packet: 1518 bytes Back bandwidth:3.8G/5.6G/7.2G Time Delay: ＜150μs |
Power | Power type: external power supply Input Voltage: AC100V～240V 50/60Hz Connector: DC Socket Working Voltage: 5-12V Power Consumption: 2.2W～3.5W |
Transmissin Distance | Twisted Pair: 100m (CAT5e, CAT6 cables) Muti-mode: 2km Single-mode:20/40/60/80/100km |
MTBF | 100, 000 hours |
Warranty | 1 year |
Environment | Storage Temperature: -40～70℃ Operating Temperature: -10～55℃ Relative Humidity: 5-90% ( no condensation) |
Mechanical Structures | Dimension: 215×107×26mm Weight: 0.15 PCB main board |
OEM&ODM | Supportive |
- Size: 20*5*3
- Fiber Type: Single Mode
- Compatible: Cisco,TP-link,Dell Force10,D-Link,AVAGO,Avaya,H3C,Huawei
- Connector Type: SC/APC
- Item Length: 1m
- Model Number: JYD-0402-3
- Brand Name: tapirapeco
- Origin: Mainland China
- Product Name: Fiber Switch
- Switch Type: Gigabit Swtich
- Fbier Port: 4 fiber port 1.25G
- Ethernet Port: 3 RJ45 port 10/100/1000M
