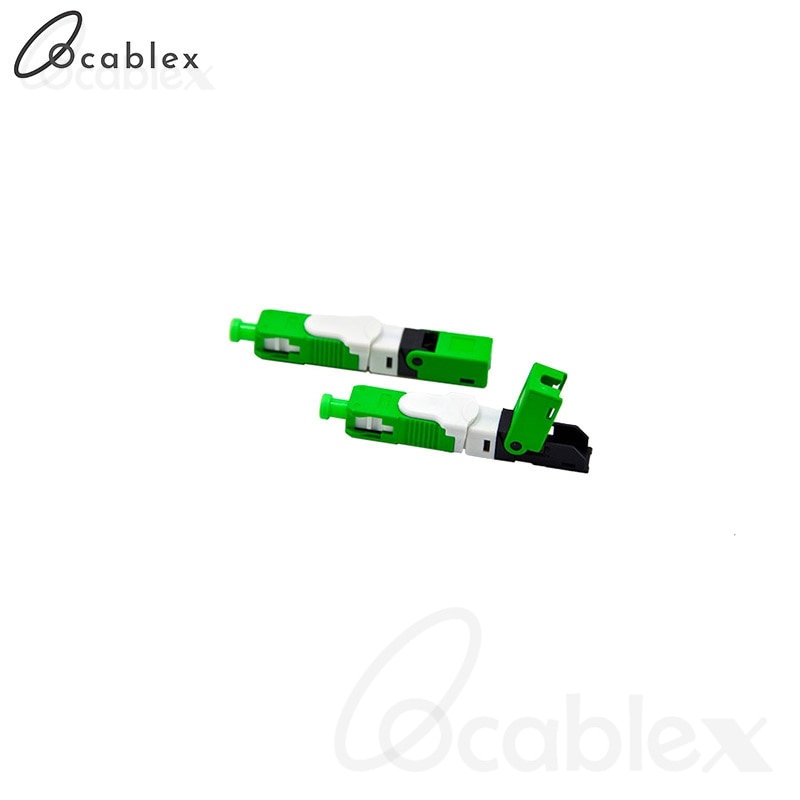

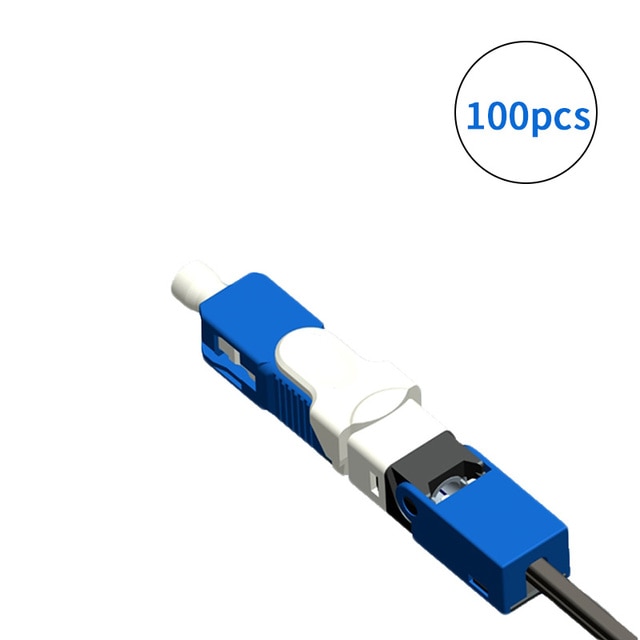

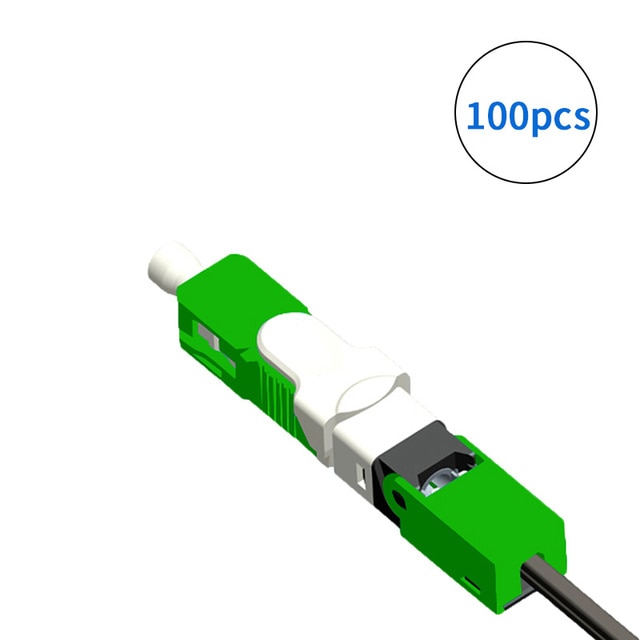

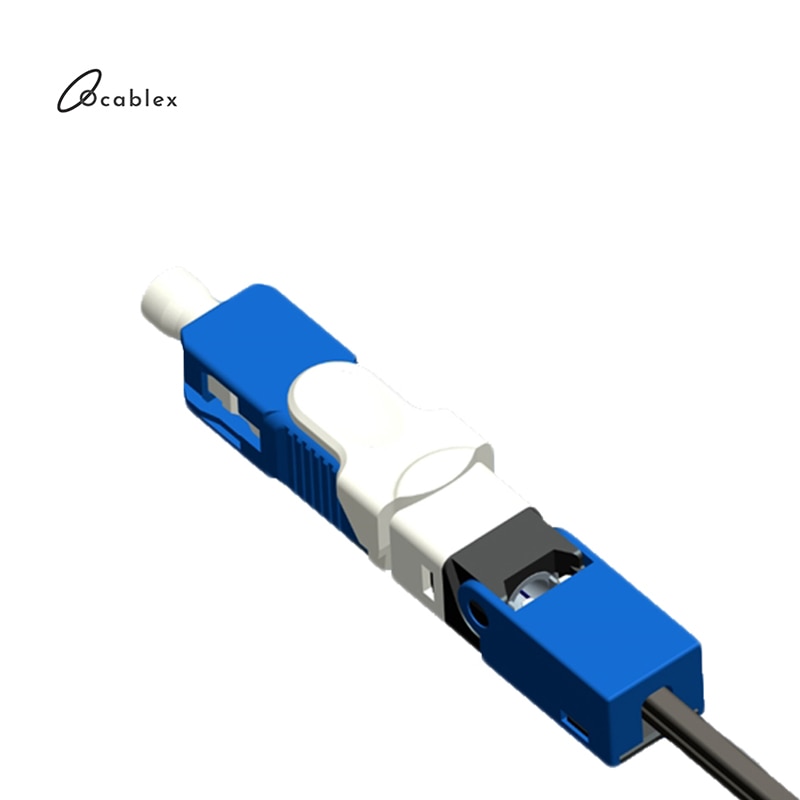

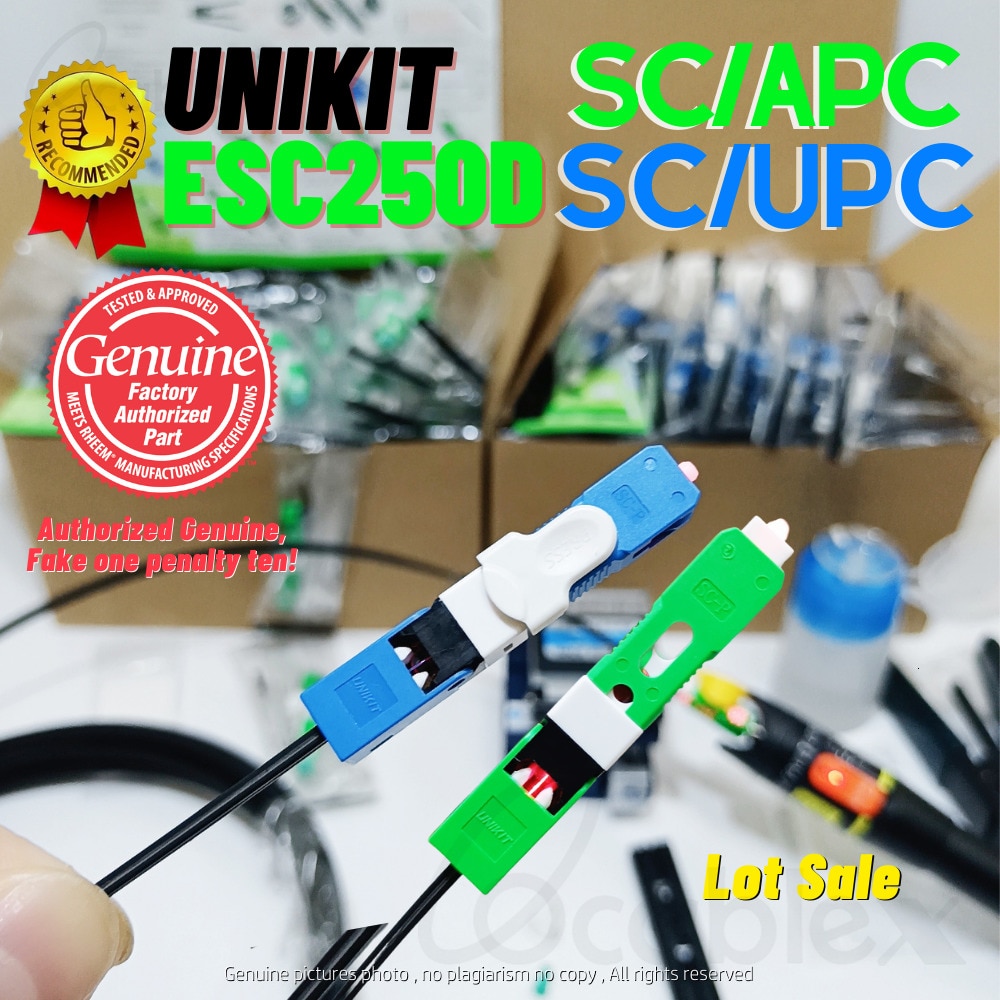

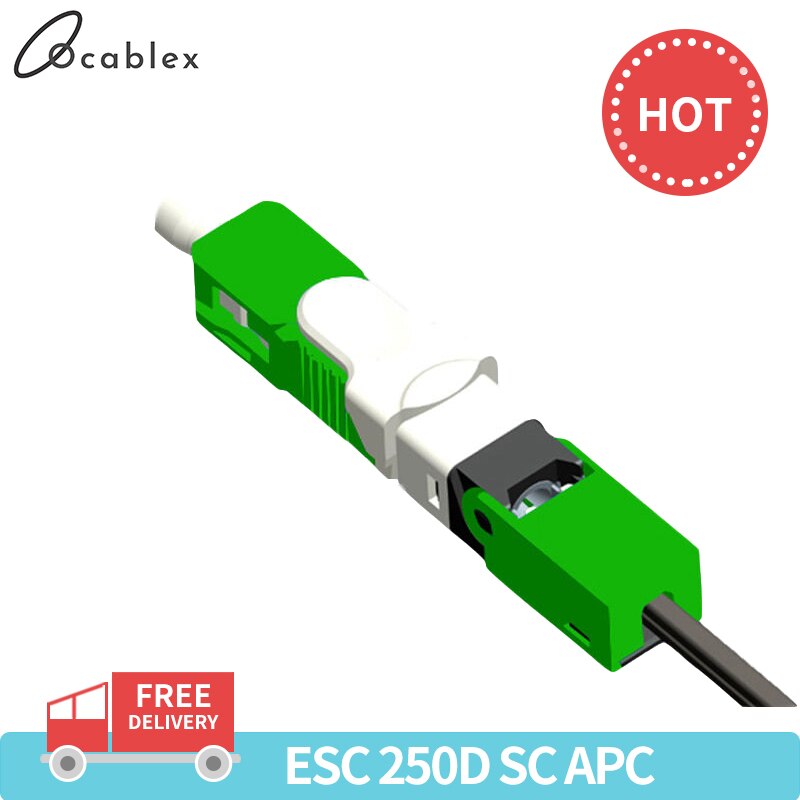

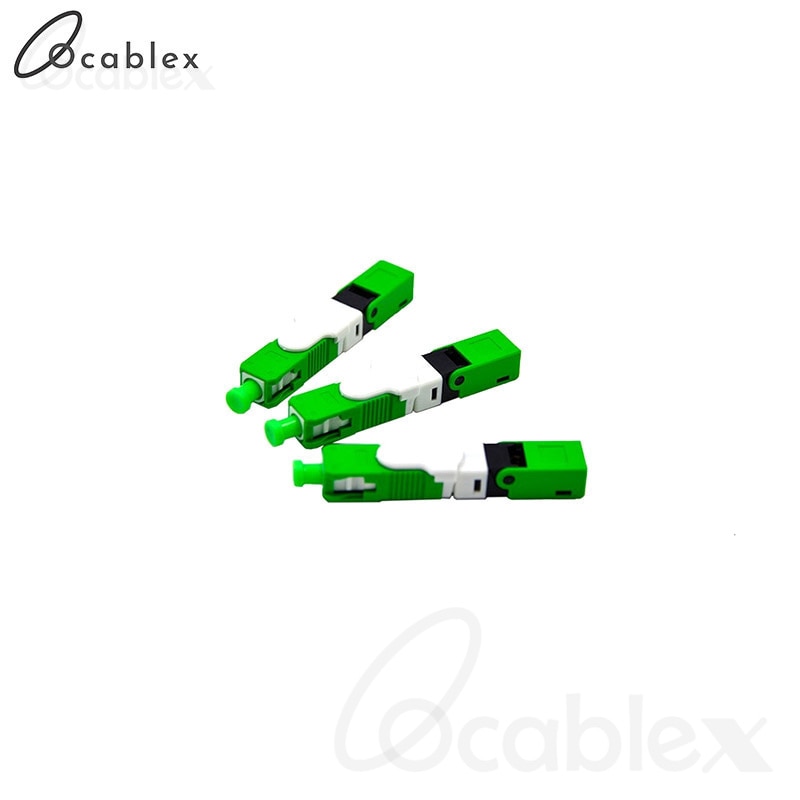

Free Shipping 50/200PCS /Lot FTTH ESC250D SC APC and SC UPC Single-Mode Fiber Optic Quick Connector FTTH SM Optic Fast Connector

4.9 (79 votes) | 505 orders
Price: US $148.00 - 632.38 / Pack
Discount Price:
US $ 56.24 - 222.28 / Pack
-62%
Color
Quantity


1000PCS bigger surprise Click here :

http://www.Cntronic.com/item/1005003165559971

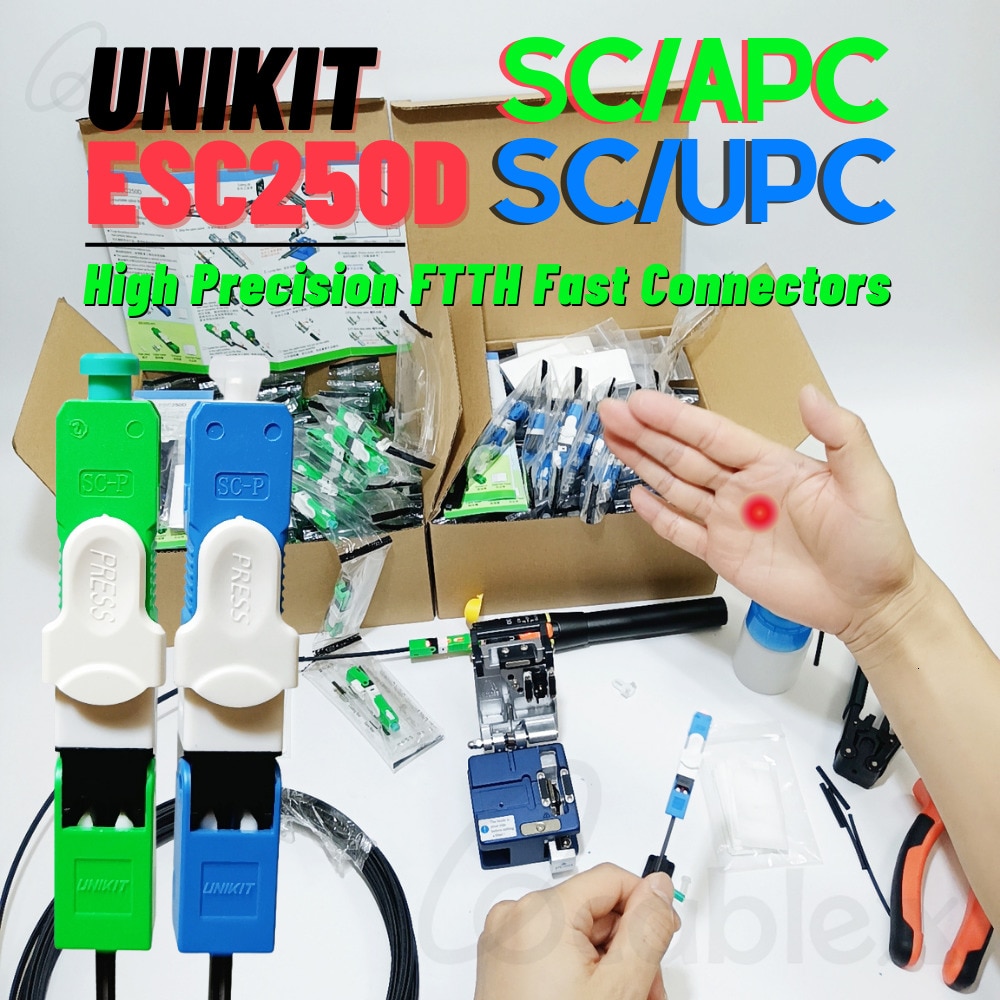

We are official authorized factory approved stores for selling this Unikit ESC250D fast couplers , all quality warranty!

Authorized Genuine, Fake one penalty ten!

Genuine pictures photo , no plagiarism no copy , All rights reserved


High lights

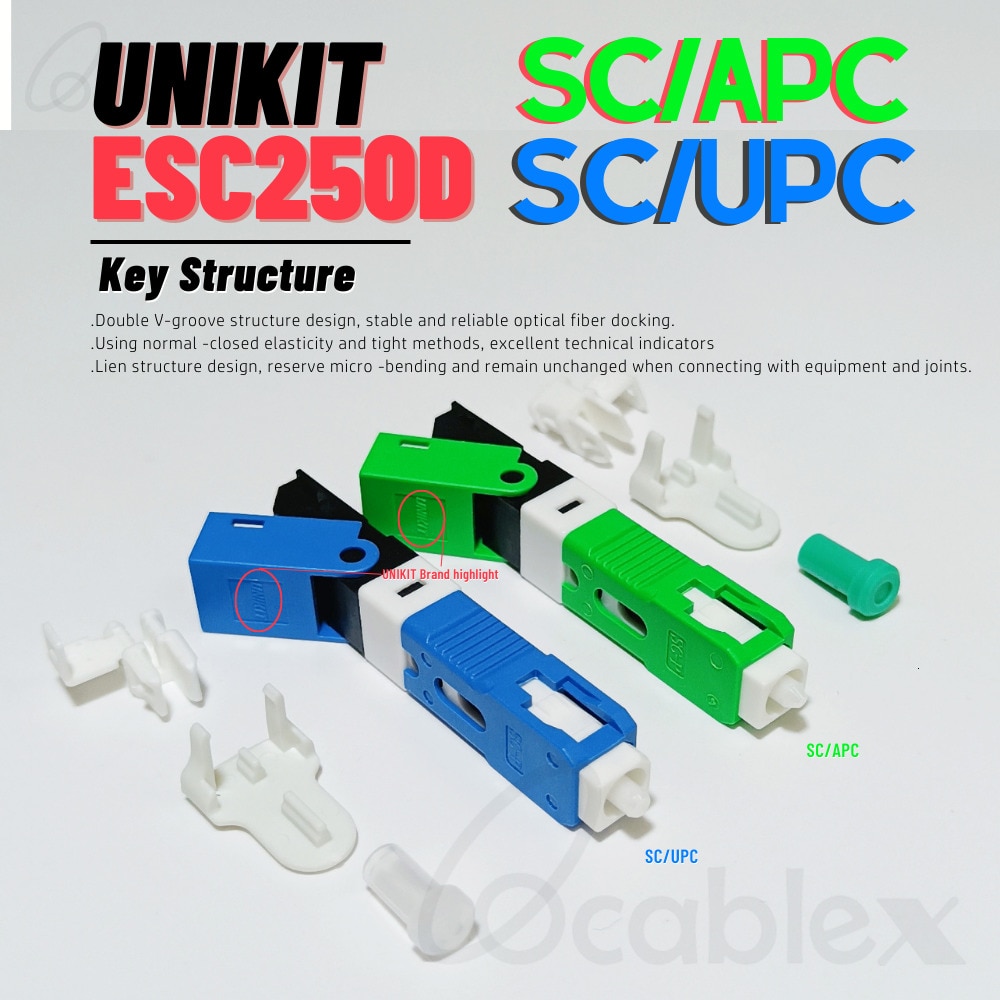

1.  Linkage structure design, and equipment, connector connection, reserved micro-bend to remain unchanged;

2.  Double V groove structure design, high stability and reliability of fiber connection;

3. Core structure: adopt the normally closed flexible locking structure, excellent optical performance;

4.  Applied to 2.0mm × 3.0mm & 2.0mm × 1.6mm drop cable;

5.  Easy to operate, fast to assemble, high success rate, long time of using, easy maintenance.


Application of ESC250D SC Connectors:

1. FTTH, FTTx  project usable

2. Field installable


Parameters :

Items

Technical Parameters

Applicable for

Drop cable / Indoor cable / Pixian

2.0mm, 3.0mm Drop Cable

Optical fiber diameter

SM(9/125), MM(50/125, 62.5/125)

125μm ( 657A & 657B )

Tight buffer diameter

250μm

Fiber mode

Single mode

Operation time

About 100s(no fiber cut)

Insert loss

≤ 0.3dB(1310nm & 1550nm)

Return loss

> 50db(PC), > 55db(UPC), > 65db(APC)

Fastening strength of naked fiber

>5 N

Fastening strength of naked fiber holder

>10 N

Tensile strength

>50 N

Using temperature

-40~+85°C

On-line tensile strength (20 N)

IL ≤ 0.5dB  RL ≤ 5dB

Mechanical durability (500 times)

IL ≤ 0.5dB  RL ≤ 5dB












  • Size: 20cmx20cmx20cm
  • Fiber Type: Single Mode
  • Compatible: TP-link
  • Connector Type: SC/APC
  • Item Length: 1m
  • Model Number: SC/APC Fast Connector
  • Brand Name: CAILI
  • Origin: Mainland China
  • Certification: CE,NONE
  • Storage Temperature: 25 ~+85
  • Repeatability: <=0.5dB
  • Mode:: single mode, multimode
  • Diameter: 0.9mm, 2.0mm, 3.0mm, Others
  • Durability: 500 Times
