SMTAV POE NDI PTZ Camera 30x+8x For Church Business Meeting and 4D POE Joystick Network PTZ Controller Support ONVIF
2,996.90 1,888.04 $
ID: 113202
Quantity
Free Shipping 12x Optical Zoom Lens 4K60 Multiple Network Protocol 60fps Ptz Video Conference Camera Ultra Hd 4K PTZ Camera
0.0 ( votes)
Price:
US $
2198.00
/ piece

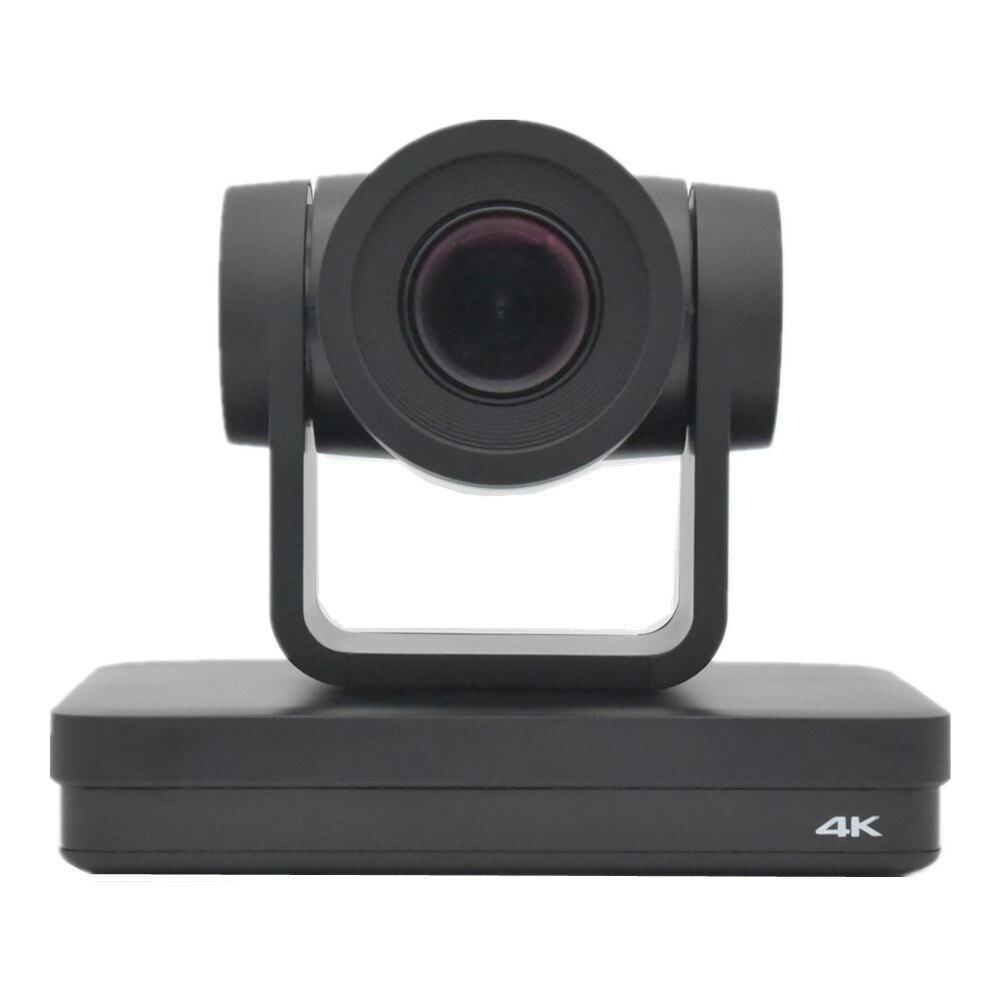

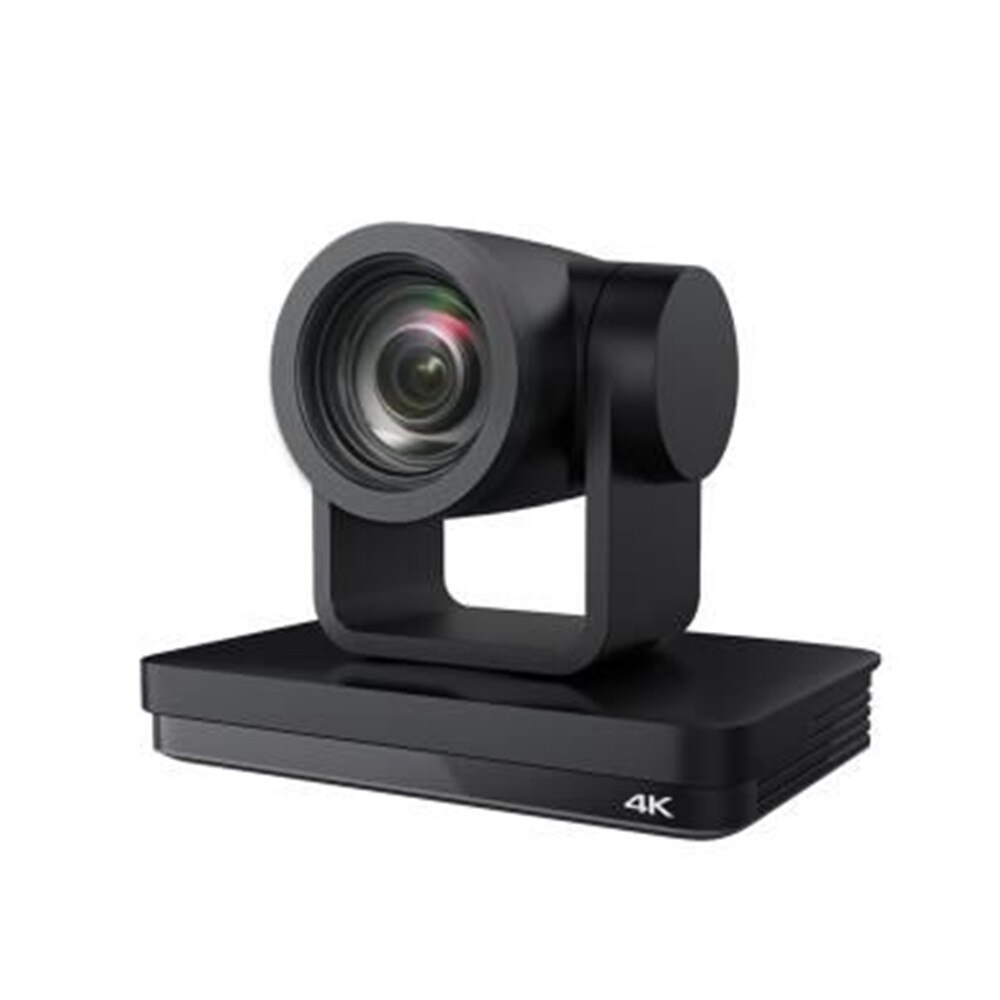

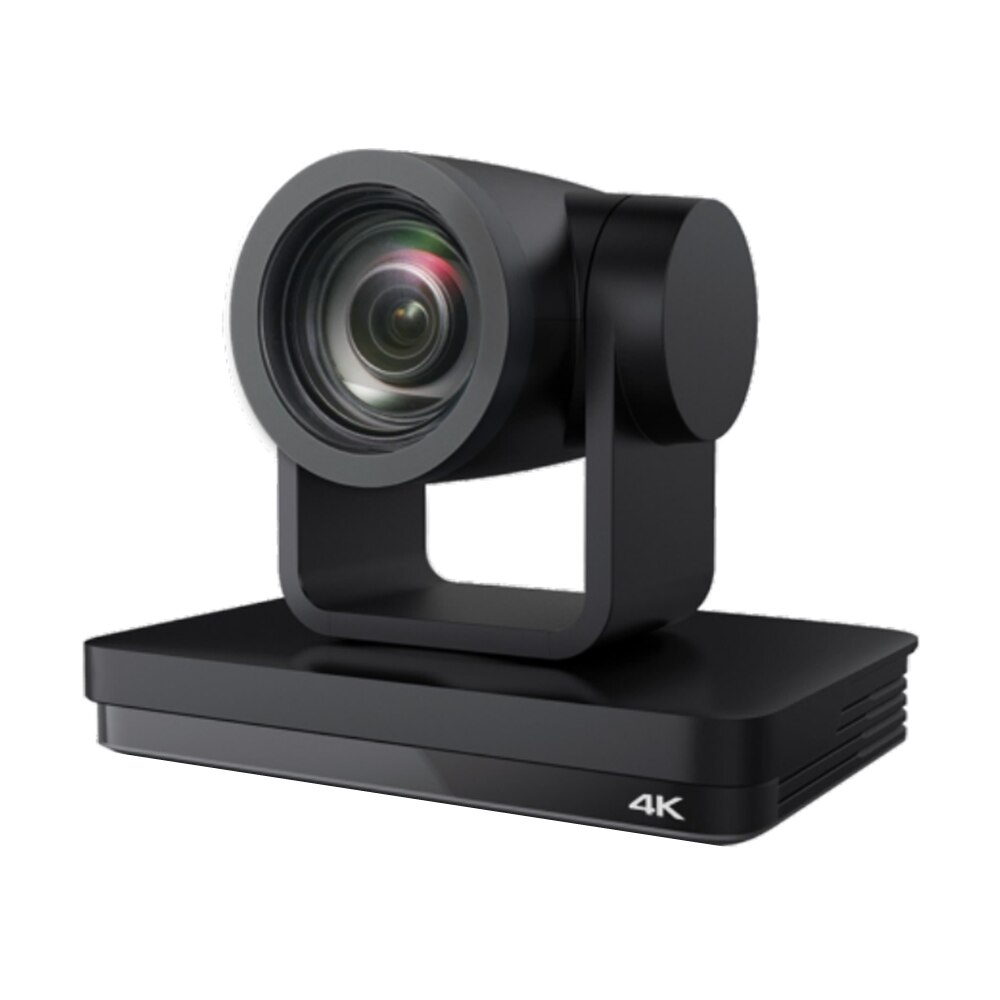

Key Features | 4K Ultra HD 1/2.8 & 1/2.5 inch high quality 4K SONY CMOS sensor; 8.51 megapixel, resolution is up to 4K (3840x2160) and compatible with 1080P, 720P and other resolutions. 4K 60FPS Optical Zoom Lens 12X and 5X optical zoom lens, with 70° & 80° FOV without distortion. Trinity image auto-focusing technology Focus on intelligent image processing, to provide automatic white balance (AWB), automatic exposure (AE), automatic focusing (AF) function, fully automatically adapt to the environment, to achieve the best image effect, perfect trinity image automatic adjustment. Low Noise and High SNR Low noise CMOS ensures super high SNR image. The advanced 2D/3D noise reduction technology reduces the noise while ensuring high image clarity. Multiple Video Outputs HDMI, USB3.0 and LAN support audio video output Multiple USB Compression Encoding Format Support YUY2,MJPEG,H.264,NV12 video encoding formats Multiple Audio Compression Standard Audio-in supports AAC, MP3 and G.711A audio compression; 8000,16000,32000,44100,48000 sampling frequency Built-in gravity sensor Built-in gravity sensor supports PTZ auto-flip function, easy to install. Multiple network protocol Supports ONVIF, GB/T28181, RTSP, RTMP protocols; RTMP push mode, easy to be connected to streaming server (Wowza,FMS); RTP multicast mode; VISCA control protocol Control Interface RS422 (compatible with RS485); RS232 in & out; RS232 cascade connection Multiple Control Protocol Support VISCA, PELCO-D, PELCO-P protocols; Support automatic identification protocols. Extremely Quiet PTZ Adopting step driving motor mechanism and motor drive controller with high precision is to ensure PTZ works smoothly with low speed and without noise. Multiple preset Up to 255 presets (10 presets for remote control). IR & Wireless Remote Control IR remote control (default) Wireless remote control (optional): 2.4G wireless remote control is not affected by the angle, distance or infrared interference. Far-end-control is also available. Multiple Applications Online-education, Lecture Capture, Broadcasting, Video conferencing, Tele-medicine, Unified Communication, Emergency command and control systems, etc. | |
Optical Zoom | 12X | |
FOV | Horizontal: 6.55˚（tele）～ 69.4˚（wide） vertical: 3.66˚（tele）～ 42.8˚（wide） | |
Aperture | F1.6 - F2.8±5% | |
Image Sensor | 1/2.8 Inch SONY CMOS Sensor | |
Effective pixels | 8.51M; 16:9 | |
Video Format | HDMI Video Output Format: 4KP60, 4KP50, 4KP30, 4KP25, 1080P60, 1080P50, 1080i 60, 1080i 50, 1080P30, 1080P25, 720P60, 720P50 USB3.0 Video Output Format: YUY2/NV12: 1920×1080P30, 1280×720P30, 1024×576P30, 960×540P30, 800×448P30, 640×360P30, 640×480P30, 320×176P30 MJPEG/H.264: 3840×2160P30,1920×1080P30, 1280×720P30, 1024×576P30, 960×540P30, 800×448P30, 640×360P30, 640×480P30, 320×176P30 USB3.0 compatible with USB2.0: YUY2/NV12: 640×360P30, 640×480P30, 320×176P30 MJPEG/H.264: 3840×2160P30, 1920×1080P30, 1280×720P30, 1024×576P30, 960×540P30, 800×448P30, 640×360P30, 640×480P30, 320×176P30 | |
Minimum Illumination | 0.05Lux (F1.8, AGC ON) | |
DNR | 2D & 3D DNR | |
White Balance | Auto / Manual/ One Push/ Specified Color Temperature | |
Focus | Auto / Manual/ One Push | |
Exposure mode | Auto/ Manual / Shutter Priority / Aperture Priority / Brightness priority | |
Aperture | F1.8 - F11, CLOSE | |
shutter speed | 1/25 - 1/10000 | |
BLC | OFF/ON | |
Dynamic range | OFF/ Dynamic Level Adjustment | |
Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve | |
SNR | ≥50dB | |
Input/Output Interface | ||

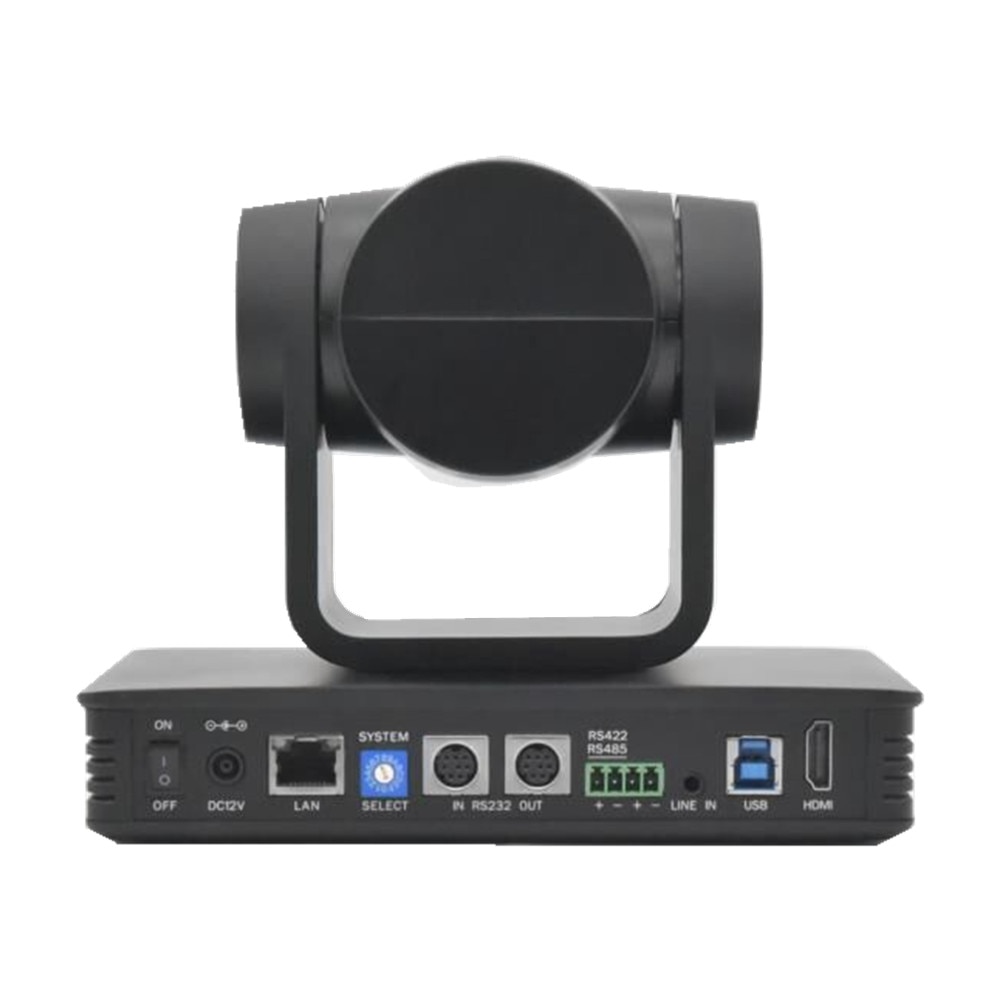

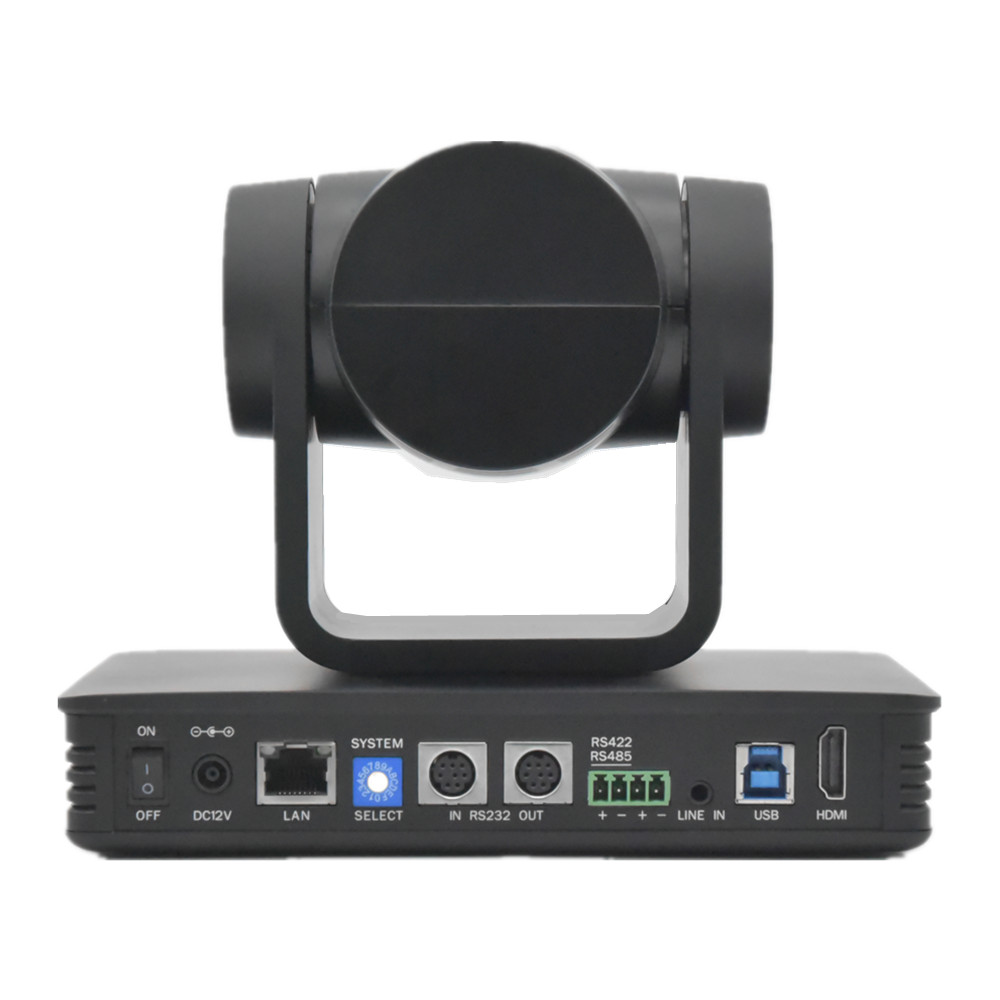

Interfaces | HDMI, LAN(POE), USB3.0（Type B, compatible with USB2.0）, A-IN, RS232-in & out; RS422（Compatible with RS485）, Dial switch, DC12V, Power Switch | |
Video Compression | LAN: H.264, H.265 USB 3.0: MJPG, H264, YUY2, NV12 | |
Audio-in Interface | Double track 3.5mm linear Input | |
Audio out | HDMI, LAN, USB3.0 | |
Audio Compression | AAC, MP3, G.711A | |
LAN | 10M/100M/1000M adaptive Ethernet port, support POE and audio/video output | |
Network Protocol | RTSP, RTMP, ONVIF, GB/T28181, VISCA Control Protocols, Remote Upgrade, reboot and reset | |
Control Interface | RS232-IN, RS232-OUT, RS422 (compatible with RS485) | |
Serial Protocol | VISCA/ Pelco-D / Pelco-P; Baud rare: 115200/38400/9600/4800/2400 | |
USB Communication Protocol | UVC（video），UAC（audio） | |
Power Interface | HEC3800 outlet (DC12V) | |
Power Adapter | Input: AC110V-AC220V ; Output: DC12V/2.5A | |
Input Voltage | DC12V±10% | |
Input Current | <1A | |
Power Consumption | <12W | |
PTZ Parameter | ||
Pan Rotation | -170°～+170° | |
Tilt Rotation | -30°～+90° | |
Pan Control Speed | 0.1°/s～100°/s | |
Tilt Control Speed | 0.1°/s～45°/s | |
Preset Speed | Pan: 100°/s，Tilt: 45°/s | |
Preset Number | 255 Presets (10 presets by remote control) | |
Other Parameter | ||
Stored Temperature | -10℃～+60℃ | |
Stored Humidity | 20%～95% | |
Working Temperature | -10℃～+50℃ | |
Working Humidity | 20%～80% | |

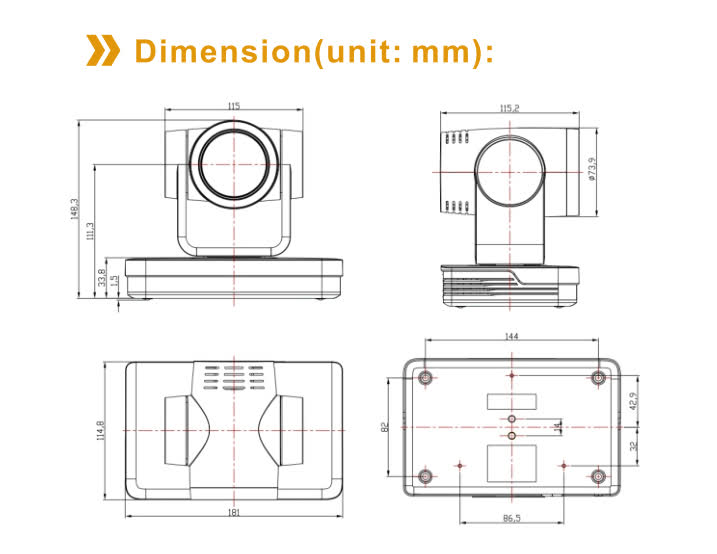

Dimension | 181（L）mm × 115mm（W）× 149mm（H） | |
Weight(around) | 1.15 kg | |
Application | Indoor | |
Accessory | ||
Package | Power supply,RS232 control cable,USB3.0 connection cable, Remote controller, User Manual | |
Optional Accessories | Ceiling / Wall Mount (Extra Cost) |
- Model Number: FT-Ca50-12X
- Type: Video Conference System
- Simultaneous Interpretation: No
- Brand Name: WEDOLNNOV
- Origin: Mainland China
