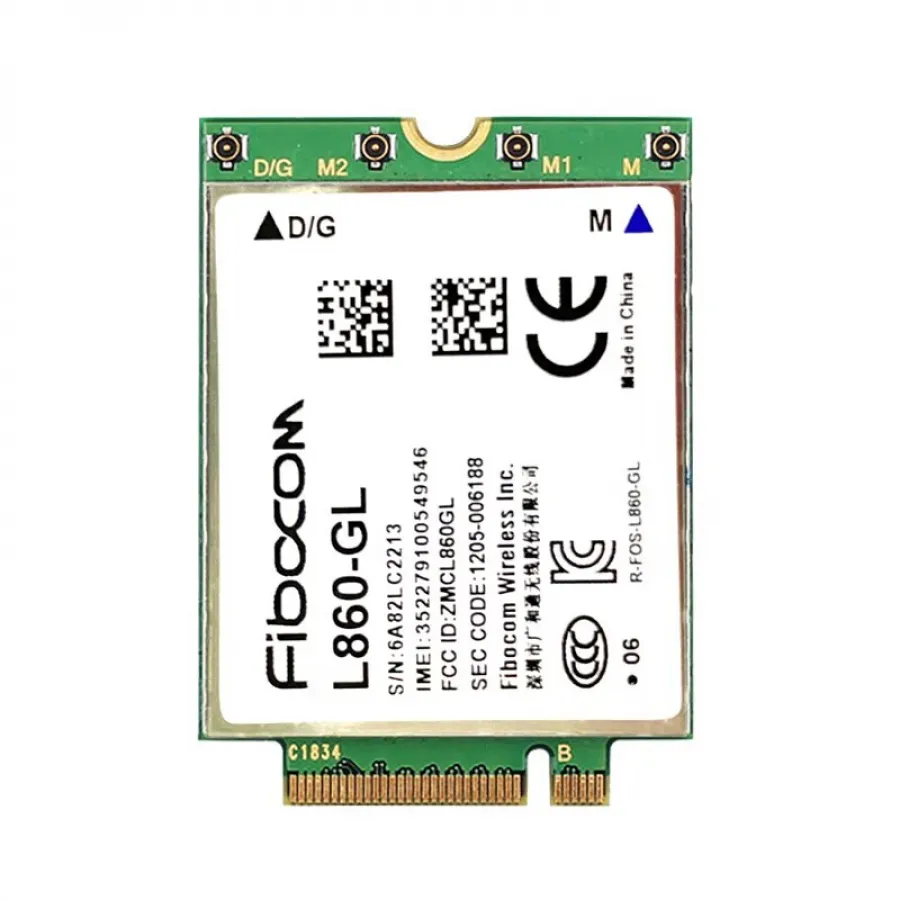

Fibocom L860-GL L860 gl USB 4G Module Wlan Card LTE-A Pro CAT16 4G LTE L860 usb lte Module 4G
4.4 (14 votes) | 68 orders
Price:
US $57.42
Discount Price:
US $
51.51
-10%
- Color
-
-
Specification:
*Model: L860-GL IMEI:(35xxx)
* Chipset: Intel XMM7560
* LTE FDD: LTE FDD: frequency bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 21, 25, 26, 28, 29, 30, 32, 66
* LTE TDD: B38/39/40/41/42
* UMTS: Band 1, 2, 4, 5, 8
* Form factor: M.2 package
* Dimensions: 30.0*42.0*2.3 mm
* DL 5CA on 4 frequency bands, DL 256QAM support
* DL-MIMO: 2*2, 4*2, 4*4
* DL 4x4 MIMO: Band 1, 2, 3, 4, 7, 30, 40, 41NB, 66
* LAA (Band 46)
* Integrated GNSS
* eSIM interface support
* Working voltage: 3.135V~4.4V, typical 3.3V
* Working temperature: -10~+55°C
* Storage temperature: -40~+85°C
* AT command set: 3GPP TS 27.007 and 27.005, proprietary FIBOCOM AT commands
* Transmitting power:
-FDD&TDD LTE: 23dBm
-WCDMA: 23.5dBm
* Receiving sensitivity: FDD&TDD LTE: -98dBm~102dBm
* data
-FDD&TDD LTE: 1Gbps DL (Cat 16), 150Mbps
-UL (Cat 13, 2CA in band)
-UMTS/HSPA+: 42Mbps DL (Cat 24), 11.5Mbps
-UL(Cat 7)
* Interface
-USIM: 3V/1.8V
-PCIe
-BodySar
* Driver: Windows 10
* agree:
-CE/CCC/FCC/GCF/PTCRB and other 100+ national certifications
-AT&T / Verizon /Sprint / DT / Telefonica / Vodafone /Swisscom / Docomo / KDDI / Softbank / Telstra /Optus

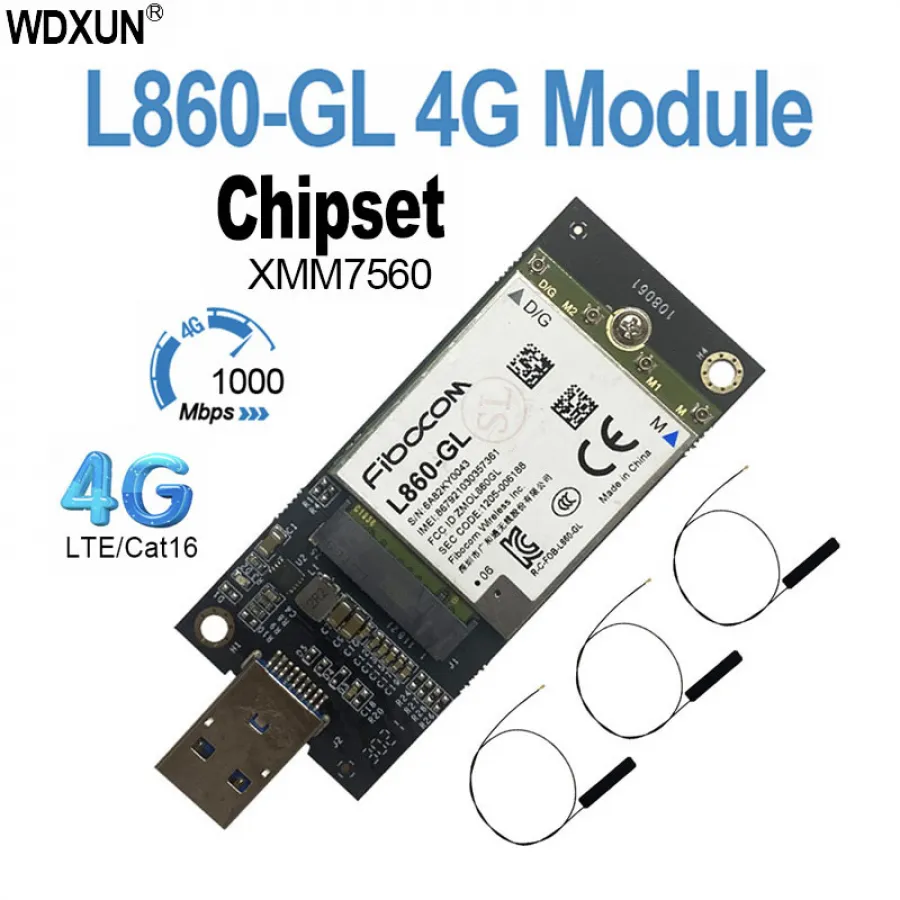

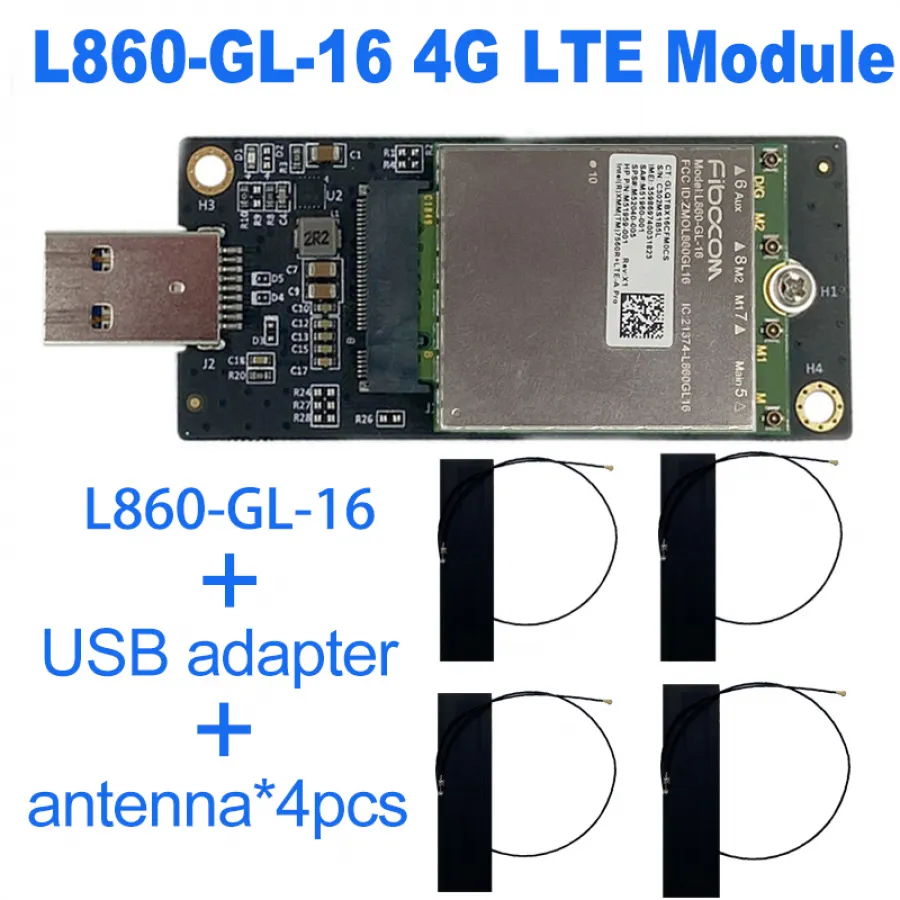

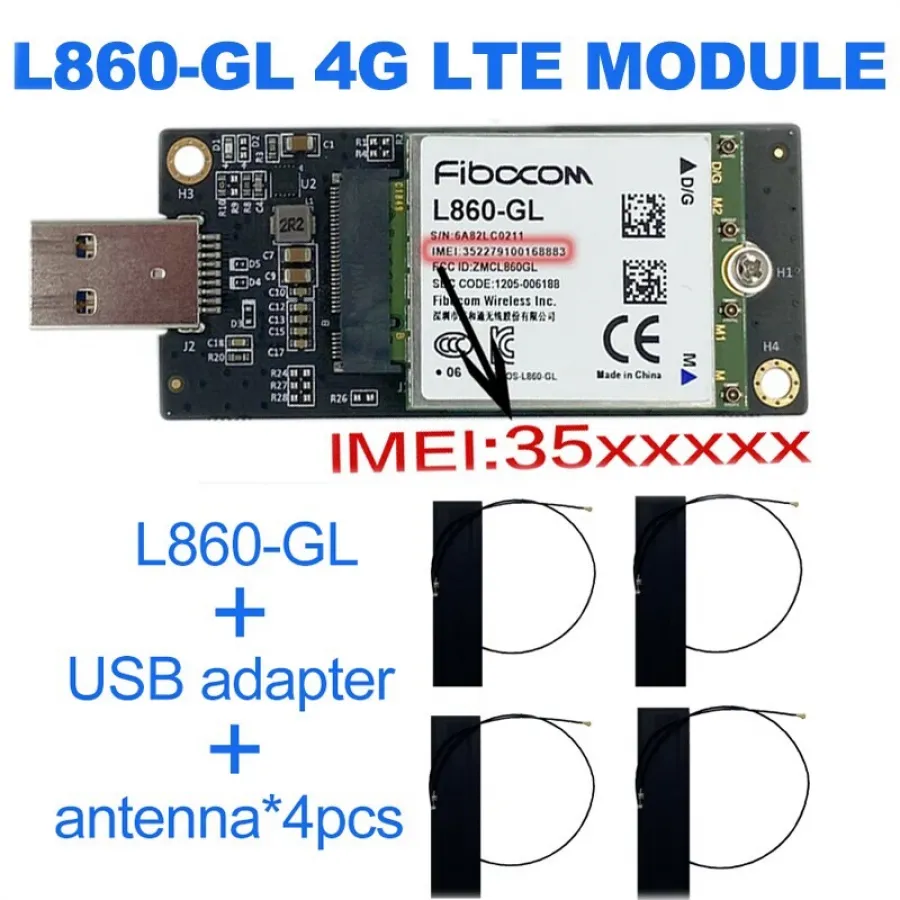

Package Included:
1*L860-GL 4G module
1*USB adapter
4*LTEantenna (30cm)
Packaging Details
- Unit Type:
- Package Weight: 0.010
- Package Size: 5x5x5
- Brand Name: WDXUN
- Origin: Mainland China
- Hign-concerned Chemical: None
- Battery Included: No
- Kind: External
- Certification: CE
- Model Number: L860-GL
- Interface Type: USB
- Transmission Rate: 10/100Mbps
- Type: Wireless
- Wireless Protocol: LTE
- Application: Server
- Card Type Device: 4G Card
