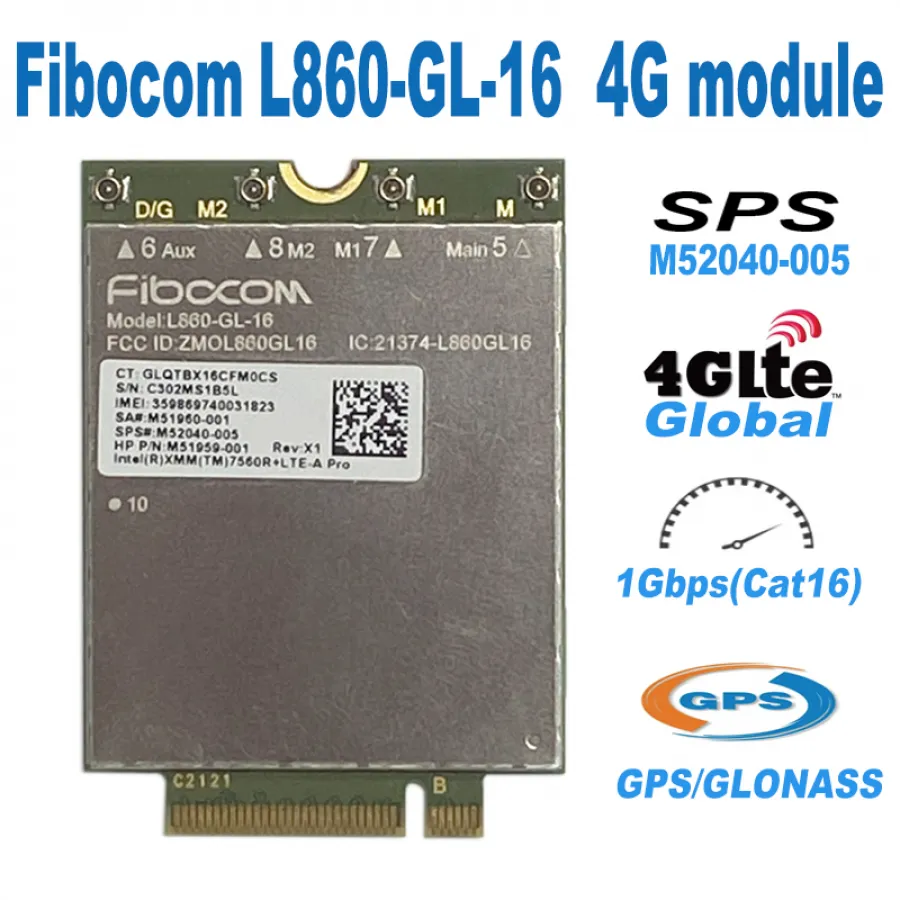

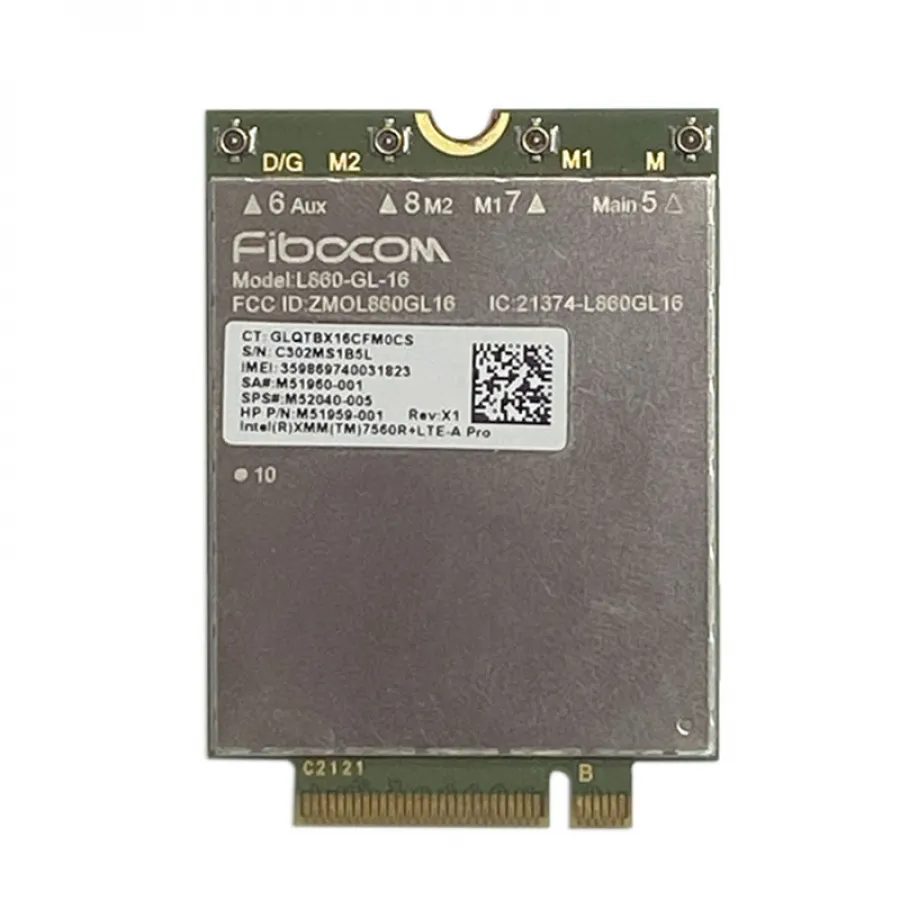

Fibocom L860-GL-16 LTE CAT16 module for 4G 5G module L860

5.0 (5 votes) | 25 orders
Price:
US $ 123.40
Color
Quantity


L860-GL-16


Basic Features

Dimension(mm):42.00 x 30.00 x 2.30


Package:M.2


LTE FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B21/B25/B26/B28/B29/B30/B32/B66


LTE TDD:B38/B39/B40/B41/B42


WCDMA:B1/B2/B4/B5/B8


Power Supply:3.135V~4.4V(Typical3.3V)


Operating Temp.:-10℃~+55℃



Interfaces

SIM:x 2, 1.8V/3.0V


PCIe:■


GPIO:■


Approvals

Regulation:RoHS/HF/FCC/CE-RED/CB/GCF/PTCRB


ITA:CCC/SRRC/ICTA/IFTEL/ANRCETI(SM CoC)/ANRT/INCM/NTA/BTP/RCM/NCC/TRA/PTA/CONATEL/MTC/NTC/FCC/ictQatar/FAC/FSS/CITC/ARTP/Ratel/IMDA/ICASA/MSIP/TRCSL/SCCOM/TCRA/NBTC/TATT/CERT/UA DOC&NKRZI regidtration/NCC/OZS CoC/ MIC/Part of Morocco/POTRAZ


Operator:Verizon/AT&T/Sprint/DT/Telefonica/Vodafone/Swisscom/Docomo/KDDI/Softbank/Telstra/Optus


Data Transmission

LTE FDD(Mbps):1Gbps (DL)/75(UL);  Cat 16


LTE TDD(Mbps):1Gbps (DL)/75(UL); Cat 16


UMTS(kbps):384(DL)/384(UL)


DC-HSPA+ (Mbps):42(DL)/11.5(UL); Cat 24/Cat 7


Features

USSD:


STK:


OS Driver:Windows/Linux**


GNSS:■


SMS:



Packaging Details

  • Unit Type:
  • Package Weight: 0.010
  • Package Size: 5x5x5

  • Brand Name: WDXUN
  • Origin: Mainland China
  • Hign-concerned Chemical: None
  • Battery Included: No
  • Kind: Internal
  • Certification: CE
  • Certification: FCC
  • Model Number: L860-GL-16
  • Interface Type: USB
  • Type: Wireless
  • Application: Laptop
  • Card Type Device: 4G Card
