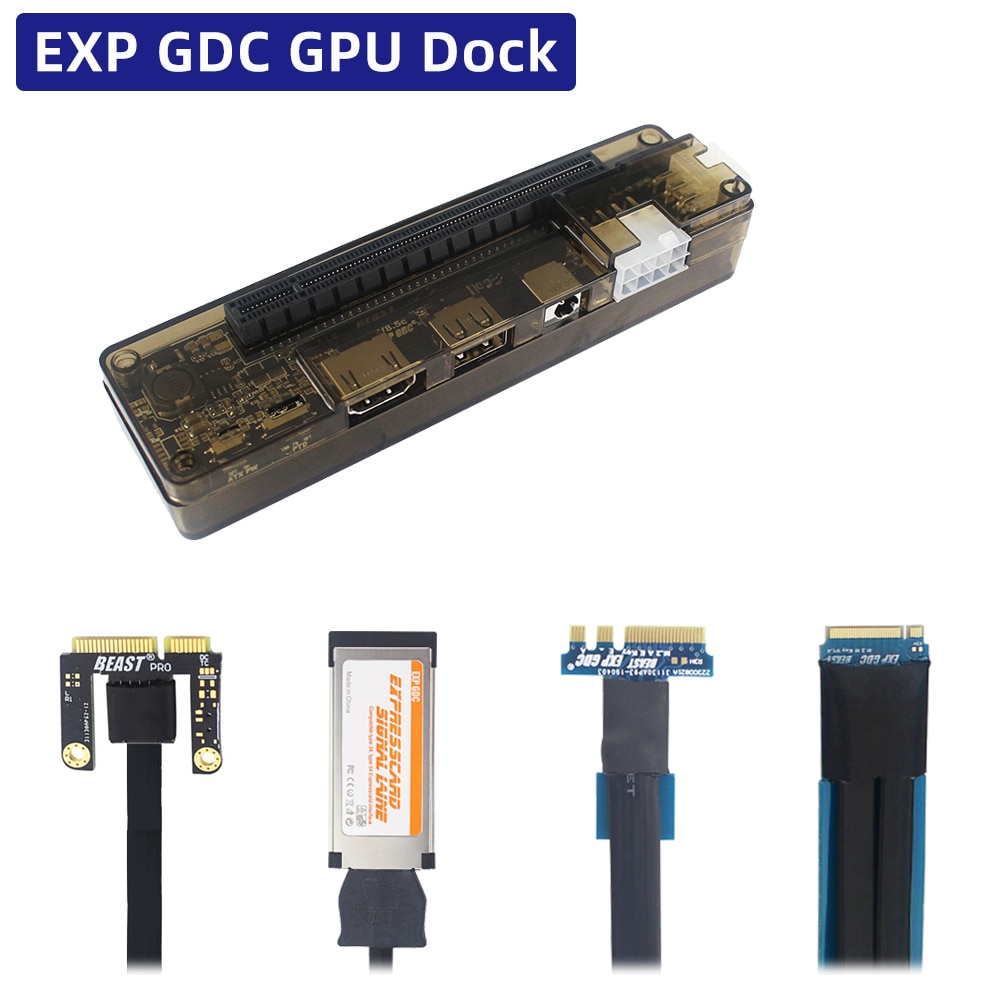

EXP GDC External Laptop Video Card Dock Notebook to Graphics Card Adapter Mini PCI-E NGFF M.2 A E Key Expresscard

EXP GDC GPU Dock Laptop Notebook to External Graphic Video Card Adapter Optional Mini PCI-e/Expresscard/M.2 A E Key/M.2 Mkey/Thunderbolt-compatible 4 3 Interface

Introduction

EXP GDC is the laptop external graphics adapter equipment. It can help you to use the external independent high-performance graphics, can be used to access any of the PCI-E interface equipment, used to enhance the performance of the laptop, so that you can play those huge games requesting high-performance graphics.
Please note that not all laptop support to connect external graphic card. You can read the support list in the detail description if you do not make sure whether your laptop support it. Or you can send a message to us about it.

Note: EXP GDC is a NOTEBOOK external graphics adapter equipment, does not include graphics card.

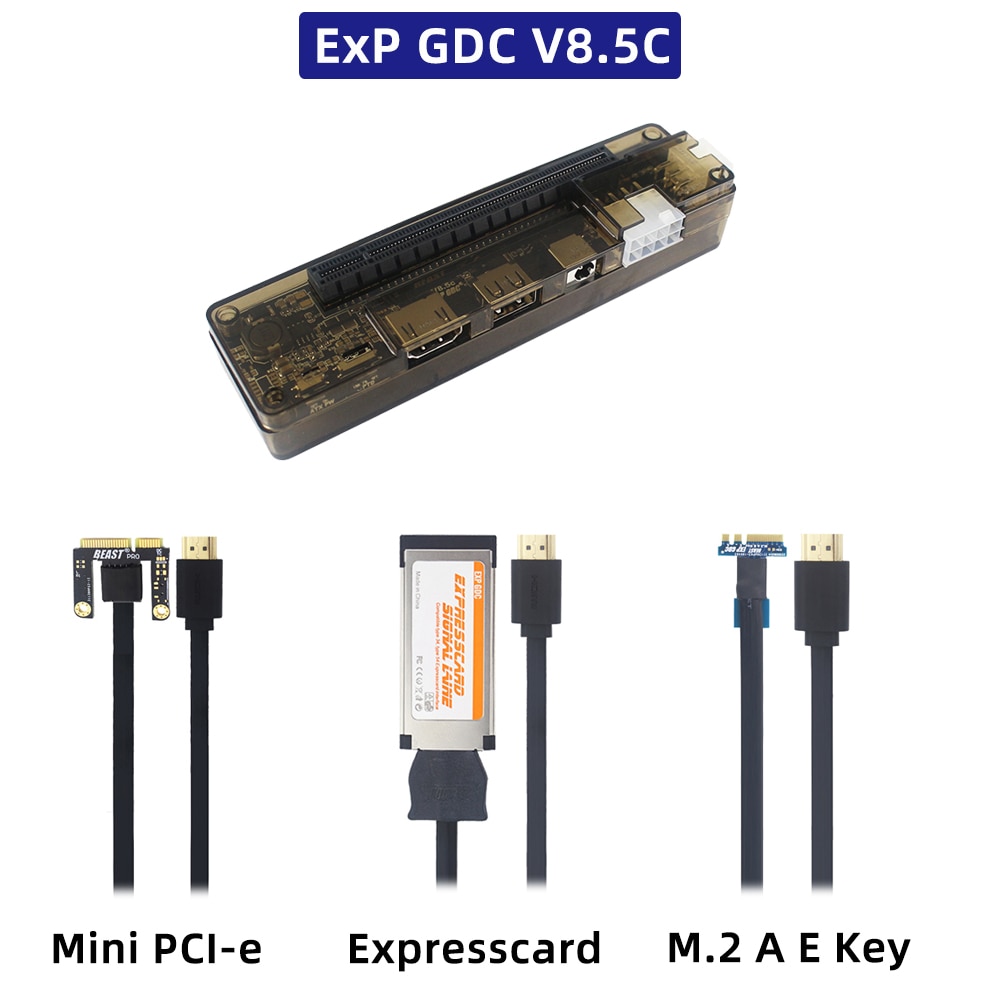

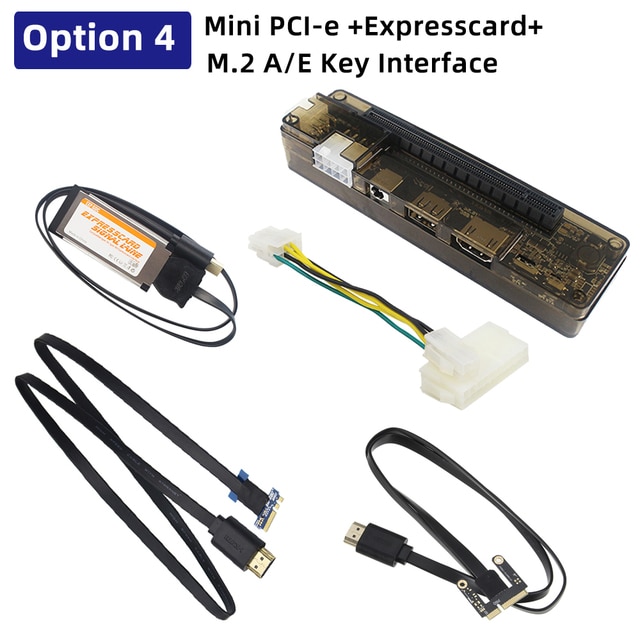

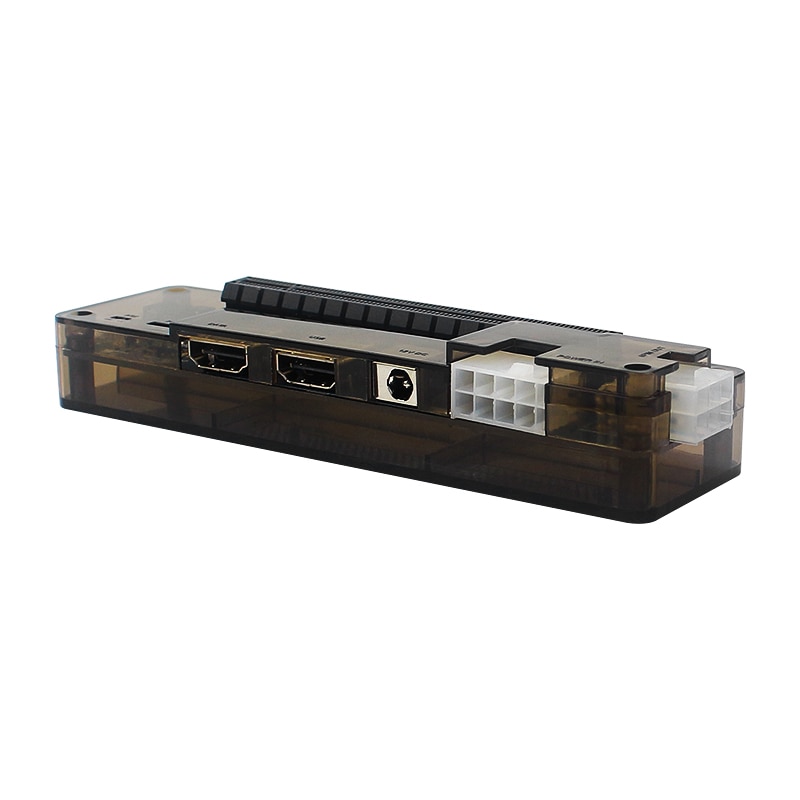

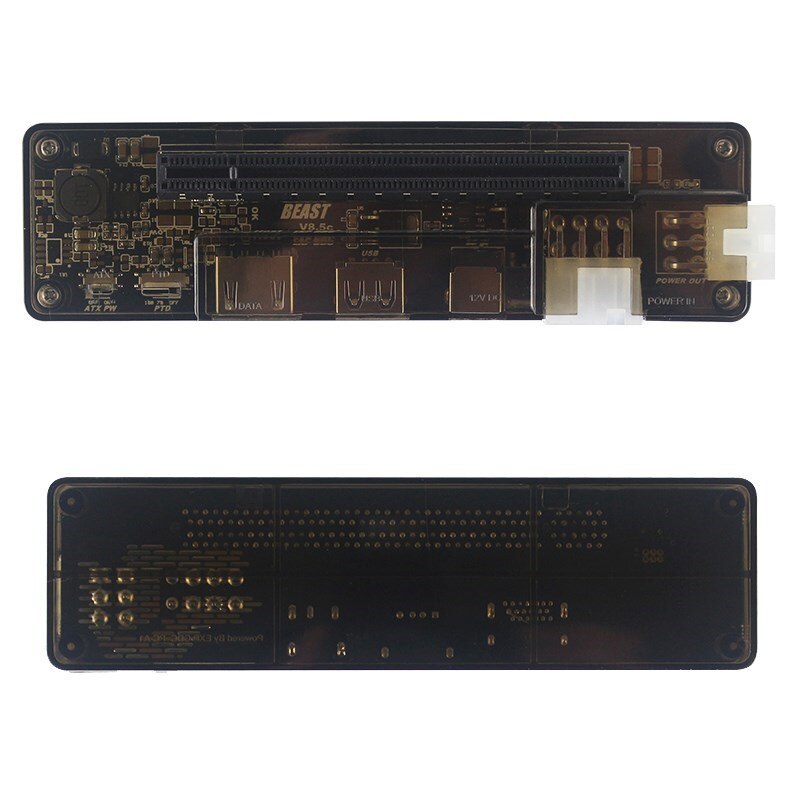

1. EXP GDC V8.5C Dock

Specifications:
1. Support Interface : PCI-E X16

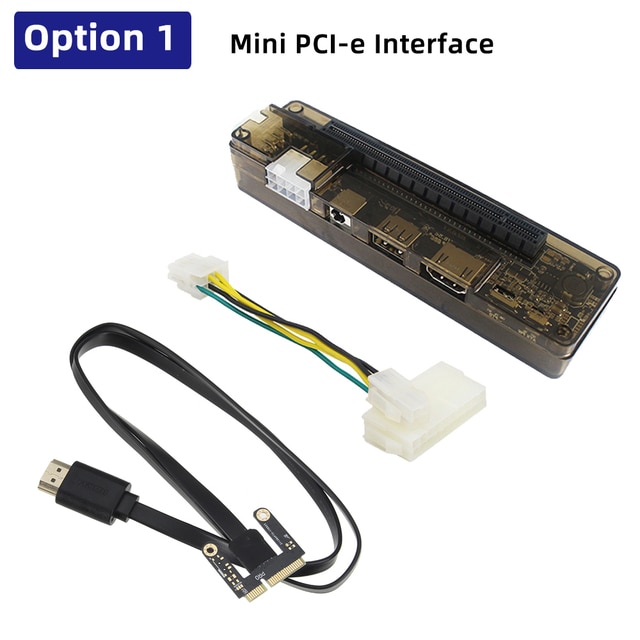

2. Input Interface : Mini PCI-E/NGFF M.2 A Key/Expresscard
3. Extand Support : PCI-E X16 DMI 5 GT/s
4. Power : Max. 220W(8Pin interface)/Max. 150W(DC interface)
5. USB : 1.0/1.1/2.0
6. Compatible system : Windows XP/7/10,Linux

Features:

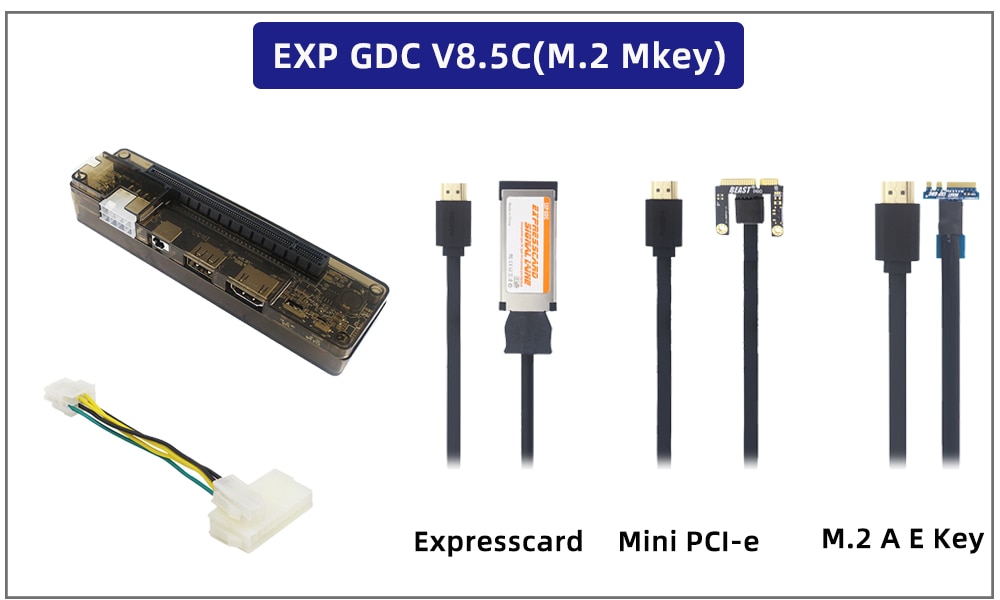

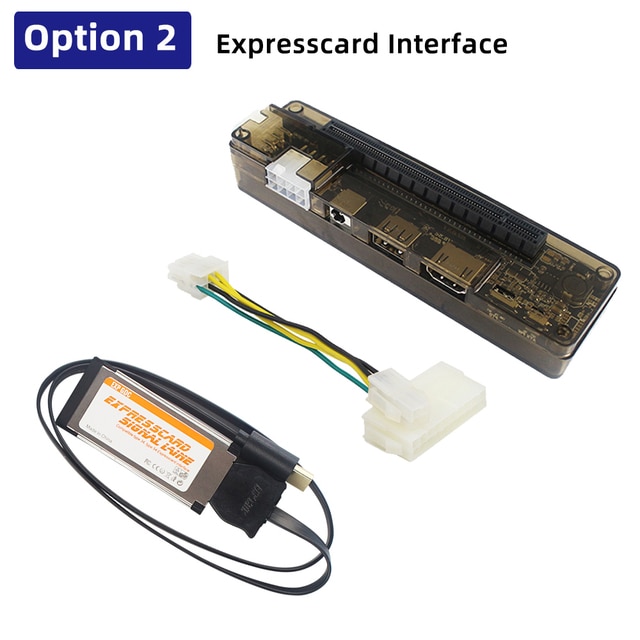

1. EXP GDC Laptop external independent video card dock w/ expresscard data line and 6 Pin/8 Pin power supply cable.
2. Dual TD compatible switch (resolution of hardware conflict).
3. High quality imported electronic component, multistage anti interference and Isolation protection circuit.
4. Multi power automatic switching (support for soft start).

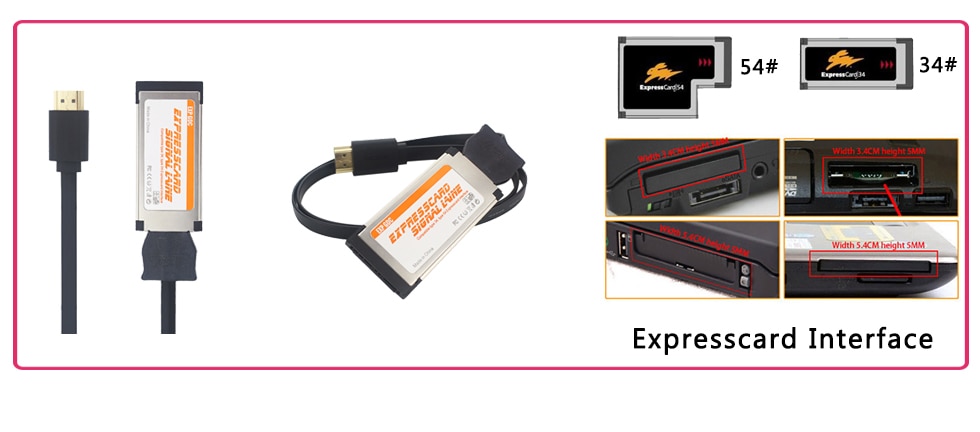

5. Enhanced MINI PCI-E data line with 26pin interface, supports 54 type and 34 type expresscard interface.

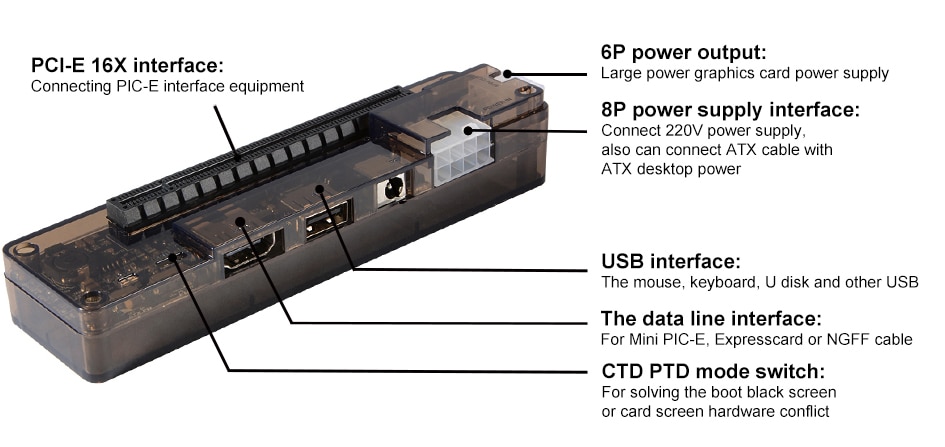

6. With 6pin interface for connecting video card power supply; 8pin interface for connecting EXP GDC power supply.
7. Use for engineering measurement, data collection, server debugging, GPU computing and other industrial applications, of course, still be used to access most of the graphics card to play the game.

About Power:
1. We strong recommend to use the 8pin interface power port on EXP GDC. You need to use the ATX power. The power need to be enough for the externel graphic card you use. The connection method is in the description and user manul.

2. The EXP GDC has DC port (inner diameter 2.5mm, outer diameter 5.5mm), the voltage need to be 12V and the current need to be under 12.5A.So the power is limited by 150W. If you use the externel graphic card you use is over 150W, you can not use this DC port.

3. Please check and connect the power supply carefully to prevent the equipment damage caused by wrong connection or short circuit.
Do not power on it before all connection done.

About Screen:
When you use the EXP GDC, not all laptops support to use internal screen to display.
If you use the internal screen of notebook to display, please make sure it has Intel (R) HD graphicsand connected above GTS450 as NVIDIA graphics. Otherwise you need external monitor.
Usually the use of laptop internal screen will cause more external video card performance loss. And we strong recommend to use external screen to display.

Note:

The EXP GDC V8.5C doesn't support these model of laptops, please don't make the order if you use these laptops:
Asus(N55SF, N75SL , ASUS A53XI24 1SV-SL, K43SD, A73S, K53SD, X8dij, A43s, N55SL, K45dr)
LenovoE530, L430, E43, U410, E49, K49, G50-75M,B5400
HPH533OM, 6910, 5310M
Haseeui45, EVI4
HaierT68
Acer4739z , Acer E1-451G
Samsung450R , 270e5k , np450r5j-x05cn
Dell5437 , N55SL

Note : These models of laptop is the known model which is not suitable. BUT that does not mean any laptop other than this list will work. You still need to learn if your laptop is suitable for use EXP GDC adapter to connect external graphic car

Supported Laptops (known) :
For Lenovo: W530/T520/W520/X220/X220/TZ570/T420/Y460/Y560/T410/E420/X201/X201s Edge/ /T410s/T400/T510/X201T/X200/W500/T61p/X61/T61/T60/T520/T420S//y470/T420I/Y480/G480/k580s/E520/Y580/G500/E46A/Y530/G510/Y400/G500/V460/Y560P/y480n/y480/E420/K29/B470/Z470/L421/SL410K/E420S/G470/G450/z465/Y500/V370/G430/Z370/Y485/Y410P/v1000/s410p/y471a/s230u/V570/e420s/Z500/V470/Y40 70/G710 AT-ISE/y430p/S400/SR1000/405S/A8/Y50/Z501/Z480/Z580/U310/K46A/z380/P51/
ForDell: E6520Vostro/3450/XPS15/L502Studio/1557/E6220/M4500/E6420/E4300Studio/1557XPS 1645E4310M4600Insp.1545XPS/1340E4300 XPS 1640 E6500Insp 1420XPS 1340Vostro 1500 1440Vostro v130XPS M1530D830M1330Studio 1555Insp 1520Vostro 1310E15051545E6520E6520E 6220E 5410E 4310E 641014RM12104600MD630E64206320N4120N50103421N3010772014R4728152014rd658N411014RD658inspiron15-3521e632074205537xps164515r7520767015R 4526 5547 773014R 5420M6600752055374050vostro3300n3420L702X3542155815 75484z-5423 E6230
For SonyZ21VPC-Z11, VPC-Z13, VPC-Z12, VGN-FW45Z46GD, VGN-NS110eEA27ECVPCCA36ECEA47ECCB36ECNw35eEA200CS138Vgn-nw71fbSVT11138CCS, vpcs128ec, FW17Z45vpcea25fgvpcea18ec, VPCEB26FXVPCZ138GGsve14a28ccsPcg-71212tSVE 141
ForHP: 4530s/2560P/8460P/4330s/2540P/8440P/DV4-2000/2530P/2740P/6930P/6930P/2730P/HDX9000/ Pavilion DV4/DV9690en/CQ60/DV7126/7CLHDX16HDX18TTX22510PDV7-3020EDDV2000dv2416US6910PNC640021334530sHp8440p14 beatsG42DV51220TXN51108570PCQ35-219TXDV2804TXCQ45CQ40CQ42 285TX8560P2730p4321sDV7HP44318470P2570Penvy17j120usHP6450BHP 8470Pcq15-102tx/2570P/8460P
For Fujitsu: AH531/T731/S6420/T901/T5010/U9200/AH56/Gnh532
ForAcer: 5755G/3820TG/5920G/5620Z/5742G/6930/5620/1810TZ/5720G/1410 Ferrari One/4752G/4750G/E1-471G/5750G/5951G/E1-571G/V3-571G/V5-472G/4315/V5-471G/V3-772G/4738G/4745G/E5-511G/5552G
For MSI:
CX623/CR720/A6200-021US/CR630/M610/GX640/GE60
For Toshiba:
R840/A665/L305-S5921/L300/A505-6965/L300/L305-S5921/M332/M780/L700/L650-02B/L800
For Clevo: M860T/UM570RU
For Sager: NP2096/NP8662/NP5793
For NECVersa: E6500
ForAsus: F8SA/X42JR/X59SL/1015PEM/M60J/Y581/CX81/x55v/X450VB/X450JS/x450c/N61JV/x402ca/U24E/r400/P53SJ/n75sl/n75s/N61JQ/N56/n55sf/n53/k56c/k55vd/K53SV/K52DR/k45vs/K43SM/a55vd/K42JB/K40IP/K40IN/g73sw/F83se/A73S/A55VM/A53/a450j/A43X/A43s/a42j/k55vm/k43/SDG74S/XN43sl/n55sl/k55vm/A45/K56CB/K43DK42kv/X55XI237VD-SL/X550VC/N81/VG X751L/A53S/A53SM/a450jf/X75VC
For LG: P300
For Samsung:
R780/NP300E4A/NP270E5J-K01CN/r428/rv420
For HASEEA460-I7/K590C/A560P/K580P/A430/K470p/460P/A550/k602c/K590S/K500DE400/K500C-i7 /D1/k660E/A460p-i7/K480N
For Tsinghua: u49fK41H/A14RM0C
For Blue sky: p170em
For Haier: 7g-2X5P
For Gigabyte: p15f V2
For Fangzheng: yihea600

Note: The laptops in this list were used successfully ever by customers. Some laptops can use simply by refering to user manual. Some laptops require some special Settings or software to be installed. If you are familiar with computer hardware, it will be easier for you to use this product.

1. Usually the laptops with correct interface can work with our products , but some laptops can not work with it because different design or configuration (such as white list issue or BIOS limit, even some interfaces limit). Not all model of laptop support to use this product. You need to learn it fully before buy it.
2. Some laptop has both 2 of the interfaces , but it just support to use one of interface to connect external graphic card. For example the Lenovo T420 , it can use Expresscard interface to use this product , but can not used on wireless card interface (NGFF M.2A/E Key ).
3. Some old model laptops must use 1 piece of 2GB RAM memory-chip to use this product. Especially the laptop use the mainboard before HM65 ( less laptops model use mainboard after HM65 also need to use 1 piece of 2GB RAM memory-chip )
4. If your laptop do not support connect to the external graphic card by EXP GDC , or you choose the wrong interface cable for your laptop , we can not refund the money of product. You can buy the correct inteface cable to solve it.

5. When use the ngff m.2 a/e key , some laptop may have the white list problem. Because these laptops may not be connected to the M. 2 A/E key using products other than those specified by the manufacturer. To solve this problem, you need to learn to refresh the BIOS. BUT refresh BIOS has high risk for your laptop. If you are not good for it, please do not do it.

About Graphics Card :
1. The list of recommended graphics card:
GTX650 GTX660 GTX670 GTX750 GTX760 GTX950
GTX960 GTX970 GTX980 GTX1060 GTX1070 GTX1080
And for other graphics cards, may be they can also be used, but the compatibility and cost performance are not as good as the cards in list.

2. For GTX 1060 1070 1080
They are compatible with EXP GDC, but you must install the Auguest 2016 driver(372.70 version). And GTX 1080 is the most powerful we Recommend.
If it has error 43 , please download the file to solve it https://drive.google.com/file/d/1Css4QZPqjmrsMIJdtSNezhnDPawOFNhd/view?usp=sharing

3. The usual highergraphics card also support,such as GTX1650

Please note that the performance loss of external graphics card is normal.

Please distinguish the interface :

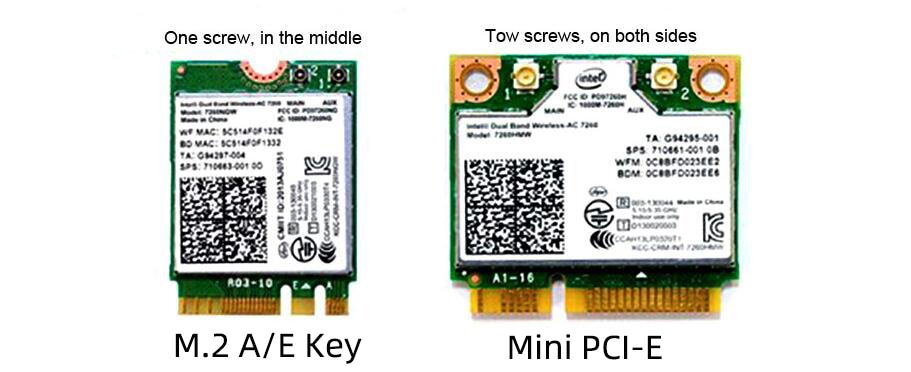

To check the mini PCI-E and NGFF M.2 A/E key, you need to take apart the back of the notebook and you can see it.

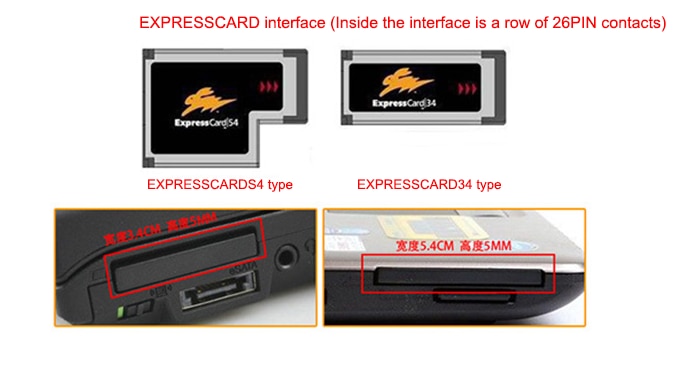

Note: our expresscard cable's interface is 34 mm size, and 34 mm size can fit for both 34mm and 54mm size slot.

Please refer to user manual in the package carefully when you install this product. You can view the video in the product link too.

The link for download the user guide :
https://drive.google.com/file/d/1mDqWBSgMR-uR8fX6ZIBnQl2Bhufo--gR/view?usp=sharing

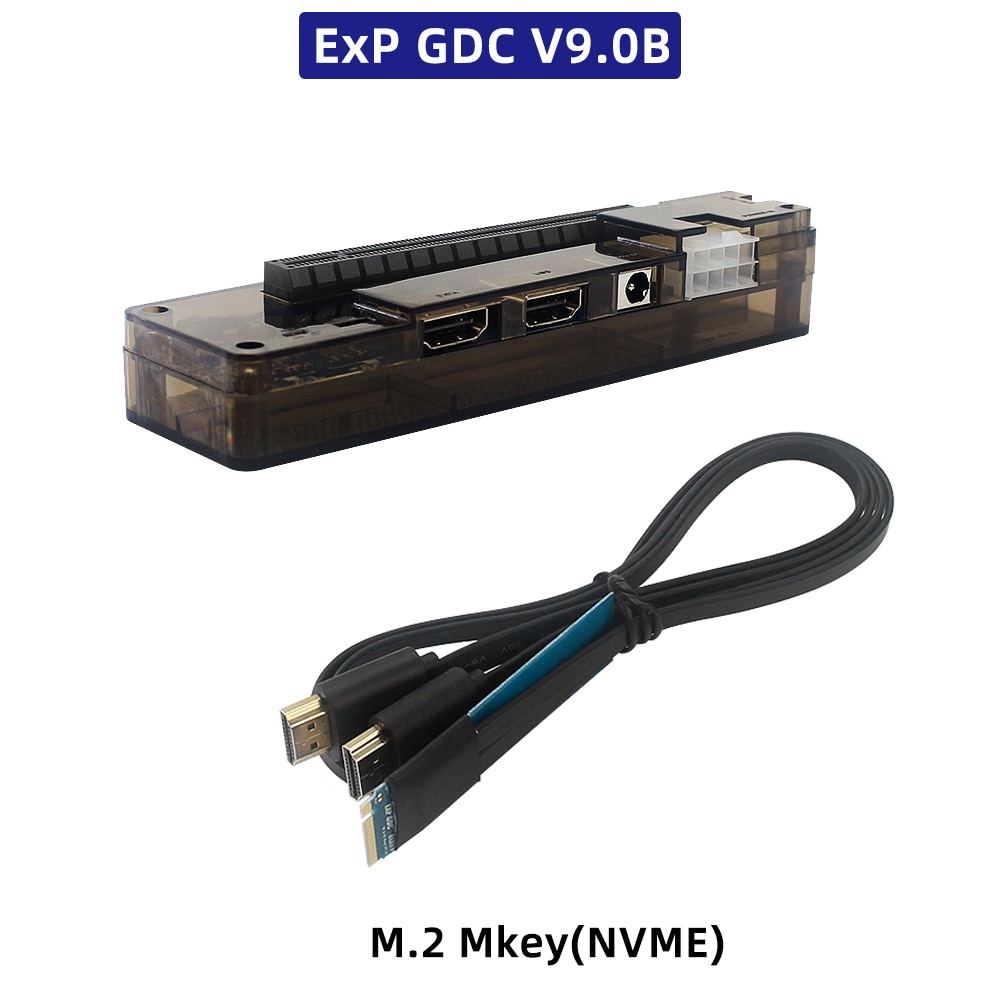

2. EXP GDC V9.0

Introduction:

1. EXP GDC is a notebook external graphics adapter equipment. Not include Graphics card!
2. If you want to use it on your laptop's inner screen, your laptop will need to has Intel (R) HD Graphics and an external GTS450 + Nvidia graphics card. Otherwise you need external monitor. )
3. Use M.2 M key 2280 specification (supports NVME's SSD interface) ; Generally only the notebooks after 2016 supports this interface

The known list of the laptops with M.2 (M KEY) X4 (40G / S) interface:

Thinkpad X1 Carbon (2015 or)
Intel NUC (2015 or)
Clevo P750ZM\P770ZM\P770DMG
MSI GE72
HASEE Z7
Lenovo 700 I7\Y700
Alienware 17 R3
Terrans Force T5\X599\P750ZM\X799\P770zm
GIGABYTE Brix BSi5HA 6200uX1 Carbon (2015 or)
ASRock BEEBOX-S 6100U

Note
Please make sure your laptop support this product before buy it. You can search that whether your laptop is suitable on internet. Usually the laptops from 2016 has this interface , and the success rate of working with our product is high.

Features:
1. Dual TD compatible switch (hardware conflict resolution)
2. Multistage anti interference circuit
3. Data line reinforcement
4. Multi power automatic switching (support for soft start)
5. High quality imported electronic components
6. Support metal cabinet (optional)
7. Double copper technology to enhance system power supply
8. Isolation protection circuit
9. LED status indicator
10. USB interface extension
11. Lateral 6PIN power supply interface
12 Support for PCI-E X16, the actual X1 mode (according to different notebook configuration can be upgraded to X2 mode)

Note :
Due to the difference of production batch, some EXP GDC adapters have indicator light while some don't have, but it will not influence the usage, we have tested every adapter before out of factory.
There is not CTD/PTD model switch now since they always don't used

Extended support: PCI-E X16:DMI GT/s (X1) 5

Operating Systems:
Windows XP/7/8/8.1/10,
for Linux etc.
(Remind: for Win XP, for Win8/8.1 is only compatible with the laptop with external screen)

Power support（Note: the power limit without ATX cable）:

1. 8P interface: 220W max.
2. DC interface: 150W max.

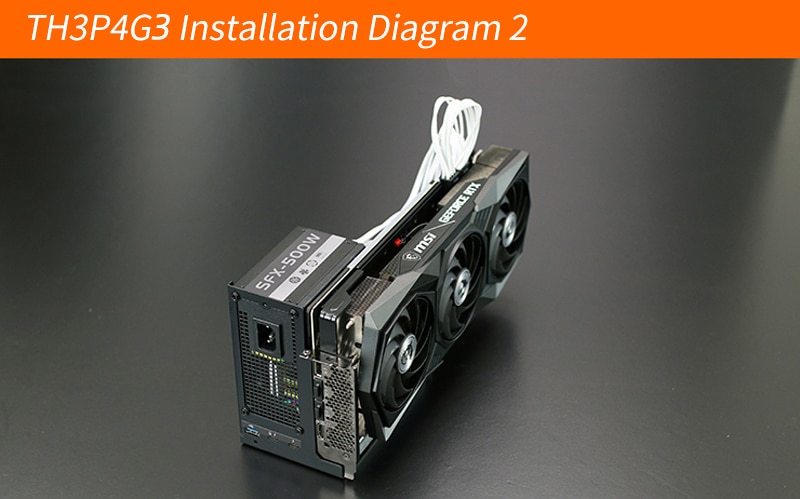

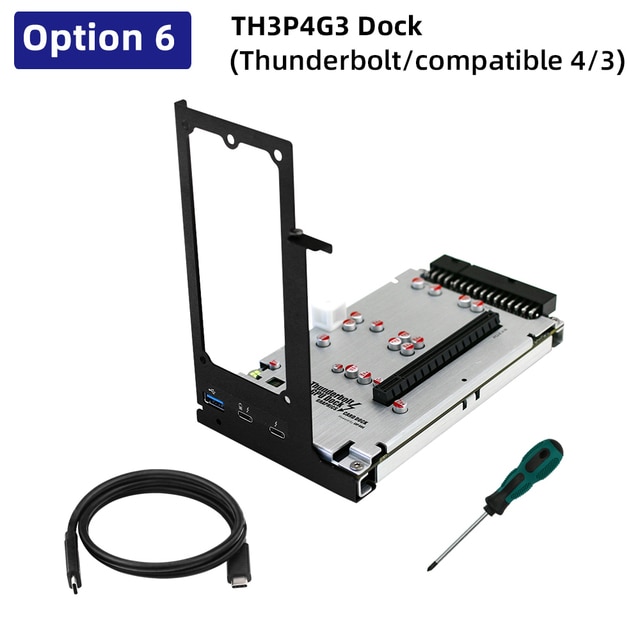

3. Thunderbolt-compatible GPU (TH3P4G3)

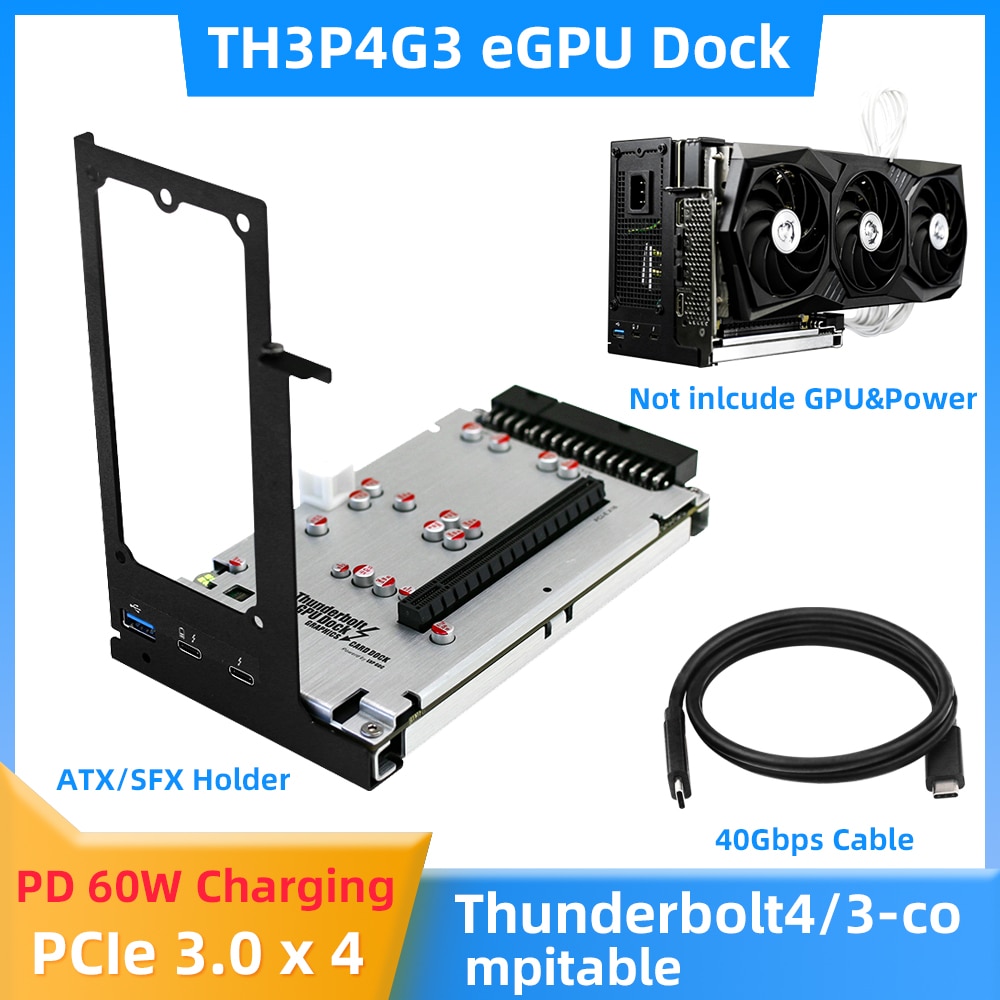

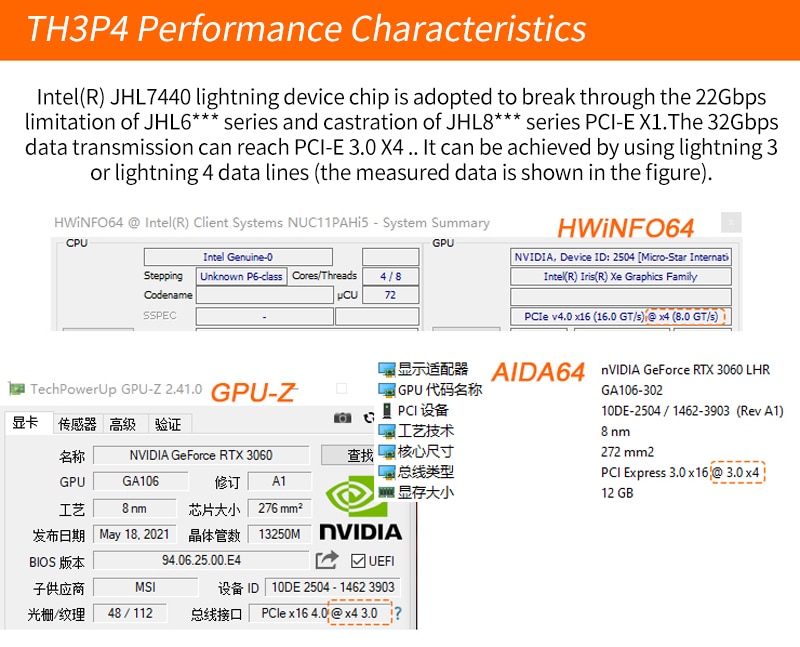

Specifications

1. Model: TH3P4G3
2. Thunderbolt-compatible 3/4
3. Speed: 40GB/S
4. Aluminum alloy shell
5. Size: 200mmx140mmx40mm approx
6. Weight: 480g approx
7. USB 3.0 port extension, 5Gbps
8. Power: ATX/SFX/FLEX/other
9. Note:
Thunderbolt-compatible : Max 5V 3A
Thunderbolt-compatible /PD: Max 20V/3A (60W)
USB 3.0: Max 5V 2A

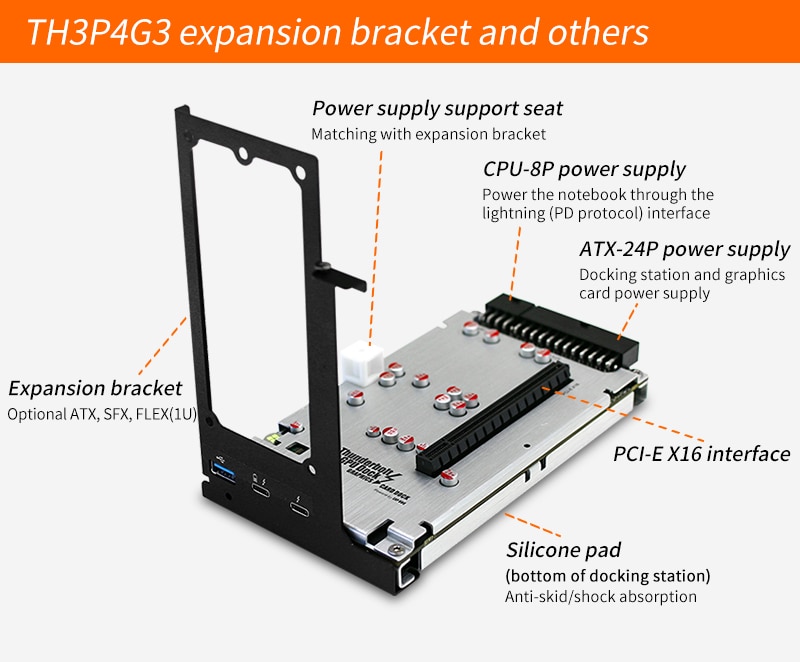

Features

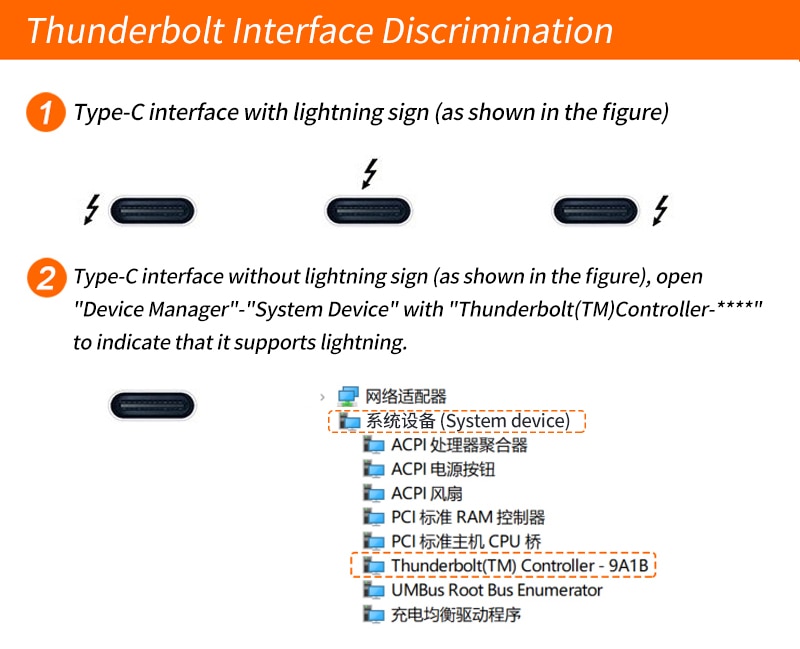

1. Suitable for the laptop have Thunderbolt-compatible 3 or Thunderbolt-compatible 4 interface.

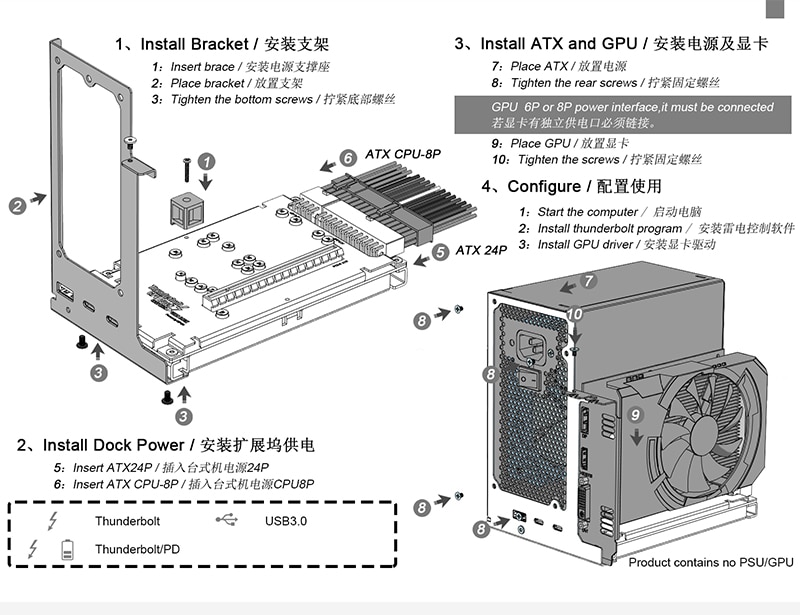

2. Easy to use. There is user maunal with the product.

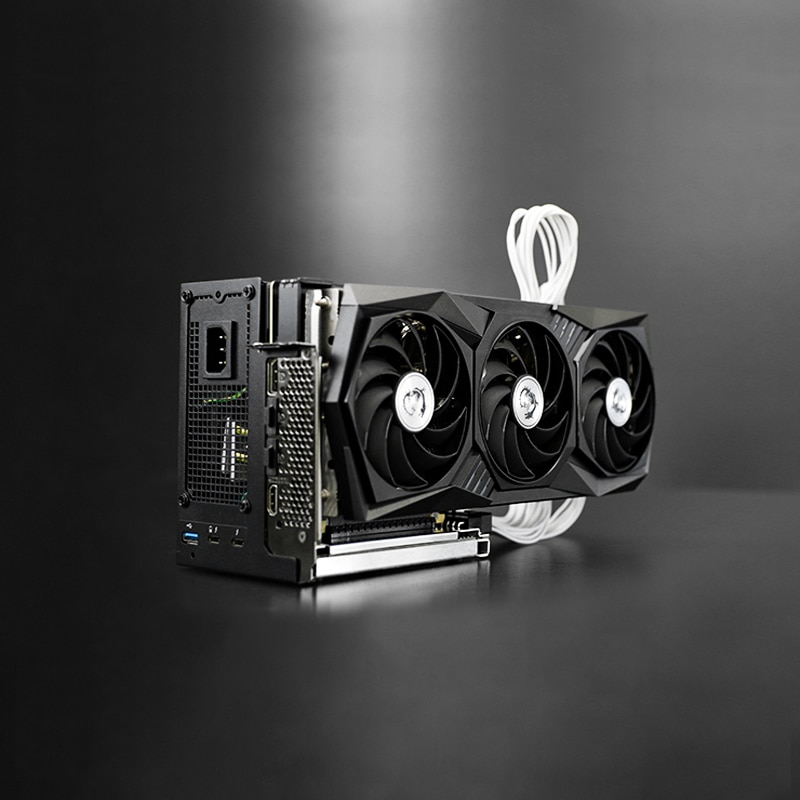

3. Compatible with most mainstream graphics cards
4. Support 60W PD reverse charging for Laptop
5. Support daisy chain

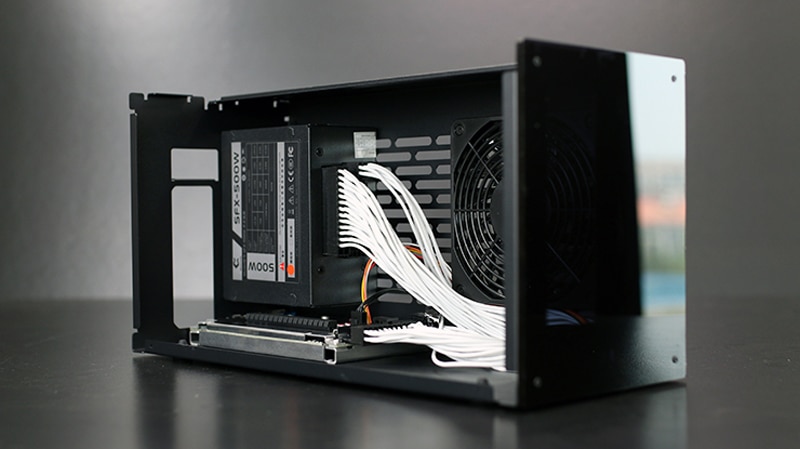

6. Come with SFX and ATX holder, be convenient to install the graphice card, power supply and dock together.
