dw5811e Wireless EM7455 LTE 4G NGFF Module DW5811E 3P10Y 300 M para E7270 E7470 E7370 E5570 Sem Fio FDD/TDD LTE Gobi6000 + ANTEN
ID: 5065

dw5811e Wireless EM7455 LTE 4G NGFF Module DW5811E 3P10Y 300 M para E7270 E7470 E7370 E5570 Sem Fio FDD/TDD LTE Gobi6000 + ANTEN

4.8 (79 votes) | 250 orders
Price: US $23.38 - 43.70 / piece
Discount Price:
US $ 19.71 - 57.94 / piece

This module is the original official version, and there is no engineering sample. If you do not understand the technical problems of using the operation after the purchase, you can contact us to solve it for you. Thanks!

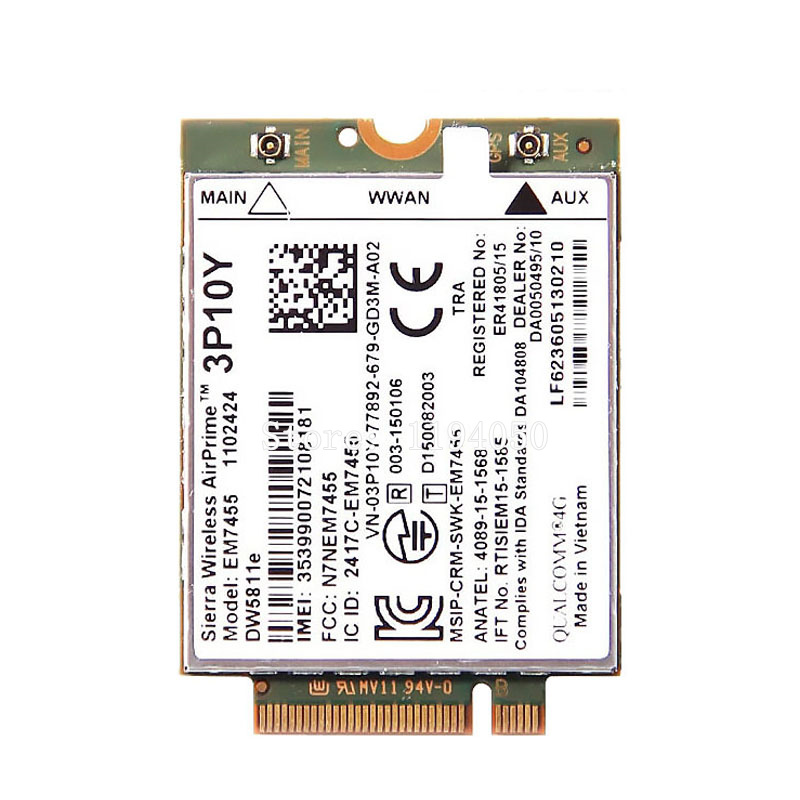

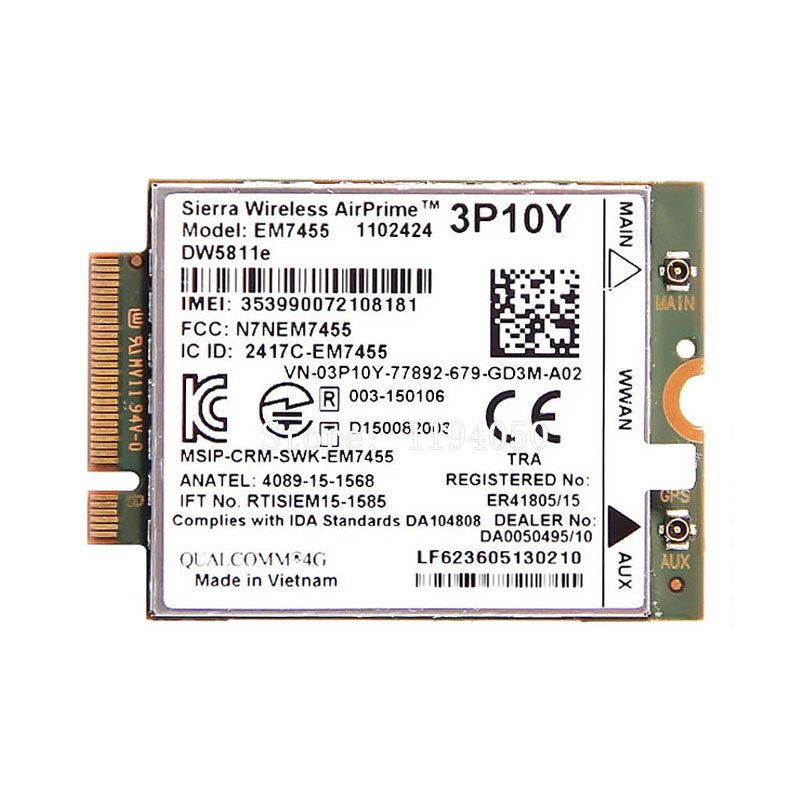

Dell DW5811e Qualcomm Snapdragon LTE Sierra EM7455 3P10Y X7 4G WWAN Module Card
Sierra wireless
100% Genuine
The Included Components:

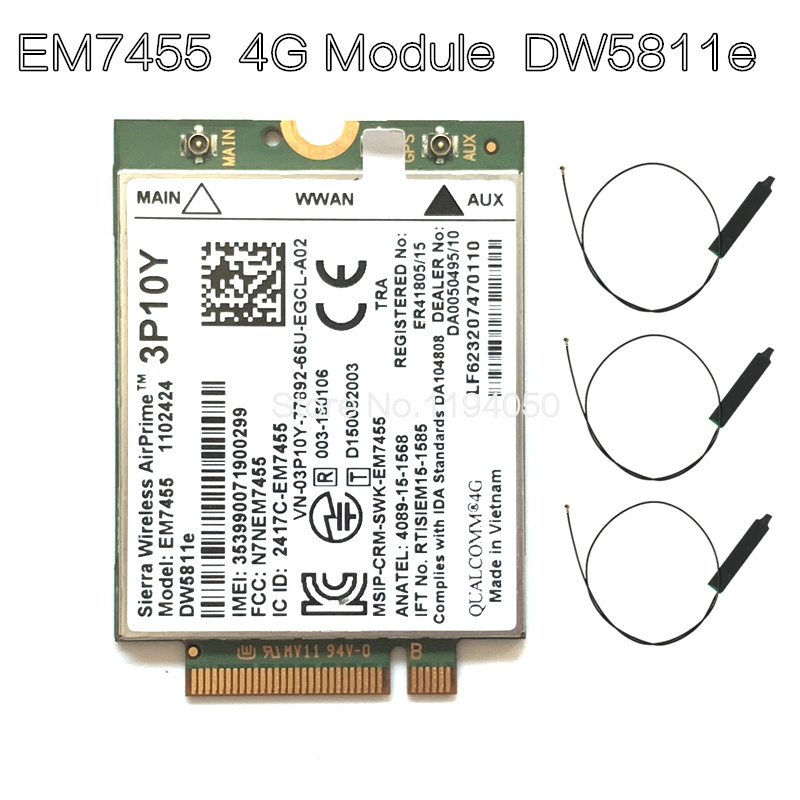

Dell DW5811E 3P10Y EM7455 Qualcomm 4G WWAN Sierra Wireless Airprime Card Module
Cat-6 reliable 4G LTE M2M with fallback 3G connectivity to the Americas and EMEA
The EM7455 module is part of the EM Series offering unprecedented LTE speeds, bandwidth, and network performance
In the M.2 form factor commonly used in network equipment.
This LTE-Advanced Cat-6 embedded module offers up to 300 Mbps download speed and supports most 4G LTE bands
In the market by providing coverage for the Americas and EMEA in a single SKU. With automatic fallback for 3G networks
And integrated GNSS receiver (GPS, GLONASS, Beidou, and supported Galileo satellite systems), the EM7455 is ideal for
Networking and telematic applications.
Together with the largest operator certifications in the industry and network switching capability, EM7455 (EM7430 to APAC)
Allows customers to change their network provider at any time, providing more flexibility in manufacturing.
LTE Support (North America / EMEA) -B1 (2100 MHz), B2 (1900 MHz), B3 (1800 MHz), B4 (1700 MHz AWS),
B7 (800 MHz-DD), B7 (800 MHz-B), B7 (2600 MHz), B8 (900 MHz), B8 (900 MHz), VITAMIN B12
B25 (1900 MHz), B26 (850 MHz), B29 (700 MHz-D block), B30 (2300 MHz), B41
HSPA + Support Band (Global) -B1 (2100 MHz), B2 (1900 MHz), B3 (1800 MHz), B4 (1700 MHz AWS), B5 (850 MHz),
B8 (900 MHz)
Sierra Wireless Airprime EM7455 Technical Specifications:
Category: 4G Module
Manufacturer: Sierra Wireless
Chipset: Qualcomm
Form Factor: PCIe M.2
Pins: 52-pin
Frequency bands
LTE FDD: Band B1-B5, B7, B12, B13, B17, B20, B25, B26, B29, B30, B41
UMTS / HSPA +: B1, B2, B3, B4, B5, B8
Technologies: UMTS, HSDPA, HSPA +, LTE
Maximum Download Speed: 300 Mbps
Max Upload Speed: 50 Mbps
Temperature: -10 o C to 55 o C
Certifications / Regulatory: Planned: FCC, IC, CE, NCC, GCF, PTCRB
Conveyors Approved: Planned: AT & T, Verizon, Sprint, Vodafone, Telefonica, Orange
Connectors: Main, Aux / GNSS, GNSS
Satellite systems: GPS, Glonass, Beidou, Galileo
Modes: Standalone, SUPL 2.0, XTRA 3.0
Contrl Options: APIs, AT Commands
Rated voltage: 1.8 V
Active Antenna Control: 4 pin
Dynamic Power Control: 1-pin
Interfaces: "USB 3.0, USB 2.0 High Speed"
SIM interface: 2x1.8 v or 3 v
Audio: PCM / I2S
Other interfaces: Main Radio Disable, GNSS Disable, Flash Output LED, Wake on WAN, reset
Compatible with Dell:
DELL Latitude 14 7000 Series E7470,
DELL Latitude 12 7000 Series E7270,
DELL Latitude 13 7000 Series E7370
DELL Latitude 15 5000 Series E5570
DELL Latitude 14 5000 Series E5470

Packaging Details

  • Unit Type: piece
  • Package Weight: 0.05kg (0.11lb.)
  • Package Size: 5cm x 5cm x 5cm (1.97in x 1.97in x 1.97in)

  • Brand Name: WDXUN
  • Certification: CE
  • Origin: CN(Origin)
  • Kind: Internal
  • Application: Laptop
  • Model Number: DW5811E
  • Package: No
  • Interface Type: NGFF
  • Card Type Device: 4G Card
  • Type: wireless
  • Transmission Rate: 10/100/1000Mbps
