HIFI Digital Music Player Dual ES9038Q2M DAC DSD512 384KHz Decoding Hard Drive SD Card Music Turntable QCC5125 Bluetooth 5.1
1,188.50 486.68 $
SALE
ID: 128054
Quantity
Dual AK4493 Digital Audio Player 4.7 Inch Large Screen DSD512 64BIT 768KHz Lossless Decoding Music Turntable Wireless Bluetooth
5.0 (1 votes) | 1 orders
Price:
US $2210.62
Discount Price:
US $
972.68
-56%
- Color
-
-

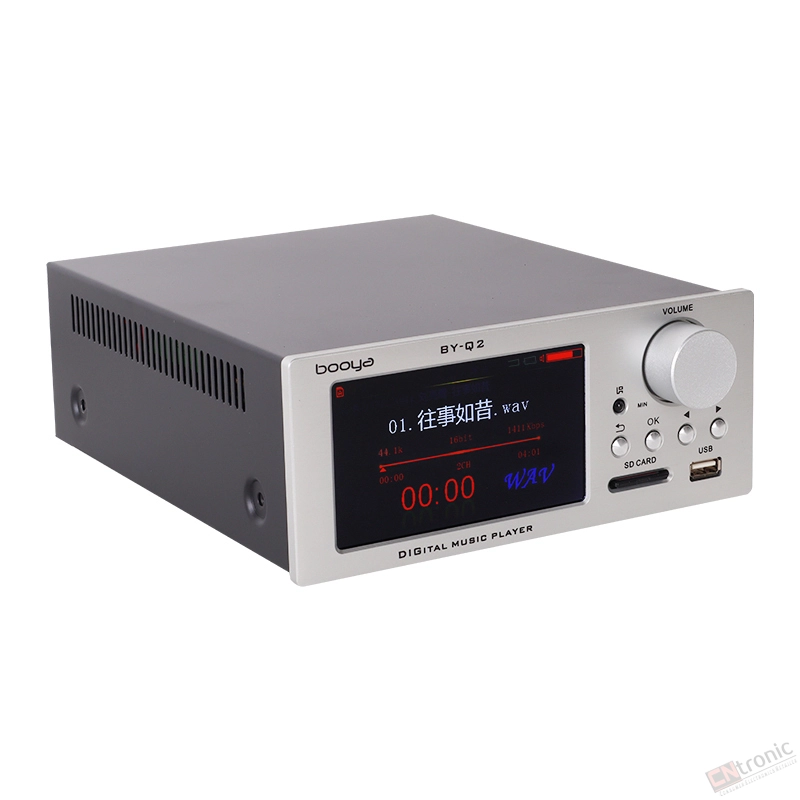

4.7 inch large screen mastering HIFI lossless music player audiophile DSD digital turntable decoder
Note: The product system supports English display
Product description

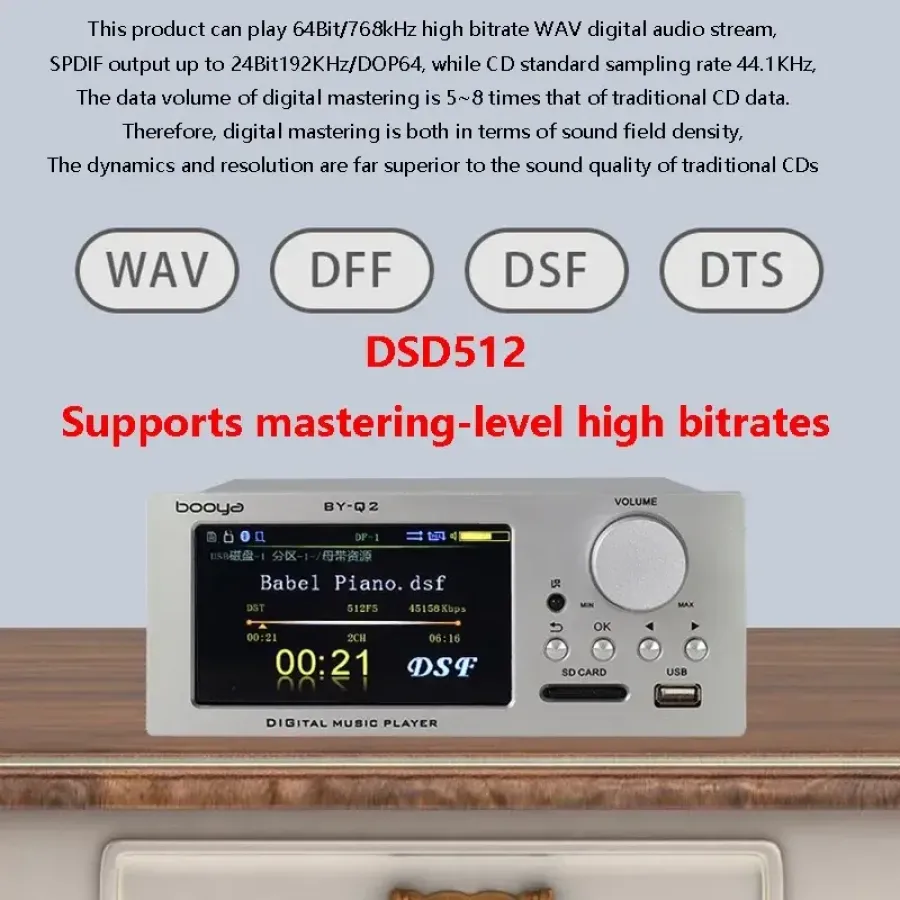

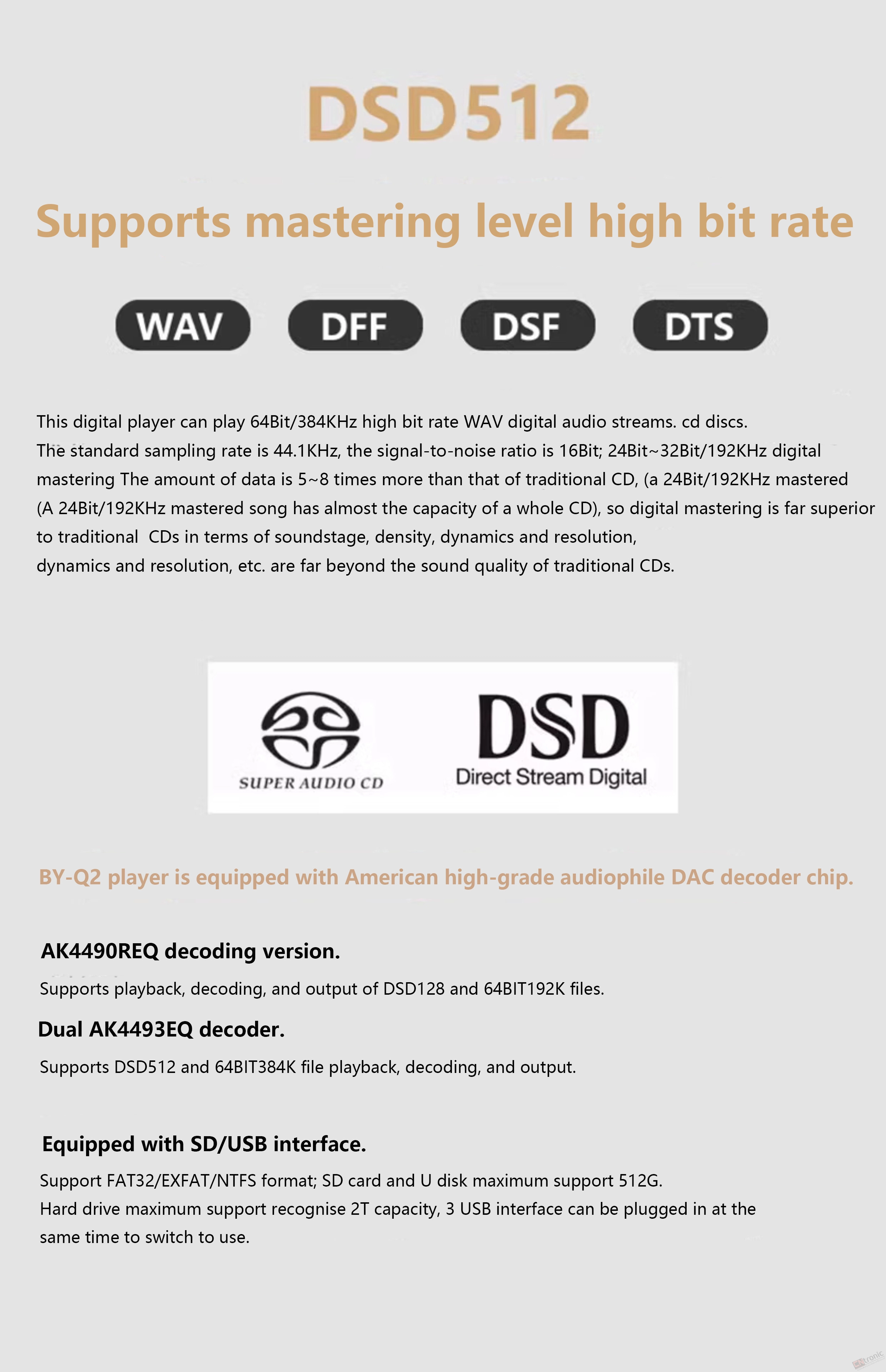

1: This product can play 64Bit/384kHz high bit rate WAV digital audio streams, SPDIF output up to 24Bit192KHZ/DOP64, while the standard sampling rate of CD discs 44.1KHz, the amount of digital mastering data is the amount of data in the traditional CD 5 to 8 times, so the digital mastering both in the soundstage density, dynamics, and resolution, etc. are far more than the traditional CD sound quality.
2: 3 USB port at the same time support up to 2TB mobile hard drive, support for U disk, SD card, the maximum capacity of 512G easy to have a large library of songs, U disk playback, support: DFF, DSF, IS0, DTS and other formats, plug in the card can be played, no longer rely on mobile phones/computers, listening to private music collection.

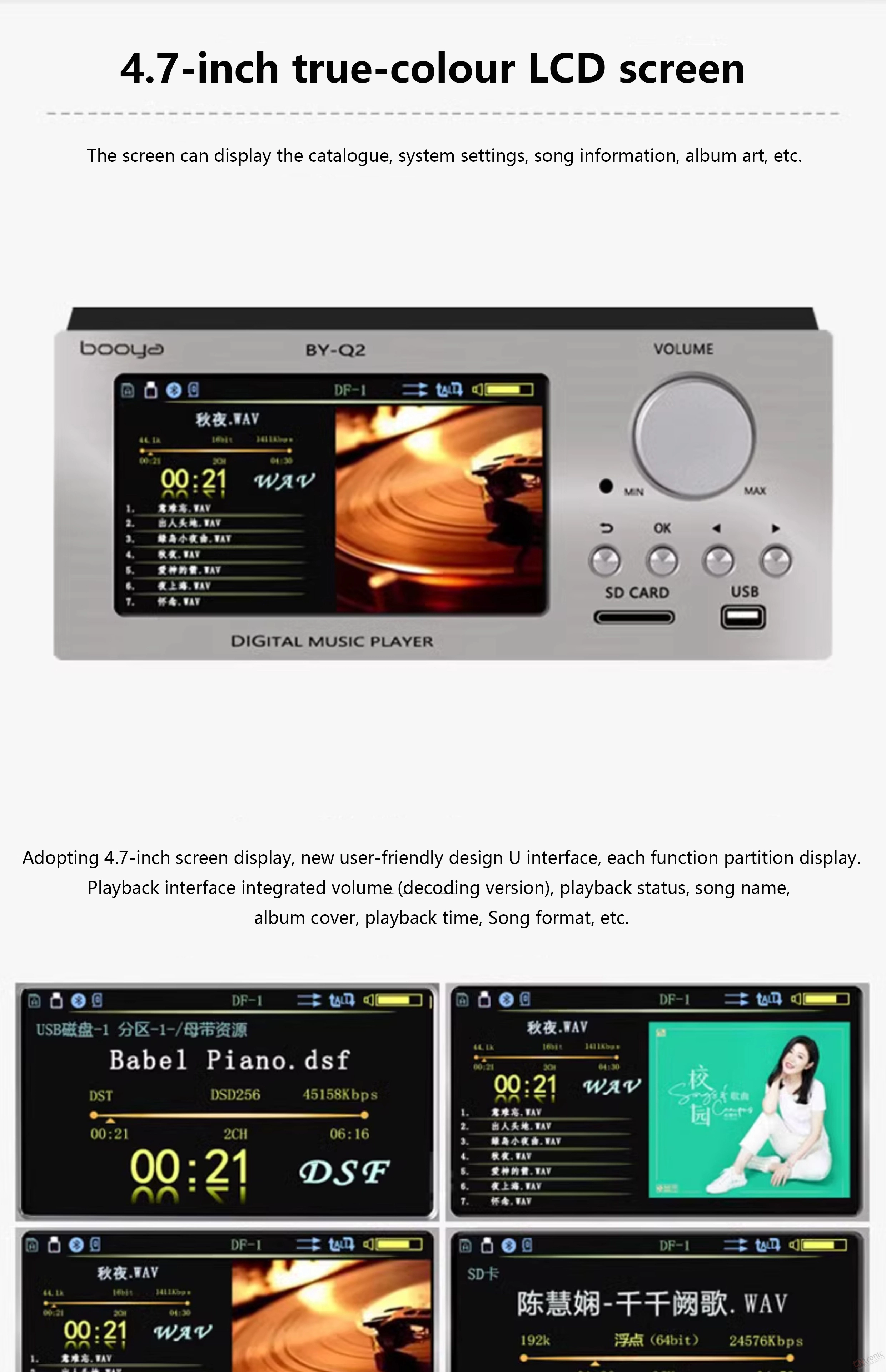

3: 4.7-inch screen display, the new user-friendly design of the U interface, the function of the partition display, playback interface integrated volume (decoded version), playback status, song name, album cover, playback time, song format.
4: USB interface at the same time support up to 2TB mobile hard drive support U disk, SD card, the maximum capacity of 512G easy to have a large library of songs, U disk playback, support: DFF/DSF/ISO/DTS and other formats.
Plug in the card can be played, no longer rely on mobile phones / computers, listening to private music collection
5: This digital broadcast can play 64Bit/384KHz high bit rate WAV digital audio stream. CD disc standard sampling rate of 44.1KHz, the signal-to-noise ratio is 16Bit; 24Bit ~ 32Bit/192KHz digital mastering data volume is the traditional CD data volume of 5 to 8 times, (a 24Bit/192KHz mastering songs almost the entire CD capacity). (A 24Bit/192KHz mastered song has almost the capacity of a whole CD), so digital mastering is far beyond the sound quality of traditional CDs in terms of soundstage, density, dynamics and resolution.
Format Parameters
DSD
DFF/DSF/SACD ISO support (both compressed and uncompressed)
Uncompressed support DSD64/128/256/512 Compressed support DST64
Switchable DOP and source output
WAV
Stereo, 44.1-384KHz,16Bit-64Bit
Support WAV DTS(support dual-channel downmix analogue output, support digital source output)
FLAC: Stereo, 44.1-192KHz, 16/24Bit,0 to 8 levels
APE: Stereo, 44.1-48KHz, 16Bit
WMA: Support WMA9,WMA9.2
ALAC: Stereo, 16/24Bit
AAC/M4A/M4R
High Efficiency / Low Complexity / Low Delay
Scaleable Sample Rate
MP3: Dual Channel, 320Kbps
DTS: 44.1-48KHz, 16Bit, support dual-channel downmix analogue output, support digital source code output
NRG Mirror: Stereo, 44.1-48KHz, 16Bit.
CUE
Support WAV, APE, FLAC, DTS and other auto-split tracks.
Support Unicode, UTF-8, ANSI and other encoding
Product Parameter

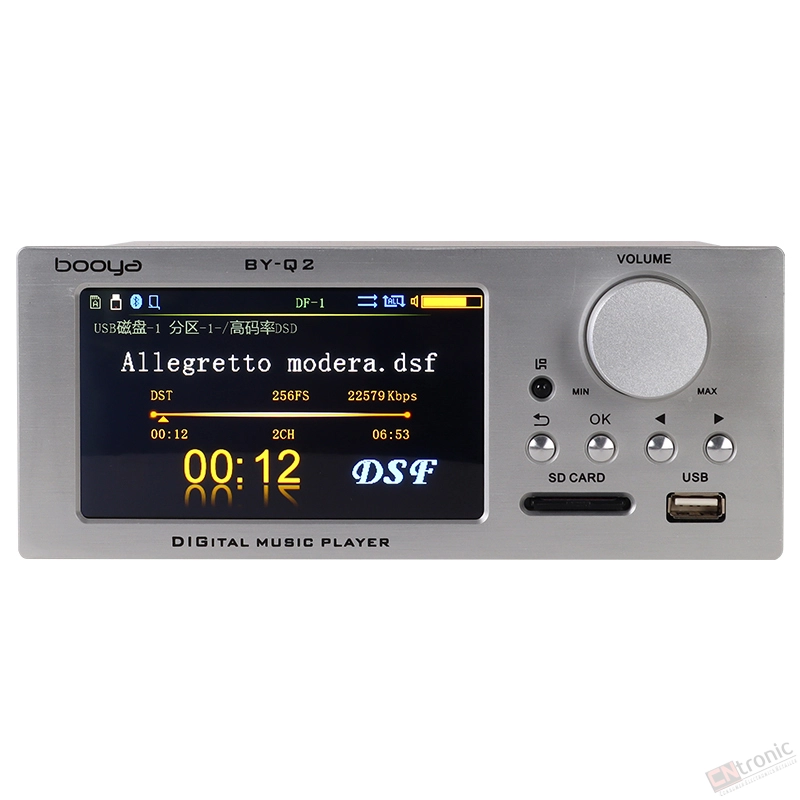

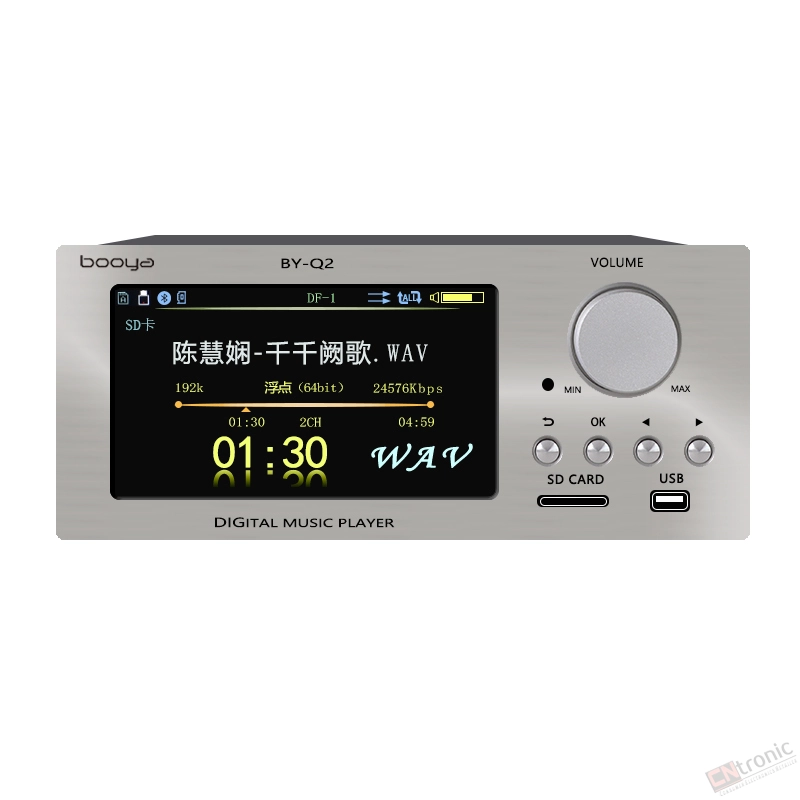

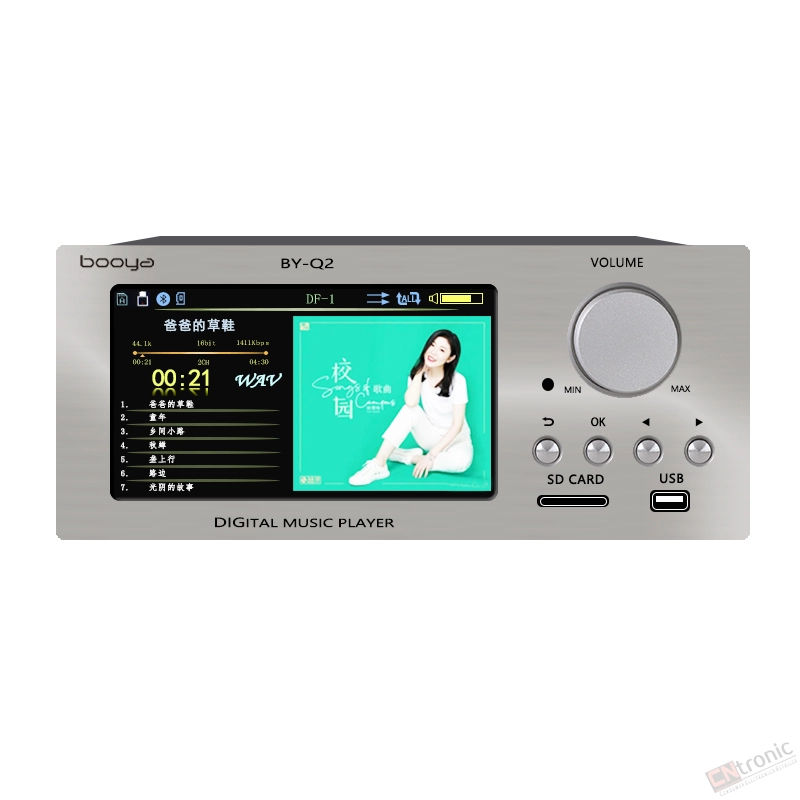

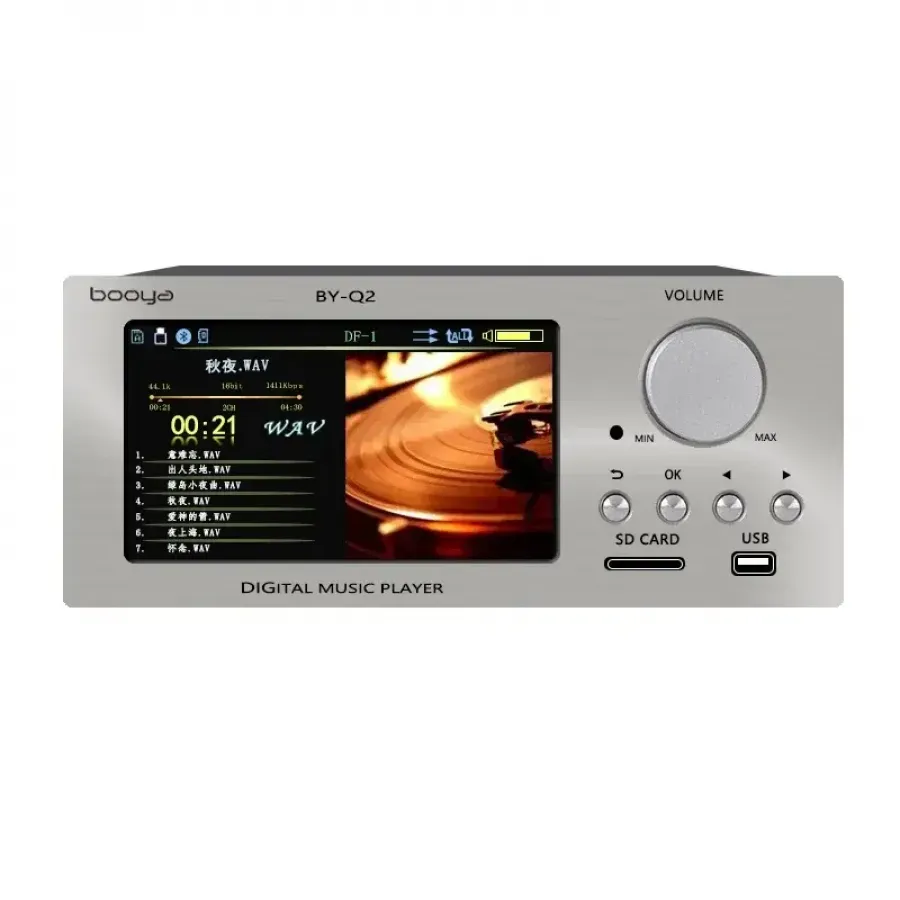

Display: 4.7-inch LCD colour screen
Panel material: aluminium alloy
CPU main control: Arm Cortex M7 core mcu, single-threaded operation mode (autonomous system)
Power supply: ring cow transformer, AC220V-230V (can be ordered 110V-120V)

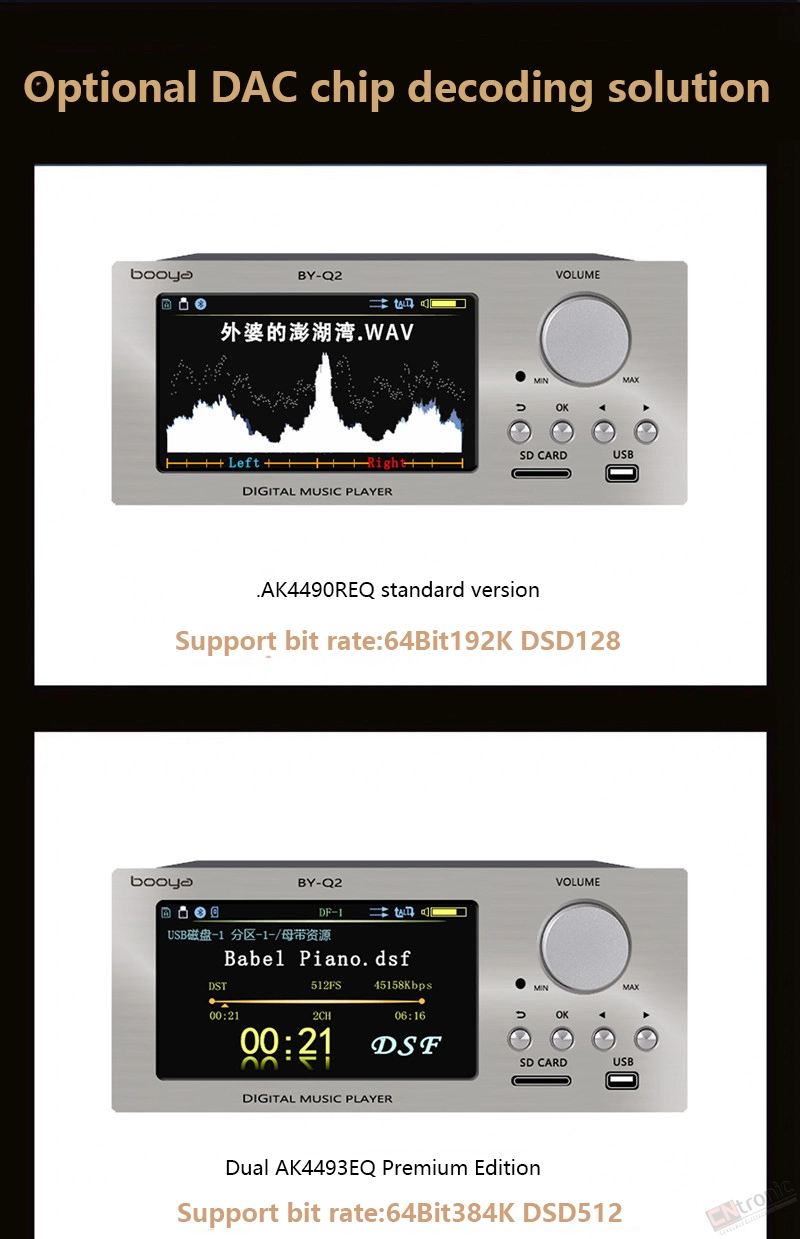

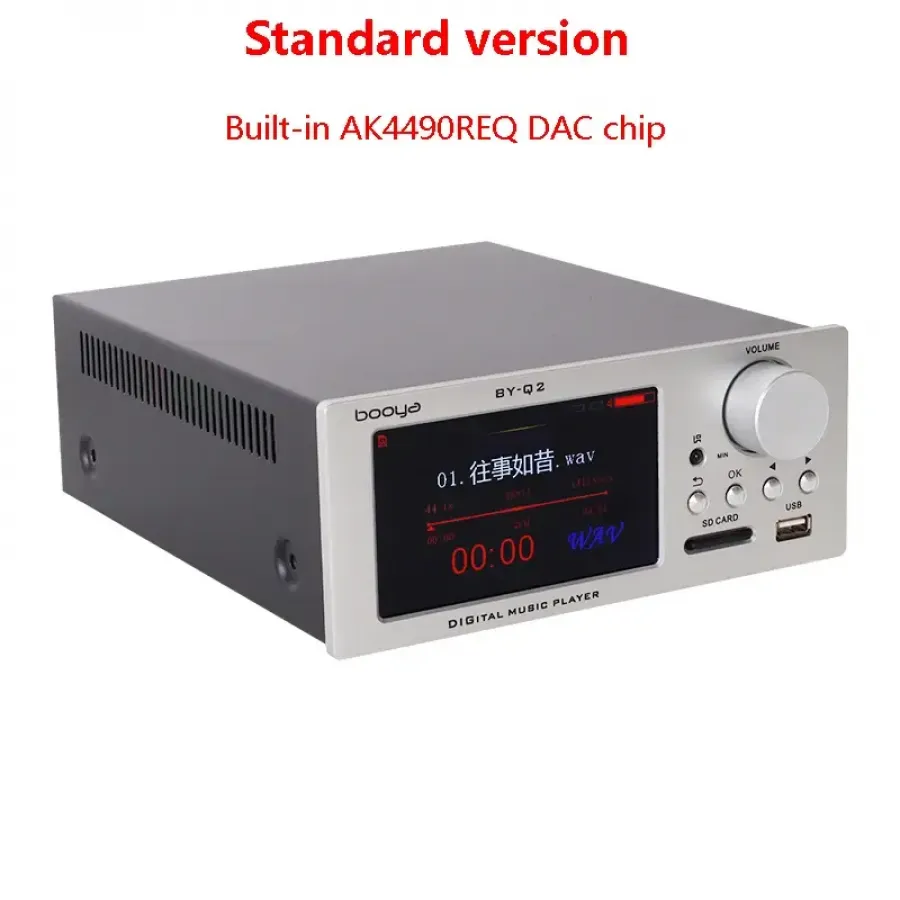

Audio DAC: AK4490REQ or AK4493EQ optional
Op-amp chip: custom version of the full discrete components dual op-amps
Clock type: 2 pieces of audio special crystal oscillator
Bluetooth: 5.0 digital Bluetooth module, support optical and coaxial digital signal output
File system: support for 5-level folder, single folder capacity 9999, two partition support

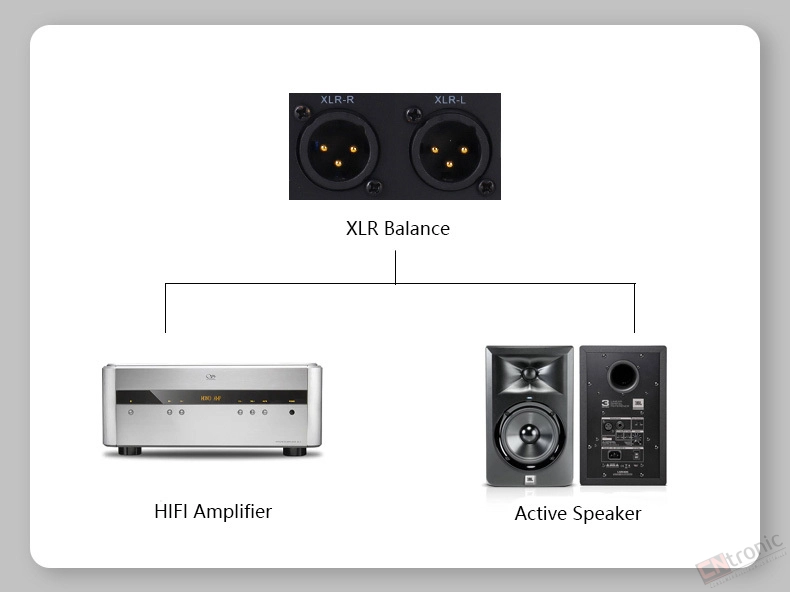

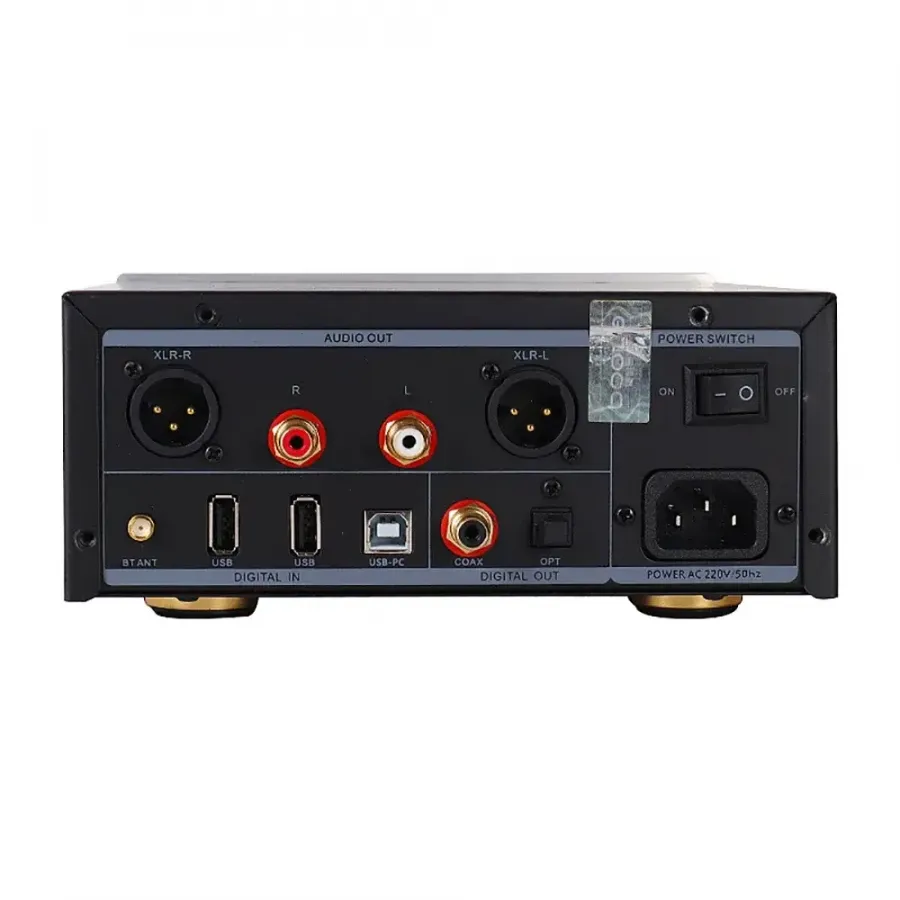

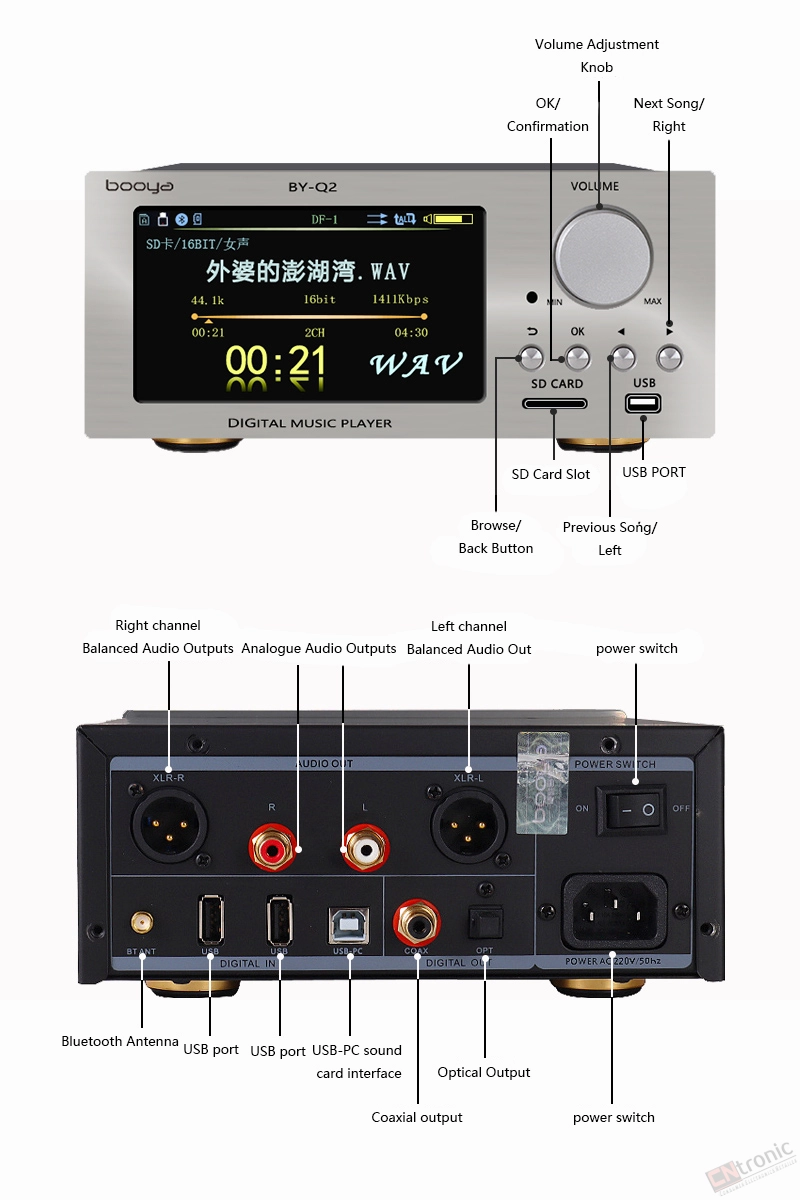

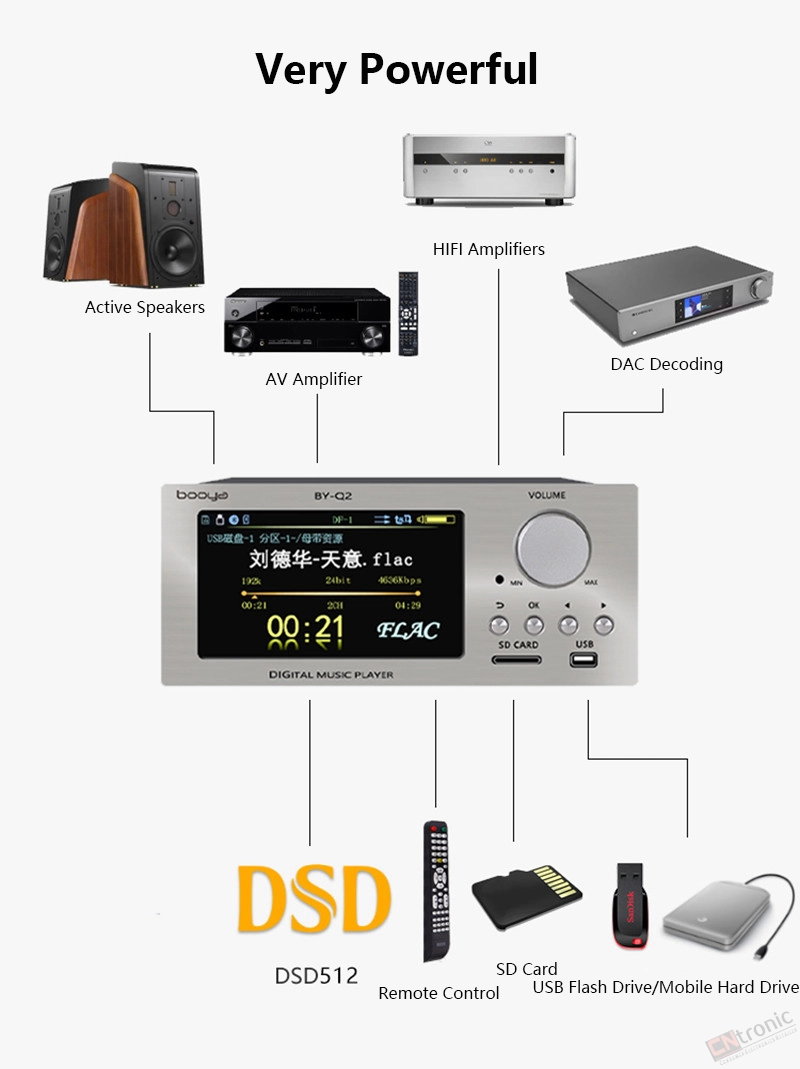

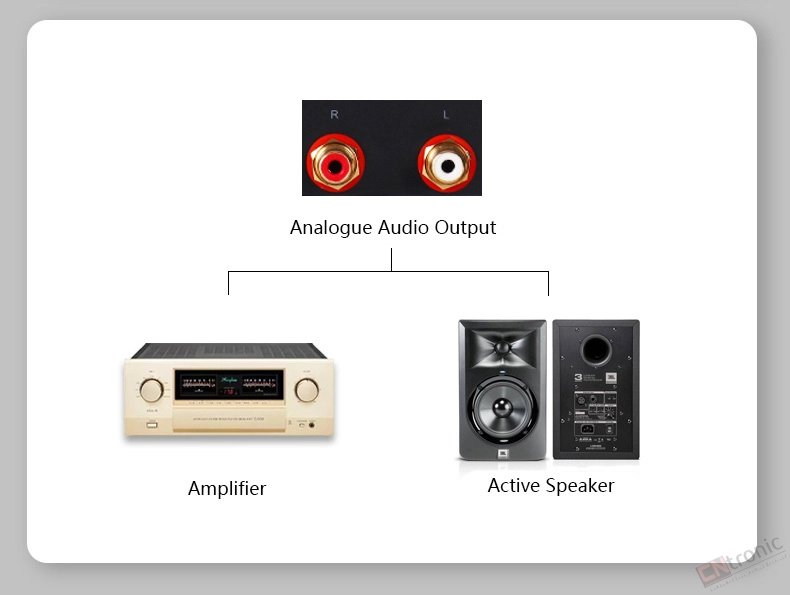

Analogue output: 1 group RCA audio + 1 group XLR XLR audio

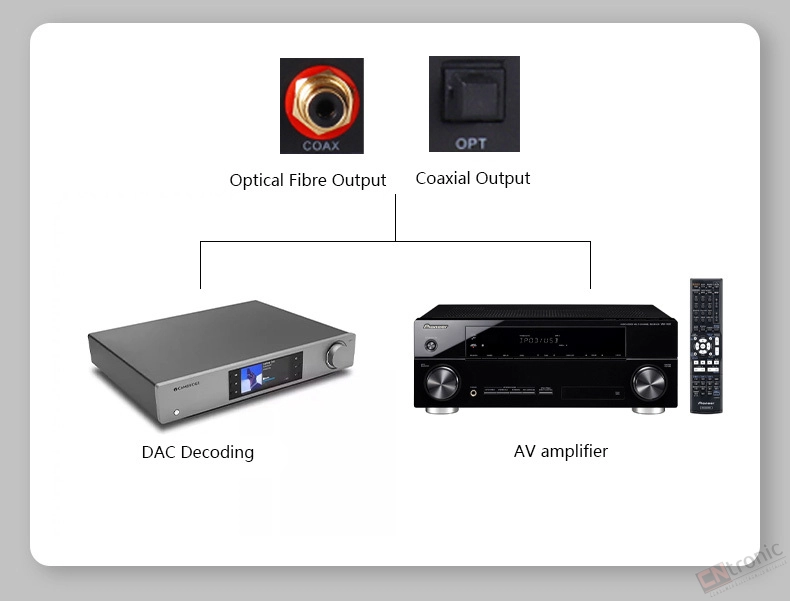

Digital output: optical, coaxial, support source code and DOP output, support USB plug-in Bluetooth transmitter
Playback mode: support single song, catalogue, all playback and loop, support sequential playback and random playback
Playback memory: support the last state memory playback, normal playback 15 seconds after the real-time memory
Control mode: panel keys, remote control
Memory format: NTFS/EXFAT/FAT32
Capacity support: SD card and U disk support 512G, hard drive support 2T

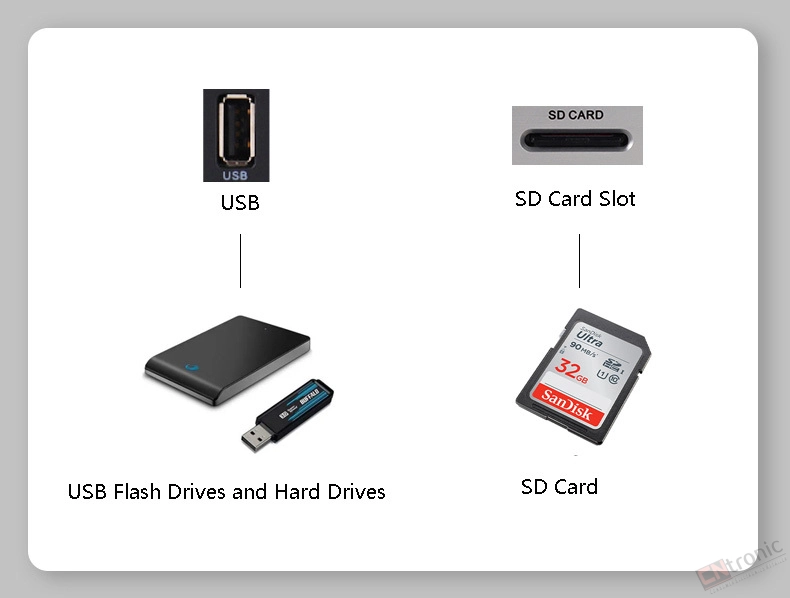

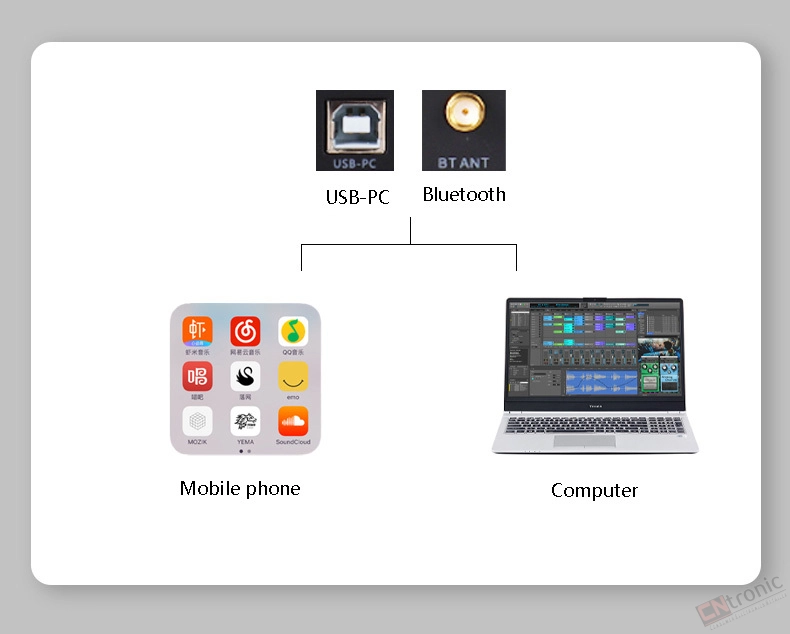

Input mode: SD card, U-disk, PC-USB, Bluetooth
HUB Support: Built-in HUB chip, three USB ports support simultaneous insertion and switching, support for 2 partitions
Noise ratio: 123dB
Distortion degree: ≤ 0.001%
Channel separation: -110dB
Output level: 2.2V
Frequency Response: 20Hz-20KHz
Power consumption: ≤50W
Weight: net weight: about 2.1kg
Dimensions: Main unit size: 195mm x 260mm x 80mm

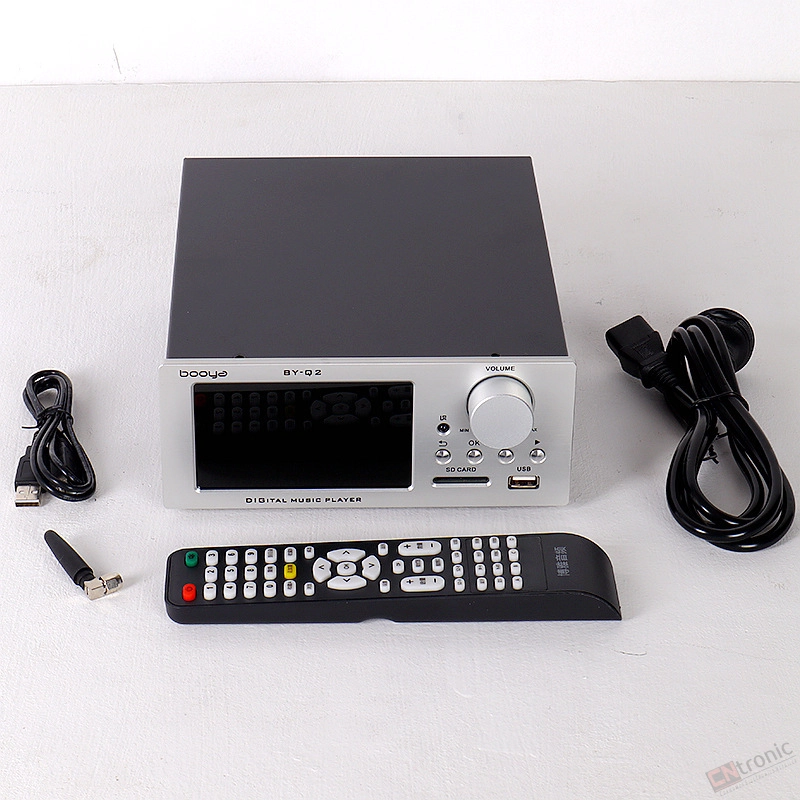

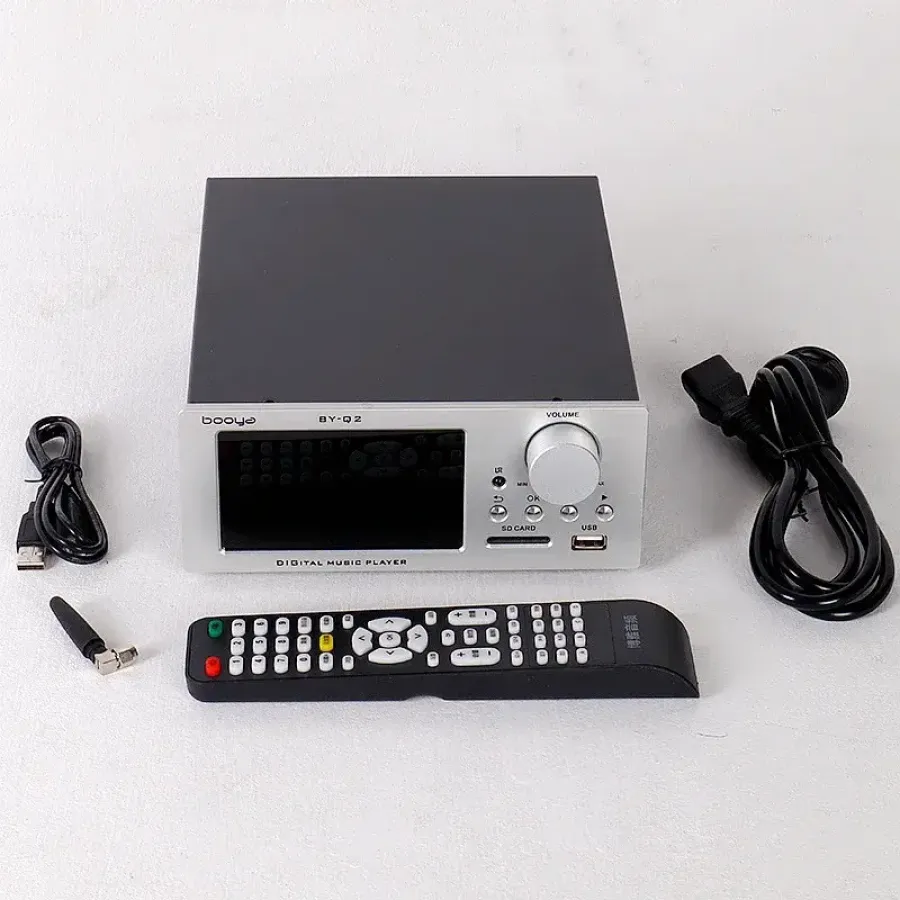

Packing list: host * 1, remote control * 1, power cord * 1, bluetooth antenna * 1, USB computer sound card line * 1, manual *1
Note: The product system supports English display
Product description
1: This product can play 64Bit/384kHz high bit rate WAV digital audio streams, SPDIF output up to 24Bit192KHZ/DOP64, while the standard sampling rate of CD discs 44.1KHz, the amount of digital mastering data is the amount of data in the traditional CD 5 to 8 times, so the digital mastering both in the soundstage density, dynamics, and resolution, etc. are far more than the traditional CD sound quality.
2: 3 USB port at the same time support up to 2TB mobile hard drive, support for U disk, SD card, the maximum capacity of 512G easy to have a large library of songs, U disk playback, support: DFF, DSF, IS0, DTS and other formats, plug in the card can be played, no longer rely on mobile phones/computers, listening to private music collection.
3: 4.7-inch screen display, the new user-friendly design of the U interface, the function of the partition display, playback interface integrated volume (decoded version), playback status, song name, album cover, playback time, song format.
4: USB interface at the same time support up to 2TB mobile hard drive support U disk, SD card, the maximum capacity of 512G easy to have a large library of songs, U disk playback, support: DFF/DSF/ISO/DTS and other formats.
Plug in the card can be played, no longer rely on mobile phones / computers, listening to private music collection
5: This digital broadcast can play 64Bit/384KHz high bit rate WAV digital audio stream. CD disc standard sampling rate of 44.1KHz, the signal-to-noise ratio is 16Bit; 24Bit ~ 32Bit/192KHz digital mastering data volume is the traditional CD data volume of 5 to 8 times, (a 24Bit/192KHz mastering songs almost the entire CD capacity). (A 24Bit/192KHz mastered song has almost the capacity of a whole CD), so digital mastering is far beyond the sound quality of traditional CDs in terms of soundstage, density, dynamics and resolution.
Format Parameters
DSD
DFF/DSF/SACD ISO support (both compressed and uncompressed)
Uncompressed support DSD64/128/256/512 Compressed support DST64
Switchable DOP and source output
WAV
Stereo, 44.1-384KHz,16Bit-64Bit
Support WAV DTS(support dual-channel downmix analogue output, support digital source output)
FLAC: Stereo, 44.1-192KHz, 16/24Bit,0 to 8 levels
APE: Stereo, 44.1-48KHz, 16Bit
WMA: Support WMA9,WMA9.2
ALAC: Stereo, 16/24Bit
AAC/M4A/M4R
High Efficiency / Low Complexity / Low Delay
Scaleable Sample Rate
MP3: Dual Channel, 320Kbps
DTS: 44.1-48KHz, 16Bit, support dual-channel downmix analogue output, support digital source code output
NRG Mirror: Stereo, 44.1-48KHz, 16Bit.
CUE
Support WAV, APE, FLAC, DTS and other auto-split tracks.
Support Unicode, UTF-8, ANSI and other encoding
Product Parameter
Display: 4.7-inch LCD colour screen
Panel material: aluminium alloy
CPU main control: Arm Cortex M7 core mcu, single-threaded operation mode (autonomous system)
Power supply: ring cow transformer, AC220V-230V (can be ordered 110V-120V)
Audio DAC: AK4490REQ or AK4493EQ optional
Op-amp chip: custom version of the full discrete components dual op-amps
Clock type: 2 pieces of audio special crystal oscillator
Bluetooth: 5.0 digital Bluetooth module, support optical and coaxial digital signal output
File system: support for 5-level folder, single folder capacity 9999, two partition support
Analogue output: 1 group RCA audio + 1 group XLR XLR audio
Digital output: optical, coaxial, support source code and DOP output, support USB plug-in Bluetooth transmitter
Playback mode: support single song, catalogue, all playback and loop, support sequential playback and random playback
Playback memory: support the last state memory playback, normal playback 15 seconds after the real-time memory
Control mode: panel keys, remote control
Memory format: NTFS/EXFAT/FAT32
Capacity support: SD card and U disk support 512G, hard drive support 2T
Input mode: SD card, U-disk, PC-USB, Bluetooth
HUB Support: Built-in HUB chip, three USB ports support simultaneous insertion and switching, support for 2 partitions
Noise ratio: 123dB
Distortion degree: ≤ 0.001%
Channel separation: -110dB
Output level: 2.2V
Frequency Response: 20Hz-20KHz
Power consumption: ≤50W
Weight: net weight: about 2.1kg
Dimensions: Main unit size: 195mm x 260mm x 80mm
Packing list: host * 1, remote control * 1, power cord * 1, bluetooth antenna * 1, USB computer sound card line * 1, manual *1
