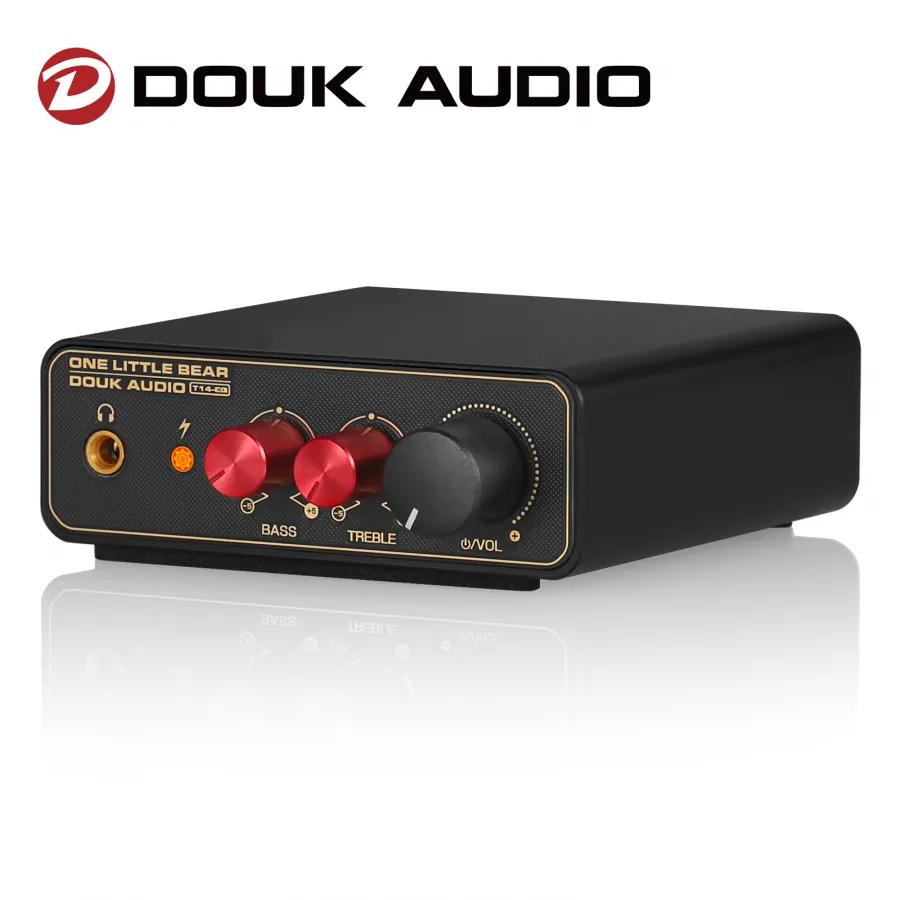

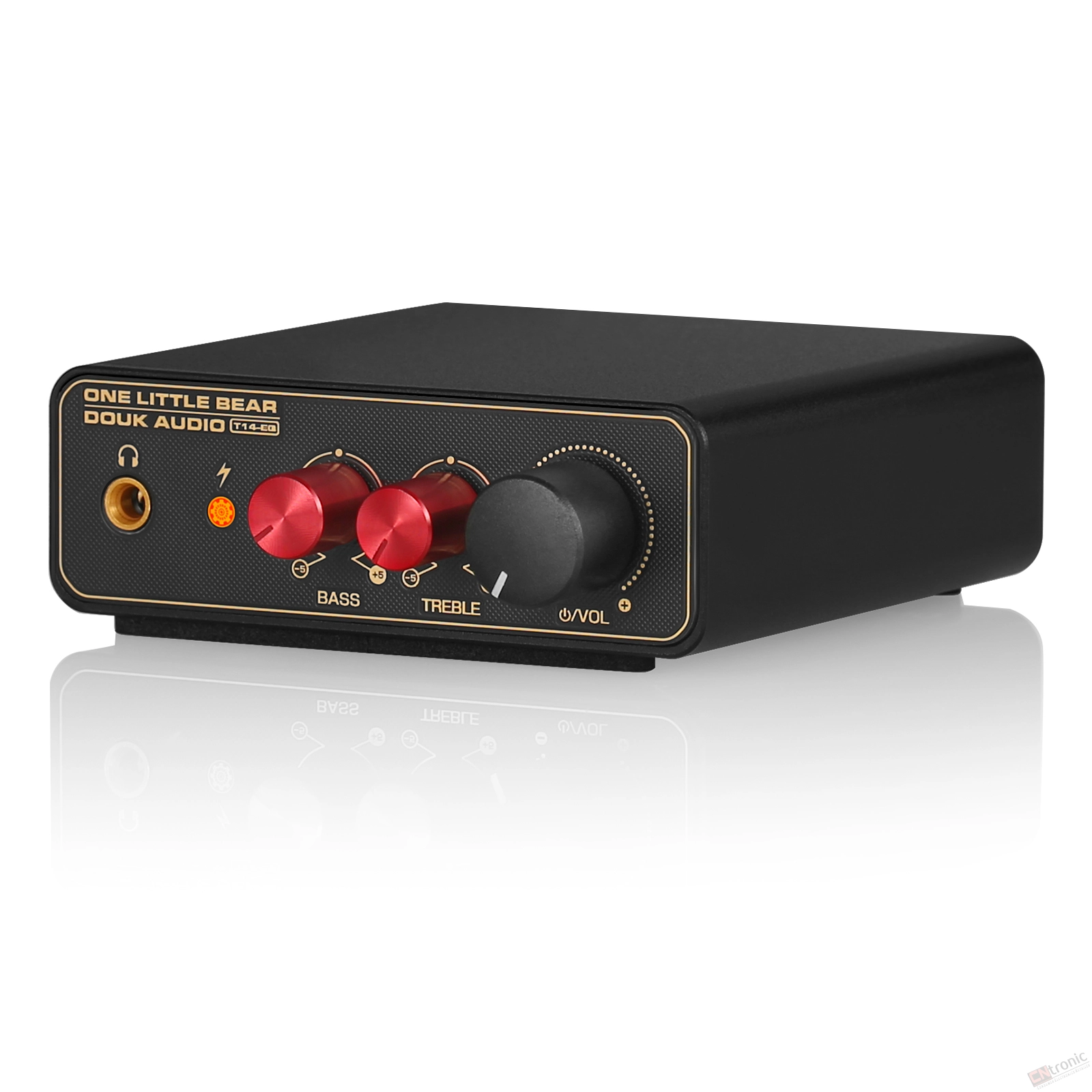

Douk Audio T14-EQ Stereo RIAA MM/MC Phono Stage Preamp Home Turntables Preamplifier with 3.5mm Headphone Amp
4.8 (156 votes) | 700 orders
Price:
US $277.55
Discount Price:
US $
99.64
-64%
Warm Tips
1. 3.5mm headphone output with priority, please make sure the headphone cable has been pulled out if want to use stereo RCA output.
2. Without a DC5V power adapter, please prepare it by yourself.
Features

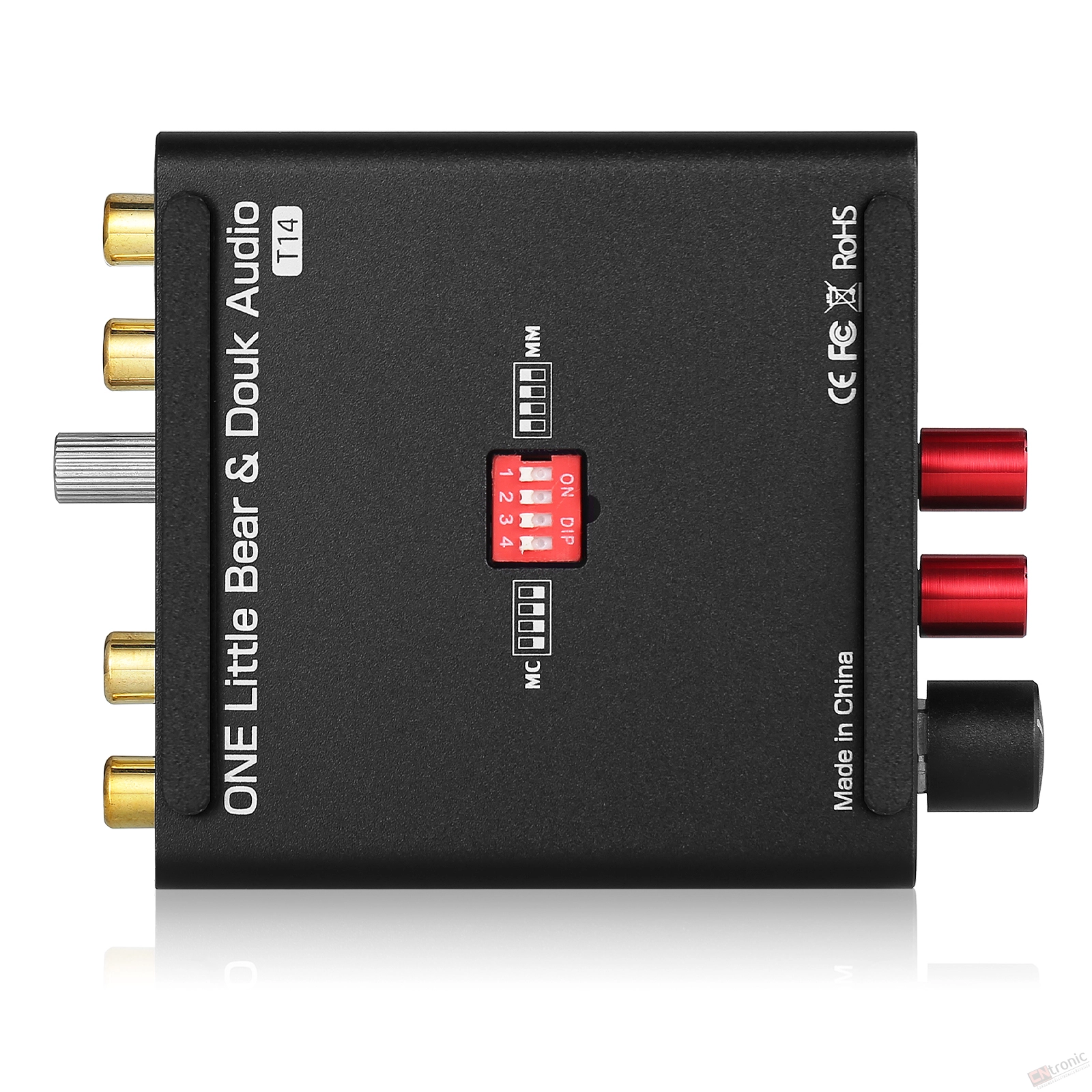

MM/MC phono preamp: converts phono signal to line level signal, low-noise integrated circuits and high-quality components are designed to ensure clear sound; with a MM/MC switch on the bottom, easy to select to match different kinds of turntables.
LINE and 3.5mm headphone outputs: with stereo RCA output to connect amplifiers or active speakers, greatly improve their sound quality; also add a 3.5mm headphone jack to drive all 16-200Ω headphones, convenient to enjoy music from record players alone or at night.

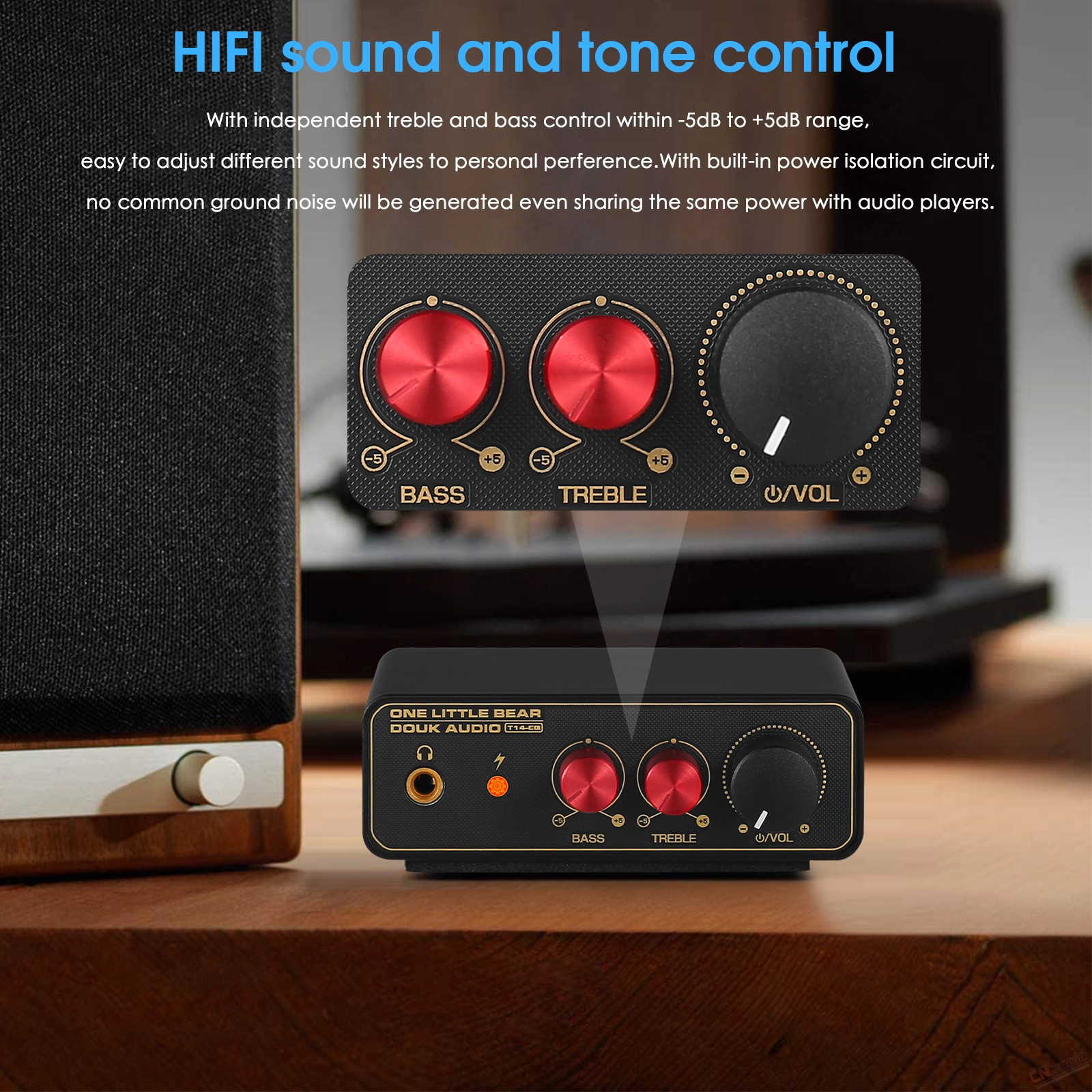

HIFI sound and tone control: with independent treble and bass control within -5dB to +5dB range, easy to adjust different sound styles to personal perference.With built-in power isolation circuit, no common ground noise will be generated even sharing the same power with audio players.
Mini size and easy to use: compact design, all-aluminum shell and gold-plated PCB and RCA terminals can maximally isolate external interference signals to ensure lossless transmission; USB 5V input voltage, also can be powered by computer or power bank, convenient to use anywhere in your house.
Parameters
Audio input: MM/MC phono

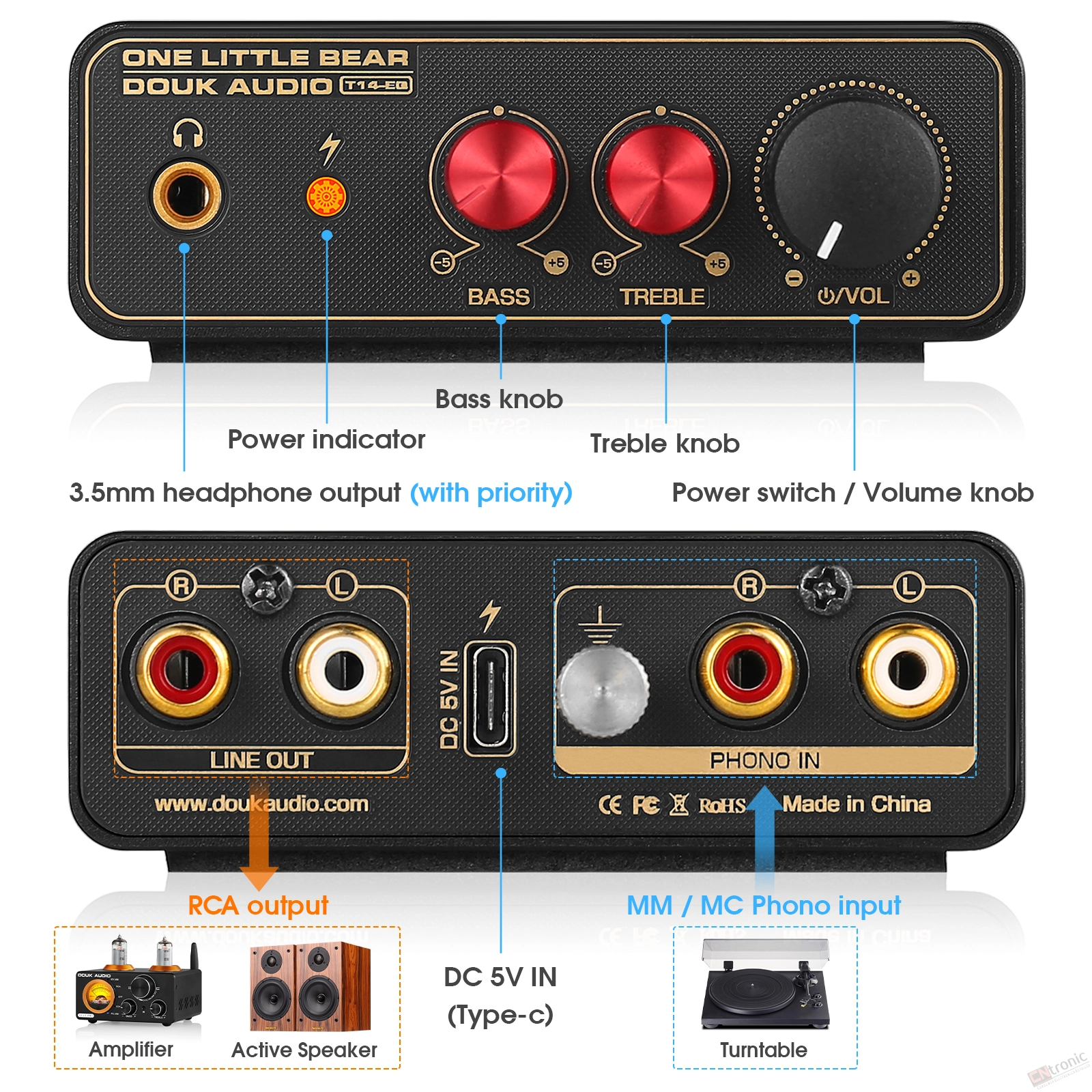

Audio output: Stereo RCA / 3.5mm Headphone Jack
Input level:
MM: 0.005V RMS
MC: 0.0005V RMS
Frequency response: conforms to RIAA characteristics(±0.5dB)
Treble / bass range: ±5dB
Headphone output power:
250mW @32Ω
100mW @64Ω
60mW @128Ω
Headphone impedance range: 16-200Ω
THD: ≤0.1%
Output level: 0.6V RMS
S/N ratio: ≥80dB(Phono)
Working voltage: DC 5V(≥0.6A)

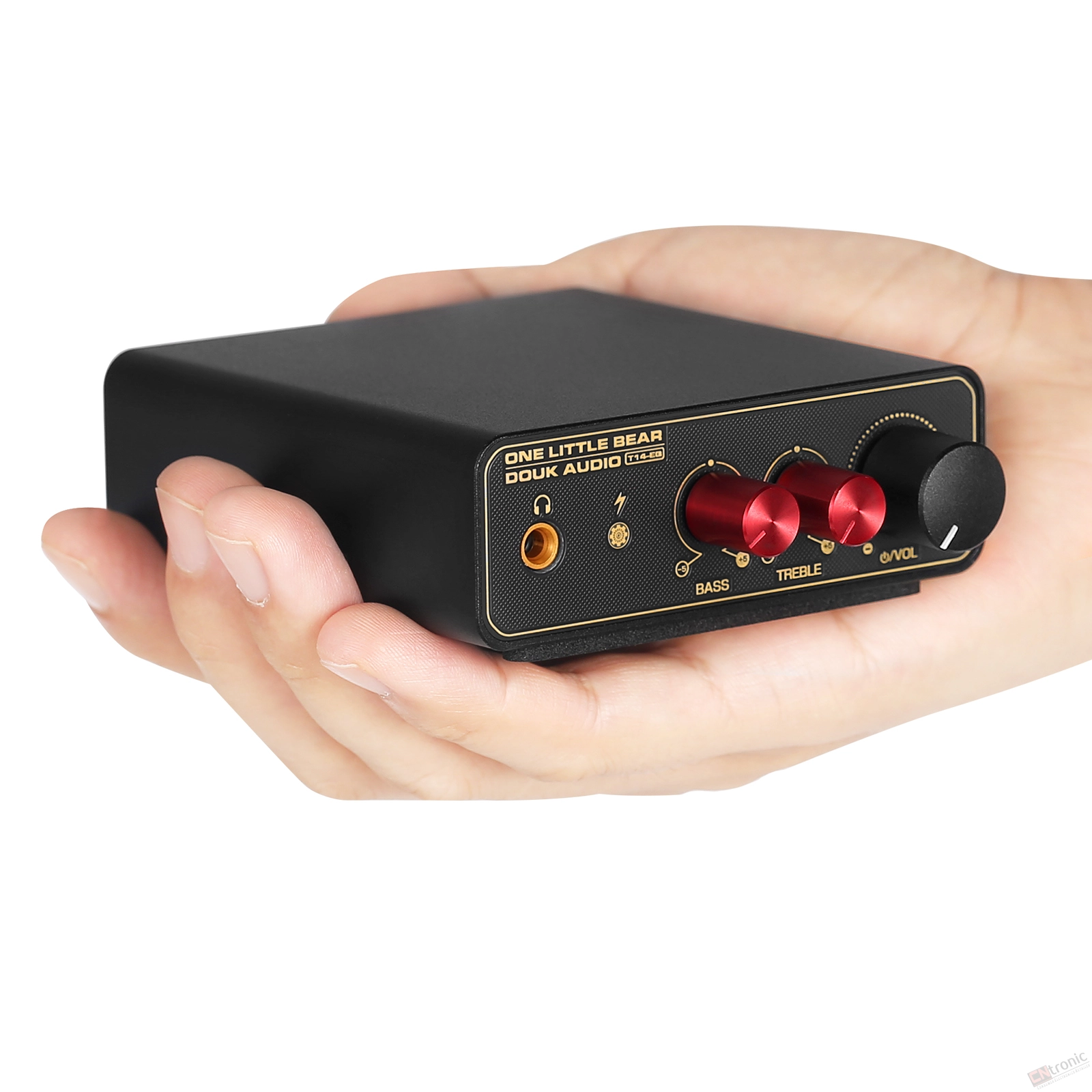

Dimensions(W*D*H): 84*84*28mm / 3.31*3.31*1.10in
Package dimensions(W*D*H): 133*92*50mm / 5.24*3.62*1.97in
Net weight: 176g / 0.39lb
Package weight: 400g / 0.88lb

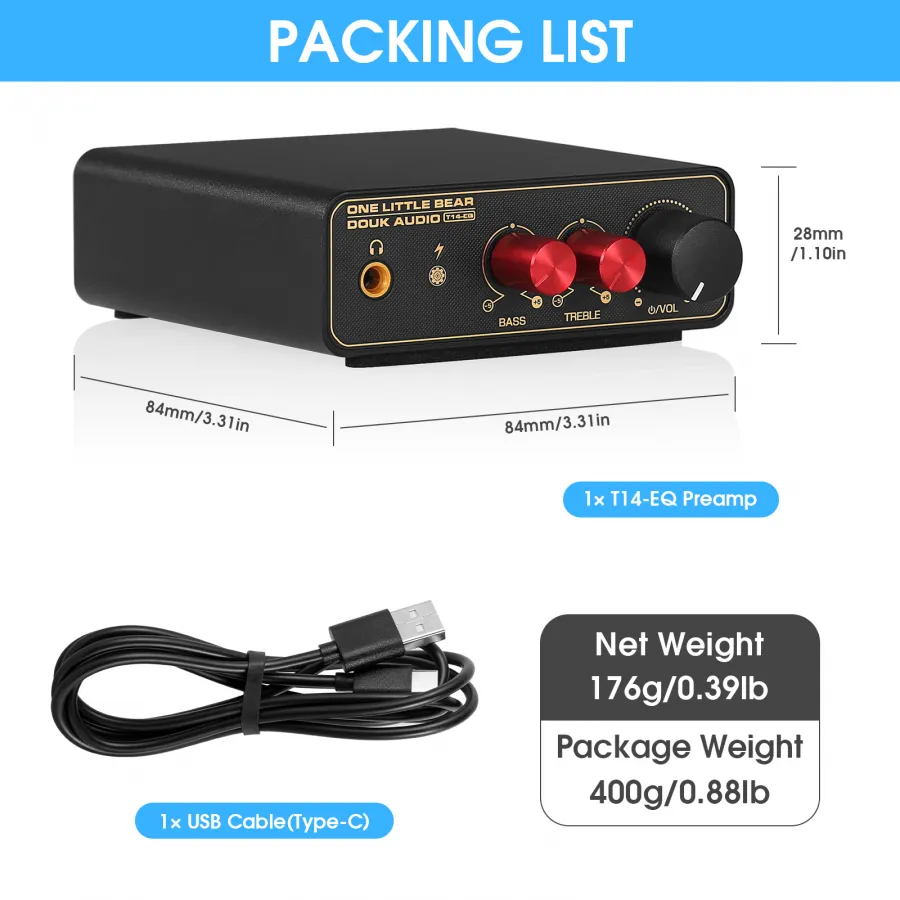

Packing List
1×T14-EQ Preamp
1×USB Cable(Type-C)
Packaging Details
- Unit Type:
- Package Weight: 0.254
- Package Size: 10x5x13
- Brand Name: Douk Audio
- DOUK AUDIO Model: T14-EQ
- Maximum Power Per Channel: NO POWER
- Origin: Mainland China
- Package: Yes
- Channels: 2 (2.0)
- Certification: CE
- Model Number: T14-EQ
- Choice: yes
