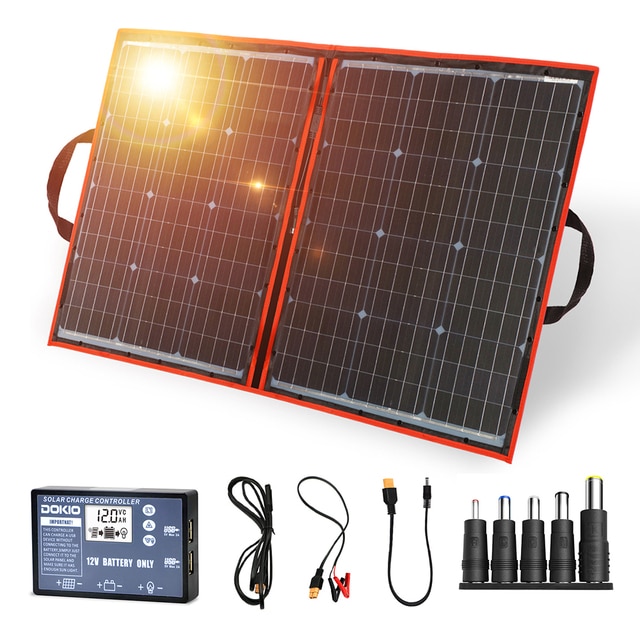

Dokio 100W (55Wx2Pcs) 18V Flexible Black Solar Panels China Foldable 12 Volt Controller 100 Watt Panels Solar
4.8 (77 votes) | 276 orders
Price:
US $261.46 - 332.50
/ Set
Discount Price:
US $
203.95 -
233.42
/ Set
-22%
- Ships From
- Color
-
-
Sorry! This item is out of stock
100W
Dokio patented products

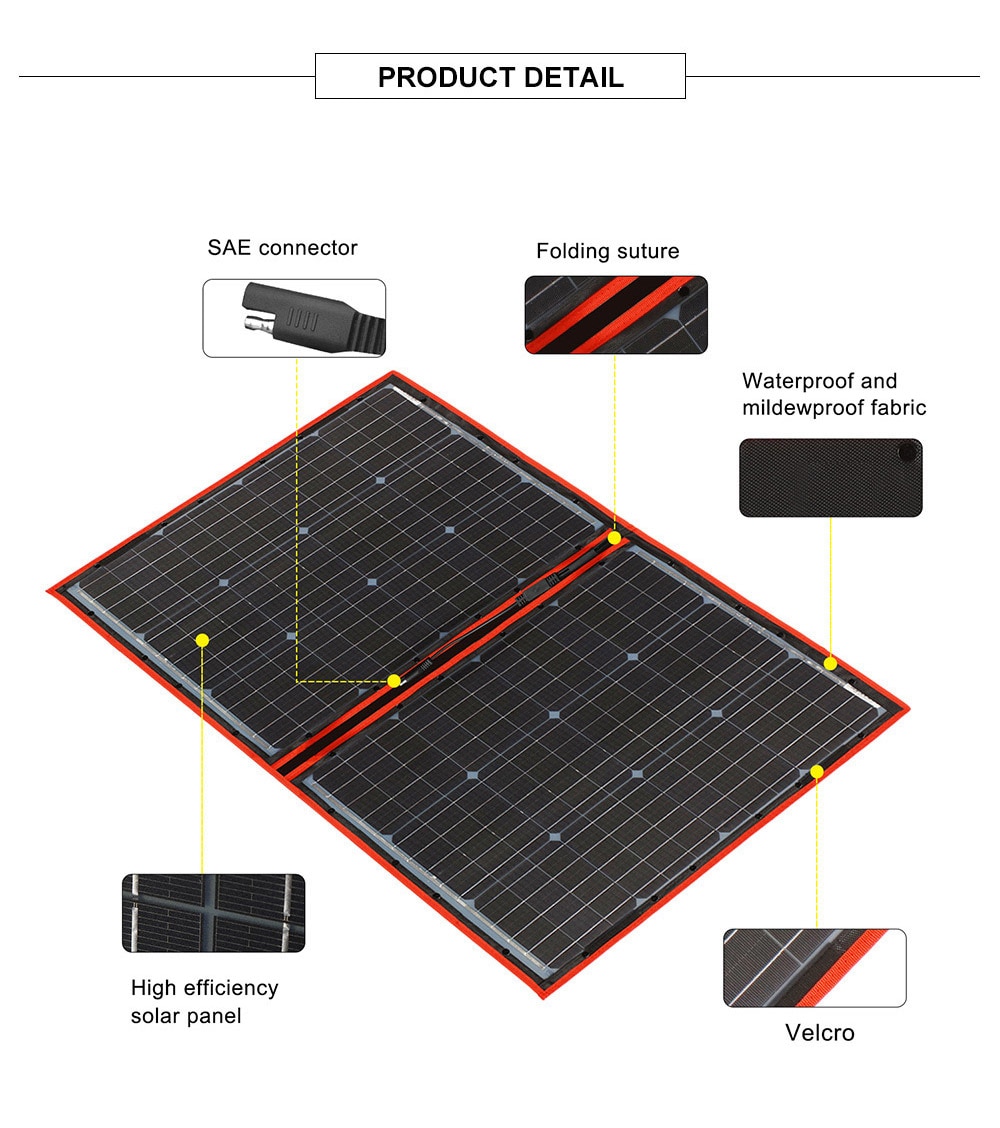

POWERFUL AND LIGHTWEIGHT: This solar panel packs 100W of power yet is only 12mm in thick and weighs only 2.7 kg, making it easier to transport, hang.

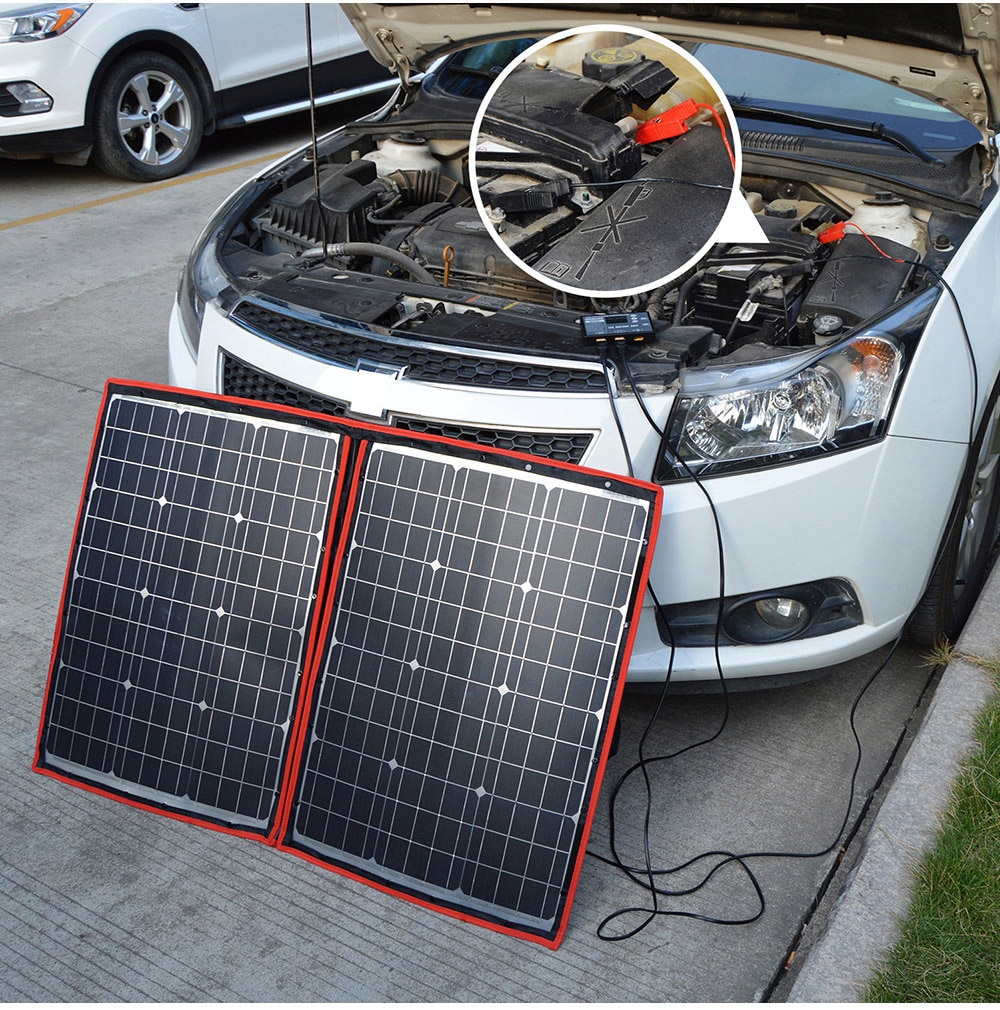

Wide range of applications, can be applied to ships, car batteries, can also be used as an outdoor travel backup power.

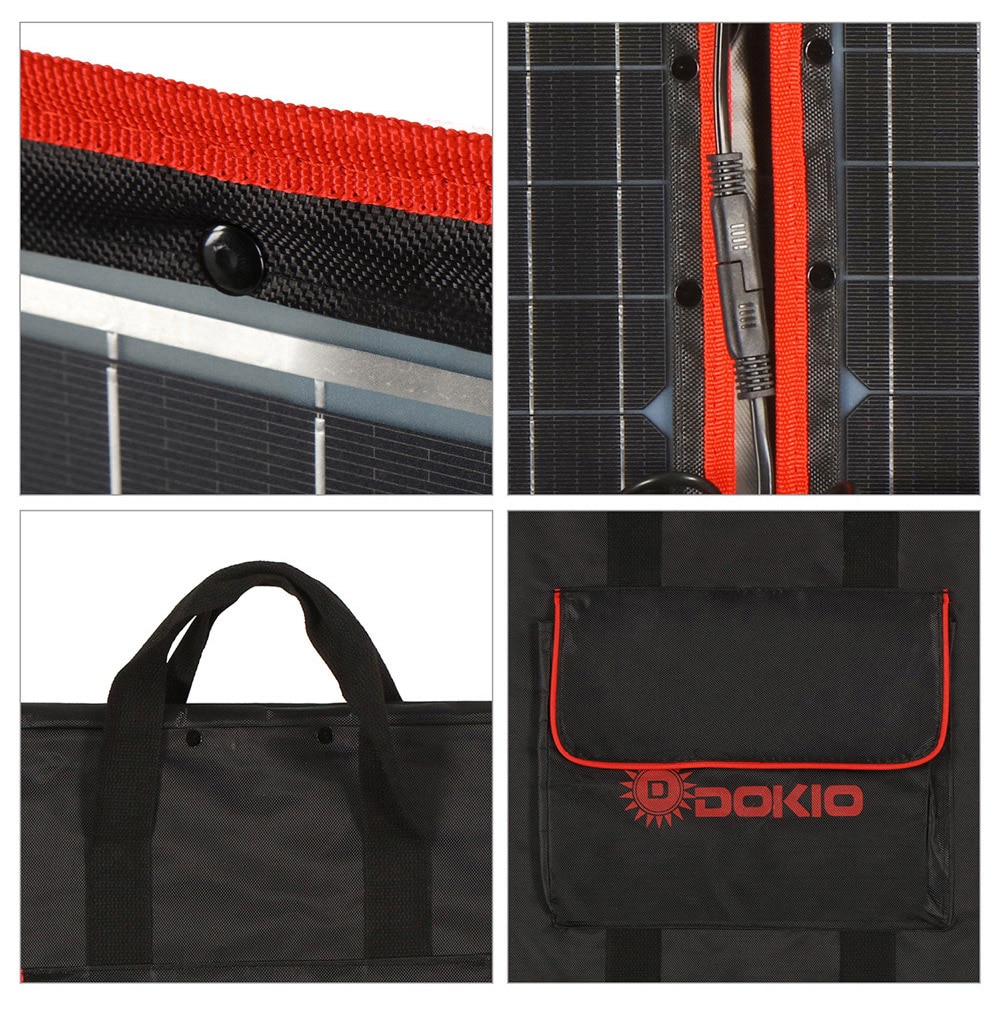

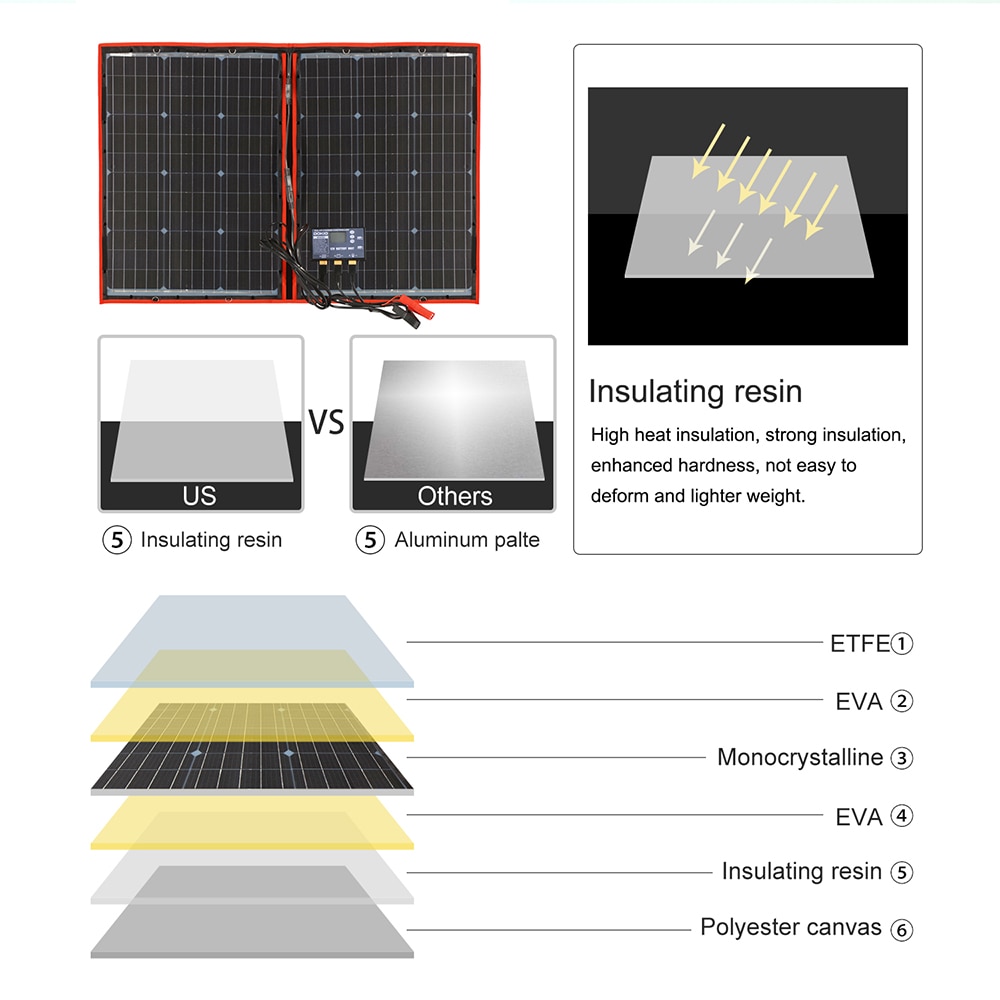

The outermost layer of the product is made of thick and breathable material. The portable design is easy to carry, suitable for camping, hiking, hiking, and can be used as a backup power source for mobile phones and car batteries.

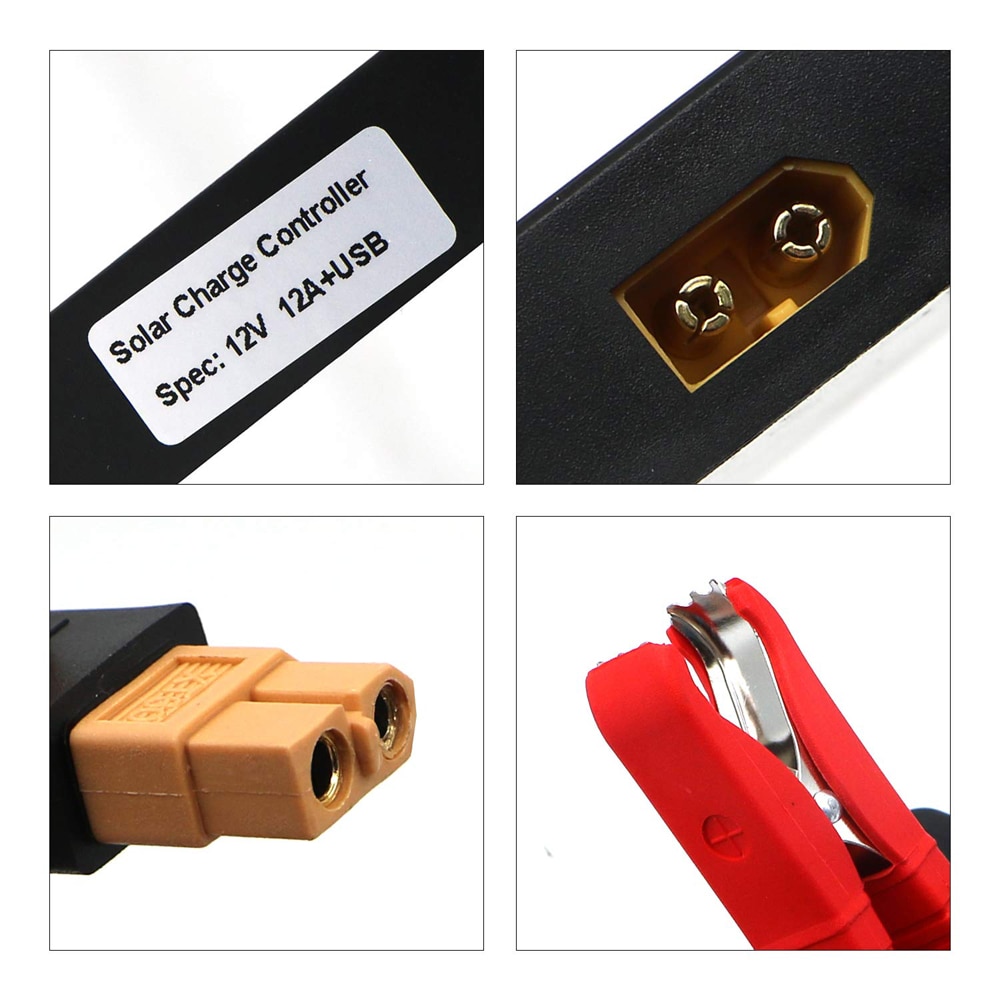

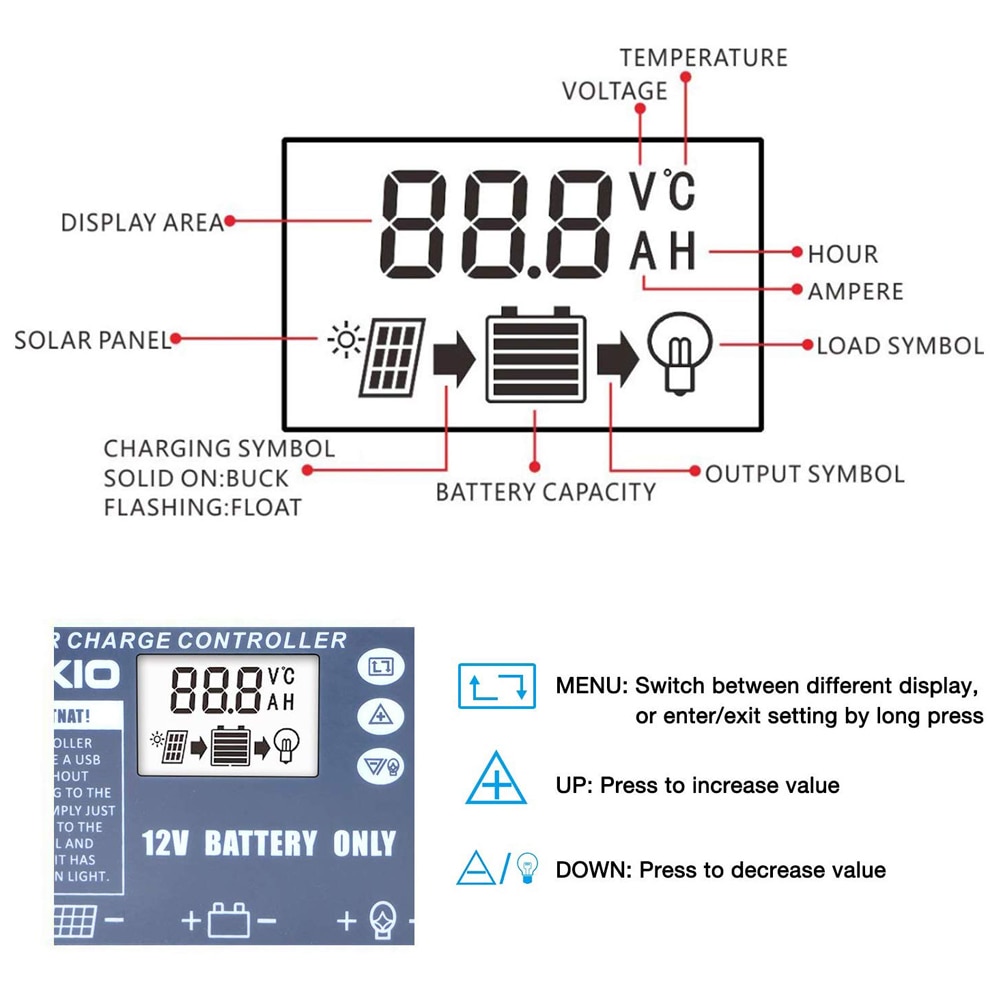

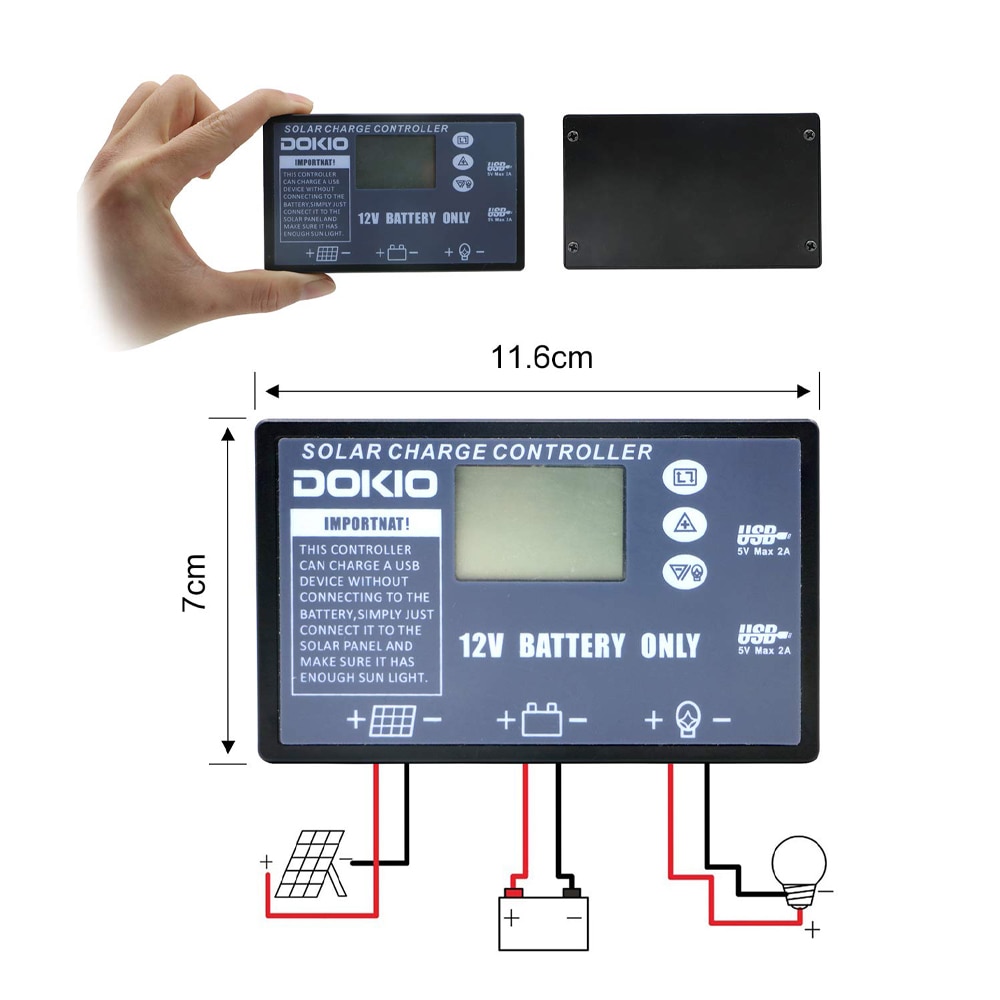

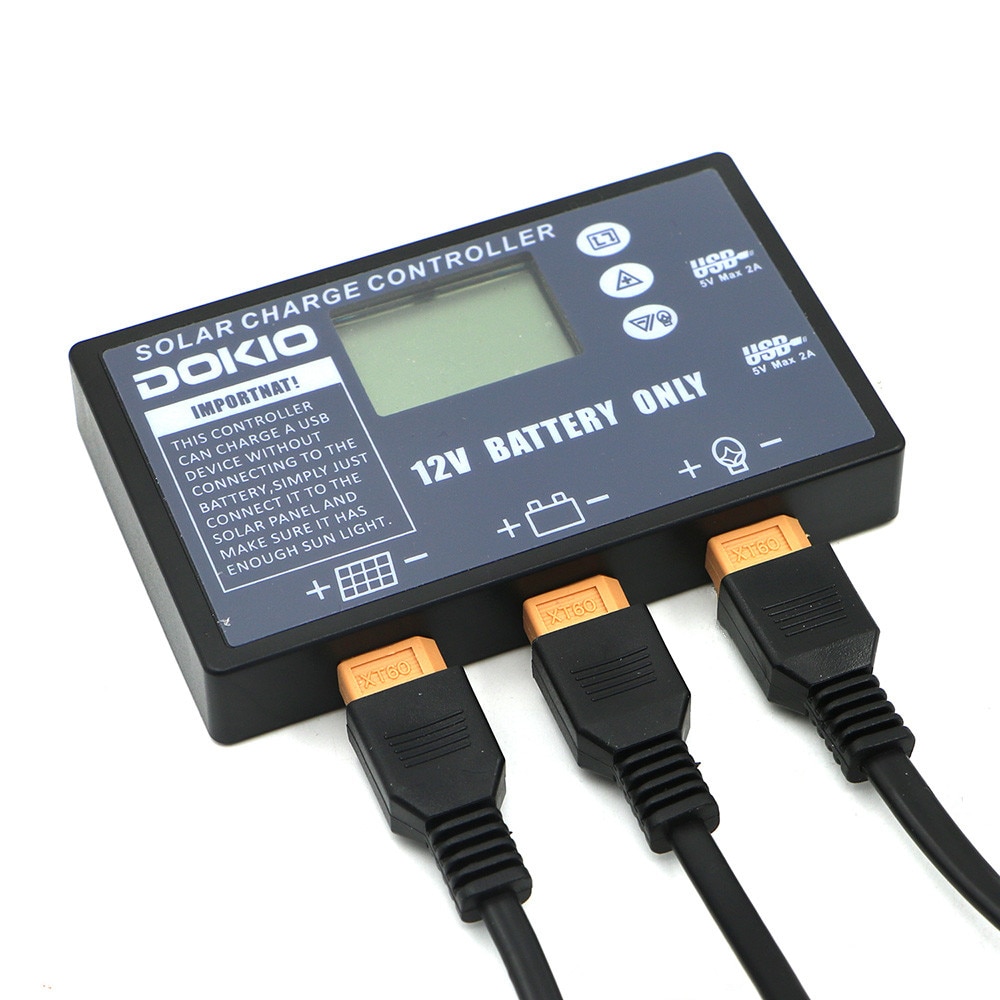

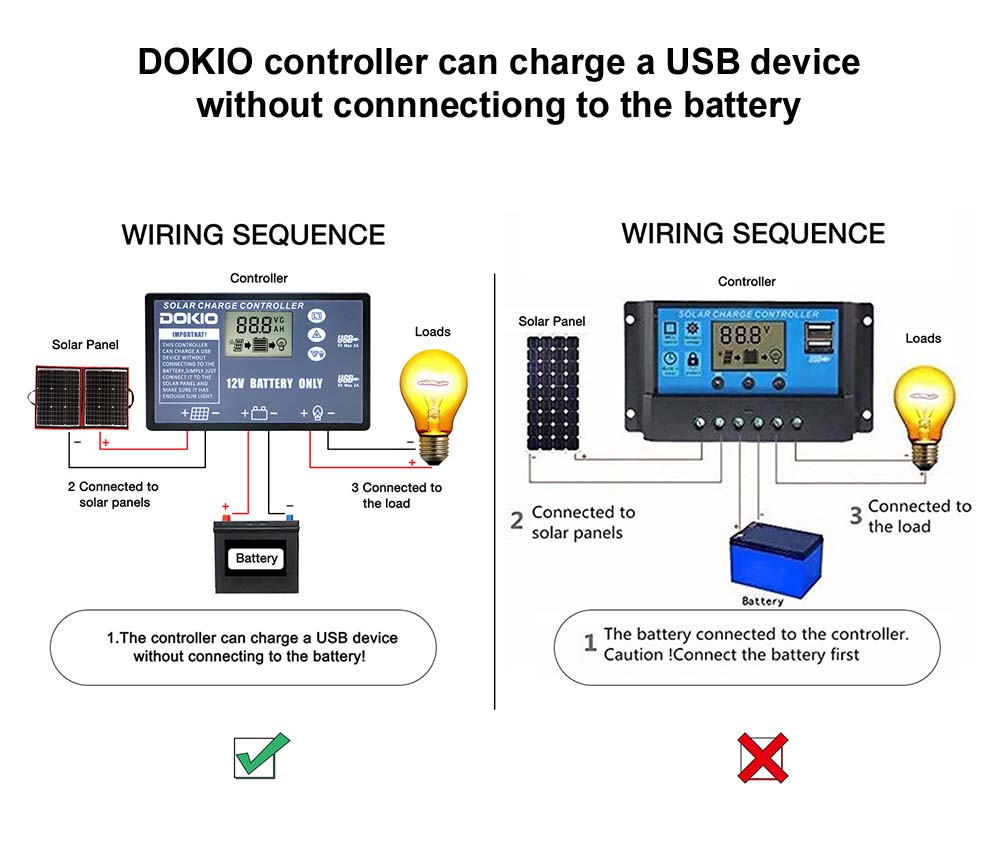

This product is equipped with our own new PWM controller, which includes 3 types of cable, USB, alligator clip, and DIY cable. Compared to other old controllers on Cntronic, it uses USB connection can reduce current loss.

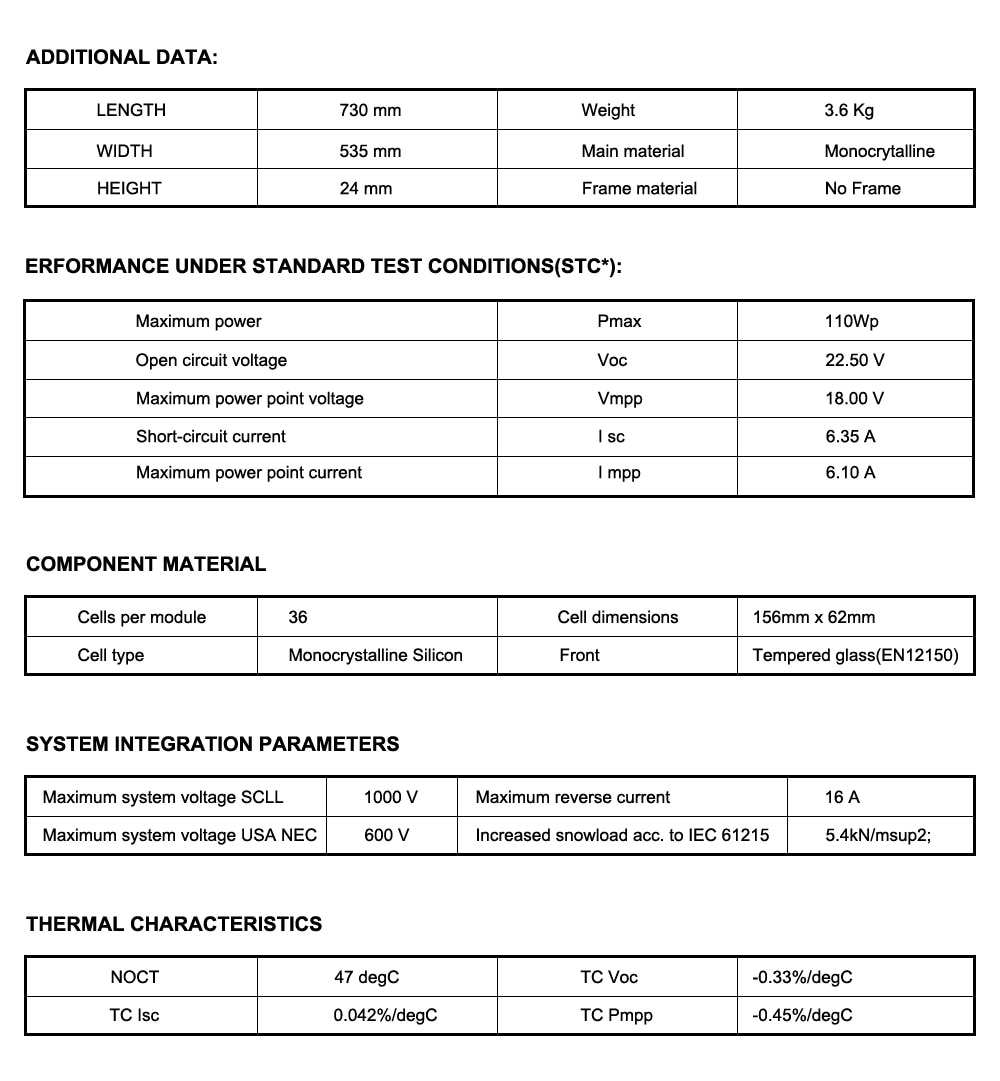

Model:FFSP-110M
Material:Monocrystalline silicon
Maximum Power(Pmax):100W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):6.1A
Open-Circuit Voltage (Voc):22.5V
Short-Circuit Current (Isc):6.35A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage: DC1000V

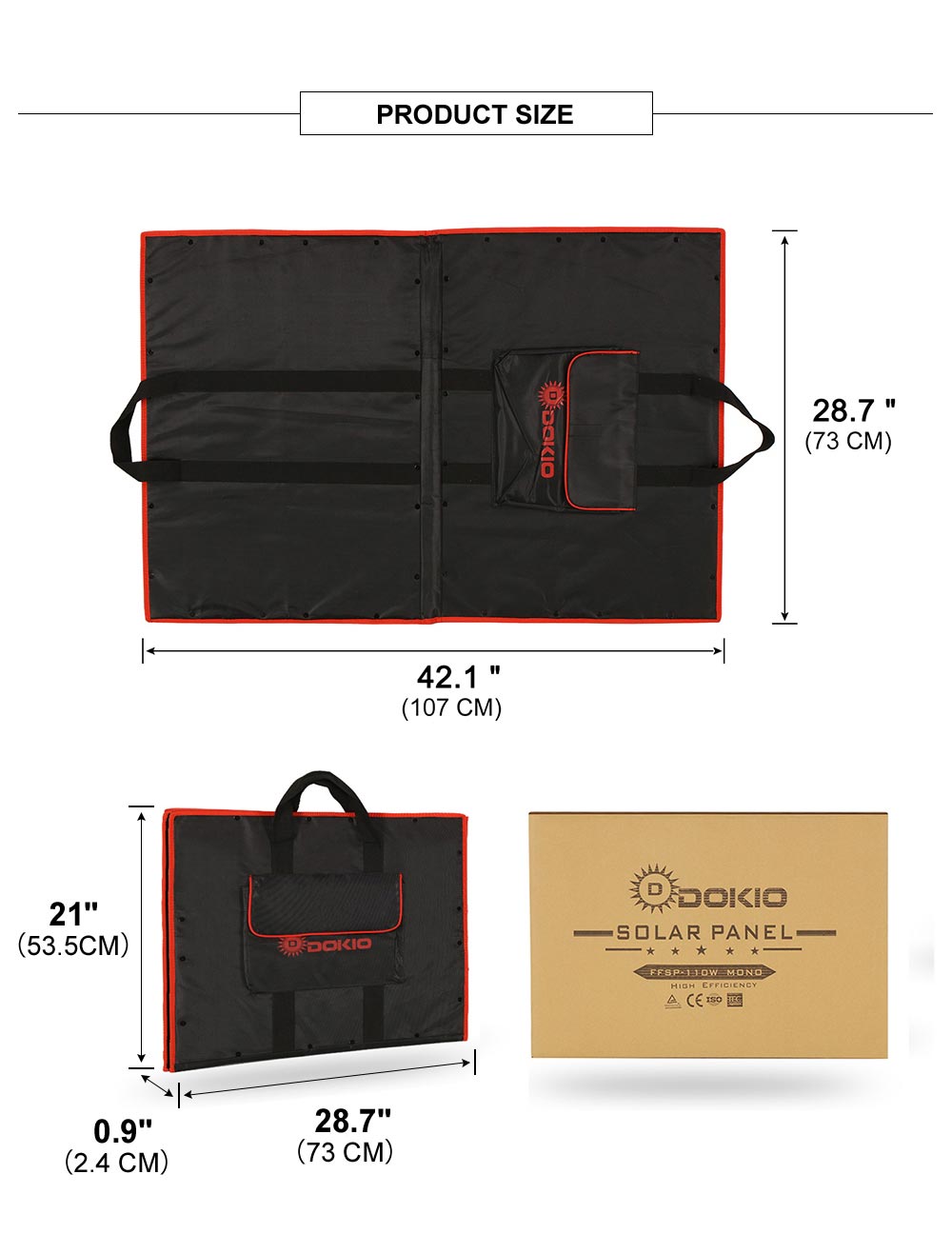

Foldable Dimension:28x20.5x0.47(in)/70x50x1.2(cm)
Expansion Dimension:40x28x0.24(in)/100x70x0.6(cm)
Net Weight: 2.7 kg
Package Weight:3.6kg
Package Size:75x58x7cm

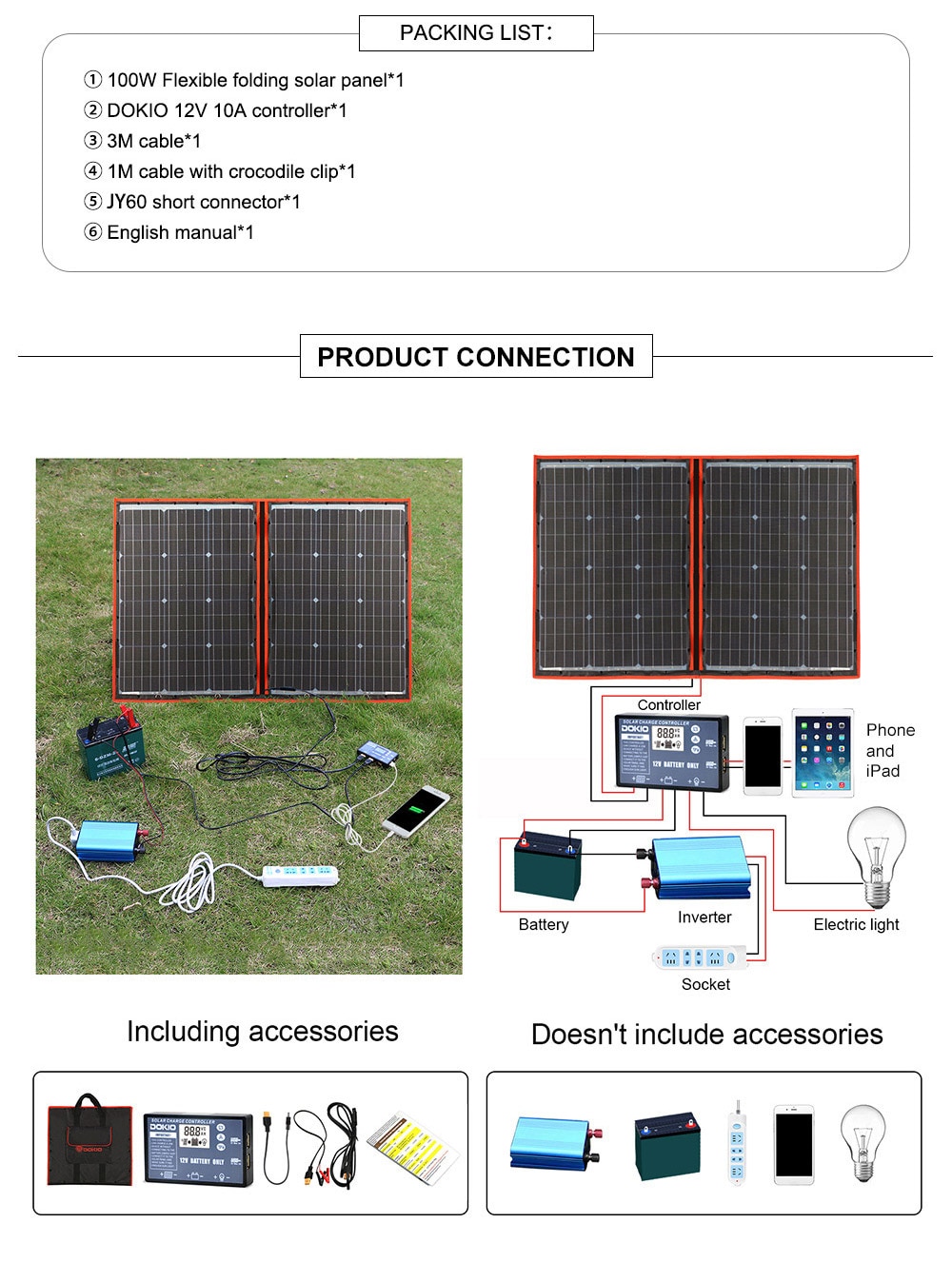

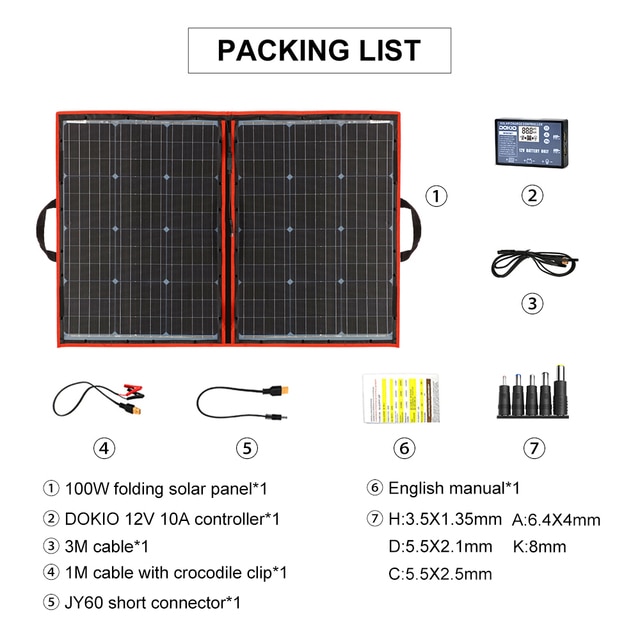

Package List:
1*100W Flexible Foldble Solar Panel (50W*2)
1*3M wire,1*10A 12Vcontroller,1*English User Manual
The rings of folding solar panels has been removed.
(The above data is based on the laboratory standard test environment)
For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃
Standard Test Conditions:
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.）

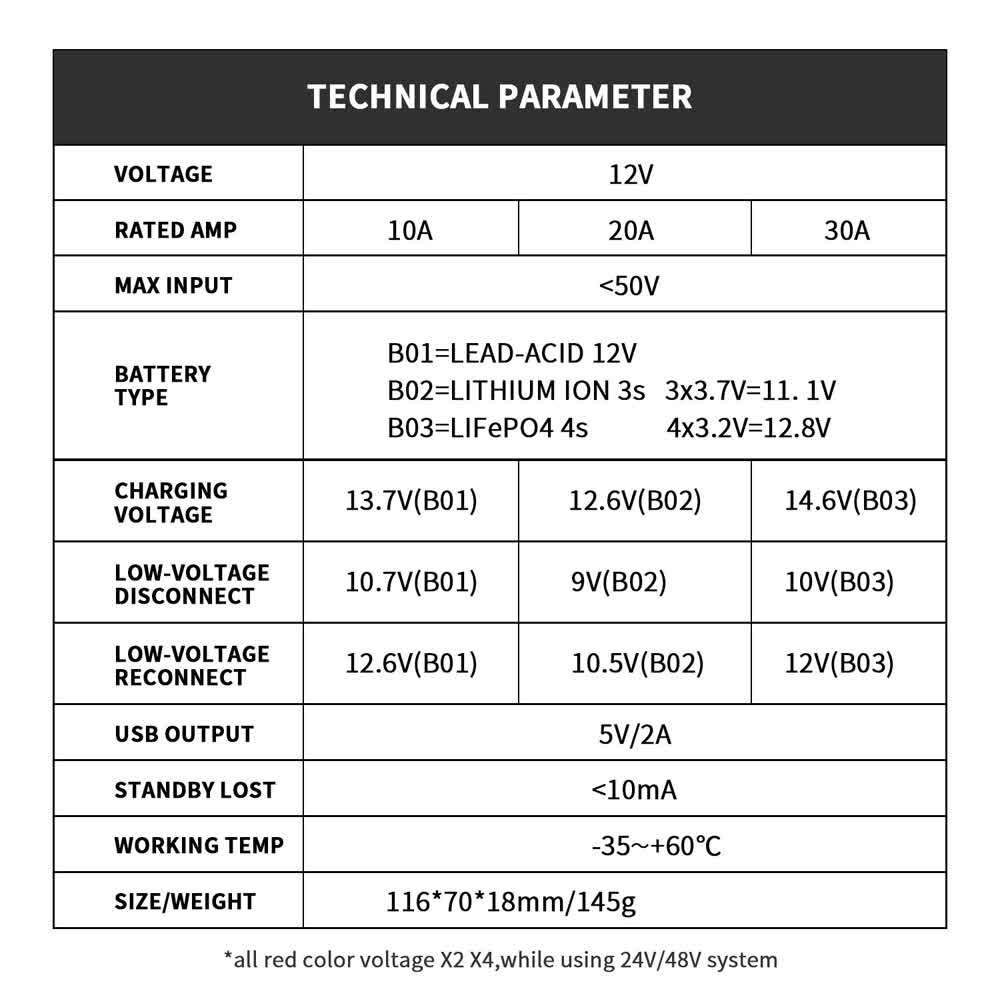

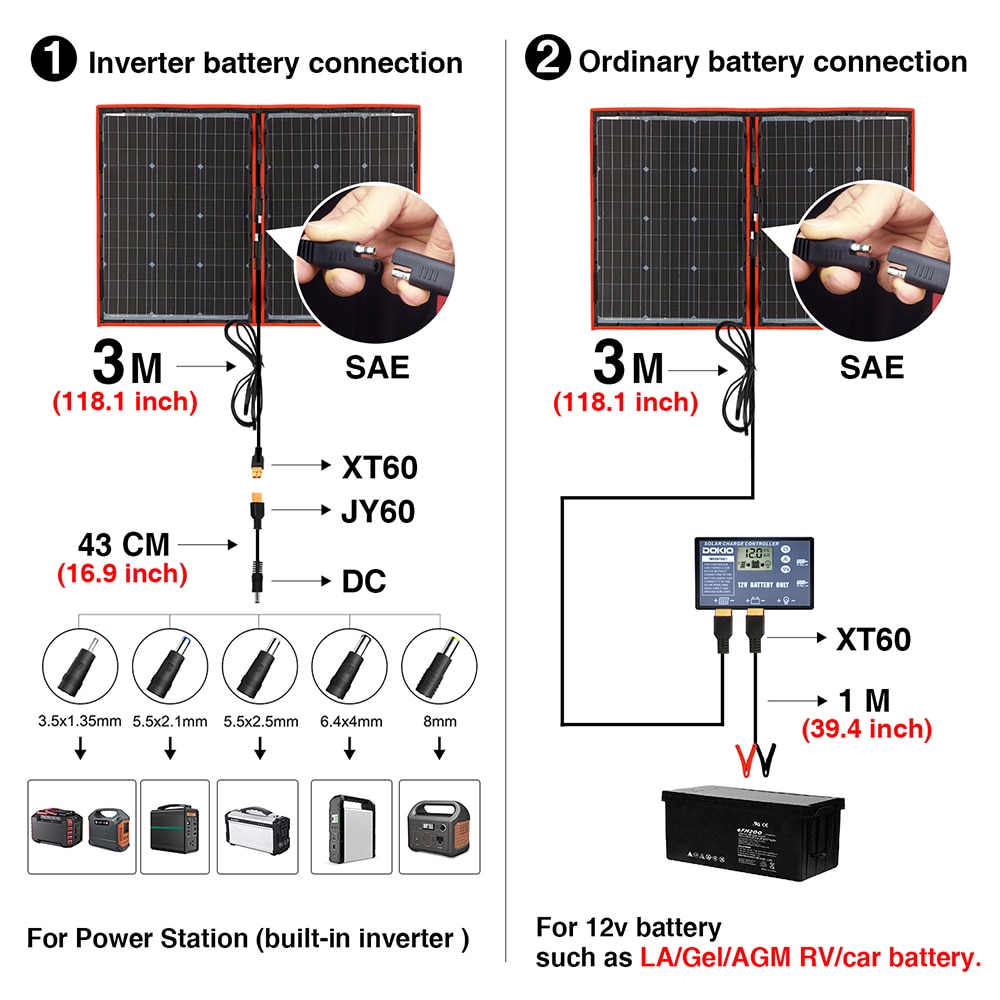

controller support 12V lead-acid,lithium ions and LiFePO4 battries.
Cable thickness: 2x1.0 mm²
A total of 4M long cable. With alligator clips.
- Brand Name: DOKIO
- Origin: Mainland China
- Number of Panels: 1
- Flexible Solar Panel: Yes
- Foldable Solar Panel: Yes
- Type: Solar Panel
- Model Number: FFSP-110W
- Size: 40x28x0.24(in)/100x70x0.6(cm)
- Material: Monocrystalline Silicon
- Nominal Capacity: None
- Number of Cells: 36
- Max. Power: 100W±3%
- is_customized: Yes
- Certification: CE
- Open-Circuit Voltage (Voc): 22.50V
- Maximum Power Voltage(Vmp): 18.00V
- Short-Circuit Current (Isc): 6.35A
- Maximum Power Current (Imp): 6.10A
- Nominal Operating Cell Temp.(NOCT): -45 to 80℃
- Maximum System Voltage: DC1000V
- Foldable Dimension: 28x20.5x0.47(in)/70x50x1.2(cm)
- Expansion Dimension: 40x28x0.24(in)/100x70x0.6(cm)
- Net Weight: 2.7 kg
