DANNOVO NDI|HX 4K UHD Video Camera for Government Legislative, Auditorium, 35x Optical Zoom PoE HDMI Camera(DN-HDC8035-4K-NDI)

0.0 ( votes)
Price:
US $ 5374.04 / piece
Quantity

Doing Business with DANNOVO,You will Find it is a Professional,Cushy and Happy Experience,so You will Have No Worries.

NDI UHD 4K PTZ Ultra HD Camera for Live Broadcasting 35x Zoom Description
The DN-HDC8035-4K-NDI is a 4K Ultra HD 3840x2160P/30 12.4 Megapixels NDI Live Streaming PTZ Video Camera for Professional Broadcasting, Video Conferencing and Surveillance. Affordable NDI|HX Presents Unprecedented Freedom for Installation, integration and Production via One Ethernet Cable: Video, Control, Tally and Power. It’s using the Most Advanced DSP Image Processing, 1/1.7’’ 12MP CMOS Sensor, Supports 35x Optical x 2x Digital Zoom, 340° Pan Rotation, 120° Tilt Rotation, and Support NDI|HX, HDMI, 3G-SDI(HD-SDI), USB3.0(USB2.0) HD Video Outputs.

Features

1/1.7’’Ultra HD 12 Mega Pixels CMOS Sensor, using the Most Advanced DSP Image Processing;
> 35x Optical x 2x Digital Zoom;
> 4K Ultra HD 3840x2160/30fps over NDI|HX and HDMI;
NDI|HX, HDMI,3G-SDI(HD-SDI), and USB3.0 HD Video Outputs;
> Adopting High Level Camera Module(Lens), good for Broadcasting, Video Conferencing, and Surveillance; WDR Supported;
H.264 & H.265 Encoding Supported Video Conference camera;
Field of View: 60° Wide-angle Lens;
Pan/Tilt Rotation: H: ±170º,V: 120º;
Pan/Tilt Rotation Speed: 0° ~ 120°/s, Tilt: 0° ~ 80°/s;
Support ONVIF, RTSP, etc.;
Low Light: High SNR of CMOS Sensor Combined with 2D&3D Noise Reduction Algorithm, Effectively Reduce the Noise;
> Support PoE(Power over Ethernet) Function: Lan Powering is Achieved by Connecting to Network Devices that Support PoE Standards, One Cable Provides Camera Power Supply, Video, Tally and Control Signal, Significantly Reduce Installation Costs and Increase Convenience by Eliminating the Need to Use Power or Sockets;
RS-232C/ RS-485 Control with SONY VISCA and PELCO-P/D Protocol, Support VISCA over IP;
Standard UVC1.5 protocol,seamlessly Compatible with Most Video Conference Software or Applications or Platform, Such as Microsoft Lync, Cisco Jabber, WebEx, Skype for Business, etc.;
Supports Images Flip Function;
Support IR wireless remote control P/T/Z;
> Default Color: Black.



Main Applications

Ideally used in Broadcast Quality Live Streaming Solution.Widely used in Live Broadcasting, Education, Video Conferencing, Medical, Distance Learning, Government Legislative, Auditorium, House of Worship, Sport, Airport, School, Museum, Church, Court, Chain Store, and Professional AV Environments.

Camera Picturell HD 1080P/60 Video Conference Camera 20x Optical Zoom Pictures



DN-HDC035-4K-w

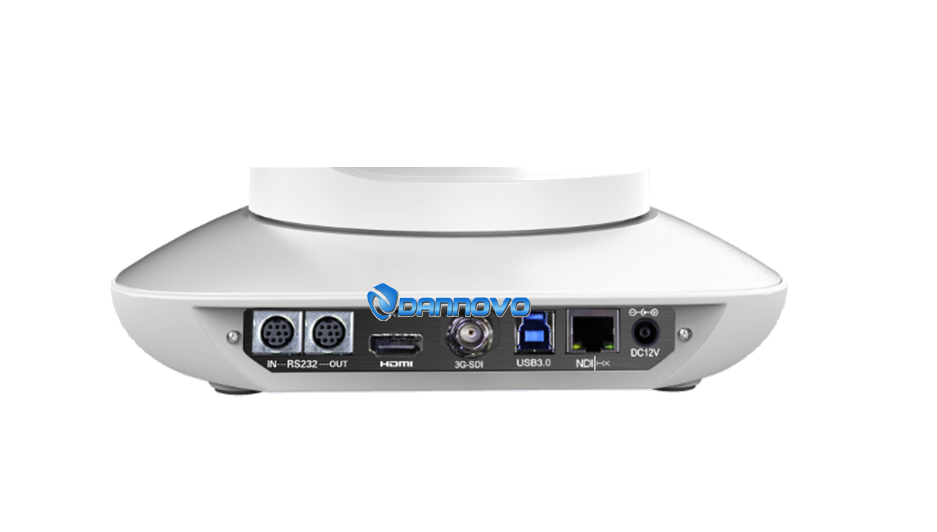

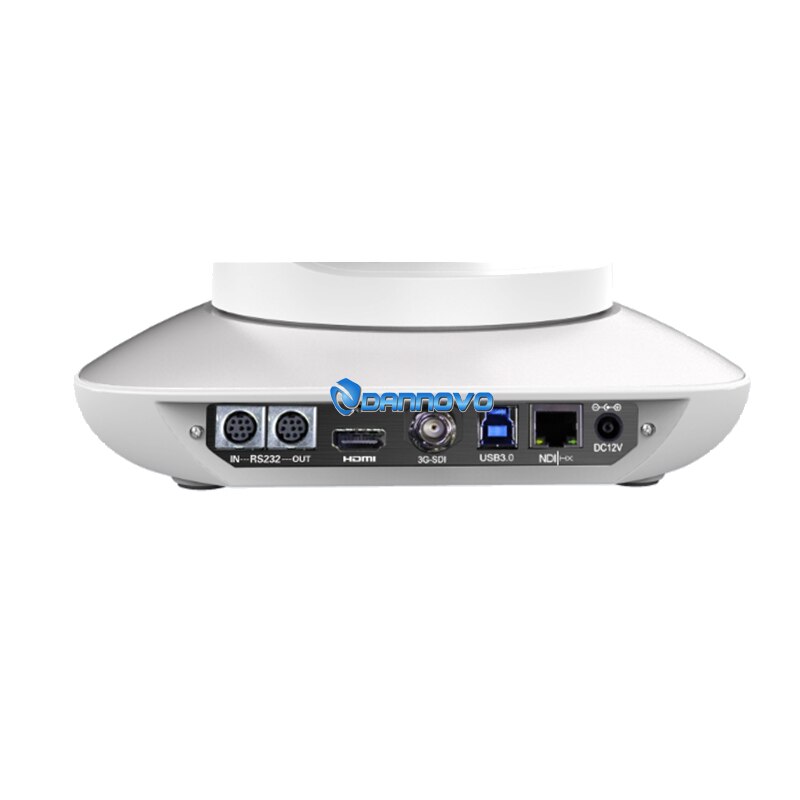

Interface
Interface




NDI UHD 4K PTZ Camera for Live Broadcasting 35x Zoom Specifications




Model No.

DN-HDC8035-4K-NDI

Image Sensor

1/1.7’’ Ultra HD 12MegaPixels CMOS Sensor

Effective Pixels

Approximately 12.40 Megapixels

Video System

NDI|HX: Main Stream: 3840x2160p/30,1920x1080p/30;

Sub Steam: 1280x720p/30,1024x576p/30, 640x360p/30.

HDMI: 3840x2160p/30,3840x2160p/25,1080p/60/59.94, 1080p/50, 1080p/30/29.97, 1080p/25/24,  1080i/60/59.94, 1080i/50, 720p/60/59.94, 720p/50, 720p/30/29.97, 720p/25.

SDI: 1080p/60/59.94, 1080p/50, 1080p/30/29.97, 1080p/25/24,  1080i/60/59.94, 1080i/50, 720p/60/59.94, 720p/50, 720p/30/29.97, 720p/25.

USB3.0: 1080p/60, 1080p/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25, 1024x576p/30;
USB2.0: 1024x576p/30, 960x540p/30, 640x360p/30, 512x288p/30.

Video Output Interface

NDI|HX ,HDMI, 3G-SDI(HD-SDI), USB3.0(USB2.0)

Lens

35x Optical x 2x Digital Zoom, f=5.8~203mm, F1.5~4.8

Horizontal Viewing Angle

60°~ 2.0°

Min. Focus Distance

Wide: 0.3m; Tele: 1.5m

Horizontal/Vertical Rotation Range

Pan: 340°;Tilt: 120°

Horizontal/Vertical Rotation Speed

Pan: 0° ~ 120°/s, Tilt: 0° ~ 80°/s

Focus

Auto/Manual

Min. Illumination

0.01Lux

Focus system

Auto/Manual

Noise Reduction

2D&3D

SNR

>50dB

White Balance

Auto / Manual/Auto Tracking/OnePush/Indoor/Outdoor/

Anti Flicker

50Hz/60Hz/OFF

D/N Mode

Support

Gamma

Support

Mirror Function

Support

Horizontal/Vertical Flip

Support

Iris

Auto/Manual

Shutter

Auto/Manual

Backlight Compensation

Auto/Manual

No. of Preset Position

128

Preset Accuracy

0.1°

IPC Video Features

Video coding standard

H.265/H.264

Video Bit Rate Type

Variable rate, Fixed rate

Frames

50HZ:1fps~30fps, 60HZ:1fps~30fps.(3840x2160 max. 30fps)

Support protocols

TCP/IP, HTTP,  RTSP, RTMP, ONVIF, DHCP, VISCA over IP(UDP&TCP), HTML5

Network interface/Speed

1xRJ45: 1000M

Network Protocol

ONVIF Protocol

Camera Control Interface / Protocol

RS-232, RS485 (optional)(Sony VISCA,PELCO-P/D Protocol), NDI|HX, USB

PoE

Support

Power

DC 12V / PoE

Dimensions

220×190×205.8mm

Weight

1250g

Operating Temperature

-10℃~40℃

Storage Temperature

-40℃~60℃

Color(Options)

Black(Default)/White







  • Model Number: DN-HDC8035-4K-NDI
  • Type: Video Conference System
  • Brand Name: DANNOVO
  • Video Output: NDI|HX, HDMI,3G-SDI(HD-SDI), and USB3.0 outputs
  • Zoom: 35x Optical x 2x Digital Zoom
  • Color: White(Factory Default: Black)
  • Sensor: 1/1.7'' 4K Ultra HD 12 Mega Pixels CMOS Sensor
  • Video Format: 3840x2160p/30,25, 1080p/60/59.94,50, 1080i/60, 50, 1080p/30,25, 720p
  • Pan/Tilt: H:340 degree,V: 120 degree
  • View Angle: 60 degree
  • Control Protocol: Sony VISCA & Pelco-P/D
  • VISCA over IP: Support
  • H.264 & H.265 Encoding: Support
  • PoE Function: Support
  • Image Flip Function: Support
