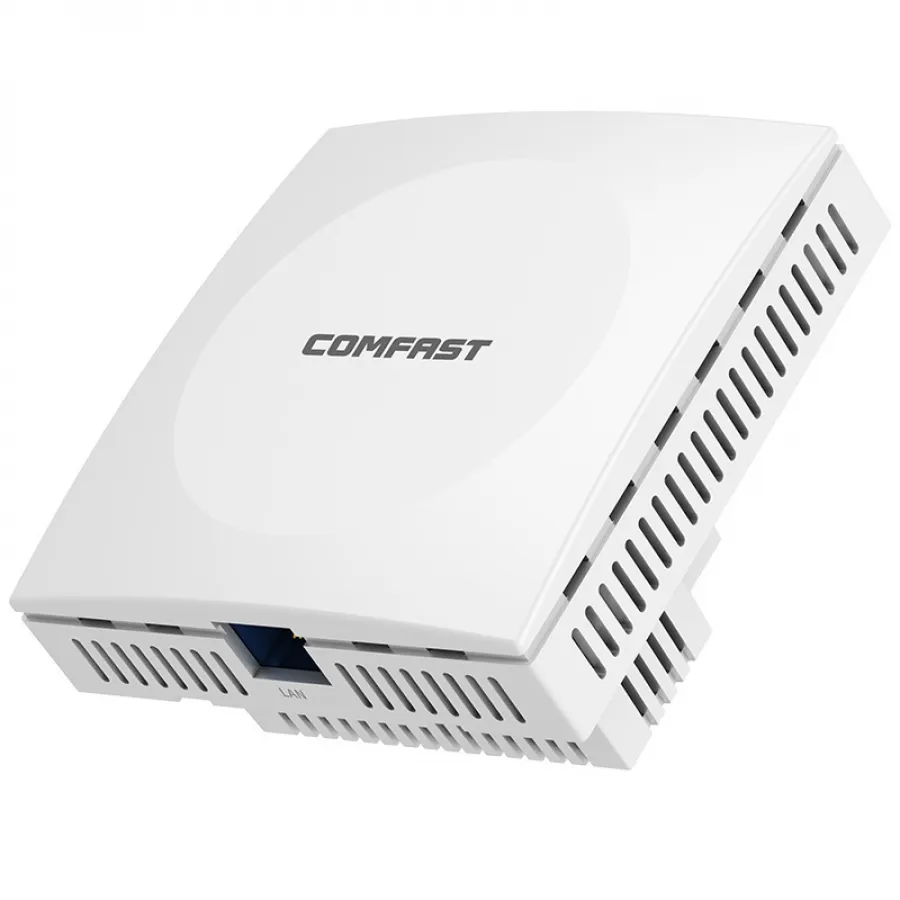

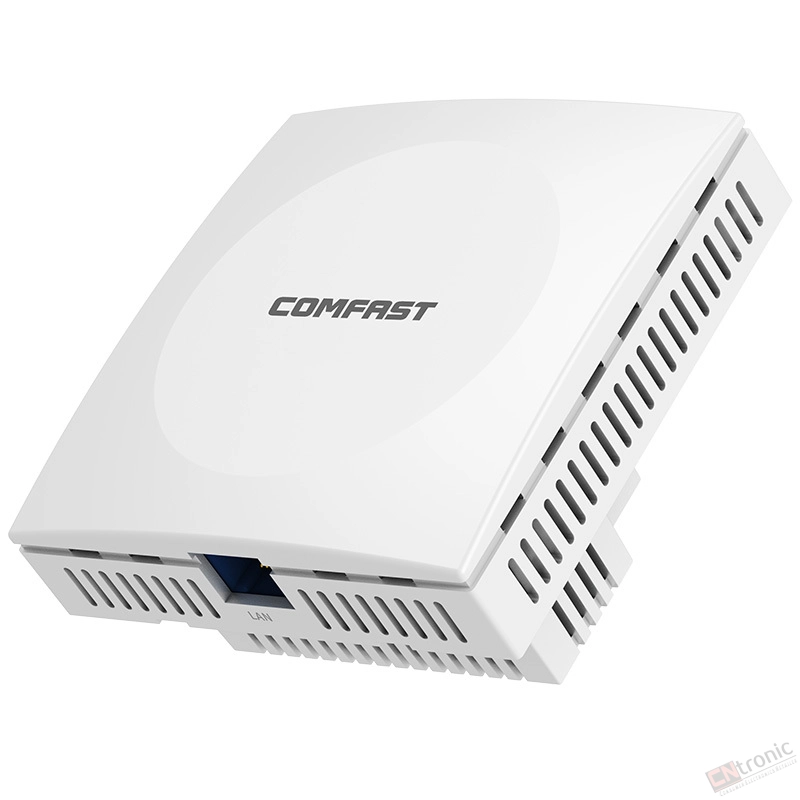

COMFAST Wifi 6 Wireless Panel Access Point AX1500 2.4/5.8G Gigabit Port Inwall AP Seamless Roaming OFDMA MU-MIMO Indoor Coverage

Wifi 6 Wireless Panel Access Point AX1500 2.4&5.8G RJ45 Gigabit Port Inwall AP Seamless Roaming OFDMA MU-MIMO Indoor Coverage

CF-E591AX is a 1500Mbps dual-band WiFi6 panel AP, supporting 2.4&5.8GHz, dual-band anti-interference, large-area coverage and seamless roaming characteristics. It is suitable for various indoor scenes, such as family villas, shopping malls and supermarkets, Hotels, corporate schools, conferences and exhibitions, etc.

Product performance advantages:

• AX1500 WiFi6 standard;

• Supports 802.11ax/a/b/g/n/ac protocol standards;

• 2.4GHz & 5.8GHz dual-band concurrent, automatic selection, allowing users to choose a frequency band with higher speed and less interference to access the Internet;

• 1500Mbps high-speed wireless transmission rate;

• Lower latency, multiple users can transmit data simultaneously;

• Strong anti-interference, alleviating interference problems on the same channel;

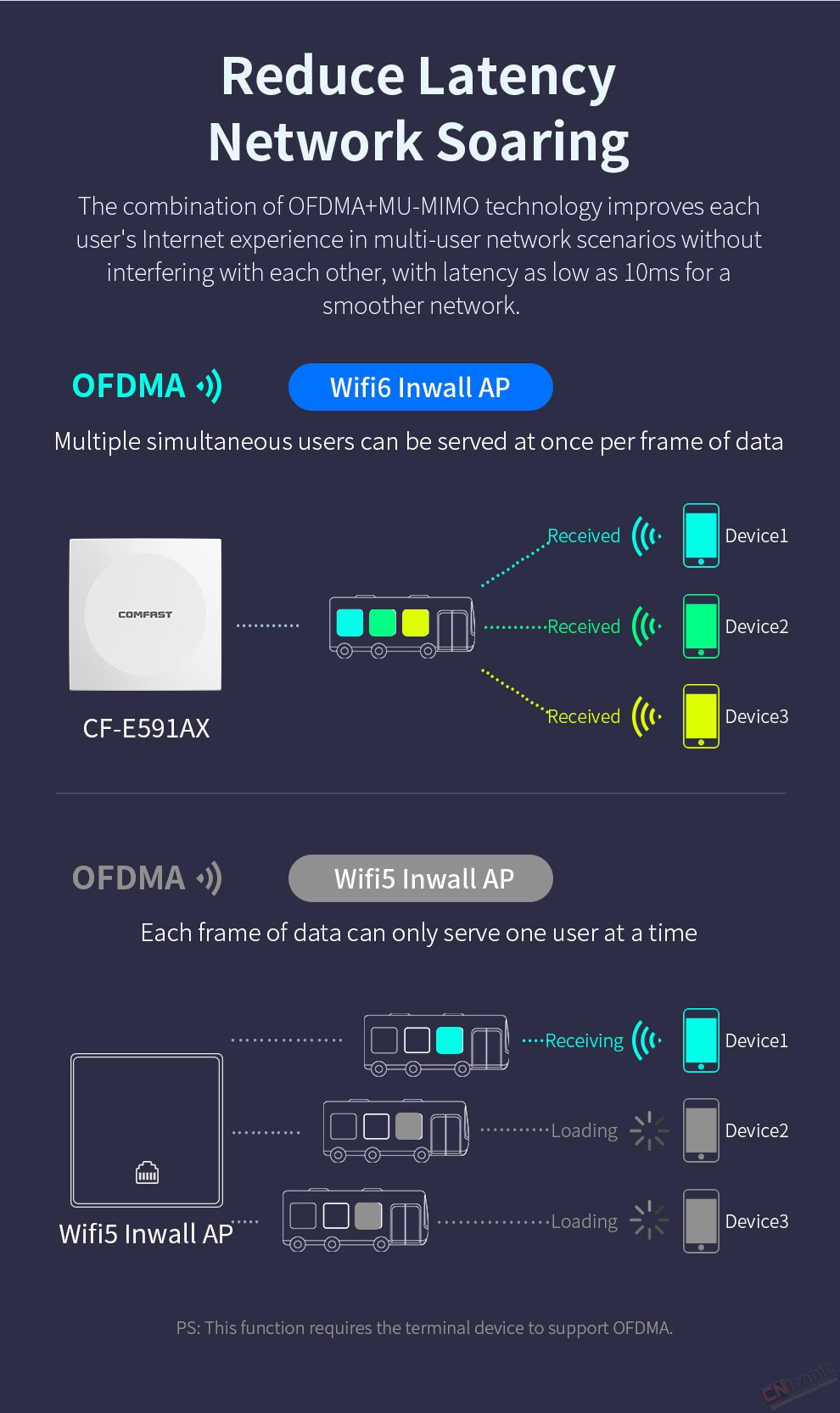

• Supports ULMU-MIMO and OFDMA technology, high concurrency and wide coverage;

• Effectively improves coverage compared to WiFi5;

• Support 48V standard POE power supply;

• Full Gigabit network port, standard 86 type design;

• A wide range of applicable scenarios, including homes, businesses, schools, conference rooms, hotels and other places;

• Elegant and beautiful, easily integrated into different decoration environments;

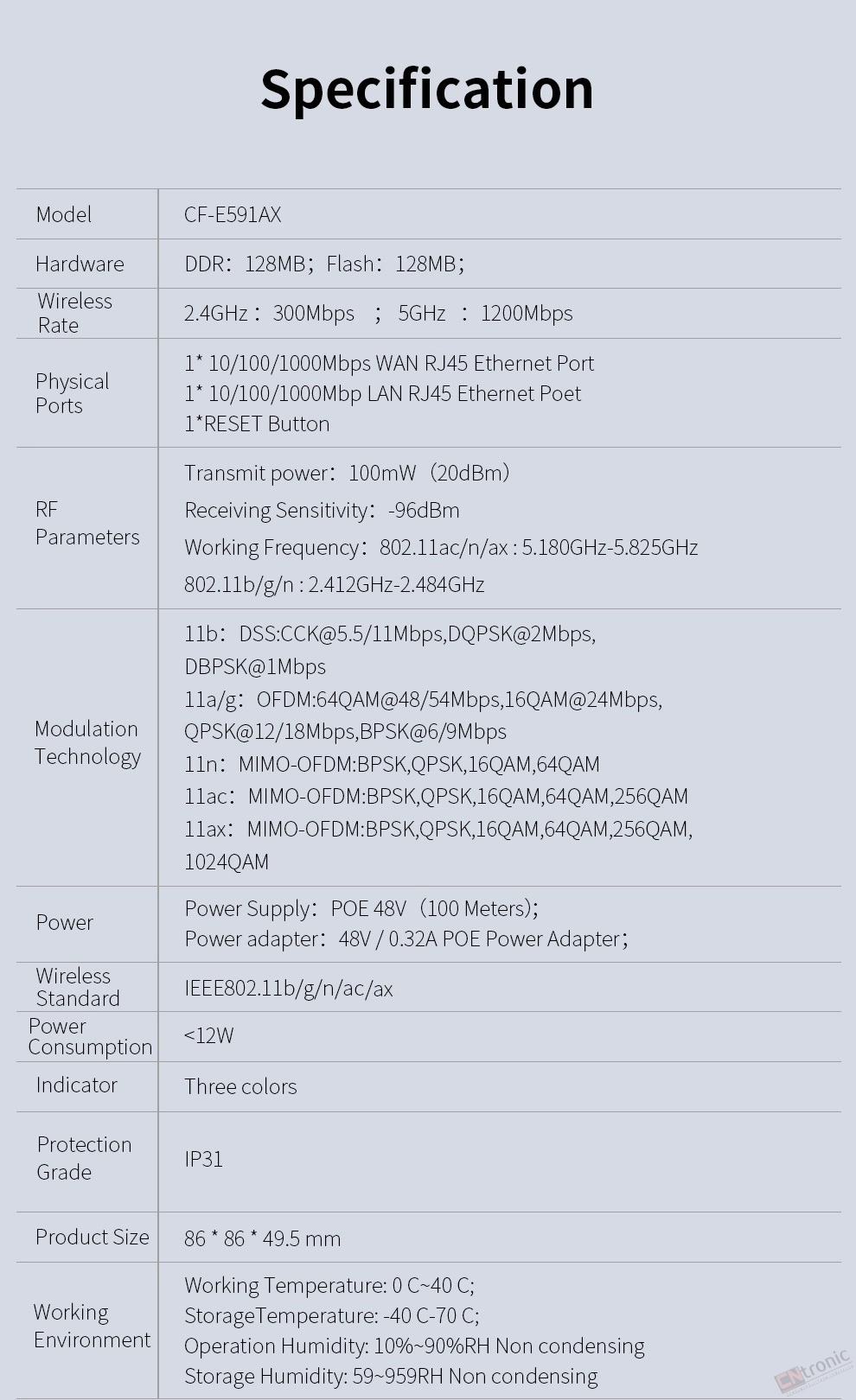

Specification：

Hardware Specifications：DDR: 128MB

Antenna：2*3dBi Internal Antennas

Wireless Standards：IEEE802.11a/b/g/n/ac/ax Standard

Output Power(Max): 100mW(20dBm)

Receiving Sensitivity(Min): -96dBm

IP Index：IP31

OFDM:64QAM@48/54Mbps,16QAM@24Mbps,QPSK@12/18Mbps,

BPSK@6/9Mbps

11n：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM

11ac：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM

11ax：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM

Transmission Rate：

802.11ac/n/ax : 5.1

80GHz-5.825GHz

802.11b/g/n : 2.412GHz-2.484GHz

2.4GHz ：300Mbps；5GHz ：1200Mbp

Physical Ports：

1* 10/100/1000Mbps WAN RJ45 Port; Support 48V POE

1* 10/100/1000Mbps LAN RJ45 Port

Power：

Power Supply: 802.3af/802.3at POE Power Supply(0-100m)

Power Adapter: 48V 0.32A PoE Power

Working Environment：

Working Temperature: 0 C~40 C;

Storage Temperature: -40 C~70 C;

Operation Humidity: 10%~90%RH Non-condensing;

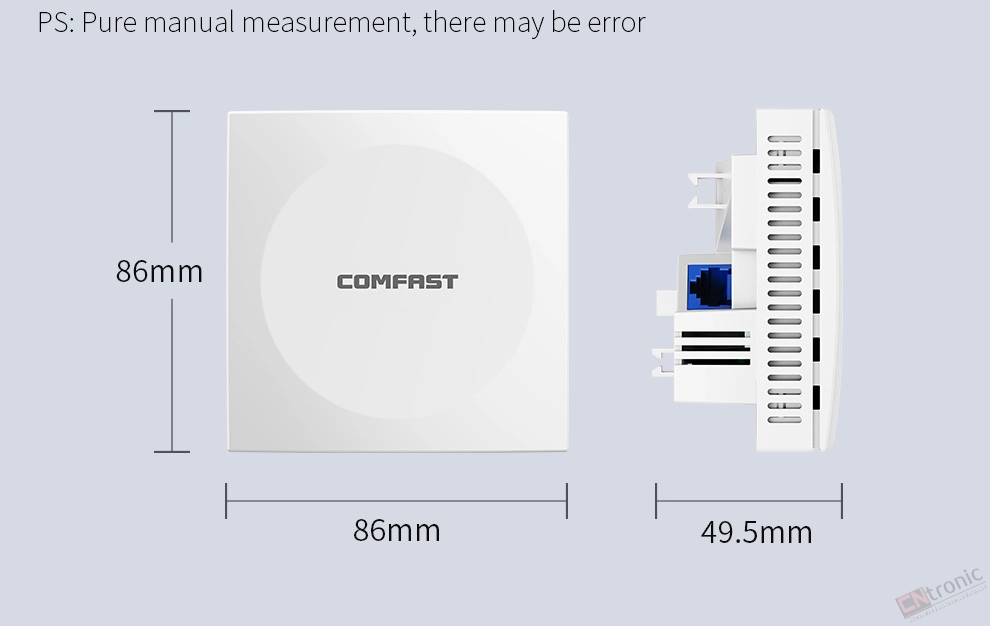

Size: 86*86*49.35mm;

Storage Humidity: 5%~90%RH Non-condensing

Packing list:

1*AX1500 Wifi 6 Indoor In-Wall AP

1*Instruction manual

Note： The wall AP need connected with 48V poe switch or 48v poe adapter , if your home do not have 48V poe switch or 48V poe adapter , please order this 48v poe adapter with ap together. thanks

48v poe adapter link：

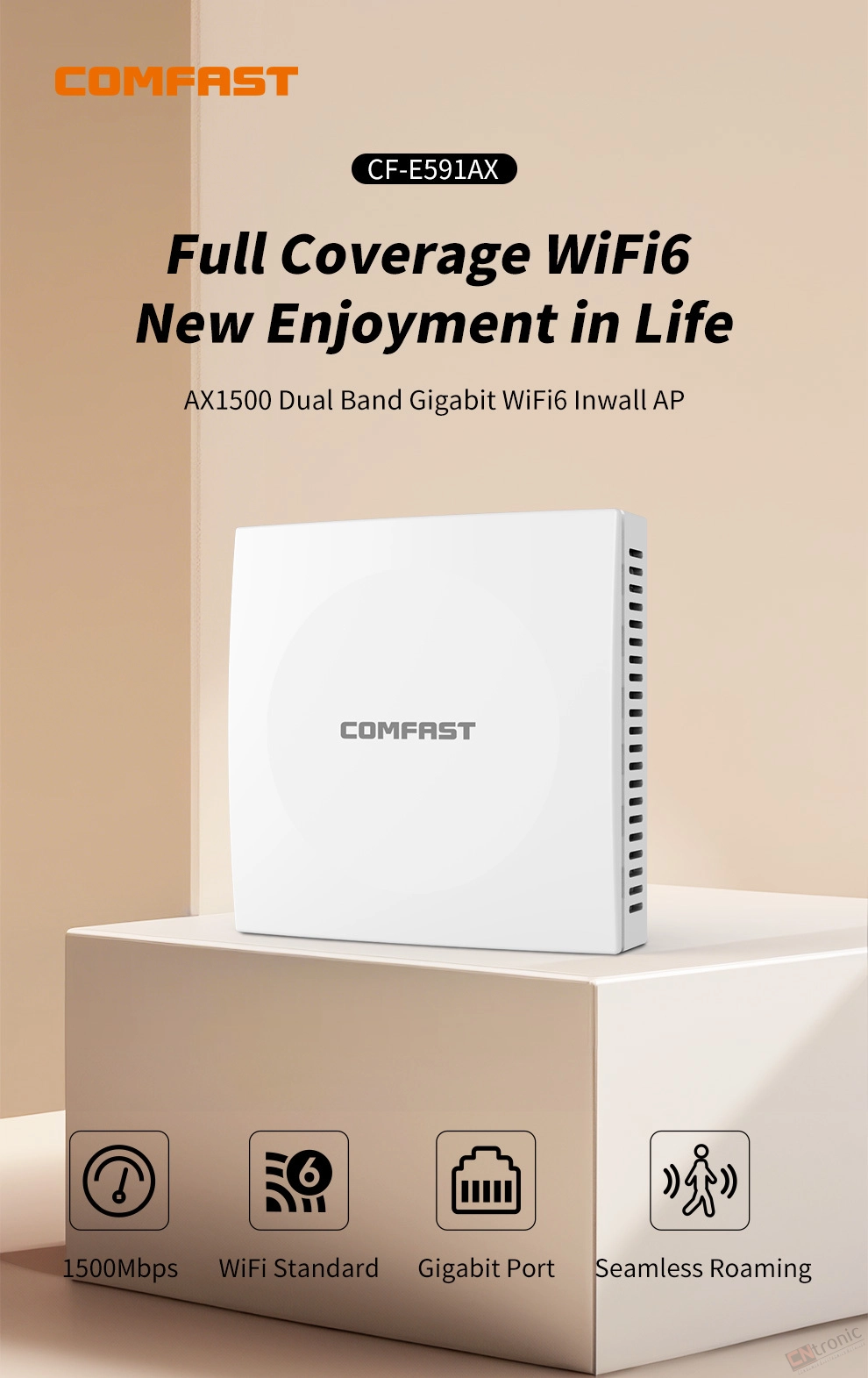

CF-E591AX

Full Coverage WiFi6New Enjoyment in Life

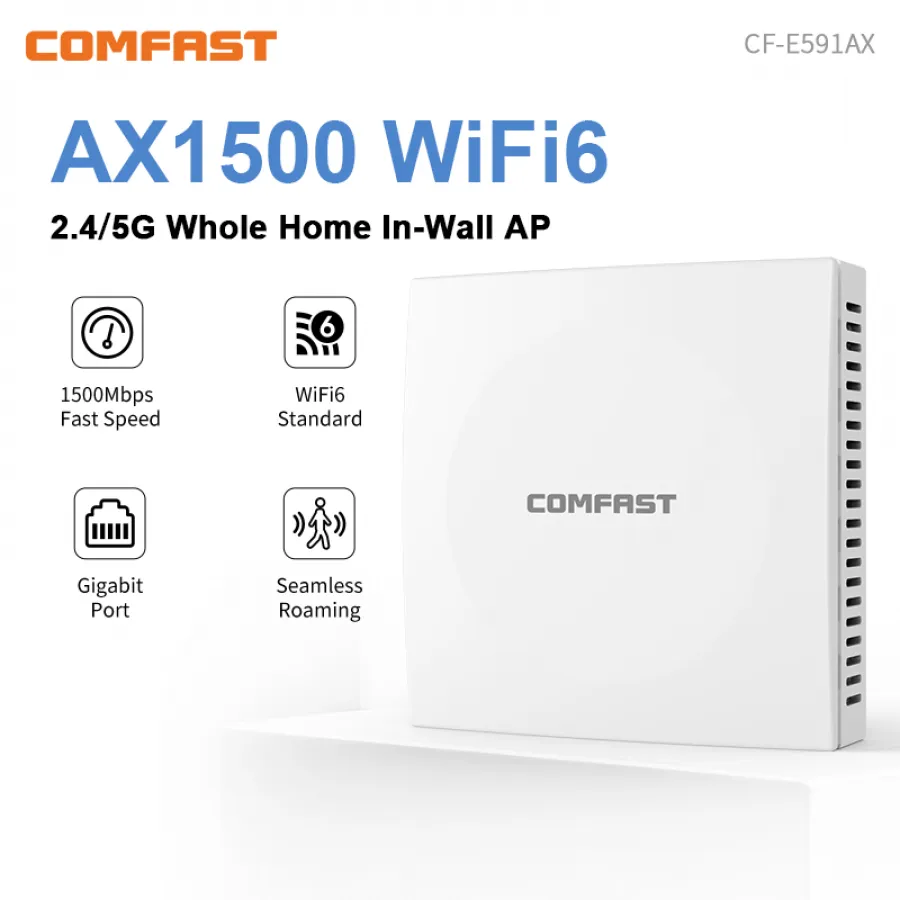

AX1500 Dual Band Gigabit WiFi6 Inwall AP

1500Mbps；WiFi6 Standard；Gigabit Port；Seamless Roaming

Efficient Coverage，Enjoy Wifi

New generation of wifi6 technology,stronger performance, better experience

Branded Chips

Dual Band

1500Mbps

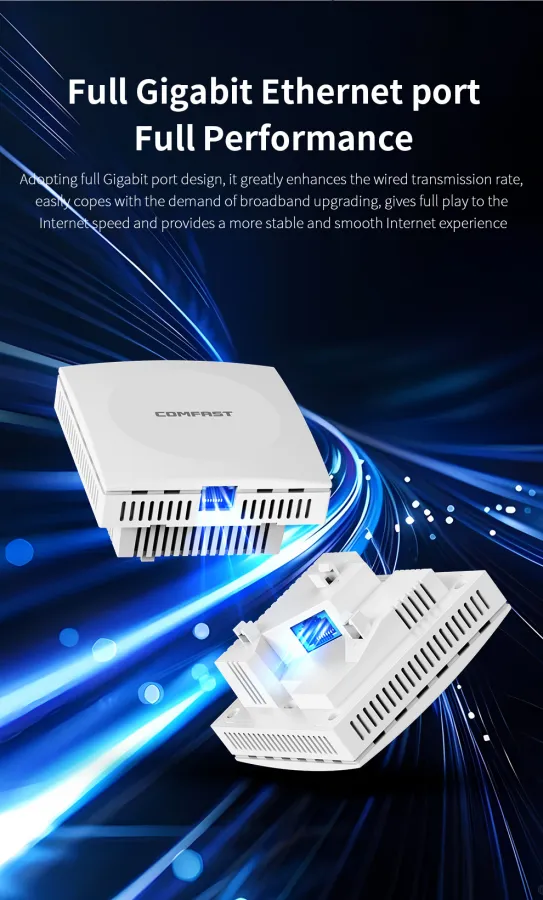

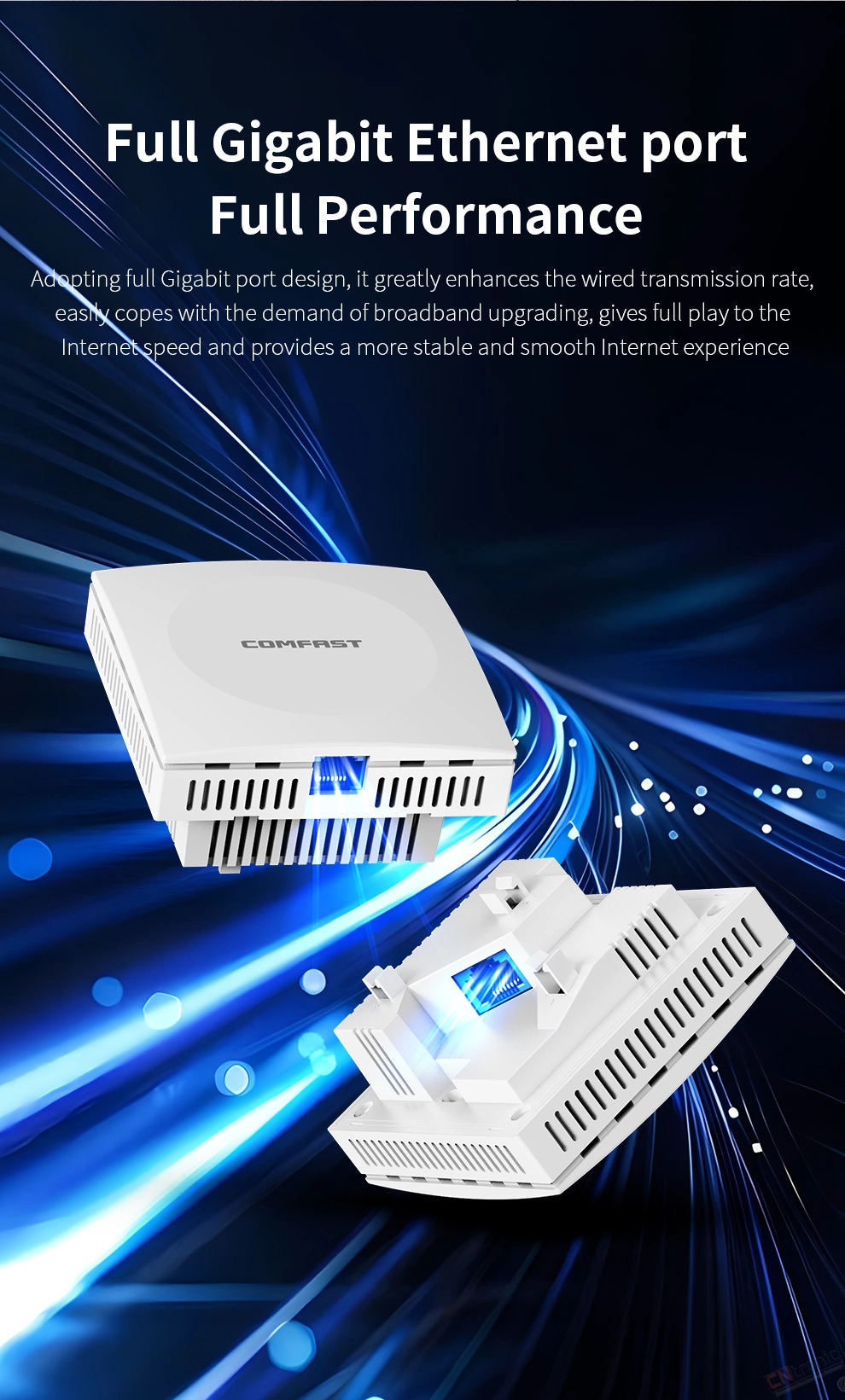

Gigabit Port

Poe Power Supply

Standard 86 Panel

Support OFDMA

MU-MIMO

TWT Technology

Seamless Roaming

Remote Management

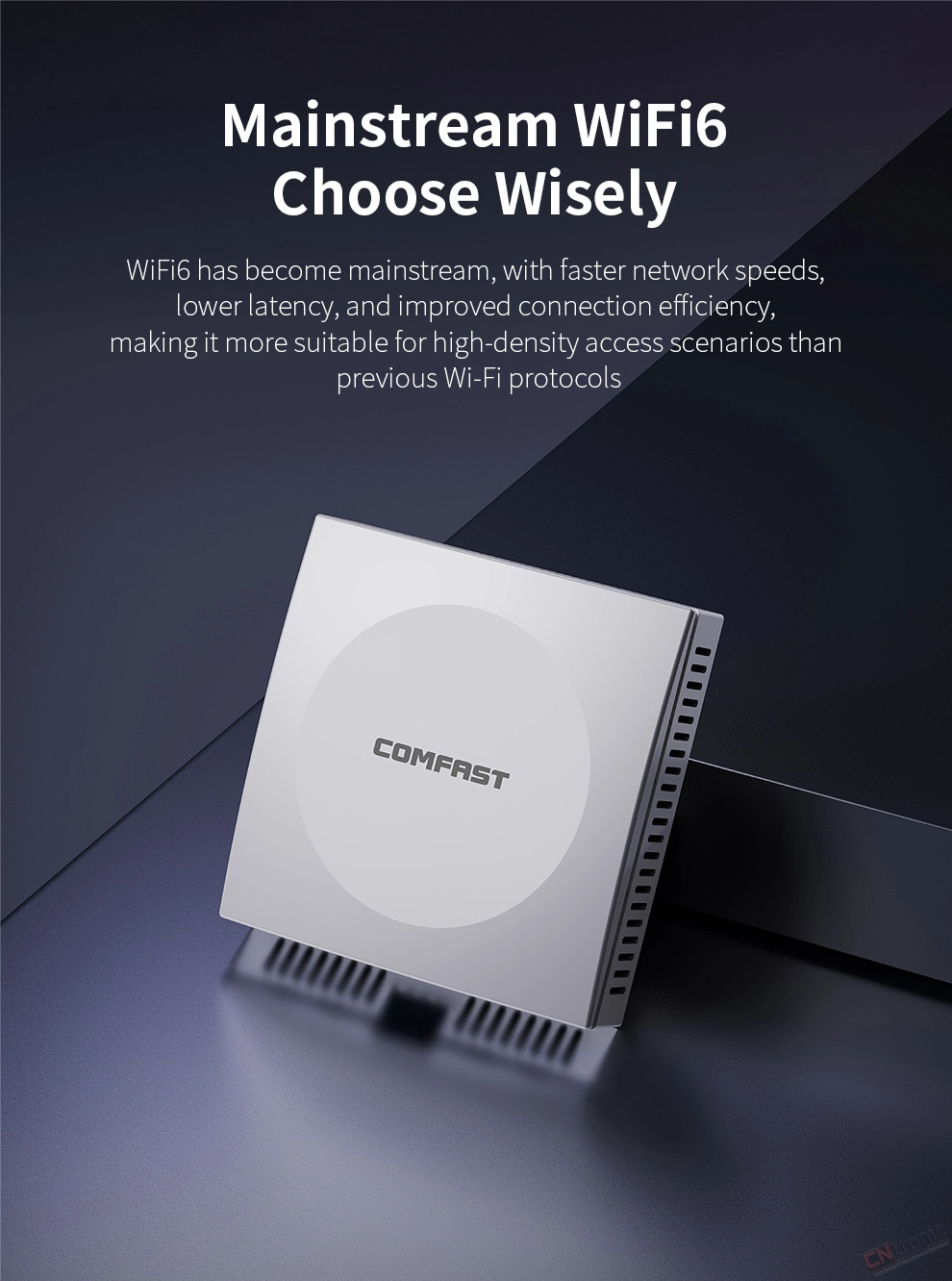

Mainstream WiFi6，Choose Wisely

WiFi6 has become mainstream, with faster network speeds,lower latency, and improved connection efficiency,making it more suitable for high-density access scenarios thanprevious Wi-Fi protocols

Powerful Tri-Core，Power Engine

Branded triple-core CPU program, the performance of each enhancement,high-speed processing of data transmission and forwarding, full of power,to maintain the network from the beginning to the end of the stable

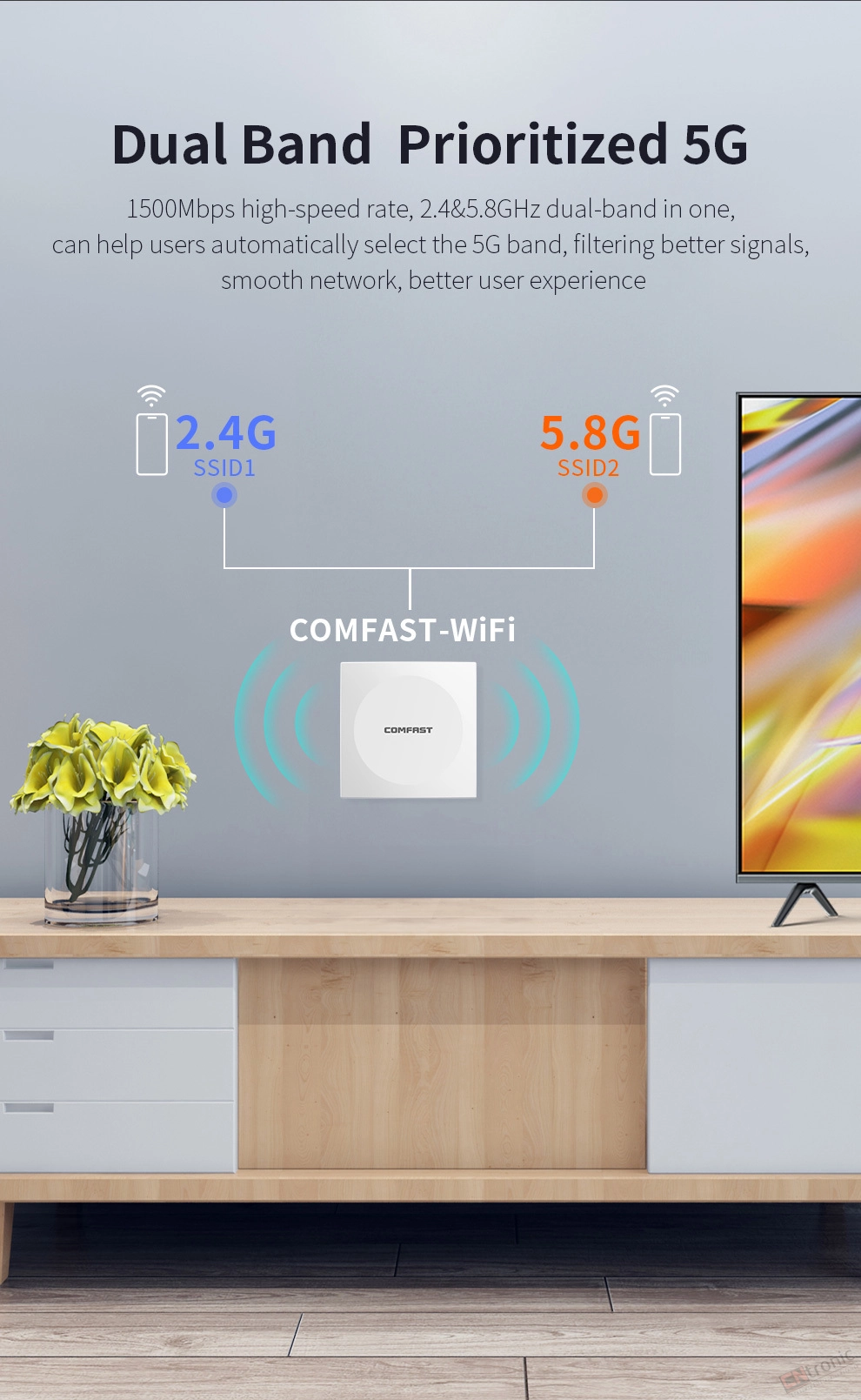

Dual Band Prioritized 5G

1500Mbps high-speed rate, 2.4&5.8GHz dual-band in one,can help users automatically select the 5G band, filtering better signals,smooth network, better user experience

Dual Band Prioritized 5G

1500Mbps high-speed rate, 2.4&5.8GHz dual-band in one,can help users automatically select the 5G band, filtering better signals,smooth network, better user experience

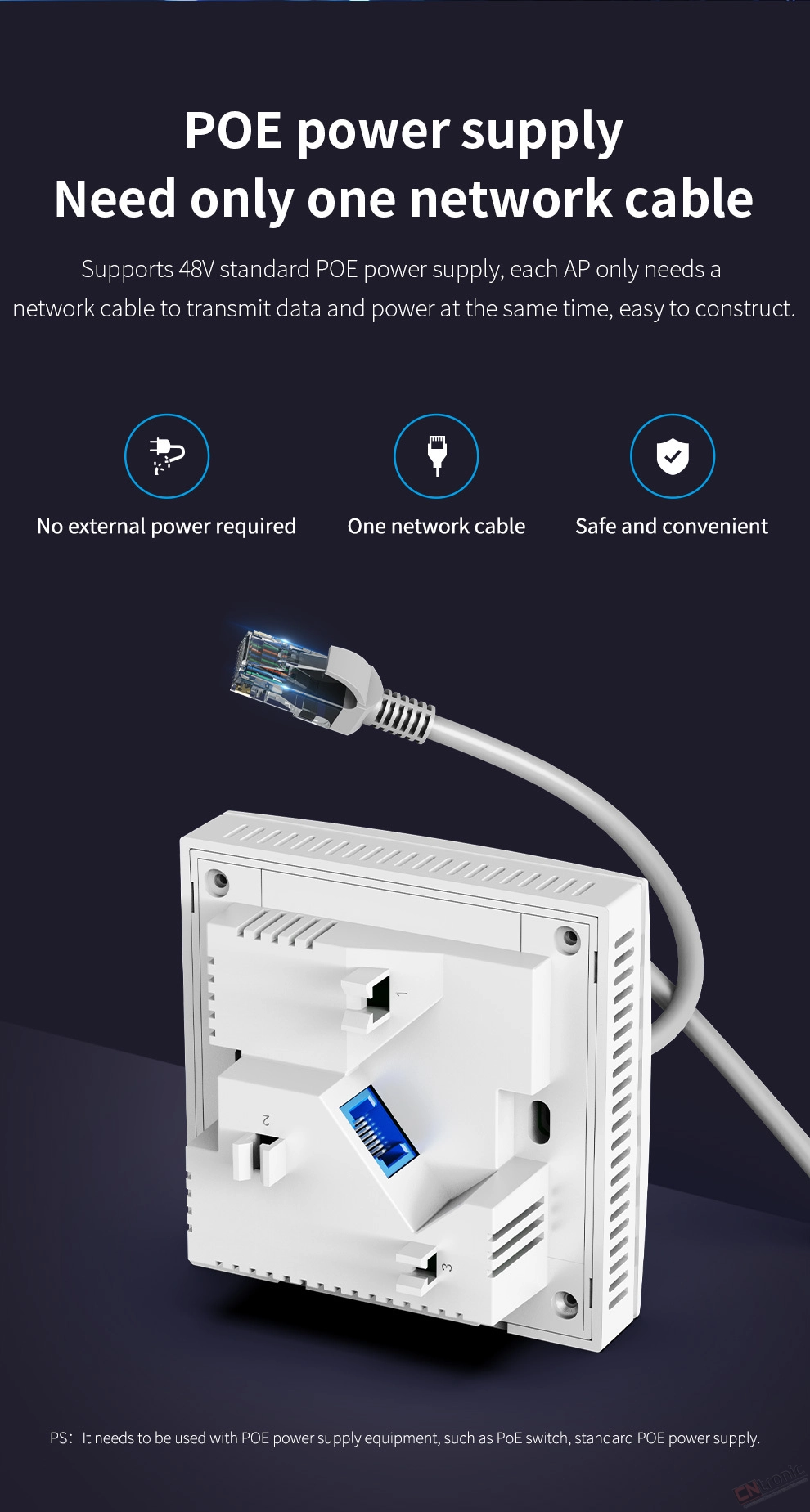

POE power supply，Need onlyone network cable

Supports 48V standard POE power supply, each AP only needs anetwork cable to transmit data and power at the same time, easy to construct.

No external power required

One network cable

Safe and convenient

PS: It needs to be used with POE power supply equipment, such 285 PoE switch. standard POE power supply.

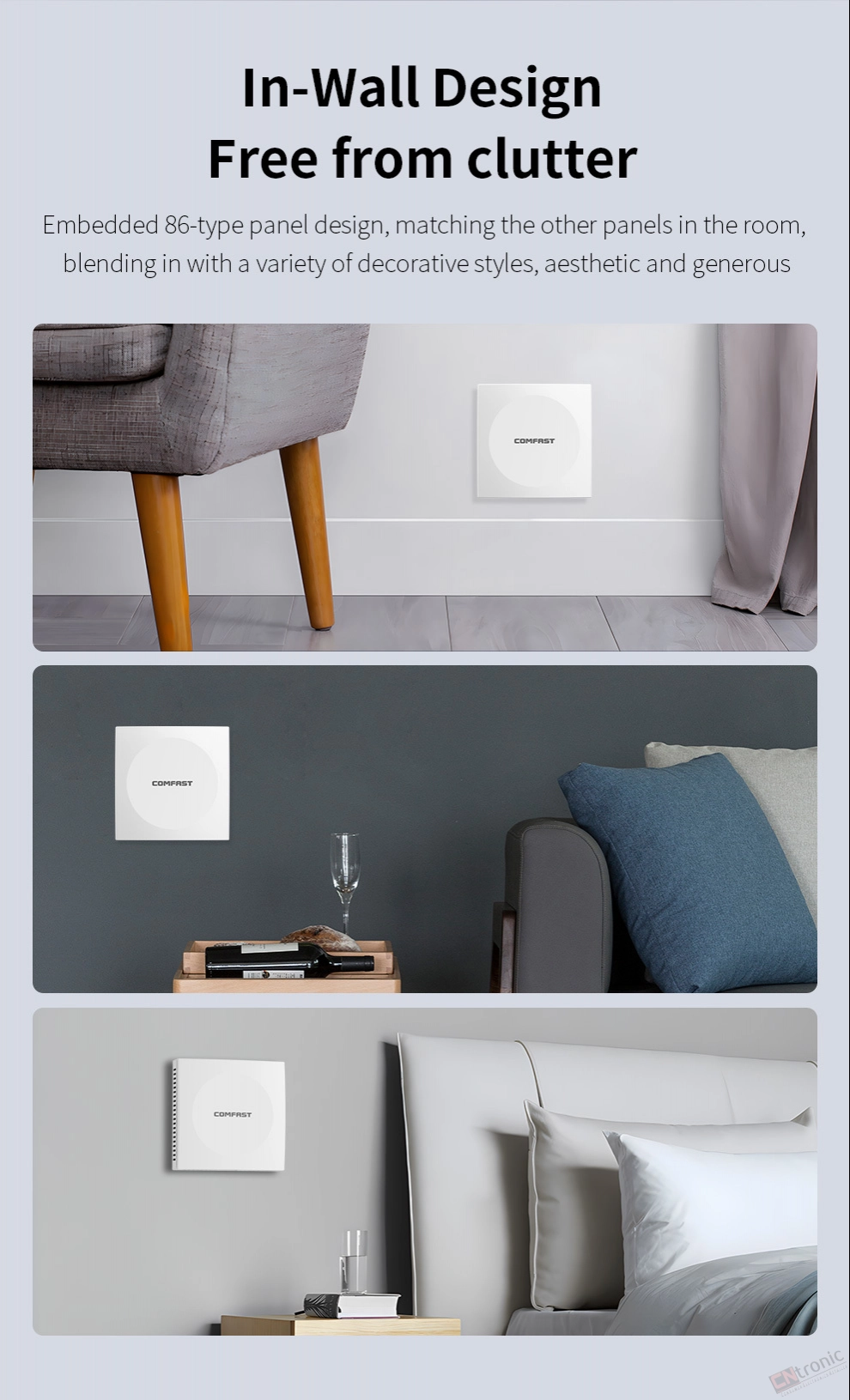

In-Wall Design，Free from clutter

Embedded 86-type panel design, matching the other panels in the room,blending in with a variety of decorative styles, aesthetic and generous

In-Wall Design，Free from clutter

Embedded 86-type panel design, matching the other panels in the room,blending in with a variety of decorative styles, aesthetic and generous

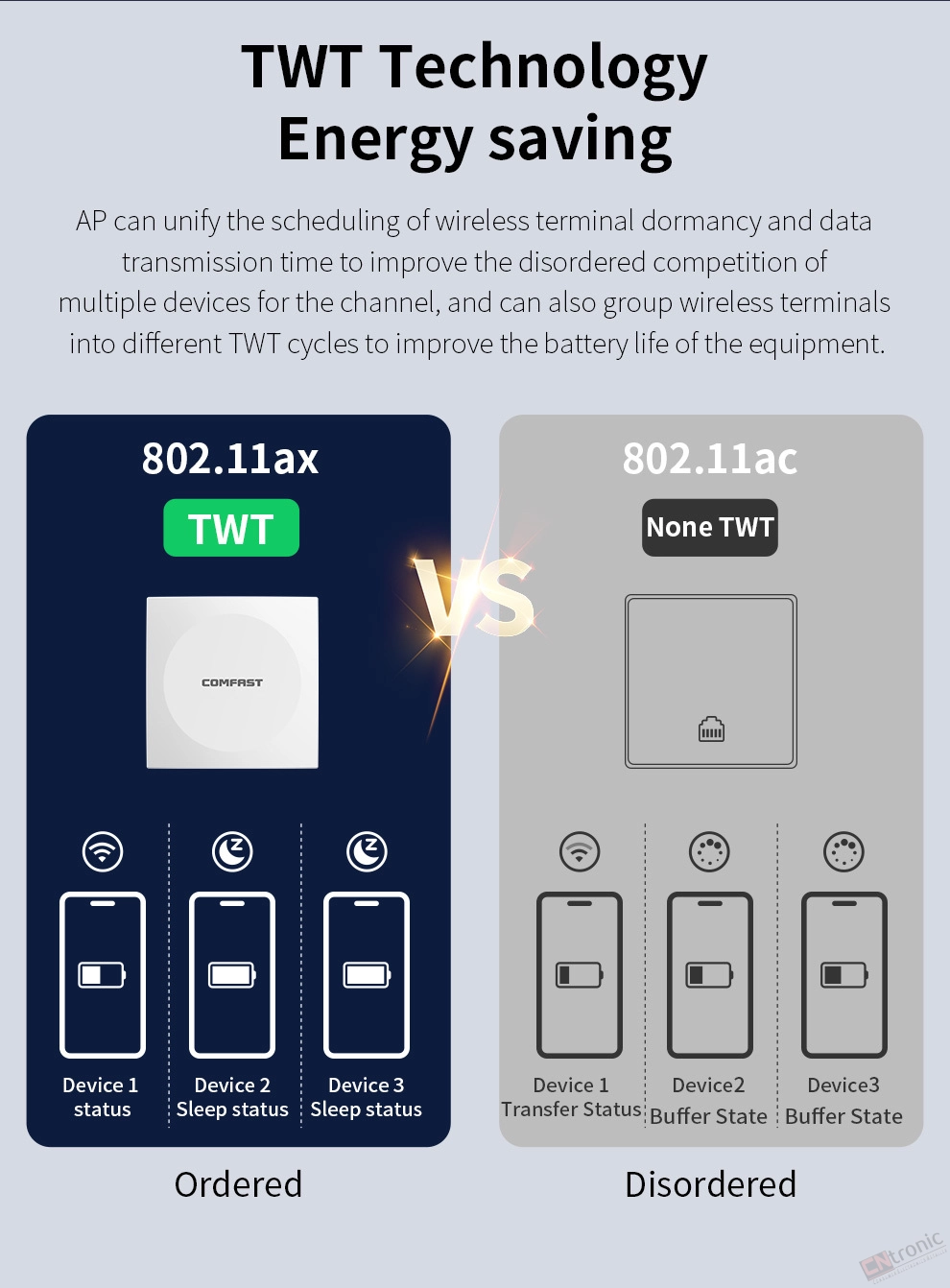

TWT Technology，Energy saving

AP can unify the scheduling of wireless terminal dormancy and data transmission time to improve the disordered competition ofmultiple devices for the channel, and can also group wireless terminalsinto different TWT cycles to improve the battery life of the equipment.

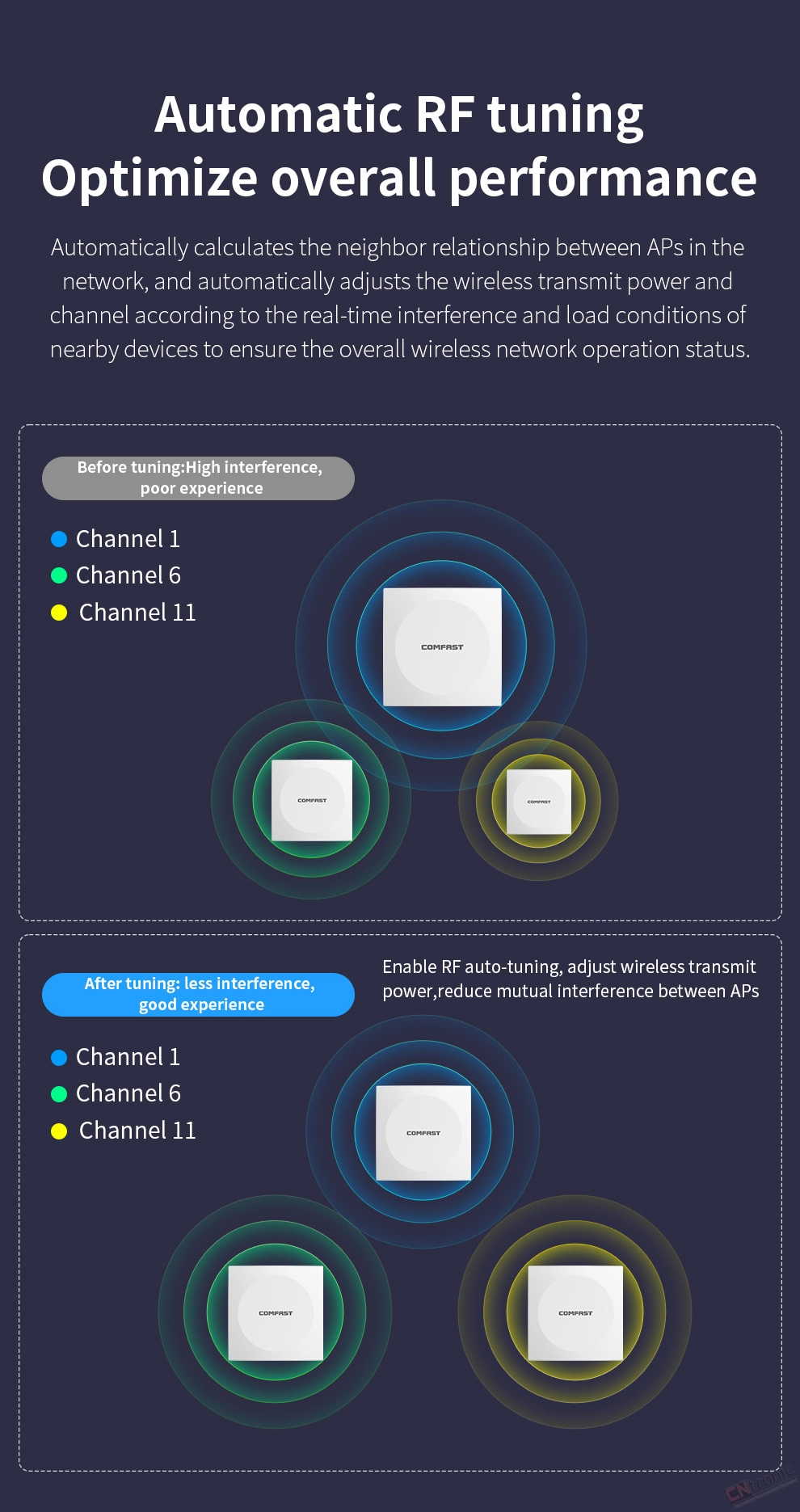

Automatic RF tuning，Optimize overall performance

Automatically calculates the neighbor relationship between APs in thenetwork, and automatically adjusts the wireless transmit power andchannel according to the real-time interference and load conditions ofnearby devices to ensure the overall wireless network operation status.

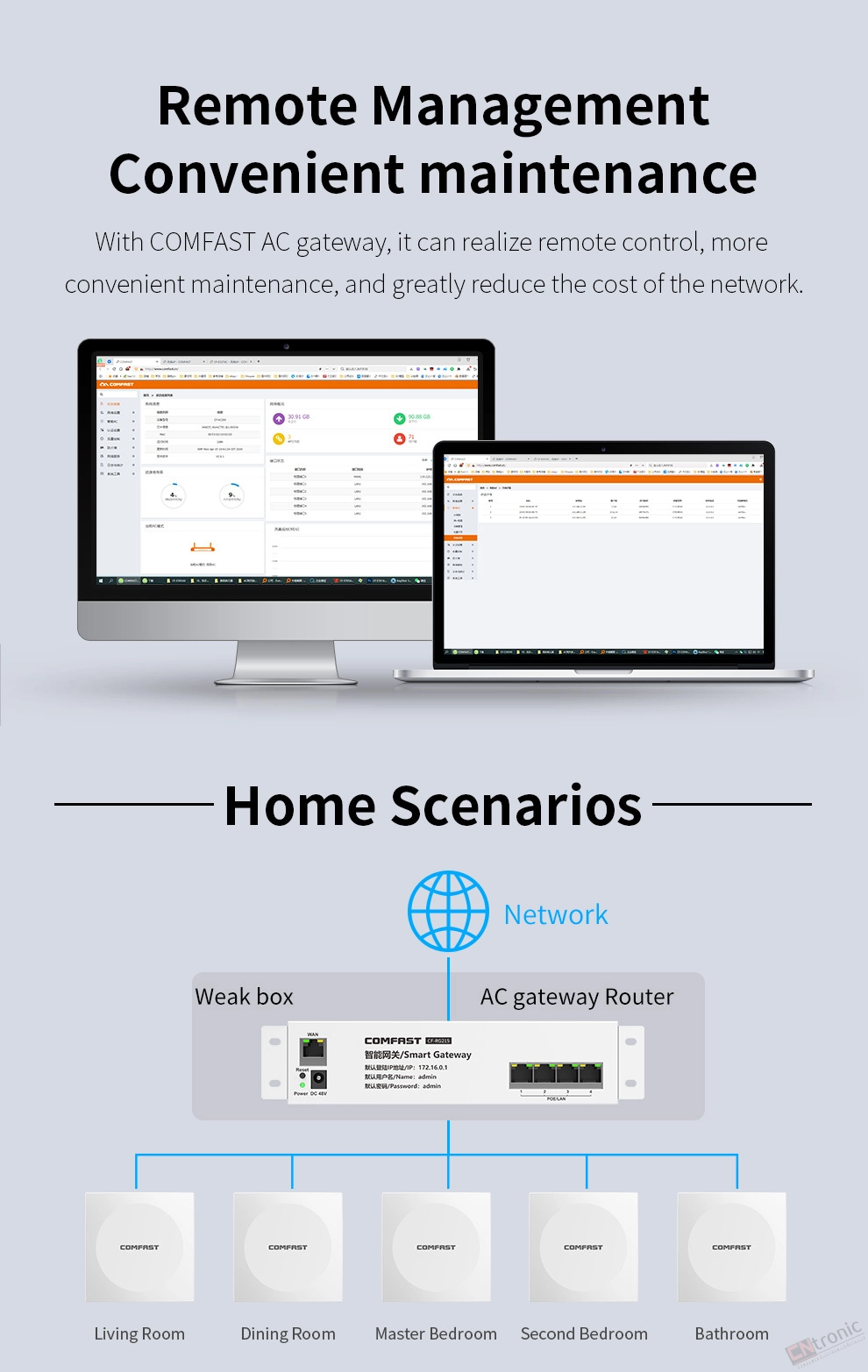

Remote Management，Convenient maintenance

With COMFAST AC gateway, it can realize remote control, moreconvenient maintenance, and greatly reduce the cost of the network.

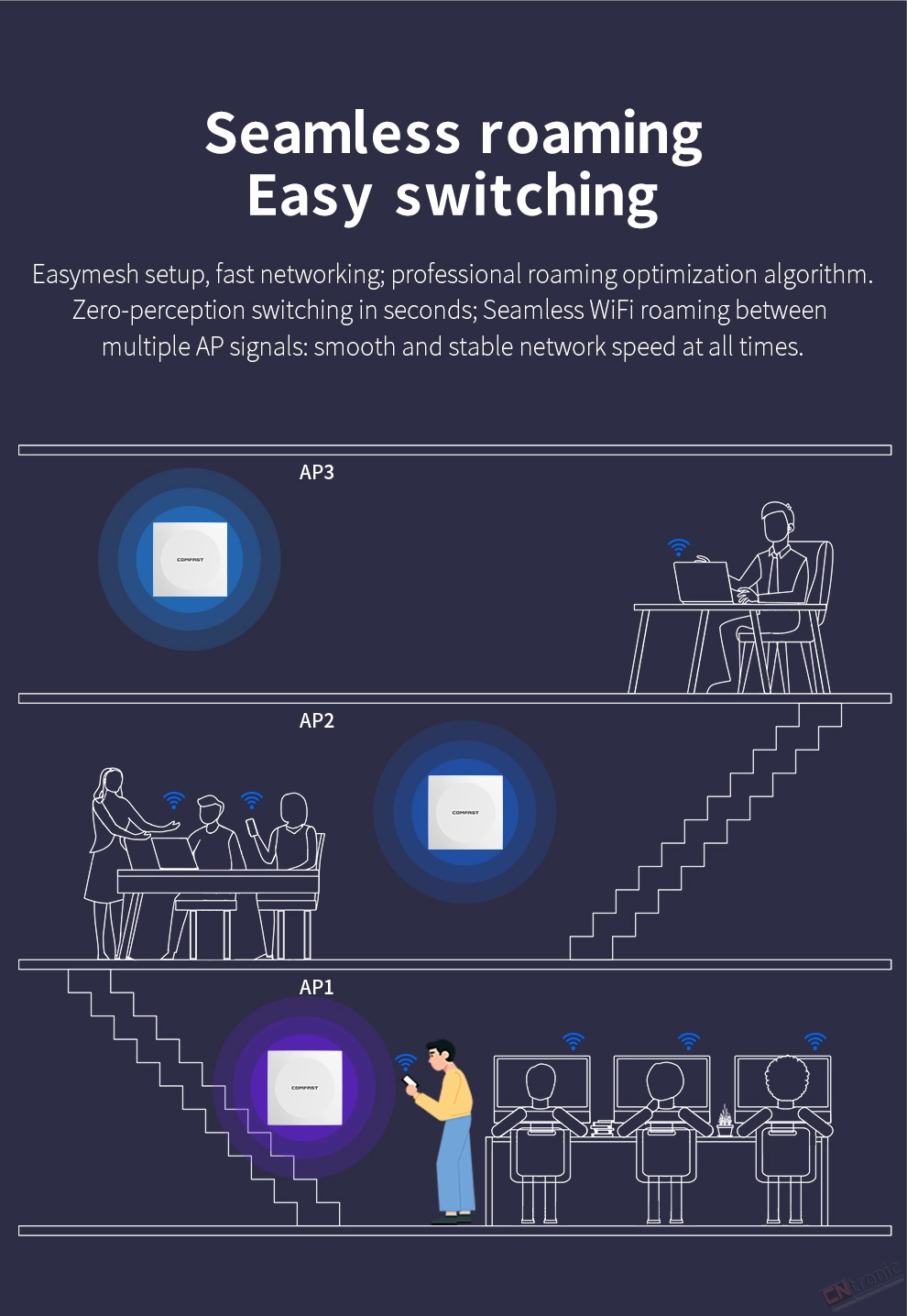

Seamless roaming ，Easy switching

Easymesh setup, fast networking; professional roaming optimization algorithm.Zero-perception switching in seconds; Seamless WiFi roaming betweenmultiple AP signals: smooth and stable network speed at all times.

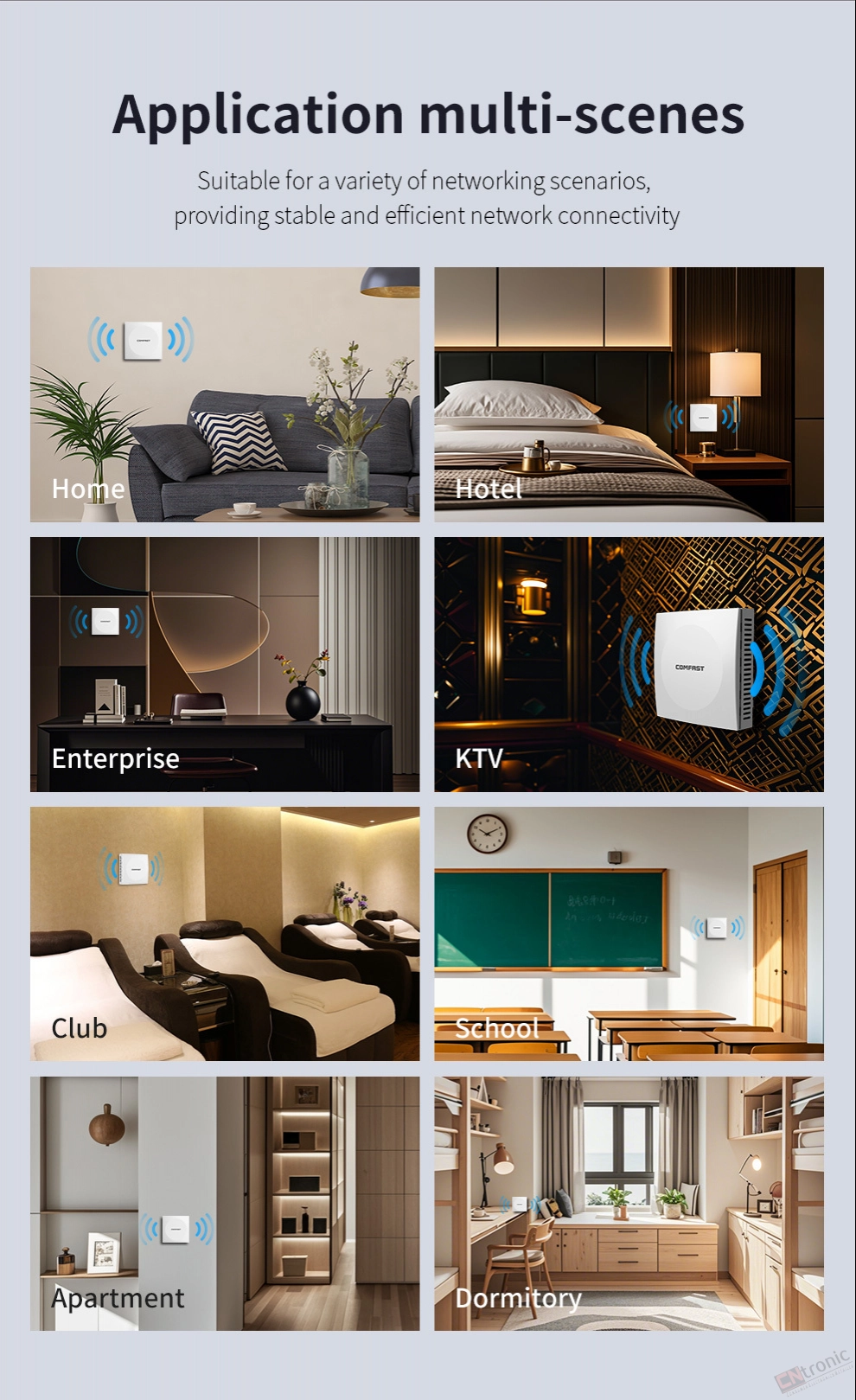

Application multi-scenes

Suitable for a variety of networking scenarios,providing stable and efficient network connectivity

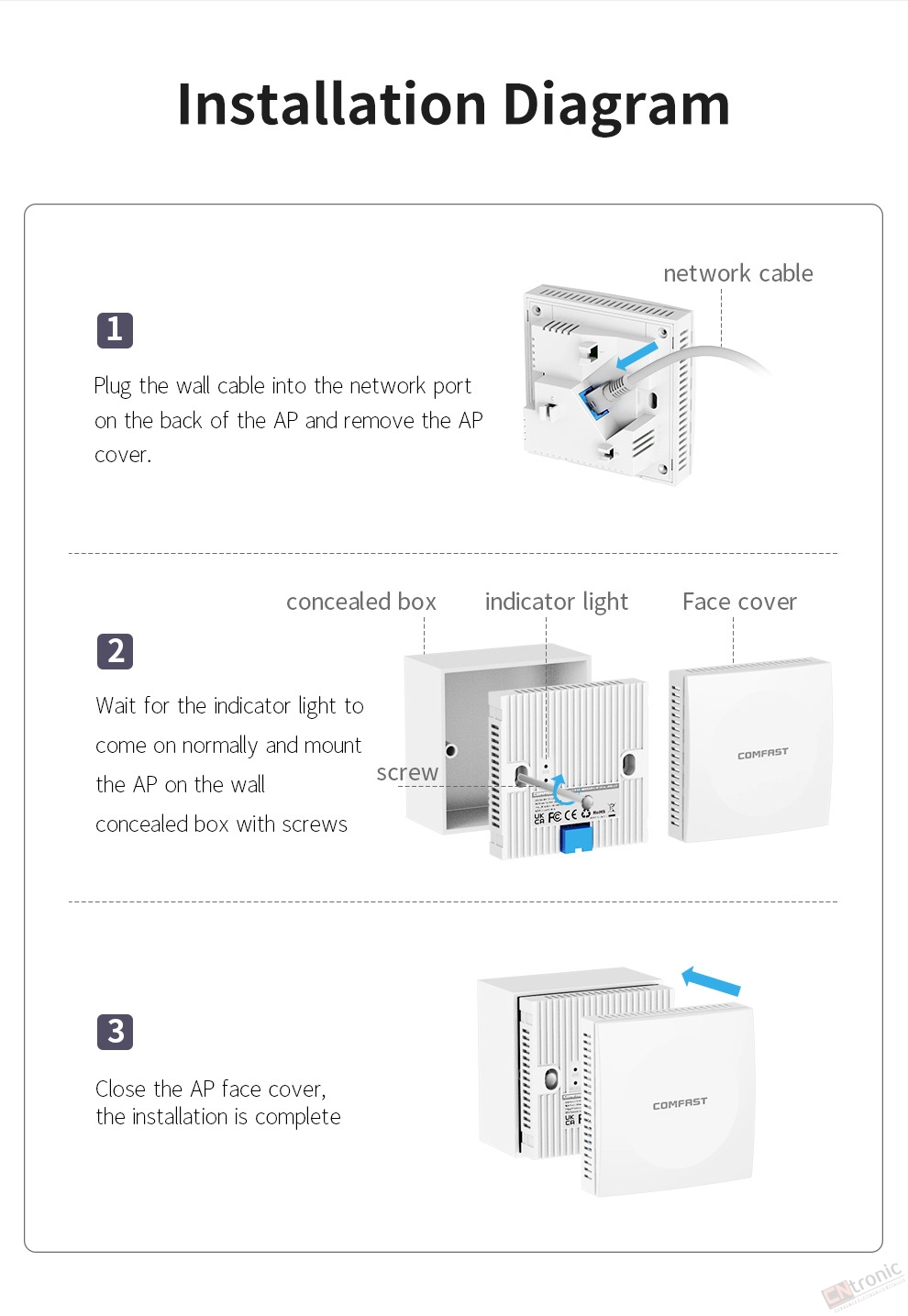

Installation Diagram

network cable

1、Plug the wall cable into the network porton the back of the AP and remove the AP

cover.

2、Wait for the indicator light tocome on normally and mountthe AP on the wallconcealed box with screws

3、Close the AP face cover,the installation is complete
