Bluetooth 5.0 MP3 Decoder Decoding Board Module 5 v 12v Car USB MP3 Player WMA WAV TF Card Slot / USB / FM Remote Board Module

4.6 (205 votes) | 459 orders
Price: US $20.36 / piece
Discount Price:
US $ 15.21 / piece
-25%
Color
Quantity

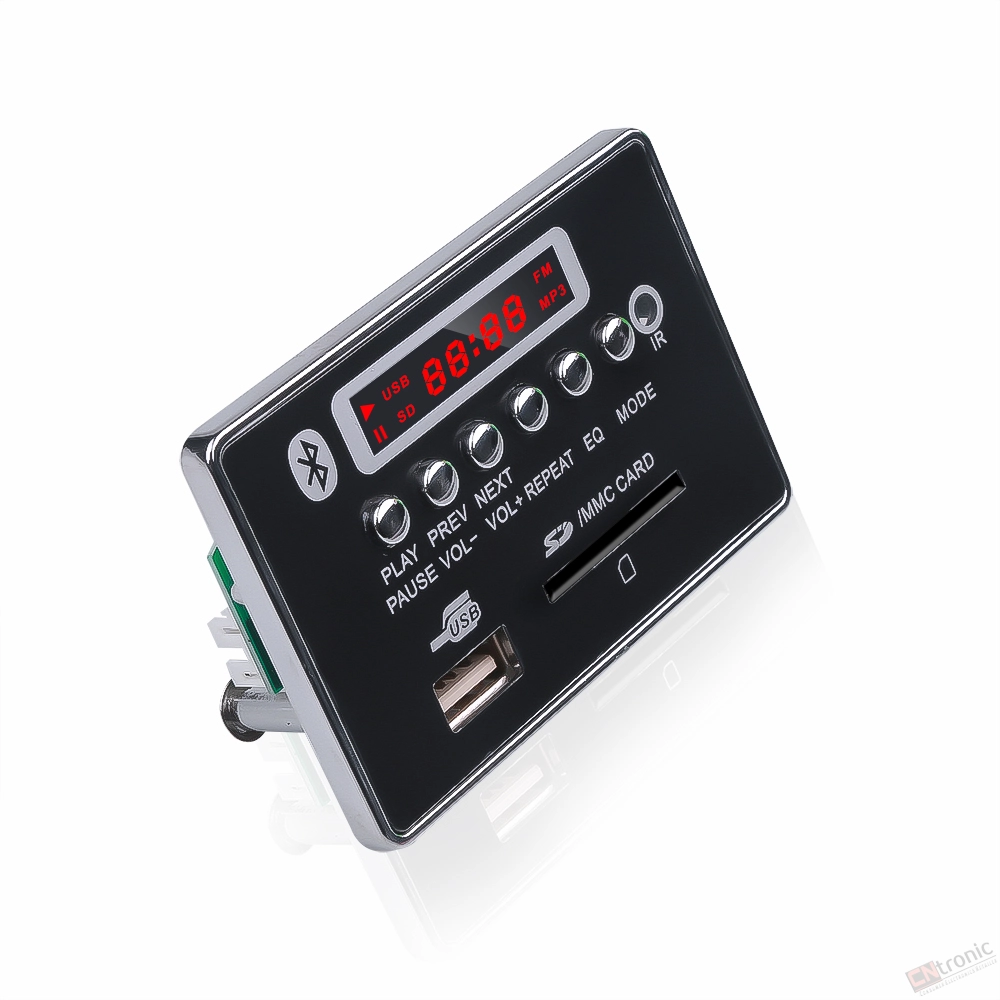

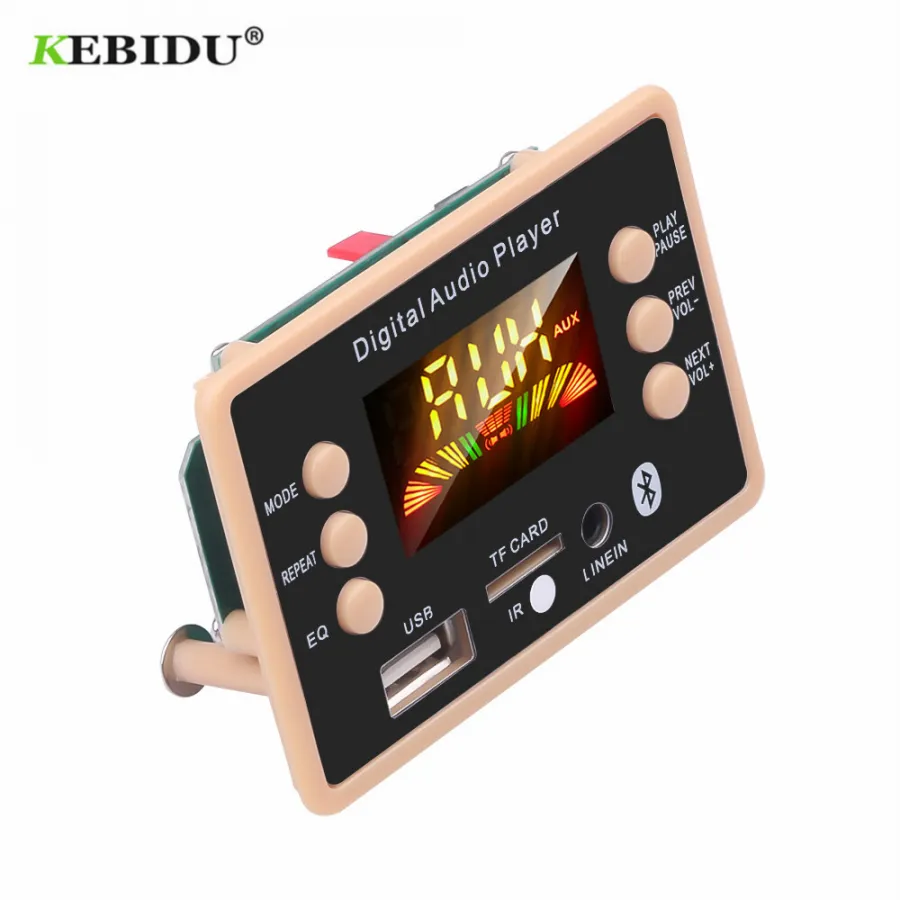

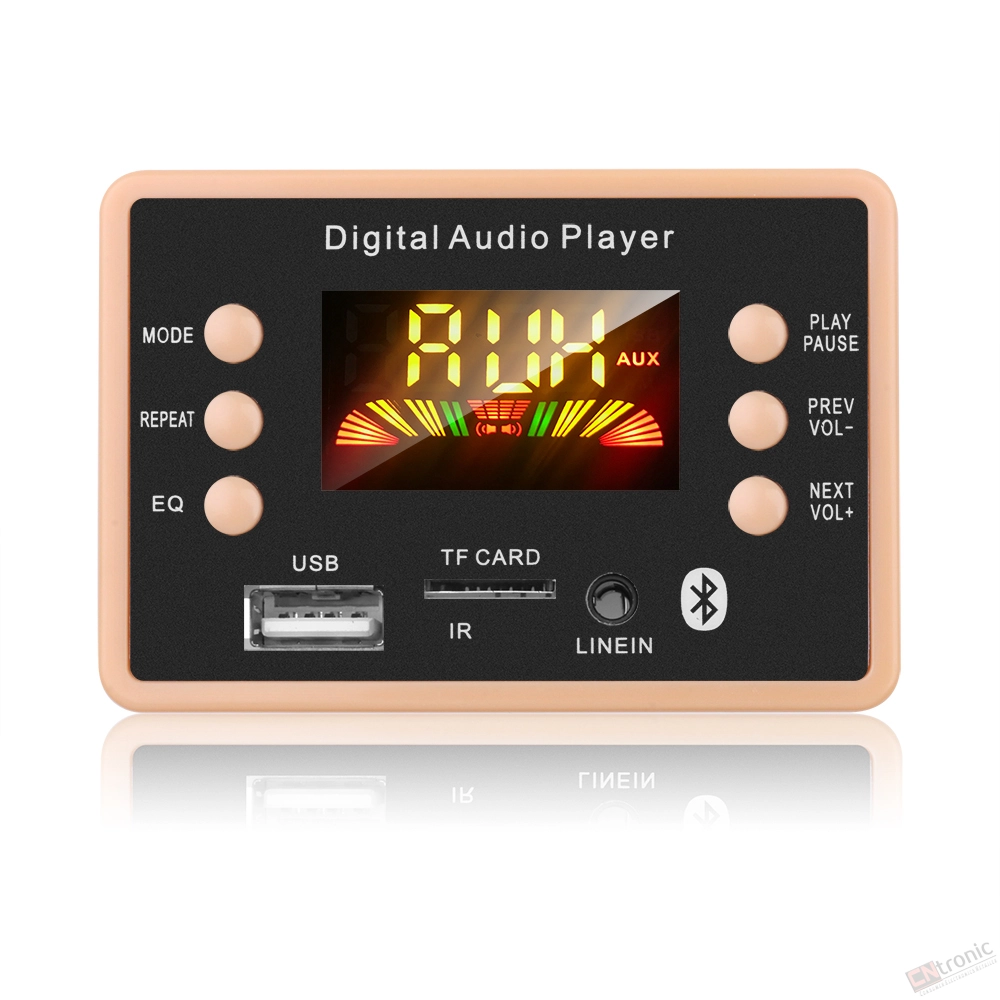

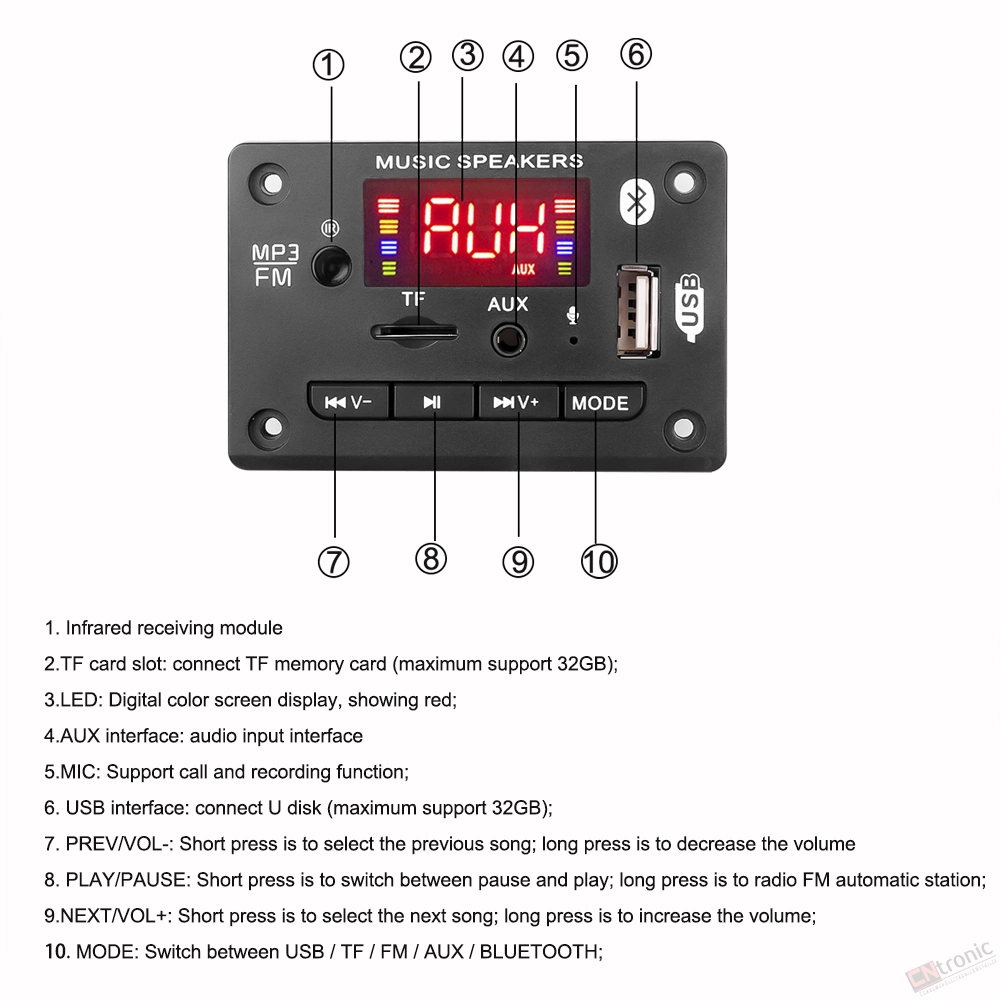

Feature:

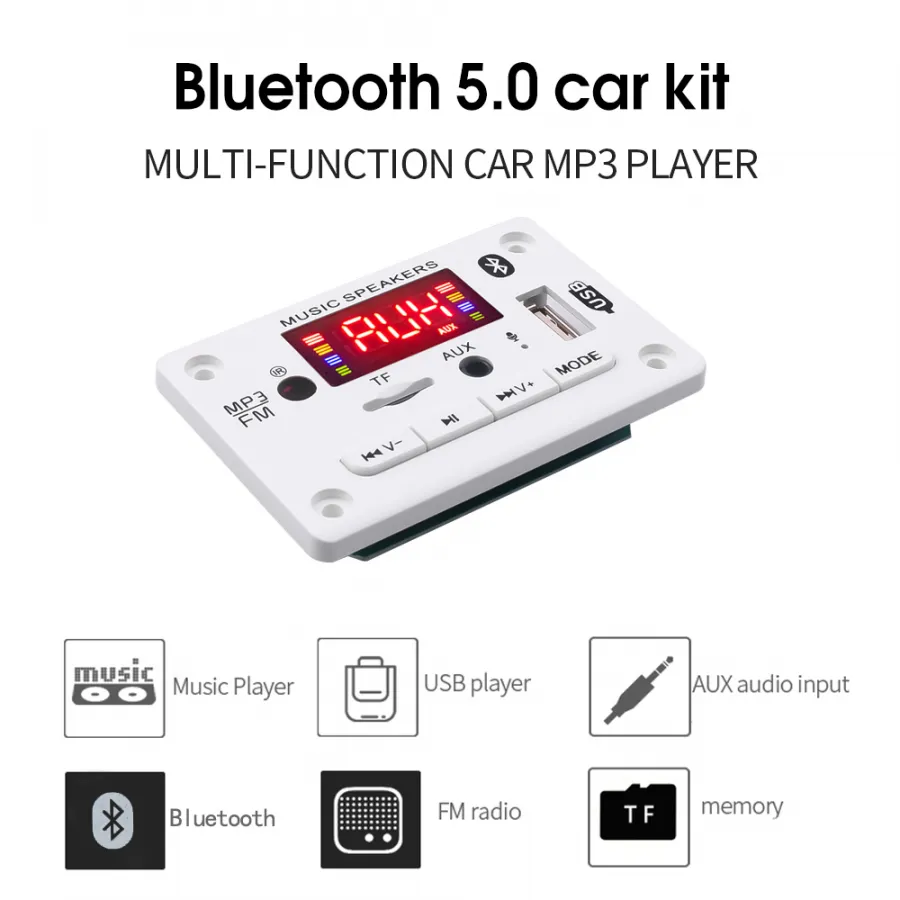

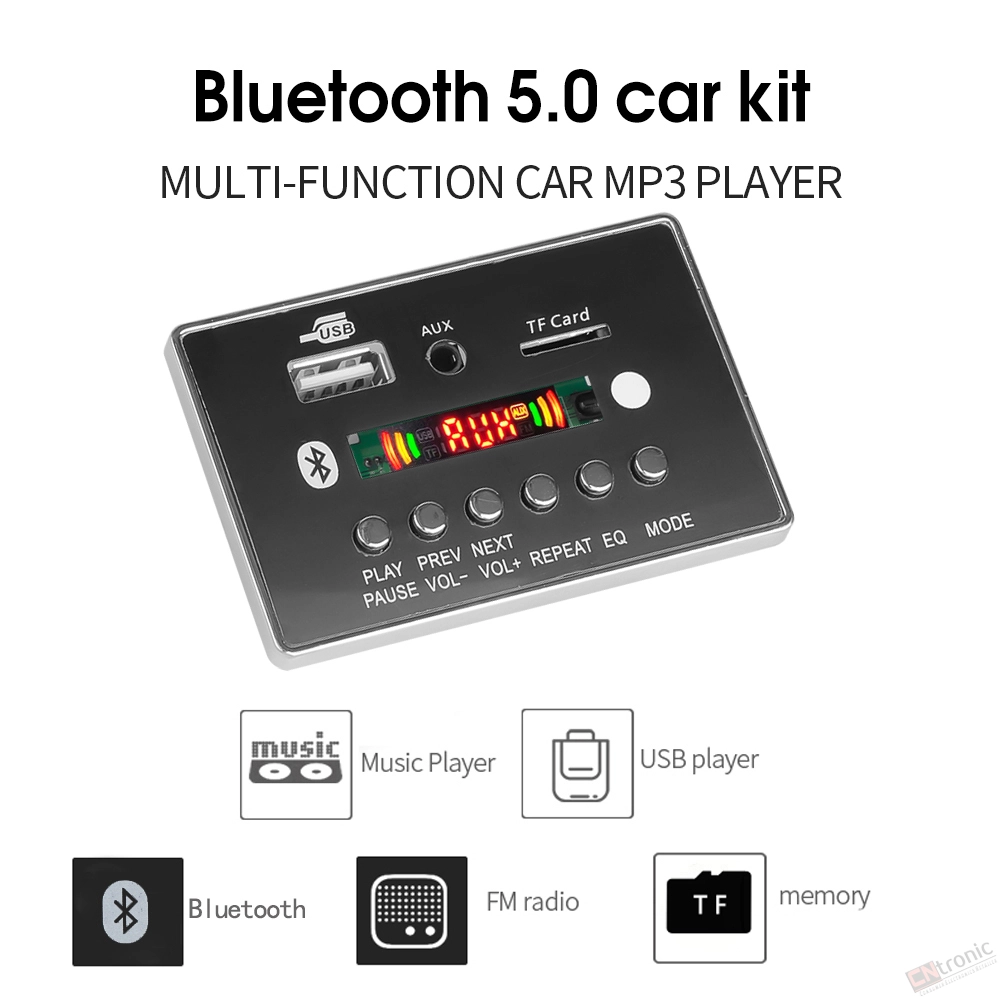

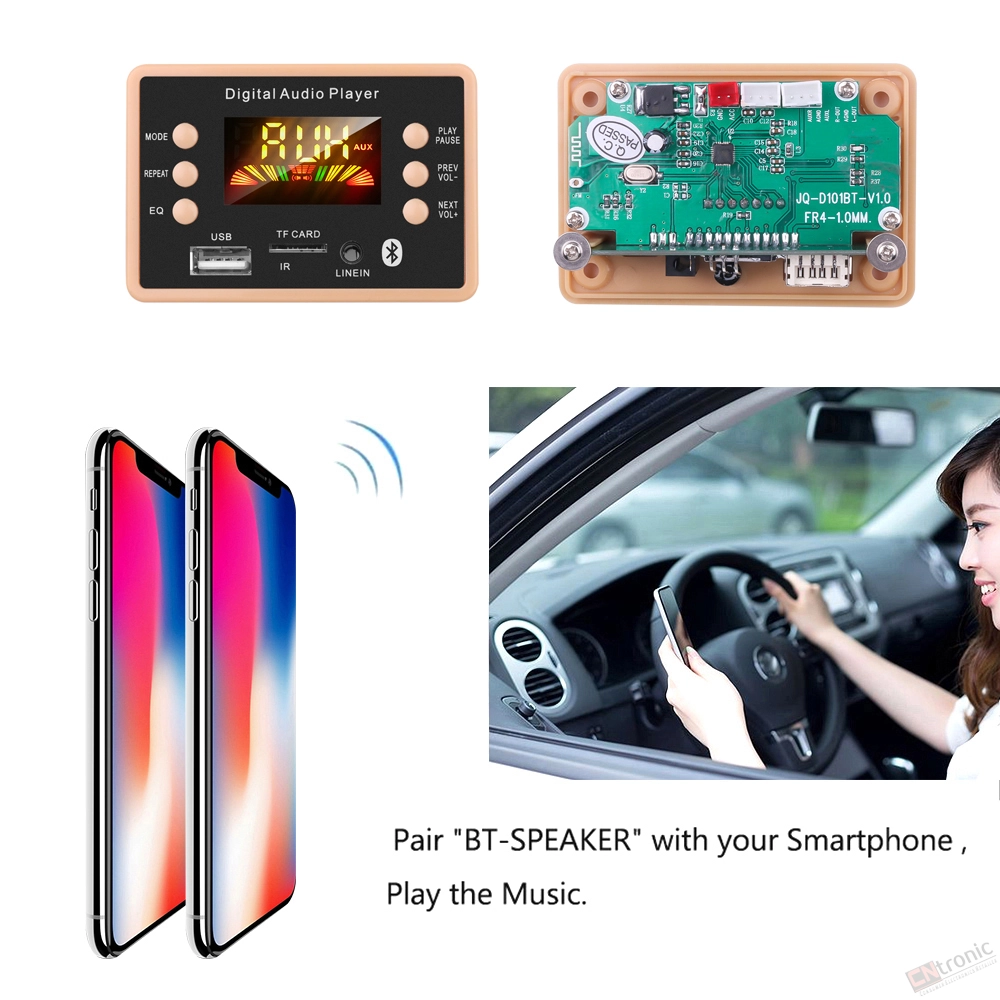

MODE: USB / TF / FM / LINE IN / BLUETOOTH voice switching;
REPEAT: Press once to cycle through singles, press again to cancel cycle through singles;

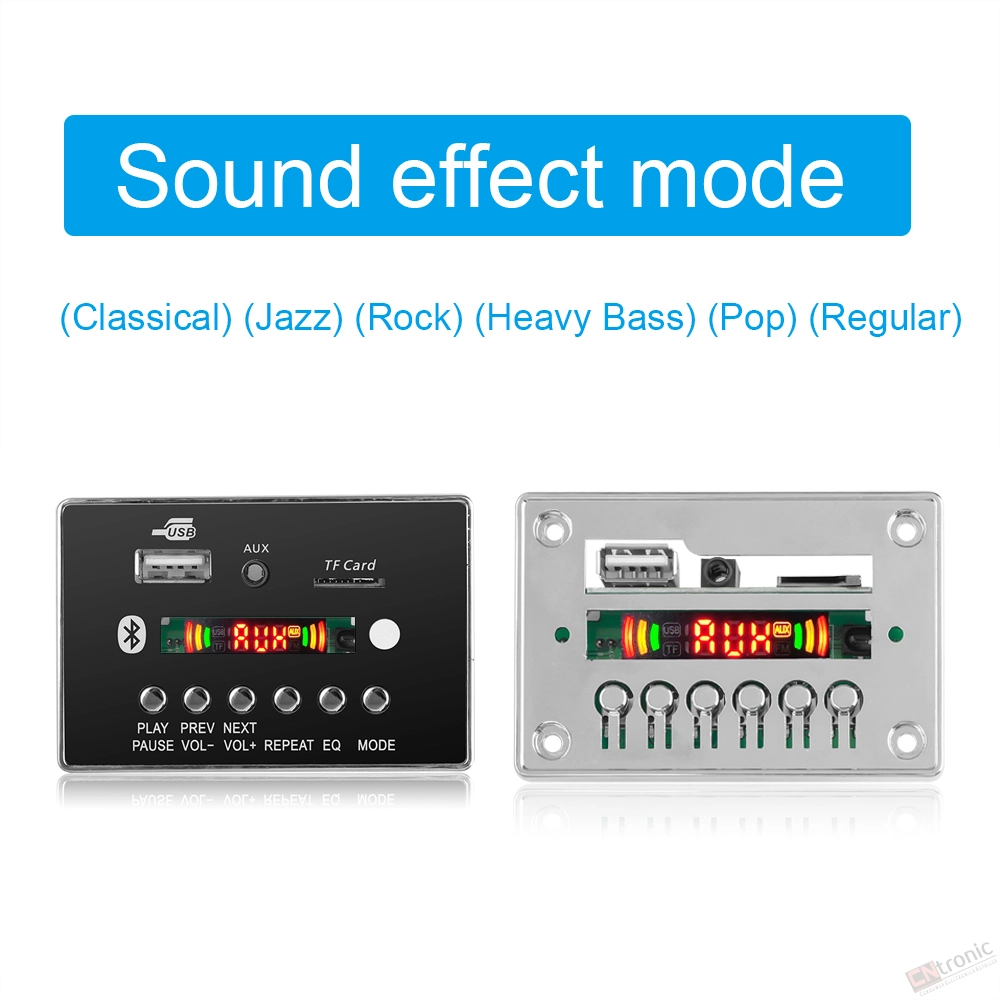

EQ: sound field mode, test 6 kinds of sound quality; (classical) (jazz) (rock) (subwoofer) (pop) (normal);
LED: digital screen display, yellow;
PLAY / PAUSE: short press is to switch between pause and play; long press is radio FM automatic station;
PREV / VOL-: short press is to select the previous song; long press is to decrease the volume;
NEXT / VOL +: short press is to select the next song; long press is to increase the volume;
USB: connect U disk (up to 32GB);
TF: Connect TF memory card (up to 32GB)
⑩IR: infrared receiving module;

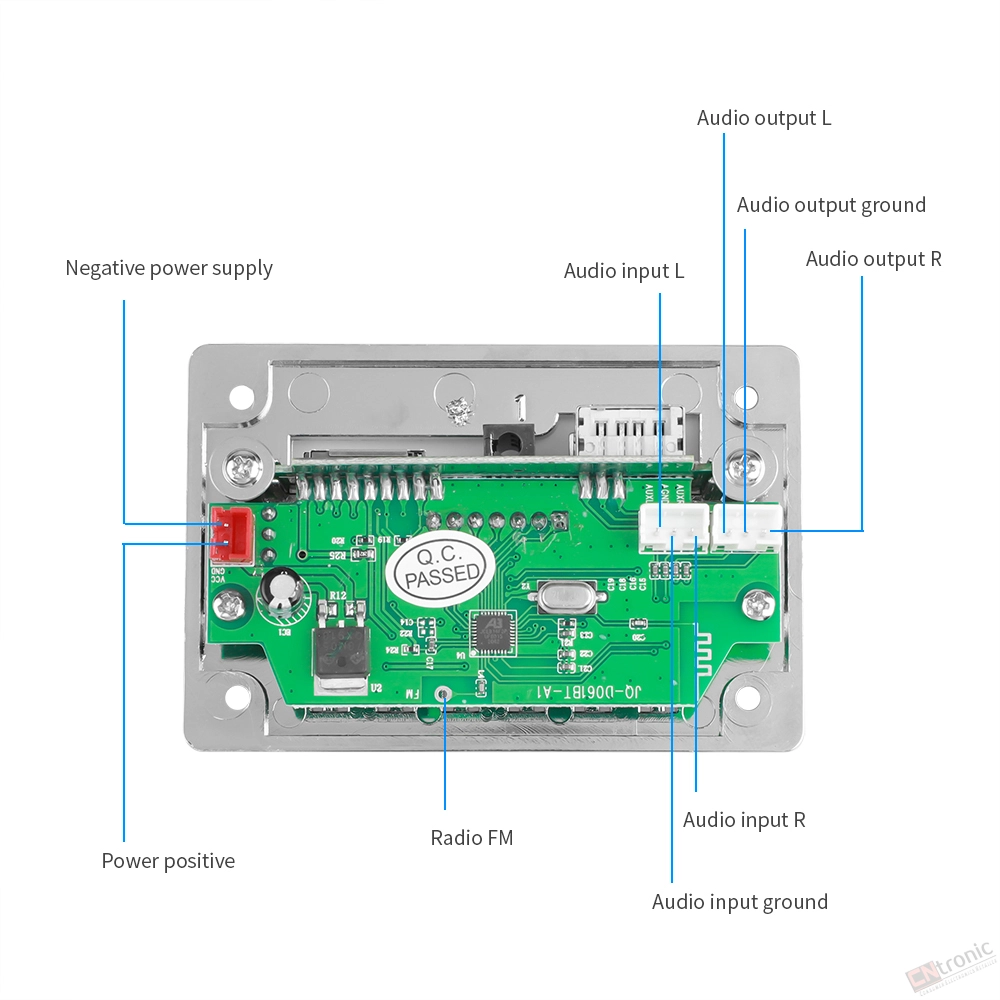

⑾LINE IN: audio input interface;
Master IC: AC6926
Bluetooth IC: AC6926 Bluetooth version is 5.0
Music format: MP3 / WMA / WAV / FLAC / APE lossless format
Radio FM frequency: 87.5-107.5 MHZ

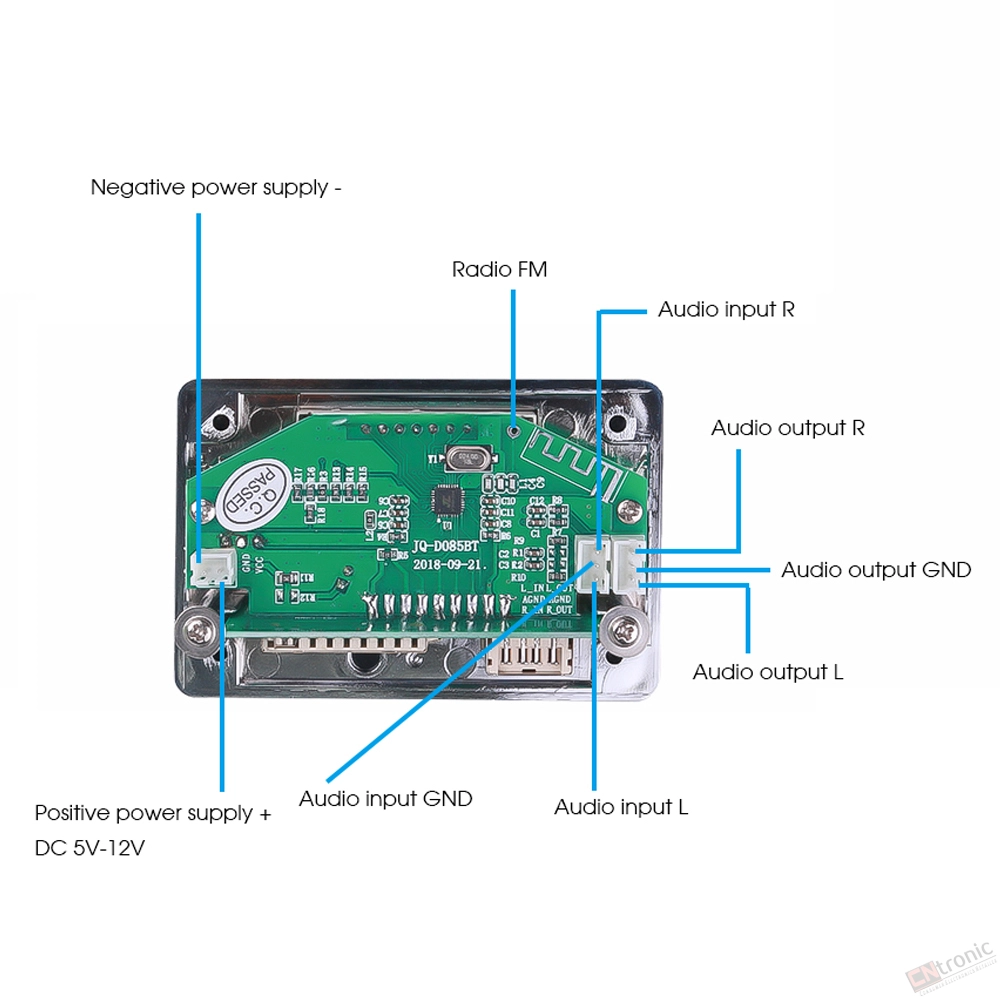

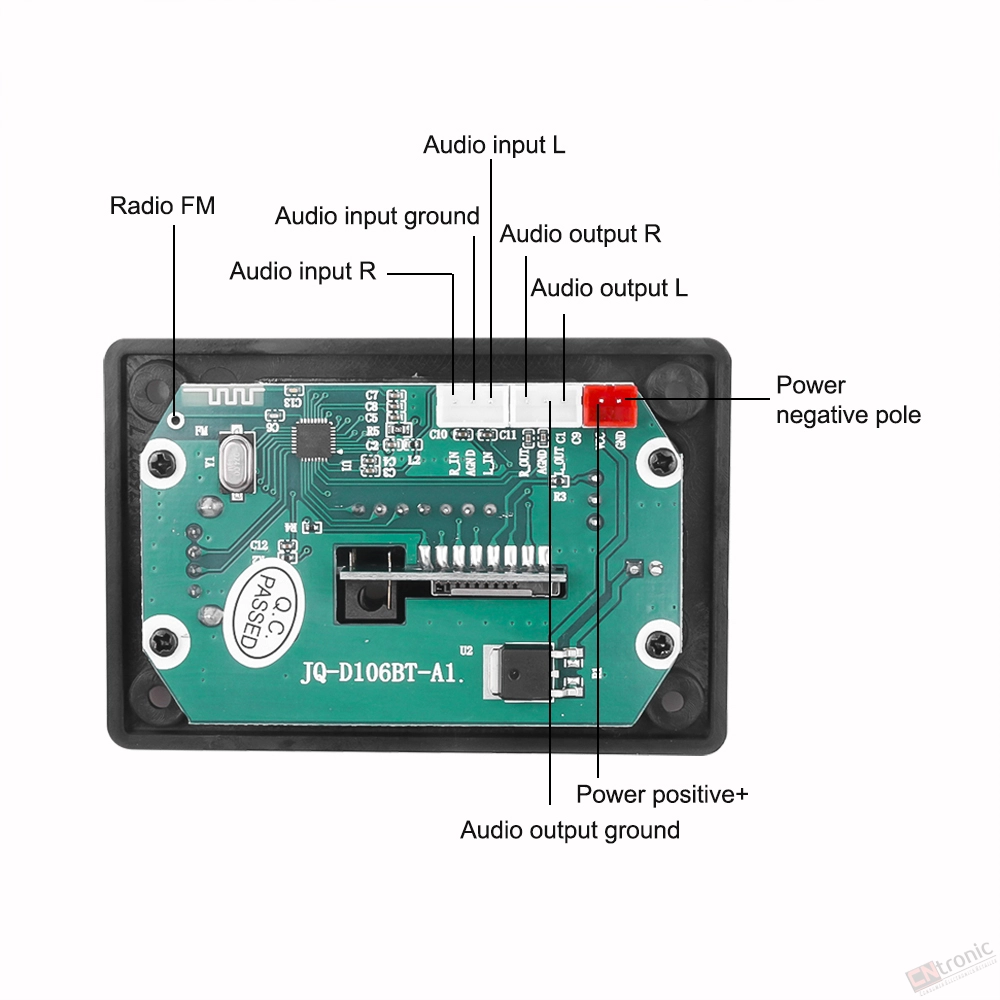

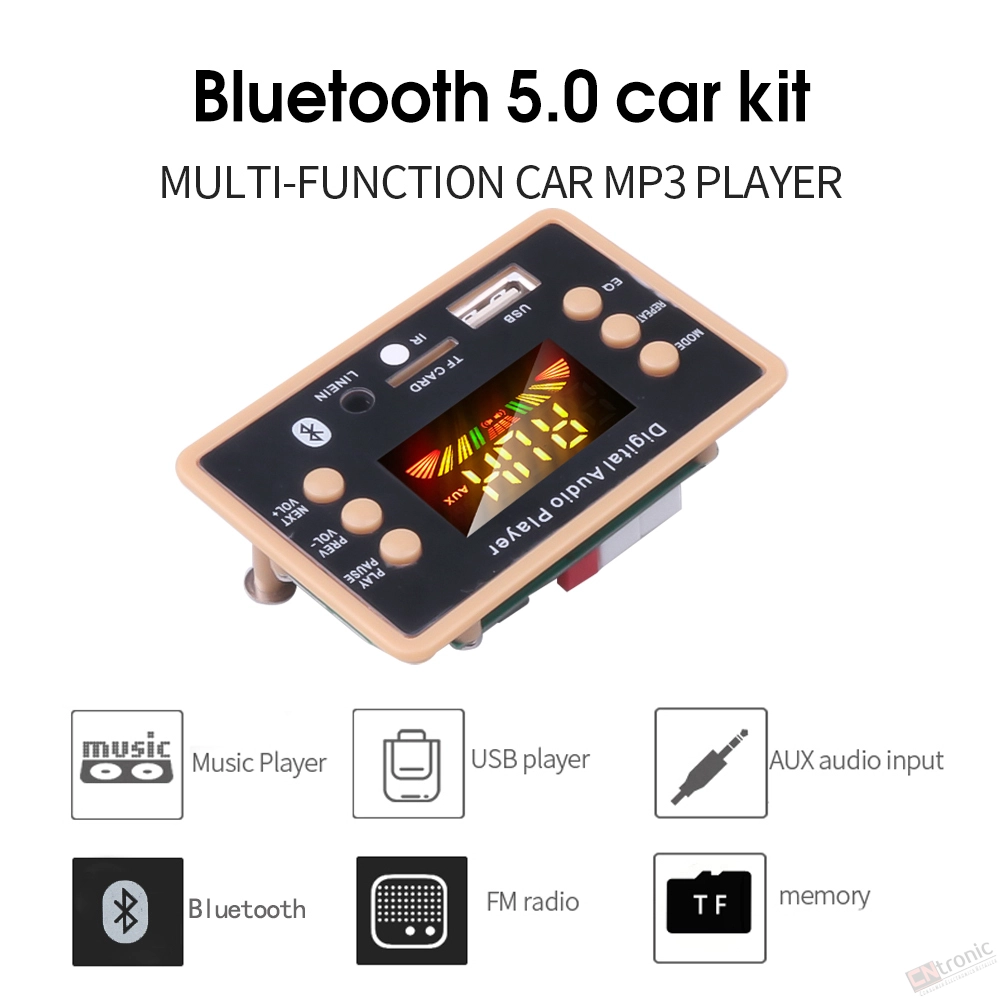

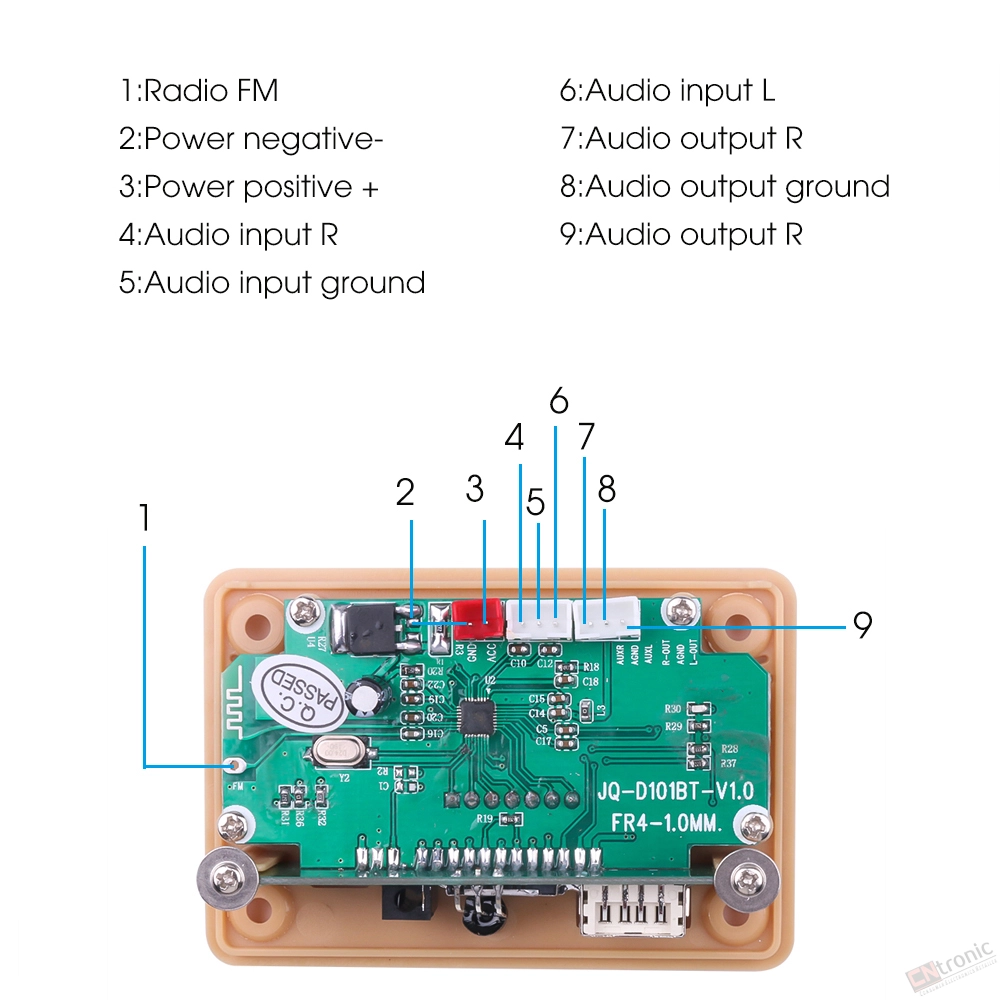

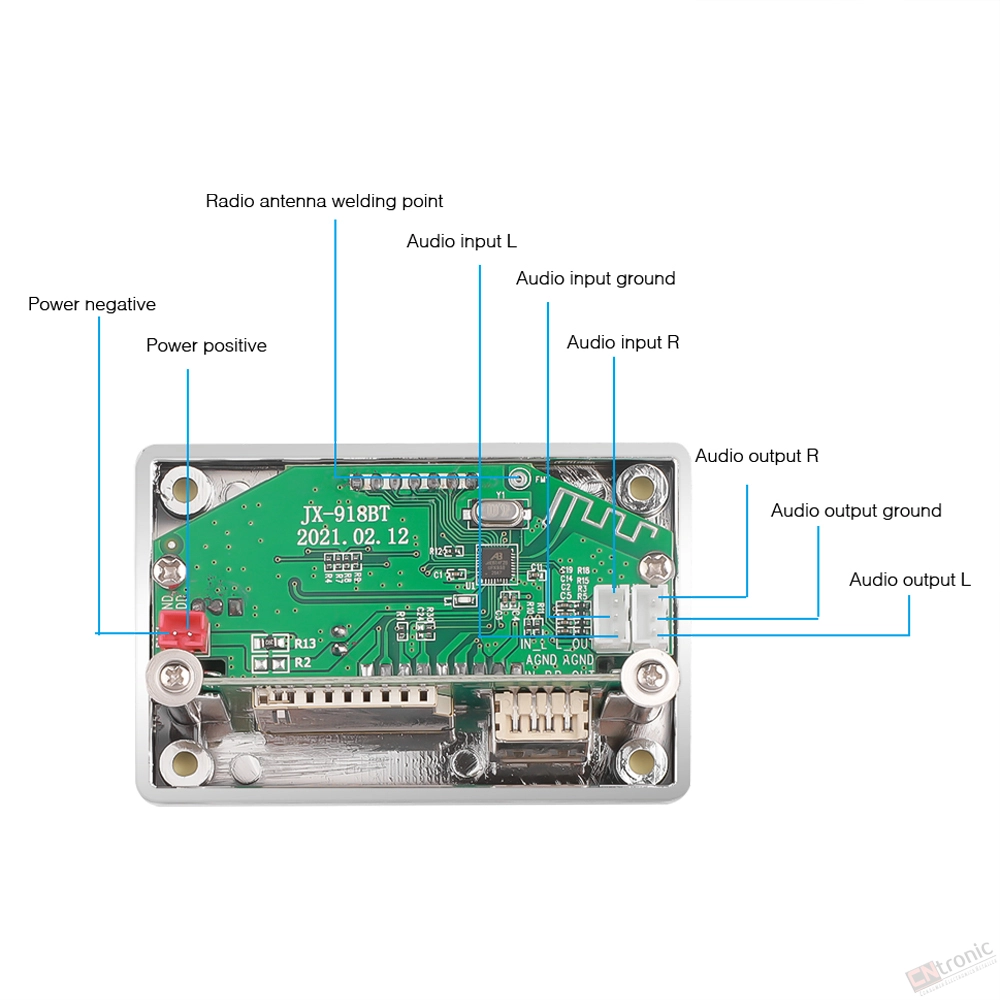

Support function introduction: support MP3 / USB / TF / LINE IN / FM / BLUETOOTH / remote control / DC 5V or 12V (optional)

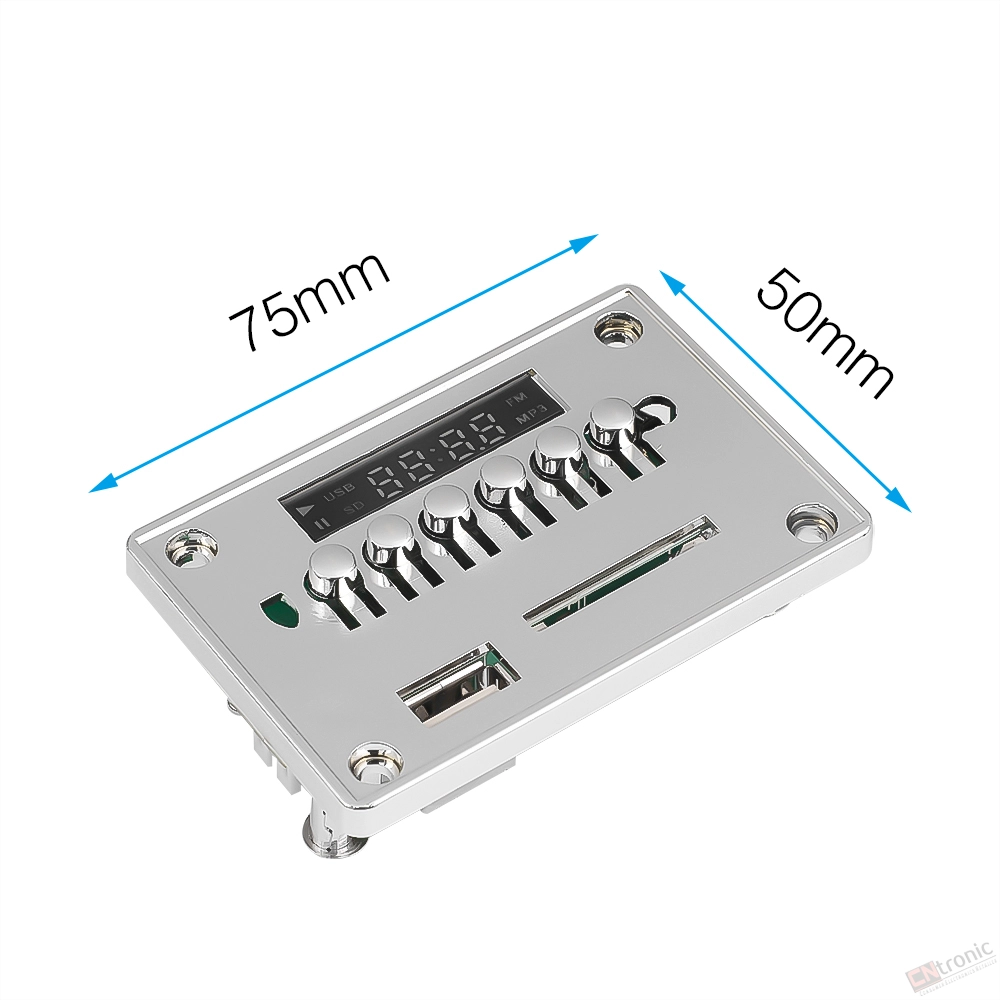

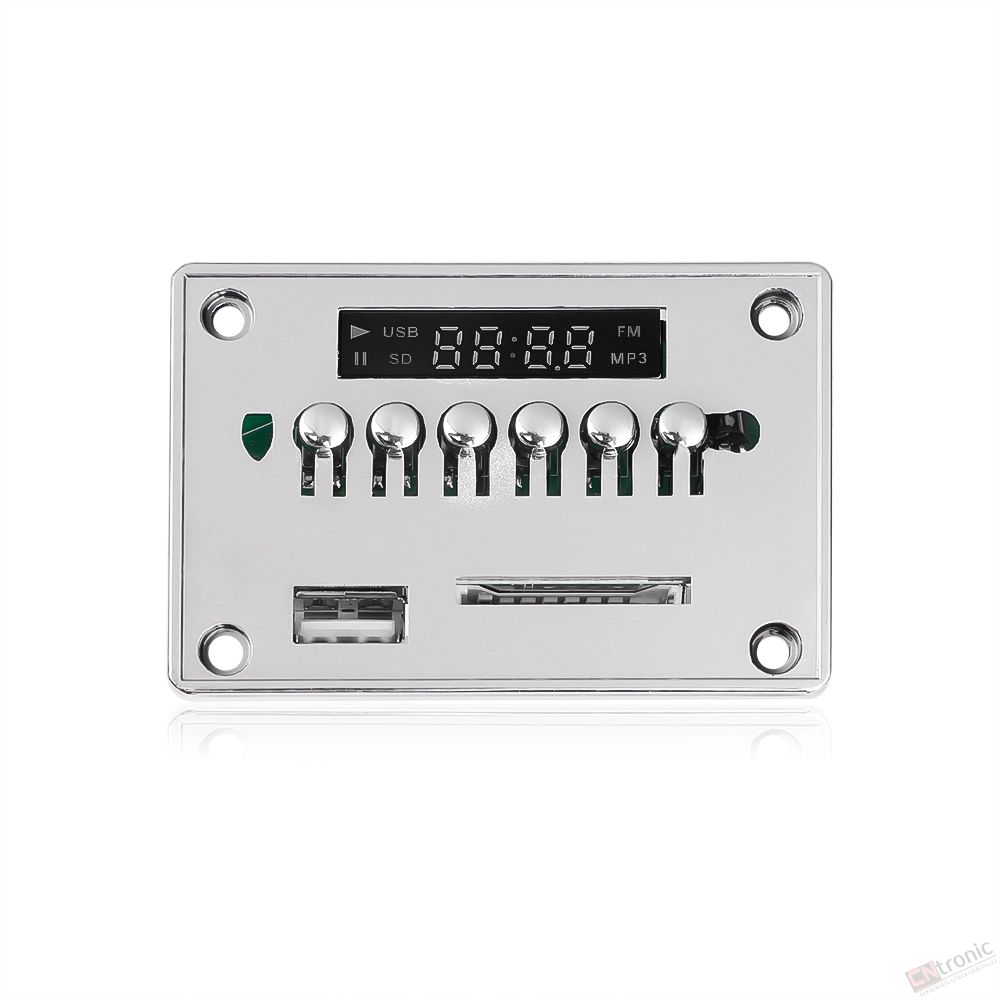

About the structure: panel size: 78 * 58 MM, the screw holes are located around the panel, and then the surface is covered with PVC lenses, the depth of the board is 23MM

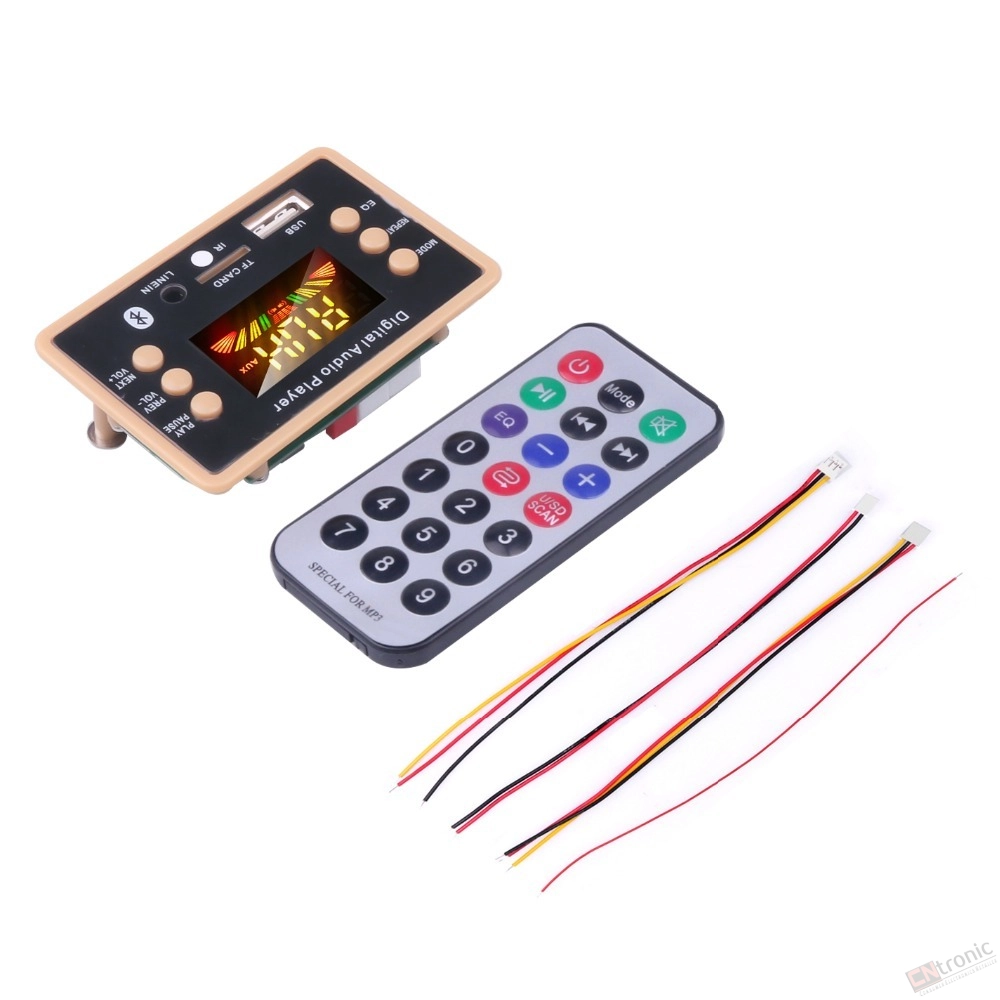

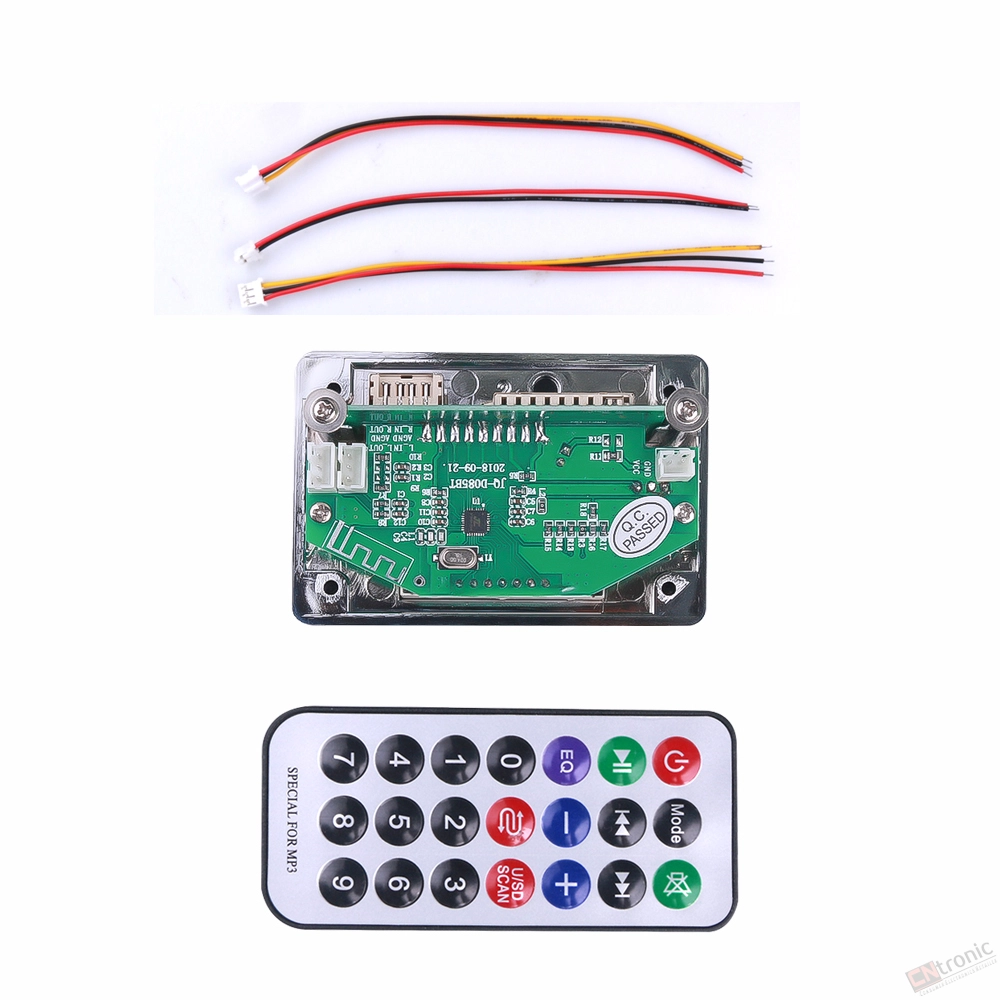

Package:

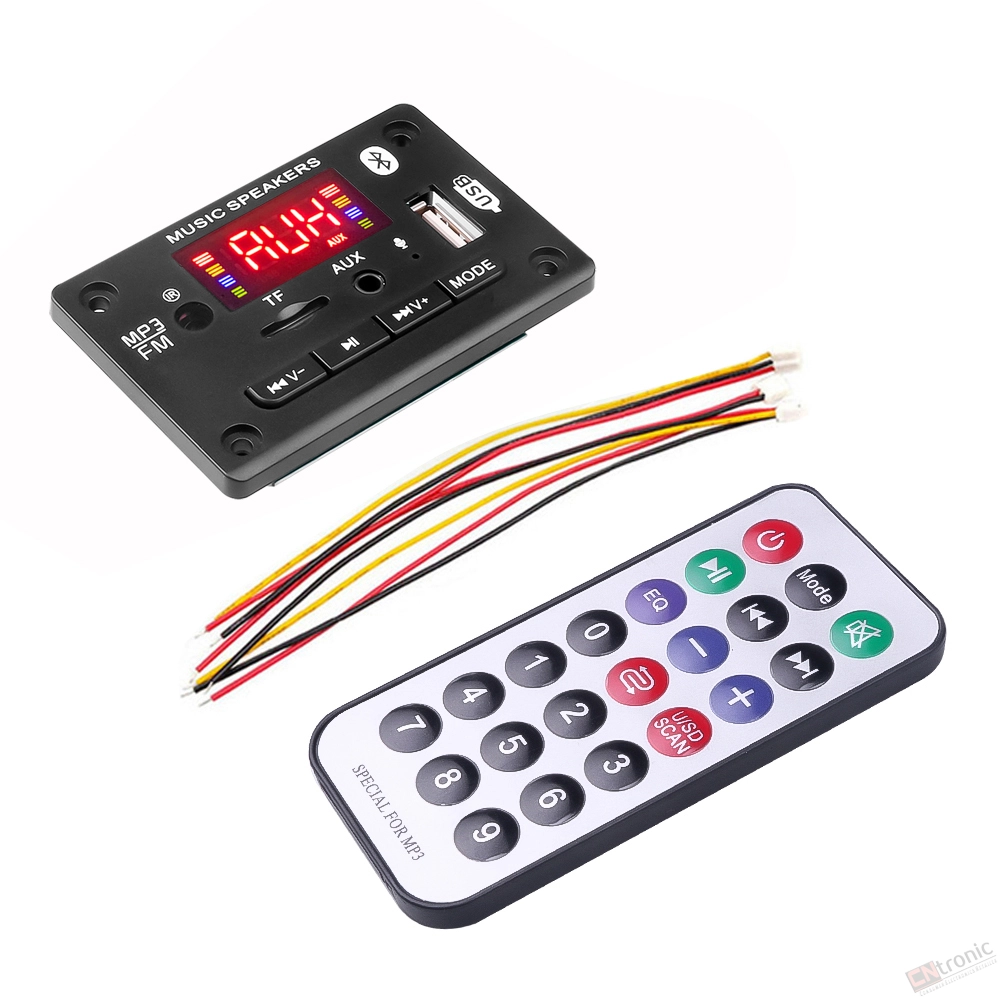

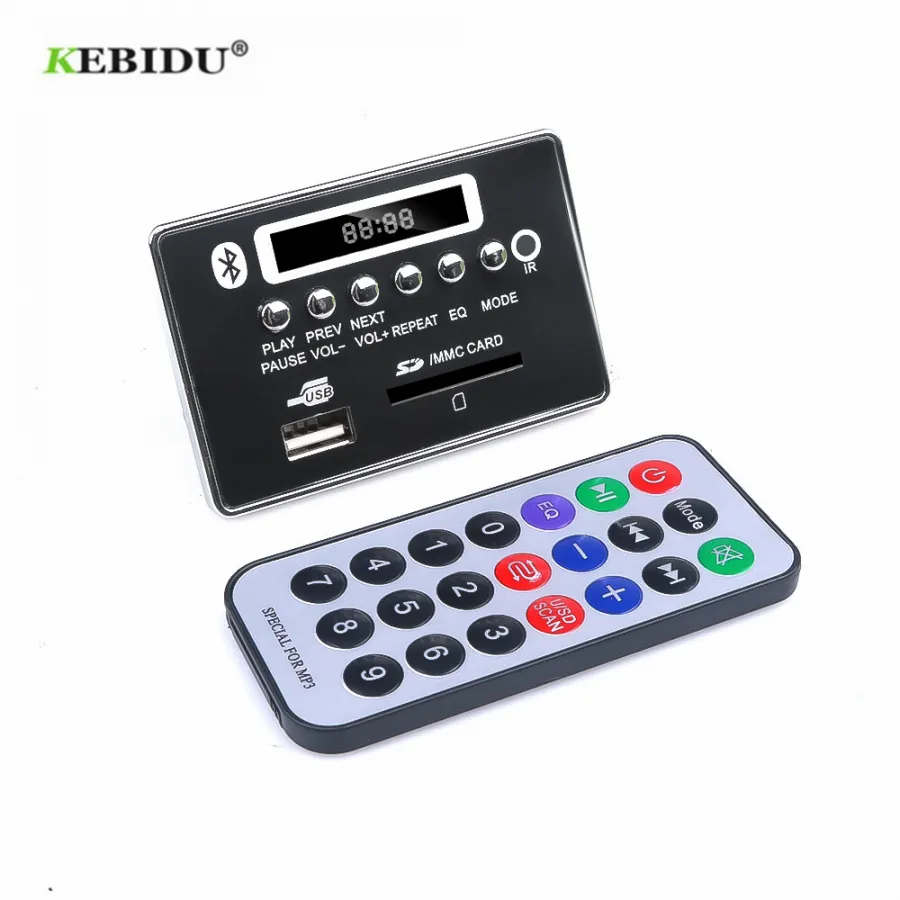

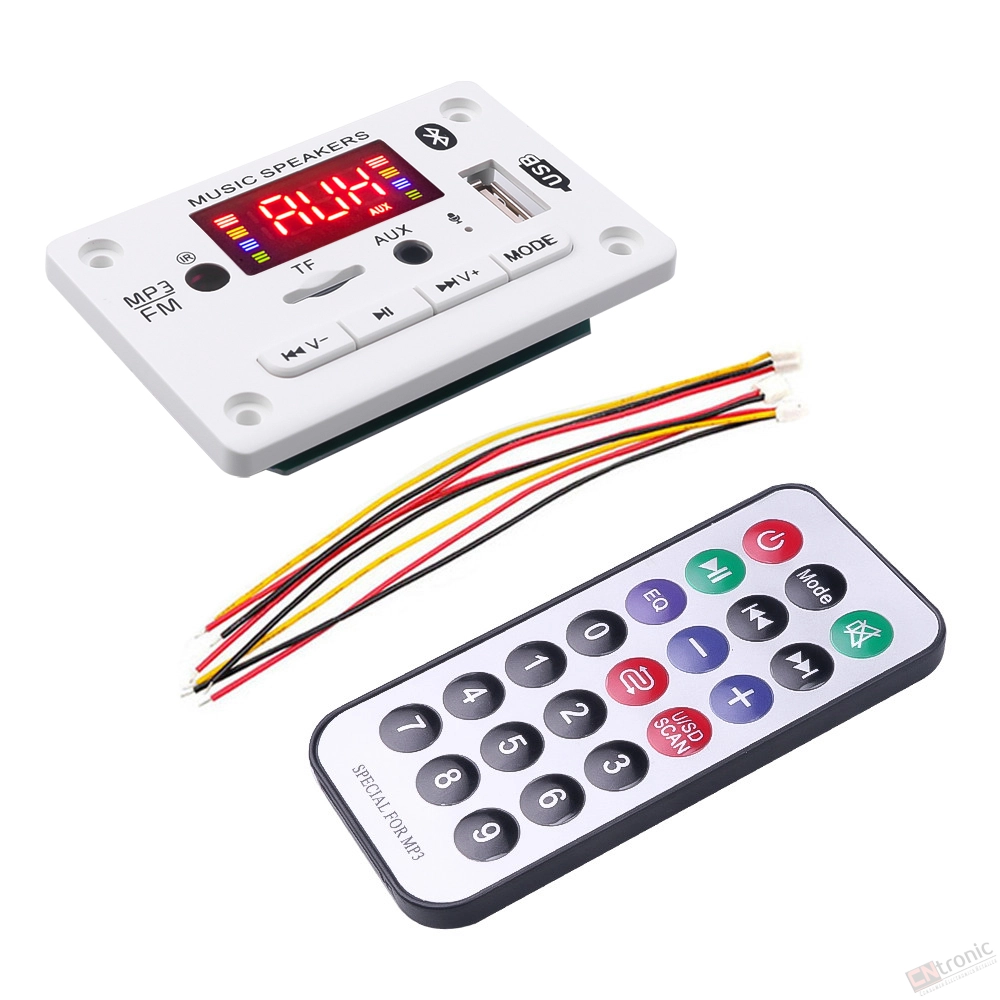

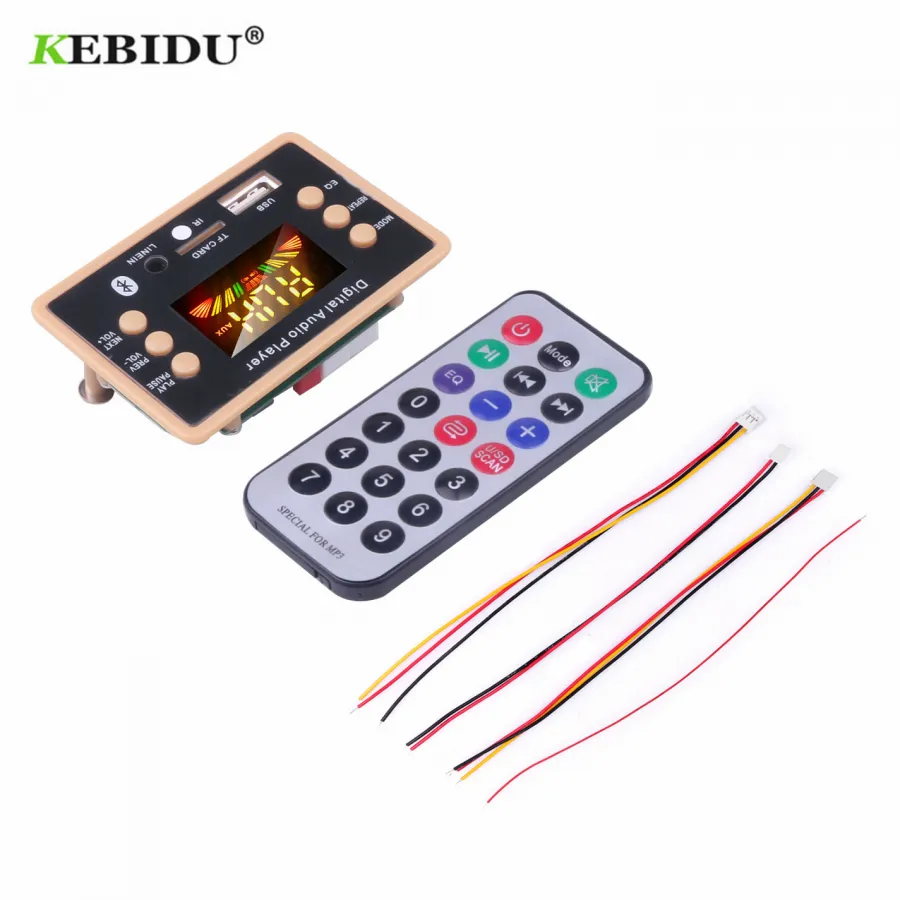

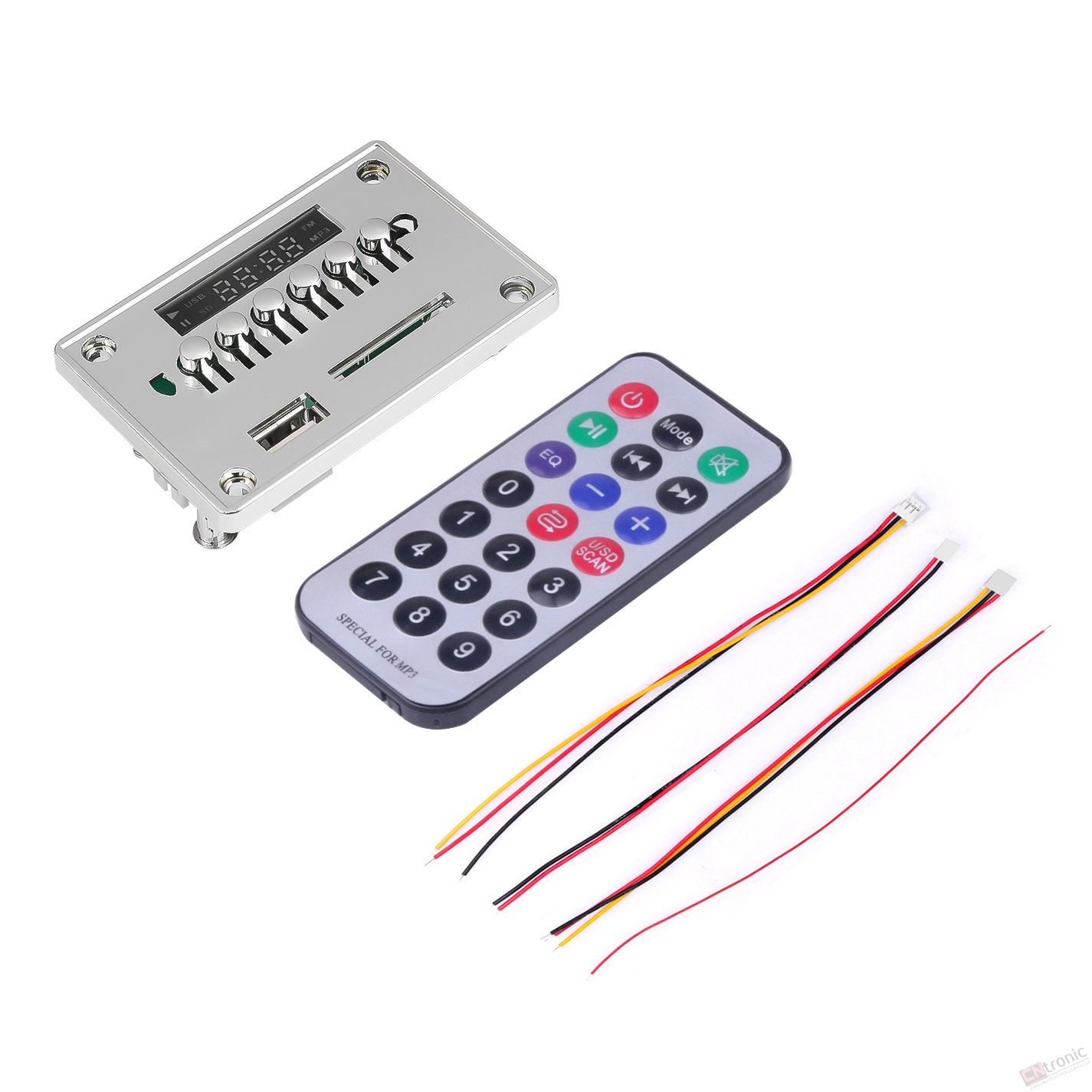

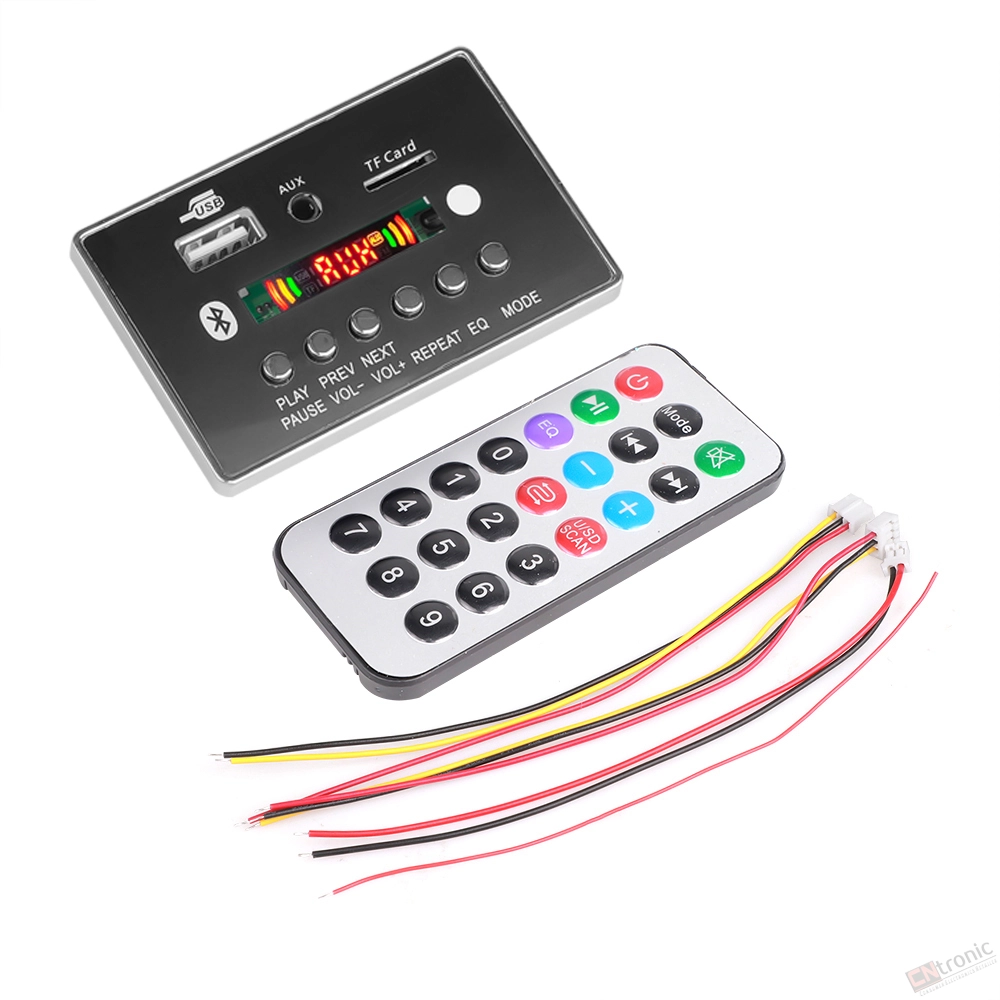

1 x MP3 Decoder Board

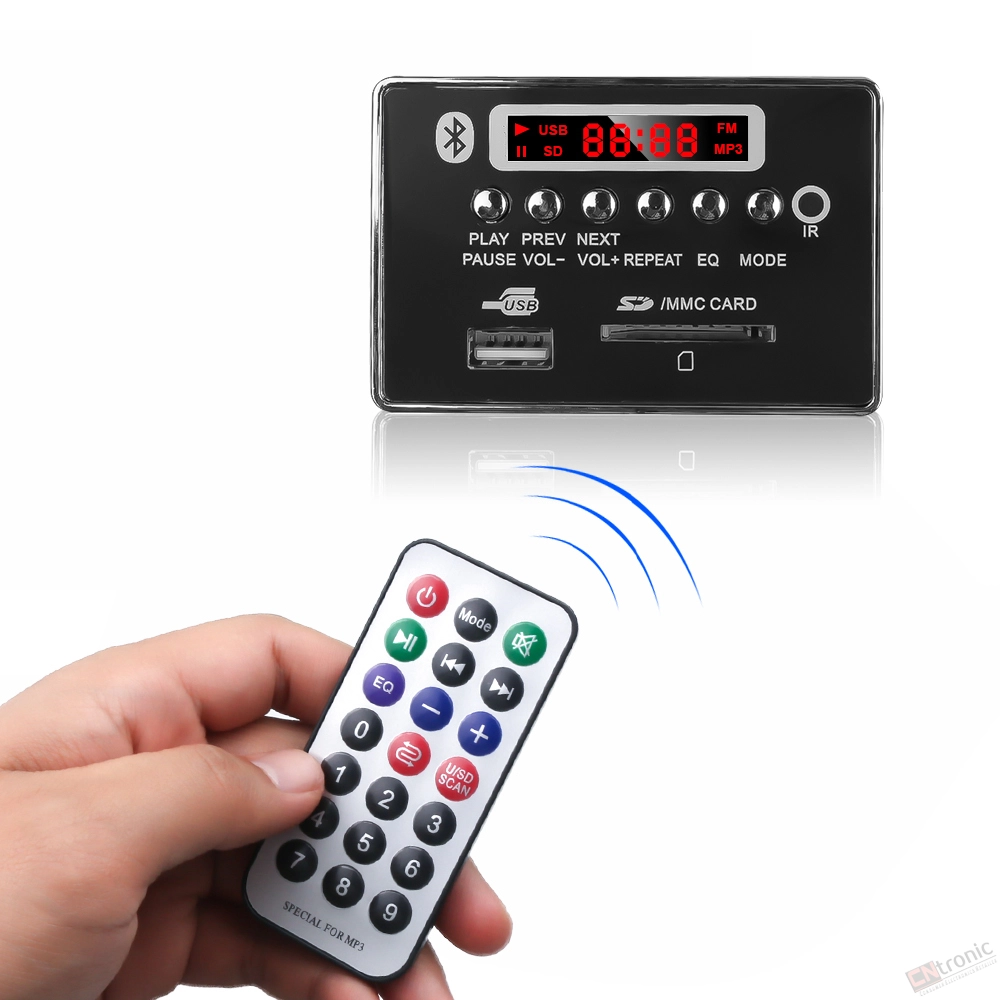

1 x Remote Control
Note:
1. Due to the light and screen difference, the item/'s color may be slightly different from the pictures.
2. Please allow 1-3cm differences due to manual measurement.
Features:

1. Bluetooth hands-free calling and Bluetooth support external touch keys (Optional need to increase costs)
2. Support folder choose to play (remote control operation) - easy to choose to play different music category card / U disk in the music category to put a different folder, DJ music / background music / songs, long press on or in playback mode next song, you can select the folder to play
3. Support USB / card / Bluetooth / FM / AUX switch automatically. Tips and conversion to cable (signal sound or voice in English optional)
4. Support MP3 / WMA / WAV format music.
5. Support USB / card switch, the song, the next song, volume control, EQ, play / pause, stop, mute, shutdown, direct election songs.
6. Support Bluetooth Bluetoot one, the next song, volume control, play / pause, mute.




  • WIFI: No
  • DSP: AC6926
  • DAC: -
  • Dimensions (WxHxD): panel size: 93 * 36 MM
  • Body Material: Plastic
  • Bluetooth: Yes
  • Supports EBook Reading: No
  • Operation Mode: Touch Tone
  • Storage Type: Flash Memory
  • Have Speakers or not: No
  • Supports FM: Yes
  • Battery Specification: External Power
  • Signal Noise Ratio: ≥89dB
  • Supports Recording Function: No
  • Display Size: None
  • Package: Yes
  • Function: bluetooth,FM Radio
  • Model Number: Bluetooth MP3 WMA WAV Decoder Board
  • Style: Car MP3
  • Battery Life: > 20 hours
  • Screen: Yes
  • Balanced Out: No
  • External Memory: No
  • Audio Format Support: WAV,FLAC,APE,mp3,WMA
  • Brand Name: kebidu
  • Origin: Mainland China
  • Certification: CE
  • Model: MP3 WMA Decoder Board
  • Music format: MP3 / WMA / WAV / APE lossless format
  • Radio FM frequency: 87.5-107.5 MHZ
  • Support function introduction: support MP3 / USB / SD / LINE IN / FM / BLUETOOTH / remote control co
  • Battery: no includes
