TMC2209 Updated packaging. Randomly send new and old packaging
Note: TMC2209 V1.3--This new version does not carry the wire, which will not affect usage.
TMC2209 V1.3 VS TMC2208, more of these functions:
1. Blocking rotation detection
Stallguard--TMC2209 provides a load and loss of speed detection technology
2. Current dynamic adjustment
Coolstep--TMC2209 provides a current dynamic regulation technology that saves up to 75% of electrical energy.
- stealthChop2 - for quiet operation and smooth motion
- spreadCycle - highly dynamic motor control chopper
- coolStep - current control for energy savings
- stallGuard4 - sensorless motor load detection
The hardware of the modes UART,DIR/STEP is the same. If you need to use UART mode, just need to modify the firmware.
BIGTREETECH TMC2209 V1.3 UART firmware :
https://github.com/MarlinFirmware/Marlin/pull/14215?fbclid=IwAR1QJDcuRzzhg7TihQcsfGTyx4UPcmtfhqhRw0gCzRL5gfqj5ZMC36wpN5M

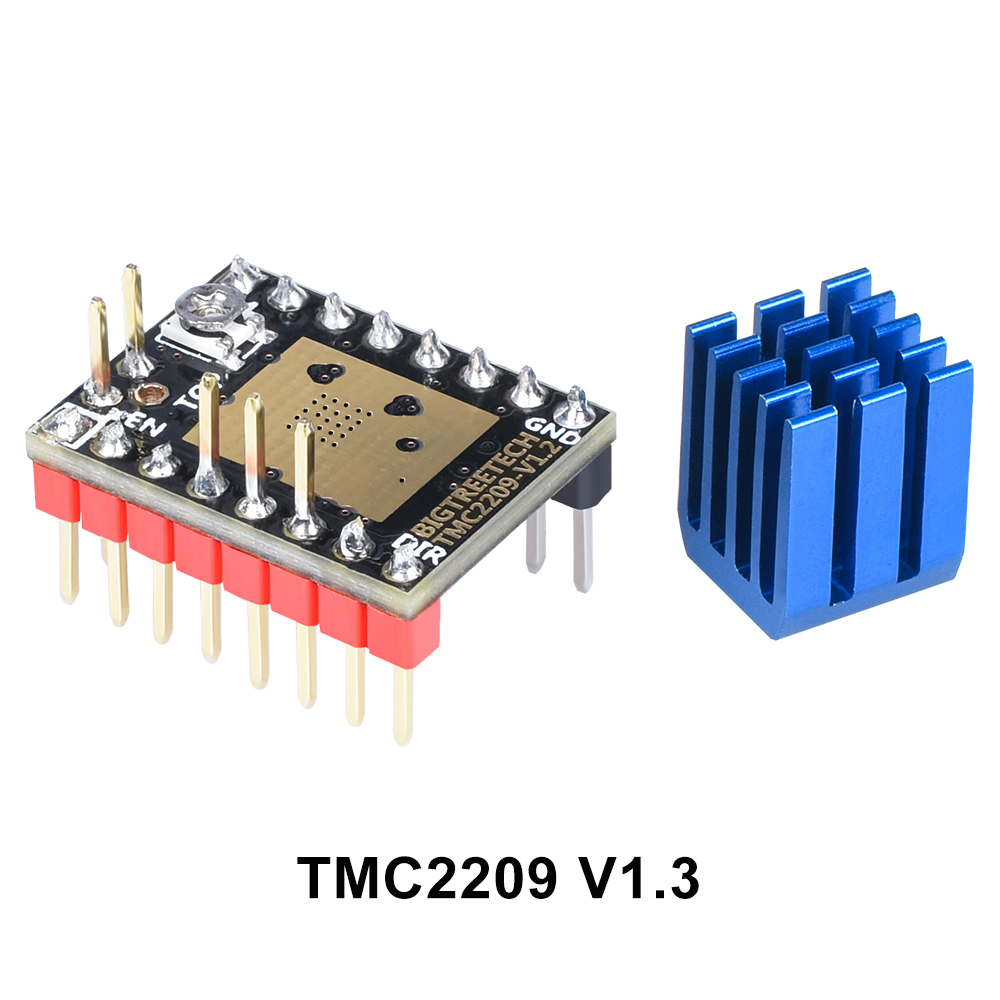

1/2/4/5/6 PCS TMC2209 V1.3 or TMC2208 V3.0 Stepper Motor Driver + Wire (According to your purchase options)
BIGTREETECH TMC2209 V1.2
Avoid losing steps and Jittering, Good heat dissipation
Immersion Gold process, Ultra-quiet
Specification
Dimensions
Comparison
Good heat dissipation
Large heat dissipation area, good heat dissipation effect
Ultra-quiet
StealthChop can driver the motor towork under extreme silence
Avoid losing steps and jittering
SpreadCycle: The motor controlled by the PWM choppermode operated more smoothly and without Jitter
It can effectively avoid problem such as running deviation losing step and fault caused by the overlode of the chip
Immersion Gold process
Immersion Gold process ,the better antioxidant
Working mode:STEP/DIR，UART
Choice of working mode: MS1、MS2
UART Mode
UART Mode, had soldered
As shown in the figure to the right,if the 5th Pin is used as the UART Pinthe resistance shall be removed and welded to the following two pads.
Potentiometer adjustment instructions
1. Rotate the potentiometer clockwise: reduce Vref to reducethe driver current
2. Turn the potentiometer counterclockwise: Increase Vref toincrease the driver current
Note:
1.When the driver is inserted into the motherboard, pleasepay attention to see the direction of the drive, can notbe inserted in reverse, to prevent the drive from burning
2.Be sure to do a good job before driving heat dissipationwork (heat sink + fan), to prevent the drive is notworking properly
Product Details
What's in the box?
Packaging Details
- Unit Type: piece
- Package Weight: 0.100
- Package Size: 9x5x15
- Brand Name: BIGTREETECH
- Hign-concerned Chemical: None
- Origin: Mainland China
- Item Type: Driver
- Model Number: BIGTREETECH TMC2209 V1.2
- Product name: TMC2209 Stepper Motor Driver
- Material: PCB
- Mode: UART,DIR/STEP
- Motor voltage: 5.5-28V
- Logic voltage: 3.3-5V
- RSense: 0.11 Ohm
- Compatable with: SKR/MKS GEN V1.4/MKS GEN L...
- TMC2208 Motor Phase Current: 1.2A RMS, 2.0A Peak
- Version: TMC2209 V1.3 / TMC2208 V3.0
- Stock: In stock
- Choice: yes
- semi_Choice: yes
