Banana Pi OpenWrt One MediaTek MT7981B 1GB DDR4 2.5GbE RJ45 and Gigabit Ethernet RJ45 256 MiB SPI NAND Open Source Smart Router
5.0 (9 votes) | 128 orders
Price:
US $
252.23
- Bundle
-
-

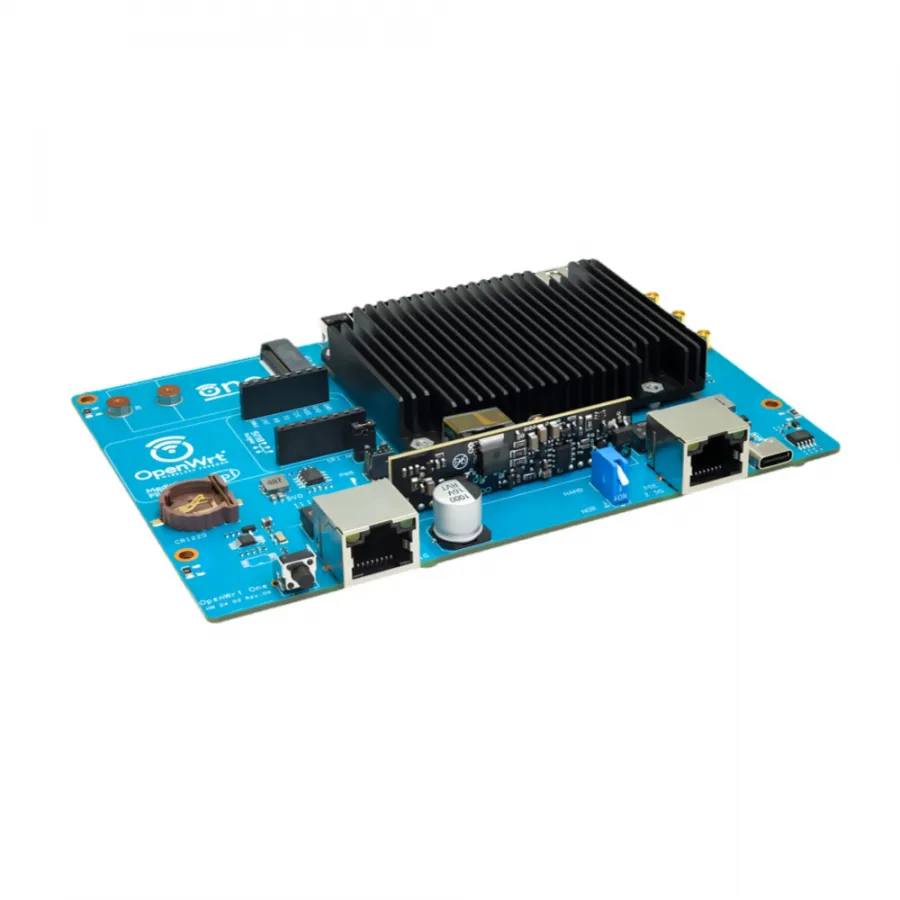

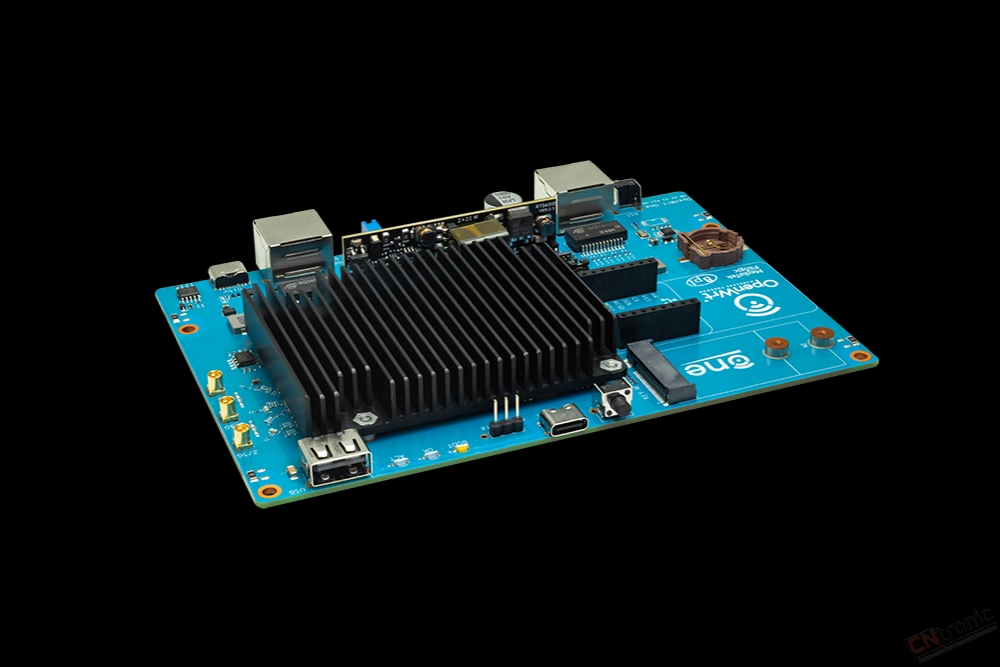

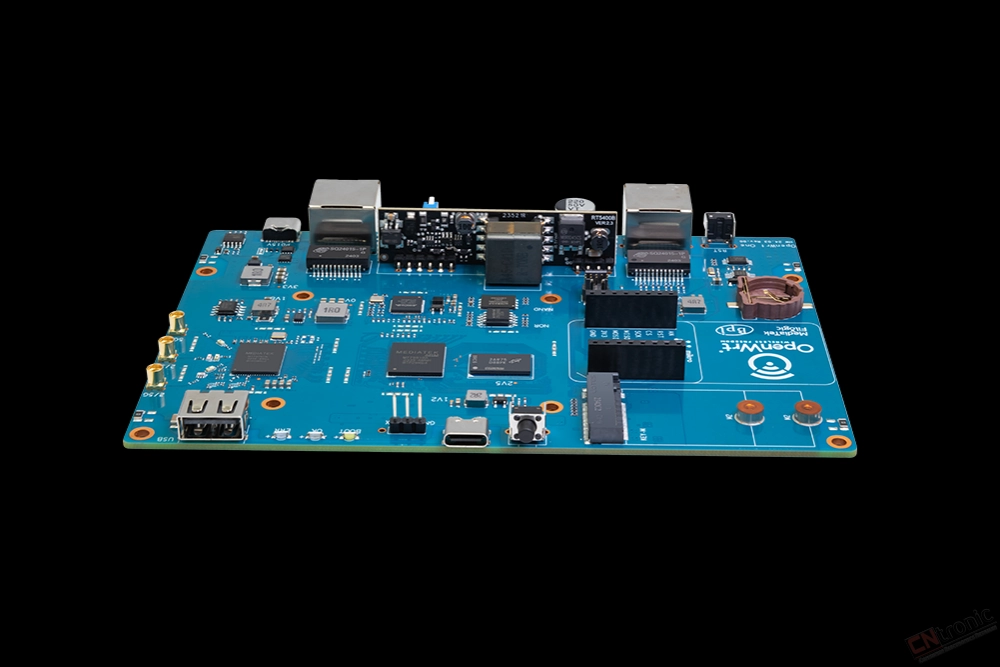

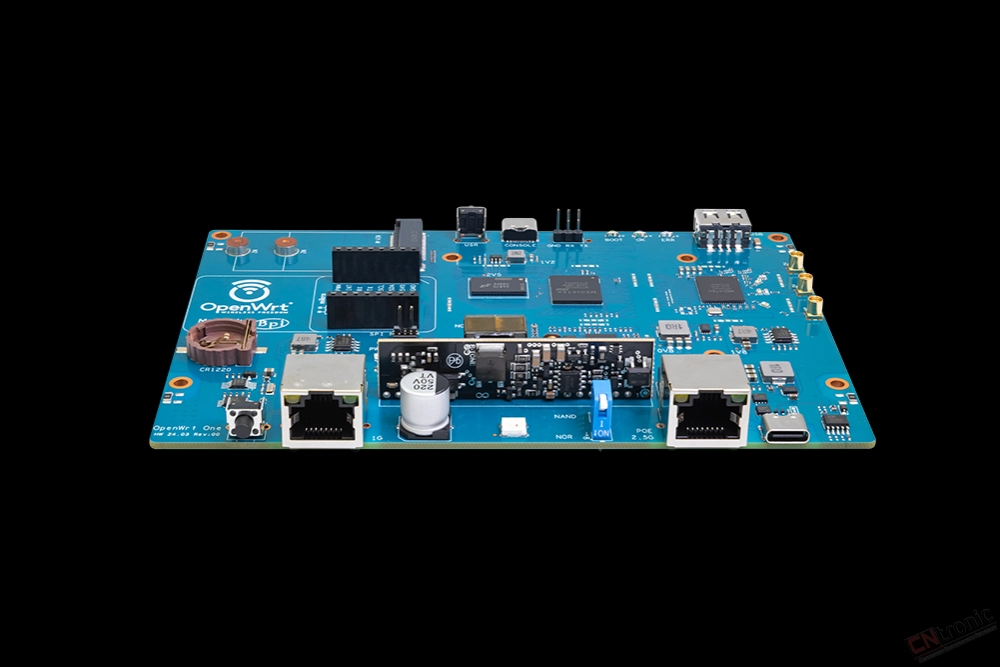

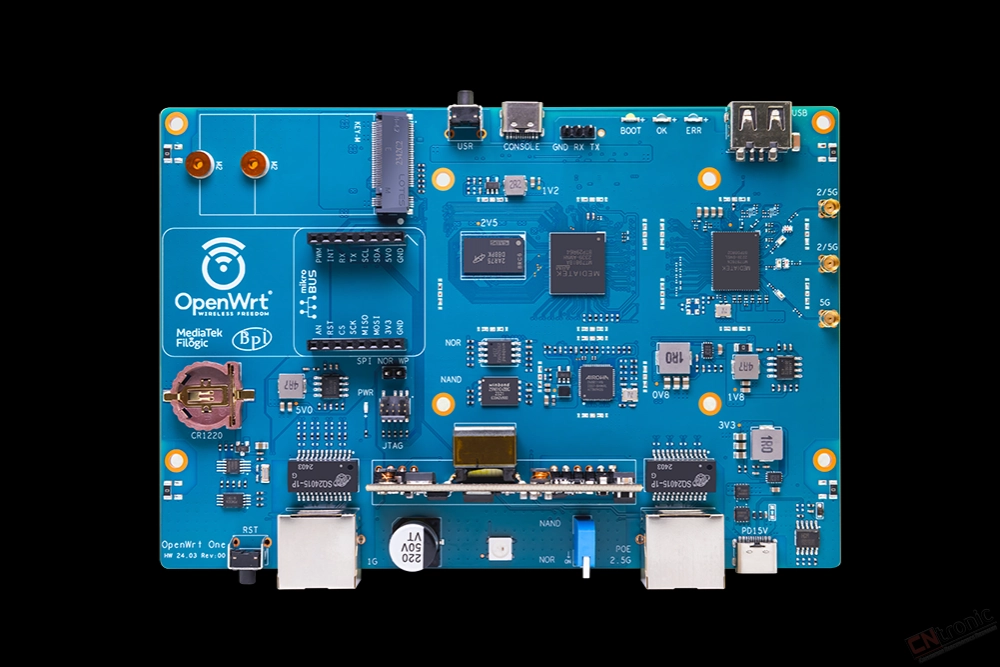

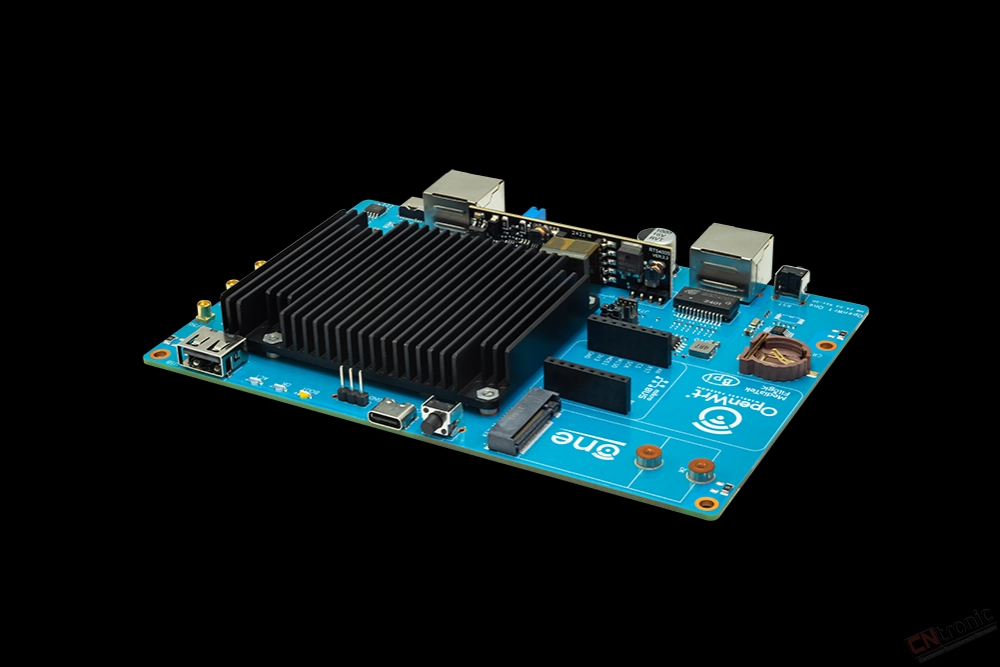

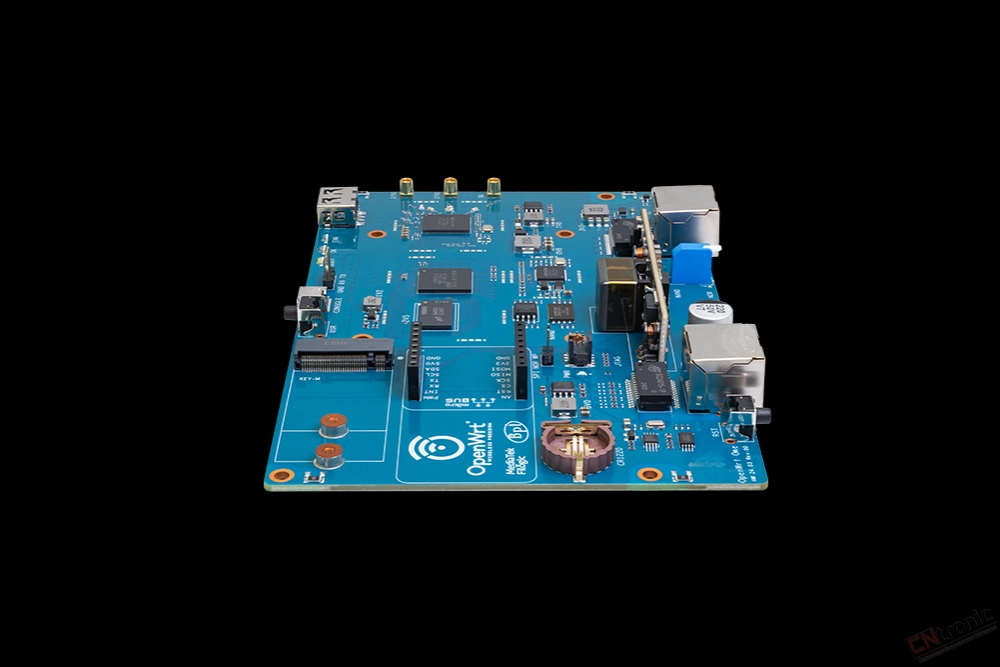

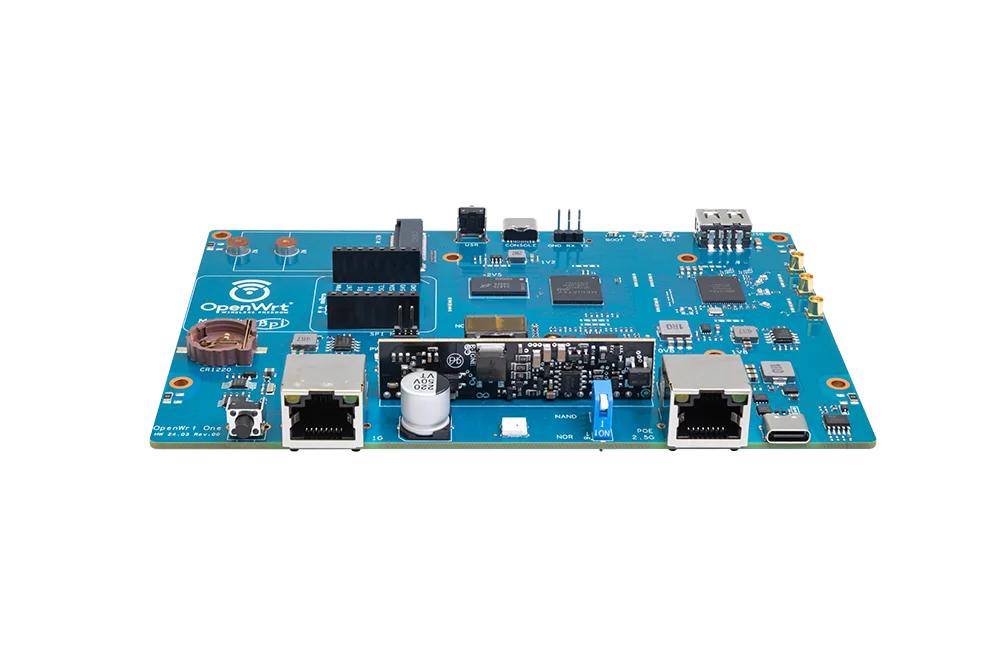

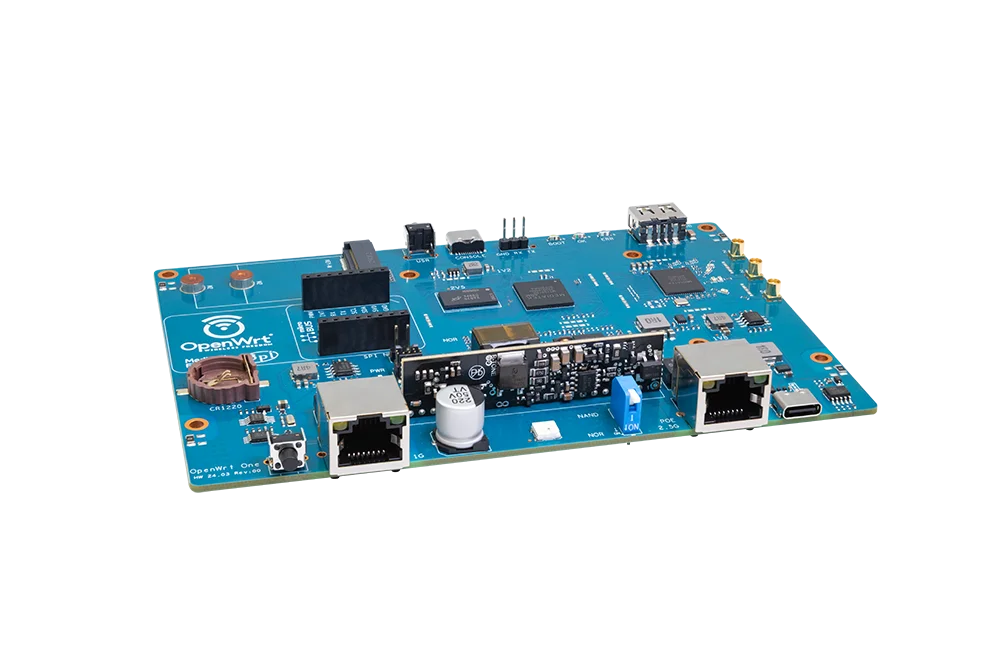

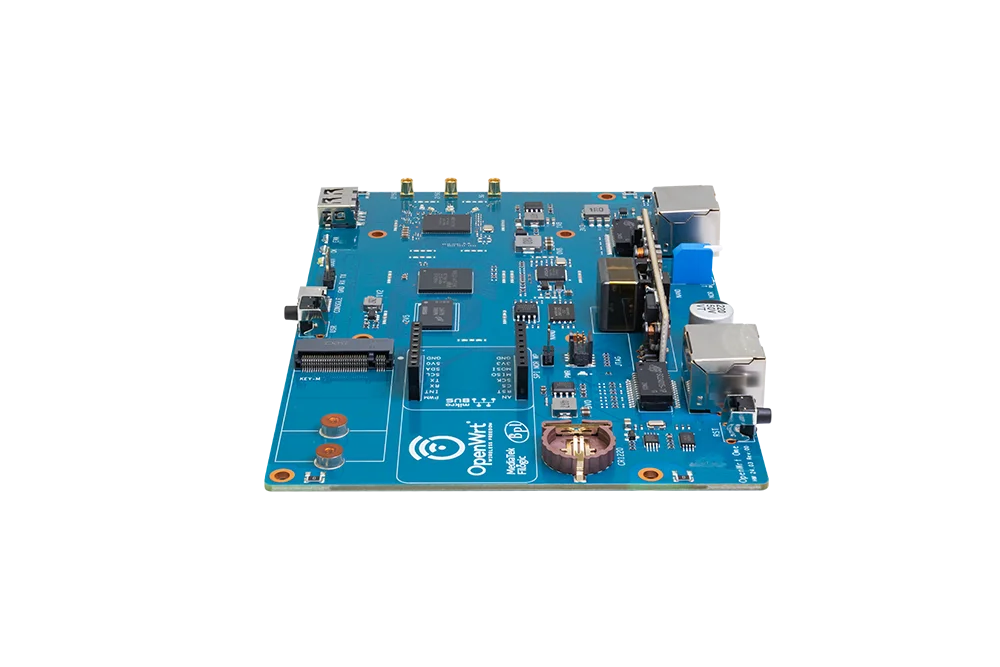

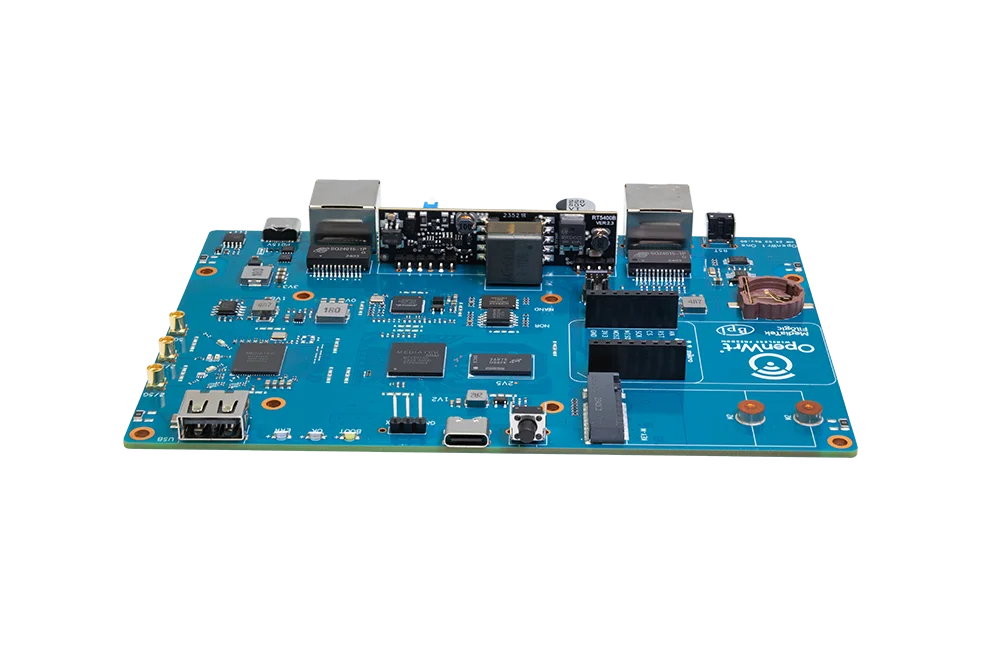

OpenWrt One Introduction
The “OpenWrt One/AP-24.XY” router board based on MediaTek MT7981B (Filogic 820) SoC and MediaTek MT7976C dual-band WiFi 6 chipset.It is the first official development board of the OpenWRT open source community.
OpenWrt One is a device based on the MediaTek Filogic 820 SoC that has WiFi 6, dual-band, 3×3/2×2, 1 x 2.5Gbit WAN, 1 x 1Gbit LAN, 1GB DDR4 RAM, 256 MiB NAND, 16 MiB NOR, M.2 SSD and USB 2.0.
OpenWrt One uses Mediatek’s MT7981B SoC with a dual-arm Cortex-a53 core at 1.3 GHz, 1 GB DDR4 RAM and 256 MiB SPI NAND storage. It also integrates 16 MiB of additional protected storage as a system backup, dual storage hardware to ensure that the onboard system is unbrickable, and finally integrated M.2. 2230/2242 NVMe PCIe 2 X1 ports can be used to add external storage. And with a battery holder for an internal clock, OpenWrt One offers a USB 2.0 Type-A and a mikroBUS expansion port to provide more interfaces to a host of technical possibilities.
OpenWrt One is the first board design with OpenWrt opensource communtity.and designed in collaboration with Banana Pi that will also handle manufacturing and distribution of the router board. The OpenWrt One/AP-24.XY router should provide a source of income for the project, for example, to cover the cost of hosting and OpenWrt conferences, with Banana Pi selling the board through their distribution network, and for every device sold, donating to the Software Freedom Conservancy (SDC) with the funds earmarked for OpenWrt.
MediaTek MT7981B(Filogic 820)
MediaTek MT7981B is a compact Wi-Fi System-on-Chip (SoC) for IoT devices that includes an embedded TCP/IP stack. Using the MT7981B an IoT device can connect to other smart devices or to cloud applications and services. Connectivity on the MT7981B is achieved using Wi-Fi in either Wi-Fi station or access point (AP) modes.
Key Features
OpenWrt official board and support
MediaTek MT7981B (Filogic 820) SoC
Dual-band WiFI 6 via MediaTek MT7976C (2×2 2.4 GHz + 3×3 5Ghz)
1GB DDR4
1 x 2.5GbE RJ45 port and |1 x Gigabit Ethernet RJ45 port
256 MiB SPI NAND and 16 MiB SPI NOR flash are used to make the board almost unbrickable
M.2 2242/2230 socket for NVMe SSD (PCIe gen 2 x1)
RTC support
PoE support
MikroBUS socket for expansion modules
Application direction
Maker DIY
OpenWrt learning and development
IoT
Wifi router
Nas
Network communication application

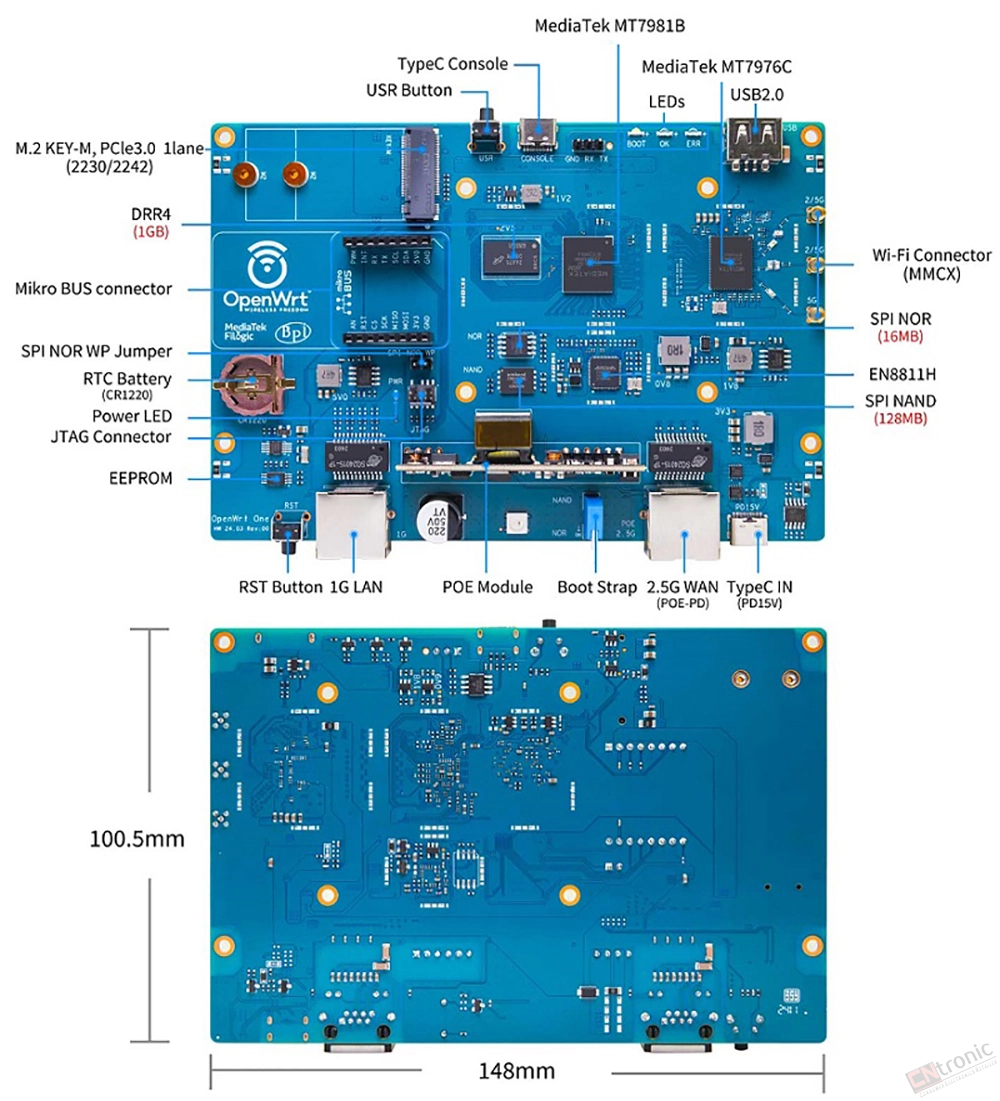

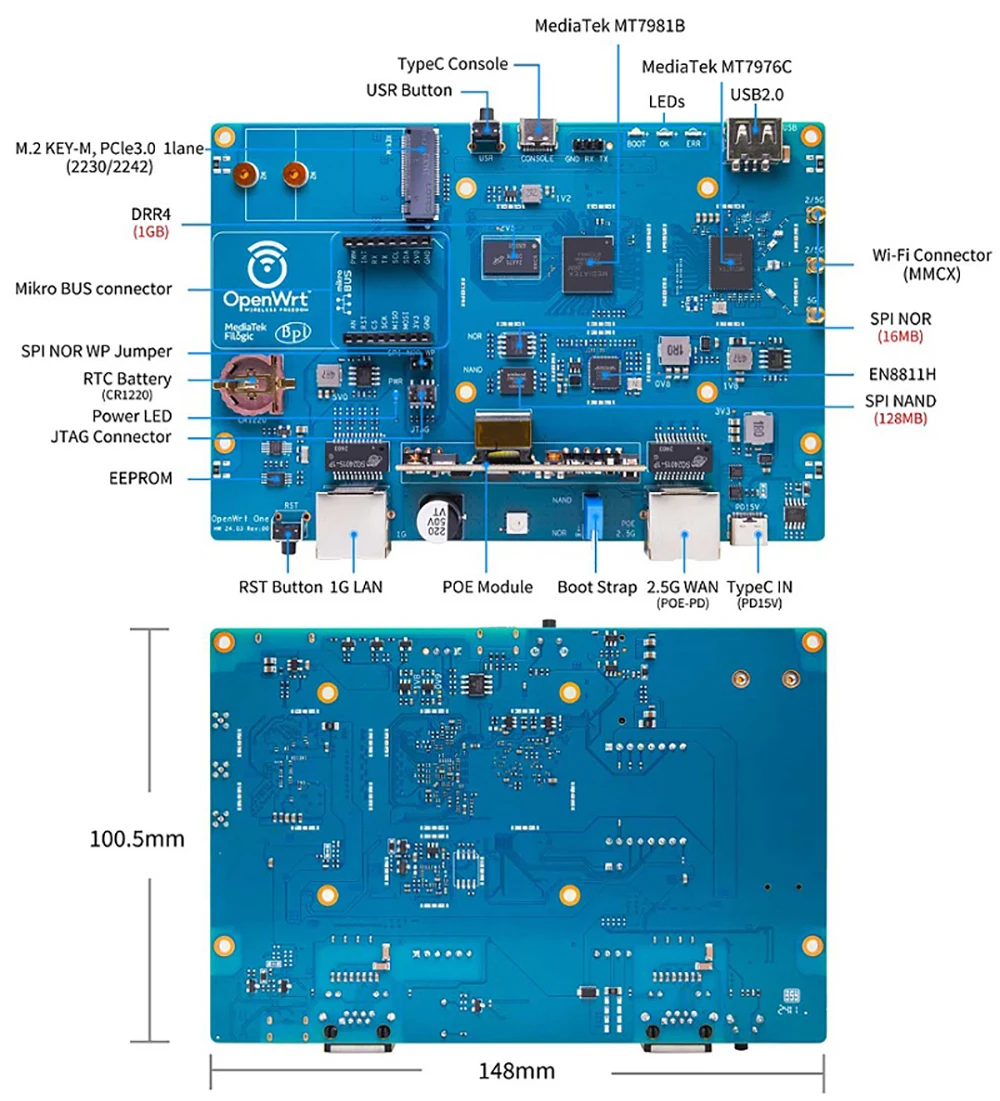

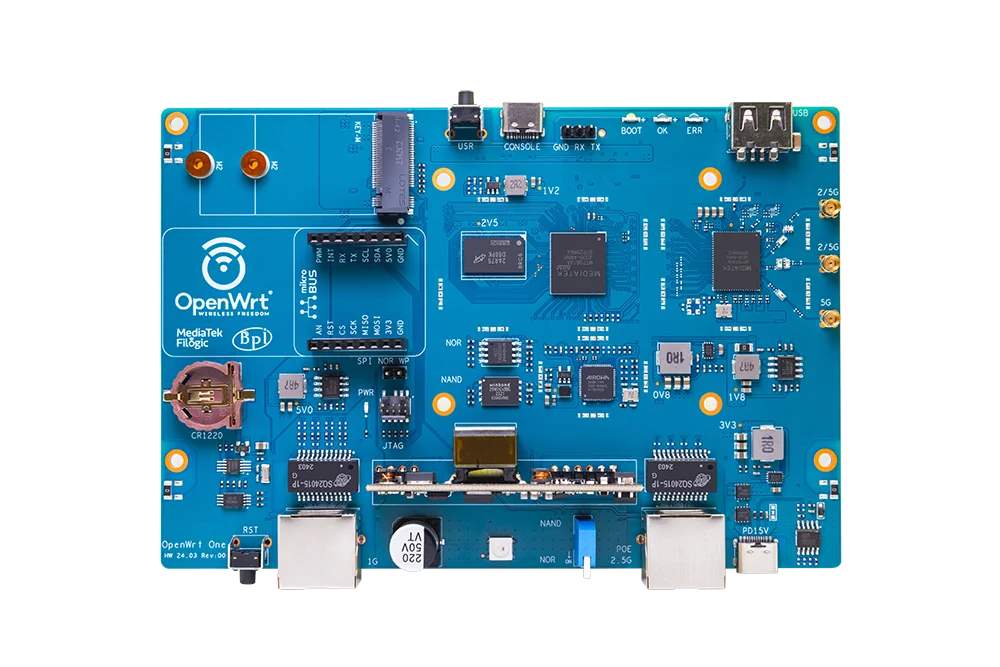

Hardware interface
Hardware spec
HardWare Specification of OpenWrt One | |
SoC | MediaTek MT7981B (Filogic 820) dual-core Cortex-A53 processor @ 1.3 GHz |
System Memory | 1GB DDR4 |
Storage | 256 MB SPI NAND flash for U-boot and Linux |
16 MB SPI NOR flash for write-protected (by default) recovery bootloader (reflashing can be enabled with a jumper) | |
Two types of flash devices are used to make the board almost unbrickable | |
M.2 2242/2230 socket for NVMe SSD (PCIe gen 2 x1) | |
Networking | 1 x 2.5GbE RJ45 port |
1 x Gigabit Ethernet RJ45 port | |
Dual-band WiFI 6 via MediaTek MT7976C (2×2 2.4 GHz + 3×3/2×2 + zero-wait DFS 5Ghz) | |
3x MMCX antenna connectors | |
USB | 1x USB 2.0 Type-A host port |
USB Type-C (device, console) port using Holtek HT42B534-2 UART to USB chip | |
Expansion | MikroBUS socket for expansion modules |
Debugging | Console via USB-C port or 3-pin header, 10-pin JTAG/SWD header for main SoC |
RTC | support RTC onboard |
Misc | Reset and User buttons |
Boot select switch: NAND (regular) or NOR (recovery) | |
2x PWM LEDs, 2x Ethernet LED (GPIO driven) | |
EM6324 External hardware watchdog | |
NXP PCF8563TS (I2C) RTC with battery backup holder for CR1220 coin-cell | |
Power Supply | 15V USB-PD on USB-C port |
Optional 802.3at/af PoE via RT5040 module | |

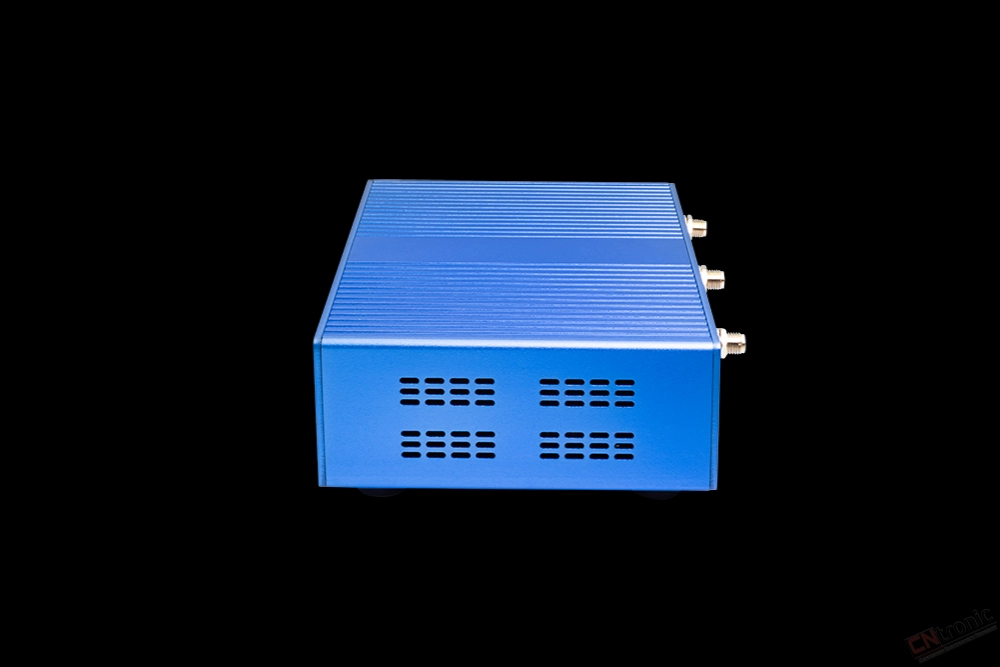

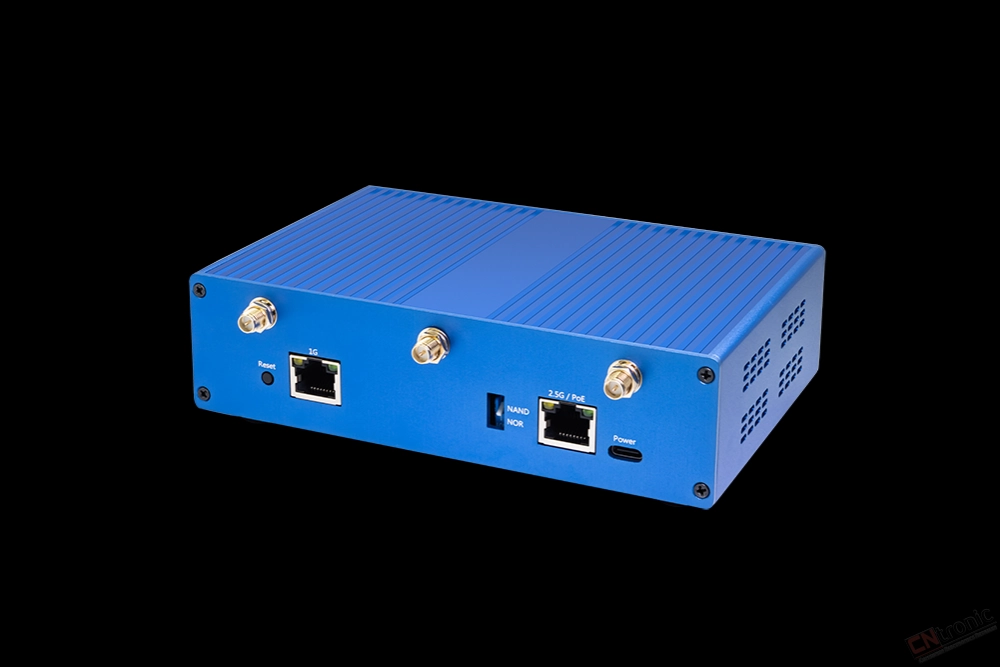

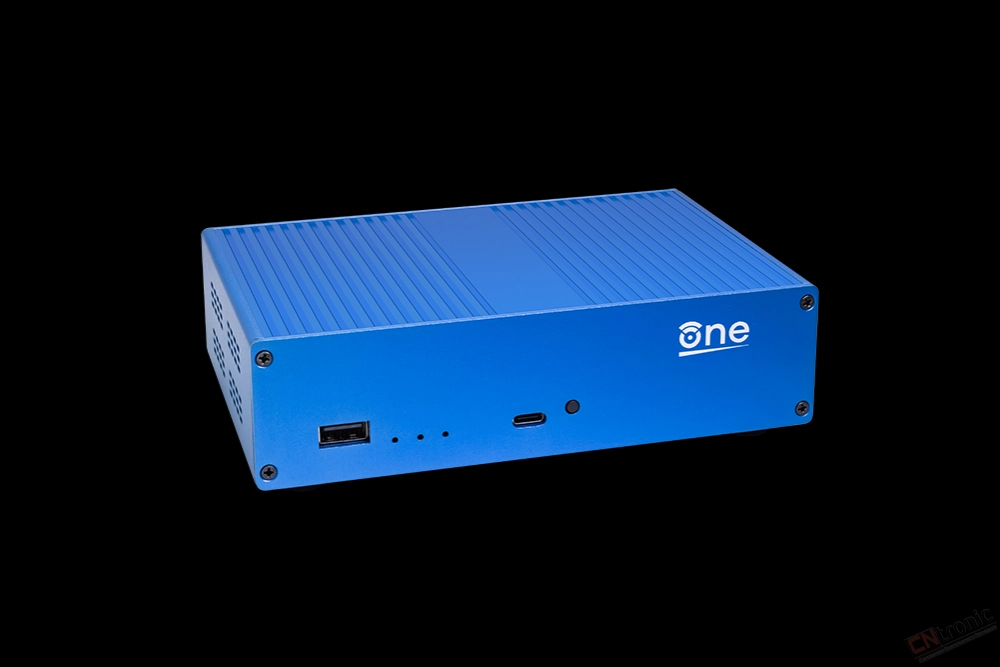

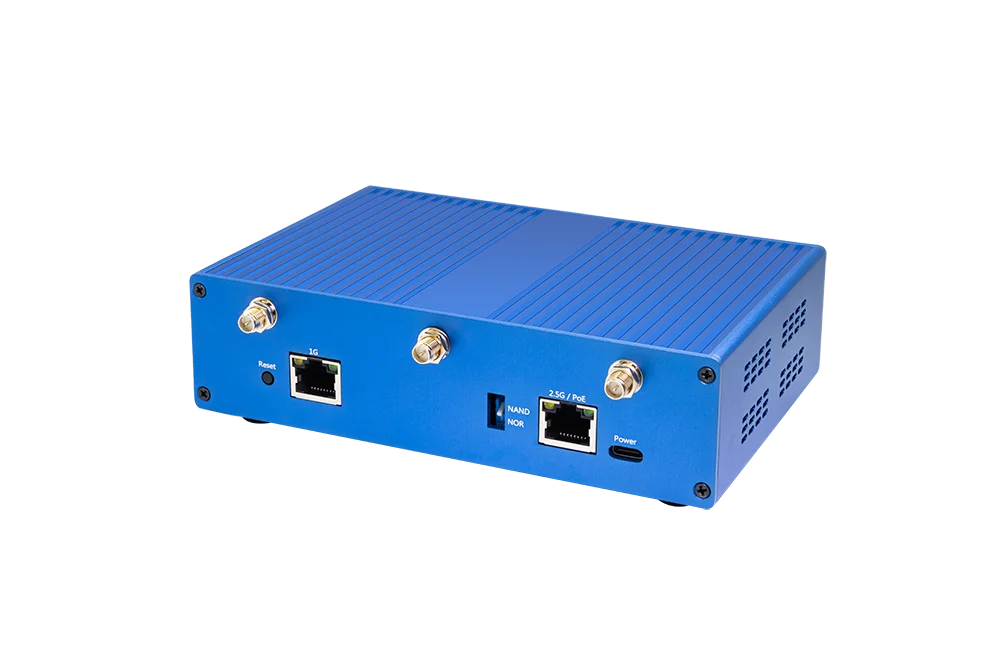

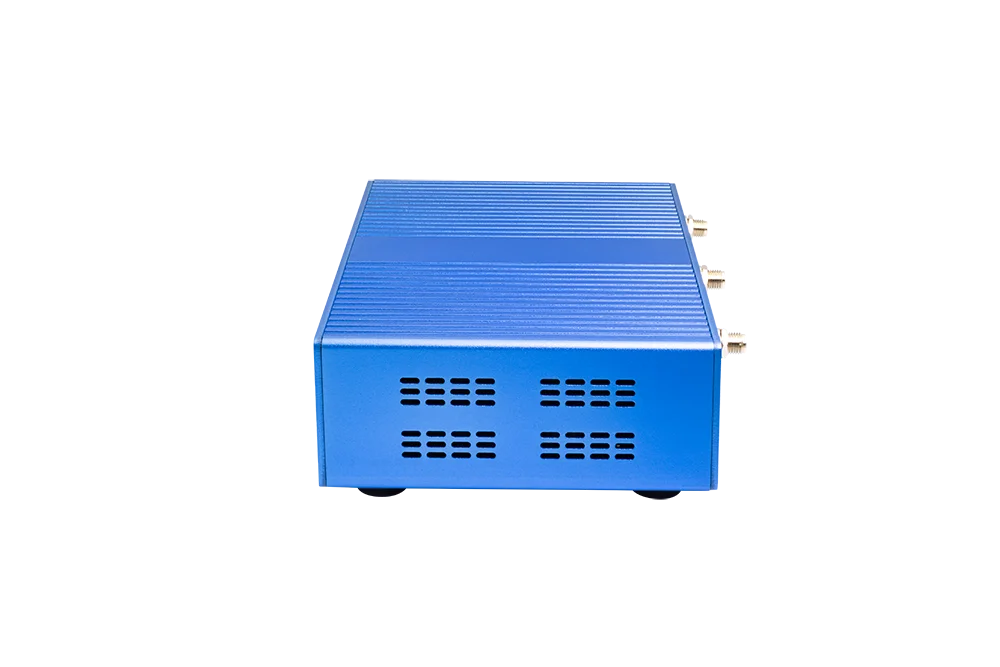

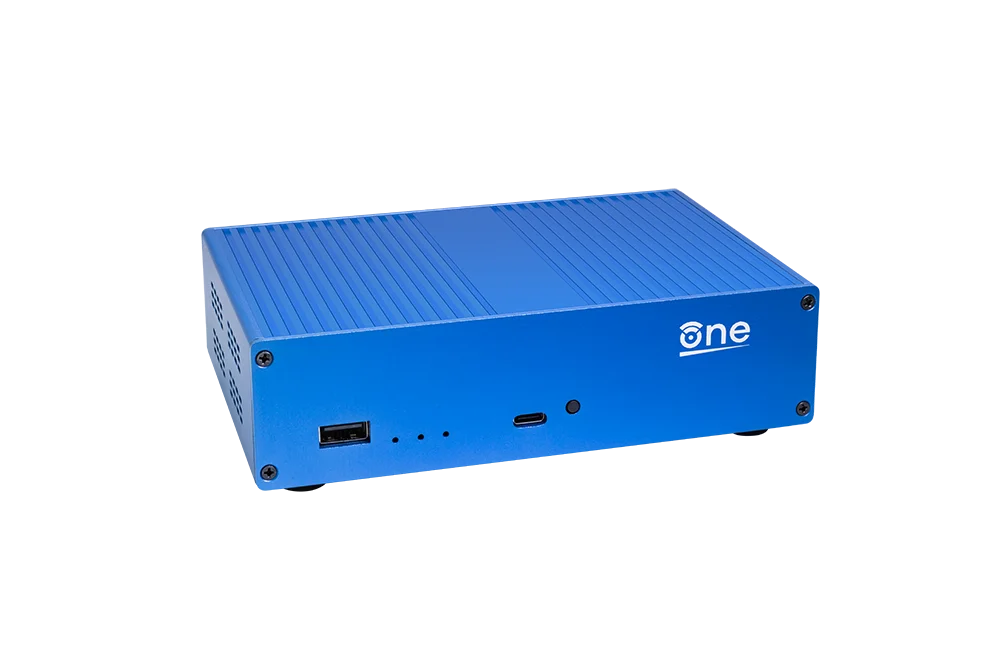

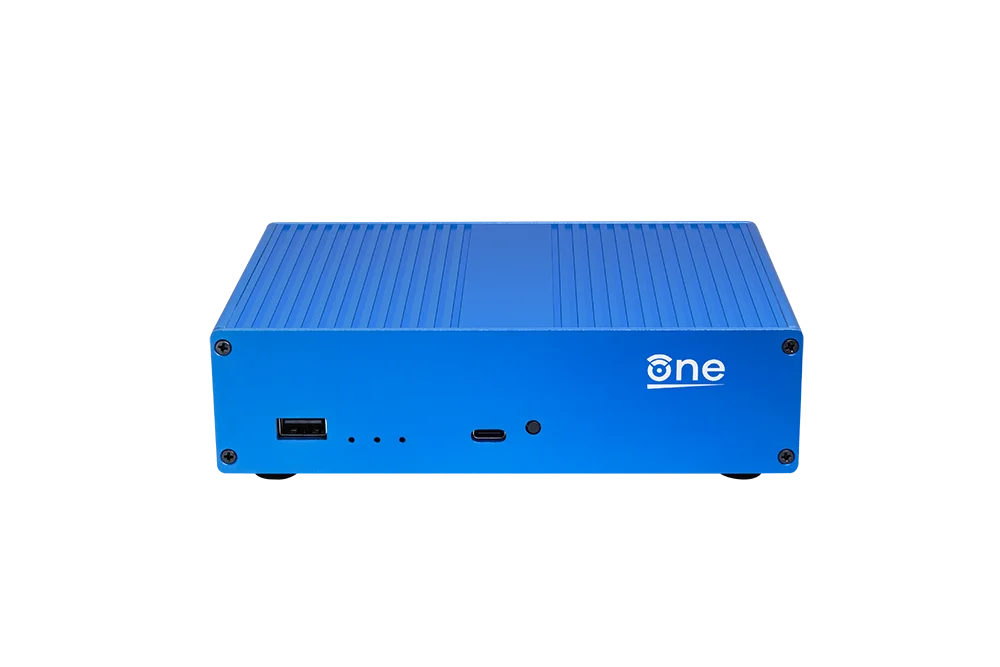

Dimensions | 148 x 100.5 mm compatible with Banana Pi BPI-R4 case design |
Certifications | FCC/EC/RoHS compliance |
Packaging Details
- Unit Type:
- Package Weight: 0.650
- Package Size: 10x8x15
- Brand Name: cbhioarpd
- Demo Board Type: ARM
- Hign-concerned Chemical: None
- Battery Included: No
- Origin: Mainland China
